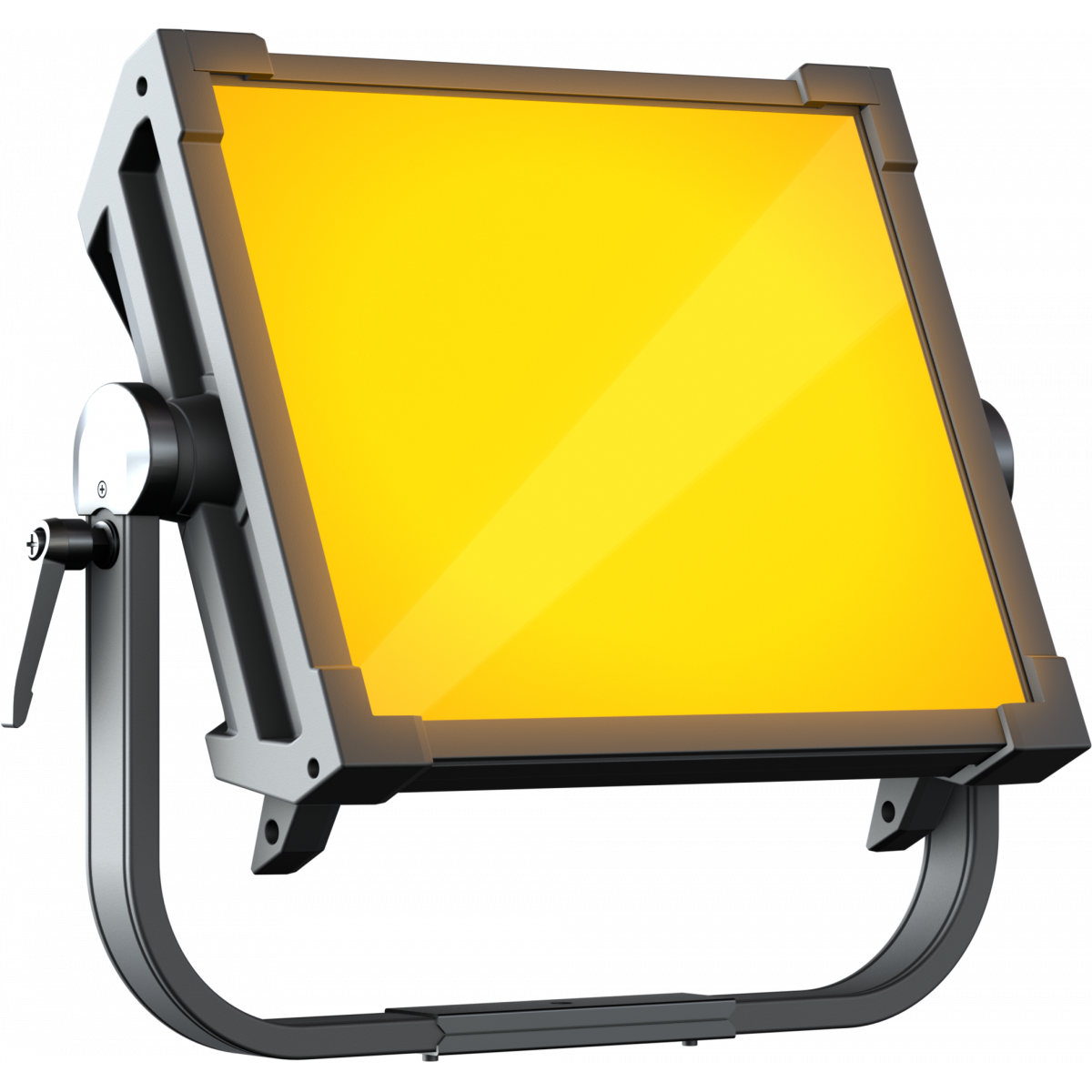

EclPanel TWCJr

ORDER CODE: ECLPANELTWCJR

370W Tunable White and colourful LED soft light with pixels and lighting effects (driven @ 220W)

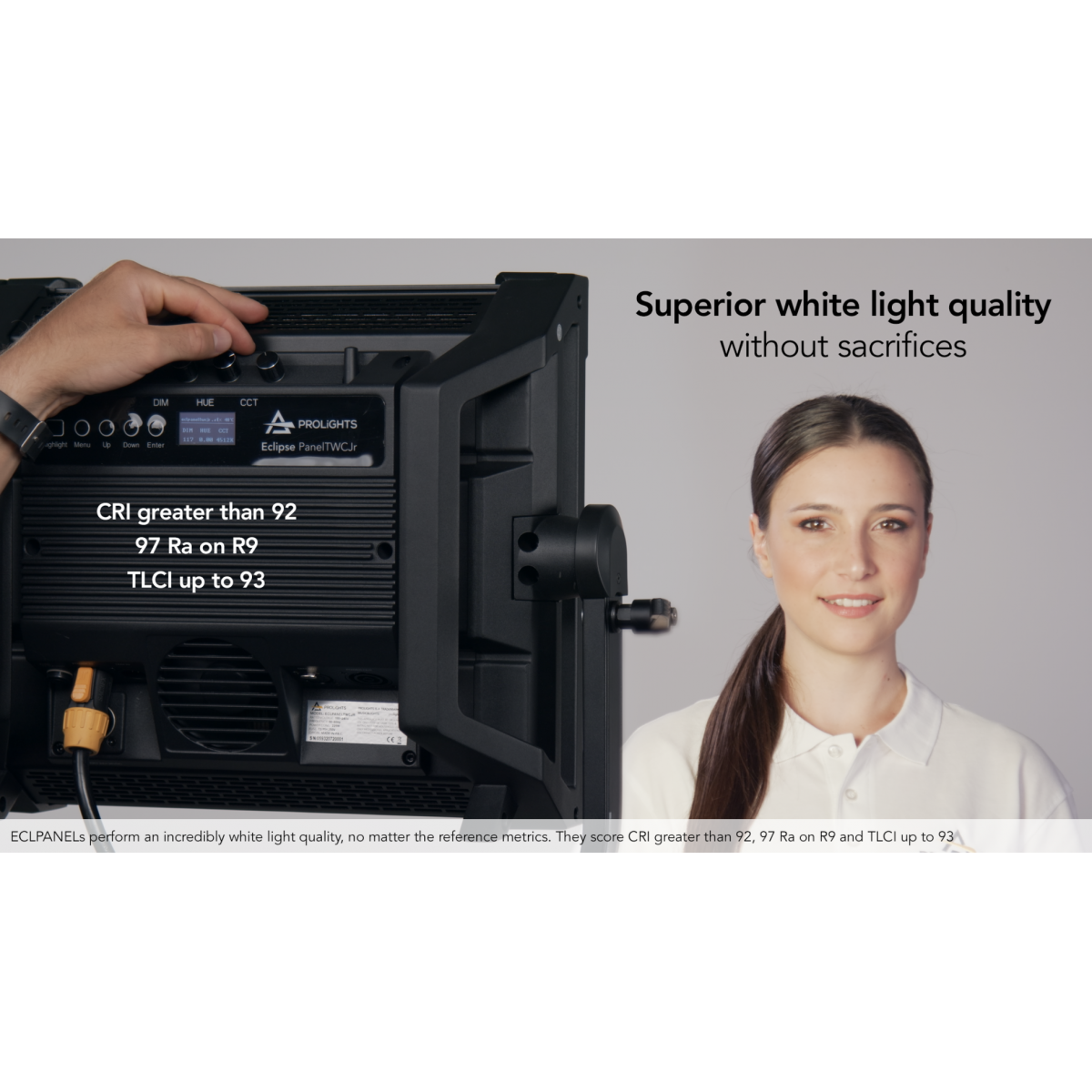

EclPanel TWCJr, is the compact 1x1 LED soft light that provides a beautiful, wide source of soft and precise colours. In addition to this, the PROLIGHTS EclPanel TWCJr comes with a full range of white reproductions, from daylight through to tungsten tones, reaching a superior light quality with high CRI, TLCI and TM-30.

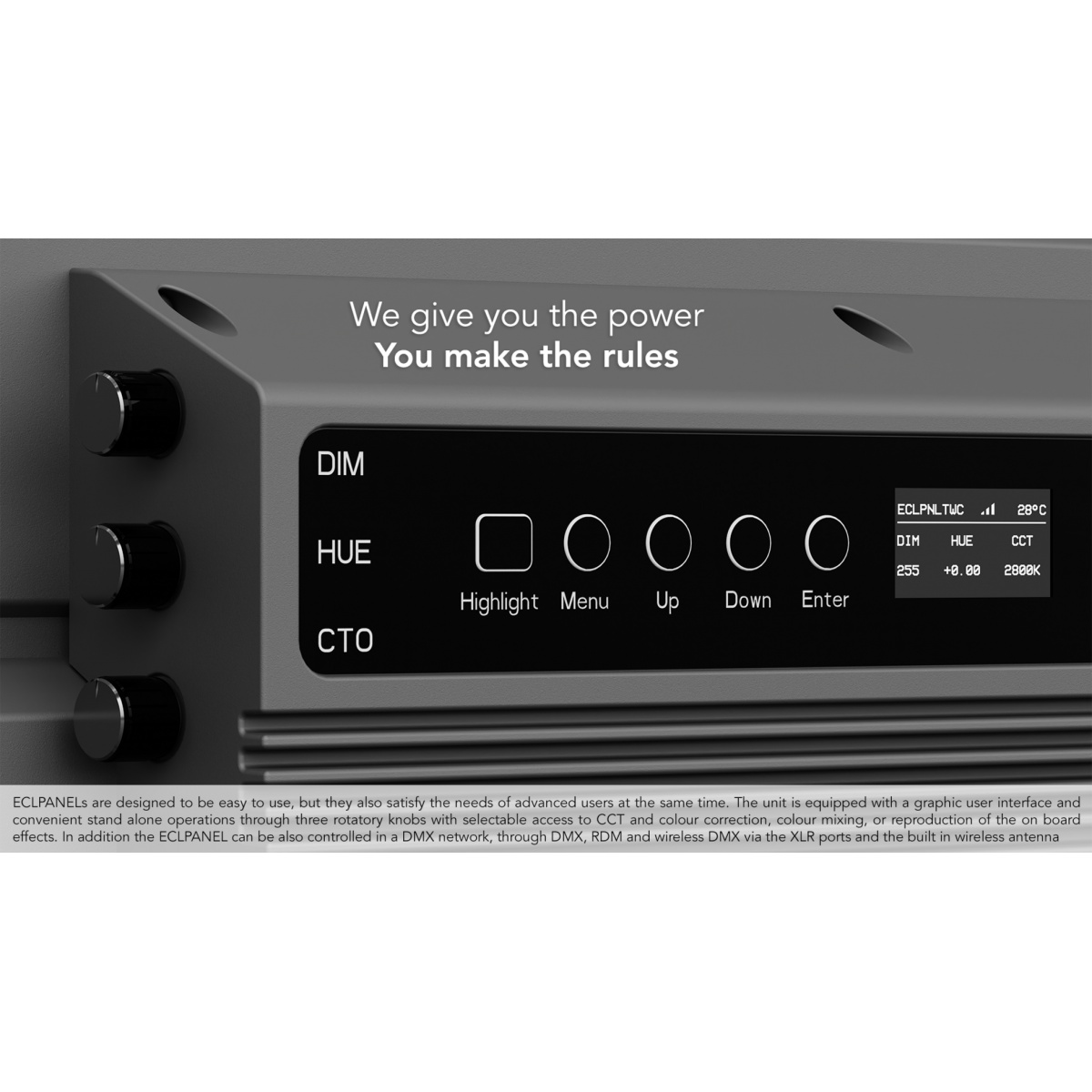

The EclPanel TWCJr allows for quick and accurate local adjustment of light through 3 rotatory knobs with three fully featured modes: CCT with +/- green shift, HSI for total control of hue, saturation and intensity, FX mode to access the on board pixel cinema effects.
The unit can also be controlled on a per-section basis, allowing for reproduction of onboard customisable effects or to be self-made through the lighting desk.
Both methods provide eye-candy, with the appealing and modern front looks and cinematic special effects.
The unit is designed with an onboard driver and built-in power supply and, being lightweight, the EclPanel TWCJr offers easy rigging and cabling making it the perfect lighting tool for every location.

Main features:

  • 370W RGB + Warm White LED source (driven @ 220W)
  • CRI > 94; R9 > 88,8; TLCI > 92

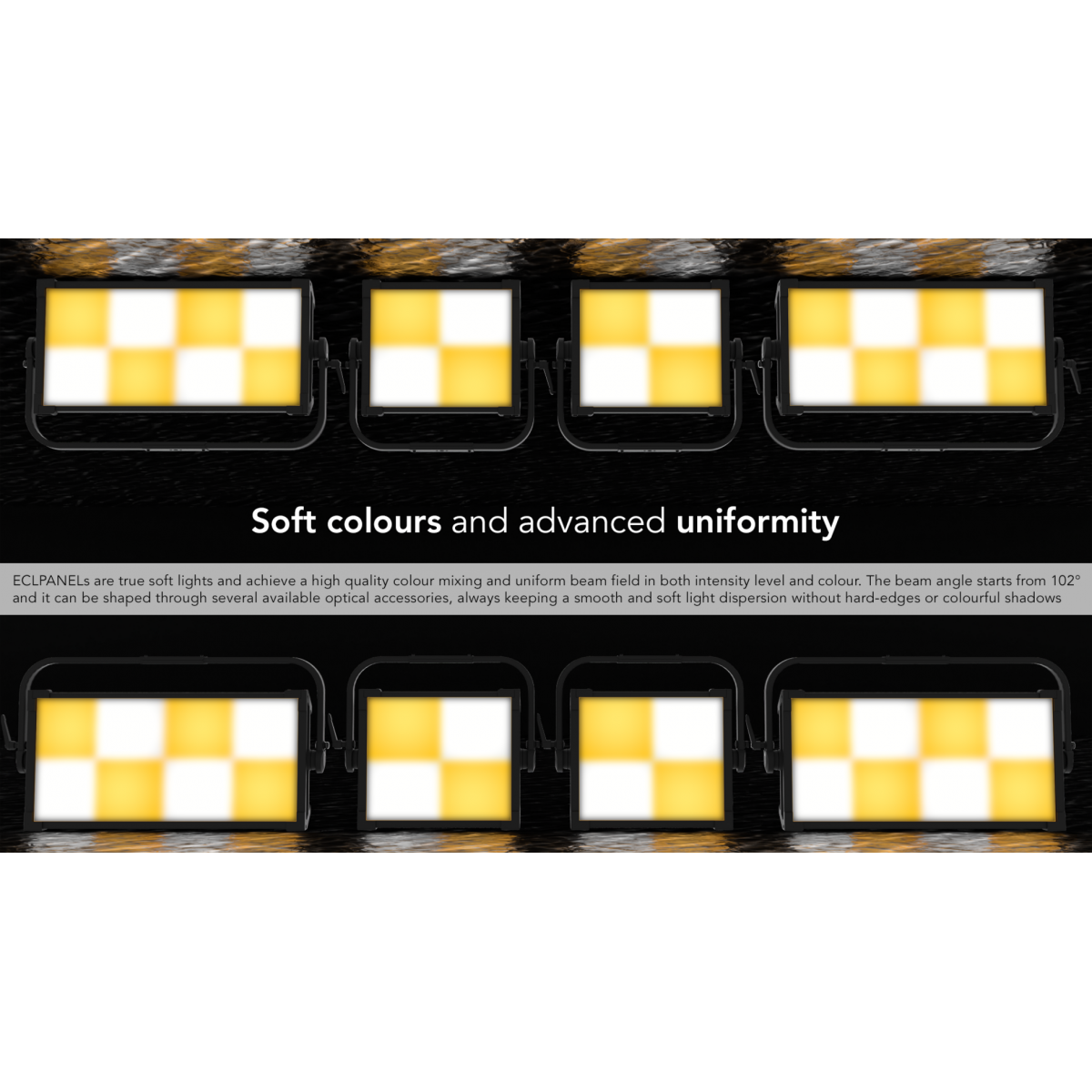

  • 4 section pixel control and built-in lighting effects for cinema applications
  • Silent operation with multiple fan modes

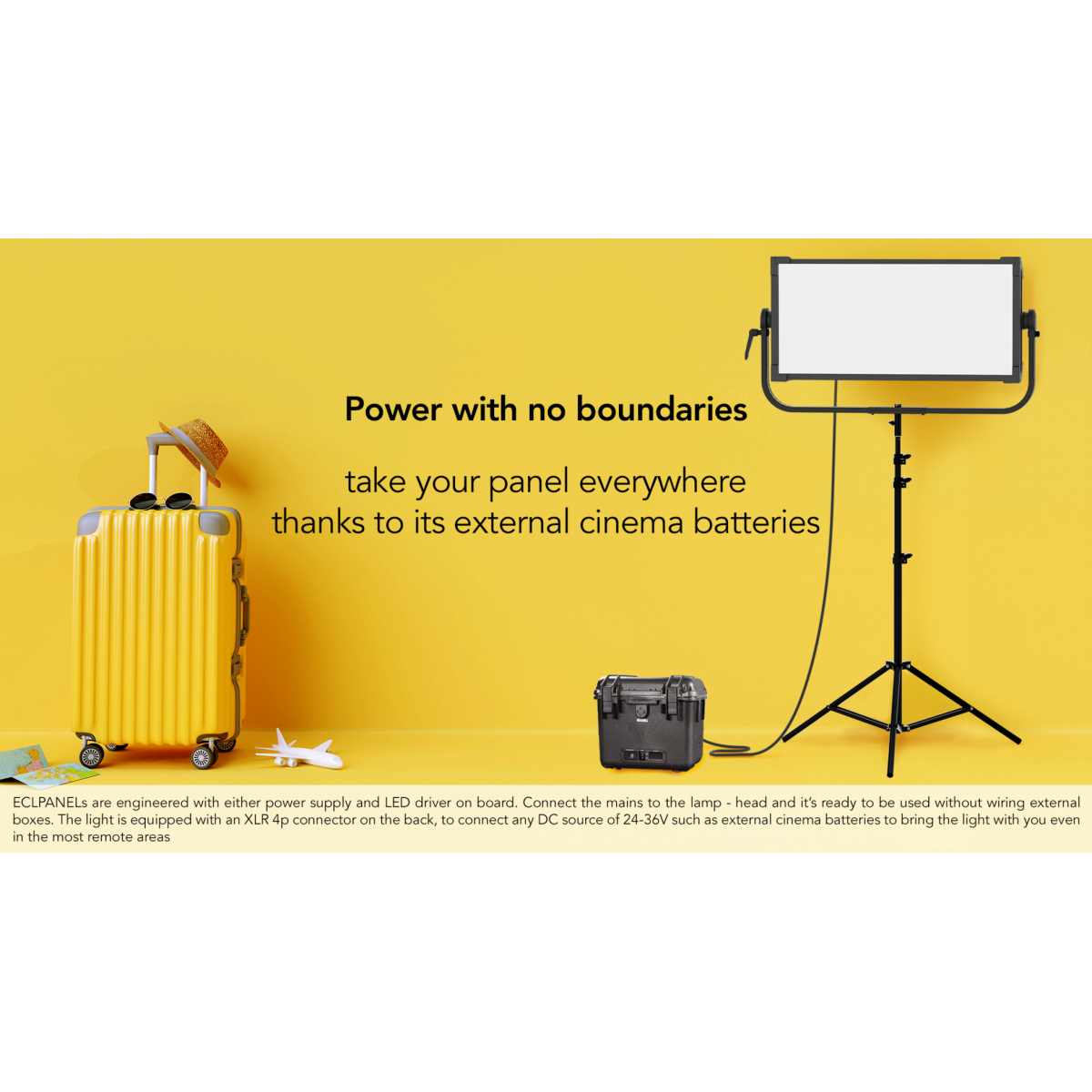

  • Battery connection (4pXLR 24-36V): compatible with industry standard external batteries (optional)
See variants

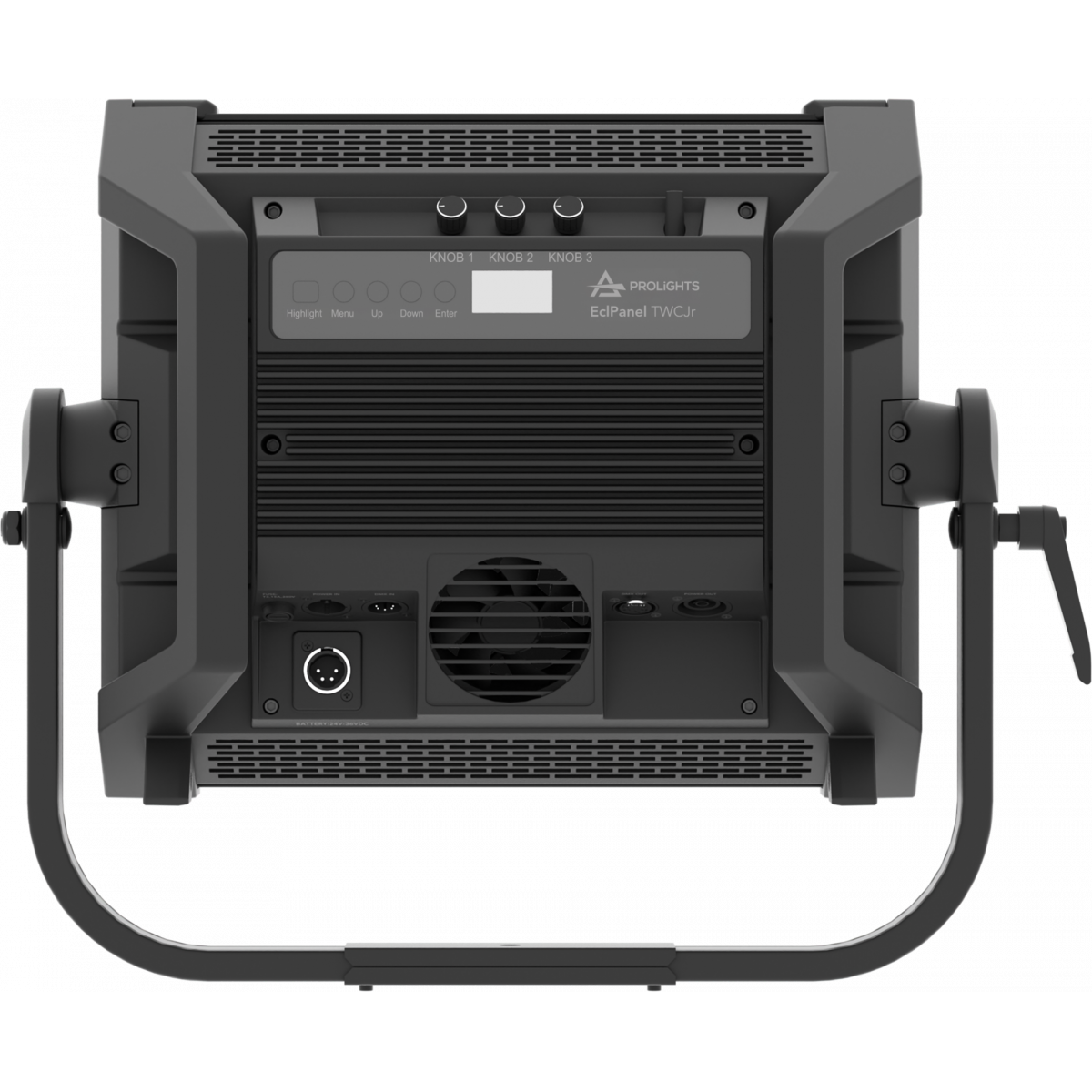

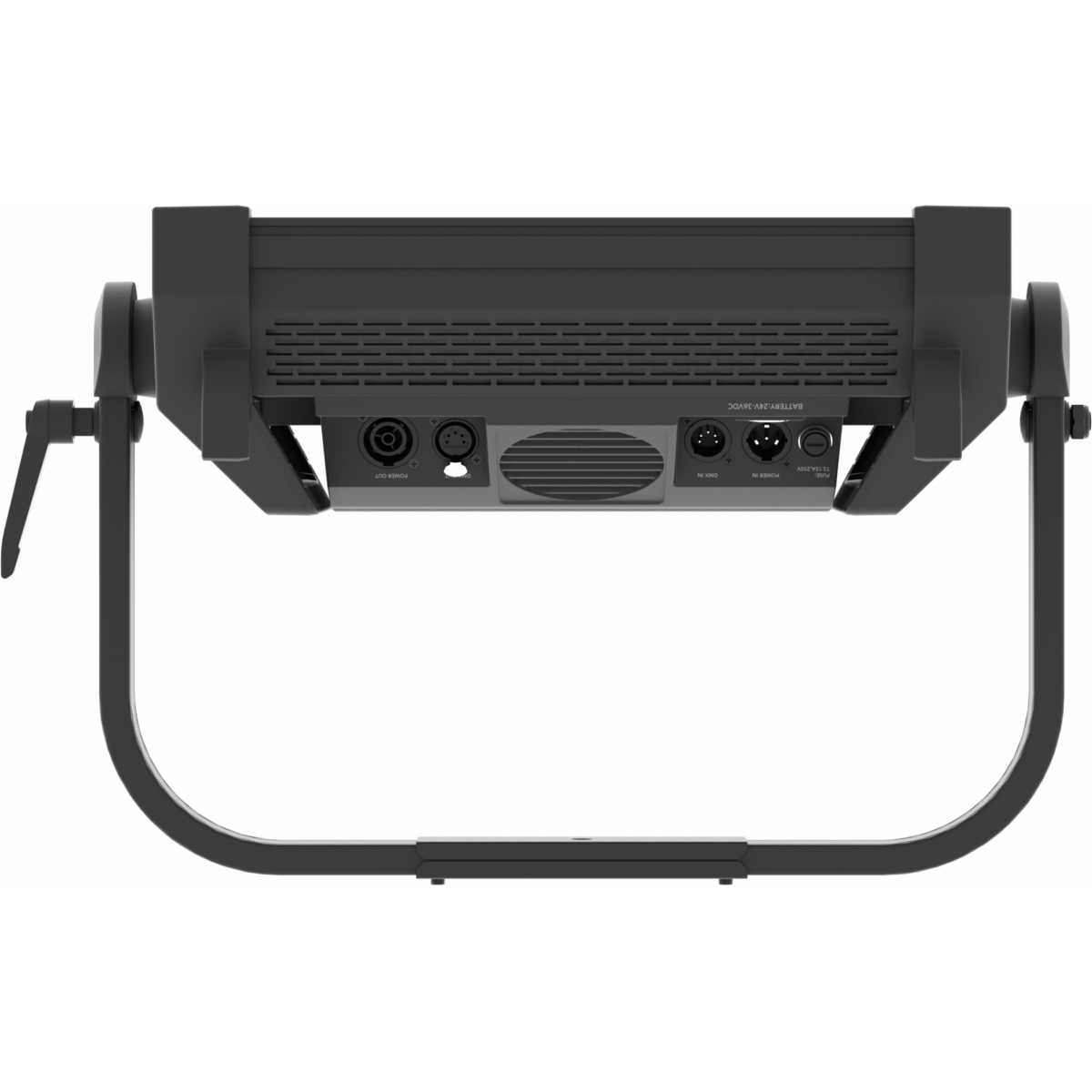

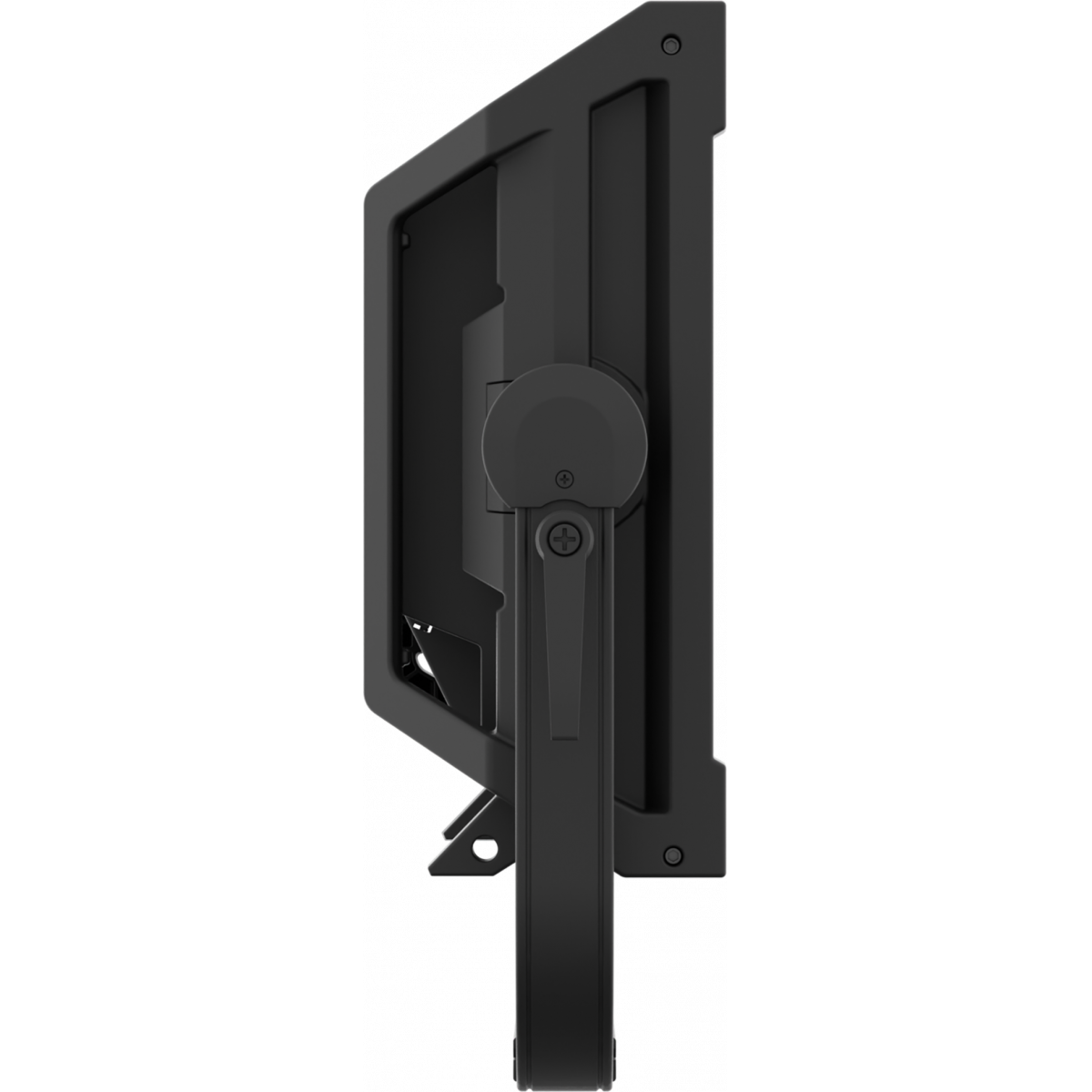

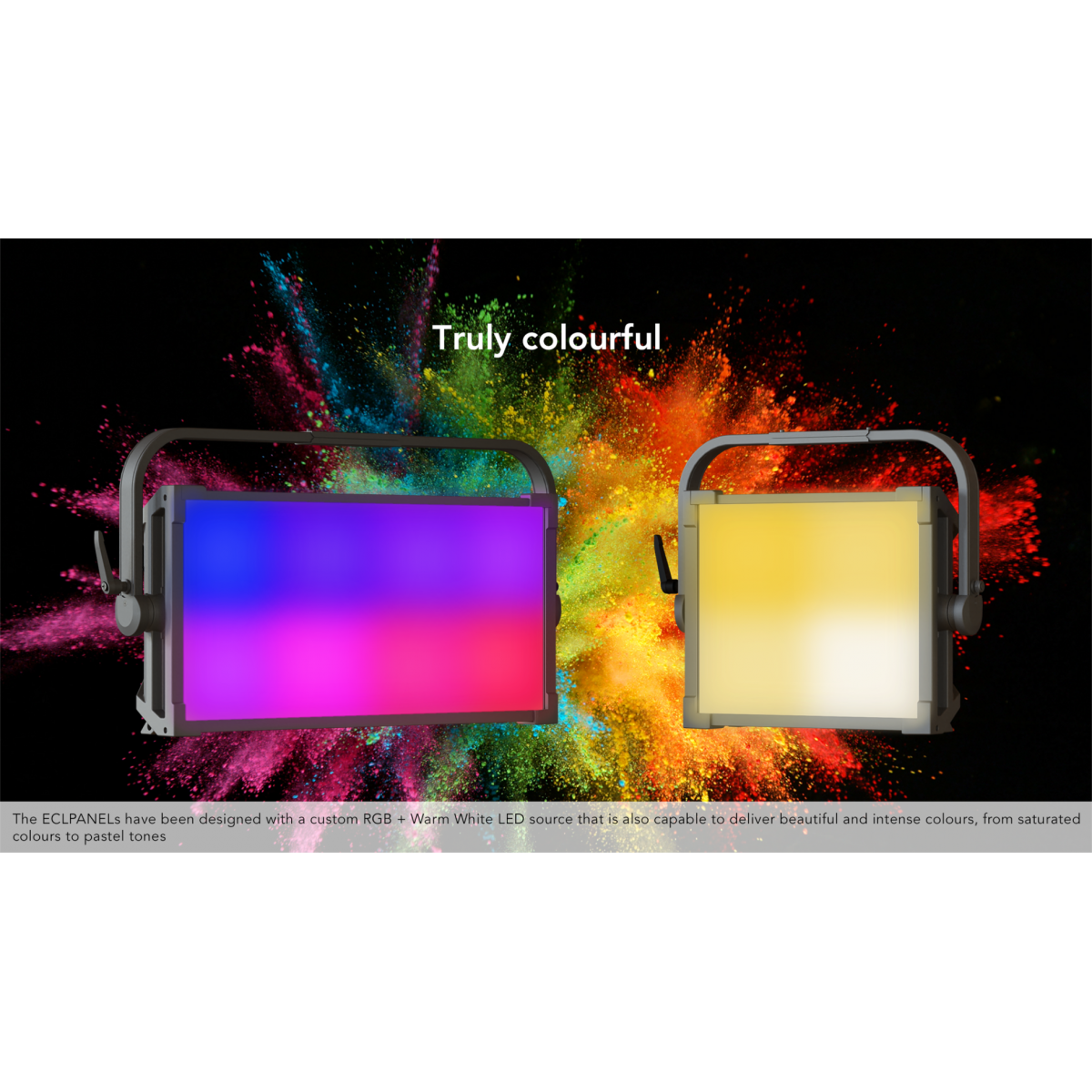

PHOTO GALLERY

<b>EclPanel</b> TWCJr
<b>EclPanel</b> TWCJr
<b>EclPanel</b> TWCJr
<b>EclPanel</b> TWCJr
<b>EclPanel</b> TWCJr
<b>EclPanel</b> TWCJr
<b>EclPanel</b> TWCJr
<b>EclPanel</b> TWCJr
<b>EclPanel</b> TWCJr
<b>EclPanel</b> TWCJr
<b>EclPanel</b> TWCJr
<b>EclPanel</b> TWCJr
<b>EclPanel</b> TWCJr

Technical specifications

LIGHT SOURCE
  • Source: 370W RGB + Warm White LEDs (driven @ 220W)
  • Luminous flux: 17'109lm @4.000 K with LD filter
  • Lux: @4000K, 265lx @5 m
  • CRI: 90 @3.200 K; 94 @5.600 K
  • R9: 84,1 @3.200 K; 88,8 @5.600 K
  • TLCI: 92 @5.600 K
  • TM30 Rf: 90 @3.200 K; 89,4 @5.600 K
  • TM30 Rg: 105 @3.200 K; 104 @5.600 K
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 102°
  • Field angle: 158°
  • Lens type: medium density diffusion panel (interchangeable)
  • Additional optics: see available accessories
COLOUR SYSTEM
  • Colour control: XY, CCT, RGBW, Gel, HSI, Source Emulation, colour macros, CTO on colours
  • Colour mixing: RGB + Warm White

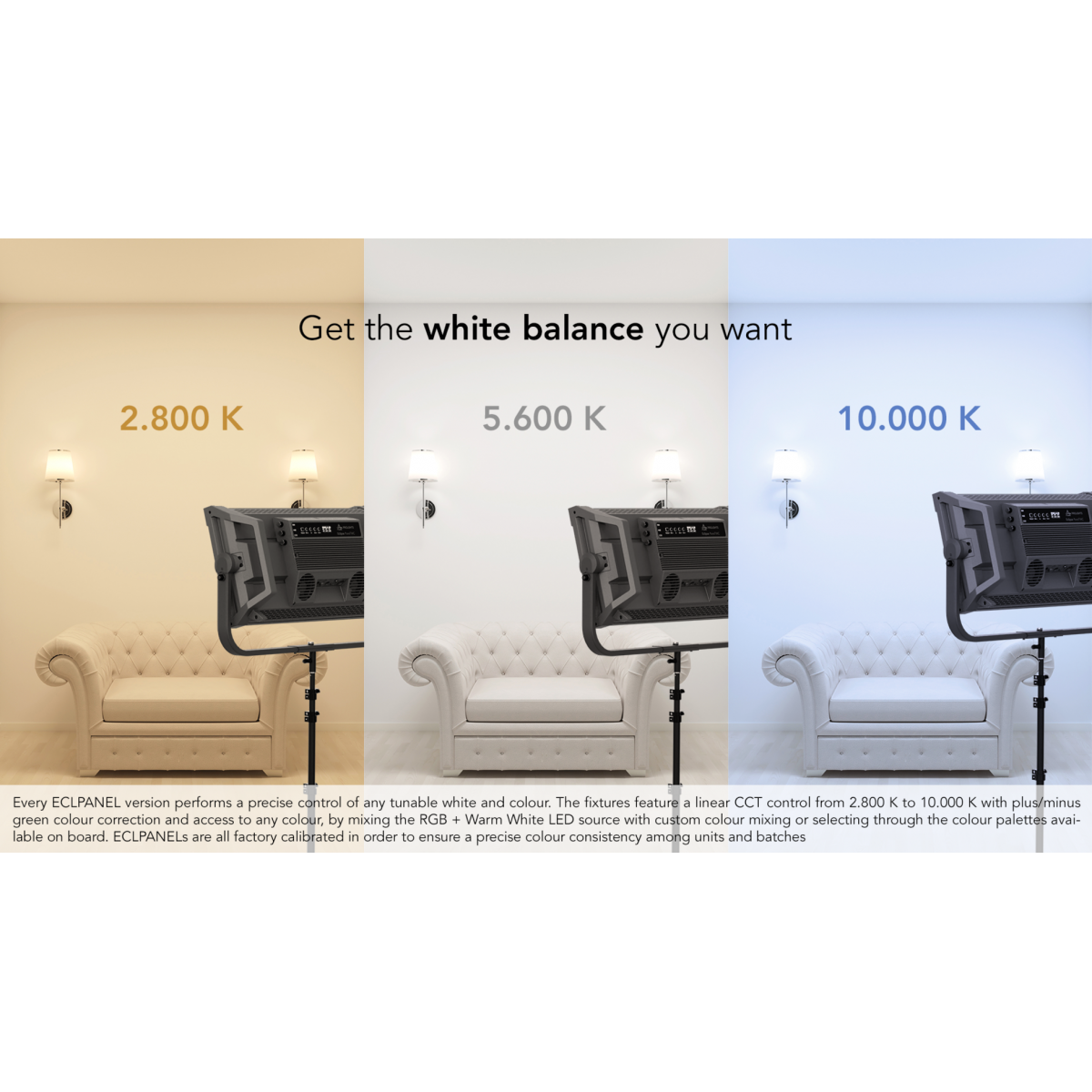

  • CCT: CCT control range from 2.200K to 15.000K, + / - green correction, tungsten emulation
  • White presets: 2.800 K - 10.000K with 28 K resolution
  • Colour wheel: virtual colour wheel with macros
  • Macros: Gels library on-board
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer, colours
  • Pixel patterns: pre-programmed pixel macros and cinema lighting effects patterns
  • Special features: linear crossfade channel from any white to any colour; virtual CTO on colours
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: black
CONTROL
  • Protocols: DMX512, RDM, W-DMX, rotatory knob
  • Stand Alone: selectable mode through 3 rotatory knobs
  • Pixel control: 4 section control
  • Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 40.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Low Voltage DC mains: 24-36V
  • Max power consumption: 230W
  • Output (at 230V): 10 units on a single power line
  • Power factor: >0,97
  • Inrush current: 230VAC/10.7A, 100VAC/11.2A
PHYSICAL
  • IP rating: 20
  • Cooling: active, silent operation
  • Suspension and fixing: bracket for hanging and positioning
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
  • Low Voltage DC connector: XLR 4p
  • Dimensions (WxHxD): 529x432x144mm / 20.83''x17.01''x5.67''
  • Dimensions with PO system (WxHxD): 546x556x144mm / 21.5''x21.89''x5.67''
  • Weight: 10,5kg / 23.15lbs
  • Weight with PO system: 11,8kg / 26.01lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

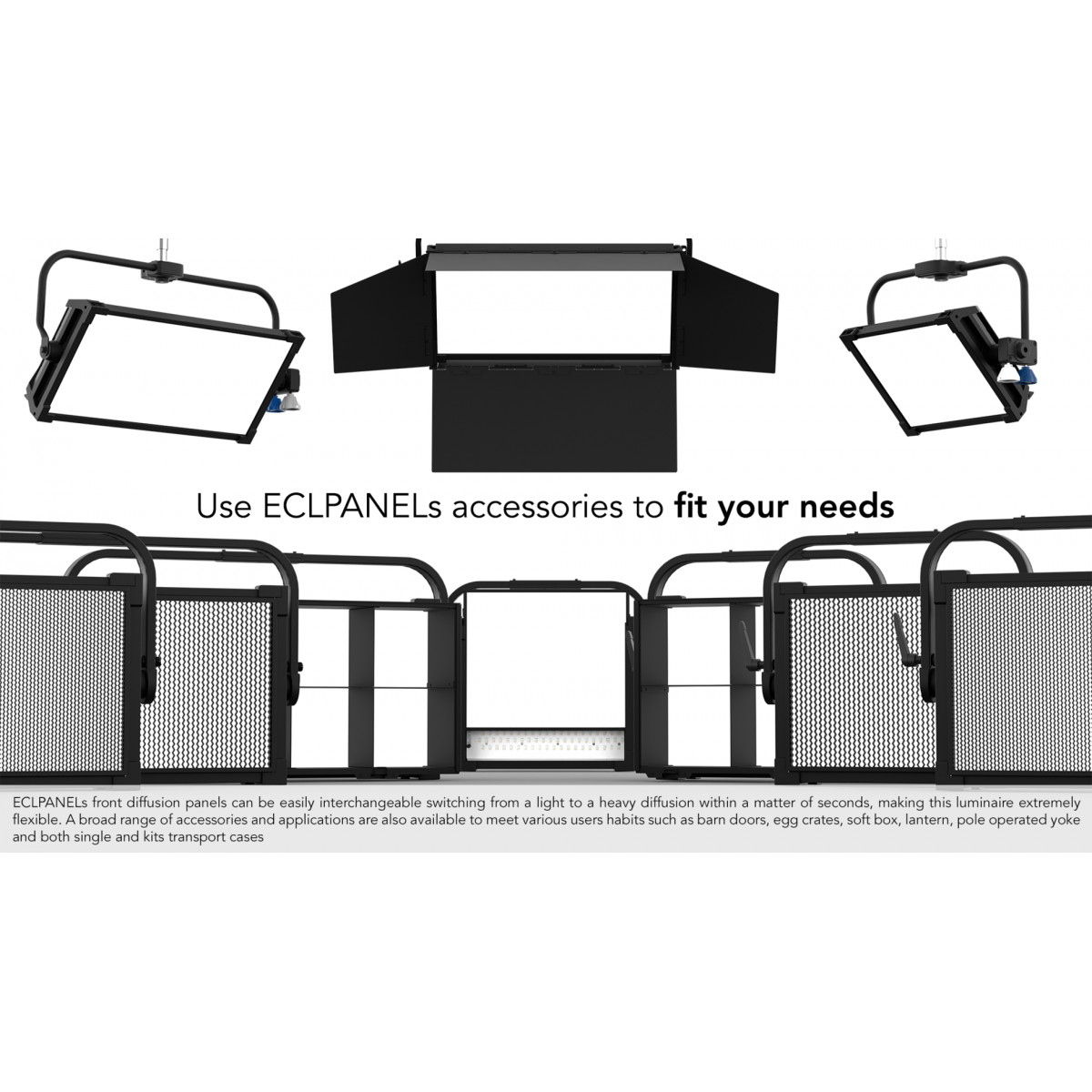

Accessories & Related Products

WSBBR512G6
WSBBR512G6
(optional)
BlackBox R-512 G6 receiver 512Ch, 2.45GHz,DMX&RDM,Bluetooth,G3,G4,G4S,G5,CRMX
WSBBF1G6
WSBBF1G6
(optional)
BlackBox F-1 G6 transrec, 512ch, 2.45GHz, DMX&RDM,Bluetooth,G3,G4,G4S, G5, CRMX
WSBBF1G5
WSBBF1G5
(optional)
BlackBox F-1 G5 transmitter, 2,45GHz & 5.2/5,8 GHz, DMX/RDM, 512Ch
TOUR53415L03
TOUR53415L03
(optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
958225L03
958225L03
(optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
9513FXWL03
9513FXWL03
(optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m

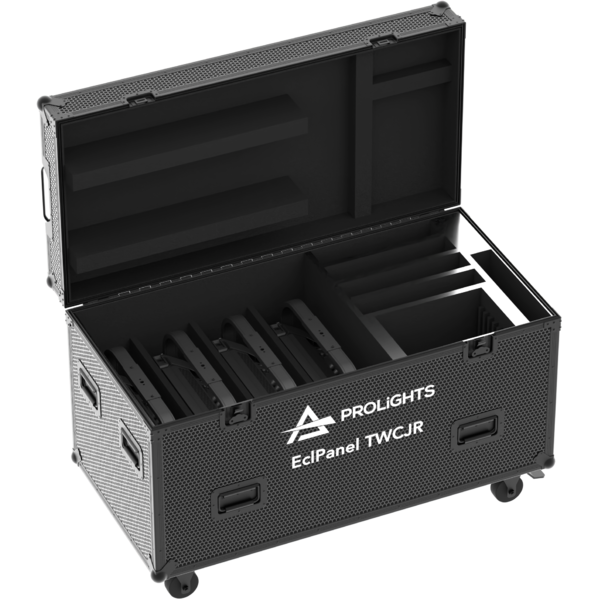

FCLPANELJR4U
FCLPANELJR4U
(optional)

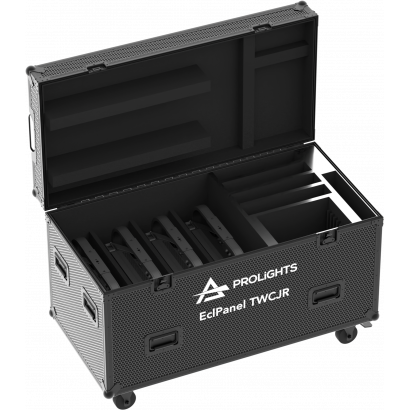

Flight case for 4 pcs of ECLPANELTWCJR
9533FXWL03
9533FXWL03
(optional)
Ass. 3x2.5mm TH07 cable, SHUKO plug, MENAC3FXW socket, L.3m
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
C6040B
C6040B
(optional)
Aluminum clamp for 28mm spigot, 200kg load, 48-51mm tubes, black

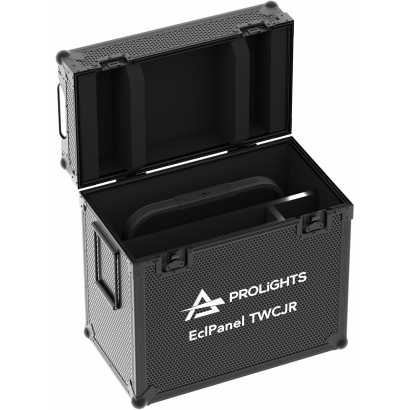

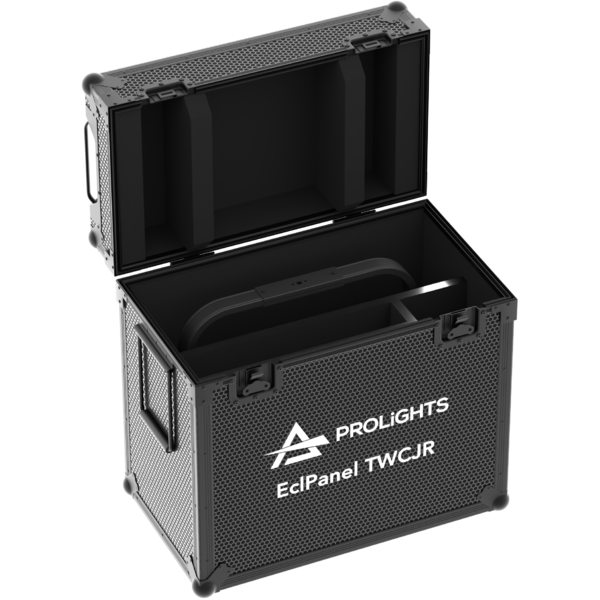

FCLPANELJR1U
FCLPANELJR1U
(optional)
Flight case for 1 pc of ECLPANELTWCJR
EPTWCJRRC
EPTWCJRRC
(optional)

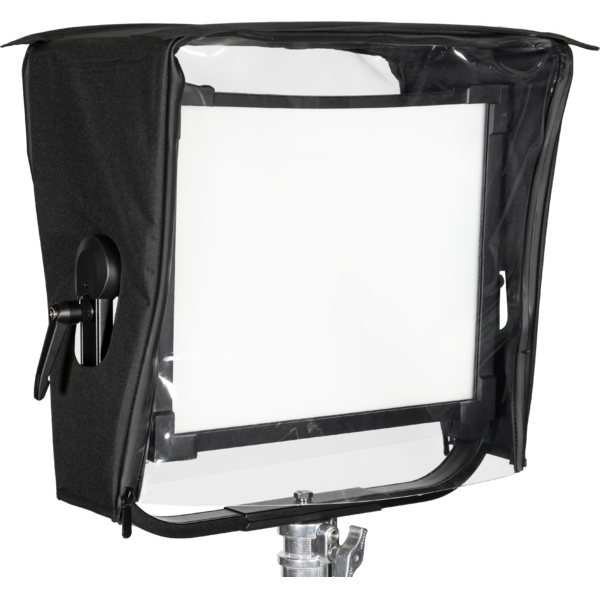

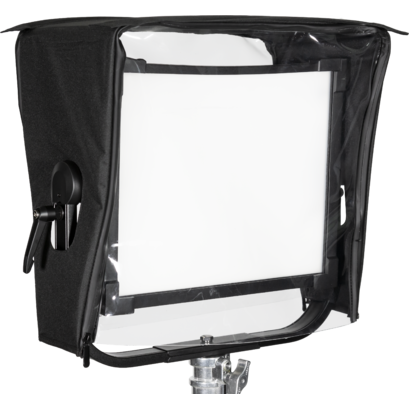

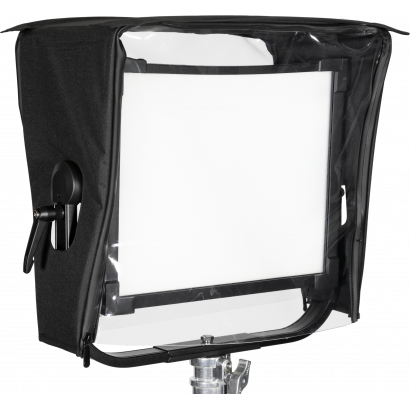

Rain Cover for ECLPANELTWCJR

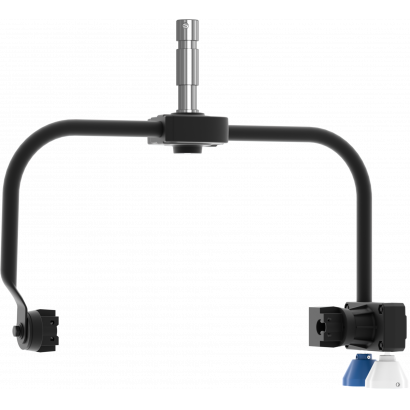

ECLPANELJRPOYO
ECLPANELJRPOYO
(optional)

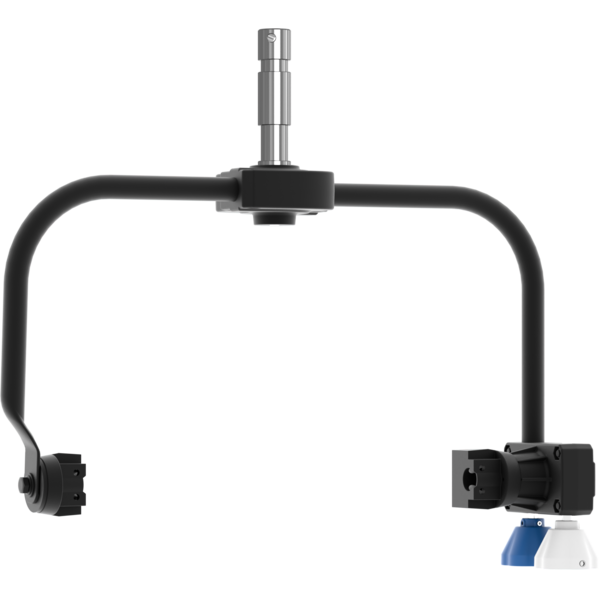

Pole operated aluminium yoke bracket for ECLPANELTWCJR

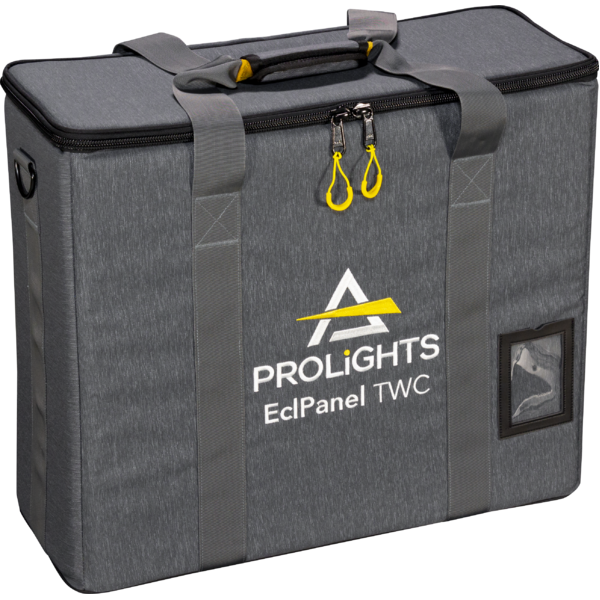

EPTWCJRBAG1U
EPTWCJRBAG1U
(optional)

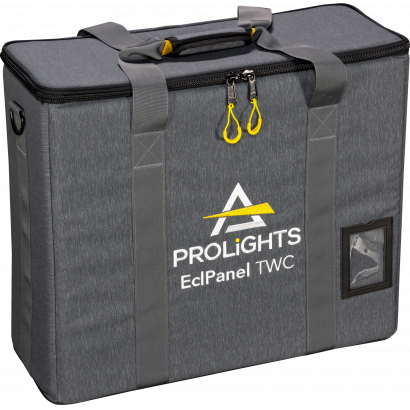

Bag for 1 pc of ECLPANELTWCJR

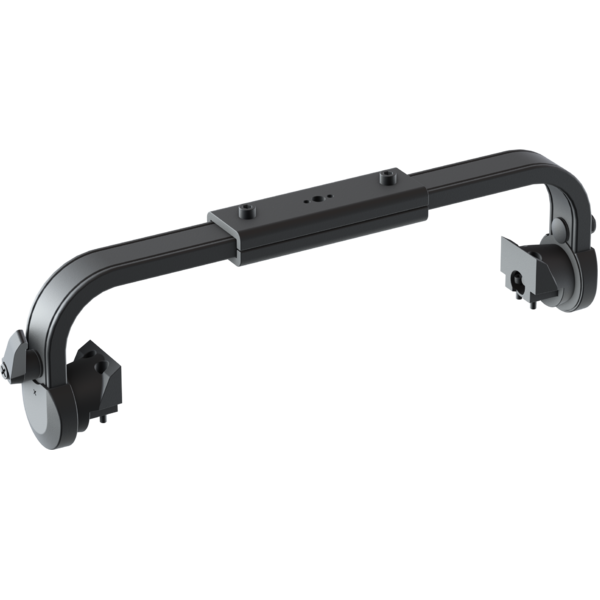

EPTWCBRKM
EPTWCBRKM
(optional)

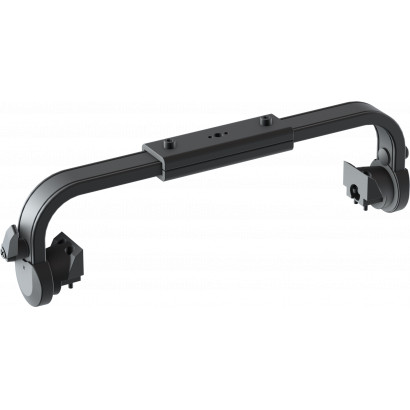

Center mount bracket for ECLPANELTWCJR and ECLPANELTWCM2X1
EPTWCBHEAD
EPTWCBHEAD
(optional)

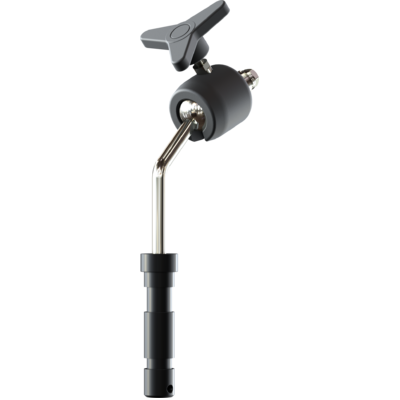

Ball head joint for center mount bracket EPTWCBRK series

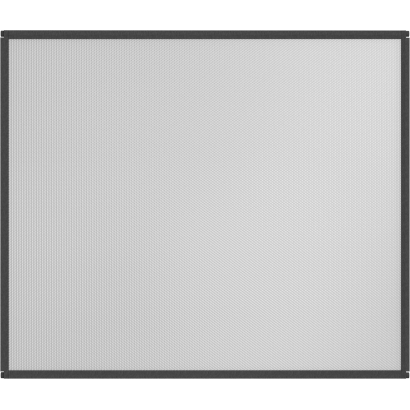

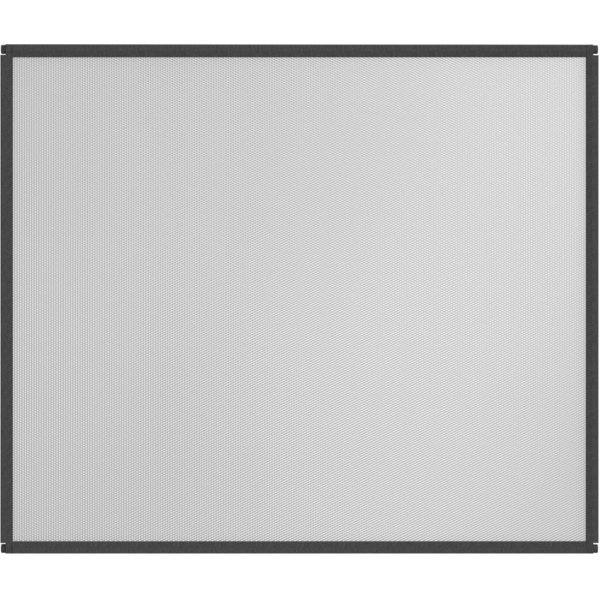

EPTWCJRFILTERINT
EPTWCJRFILTERINT

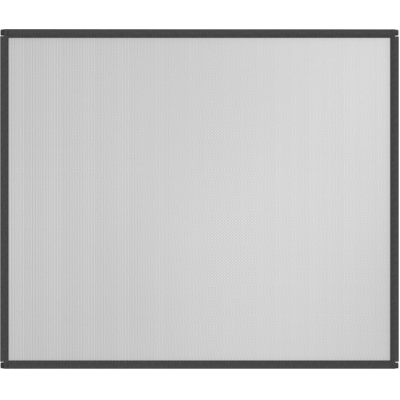

(optional)
Front intensified diffusion filter for ECLPANELTWCJR
EPTWCJRFILTERHD
EPTWCJRFILTERHD
(optional)
Front high diffusion filter (less output) for ECLPANELTWCJR
EPTWCJRFILTERMD
EPTWCJRFILTERMD
(included)

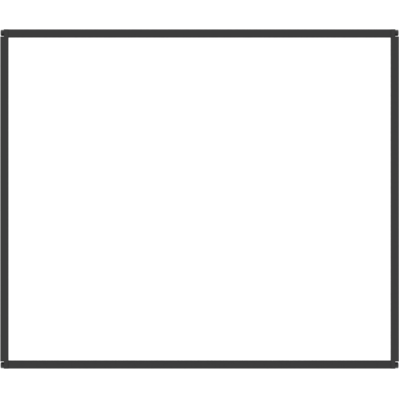

Front medium diffusion filter for ECLPANELTWCJR

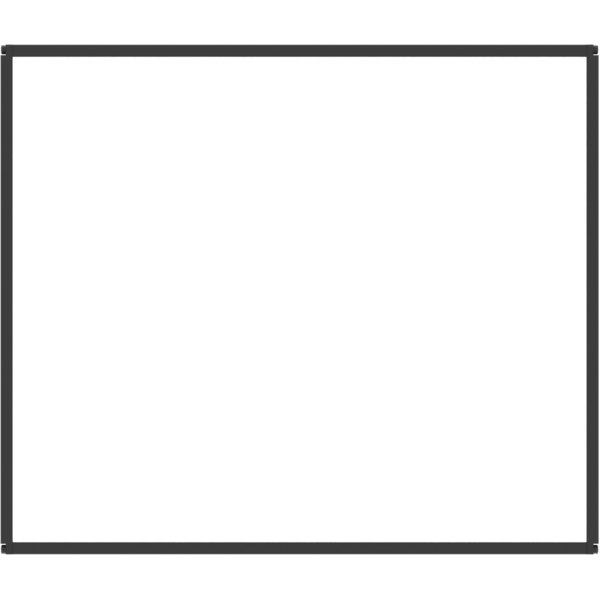

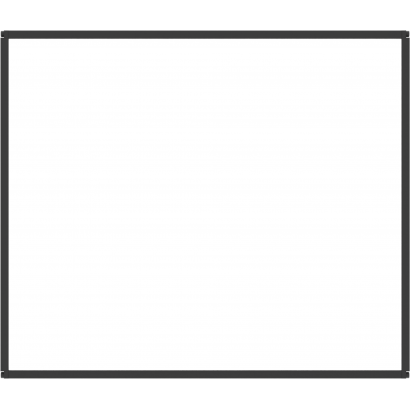

EPTWCJRFILTERLD
EPTWCJRFILTERLD
(optional)
Front low diffusion filter (more output) for ECLPANELTWCJR
ECLFRSPG
ECLFRSPG
(included)
Spigot for PROLIGHTS fixtures
EPTWCJREC30
EPTWCJREC30
(optional)

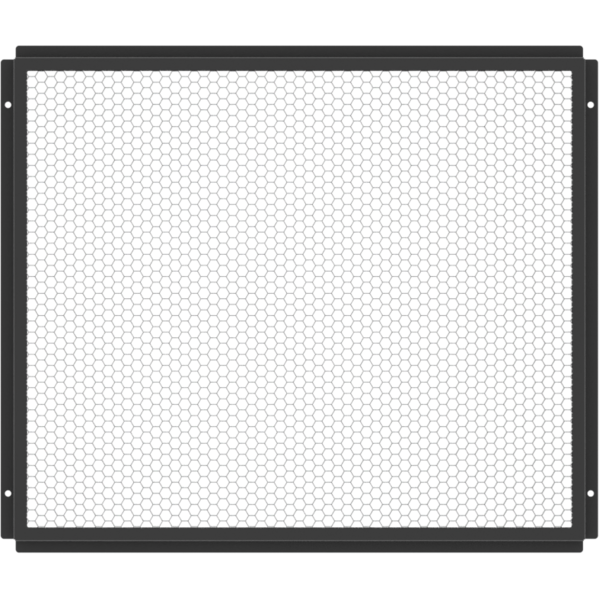

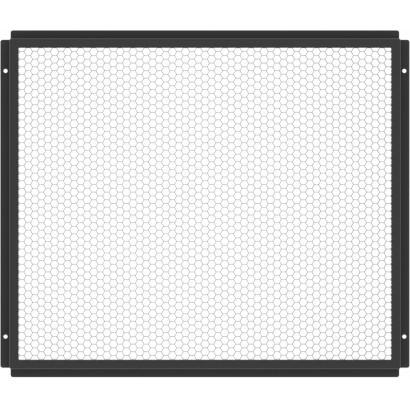

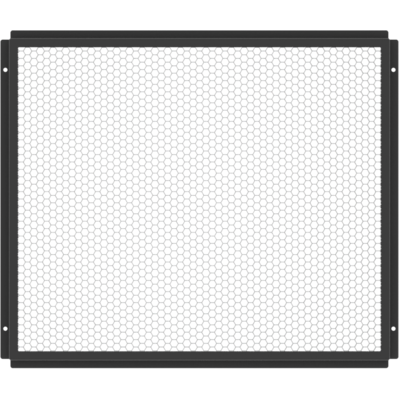

30 degree egg crate for ECLPANELTWCJR
EPTWCJREC60
EPTWCJREC60

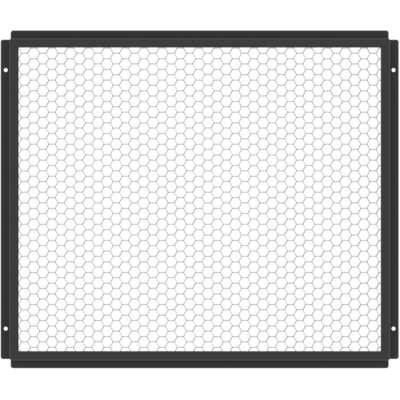

(optional)

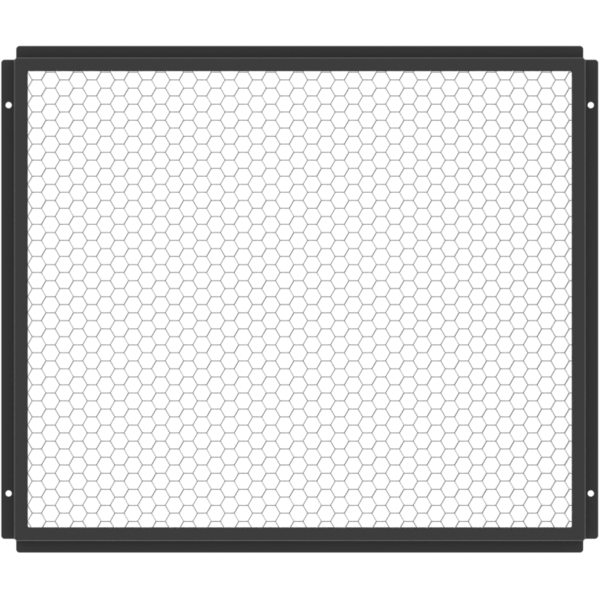

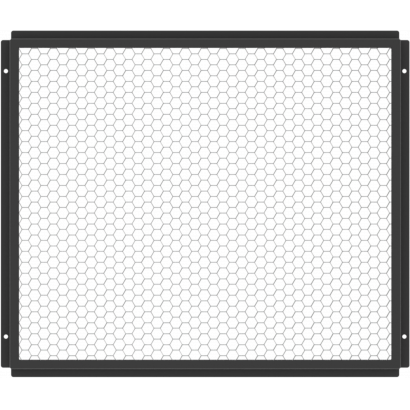

60 degree egg crate for ECLPANELTWCJR

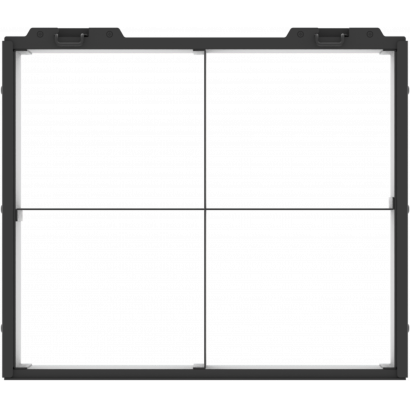

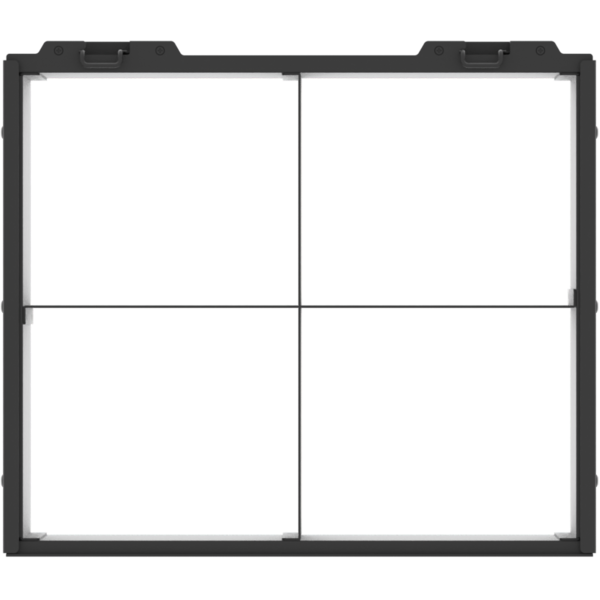

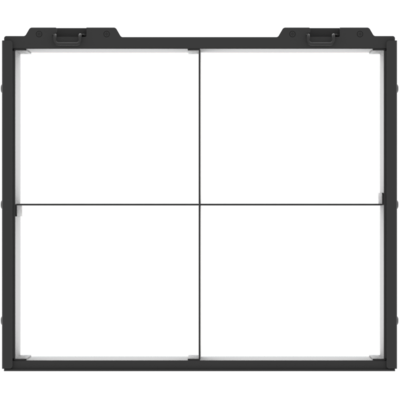

EPTWCJREC4C
EPTWCJREC4C
(optional)
4 chamber egg crate for ECLPANELTWCJR

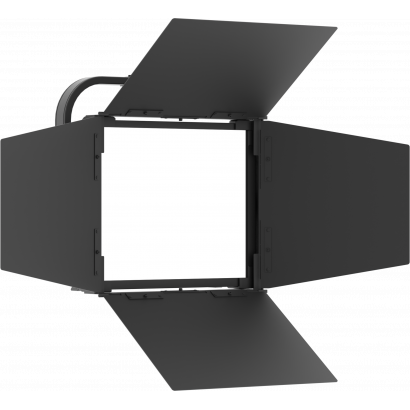

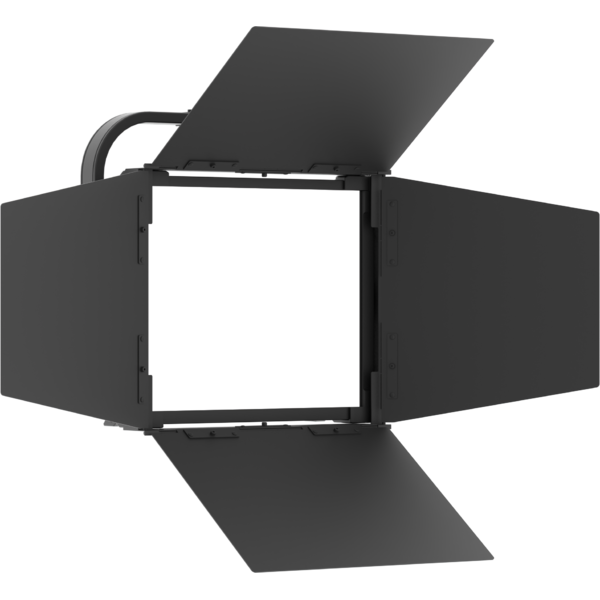

EPTWCJRBD
EPTWCJRBD

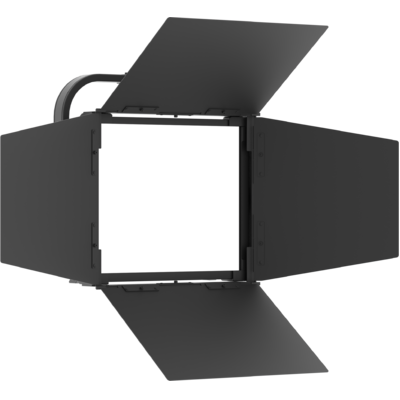

(optional)
Barn door with 4 directional flaps to adjust the light beam

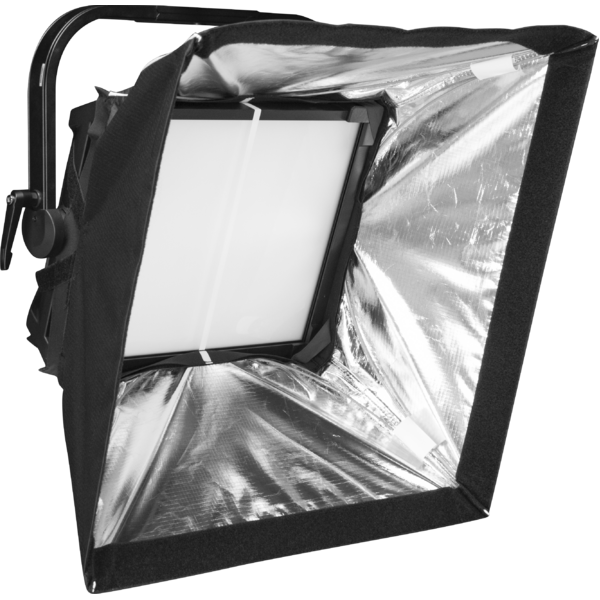

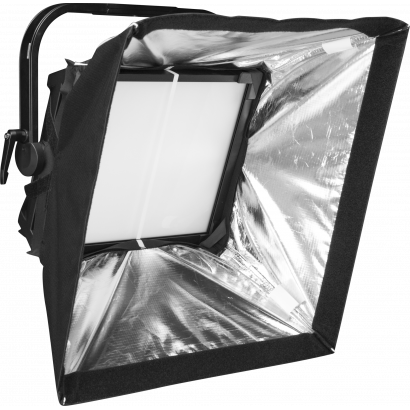

EPTWCJRSB11
EPTWCJRSB11
(optional)
SnapBag 1x1 for ECLPANELTWCJR by DoP choice

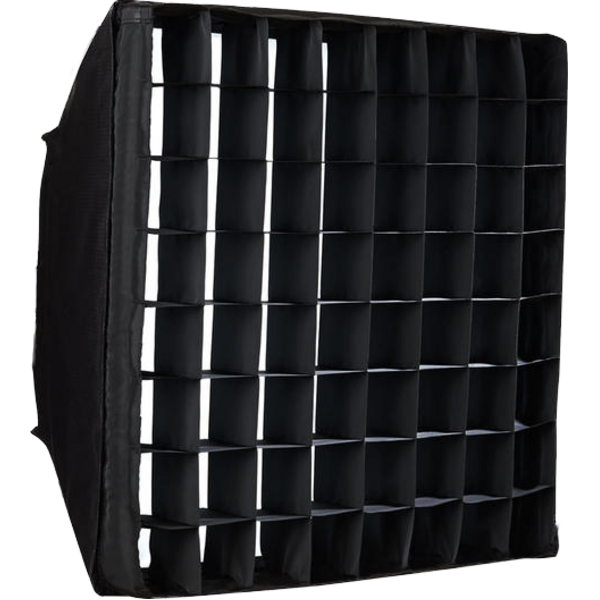

EPTWCJRSG4SB1140
EPTWCJRSG4SB1140

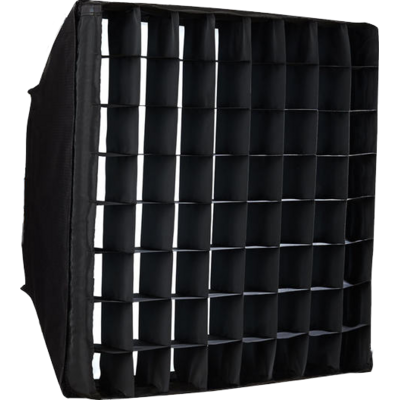

(optional)
40° SnapGrid for SnapBag, 1x1 for ECLPANELTWCJR by DoP choice

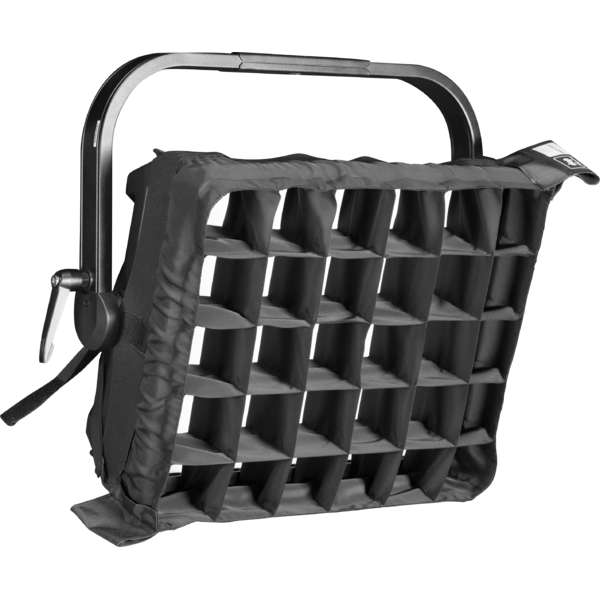

EPTWCJRSG1140
EPTWCJRSG1140
(optional)

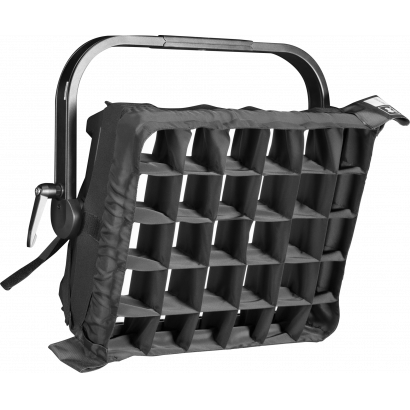

40° SnapGrid, 1x1 for ECLPANELTWCJR by DoP choice

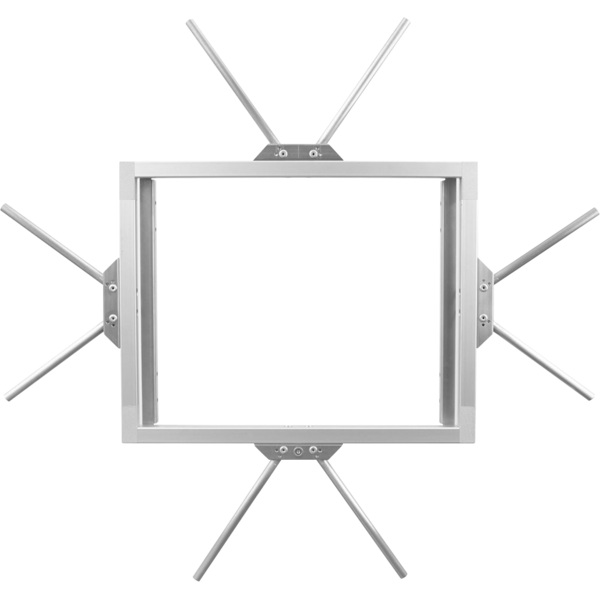

EPSREM
EPSREM

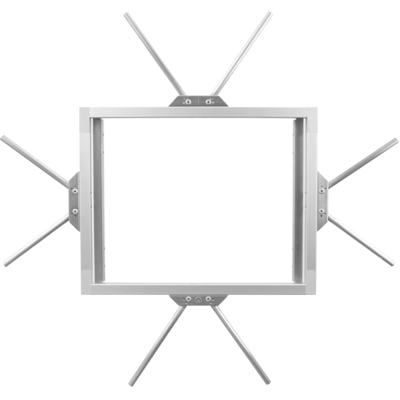

(optional)

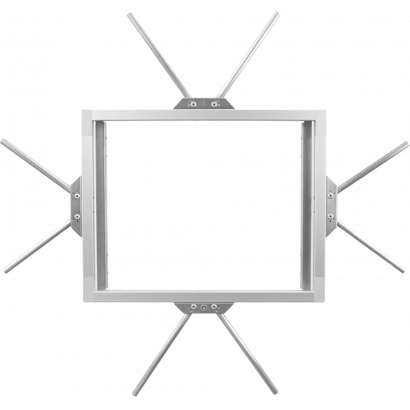

Rabbit-Ears 1x1 MINI for ECLPANELTWCJR by DoP choice
EPSBRL3
EPSBRL3

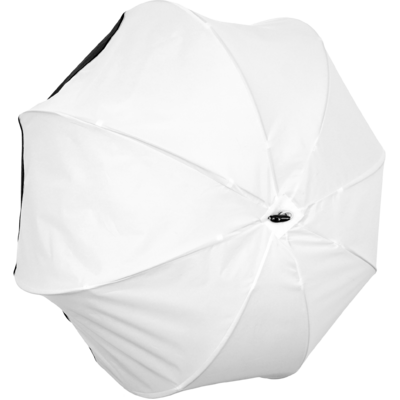

(optional)

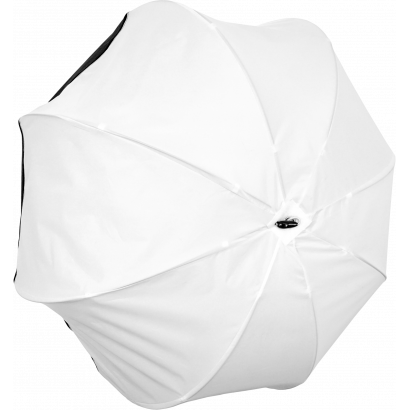

Snapbag Lantern 3' for Rabbit-Ears by DoP. Incl. Lantern, Carry Bag

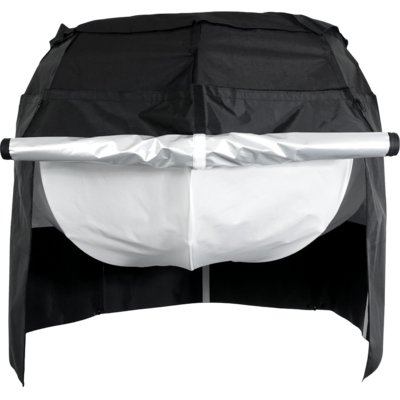

EPSBRL3C4
EPSBRL3C4
(optional)

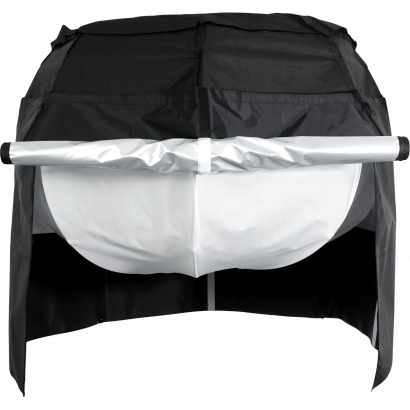

Cover for Snapbag Lantern 3' (EPSBRL3) by DoP choice; 4 sides, adj. with zipper

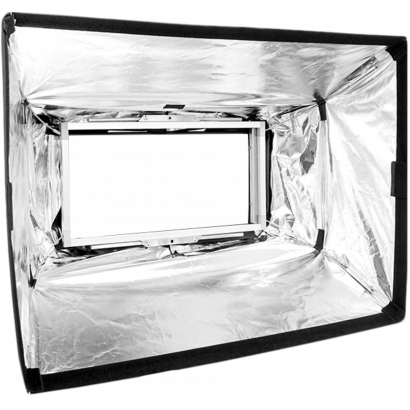

EPSBRM
EPSBRM
(optional)

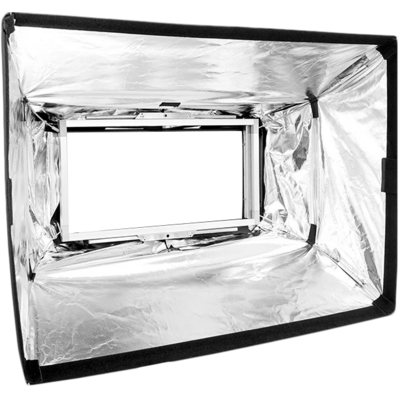

SnapBag Medium to be mounted on Rabbit Ears by DoP.

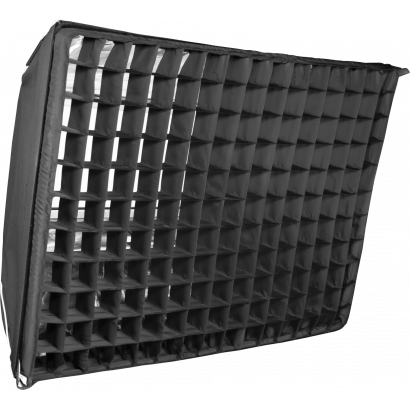

EPSGCM40
EPSGCM40
(optional)

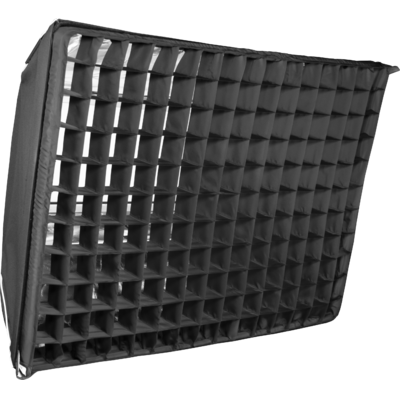

40° SnapGrid, to be mounted on Snap Bag Medium (EPSBRM)

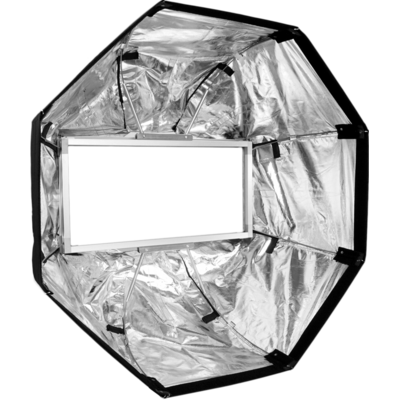

EPSBRO3
EPSBRO3
(optional)

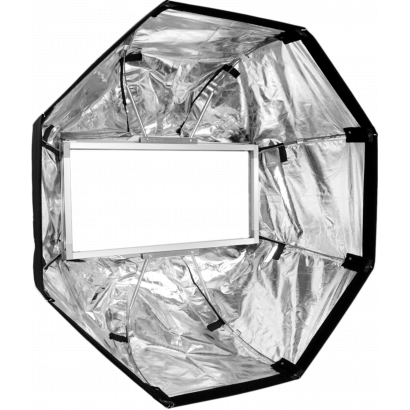

Snapbag Octa 3' to be mounted on Rabbit-Ears by DoP.

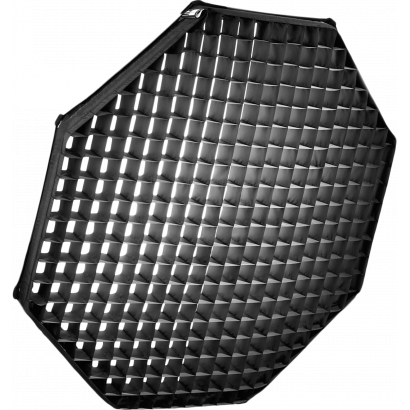

EPSGC3W40
EPSGC3W40

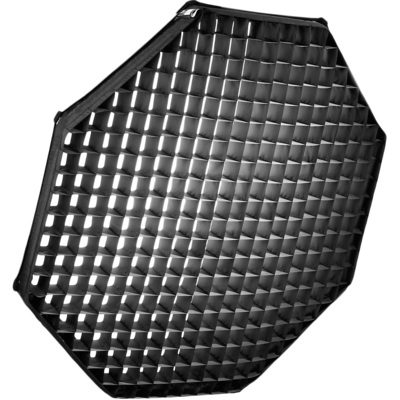

(optional)
40° SnapGrid, to be mounted on Snap Bag Octa 3' (EPSBRO3)

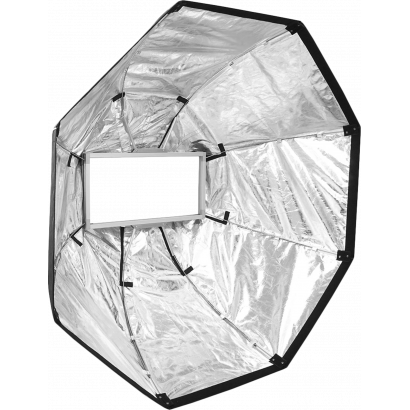

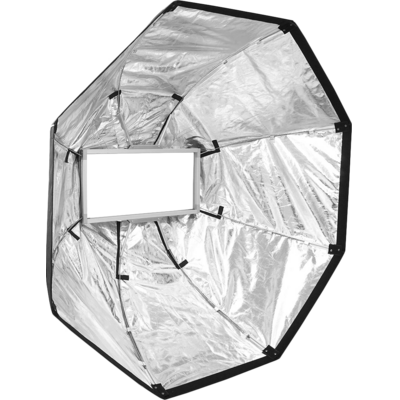

EPSBRO5
EPSBRO5
(optional)
Snapbag Octa 5' to be mounted on Rabbit-Ears by DoP.
EPSGC5W40
EPSGC5W40

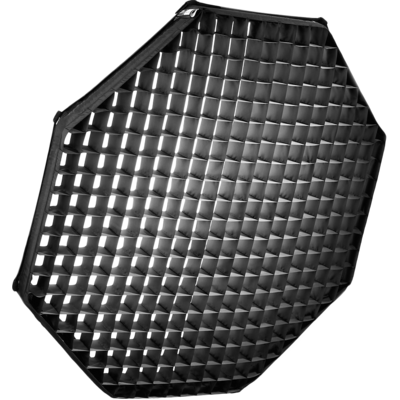

(optional)
40° SnapGrid, to be mounted on Snap Bag Octa 5' (EPSBRO5)

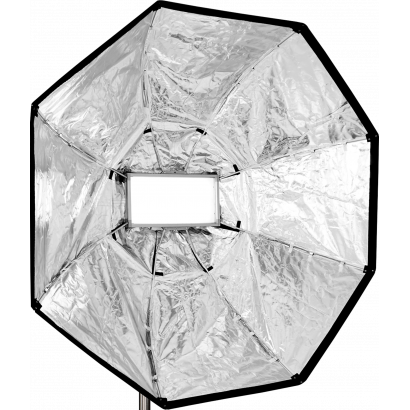

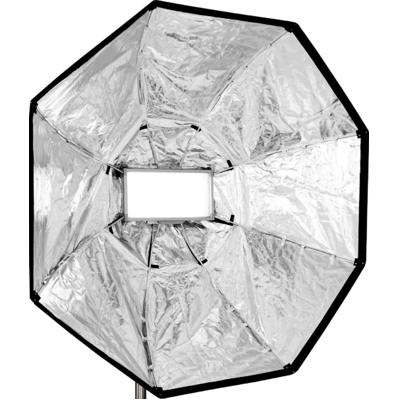

EPSBRO7
EPSBRO7
(optional)
Snapbag Octa 7' to be mounted on Rabbit-Ears by DoP.
EPSGC7W40
EPSGC7W40
(optional)

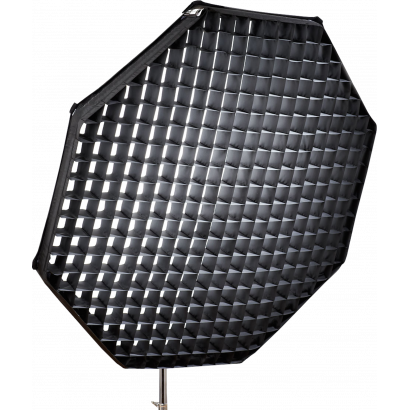

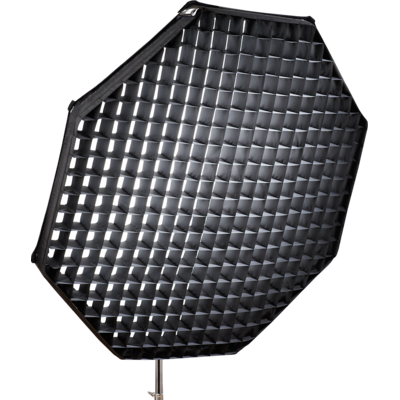

40° SnapGrid, to be mounted on Snap Bag Octa 7' (EPSBRO7)
EPSBCMNSM
EPSBCMNSM
(optional)
Diffusion MAGIC cloth for Snapbag 60x60cm (EPTWCJRSB11) by DoP choice

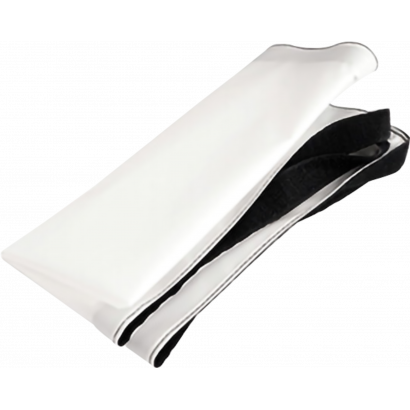

EPSBCMNSF
EPSBCMNSF
(optional)
Diffusion FULL Grid cloth for Snapbag 60x60cm (EPTWCJRSB11) by DoP choice
EPSBCMNSH
EPSBCMNSH
(optional)
Diffusion HALF Grid cloth for Snapbag 60x60cm(EPTWCJRSB11) by DoP choice

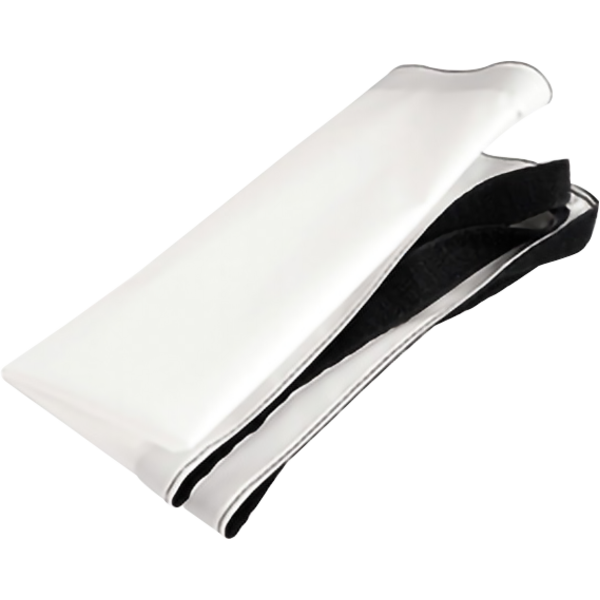

EPSBCMNSQ
EPSBCMNSQ
(optional)
Diffusion QUARTER Grid cloth for Snapbag 60x60cm (EPTWCJRSB11) by DoP choice
EPSBCMNSQFM
EPSBCMNSQFM
(optional)
Diff. cloth SET (1/4, 1/1,MAGIC) for Snapbag 60x60cm (EPTWCJRSB11) by DoP choice

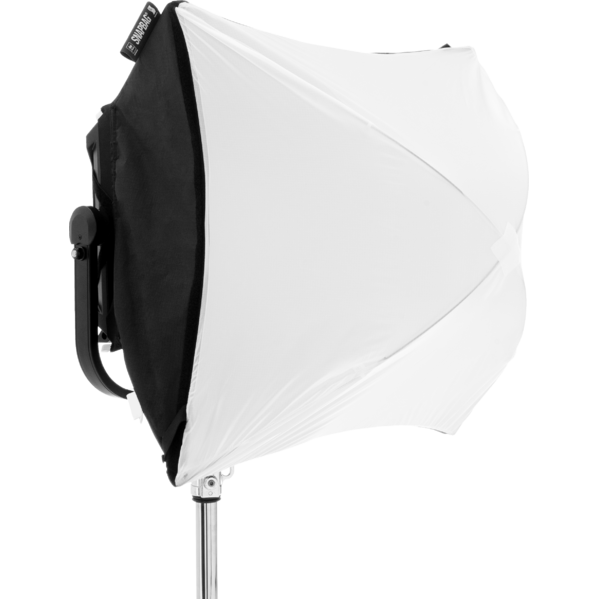

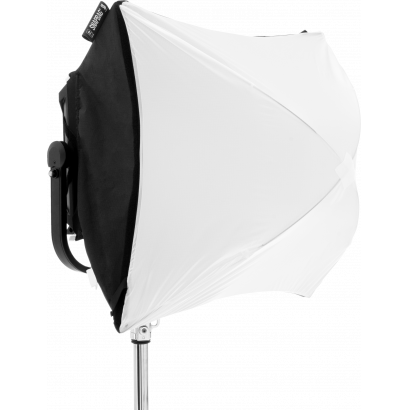

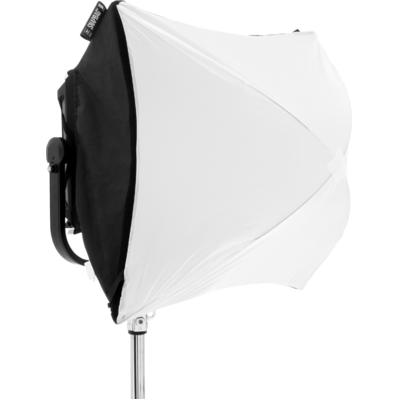

EPTWCJRLANT11
EPTWCJRLANT11
(optional)
Snapbag Lantern for ECLPANELTWCJR by DoP. Incl. Lantern, Backcovers, Carry Bag
SPGM12
SPGM12
(optional)
28mm spigot for fixtures, M12 bolt
SPGM10
SPGM10
(optional)
28mm spigot for fixtures, M10 bolt
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT

DOWNLOAD

Data sheet & specs

File name File size Download
Eclpaneltwcjr_A4_DATASHEET_(ITA).pdf 2MB
Eclpaneltwcjr_LETTER_DATASHEET_(EN).pdf 297KB
Eclpaneltwcjr_A4_DATASHEET_(EN).pdf 2MB
Eclpaneltwcjr_LETTER_DATASHEET_(EN).pdf 2MB
Eclpaneltwcjr_TENDER_SPECIFICATION.pdf 5MB

User manual

File name File size Download
Eclpaneltwcjr_USER_MANUAL_EN.pdf 6MB
GENERAL_SAFETY_INFORMATION.pdf 12MB

DMX chart & personalities

File name File size Download
Eclpaneltwcjr_DMX_CHARTS.pdf 620KB
ECLPANELTWCJR_VECTORWORKS_SYMBOLS.vwx 346KB
PROLIGHTS_VECTORWORKS_v23_LIBRARY.vwx 304MB
ECLPANELTWCJR_+PO_VECTORWORKS_SYMBOLS.vwx 3MB
PROLIGHTS_VECTORWORKS_v18_LIBRARY.vwx 443MB
ECLPTR+BRKL+BHEAD_VW_SYMBOLS.vwx 2MB
ECLPTJR+BRKL_VW_SYMBOLS.vwx 606KB
ECLPANELTWCJR Firmware rev. 2.2
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights_eclpaneltwcjr_1chtheater.hedDownload
prolights_eclpaneltwcjr_2hpixels.hedDownload
prolights_eclpaneltwcjr_2vpixels.hedDownload
prolights_eclpaneltwcjr_4chtheater.hedDownload
prolights_eclpaneltwcjr_4chtour.hedDownload
prolights_eclpaneltwcjr_4pixels.hedDownload
prolights_eclpaneltwcjr_5ch1theater.hedDownload
prolights_eclpaneltwcjr_5ch2theater.hedDownload
prolights_eclpaneltwcjr_6chtheater.hedDownload
prolights_eclpaneltwcjr_6chtour.hedDownload
prolights_eclpaneltwcjr_10chtheater.hedDownload
prolights_eclpaneltwcjr_10chtour.hedDownload
prolights_eclpaneltwcjr_11chtour.hedDownload
prolights_eclpaneltwcjr_15chtheater.hedDownload
prolights_eclpaneltwcjr_15chtour.hedDownload
prolights_eclpaneltwcjr_17chtheater.hedDownload
eclpaneltwcjr_pixel1_7ch.fdfDownload
eclpaneltwcjr_pixel2h_11ch.fdfDownload
eclpaneltwcjr_pixel2v_11ch.fdfDownload
eclpaneltwcjr_pixel4_19ch.fdfDownload
eclpaneltwcjr_theatre_1ch.fdfDownload
eclpaneltwcjr_theatre_2ch.fdfDownload
eclpaneltwcjr_theatre_4ch.fdfDownload
eclpaneltwcjr_theatre_5ch1.fdfDownload
eclpaneltwcjr_theatre_5ch2.fdfDownload
eclpaneltwcjr_theatre_6ch.fdfDownload
eclpaneltwcjr_theatre_10ch.fdfDownload
eclpaneltwcjr_theatre_17ch.fdfDownload
eclpaneltwcjr_theatre_21ch.fdfDownload
eclpaneltwcjr_tour_4ch.fdfDownload
eclpaneltwcjr_tour_6ch.fdfDownload
eclpaneltwcjr_tour_10ch.fdfDownload
eclpaneltwcjr_tour_11ch.fdfDownload
eclpaneltwcjr_tour_15ch.fdfDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights@eclpaneltwcjr@rev 1.6.gdtfDownload
manufacturer fixture library (Link) Link
prolights@eclpaneltwcjr@1ch_theatre@rev_1.6.xmlDownload
prolights@eclpaneltwcjr@1pixel@rev_1.6.xmlDownload
prolights@eclpaneltwcjr@2ch_theatre@rev_1.6.xmlDownload
prolights@eclpaneltwcjr@2h_pixels@rev_1.6.xmlDownload
prolights@eclpaneltwcjr@2v_pixels@rev_1.6.xmlDownload
prolights@eclpaneltwcjr@4ch_theatre@rev_1.6.xmlDownload
prolights@eclpaneltwcjr@4ch_tour@rev_1.6.xmlDownload
prolights@eclpaneltwcjr@4h_pixels@rev_1.6.xmlDownload
prolights@eclpaneltwcjr@5ch-1_theatre@rev_1.6.xmlDownload
prolights@eclpaneltwcjr@5ch-2_theatre@rev_1.6.xmlDownload
prolights@eclpaneltwcjr@6ch_theatre@rev_1.6.xmlDownload
prolights@eclpaneltwcjr@6ch_tour@rev_1.6.xmlDownload
prolights@eclpaneltwcjr@10ch_theatre@rev_1.6.xmlDownload
prolights@eclpaneltwcjr@10ch_tour@rev_1.6.xmlDownload
prolights@eclpaneltwcjr@11ch_tour@rev_1.6.xmlDownload
prolights@eclpaneltwcjr@15ch_theatre@rev_1.6.xmlDownload
prolights@eclpaneltwcjr@15ch_tour@rev_1.6.xmlDownload
prolights@eclpaneltwcjr@17ch_theatre@rev_1.6.xmlDownload
eclpaneltwcjr.zipDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
ecl panel twc jr 1 channel theatre.v3fDownload
ecl panel twc jr 1 pixel.v3fDownload
ecl panel twc jr 2 channel theatre.v3fDownload
ecl panel twc jr 2h pixel.v3fDownload
ecl panel twc jr 2v pixel.v3fDownload
ecl panel twc jr 4 channel theatre.v3fDownload
ecl panel twc jr 4 channel tour.v3fDownload
ecl panel twc jr 4 pixel.v3fDownload
ecl panel twc jr 5 channel 1 theatre.v3fDownload
ecl panel twc jr 5 channel 2 theatre.v3fDownload
ecl panel twc jr 6 channel theatre.v3fDownload
ecl panel twc jr 6 channel tour.v3fDownload
ecl panel twc jr 10 channel theatre.v3fDownload
ecl panel twc jr 10 channel tour.v3fDownload
ecl panel twc jr 11 channel tour.v3fDownload
ecl panel twc jr 15 channel theatre.v3fDownload
ecl panel twc jr 15 channel tour.v3fDownload
ecl panel twc jr 17 channel theatre.v3fDownload
ECLPANELTWCJR Firmware rev. 1.1
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights_eclpaneltwcjr_1chtheater.hedDownload
prolights_eclpaneltwcjr_2hpixels.hedDownload
prolights_eclpaneltwcjr_2vpixels.hedDownload
prolights_eclpaneltwcjr_4chtheater.hedDownload
prolights_eclpaneltwcjr_4chtour.hedDownload
prolights_eclpaneltwcjr_4pixels.hedDownload
prolights_eclpaneltwcjr_5ch1theater.hedDownload
prolights_eclpaneltwcjr_5ch2theater.hedDownload
prolights_eclpaneltwcjr_6chtheater.hedDownload
prolights_eclpaneltwcjr_6chtour.hedDownload
prolights_eclpaneltwcjr_10chtheater.hedDownload
prolights_eclpaneltwcjr_10chtour.hedDownload
prolights_eclpaneltwcjr_11chtour.hedDownload
prolights_eclpaneltwcjr_15chtheater.hedDownload
prolights_eclpaneltwcjr_15chtour.hedDownload
prolights_eclpaneltwcjr_17chtheater.hedDownload
eclpaneltwcjr_pixel1_7ch.fdfDownload
eclpaneltwcjr_pixel2h_11ch.fdfDownload
eclpaneltwcjr_pixel2v_11ch.fdfDownload
eclpaneltwcjr_pixel4_19ch.fdfDownload
eclpaneltwcjr_theatre_1ch.fdfDownload
eclpaneltwcjr_theatre_2ch.fdfDownload
eclpaneltwcjr_theatre_4ch.fdfDownload
eclpaneltwcjr_theatre_5ch1.fdfDownload
eclpaneltwcjr_theatre_5ch2.fdfDownload
eclpaneltwcjr_theatre_6ch.fdfDownload
eclpaneltwcjr_theatre_10ch.fdfDownload
eclpaneltwcjr_theatre_17ch.fdfDownload
eclpaneltwcjr_theatre_21ch.fdfDownload
eclpaneltwcjr_tour_4ch.fdfDownload
eclpaneltwcjr_tour_6ch.fdfDownload
eclpaneltwcjr_tour_10ch.fdfDownload
eclpaneltwcjr_tour_11ch.fdfDownload
eclpaneltwcjr_tour_15ch.fdfDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights@eclpaneltwcjr@rev 1.6.gdtfDownload
manufacturer fixture library (Link) Link
prolights@eclpaneltwcjr@1ch_theatre@rev_1.6.xmlDownload
prolights@eclpaneltwcjr@1pixel@rev_1.6.xmlDownload
prolights@eclpaneltwcjr@2ch_theatre@rev_1.6.xmlDownload
prolights@eclpaneltwcjr@2h_pixels@rev_1.6.xmlDownload
prolights@eclpaneltwcjr@2v_pixels@rev_1.6.xmlDownload
prolights@eclpaneltwcjr@4ch_theatre@rev_1.6.xmlDownload
prolights@eclpaneltwcjr@4ch_tour@rev_1.6.xmlDownload
prolights@eclpaneltwcjr@4h_pixels@rev_1.6.xmlDownload
prolights@eclpaneltwcjr@5ch-1_theatre@rev_1.6.xmlDownload
prolights@eclpaneltwcjr@5ch-2_theatre@rev_1.6.xmlDownload
prolights@eclpaneltwcjr@6ch_theatre@rev_1.6.xmlDownload
prolights@eclpaneltwcjr@6ch_tour@rev_1.6.xmlDownload
prolights@eclpaneltwcjr@10ch_theatre@rev_1.6.xmlDownload
prolights@eclpaneltwcjr@10ch_tour@rev_1.6.xmlDownload
prolights@eclpaneltwcjr@11ch_tour@rev_1.6.xmlDownload
prolights@eclpaneltwcjr@15ch_theatre@rev_1.6.xmlDownload
prolights@eclpaneltwcjr@15ch_tour@rev_1.6.xmlDownload
prolights@eclpaneltwcjr@17ch_theatre@rev_1.6.xmlDownload
eclpaneltwcjr.zipDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
ecl panel twc jr 1 channel theatre.v3fDownload
ecl panel twc jr 1 pixel.v3fDownload
ecl panel twc jr 2 channel theatre.v3fDownload
ecl panel twc jr 2h pixel.v3fDownload
ecl panel twc jr 2v pixel.v3fDownload
ecl panel twc jr 4 channel theatre.v3fDownload
ecl panel twc jr 4 channel tour.v3fDownload
ecl panel twc jr 4 pixel.v3fDownload
ecl panel twc jr 5 channel 1 theatre.v3fDownload
ecl panel twc jr 5 channel 2 theatre.v3fDownload
ecl panel twc jr 6 channel theatre.v3fDownload
ecl panel twc jr 6 channel tour.v3fDownload
ecl panel twc jr 10 channel theatre.v3fDownload
ecl panel twc jr 10 channel tour.v3fDownload
ecl panel twc jr 11 channel tour.v3fDownload
ecl panel twc jr 15 channel theatre.v3fDownload
ecl panel twc jr 15 channel tour.v3fDownload
ecl panel twc jr 17 channel theatre.v3fDownload

Photometrics

File name File size Download
prolights_eclpaneltwcjr_ies files.zip 29KB
prolights_eclpaneltwcjr_ldt files.zip 24KB
Eclpaneltwcjr_PHOTOMETRICS_REPORT.pdf 5MB
Download DIALux product catalogue -

CAD symbols & drawings

File name File size Download
ECLPANELTWCJR_3D_REVIT.zip 3MB
ECLPANELTWCJR_3D_SKETCHUP.zip 2MB
ECLPANELTWCJR_2D.zip 15MB
ECLPANELTWCJR_3D.zip 1MB
ECLPANELTWCJR_2DSYMBOLS.zip 146KB
ECLPANELTWCJR_TECHNICAL DRAWINGS.zip 659KB

Tech docs

File name File size Download
Eclpaneltwcjr_NOISE_REPORT.pdf 249KB

Software

File name File size Download

Firmware

Only the latest firmware versions for each hardware revision are available for download.
To download previous firmware versions, log in to the customer care section.
Update Tool: UPBOX1UP5
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
2.2 STABLE 23/12/2021

Firmware for Hardware revision: 2.0, 3.0, 4.0, 5.0 - To check revision please refer to label on product.
Equivalent firmware version for Hardware revision <2.0: 1.1
Equivalent firmware version for ECLPANELTWC: 2.9 / 1.6
Equivalent firmware version for ECLPANELTWCJR4X1: 1.0
Equivalent firmware version for ECLPANELTWCM2X1: 1.0

New functions:

  • Added Dimmer End selector, possibility to have Snap or Fade at dimmer ends. Default for Standard: Fade , for Film: Snap
  • Added XY DMX Chart.
  • Added XY mode into Stand Alone mode.
  • Added Display value selector, possibility to show Raw DMX value or Percentage while using Stand Alone mode.
  • Added 21Ch Theater Mode.

Improvements:
  • Improved dimming at High Frequencies.
  • Improved dimming while using RGBW channels as dimmer.
  • Improved dimmer cut on Film DMX Charts.
 Rev. 4.0
Rev. 5.0
1.1 STABLE 22/12/2021

Firmware for Hardware revision: 1.0 - To check revision please refer to label on product.
Equivalent firmware version for Hardware revision >1.0: 2.2
Equivalent firmware version for ECLPANELTWC: 2.9 / 1.6
Equivalent firmware version for ECLPANELTWCJR4X1: 1.0
Equivalent firmware version for ECLPANELTWCM2X1: 1.0


New functions:

  • Added Dimmer End selector, possibility to have Snap or Fade at dimmer ends. Default for Standard: Fade , for Film: Snap
  • Added XY DMX Chart.
  • Added XY mode into Stand Alone mode.
  • Added Display value selector, possibility to show Raw DMX value or Percentage while using Stand Alone mode.
  • Added 21Ch Theater Mode.

Improvements:
  • Improved dimming at High Frequencies.
  • Improved dimming while using RGBW channels as dimmer.
  • Improved dimmer cut on Film DMX Charts.

Info Request

News

30 May 2023
PROLIGHTS launches Mosaico FX100 series: the ultimate tool for effects and image projection
PROLIGHTS launches Mosaico FX100 series: the ultimate tool for effects and image projection
PROLIGHTS released Mosaico FX100: a series of exterior lighting fixtures designed for the projection of animations and images in permanent...
24 May 2023
PROLIGHTS upgrades Privilege Club in Dubai with stunning illumination
PROLIGHTS upgrades Privilege Club in Dubai with stunning illumination
PROLIGHTS has recently upgraded the lighting system at the Privilege Club in Dubai, one of the most spectacular nightclubs in the...
22 May 2023
PROLIGHTS lights up Tel Aviv Duhl Center
PROLIGHTS lights up Tel Aviv Duhl Center
The Duhl Center is a cultural institute and auditorium located in Hatikva district, Tel Aviv (Israel), today is the second the largest...
18 May 2023
The new Landetxe Kultur Aretoa Theatre in Spain lights up its stage with PROLIGHTS
The new Landetxe Kultur Aretoa Theatre in Spain lights up its stage with PROLIGHTS
The new theater Landetxe Kultur Aretoa in the city of Oiartzun (Guipuzcoa) in Spain, was inaugurated on 10 April 2023. A cultural building,...
15 May 2023
PROLIGHTS brings control to GTV9 Studio
PROLIGHTS brings control to GTV9 Studio
When GTV9 Melbourne decided to update its lighting, it had no doubts to turn to PROLIGHTS, encouraged by the important presence of...
12 May 2023
PROLIGHTS equip the National Polish Radio Symphony Orchestra with green technologies
PROLIGHTS equip the National Polish Radio Symphony Orchestra with green technologies
The shift towards sustainability in the theater industry is becoming increasingly decisive and tangible. The National Polish Radio...
08 May 2023
Epsom Clock Tower Gets LED Upgrade with Prolights
Epsom Clock Tower Gets LED Upgrade with Prolights
The Epsom Clock Tower is a significant landmark in the community and has been a part of the town's heritage since it was built in 1847....
02 May 2023
Music & Lights expands its offer of Wireless DMX technologies with LumenRadio
Music & Lights expands its offer of Wireless DMX technologies with LumenRadio
Music & Lights is pleased to inform that with effect from the month of May, it will expand the range of Wireless DMX technologies with...
21 April 2023
PROLIGHTS Illuminates National Concert Hall With Cine-Electric Partnership
PROLIGHTS Illuminates National Concert Hall With Cine-Electric Partnership
Dublin's National Concert Hall is a renowned and prestigious venue that showcases a diverse range of musical performances, from the...
13 April 2023
Saint Fin Barre's Cathedral In Ireland lit up with PROLIGHTS
Saint Fin Barre's Cathedral In Ireland lit up with PROLIGHTS
A.C. Entertainment Technologies Ireland and Seamus Reck of Lx2000 Stage Lighting Hire recently teamed up to supply and install the...
27 March 2023
PROLIGHTS Astra Wash range used at a robotics exhibition
PROLIGHTS Astra Wash range used at a robotics exhibition
The recent robotics exhibition at the Eurexpo Lyon in France saw the use of 20x PROLIGHTS Astra Wash19Pix and 24x Astra Wash7Pix lighting...
20 March 2023
PROLIGHTS adds extra glow to Belgium's DragRace
PROLIGHTS adds extra glow to Belgium's DragRace
Drag Race Belgique, a Belgian French-language reality television series based on the American series RuPaul's Drag Race, has been using...
Subscribe to our Newsletter
Follow us, stay connected
Loading...
