ECLPANELTWCJR4X1
PROLIGHTS

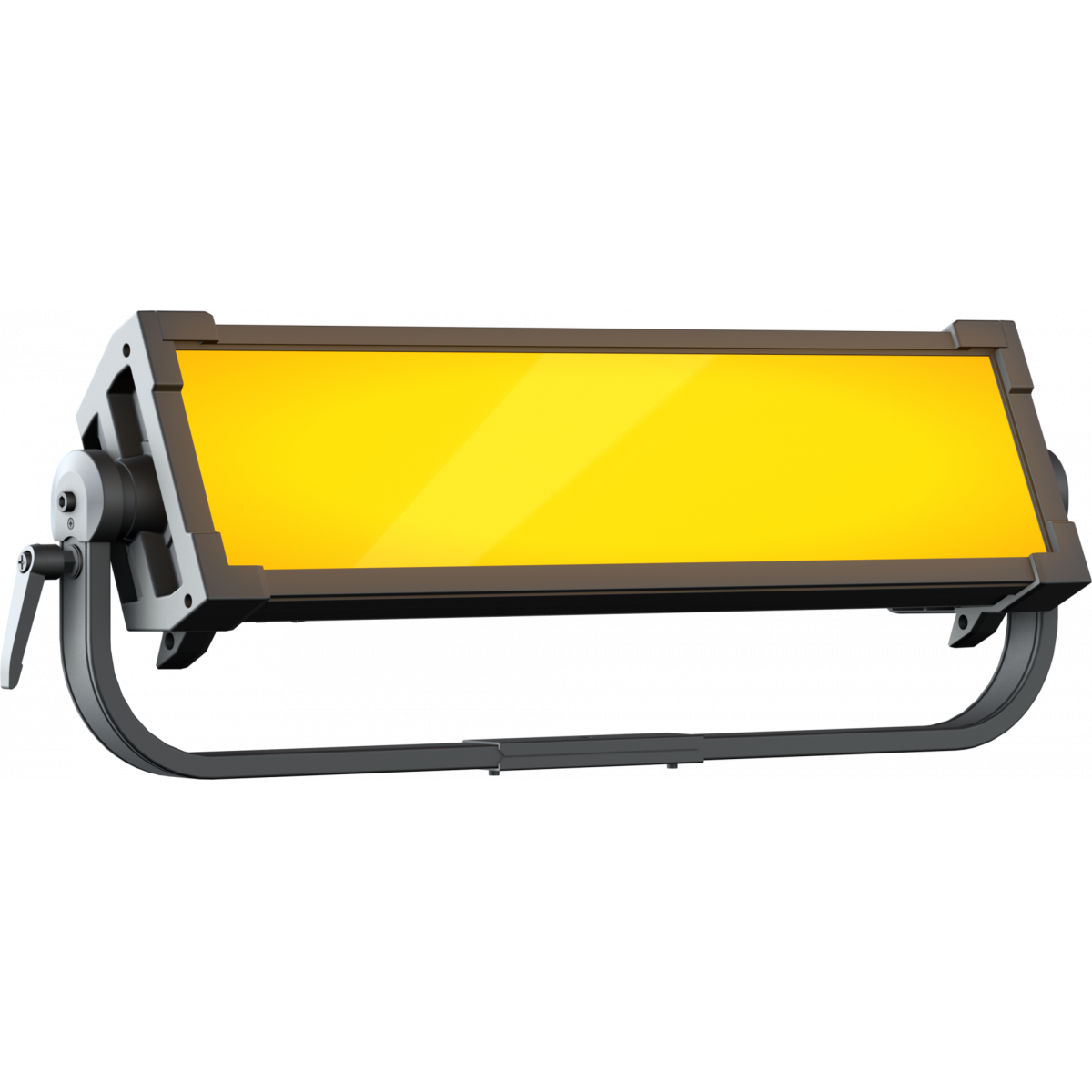

EclPanel TWCJR4x1

ORDER CODE: ECLPANELTWCJR4X1

230W Tunable White and colourful LED soft light with pixels and lighting effects

The EclPanel TWCJR4x1 is a compact LED linear soft light that provides a beautiful, wide source of soft and precise colours.
In addition to this, the EclPanel TWCJR4x1 comes with a full range of white presets, from daylight to tungsten tones, and produces a tremendous output whilst keeping high CRI, TLCI and TM-30 values.

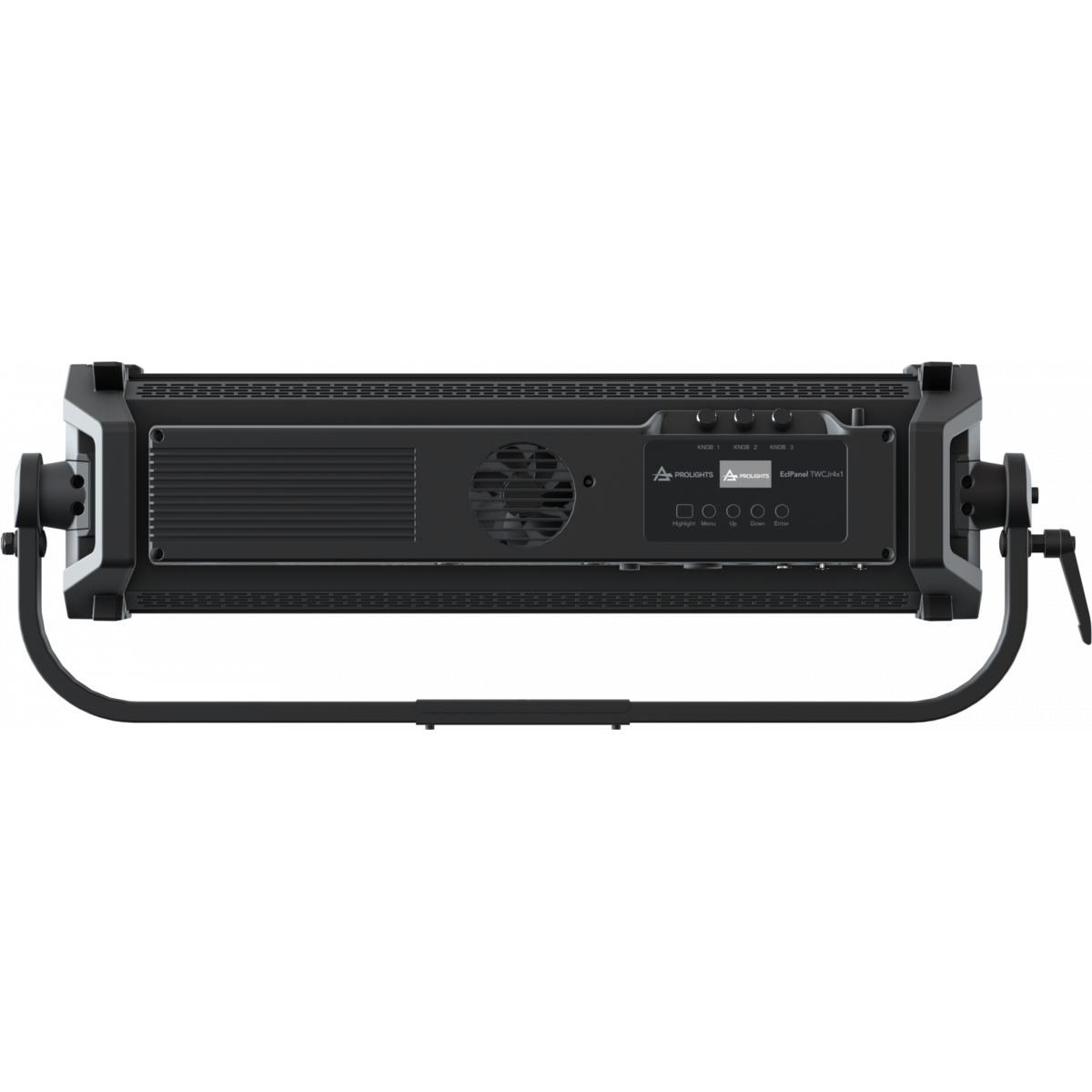

The EclPanel TWCJR4x1 has 3 precision rotatory knobs, with multiple stand-alone control modes: CCT with +/- green shift, CCT presets, HSI for total control of hue, saturation and intensity, RAW RGBW mode, XY and FX mode, allowing to scroll through the built-in cinema effects engine.
The 2 sections are controlled individually or simultaneously, allowing to play on-board customizable, cinematic effects through its built-in engine or from a console.
The EclPanel TWCJR4x1 has several colour control modes: RGBW, RGB, CMY, HSI, XY, RAW Direct, CCT Linear and CCT Presets with +/- green shift, source emulation and industry-standard colour gels.
Despite its lightweight, it has an on-board driver, a built-in power supply, Wireless DMX (CRMX+W-DMX), network connectivity (Art-Net, sACN, Kling-Net) and low voltage inputs (24-36V and 48VDC)

SPEKTRAMain features:

  • 230W RGB + Warm White LED source
  • CRI >94; R9 >95; TLCI >92
  • 2 section pixel control and built-in lighting effects for cinema applications, colour gel matching
  • Silent operation with multiple fan modes
  • Wireless DMX (CRMX+W-DMX), Ethernet connectivity, low voltage inputs (24-36V, 48Vdc)

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 230W RGB + Warm White LED
  • Luminous flux: 16'260lm @3.200 K with LD filter
  • Lux: 257lx @5 m full
  • CRI: 93 @3.200 K; 94 @5.600 K
  • R9: 96 @3.200 K; 94 @5.600 K
  • TLCI: 92 @5.600 K
  • TM30 Rf: 92 @3.200 K; 90 @5.600 K
  • TM30 Rg: 104 @3.200 K; 104 @5.600 K
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 102°
  • Field angle: 154°
  • Lens type: medium density diffusion panel (interchangeable)
  • Additional optics: see available accessories
COLOUR SYSTEM
  • Colour control: XY, CCT, RGBW, Gel, HSI, Source Emulation, colour macros, CTO on colours
  • Colour mixing: RGB + Warm White
  • CCT: CCT control range from 2.200K to 15.000K, + / - green correction, tungsten emulation
  • White presets: 2.800 K - 10.000K with 28 K resolution
  • Colour wheel: virtual colour wheel with macros
  • Macros: Gels library on-board
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer, colours
  • Pixel patterns: pre-programmed pixel macros and cinema lighting effects patterns
  • Special features: linear crossfade channel from any white to any colour; virtual CTO on colours
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: black
CONTROL
  • Protocols: DMX512, RDM, Art-Net, sACN, W-DMX
  • Stand Alone: selectable mode through 3 rotatory knobs
  • Pixel control: 2 linear section control
  • Wireless Control: integrated, CRMX + WDMX TRX
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 40.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Low Voltage DC mains: 48Vdc and 24-36V
  • Max power consumption: 240W
  • Output (at 230V): 10 units on a single power line
  • Power factor: >0,93
PHYSICAL
  • IP rating: 20
  • Cooling: active, silent operation

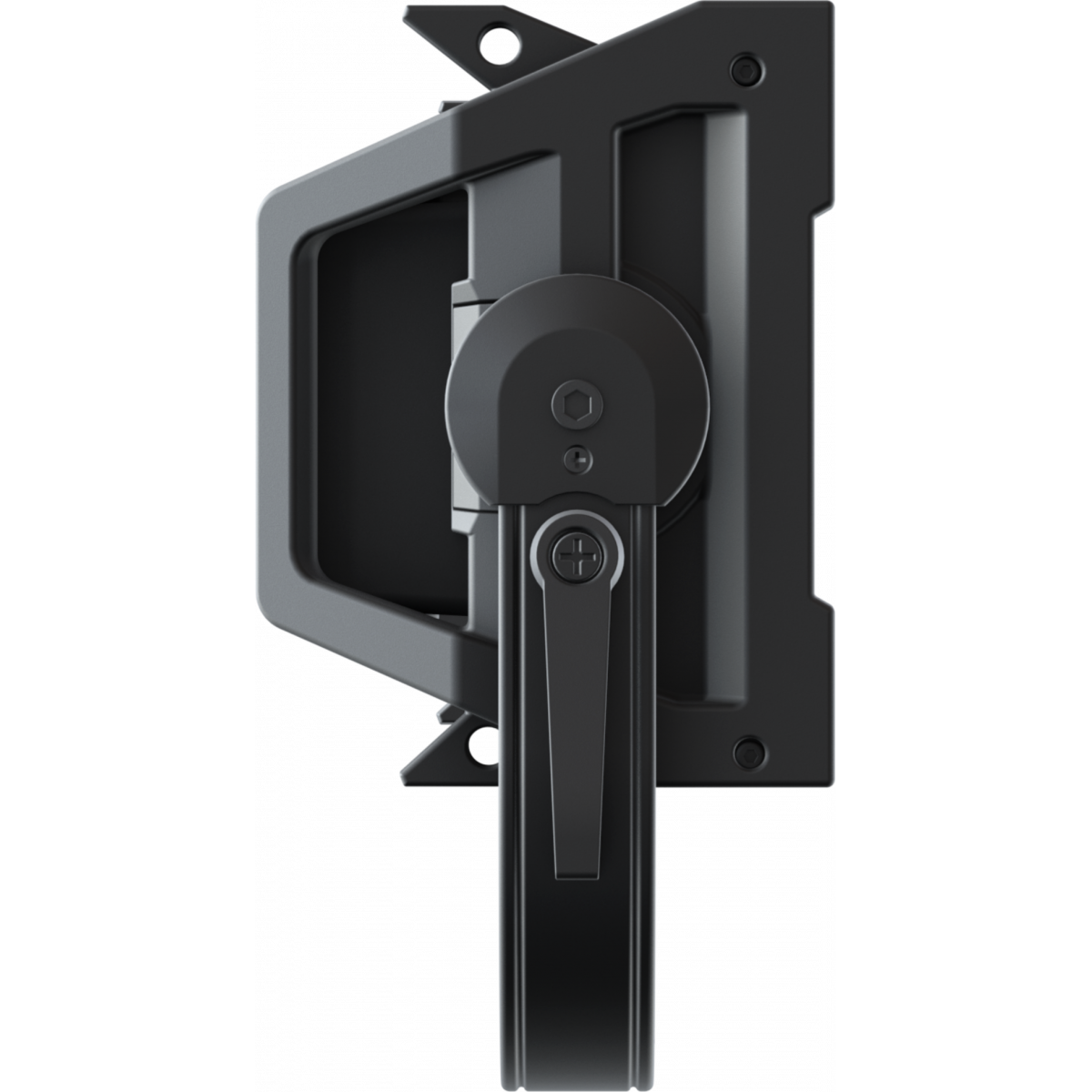

  • Suspension and fixing: bracket for hanging and positioning

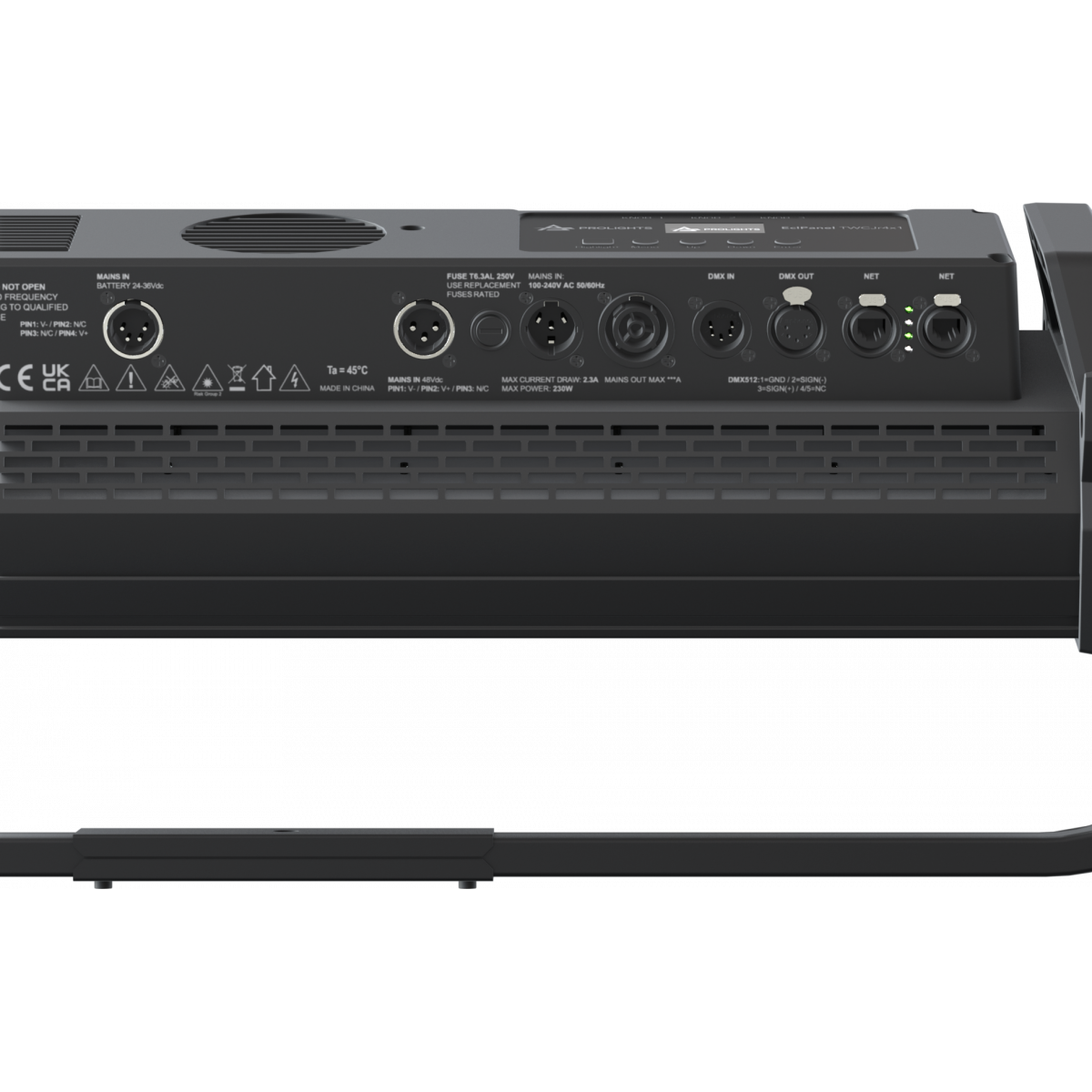

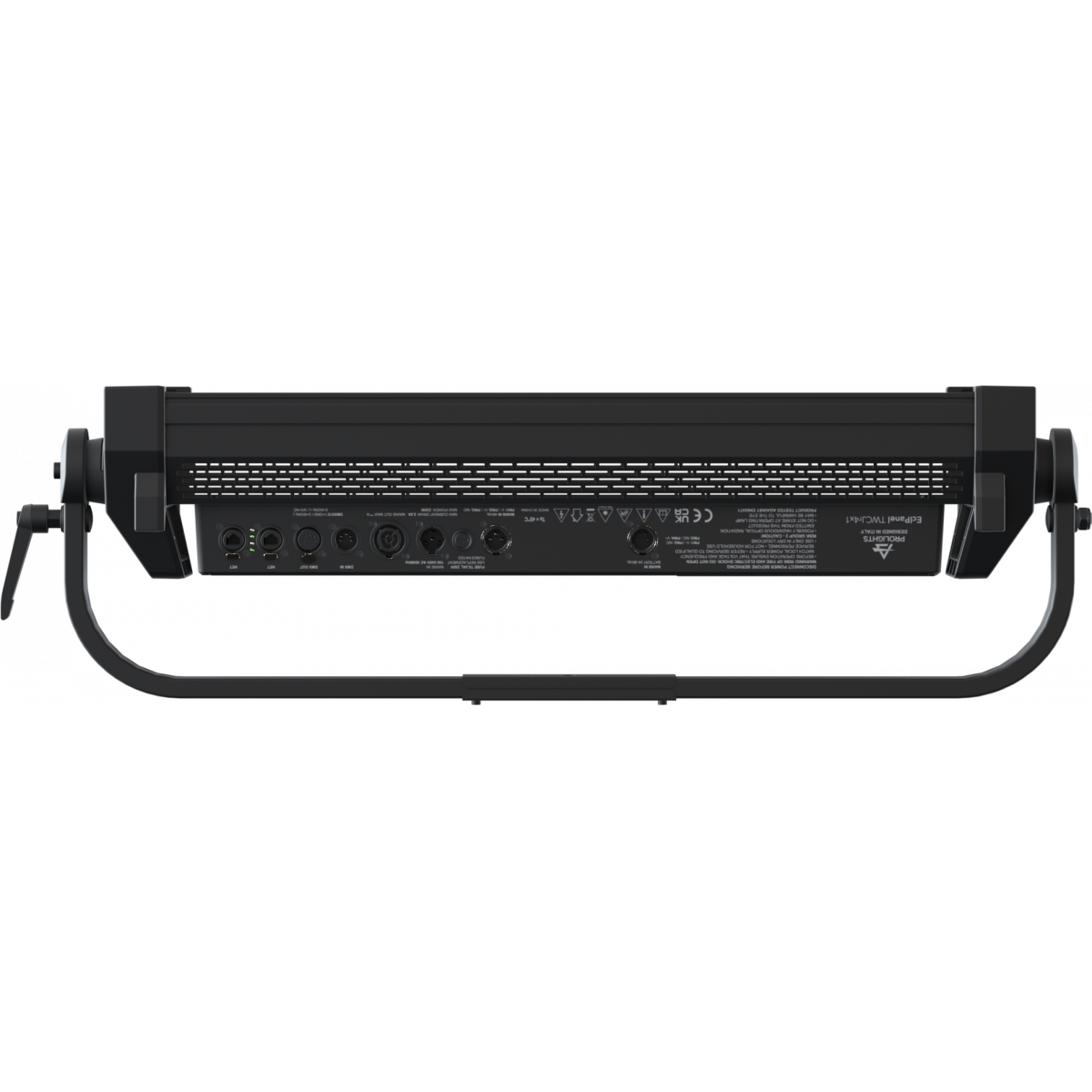

  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
  • Low Voltage DC connector: XLR 3p for 48V and XLR 4p for 24V-36V
  • Dimensions (WxHxD): 819x276x144mm / 32.24''x10.87''x5.67''
  • Dimensions with PO system (WxHxD): 836x396x144mm / 32.91''x15.59''x5.67''
  • Weight: 10kg / 22.05lbs
  • Weight with PO system: 12.3kg / 27.12lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Accessories & Related Products

958225L03
958225L03
(optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
TOUR53415L03
TOUR53415L03
(optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
C6040B
C6040B
(optional)
Aluminum clamp for 28mm spigot, 200kg load, 48-51mm tubes, black

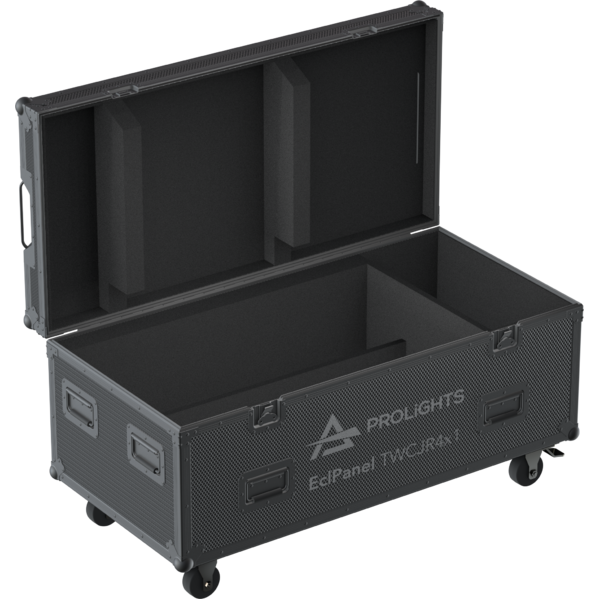

FCLPANELJR4X13U
FCLPANELJR4X13U
(optional)
Flight case for 3 pcs of ECLPANELTWCJR4X1
C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
9533FXWL03
9533FXWL03
(optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
9513FXWL03
9513FXWL03
(optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
LRLUNA
LRLUNA
(optional)
Single Universe DMX transceiver with Bluetooth

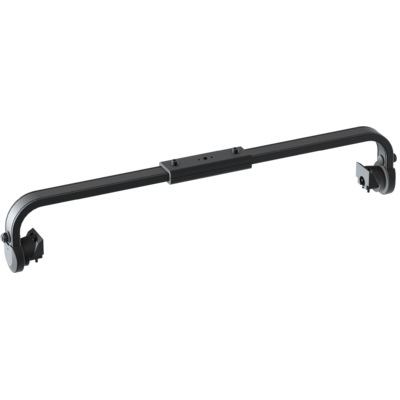

EPTWCBRKL
EPTWCBRKL
(optional)
Center mount bracket for ECLPANELTWC and ECLPANELTWCJR4X1

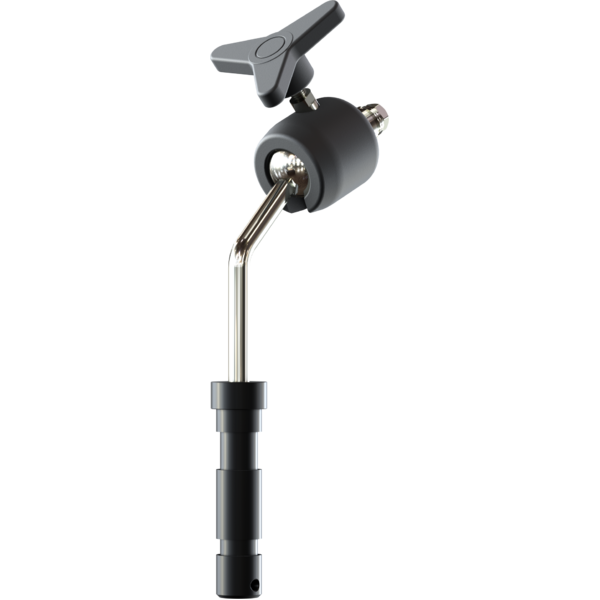

EPTWCBHEAD
EPTWCBHEAD
(optional)
Ball head joint for center mount bracket EPTWCBRK series

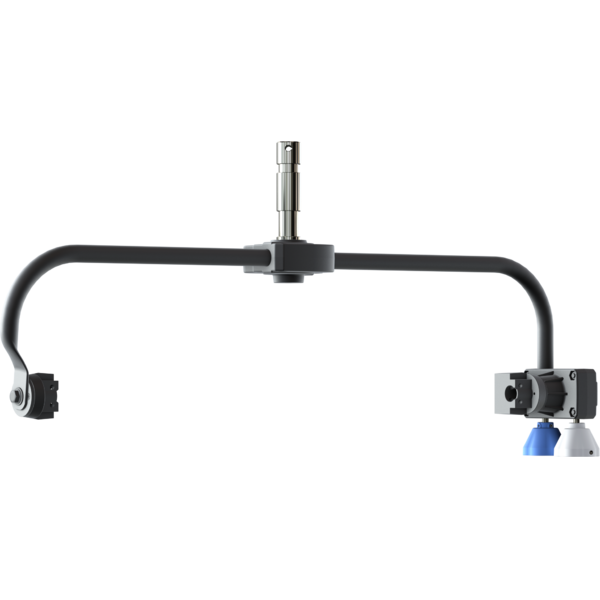

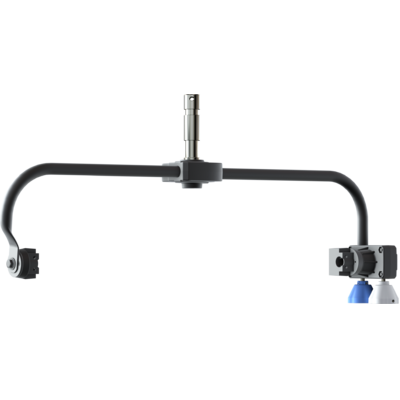

ECLPANELJR4X1POYO
ECLPANELJR4X1POYO
(optional)
Pole operated aluminium yoke bracket for ECLPANELTWCJR4X1
EPTWCJR4X1FILTINT
EPTWCJR4X1FILTINT
(optional)
Front intensified diffusion filter for ECLPANELTWCJR4X1
EPTWCJR4X1FILTHD
EPTWCJR4X1FILTHD
(optional)
Front high diffusion filter (less output) for ECLPANELTWCJR4X1

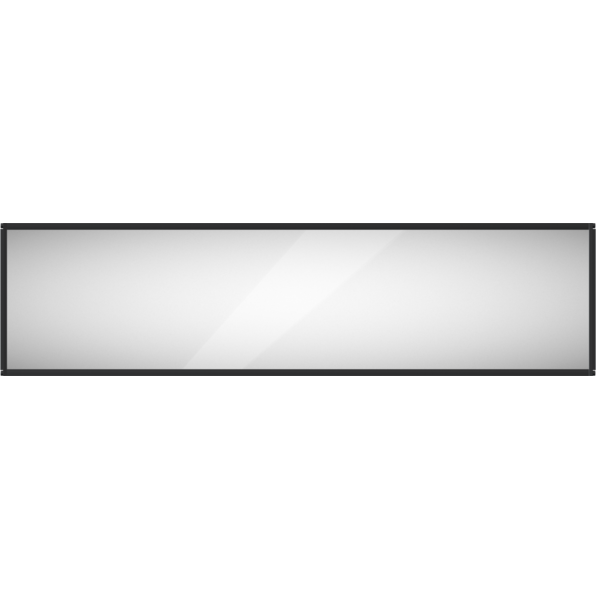

EPTWCJR4X1FILTMD
EPTWCJR4X1FILTMD
(included)
Front medium diffusion filter for ECLPANELTWCJR4X1
EPTWCJR4X1FILTLD
EPTWCJR4X1FILTLD
(optional)
Front low diffusion filter (more output) for ECLPANELTWCJR4X1

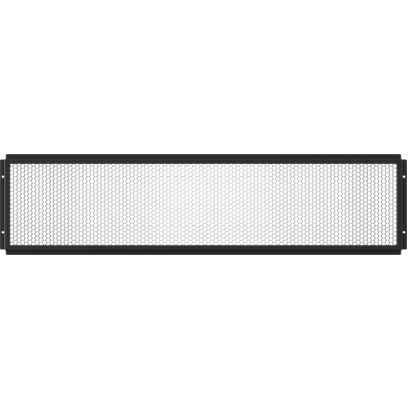

EPTWCJR4X1EC30
EPTWCJR4X1EC30
(optional)
30 degree egg crate for ECLPANELTWCJR4X1

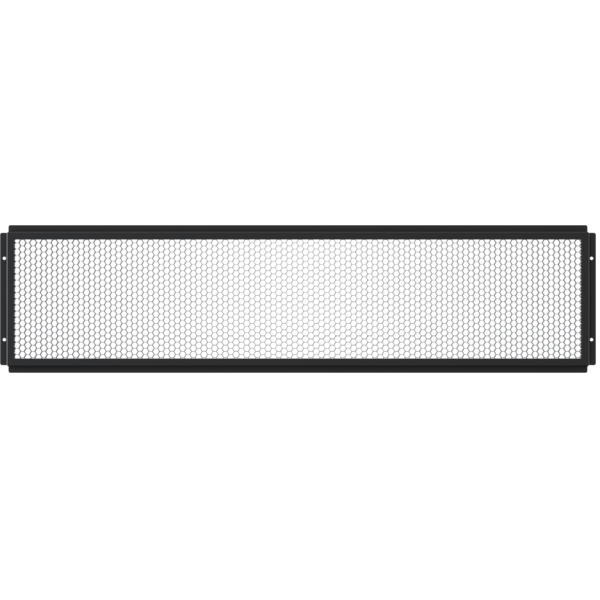

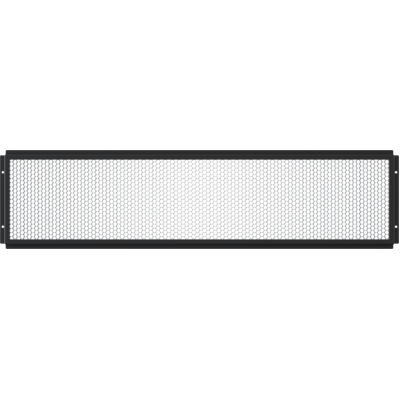

EPTWCJR4X1EC60
EPTWCJR4X1EC60
(optional)
60 degree egg crate for ECLPANELTWCJR4X1

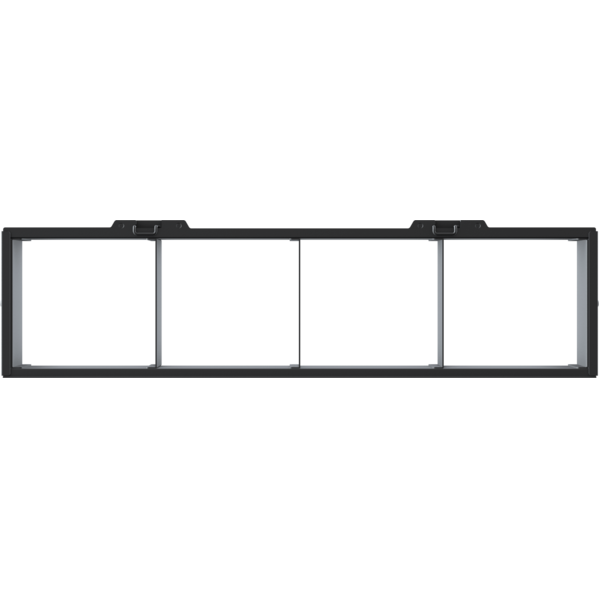

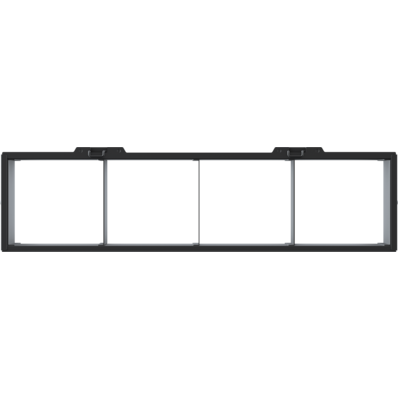

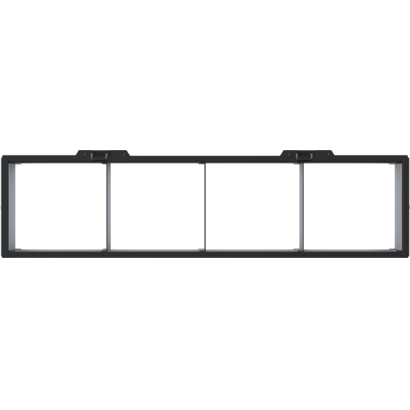

EPTWCJR4X1EC4C
EPTWCJR4X1EC4C
(optional)
4 chamber egg crate for ECLPANELTWCJR4X1

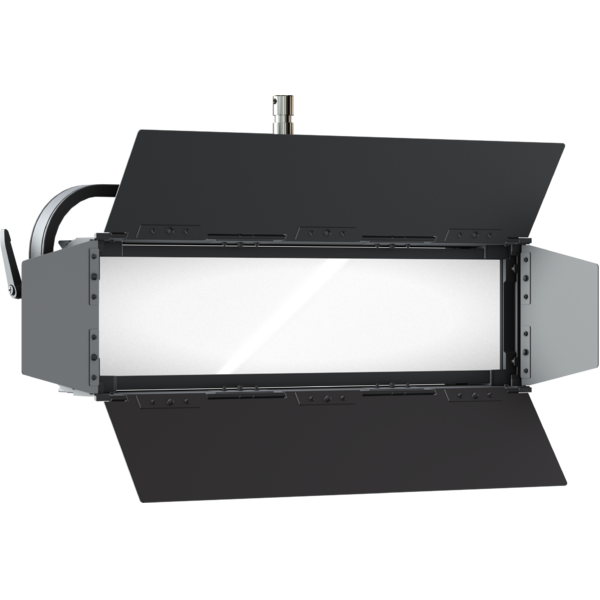

EPTWCJR4X1BD
EPTWCJR4X1BD
(optional)
Barndoor for ECLPANELTWCJR4X1 with 4 directional flaps to adjust the light beam

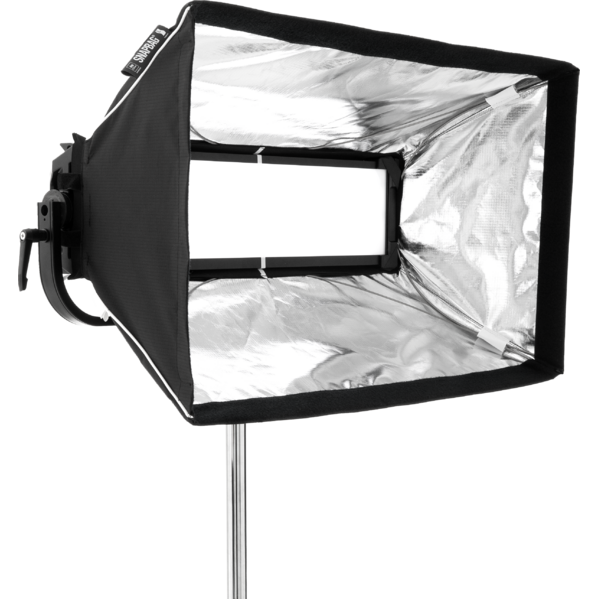

EPTWCSBJR41
EPTWCSBJR41
(optional)
SnapBag 4x1 for ECLPANELTWCJR4x1 by DoP choice

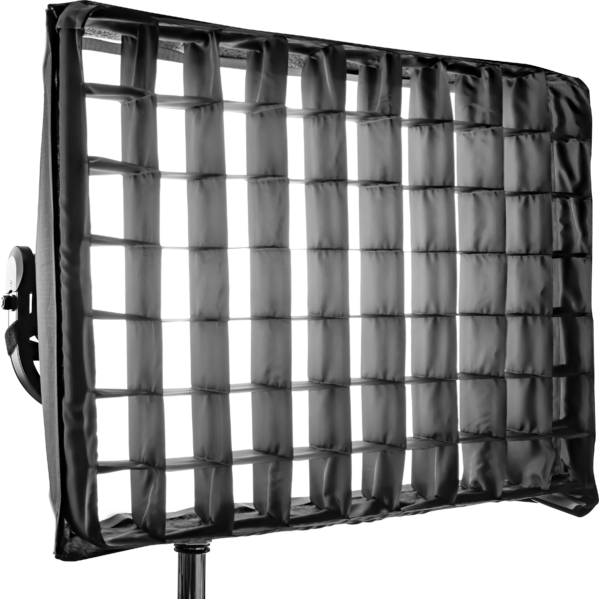

EPTWCSG4SBJR4140
EPTWCSG4SBJR4140
(optional)
40° SnapGrid for SnapBag, 4x1 for ECLPANELTWCJR4x1 by DoP choice

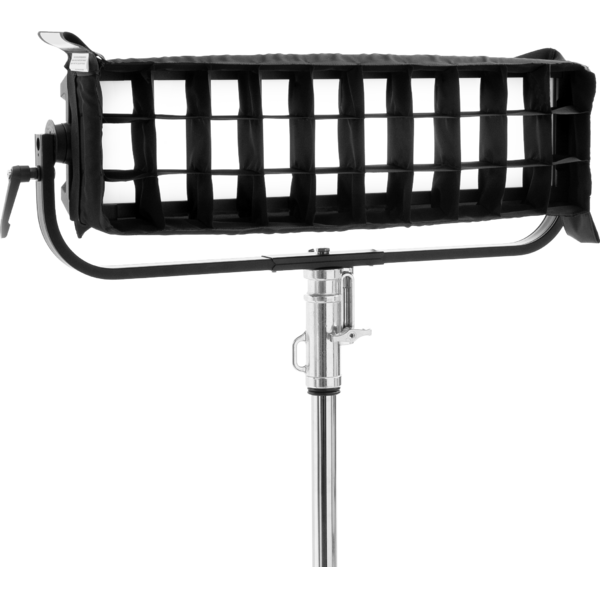

EPTWCSGJR4140
EPTWCSGJR4140
(optional)
40° SnapGrid, 4x1 for ECLPANELTWCJR4x1 by DoP choice
SPGM10
SPGM10
(optional)
28mm spigot for fixtures, M10 bolt
SPGM12
SPGM12
(optional)
28mm spigot for fixtures, M12 bolt
ECLFRSPG
ECLFRSPG
(included)
Spigot for PROLIGHTS fixtures
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheet Eclpaneltwcjr4x1_A4_DATASHEET_(EN).pdf 402KB
Letter datasheet Eclpaneltwcjr4x1_A4_DATASHEET_(IT).pdf 257KB
Letter datasheet Eclpaneltwcjr4x1_LETTER_DATASHEET_(EN).pdf 361KB
Tender Specification Eclpaneltwcjr4x1_TENDER_SPECIFICATION.pdf 5MB

User manual

File name File size Download
User manual Eclpaneltwcjr4x1_USER_MANUAL_EN.pdf 5MB
General safety info GENERAL_SAFETY_INFORMATION.pdf 12MB
User manual Eclpaneltwcjr4x1_USER_MANUAL_FR.pdf 5MB
User manual Eclpaneltwcjr4x1_Wireless_Protocol_Compatibilit_EN.pdf 4MB

DMX chart & personalities

File name File size Download
DMX chart Eclpaneltwcjr4x1_DMX_CHARTS.pdf 773KB
VectorWorks ECLPANELTWCJR4X1_+PO_VECTORWOR_SYMBOLS.vwx 1005KB
VectorWorks ECLPANELTWCJR4X1_VECTORWORKS_SYMBOLS.vwx 812KB
VectorWorks PROLIGHTS_VECTORWORKS_v23_LIBRARY.vwx 306MB
VectorWorks PROLIGHTS_VECTORWORKS_v18_LIBRARY.vwx 448MB
VectorWorks ECLPTJR4X1+BRKL_VW_SYMBOLS.vwx 1MB
VectorWorks ECLPTJR4X1+BRKL+BHEAD_VW_SYMBOLS.vwx 2MB
ECLPANELTWCJR4X1 Firmware rev. 1.4
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

File name File size Download
IES prolights_eclpaneltwcjr4x1_ies files.zip 29KB
LDT prolights_eclpaneltwcjr4x1_ldt files.zip 23KB
PDF Photometrics Eclpaneltwcjr4x1_PHOTOMETRICS_REPORT.pdf 6MB
Dialux Download DIALux product catalogue -

CAD symbols & drawings

File name File size Download
3D sketchup ECLPANELTWCJR4X1_3D_SKETCHUP.zip 2MB
2D ECLPANELTWCJR4X1_2D.zip 10MB
3D ECLPANELTWCJR4X1_3D.zip 1MB
2D cad symbols ECLPANELTWCJR4X1_2DSYMBOLS.zip 164KB
Technical drawing ECLPANELTWCJR4X1_TECHNICAL DRAWINGS.zip 668KB

Tech docs

File name File size Download
Noise Report Eclpaneltwcjr4x1_NOISE_REPORT.pdf 298KB

Software

File name File size Download

Firmware

Only the latest firmware versions for each hardware revision are available for download.
To download previous firmware versions, log in to the customer care section.
Update Tool: UPBOX1UP5 UPBOX1UP5 UPBOXPRO UPBOXPRO UPBOX1UP5 UPBOX1UP5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.7 STABLE 24/11/2023 New functions:
  • Spektra Calibration: new modes available
    • ON: CCT and colors are fully calibrated, working in the common color space definition set by Spektra. This means that output of multiple fixtures will match with no visible differences. Color Saturation is slightly reduced.
    • PURE COLORS: CCT is calibrated, giving perfect white matching across multiple fixtures, but primary and secondary colors are calibrated to their native color space which allows maximum color saturation. The closer you move towards white, the more closely multiple fixtures will match each other's output. The further you move away from white and the closer you move towards saturated color, the less closely multiple fixtures will match each other's output.
    • OFF: CCT doesn't guarantee High CRI Values and color output of one fixture may or may not closely match that of other fixtures.
  • Add Spektra Calibration in Manufacturer Specific PID in RDM:
    • 0: ON
    • 1: PURE COLORS (default value)
    • 2: OFF
  • Added Dimmer Speed Off.
Improvements:
  • "Dimmer Mode" changed to "Dimmer Speed". So:
    • Dimmer Mode "Off" changed to Dimmer Speed "Auto" (default value)
    • Dimmer Mode "Dimmer 1" changed to Dimmer Speed "Fast"
    • Dimmer Mode "Dimmer 2" changed to Dimmer Speed "Medium"
    • Dimmer Mode "Dimmer 3" changed to Dimmer Speed "Slow"
  • Adjusted Control Channel to fit new functions as follows in Theatre 21Ch, Film 1M12CH, Film 2M20CH, Film 5M17CH, Film 6M33CH, Film XY.
    • Dimmer Speed Off (Control channel values 66-67 )
    • Spektra Calibration On (Control channel values 68-69 )
    • Spektra Calibration Pure Colors  (Control channel values 70-71 )
    • Spektra Calibration Off (Control channel values 72-73 )
  • Adjusted Control Channel to fit new functions as follows in Film 3M17CH , Film 4M33CH:
    • Dimmer Speed Off (Control channel values 212-213 )
    • Spektra Calibration On (Control channel values 214-215 )
    • Spektra Calibration Pure Colors (Control channel values 216-217 )
    • Spektra Calibration Off (Control channel values 218-219 )
  • Increased to 65535 the maximum working hours of the device.
Rev. 1.0
Rev. 2.0
Rev. 2.1

Info Request

News

30 November 2023
Rock me Amadeus: PROLIGHTS Astra Wash illuminate the Falco Musical in Vienna
Rock me Amadeus: PROLIGHTS Astra Wash illuminate the Falco Musical in Vienna
For its global premiere on the stage of Vienna's Ronacher Theater, the musical " Rock me Amadeus - The Falco Musical " was brilliantly...
24 November 2023
NicLen expands its inventory with Astra Hybrid330
NicLen expands its inventory with Astra Hybrid330
NicLen has expanded its rental park by acquiring the Astra Hybrid330 . Provided by Lightpower, PROLIGHTS distributor in Germany, this...
21 November 2023
Prolights products on the top of Europe
Prolights products on the top of Europe
PROLIGHTS products took part in the new interactive installation “Top of Europe” at the Jungfraujoch railway station, the highest...
16 November 2023
The FIBA 3x3 World Tour 2023 Illuminated by Prolights fixtures
The FIBA 3x3 World Tour 2023 Illuminated by Prolights fixtures
The FIBA 3x3 World Tour 2023, hosted at the Constanța Masters in the City Park Mall, was illuminated by a lighting setup composed...
14 November 2023
Jet Wash7 illuminates the Vibes' Urban Garden room
Jet Wash7 illuminates the Vibes' Urban Garden room
PROLIGHTS' Jet Wash7 illuminated the Urban Garden room of the Vibes complex in Eindhoven. From a sports center to a location for corporate...
10 November 2023
PROLIGHTS products Illuminates Marragheddon Festival
PROLIGHTS products Illuminates Marragheddon Festival
PROLIGHTS products illuminated the Marrageddon festival, an unprecedented celebration of Italian hip-hop, conceived and hosted by hip-hop...
07 November 2023
EclFresnel CT+ Series - Revolutionizing LED Fresnels
EclFresnel CT+ Series - Revolutionizing LED Fresnels
PROLIGHTS proudly introduces the EclFresnel CT+ series , an innovative range of LED Fresnel fixtures designed to redefine the standard...
03 November 2023
Prolights' EclPanel Shines in TV Commercial with MS Dhoni
Prolights' EclPanel Shines in TV Commercial with MS Dhoni
The PROLIGHTS EclPanel TWC series shone in a recent television commercial featuring the iconic Indian cricket player, Mr. MS Dhoni,...
30 October 2023
Cannon Hill Anglican College Auditorium shines with Prolights Fresnels
Cannon Hill Anglican College Auditorium shines with Prolights Fresnels
Cannon Hill Anglican College in Brisbane, Australia, has upgraded its auditorium with an all-LED lighting rig  including the Prolights...
26 October 2023
Prolights illuminates the new location of Science Park Towers
Prolights illuminates the new location of Science Park Towers
The grand unveiling of the new Science Park Towers headquarters within the Jonkoping Science Park showcased a state-of-the-art, innovative...
24 October 2023
Prolights EclDisplay range transforms Belconnen Arts Centre Gallery
Prolights EclDisplay range transforms Belconnen Arts Centre Gallery
Belconnen Art Center has chosen Prolights' EclDisplay range as the main lighting system for its innovative and modern Window Gallery,...
19 October 2023
PROLIGHTS Astra Family shines bright at Hamburger Börs
PROLIGHTS Astra Family shines bright at Hamburger Börs
PROLIGHTS Astra Family brilliantly illuminated the unforgettable "A Show Larger than Life" performance at the iconic Hamburger Börs...

Subscribe to our Newsletter
Follow us, stay connected facebook instagram youtube twitter tiktok linkedin

Loading...
