ECLPANELTWCM2X1
PROLIGHTS

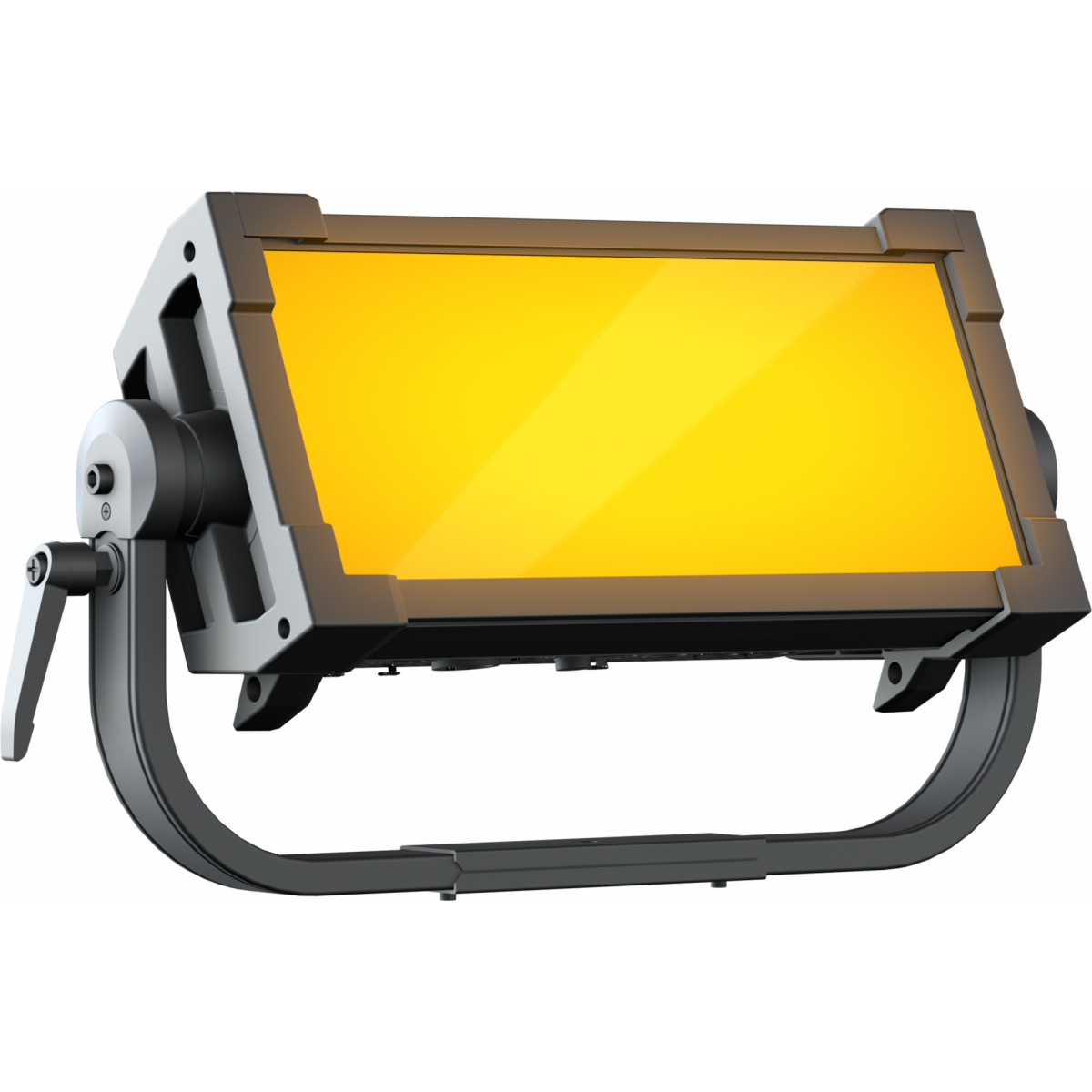

EclPanel TWCMini2x1

ORDER CODE: ECLPANELTWCM2X1

115W Tunable White and colourful LED soft light with pixels and lighting effects

The EclPanel TWCMini2x1 is an ultra-compact LED soft light that provides a beautiful, wide source of soft and precise colours.
In addition to this, the EclPanel TWCMini2x1 comes with a full range of white presets, from daylight to tungsten tones, and produces a tremendous output whilst keeping high CRI, TLCI and TM-30 values.
The EclPanel TWCMini2x1 has 3 precision rotatory knobs, with multiple stand-alone control modes: CCT with +/- green shift, CCT presets, HSI for total control of hue, saturation and intensity, RAW RGBW mode, XY and FX mode, allowing to scroll through the built-in cinema effects engine.
Each of the 2 sections is controlled individually or simultaneously, allowing to play on-board customizable, cinematic effects through its built-in engine or from a console.
The EclPanel TWCMini2x1 has several colour control modes: RGBW, RGB, CMY, HSI, XY, RAW Direct, CCT Linear and CCT Presets with +/- green shift, source emulation and industry-standard colour gels.
Despite its lightweight, it has an on-board driver, a built-in power supply, Wireless DMX (CRMX+W-DMX), network connectivity (Art-Net, sACN, Kling-Net) and low voltage inputs (24-36V and 48Vdc).

SPEKTRAMain features:

  • 115W RGB + Warm White LED source
  • CRI >94; R9 >88,8; TLCI >92
  • 2 section pixel control and built-in lighting effects for cinema applications, colour gel matching
  • Silent operation with multiple fan modes
  • Wireless DMX (CRMX+W-DMX), Ethernet connectivity, low voltage inputs (24-36V, 48Vdc)

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 115W RGB + Warm White LED
  • Luminous flux: 7'642lm @3.200 K with LD filter
  • Lux: 220lx @5 m full
  • CRI: 93 @3.200 K; 94 @5.600 K
  • R9: 90 @3.200 K; 92 @5.600 K
  • TLCI: 91 @5.600 K
  • TM30 Rf: 91 @3.200 K; 90 @5.600 K
  • TM30 Rg: 105 @3.200 K; 104 @5.600 K
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 98°
  • Field angle: 153°
  • Lens type: medium density diffusion panel (interchangeable)
  • Additional optics: see available accessories
COLOUR SYSTEM
  • Colour control: XY, CCT, RGBW, Gel, HSI, Source Emulation, colour macros, CTO on colours
  • Colour mixing: RGB + Warm White
  • CCT: CCT control range from 2.200K to 15.000K, + / - green correction, tungsten emulation
  • White presets: 2.800 K - 10.000K with 28 K resolution
  • Colour wheel: virtual colour wheel with macros
  • Macros: Gels library on-board
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer, colours
  • Pixel patterns: pre-programmed pixel macros and cinema lighting effects patterns
  • Special features: linear crossfade channel from any white to any colour; virtual CTO on colours
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: black
CONTROL
  • Protocols: DMX512, RDM, Art-Net, sACN, W-DMX

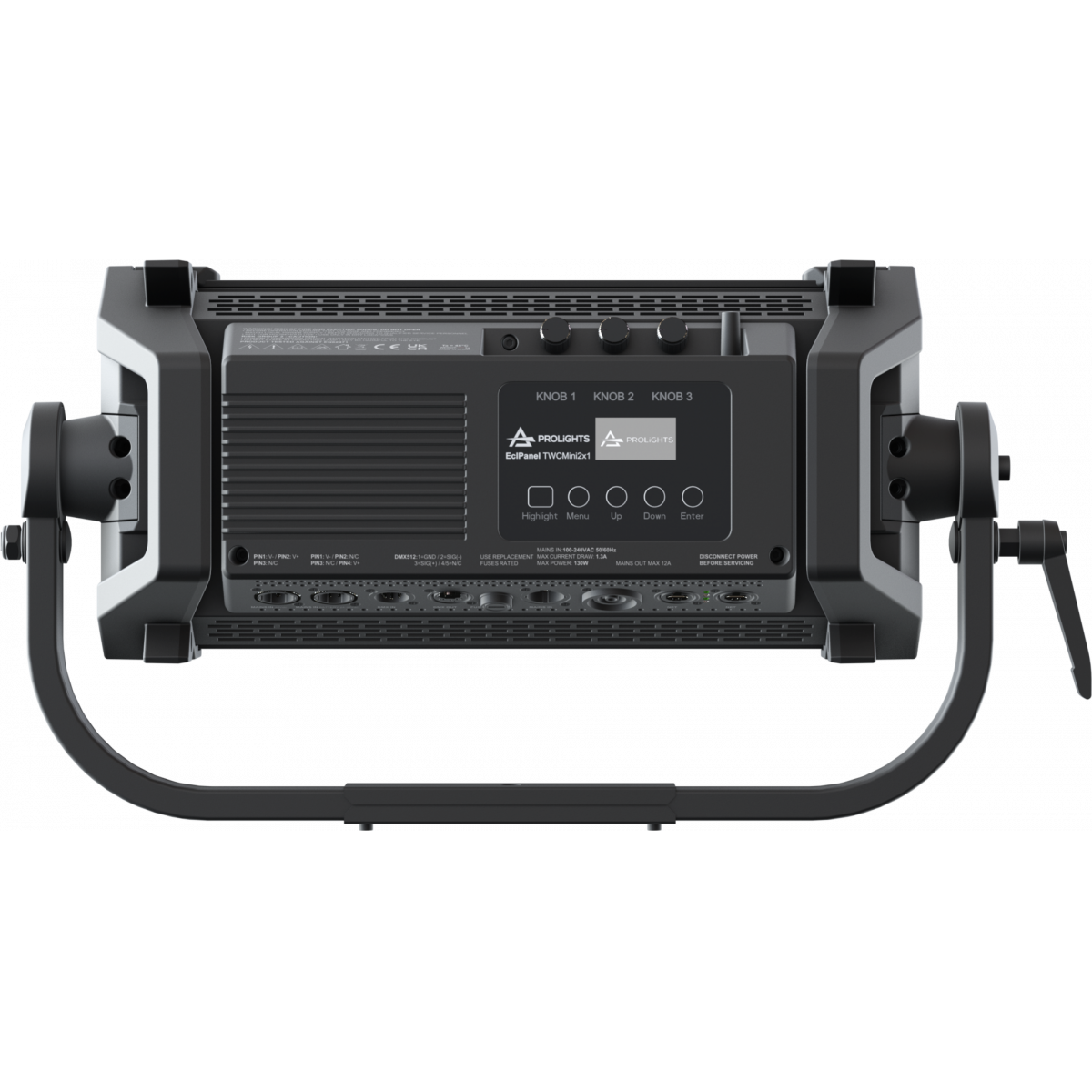

  • Stand Alone: selectable mode through 3 rotatory knobs
  • Pixel control: 2 linear section control
  • Wireless Control: integrated, CRMX + WDMX TRX
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 40.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Low Voltage DC mains: 48Vdc and 24-36V
  • Max power consumption: 130W
  • Output (at 230V): 22 units on a single power line
  • Power factor: >0,93
PHYSICAL
  • IP rating: 20
  • Cooling: active, silent operation

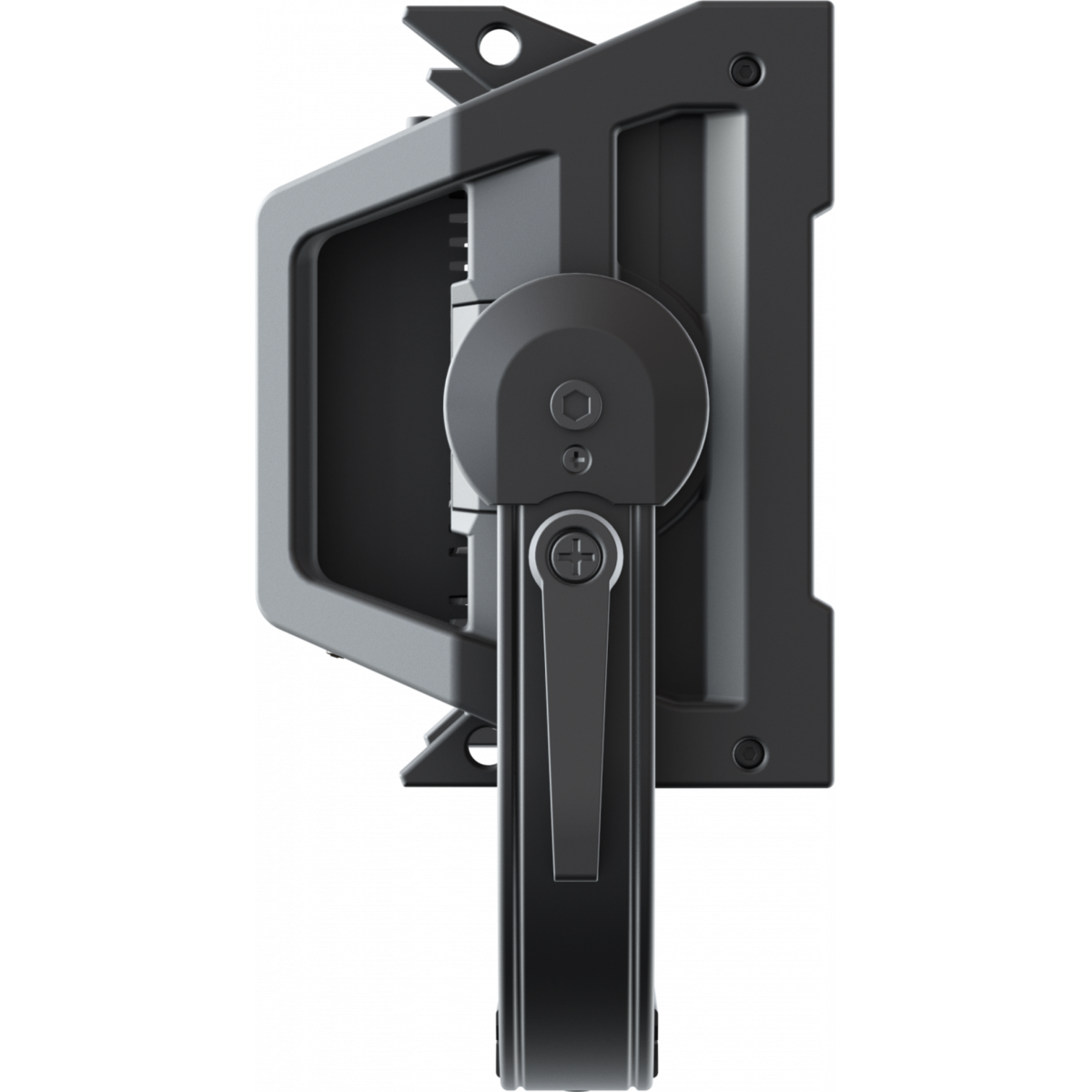

  • Suspension and fixing: bracket for hanging and positioning

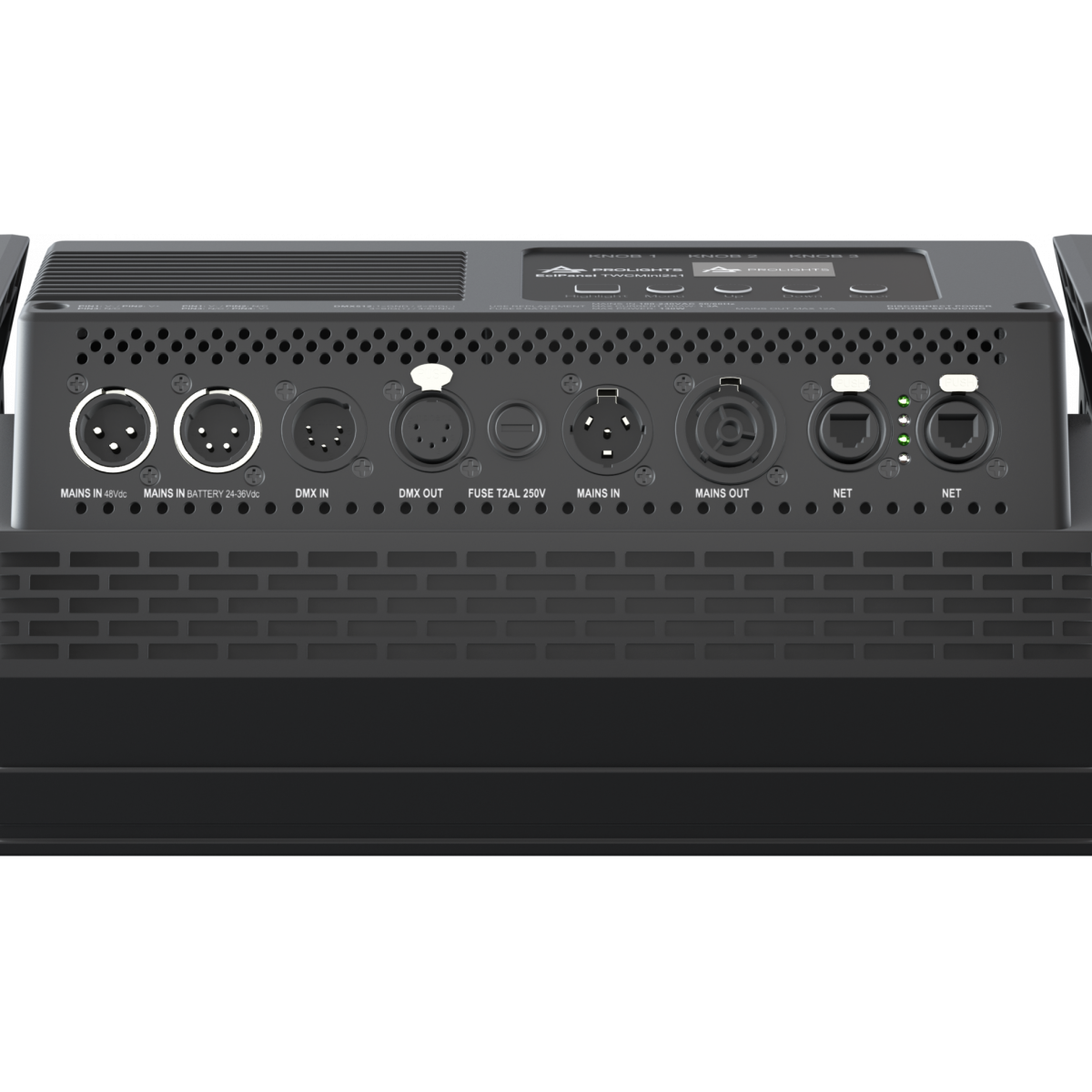

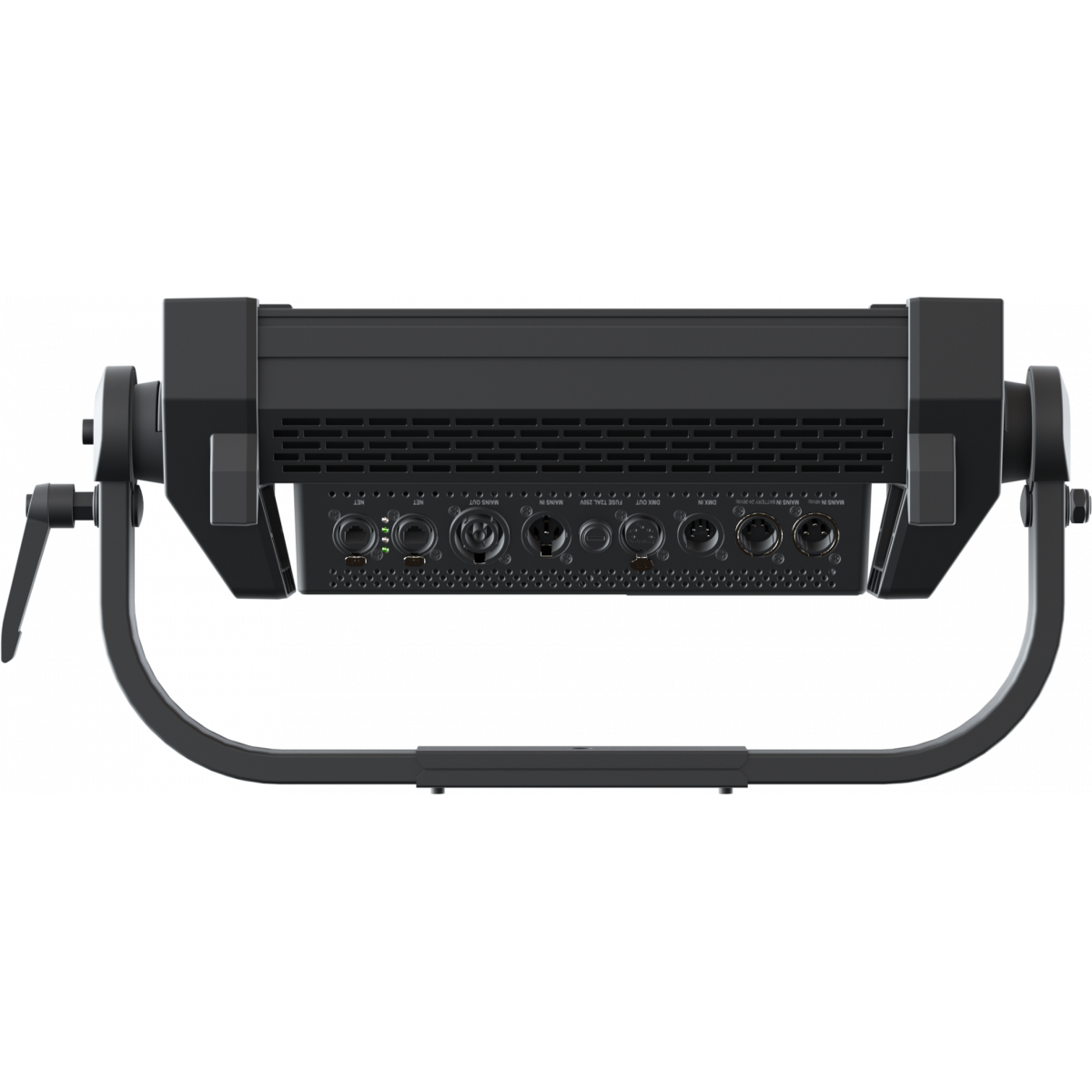

  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
  • Low Voltage DC connector: XLR 4p
  • Dimensions (WxHxD): 529x276x144mm / 20.83''x10.87''x5.67''
  • Dimensions with PO system (WxHxD): 547x396x144mm / 21.54''x15.59''x5.67''
  • Weight: 6kg / 13.23lbs
  • Weight with PO system: 8,6kg / 18.96lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Accessories & Related Products

958225L03
958225L03
(optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
FCLPANELM2X14U
FCLPANELM2X14U
(optional)

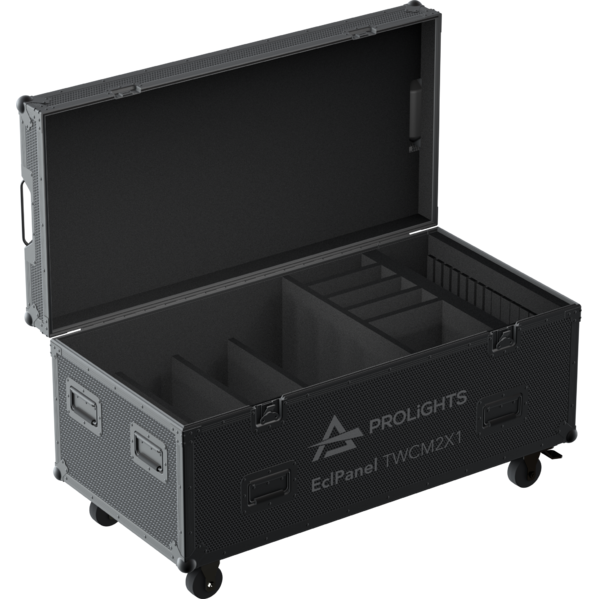

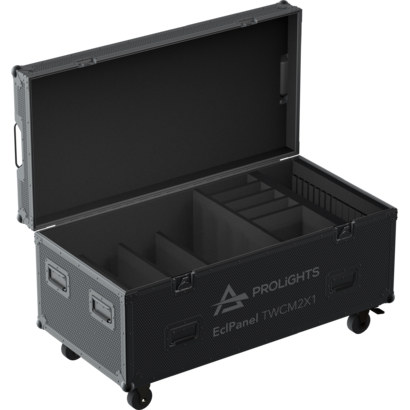

Flight case for 4 pcs of ECLPANELTWCM2X1
TOUR53415L03
TOUR53415L03
(optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
C6040B
C6040B
(optional)
Aluminum clamp for 28mm spigot, 200kg load, 48-51mm tubes, black
C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
9533FXWL03
9533FXWL03
(optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
9513FXWL03
9513FXWL03
(optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
LRLUNA
LRLUNA
(optional)
Single Universe DMX transceiver with Bluetooth
EPTWCBRKM
EPTWCBRKM
(optional)
Center mount bracket for ECLPANELTWCJR and ECLPANELTWCM2X1
EPTWCBHEAD
EPTWCBHEAD
(optional)
Ball head joint for center mount bracket EPTWCBRK series
EPTWCM2X1FILTINT
EPTWCM2X1FILTINT
(optional)
Front intensified diffusion filter for ECLPANELTWCM2X1
ECLPANELM2X1POYO
ECLPANELM2X1POYO
(optional)

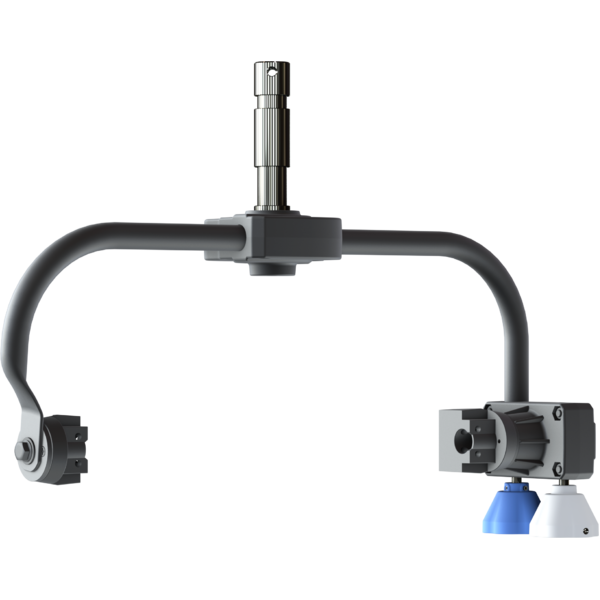

Pole operated aluminium yoke bracket for ECLPANELTWCM2X1
EPTWCM2X1FILTERHD
EPTWCM2X1FILTERHD
(optional)

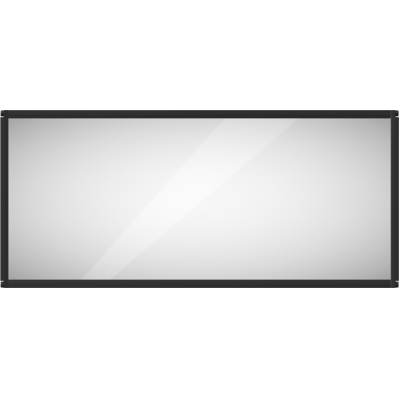

Front high diffusion filter (less output) for ECLPANELTWCM2X1
EPTWCM2X1FILTERMD
EPTWCM2X1FILTERMD
(included)
Front medium diffusion filter for ECLPANELTWCM2X1
EPTWCM2X1FILTERLD
EPTWCM2X1FILTERLD
(optional)

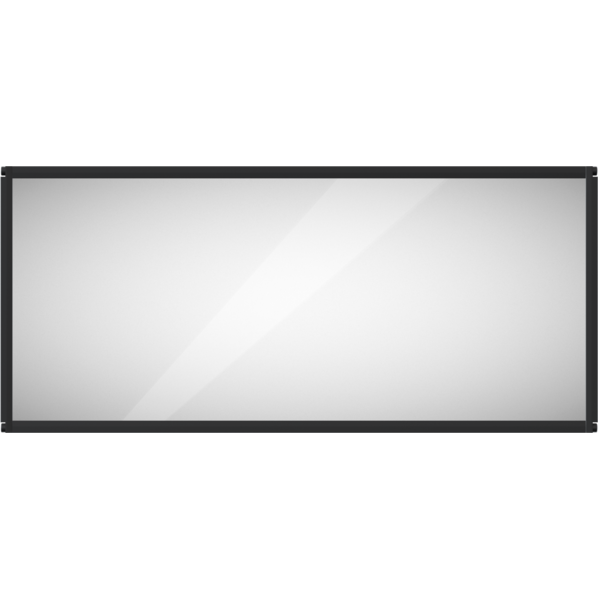

Front low diffusion filter (more output) for ECLPANELTWCM2X1
EPTWCM2X1EC30
EPTWCM2X1EC30
(optional)

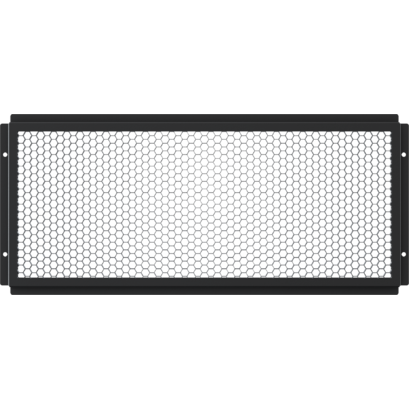

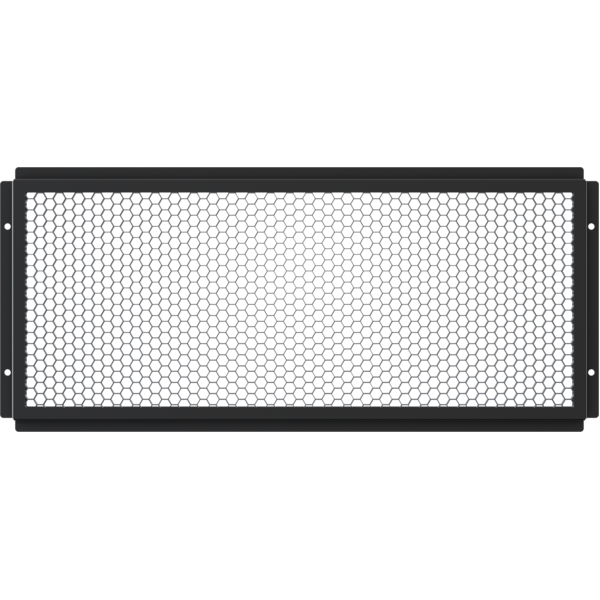

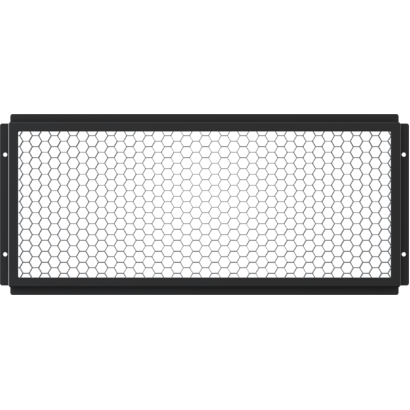

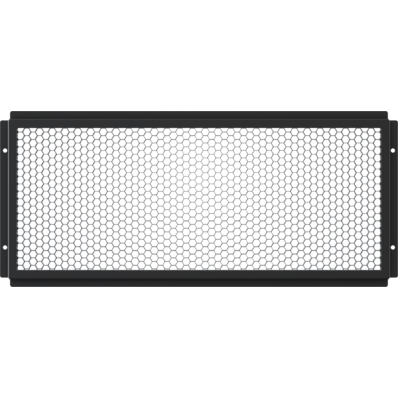

30 degree egg crate for ECLPANELTWCM2X1

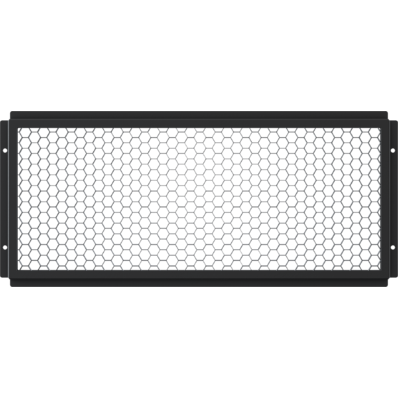

EPTWCM2X1EC60
EPTWCM2X1EC60
(optional)

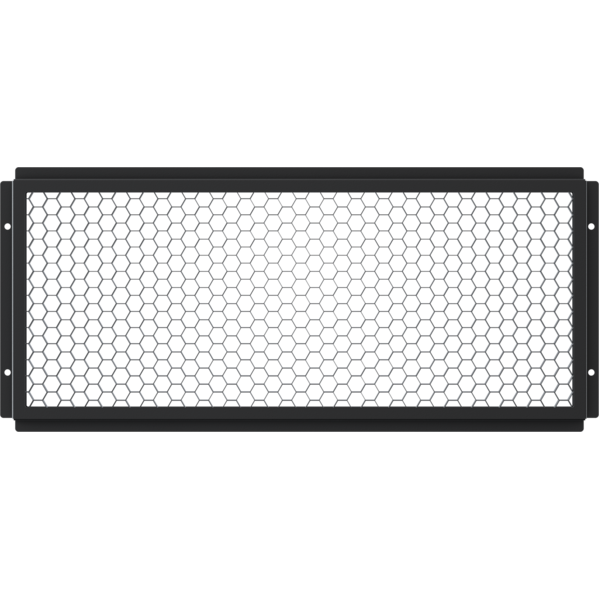

60 degree egg crate for ECLPANELTWCM2X1

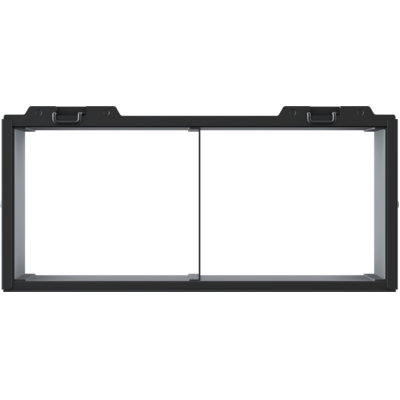

EPTWCM2X1EC2C
EPTWCM2X1EC2C
(optional)

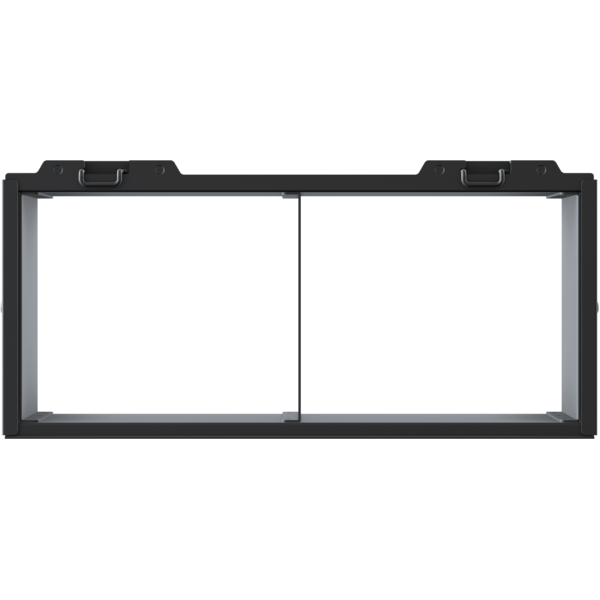

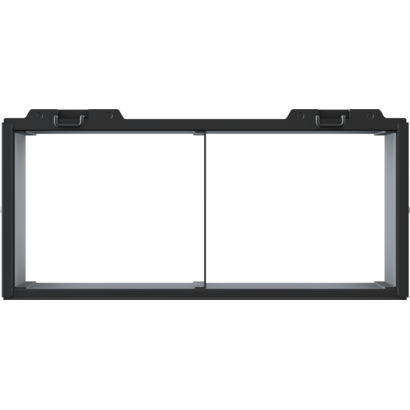

2 chamber egg crate for ECLPANELTWCM2X1
EPTWCM2X1BD
EPTWCM2X1BD
(optional)

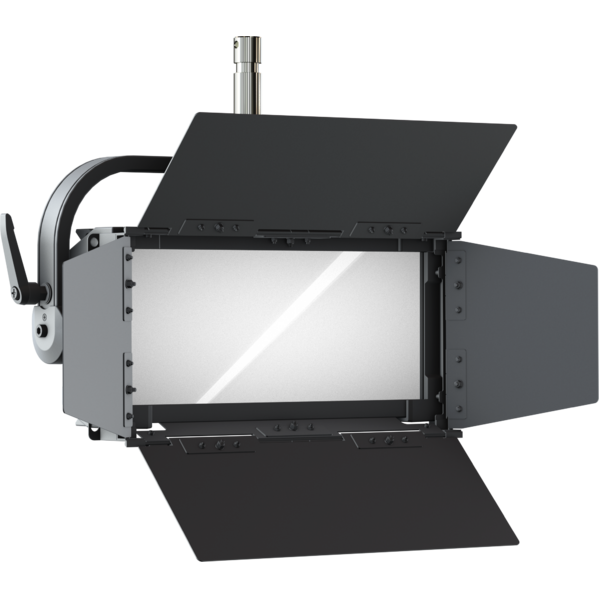

Barndoor for ECLPANELTWCM2X1 with 4 directional flaps to adjust the light beam
EPTWCSBM21
EPTWCSBM21
(optional)

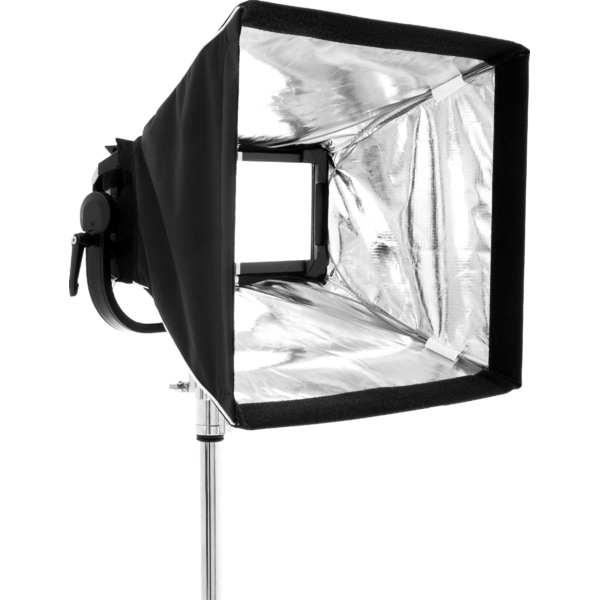

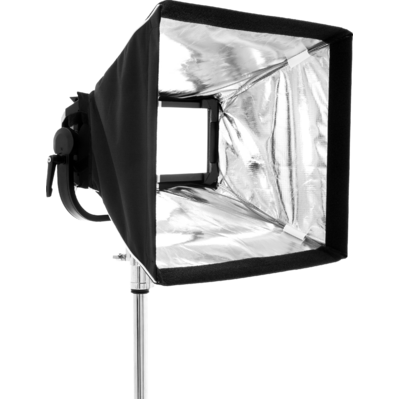

SnapBag 2x1 for ECLPANELTWCM2x1 by DoP choice
EPTWCSG4SBM2140
EPTWCSG4SBM2140
(optional)

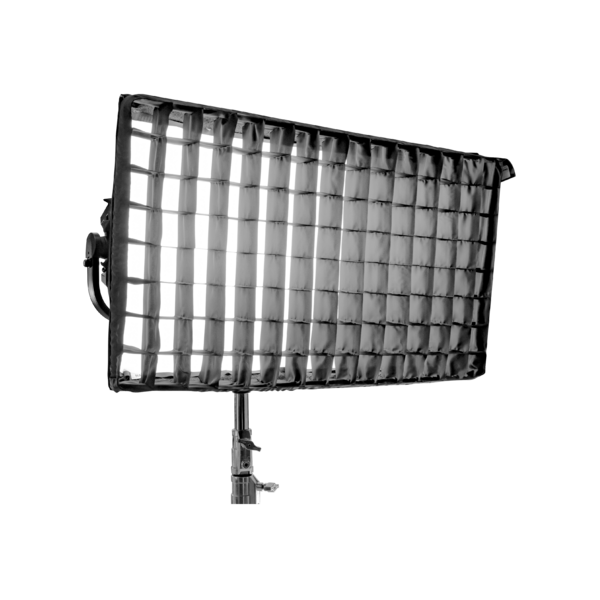

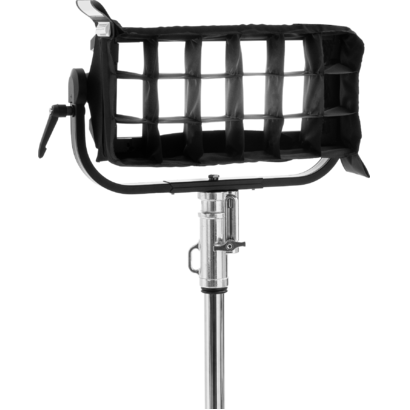

40° SnapGrid for SnapBag, 2x1 for ECLPANELTWCM2x1 by DoP choice

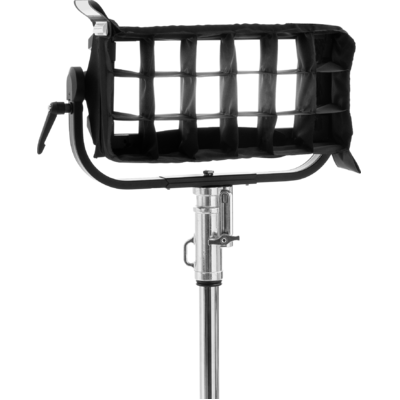

EPTWCSGM2140
EPTWCSGM2140
(optional)

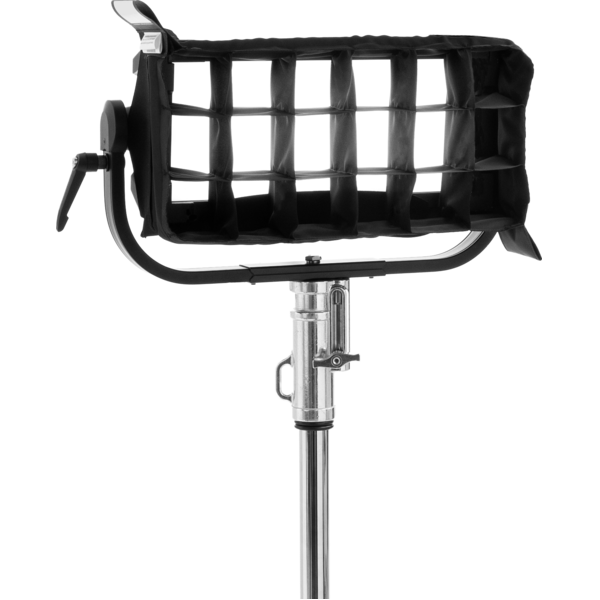

40° SnapGrid, 2x1 for ECLPANELTWCM2x1 by DoP choice
SPGM10
SPGM10
(optional)
28mm spigot for fixtures, M10 bolt
SPGM12
SPGM12
(optional)
28mm spigot for fixtures, M12 bolt
ECLFRSPG
ECLFRSPG
(included)
Spigot for PROLIGHTS fixtures

<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

DMX chart & personalities

ECLPANELTWCM2X1 Firmware rev. 1.5
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
ECLPANELTWCM2X1 Firmware rev. 1.1
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Tech docs

File name File size Download
Noise Report Eclpaneltwcm2x1_NOISE_REPORT.pdf 288KB

Software

File name File size Download

Firmware

Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed
Update Tool: UPBOX1UP5 UPBOX1UP5 UPBOXPRO UPBOXPRO UPBOX1UP5 UPBOX1UP5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.5 STABLE 24/11/2023 New functions:
  • Spektra Calibration: new modes available
    • ON: CCT and colors are fully calibrated, working in the common color space definition set by Spektra. This means that output of multiple fixtures will match with no visible differences. Color Saturation is slightly reduced.
    • PURE COLORS: CCT is calibrated, giving perfect white matching across multiple fixtures, but primary and secondary colors are calibrated to their native color space which allows maximum color saturation. The closer you move towards white, the more closely multiple fixtures will match each other's output. The further you move away from white and the closer you move towards saturated color, the less closely multiple fixtures will match each other's output.
    • OFF: CCT doesn't guarantee High CRI Values and color output of one fixture may or may not closely match that of other fixtures.
  • Add Spektra Calibration in Manufacturer Specific PID in RDM:
    • 0: ON
    • 1: PURE COLORS (default value)
    • 2: OFF
  • Added Dimmer Speed Off.
Improvements:
  • "Dimmer Mode" changed to "Dimmer Speed". So:
    • Dimmer Mode "Off" changed to Dimmer Speed "Auto" (default value)
    • Dimmer Mode "Dimmer 1" changed to Dimmer Speed "Fast"
    • Dimmer Mode "Dimmer 2" changed to Dimmer Speed "Medium"
    • Dimmer Mode "Dimmer 3" changed to Dimmer Speed "Slow"
  • Adjusted Control Channel to fit new functions as follows in Theatre 21Ch, Film 1M12CH, Film 2M20CH, Film 5M17CH, Film 6M33CH, Film XY.
    • Dimmer Speed Off (Control channel values 66-67 )
    • Spektra Calibration On (Control channel values 68-69 )
    • Spektra Calibration Pure Colors  (Control channel values 70-71 )
    • Spektra Calibration Off (Control channel values 72-73 )
  • Adjusted Control Channel to fit new functions as follows in Film 3M17CH , Film 4M33CH:
    • Dimmer Speed Off (Control channel values 212-213 )
    • Spektra Calibration On (Control channel values 214-215 )
    • Spektra Calibration Pure Colors (Control channel values 216-217 )
    • Spektra Calibration Off (Control channel values 218-219 )
  • Increased to 65535 the maximum working hours of the device.
Rev. 1.0
Rev. 2.0
Rev. 2.1
