EclPanel TWCXLPack

ORDER CODE: ECLPANELTWCXLPACK

1.500W Tuneable White and colourful LED soft light with pixels and lighting effects

EclPanel TWCXL, is an ultra-bright LED soft light, engineered for large scale Film & TV production, that provides a beautiful, wide source of soft and precise colours. In addition to this, the PROLIGHTS EclPanel TWCXL comes with a full range of white colours, from daylight to tungsten tones, reaching a superior light quality with high CRI, TLCI and TM-30. The EclPanel TWCXL allows for quick and accurate local adjustment of light through 4 rotatory knobs with three fully featured modes: CCT with +/- green shift, HSI for total control of hue, saturation and intensity, FX mode to access the on-board pixel cinema effects. The unit can also be controlled on a per-section basis, allowing to play on-board customisable effects or to record them through a lighting desk. Both methods provide eye-candy effects and cinematic special effects. The unit is designed with an on-board driver, a built-in power supply, a Wireless transceiver for remote DMX and RDM control, network connectivity (Art-Net, sACN). Thanks to its lightweight, the EclPanel TWCXL is easy to rig and to connect, making it the perfect lighting fixture for any location.


The pack contains:

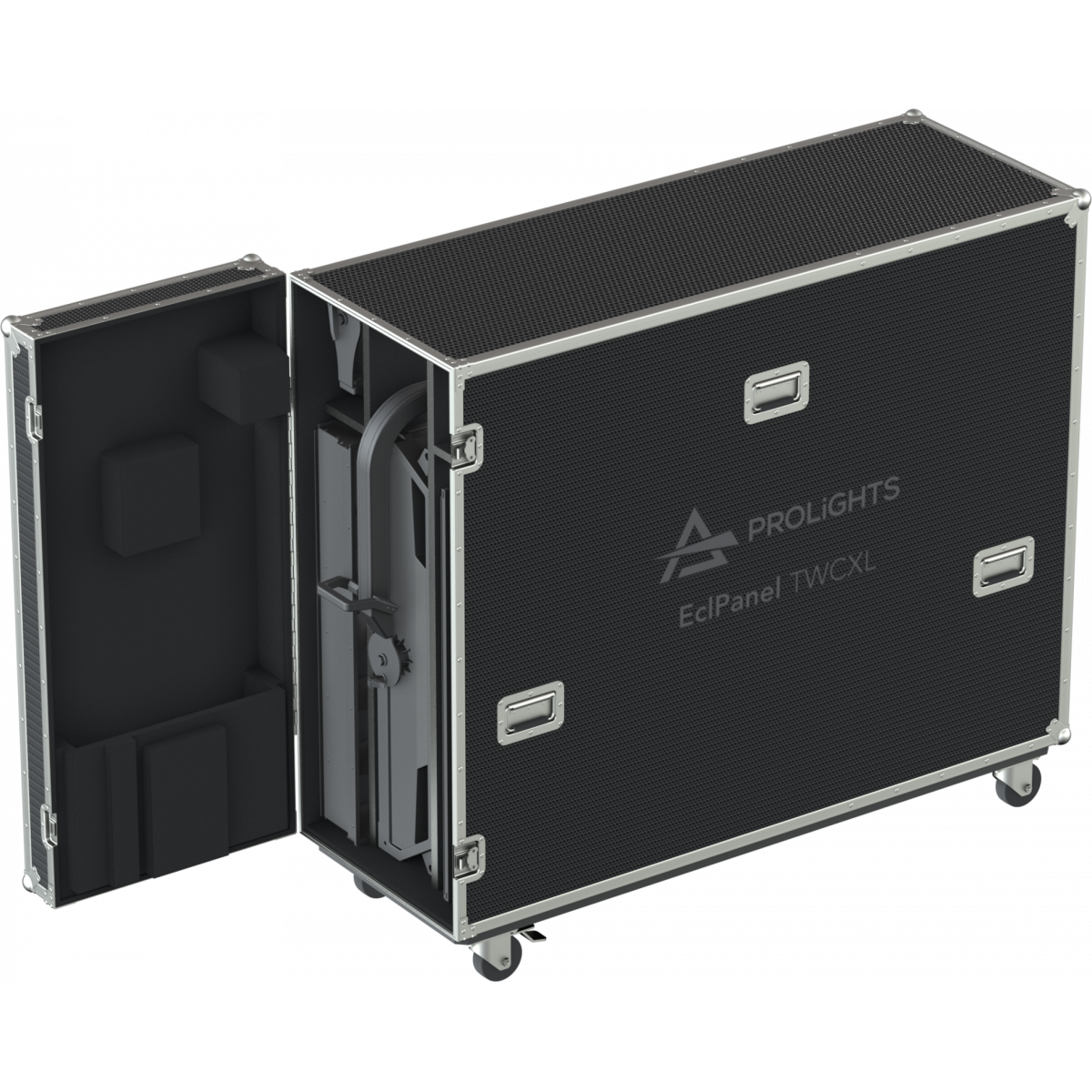

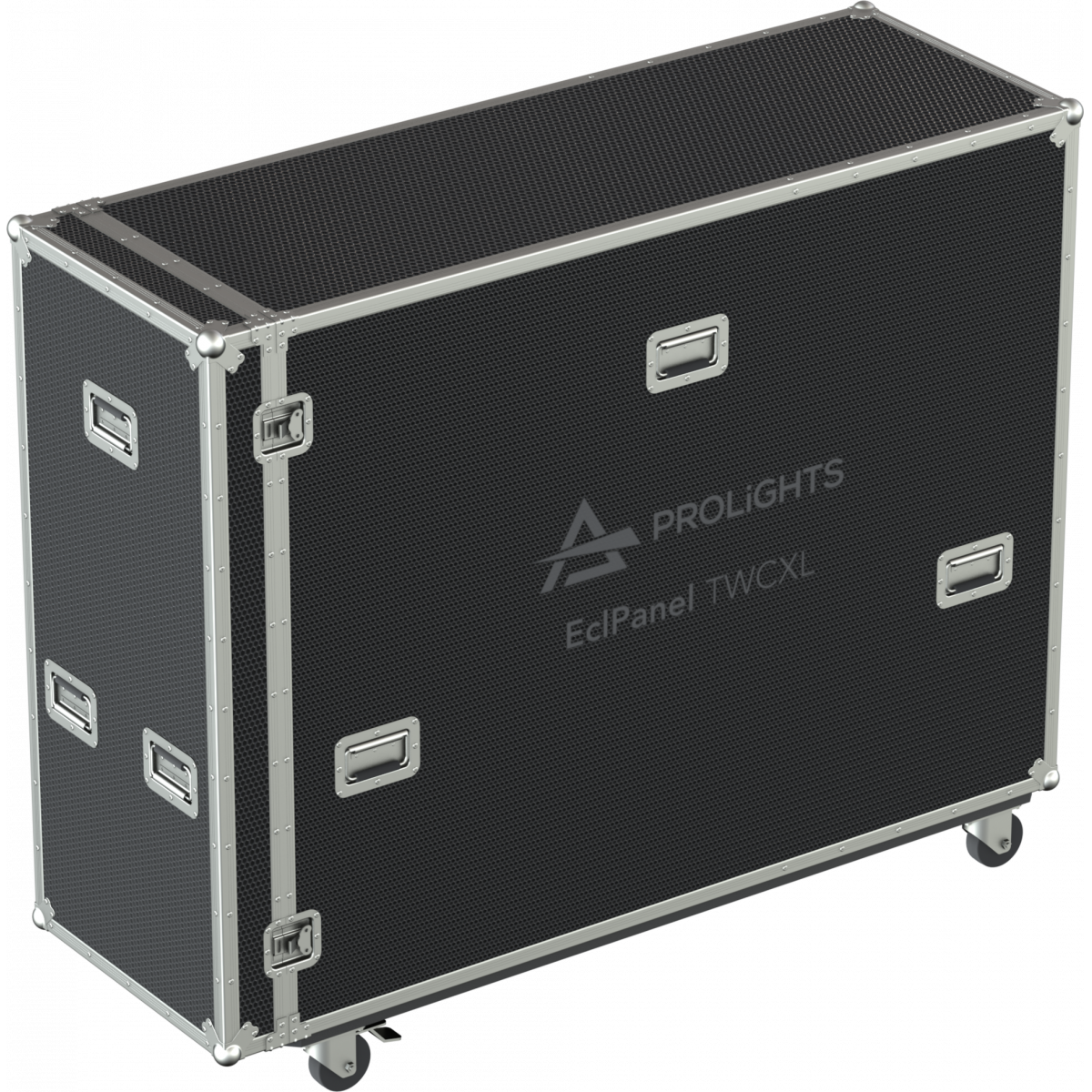

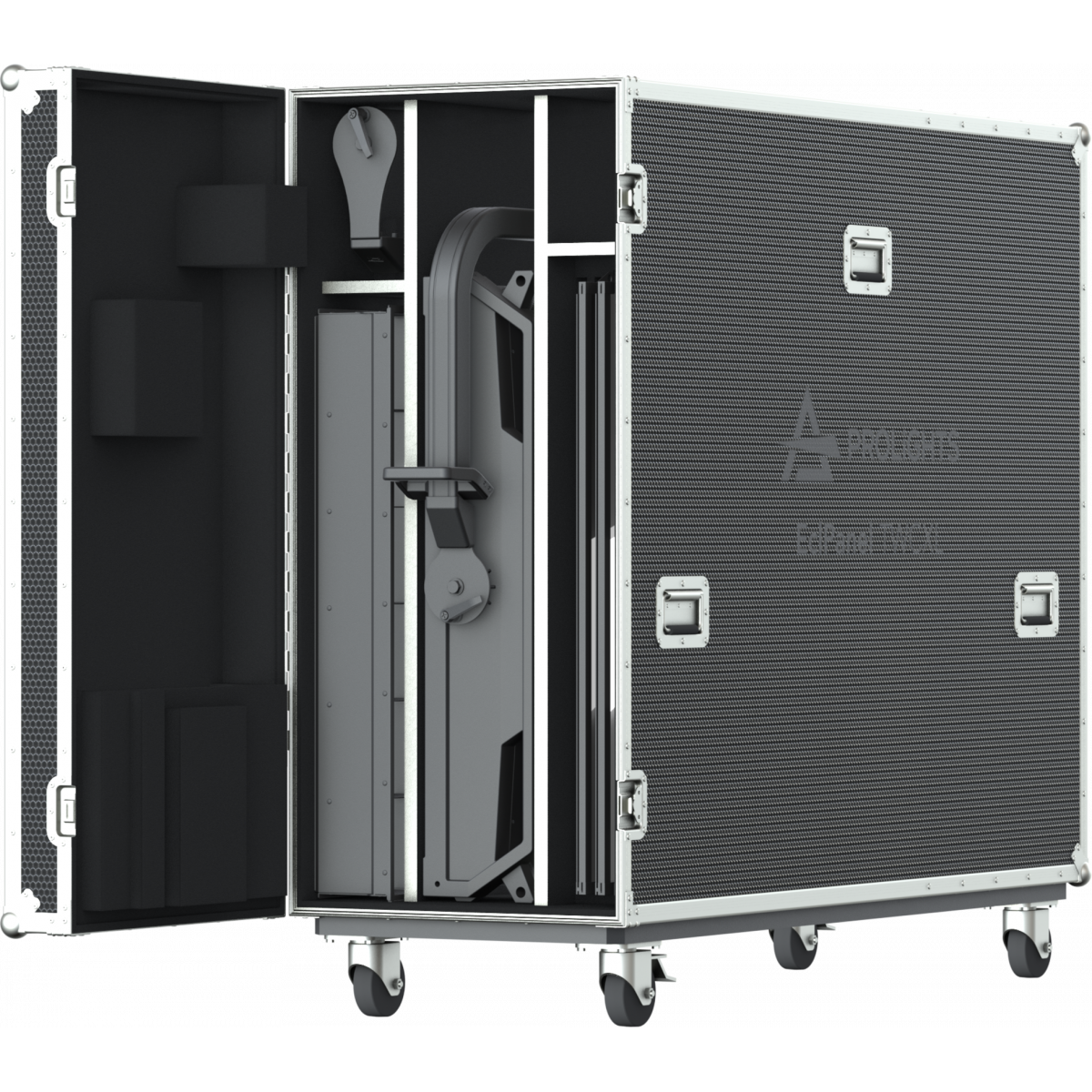

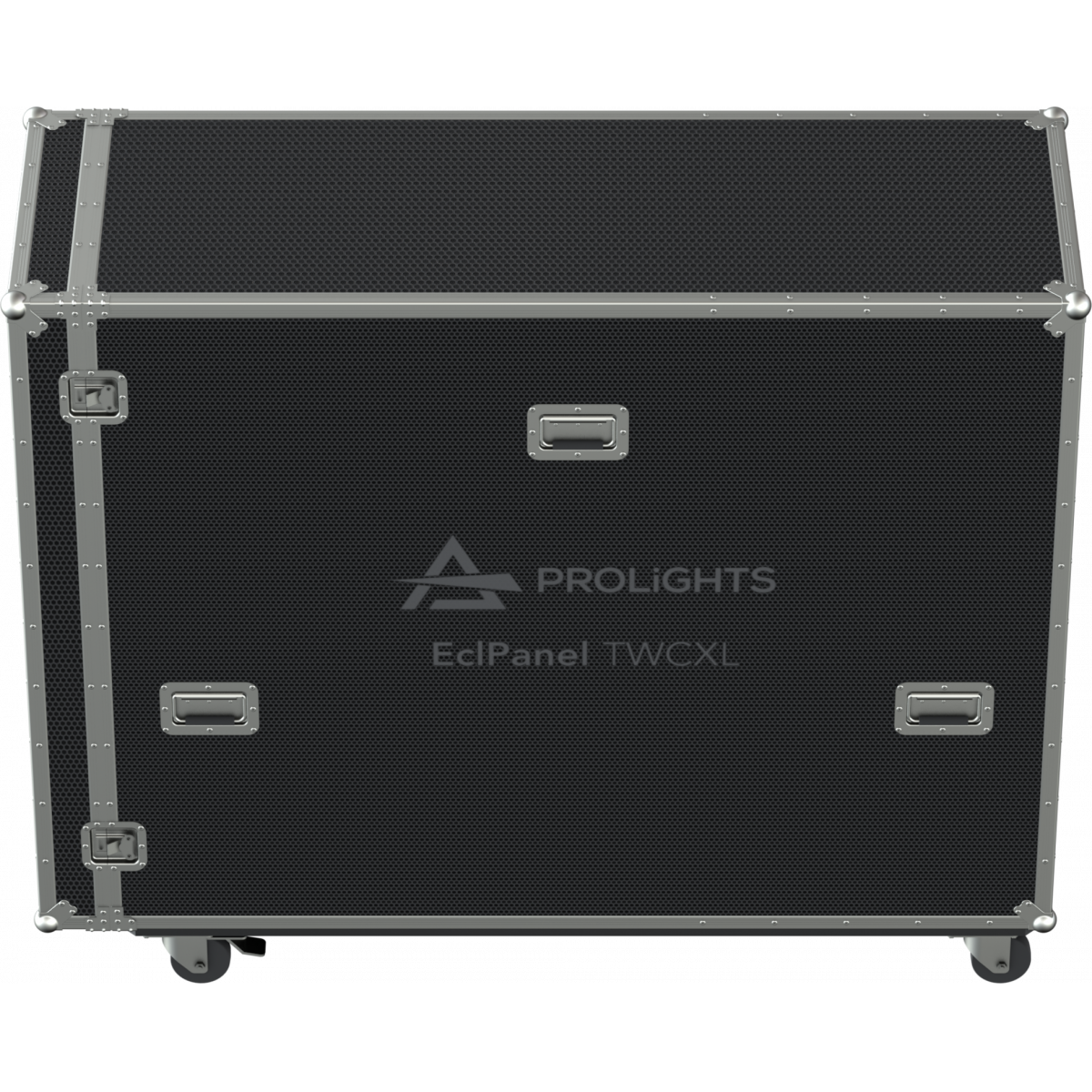

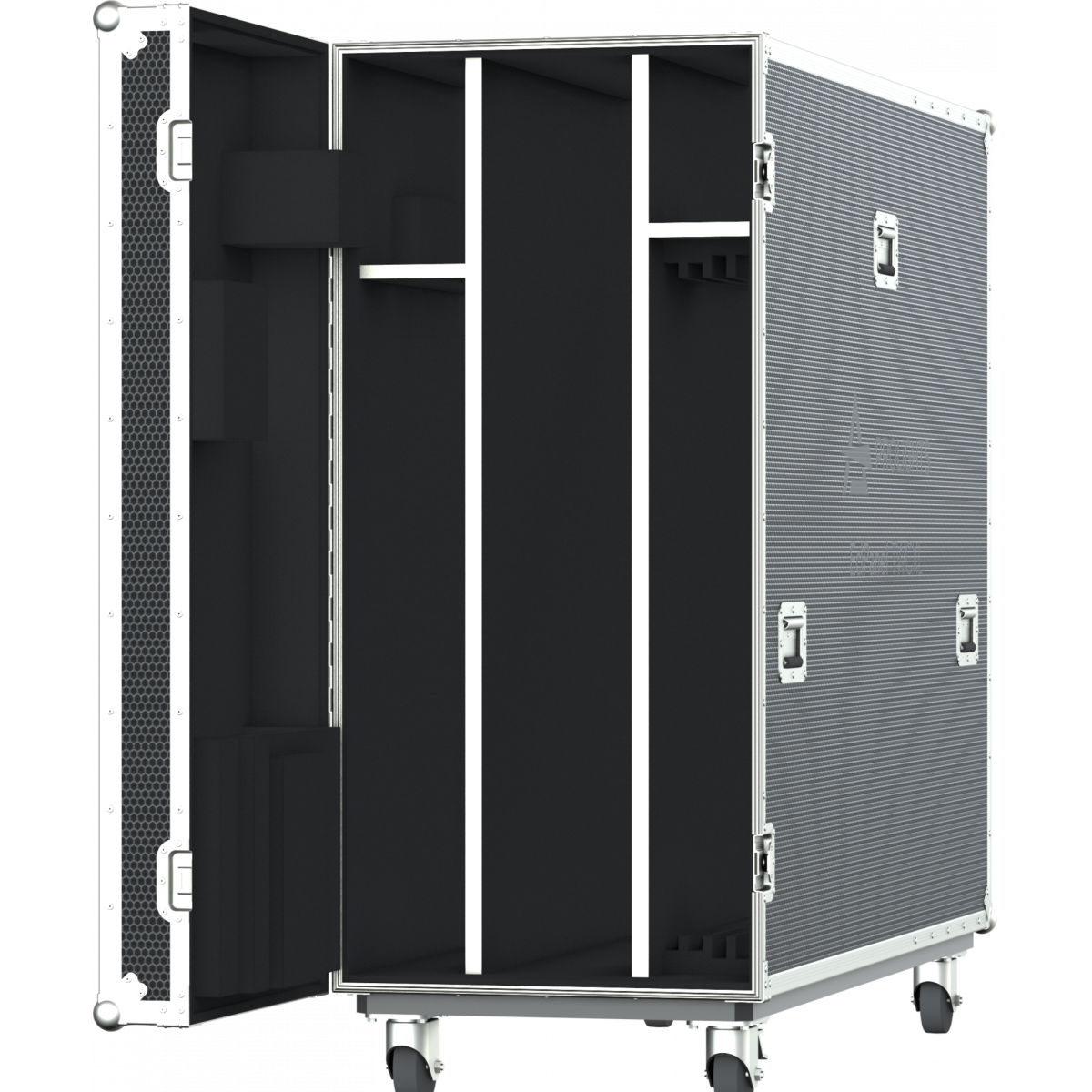

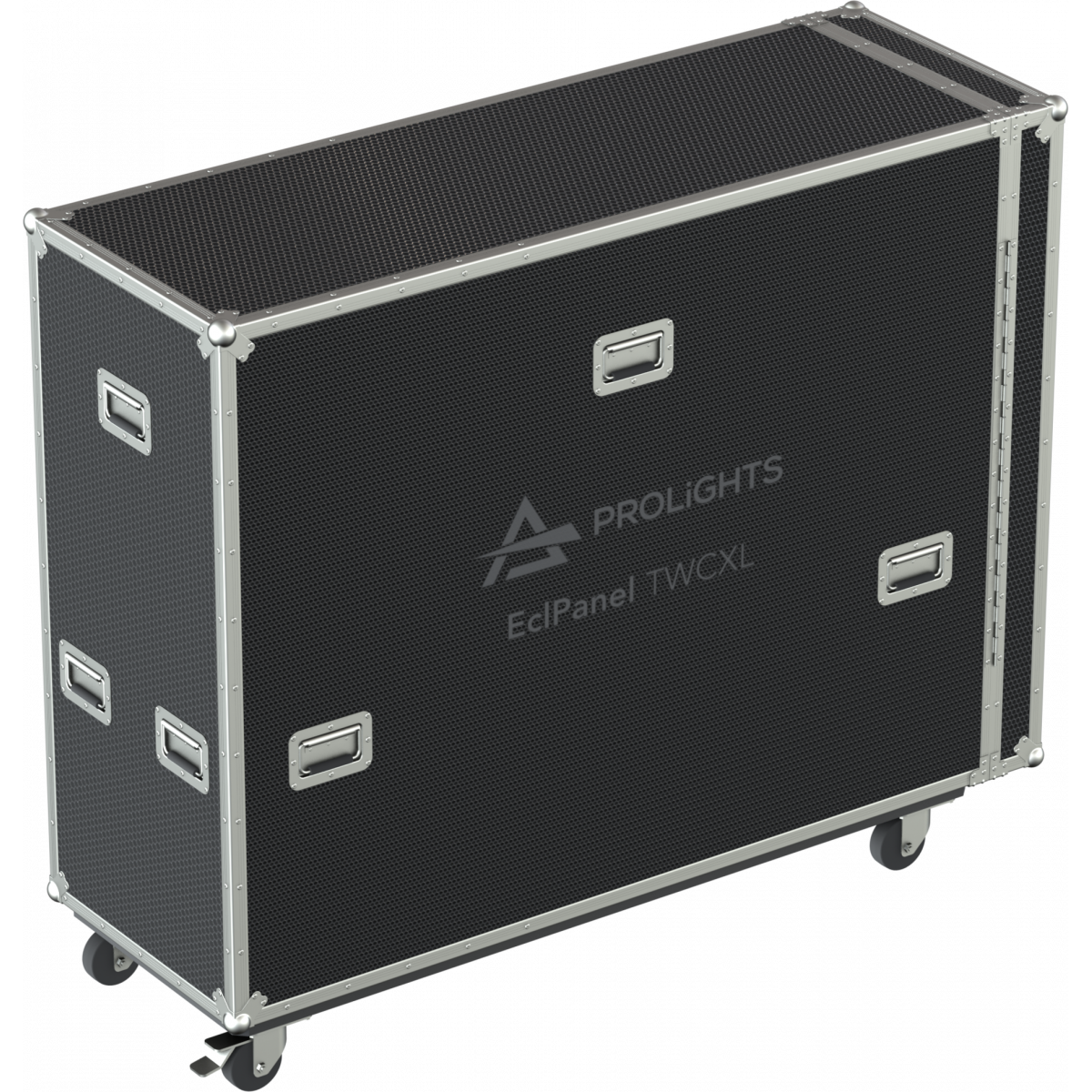

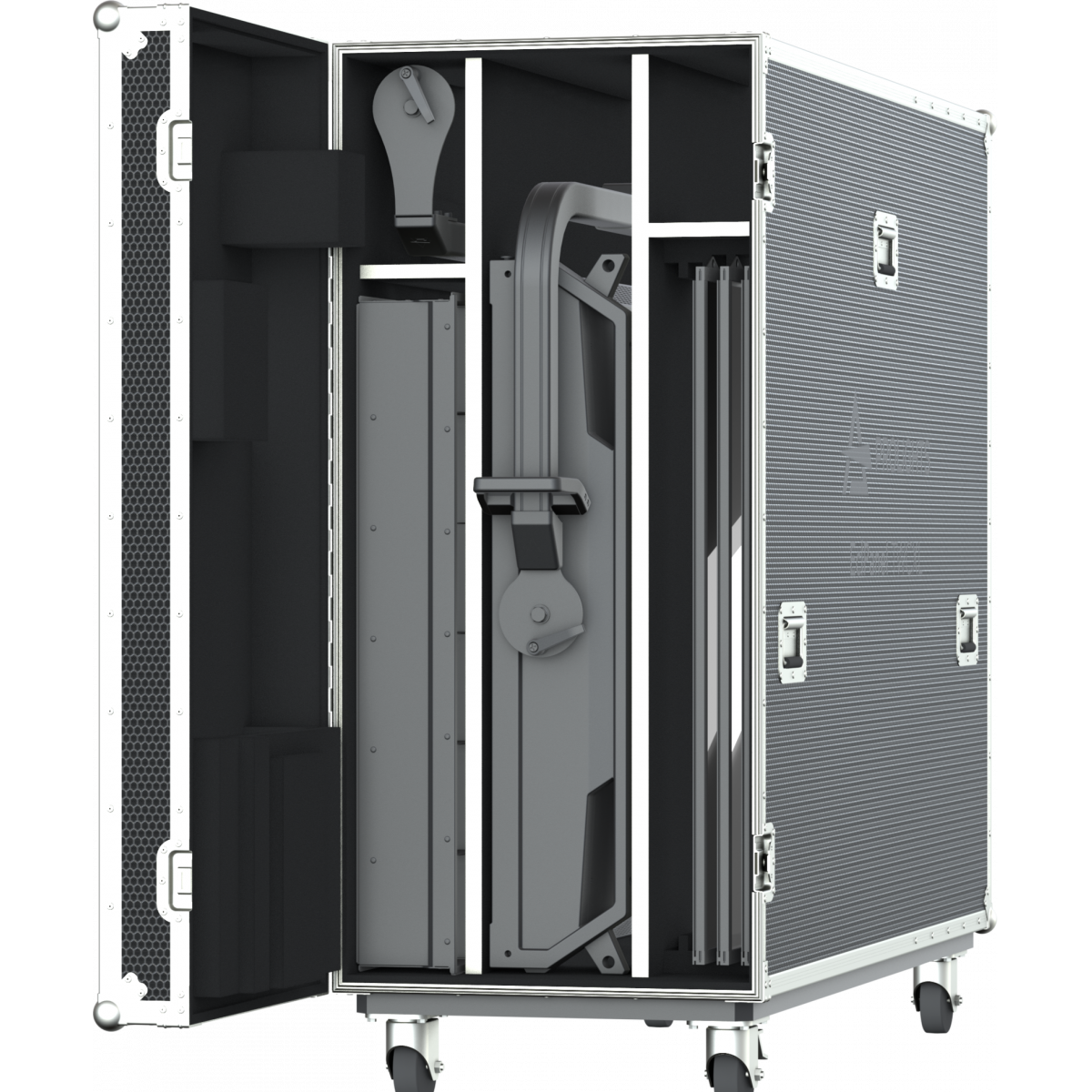

1 x flight case (FCLPANELXL1U)
1 x ECLPANELTWCXL (includes: MD filter EPTWCXLFILTERMD and spigot on-board)
1 x HD filter (EPTWCXLFILTERHD)
1 x LD filter (EPTWCXLFILTERLD)
1 x INT filter (EPTWCXLFILTERINT)
1 x 30° egg crate (EPTWCXLEC30)
1 x 60° egg crate (EPTWCXLEC60)
1 x 48 chambers egg crate (EPTWCXLEC48C)
1 x short bracket with spigot (EPTWCXLSB)
1 x 1,5 meters power cable (BARE END - 32A NEUTRIK POWERCON TRUE1 IP65)
1 x User Manual


SPEKTRA

Main features:

  • 1.500W RGB + Warm White LED source
  • CRI >93; R9 >95; TLCI >93
  • 48 section pixel control and built-in lighting effects for cinema applications, color gels matching
  • Silent operation with multiple fan modes
  • Wireless DMX and RDM for wireless control and communication, Ethernet connectivity

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 1.500W RGB + Warm White LED
  • Luminous flux: 130'725 @3.200 K with LD filter
  • Lux: 2'442lx @5 m full
  • CRI: 93,4 @3.200 K; 95.4 @5.600 K
  • R9: 95.6 @3.200 K; 95,9 @5.600 K
  • TLCI: 93 @5.600 K
  • TM30 Rf: 91,9 @3.200 K; 90,3 @5.600 K
  • TM30 Rg: 103,5 @3.200 K; 102,5 @5.600 K
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 109°
  • Field angle: 158°
  • Lens type: medium density diffusion panel (interchangeable)
  • Additional optics: see available accessories
COLOUR SYSTEM
  • Colour control: XY, CCT, RGBW, Gel, HSI, Source Emulation, Colour Macros, CTO on colours
  • Colour mixing: RGB + Warm White
  • CCT: CCT control range from 1.800K to 20.000K, + / - green correction, tungsten emulation
  • White presets: 1.800 K - 20.000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: Gels library on-board
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer, colours
  • Pixel patterns: pre-programmed pixel macros and cinema lighting effects patterns
  • Special features: linear crossfade channel from any white to any colour; virtual CTO on colours
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: black
CONTROL
  • Protocols: DMX512, RDM, ArtNet, sACN, CRMX
  • Stand Alone: selectable mode through 4 RGB backlight push-encoders
  • Pixel control: 48 section control
  • Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: RDM for remote monitoring and settings
  • Display: 3.5" with new UI
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -10° ~ +45° Ta
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 40.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 1.600W
  • Output (at 230V): 1 units on a single power line
  • Power factor: >0,98
PHYSICAL
  • IP rating: 20
  • Cooling: active, silent operation
  • Suspension and fixing: bracket for hanging and positioning
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Power connection: 32A Neutrik powerCON TRUE1 IN/OUT connectors
  • Dimensions (WxHxD): 1638x862x144mm / 64.49''x33.94''x5.67''
  • Weight: 48,7kg / 107.36lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC

Versions

Accessories & Related Products

<b>ÆtherBox</b>
ÆtherBox
(Optional)
IP65 1 universe CRMX transceiver, DMX and Ethernet protocols, Wi-Fi, Bluetooth and battery ready
<b>ÆtherBox</b> LITE
ÆtherBox LITE
(Optional)
1 Universe CRMX Wireless Transceiver
EPTWCXLSPG
EPTWCXLSPG
(Included)
Spigot for ECLPANELTWCXL
FCLPANELXL1U
FCLPANELXL1U
(Included)
Flight case for 1 pc of ECLPANELTWCXL
EPTWCXLFILTERINT
EPTWCXLFILTERINT
(Included)
Front intensified diffusion filter for ECLPANELTWCXL
EPTWCXLFILTERHD
EPTWCXLFILTERHD
(Included)
Front high diffusion filter (less output) for ECLPANELTWCXL
EPTWCXLFILTERMD
EPTWCXLFILTERMD
(Included)
Front medium diffusion filter for ECLPANELTWCXL
EPTWCXLFILTERLD
EPTWCXLFILTERLD
(Included)
Front low diffusion filter (more output) for ECLPANELTWCXL
EPTWCXLEC30
EPTWCXLEC30
(Included)
30 degree egg crate for ECLPANELTWCXL
EPTWCXLEC60
EPTWCXLEC60
(Included)
60 degree egg crate for ECLPANELTWCXL
EPTWCXLEC48C
EPTWCXLEC48C
(Included)
48 chambers egg crate for ECLPANELTWCXL
EPTWCXLSB
EPTWCXLSB
(Included)
Short bracket for ECLPANELTWCXL
EPTWCXLRC
EPTWCXLRC
(Optional)
Rain Cover for ECLPANELTWCXL
MENAC3FCHC
MENAC3FCHC
(Optional)
Power-con 32A cable mount straight connector, IN 32A (1P+N+E)
EPTWCXLSG40
EPTWCXLSG40
(Optional)
40° SnapGrid, for ECLPANELTWCXL by DoP choice
EPTWCXLSRXL
EPTWCXLSRXL
(Optional)
Fat-Rabbit for ECLPANELTWCXL by DoP choice
EPSRXLSBRED8
EPSRXLSBRED8
(Optional)
SNAPBAG 8ft DoubleHEX for ECLPANELTWC fat-rabbit (EPTWCXLSRXL)
EPSRXLSBRER65
EPSRXLSBRER65
(Optional)
SNAPBAG 6' x 5' for ECLPANELTWC rabbit-ears (EPTWCXLSRXL)
EPSBRER65SG40
EPSBRER65SG40
(Optional)
40° SnapGrid, to be mounted on SnapBag 6' x 5' (EPSRXLSBRER65)
LRLUNA
LRLUNA
(Optional)
Single Universe DMX transceiver with Bluetooth
TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
C6040B
C6040B
(Optional)
Aluminum clamp for 28mm spigot, 200kg load, 48-51mm tubes, black
C6044B
C6044B
(Optional)
Selflock slim clamp for 28mm spigot, 100 kg load, 40-70 mm tubes, black
RSR0670B
RSR0670B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector
