EclPar

Single source multipurpose LED PAR available in TU, DY and UV version

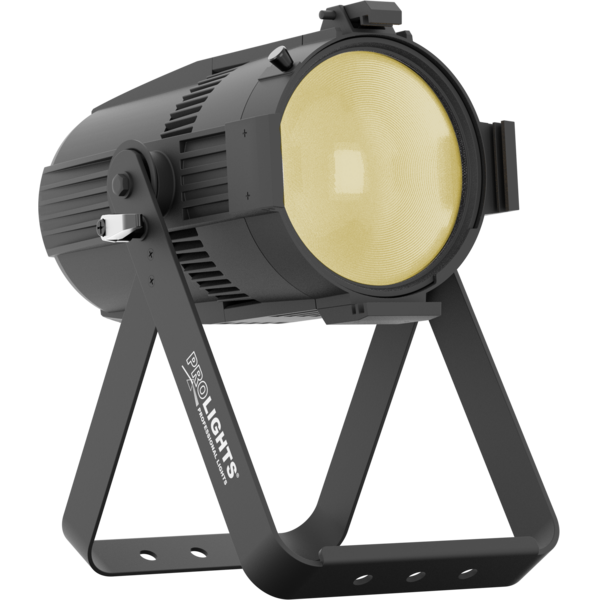

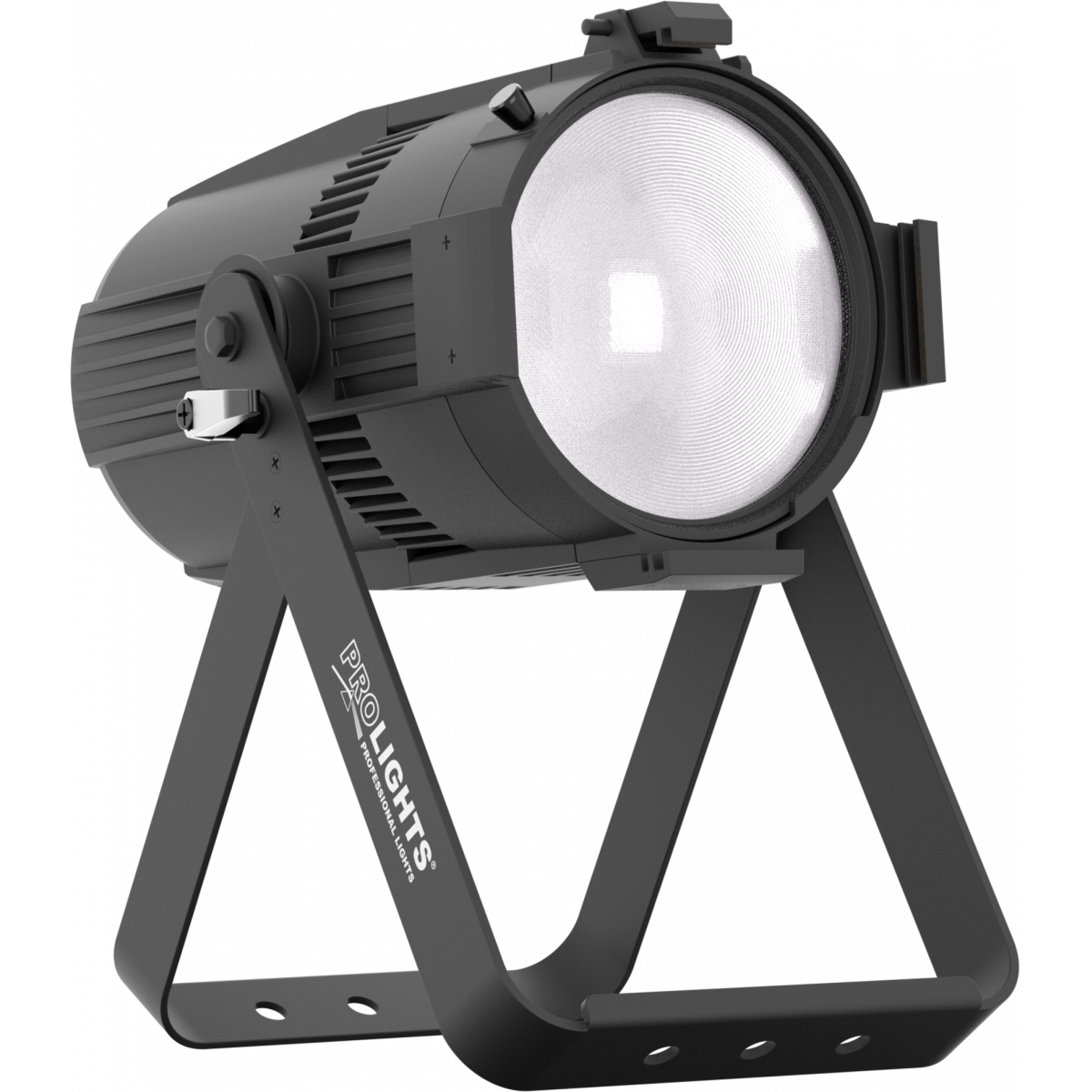

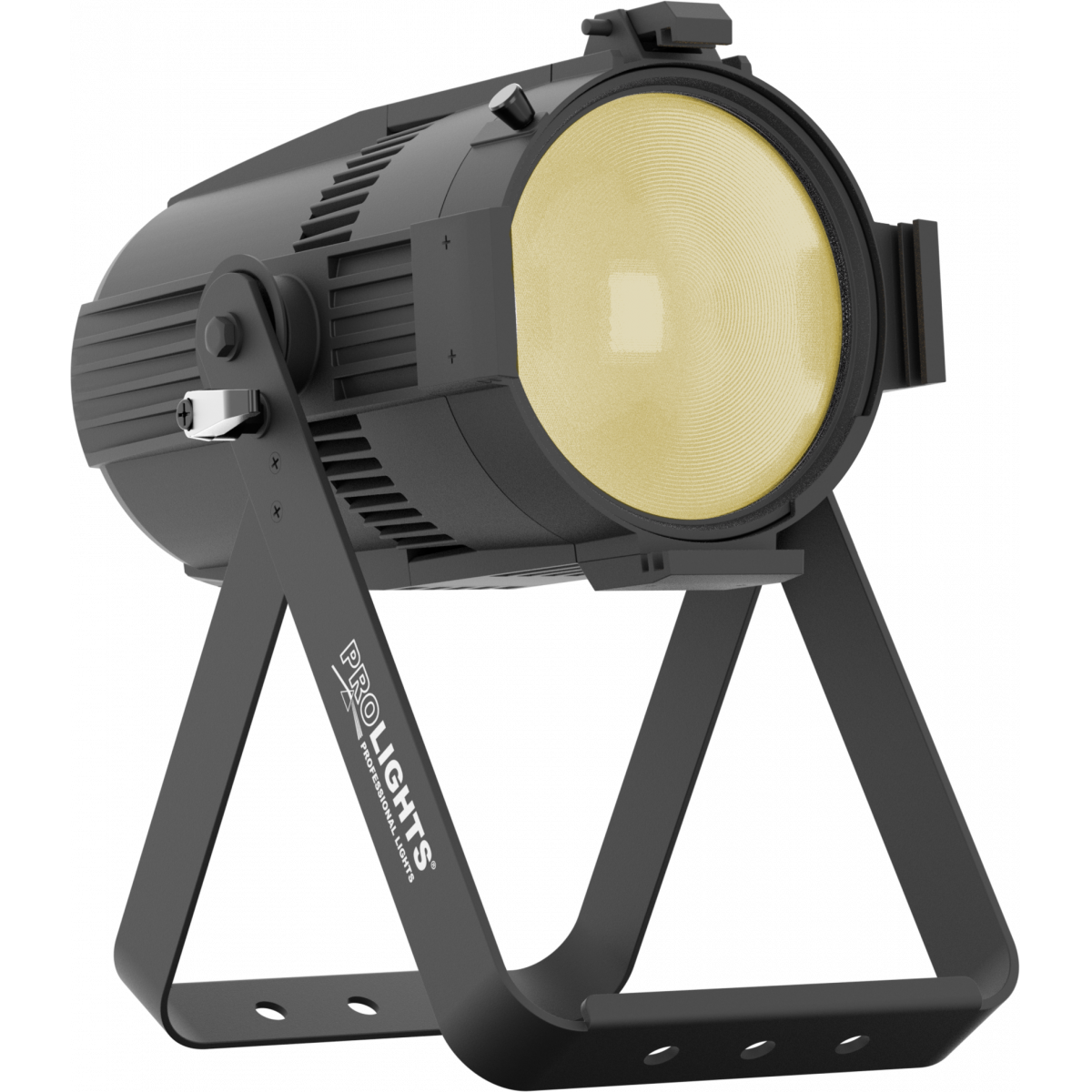

EclPar is a range of multipurpose LED fixtures with a single source, delivering silent operation, high quality of light and optical flexibility, designed to redefine the standard for theatrical, TV and corporate applications. EclPar TU and DY features a 177W white LED source (3.200 K TU; 6.000 K DY) delivering a tremendous lumen output and superior light quality with CRI and R9 > of 96. EclPar UV is a real UV LED luminaire with a 365nm wavelength LED source. The fixture offers an extensive accessory range including barn doors, filter frame, egg crate and a multitude of interchangeable lenses. EclPar features a smooth 16-bit dimming as well as RDM control and adjustable PWM to look good in front of a camera.

Main features:

  • 177W White LED source (3.200 K TU; 5.600 K DY) with CRI and R9 > of 96; UV 108W 365nm wavelength LED source
  • Flex lens system: TU and DY 24° on-board - 12° and 73° included - 40° optional - UV 40° on-board
  • Silent operation and adjustable PWM
See variants

PHOTO GALLERY

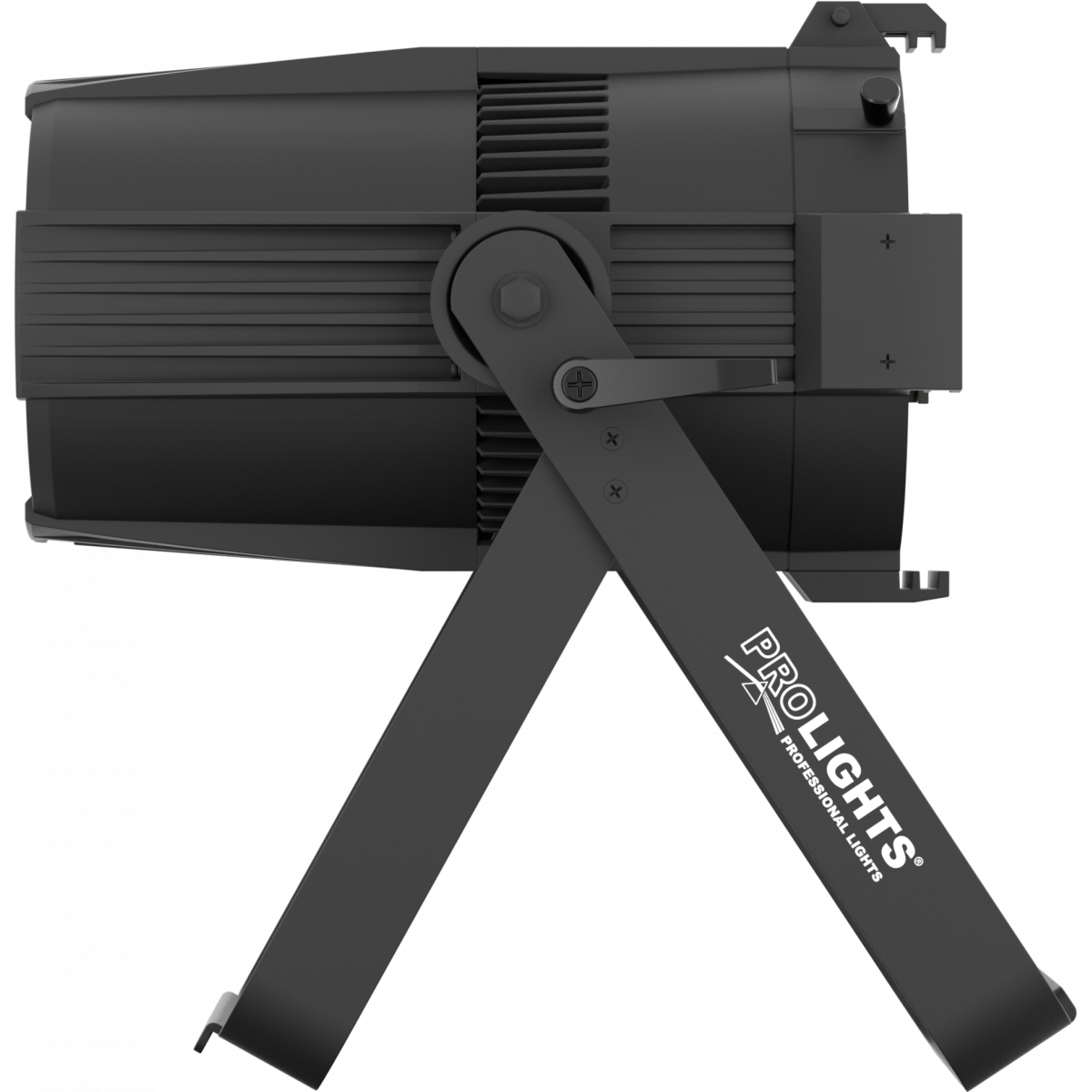

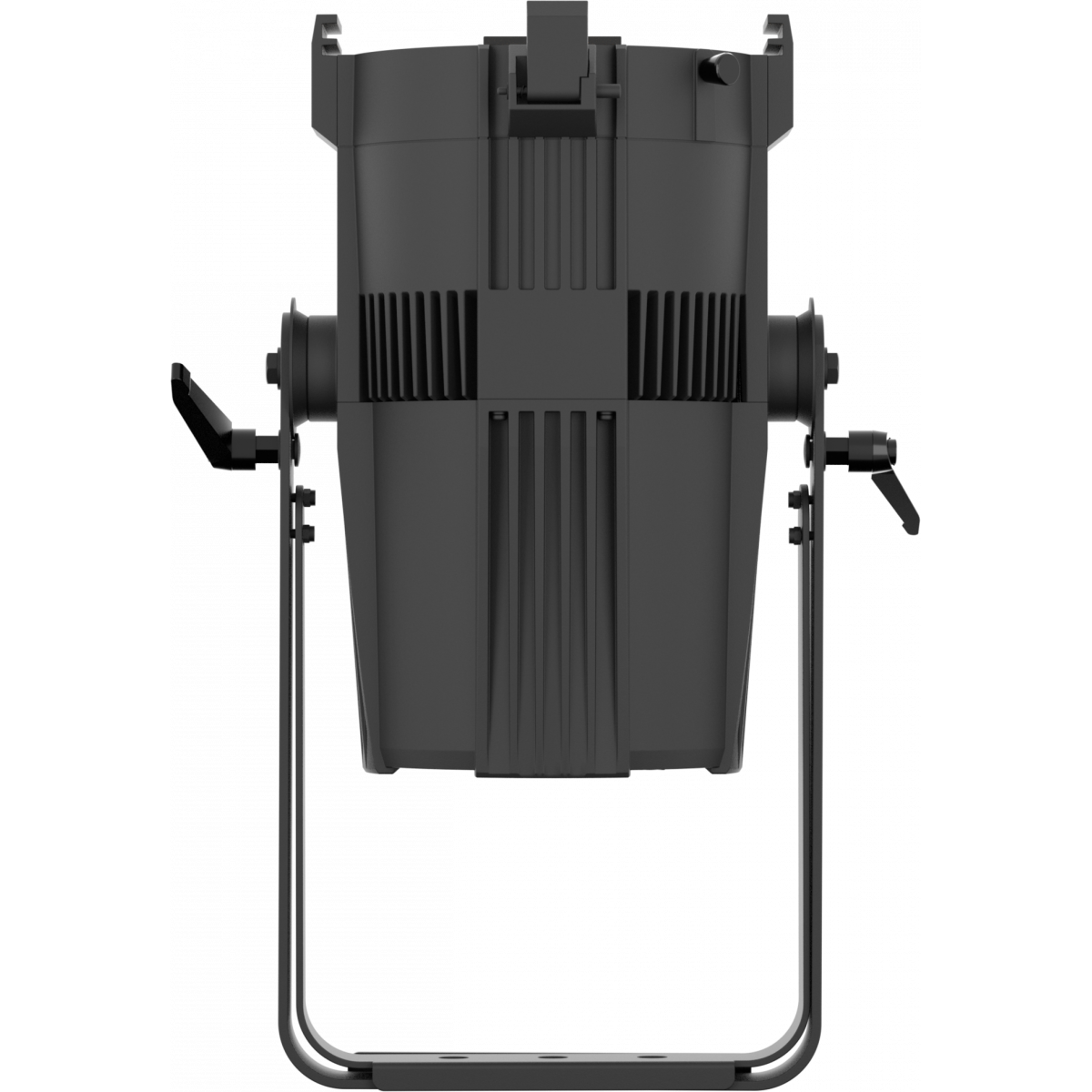

EclPar
EclPar
EclPar
EclPar
EclPar
EclPar

Technical specifications

LIGHT SOURCE
  • Source: 177 W white LED / 108W UV LED
  • CCT: (TU) 3.200K - (DY) 5.600
  • Luminous flux: (TU) 12°: 11'726 lm - 24°: 12'454 lm - 73°: 11'834 @Full
  • Luminous flux: (DY) 12°: 13'739 lm - 24°: 14'436 lm - 73°: 13'913 lm; (UV) 229,07 lm
  • Lux: (TU) 12°: 5'102 lx - 24°: 2'333 lx - 73°: 344lx @5 m full
  • Lux: (DY) 12°: 5'947 lx - 24°: 2'777 lx - 73°: 413 lx; (UV) 5'724lx @5 m full
  • CRI: > 97 for TU; > 96 for DY
  • R9: > 97 for TU; > 96 for DY
  • TLCI: > 98 for TU; > 95 for DY
  • TM30 Rf: > 93 for TU; > 90 for DY
  • TM30 Rg: < 102 for TU; < 101 for DY
  • Source life expectancy: > 70.000 h
OPTICS
  • Beam angle: with different lens included: 12° / 24° / 73°
  • Field angle: with different lens included: 28° / 41° / 104°
  • Lens diameter: 163mm / 6.42''
  • Lens type: fresnel lens
  • Additional optics: 24° (onboard - for TU and DY versions), 12° and 73° lens included (for TU and DY versions), 40° lens optional (for TU and DY versions)
  • Other: 40° lens included on board in UV version; no other lenses availables
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of dimmer and strobe
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Body: aluminium die-casting
  • Body colour: black
  • Other: gel frame holder included in the box (for TU and DY versions) - egg crate optional - barndoors optional
CONTROL
  • Protocols: DMX512, RDM
  • DMX channels: 1 / 2 / 3 / 6channel
  • RDM: RDM for remote monitoring and settings
  • Display: OLED display
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: -10° ~ +45° Ta
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: (TU, DY) 207 W - (UV) 204W
  • Standby power: 110VAC/3.8W, 230VAC/4.5W
  • Output (at 230V): 15 units on a single power line
  • Power factor: > 0.95
PHYSICAL
  • IP rating: 20
  • Cooling: active, silent operation
  • Suspension and fixing: any position with quick-lock omega brackets

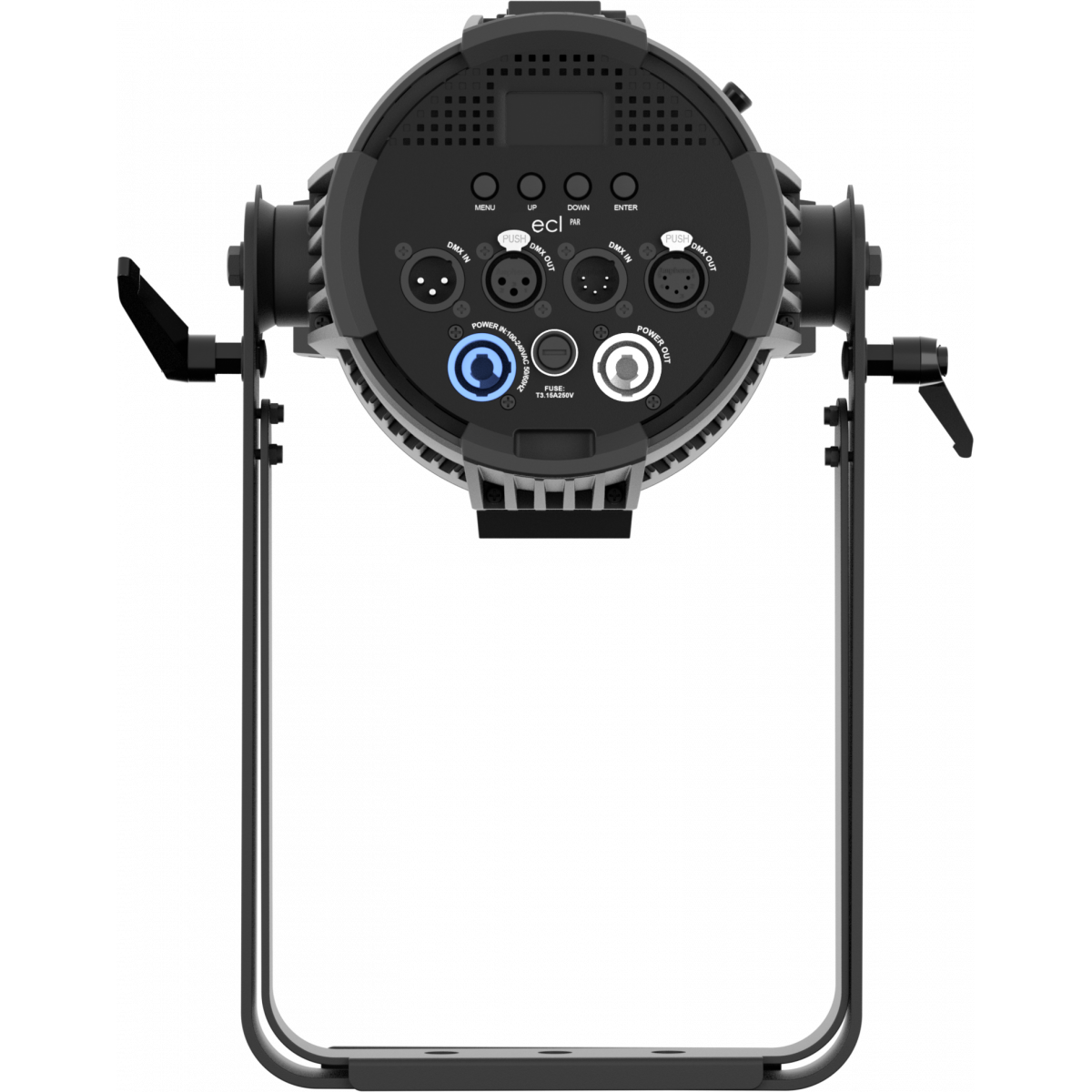

  • Signal connection: Amphenol XLR 3p + 5p IN/OUT connectors
  • Power connection: Neutrik powerCON IN/OUT connectors
  • Dimensions (WxHxD): 316x404x317mm / 12.44''x15.91''x12.48''
  • Weight: 5,5kg / 12.13lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Code
CT
CRI
R9
Lumen
ECLPARDY
ECLPARDY
5.600 K
> 96
> 96
13'739
ECLPARTU
ECLPARTU
3.200 K
> 97
> 97
12'454

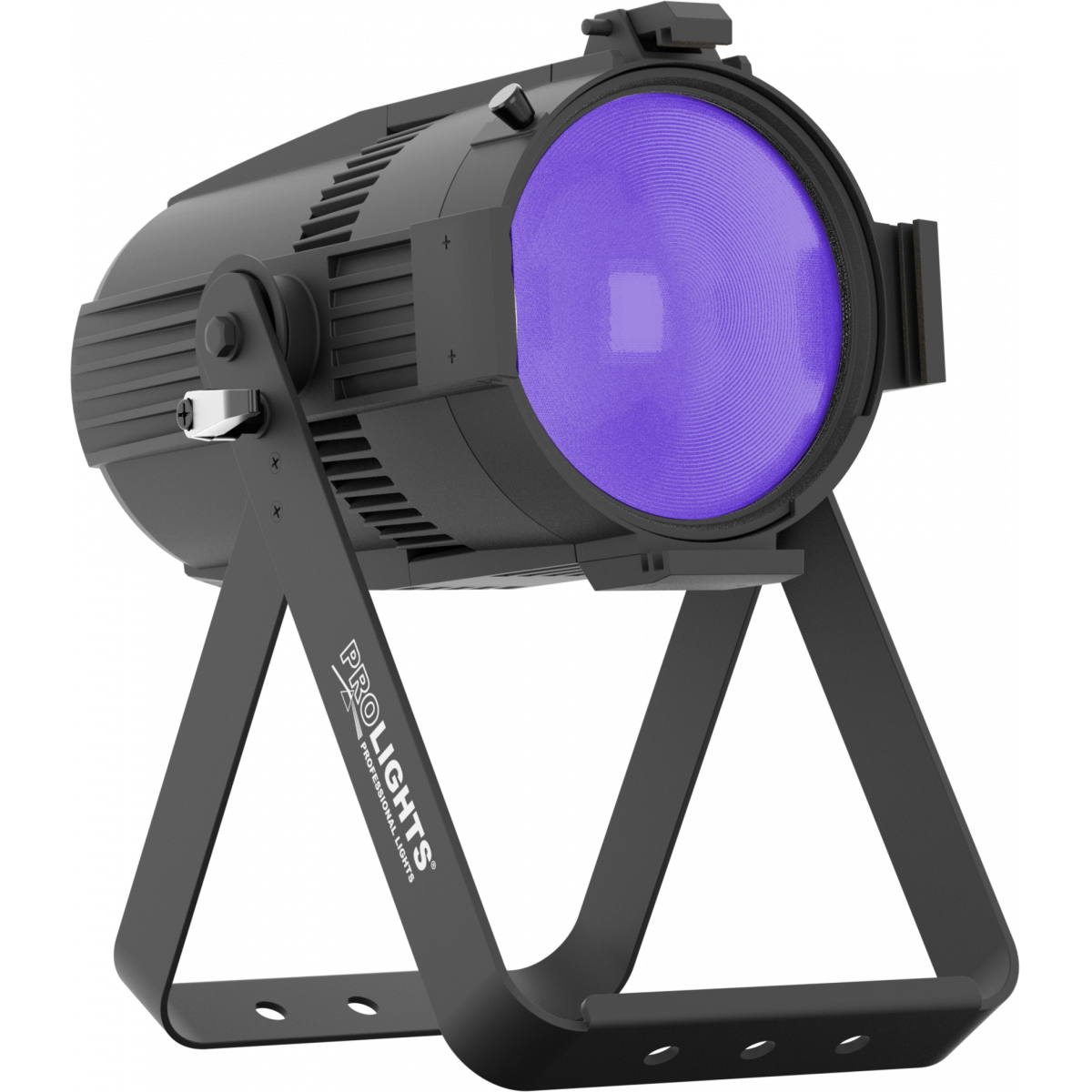

ECLPARUV
ECLPARUV (DISCONTINUED)
-
-
-
-

Accessories & Related Products

C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
9513FCAL03
9513FCAL03
(Optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FCA socket, L.3m
9533FCAL03
9533FCAL03
(Optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FCA socket, L.3m
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
TOUR53413L03
TOUR53413L03
(Optional)
Dmx cable HC5340. CANC3MXX XLR 3p->CANC3FXX XLR (f) 3p, L.3m
TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
FCLECLPAR
FCLECLPAR
(Optional)

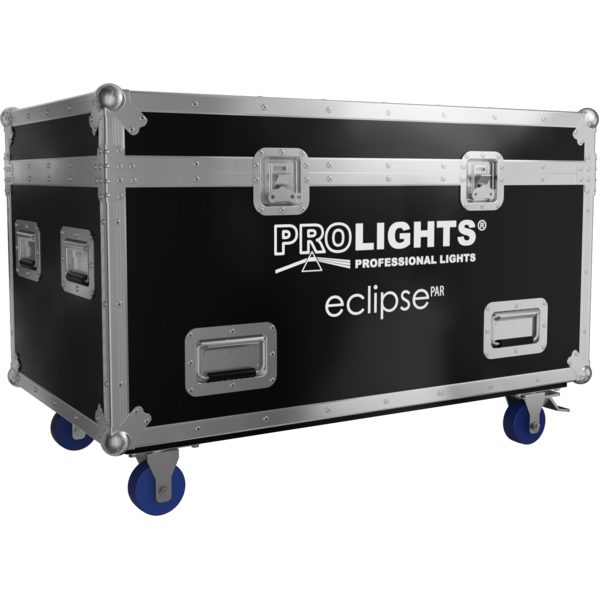

Flightcase for 6 pcs of ECLPAR
958025L03
958025L03
(Optional)
3x2.5mm TH07 Cable, 20A 3p PwCon FCA, 20A 3p PwCon FCB, L. 3m
ECLPARBD
ECLPARBD
(Optional)

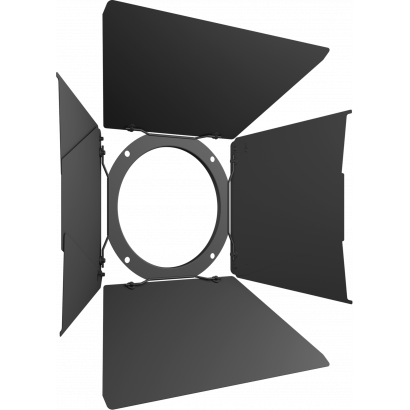

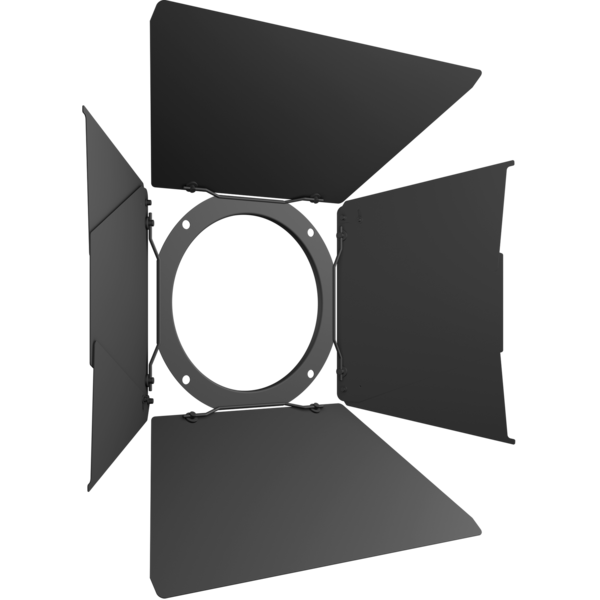

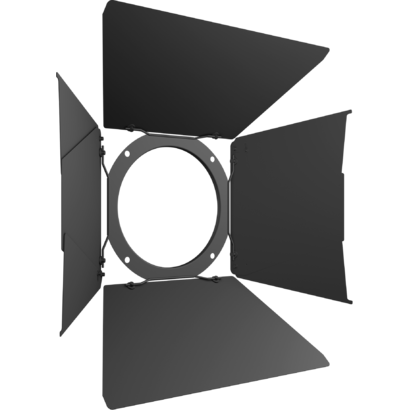

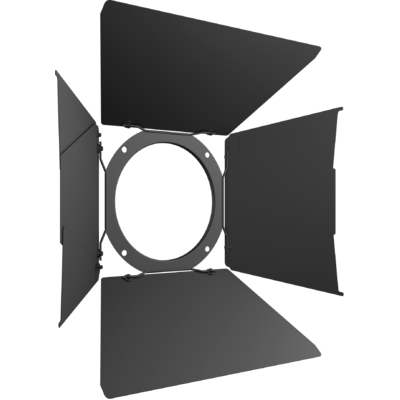

Barn door with directional flaps to adjust the light beam for ECLPAR series

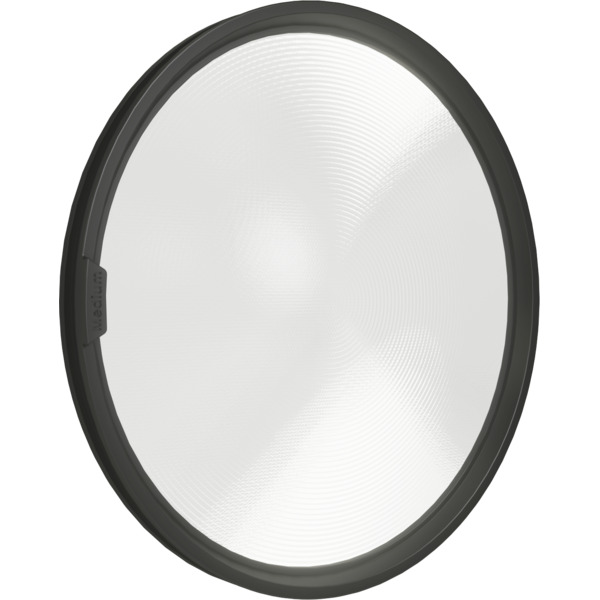

ECLPARLENS24
ECLPARLENS24
(Included)

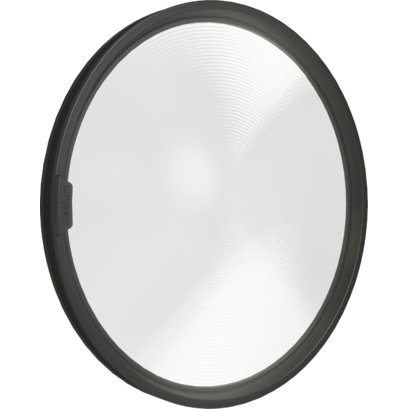

24° lens for ECLPAR projectors series
ECLPARLENS12
ECLPARLENS12
(Included)

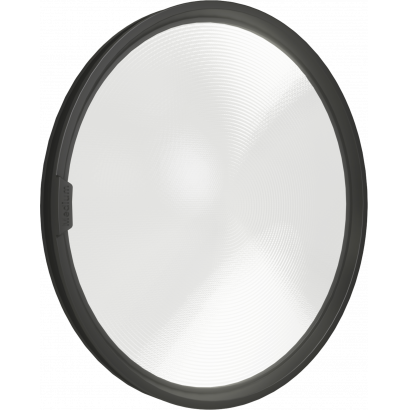

12° lens for ECLPAR projectors series
ECLPARLENS40
ECLPARLENS40
(Optional)
40° lens for ECLPAR projectors series

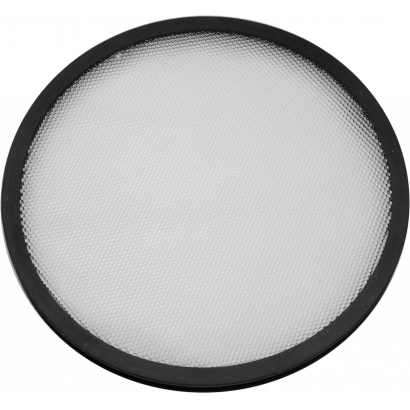

ECLPARLENS65
ECLPARLENS65
(Included)

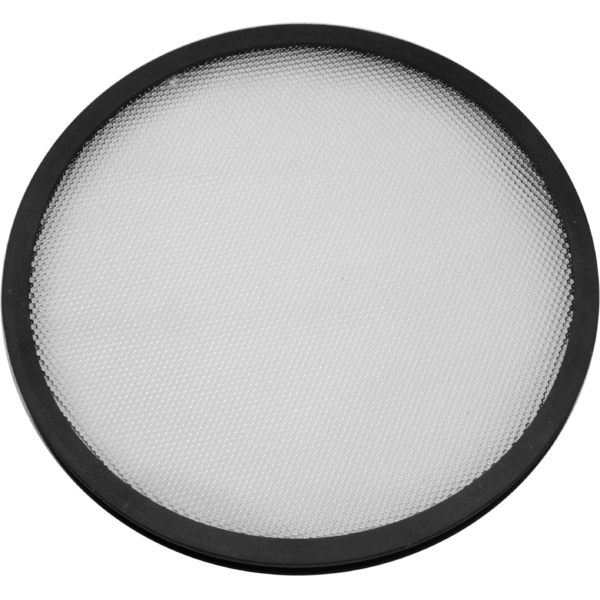

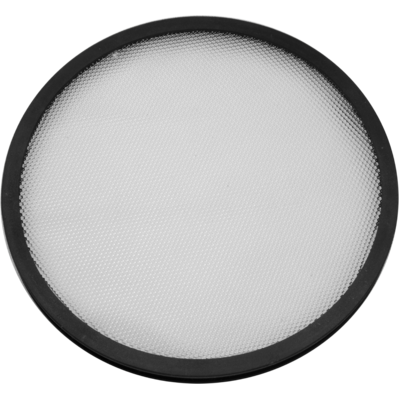

73° lens for ECLPAR projectors series

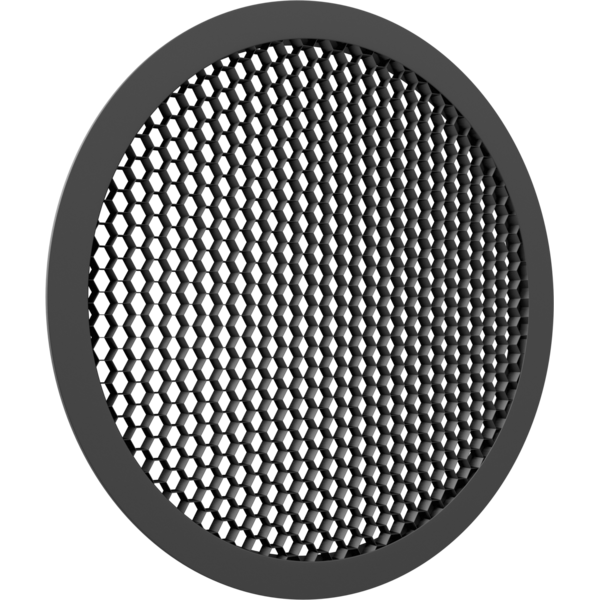

ECLPAREC
ECLPAREC
(Optional)

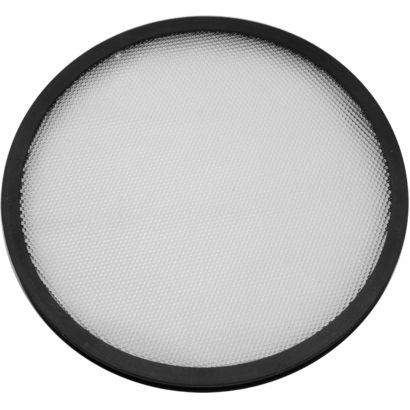

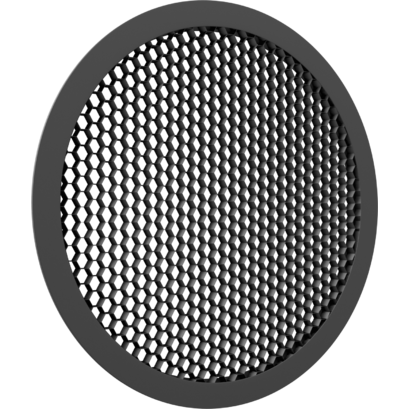

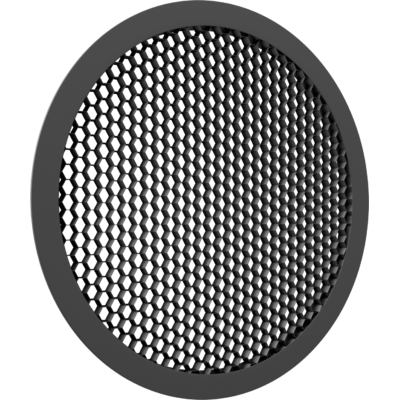

Egg crate for ECLPAR projectors series

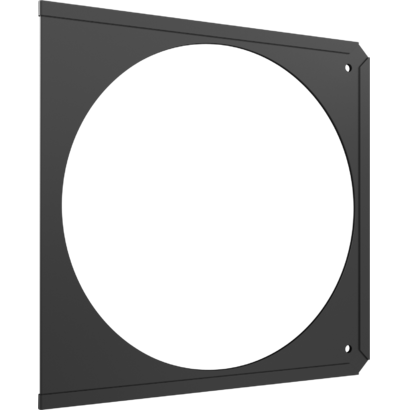

ECLPARTPG
ECLPARTPG
(Included)

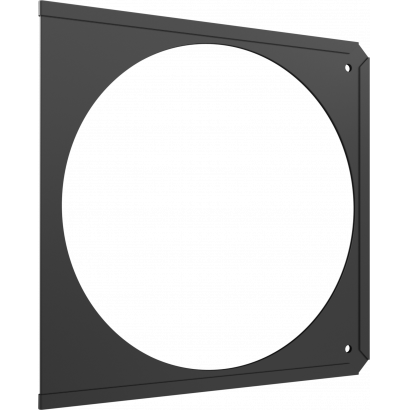

Gel filter frame for ECLPAR projectors
SPGM10
SPGM10
(Optional)
28mm spigot for fixtures, M10 bolt
SPGM12
SPGM12
(Optional)
28mm spigot for fixtures, M12 bolt
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetEclpar_A4_DATASHEET_(IT).pdf481KB
Letter datasheetEclpar_A4_DATASHEET_(EN).pdf481KB
Tender SpecificationEclpardy_TENDER_SPECIFICATION.pdf3MB
Tender SpecificationEclpartu_TENDER_SPECIFICATION.pdf3MB

User manual

File name File size Download
User manualEclpar_USER_MANUAL.pdf862KB

DMX chart & personalities

File name File size Download
DMX chartEclpardy_DMX_CHARTS.pdf53KB
DMX chartEclpartu_DMX_CHARTS.pdf53KB
DMX chartEclparuv_DMX_CHARTS.pdf53KB
ECLPARDY Firmware rev. 1.2
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights_eclipsepardy_1ch.hedDownload
prolights_eclipsepardy_2ch.hedDownload
prolights_eclipsepardy_3ch.hedDownload
prolights_eclipsepardy_6ch.hedDownload
ECLPARDY Firmware rev. 1.1
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights_eclipsepardy_1ch.hedDownload
prolights_eclipsepardy_2ch.hedDownload
prolights_eclipsepardy_3ch.hedDownload
prolights_eclipsepardy_6ch.hedDownload
ECLPARTU Firmware rev. 1.2
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights_eclipsepartu_1ch.hedDownload
prolights_eclipsepartu_2ch.hedDownload
prolights_eclipsepartu_3ch.hedDownload
prolights_eclipsepartu_6ch.hedDownload
ECLPARTU Firmware rev. 1.1
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights_eclipsepartu_1ch.hedDownload
prolights_eclipsepartu_2ch.hedDownload
prolights_eclipsepartu_3ch.hedDownload
prolights_eclipsepartu_6ch.hedDownload
ECLPARUV Firmware rev. 1.2
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights_eclipseparuv_6ch.hedDownload
prolights_eclipseparuv_3ch.hedDownload
prolights_eclipseparuv_2ch.hedDownload
prolights_eclipseparuv_1ch.hedDownload
ECLPARUV Firmware rev. 1.1
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights_eclipseparuv_6ch.hedDownload
prolights_eclipseparuv_3ch.hedDownload
prolights_eclipseparuv_2ch.hedDownload
prolights_eclipseparuv_1ch.hedDownload

Photometrics

CAD symbols & drawings

File name File size Download
3D revitECLPAR_3D_REVIT.zip2MB
3D SKPEclpar_3D.skp502KB
2DECLPAR_2D.zip24MB
2D cad symbolsECLPAR_2DSYMBOLS.zip189KB
3DEclpar_CAD_3D.dwg588KB
Technical drawingECLPAR_TECHNICAL DRAWINGS.zip2MB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB
VectorWorksECLPAR_SYMBOLS.zip1MB

Tech docs

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.2 STABLE 31/05/2021 Improved display management
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.2 STABLE 31/05/2021 Improved display management
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.2 STABLE 03/06/2021 Improvements:
  • Improved display management.

Info Request

News

PROLIGHTS beams into the sky from the rooftop of Atlantis The Palm
April 18, 2025
PROLIGHTS beams into the sky from the rooftop of Atlantis The Palm
One of the world's most iconic architectural landmarks, Atlantis The Palm , recently underwent a breathtaking lighting transformation that has redefined its nighttime presence on the Dubai skyline. The spectacular illumination project was carried out
Introducing PROLIGHTS Jet Spot120: Compact, Powerful, and Versatile
April 09, 2025
Introducing PROLIGHTS Jet Spot120: Compact, Powerful, and Versatile
PROLIGHTS is proud to announce the launch of Jet Spot120 , the most compact moving head spotlight in its lineup. Designed for versatile applications from intimate venues to large corporate events, Jet Spot120 offers a unique blend of efficiency, powerful
PROLIGHTS unveils the EclProfile CT+HP: Enhanced Performance with the Iconic CT+ DNA
April 08, 2025
PROLIGHTS unveils the EclProfile CT+HP: Enhanced Performance with the Iconic CT+ DNA
PROLIGHTS is proud to announce the release of the EclProfile CT+HP , the higher class in LED ellipsoidal that raises the standard for power, control, and versatility. Designed for large venues, this fixture delivers an exceptional 450W of LED power, doubling
PROLIGHTS introduces Astra Blade100IP: IP65 motorized batten with max pixels and max power
April 07, 2025
PROLIGHTS introduces Astra Blade100IP: IP65 motorized batten with max pixels and max power
PROLIGHTS is proud to announce the launch of the Astra Blade100IP , a high-performance, IP65-rated motorized linear batten designed to transform stages with stunning visual dynamics, superior color accuracy, and unmatched strobe versatility. At the heart
PROLIGHTS is Rocking PL+S with 3 Bold Launches & More
April 07, 2025
PROLIGHTS is Rocking PL+S with 3 Bold Launches & More
PROLIGHTS is gearing up for a dynamic presence at Prolight + Sound 2025 , taking place from April 8-11 in Frankfurt. The booth—located in Hall 12.0, D61—will feature a dedicated exhibition space showcasing flagship products from its portfolio for
Light Craft & Sound chooses PROLIGHTS for Let's Vibe cinematic commercial
March 28, 2025
Light Craft & Sound chooses PROLIGHTS for Let's Vibe cinematic commercial
Light Craft & Sound Pvt. Ltd. , a leading film equipment rental company in India, recently selected PROLIGHTS Astra Wash37Pix fixtures for the commercial directed by Paper Planes Pictures . The Director of Photography, Jay Charola , envisioned an arena-style
SoMMedia Studio Enhances Production Quality with PROLIGHTS studio fixtures
March 20, 2025
SoMMedia Studio Enhances Production Quality with PROLIGHTS studio fixtures
SoMMedia Studio elevates its production capabilities with an updated PROLIGHTS lighting rig, ensuring an enhanced  visual quality for project. The SoMMedia video production studio offers a perfect balance between functionality and aesthetics, tailored
CPC Production Services relies on PROLIGHTS for professional lighting
March 14, 2025
CPC Production Services relies on PROLIGHTS for professional lighting
Ipswich, Queensland - With a legacy of excellence dating back to 1984, CPC Production Services is a leading live event and broadcast production company in Australia. It has recently chosen to invest in PROLIGHTS solutions, supplied by Show Technology
PROLIGHTS Lights Up the Stage at Vibe Budapest
March 12, 2025
PROLIGHTS Lights Up the Stage at Vibe Budapest
The newly opened Vibe Budapest , the latest gem of the Costes Group , has chosen PROLIGHTS solutions to create spectacular lighting effects and an engaging atmosphere. The lighting system design and installation were managed by LISYS-Project Kft ., which
PROLIGHTS presents ÆtherBox: the single-universe CRMX transceiver with IP65 rating and multi-protocol support
March 11, 2025
PROLIGHTS presents ÆtherBox: the single-universe CRMX transceiver with IP65 rating and multi-protocol support
PROLIGHTS is proud to announce the launch of ÆtherBox , a single-universe CRMX transceiver with an IP65 protection rating, designed to offer versatility and robustness in any environment, from indoor venues to outdoor stages. With a wide range of connectivity
PROLIGHTS Illuminates the 4th Global Ministerial Conference on Road Safety in Morocco
March 07, 2025
PROLIGHTS Illuminates the 4th Global Ministerial Conference on Road Safety in Morocco
The 4th Global Ministerial Conference on Road Safety , held in Morocco, was a landmark event in the global effort to improve road safety. The conference brought together ministers, experts, and stakeholders globally to discuss innovative strategies and
Baycourt Community & Arts Centre Upgrades Stage Lighting with PROLIGHTS Solutions
March 04, 2025
Baycourt Community & Arts Centre Upgrades Stage Lighting with PROLIGHTS Solutions
Baycourt Community & Arts Centre , situated in the heart of downtown Tauranga, is the Bay of Plenty's premier performing arts facility. Designed to serve both the local community and international touring productions, the venue provides cutting-edge spaces
Subscribe to our Newsletter
Loading...
