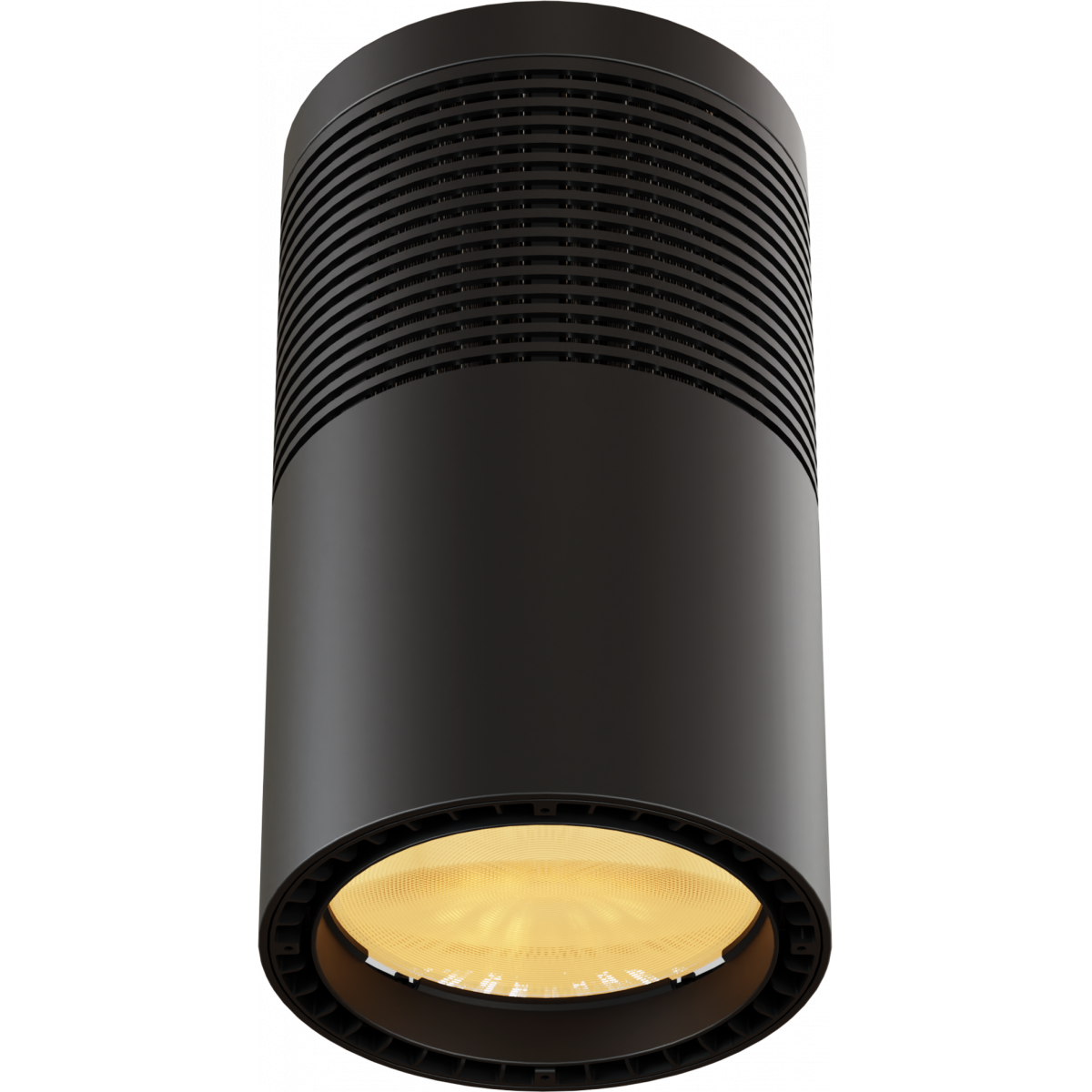

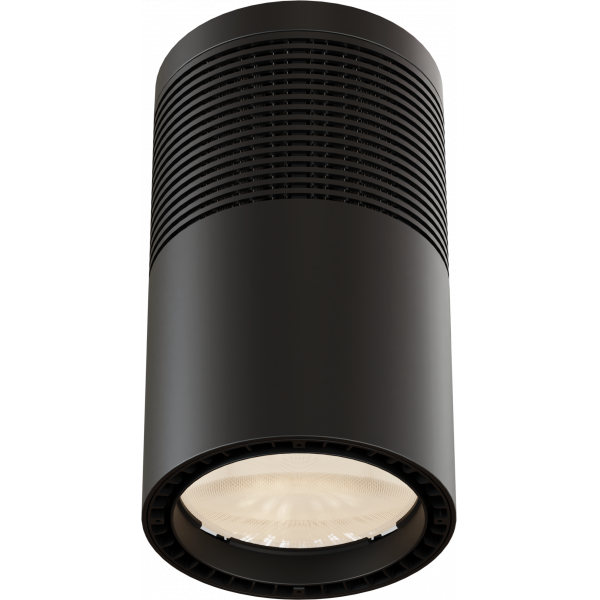

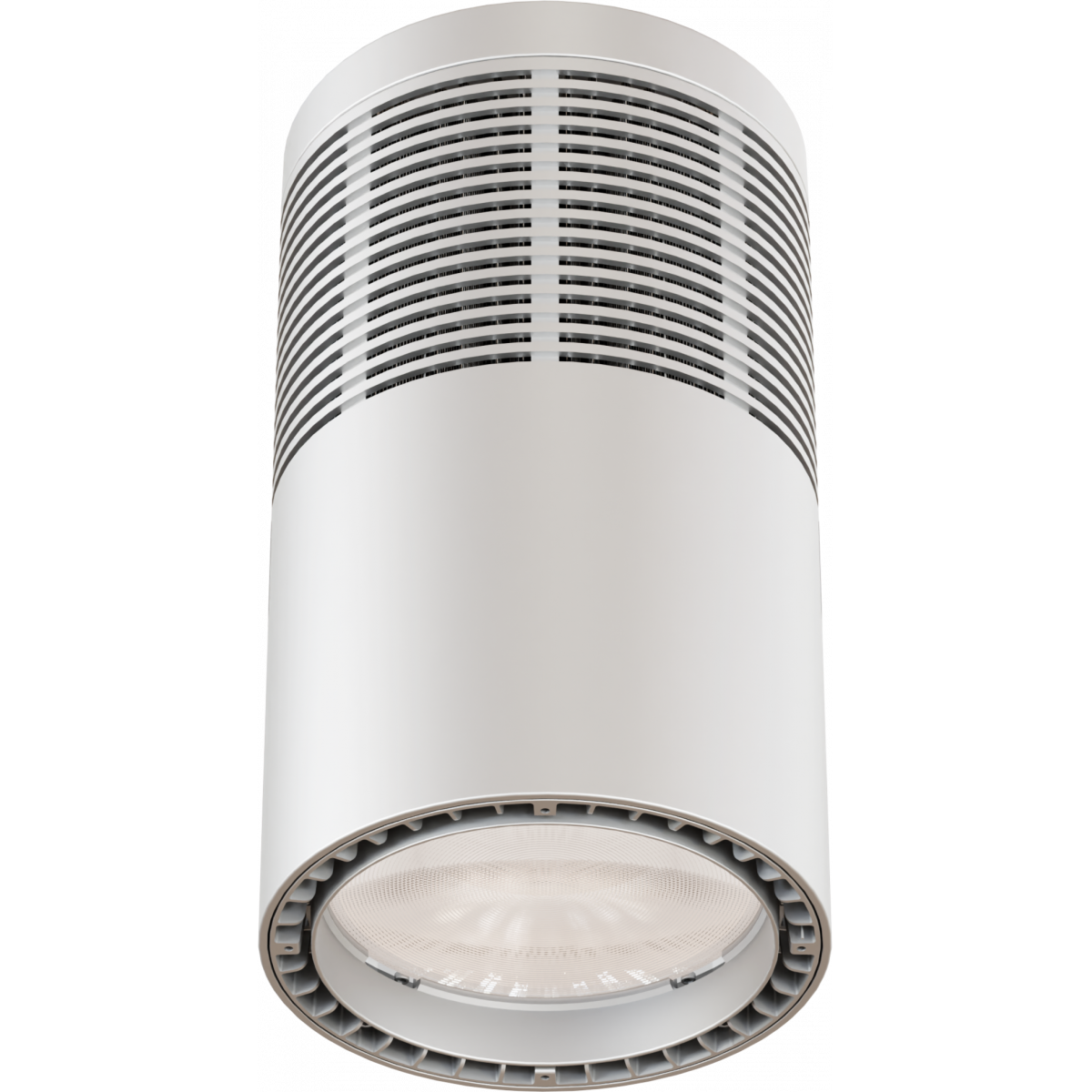

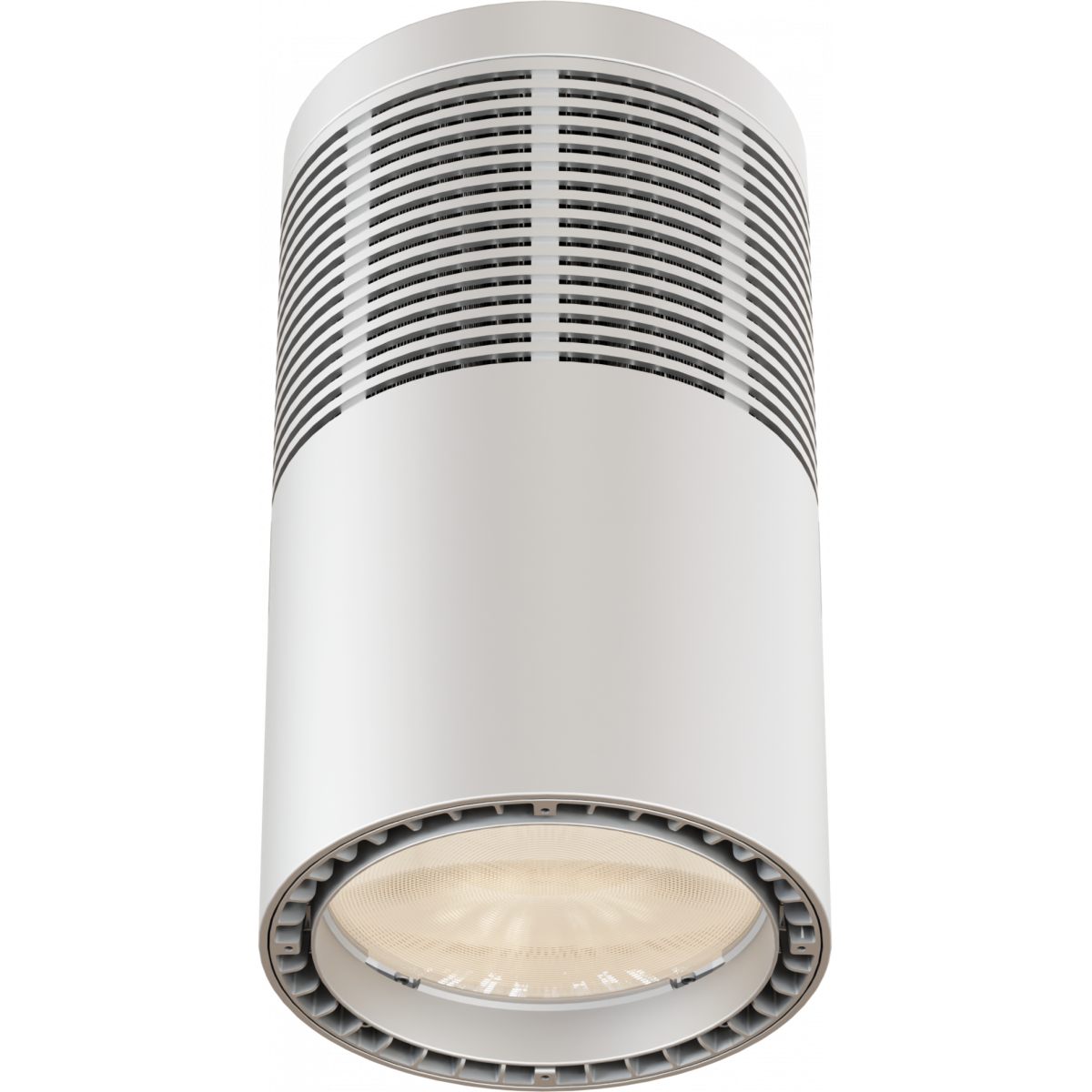

EclPendant

200W White LED source, innovative pendant light

The EclPendant is a beautifully designed house light packed with high-performing technology that makes any venue well-lit whilst staying eco-friendly.
This innovative series of pendant lights come with a wide selection of LED sources, a full range of optics, accessories, mounting options and control.
The EclPendant has a 200-Watt LED source. Its source varies in RGB + Warm White, 3,000K, 4,000K or 5,600K. They all have high-quality light output, a consistent colour temperature and unmatched durability.
Several advanced user settings are available from the unit's on-board GUI and control protocols like DALI, DMX + RDM and Wireless DMX (CRMX + W-DMX).
The EclPendant was made for several uses - its mounting options include pendant, surface, stem, wall mount, adjustable bracket, and recessed. It's also possible to wire the EclPendant series directly to mains (100-240AC or 48V DC) and DMX or DALI through terminal blocks or feed power and DMX using the TrueOne and DMX connections.
The fixture has a wide range of optics and accessories available, with an uncompromising approach to flexibility and precision. All the optics are easily changeable on-site, providing a hassle-free user experience.
The EclPendant has a fan-free thermal design and delivers a powerful and consistent lumen output over a long lifespan.

NOTE: the hanging bracket does not come with the product

Main features:

  • 200W LED source power, RGB + Warm White, 3,000K, 4,000K or 5,600K with passive cooling
  • AC or DC power input. Control via DALI, DMX, RDM, Wireless DMX (CRMX+W-DMX)
  • Extensive mounting option possibilities, optics and accessories are all easily changeable

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 200W COB LED
  • CCT: see available variants
  • Luminous flux: (TU) 11'233 lm; (NW) 14'165 lm; (DY) 13'646 @full
  • Lux: (TU) 2'761 lx; (NW) 2'925 lx; (DY) 3'181lx @5 m full
  • CRI: (TU) > 96 - (NW) > 96 - (DY) > 94
  • R9: (TU) > 98 - (NW) > 93 - (DY) > 91
  • TLCI: (TU) > 95 - (NW) > 97 - (DY) > 96
  • TM30 Rf: (TU) > 94 - (NW) > 93 - (DY) > 90
  • TM30 Rg: (TU) < 105 - (NW) < 103 - (DY) < 104
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Beam angle: 20°
  • Field angle: 40°
  • Lens diameter: 157mm / 6.18''
  • Lens type: fresnel lens
  • Other: see available accessories
COLOUR SYSTEM
  • Colour mixing: see available versions
DYNAMIC EFFECTS
  • Static mode: selection of static dimmer
  • Manual mode: manual adjustment of dimmer and strobe
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: RAL 9004 or RAL 9010
CONTROL
  • Protocols: DALI Type6, DMX512, RDM, CRMX
  • DMX channels: UNO / DUO / Standard / Extendedchannel
  • Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
  • Other: 16bit control of dimmer
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 30 Hz, electronic
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 40.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Low Voltage DC mains: DC 48V for emergency light use
  • Max power consumption: 200W
  • Standby power: 33,75 W
  • Output (at 230V): 10 units on a single power line
  • Power factor: > 0,95
  • Inrush current: 230VAC/67A
PHYSICAL
  • IP rating: 20
  • Cooling: Heatsink with heat pipes, passive cooling and fan-free
  • Suspension and fixing: bracket for hanging and positioning (bracket not included on the product)

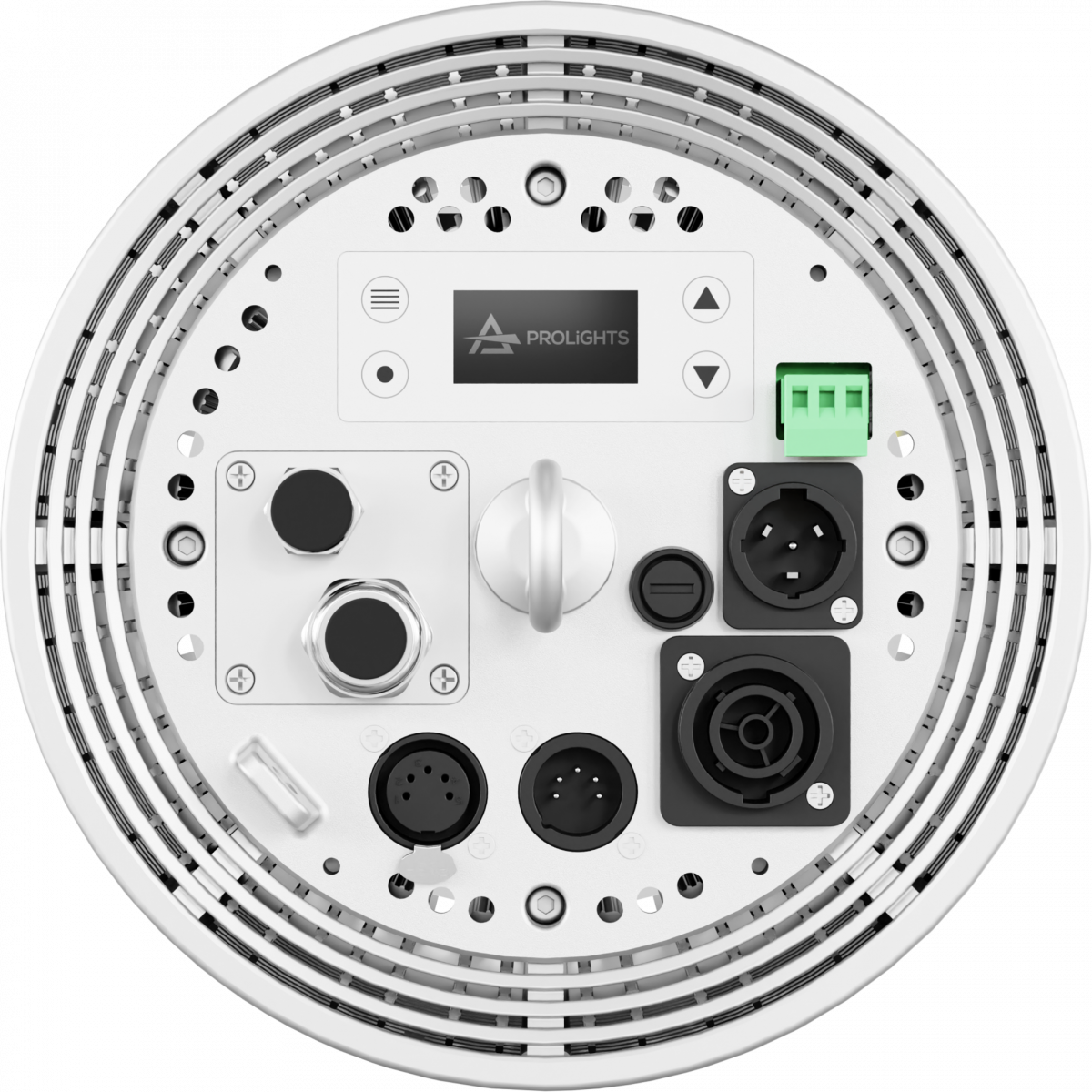

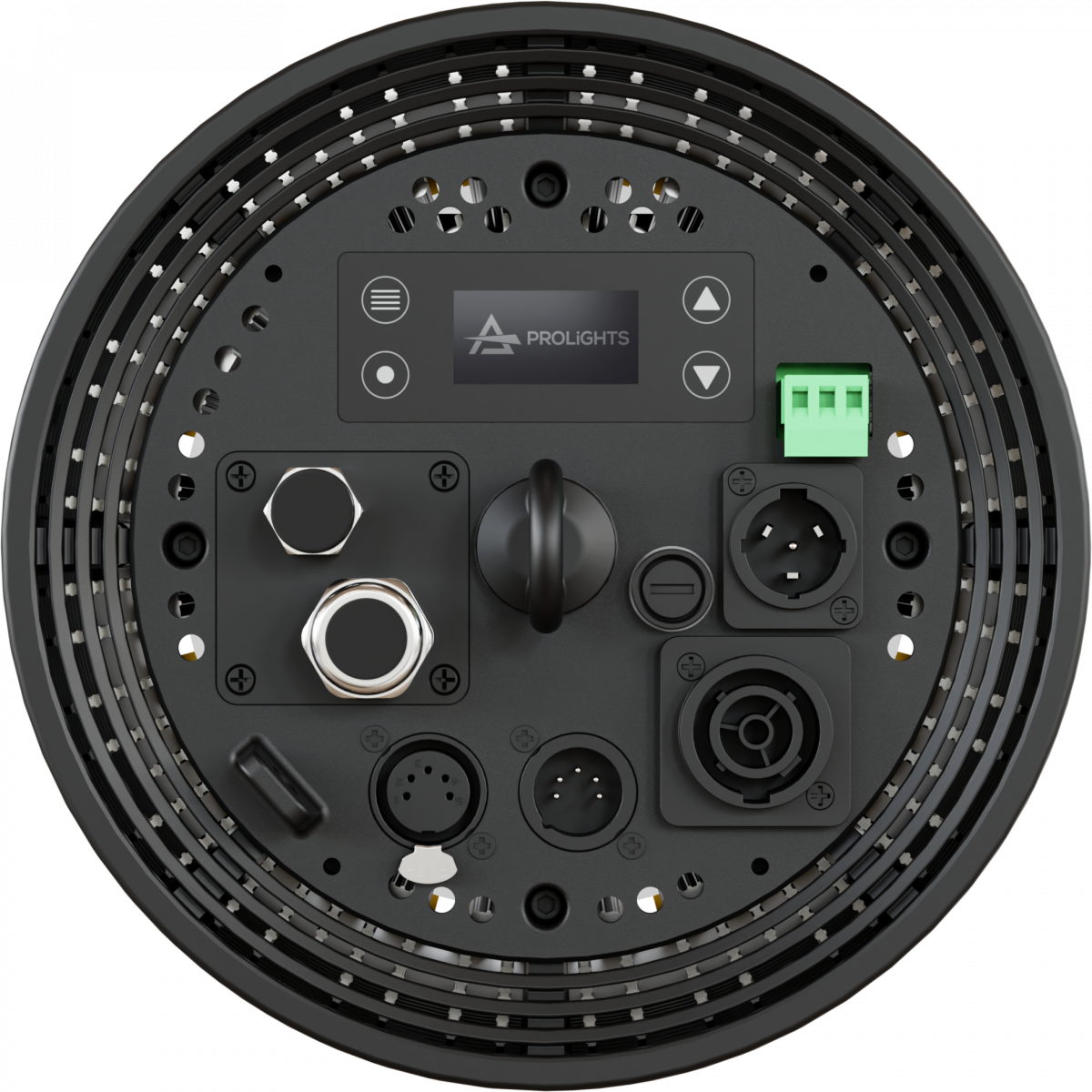

  • Signal connection: screw terminal block, Amphenol XLR 5p IN/OUT connectors
  • Power connection: screw terminal block, Neutrik powerCON TRUE1 IN/OUT connectors
  • Low Voltage DC connector: DC 48V through screw terminal block
  • Dimensions (WxHxD): 202x392x202mm / 7.95''x15.43''x7.95''
  • Weight: 7,3kg / 16.09lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Code
CCT
Finishing
ECLPENDANTTUBK
ECLPENDANTTUBK
3.000K
black
ECLPENDANTNWBK
ECLPENDANTNWBK
4.000K
black
ECLPENDANTDYBK
ECLPENDANTDYBK
5.600K
black
ECLPENDANTTUWH
ECLPENDANTTUWH
3.000K
white
ECLPENDANTNWWH
ECLPENDANTNWWH
4.000K
white
ECLPENDANTDYWH
ECLPENDANTDYWH
5.600K
white

Accessories & Related Products

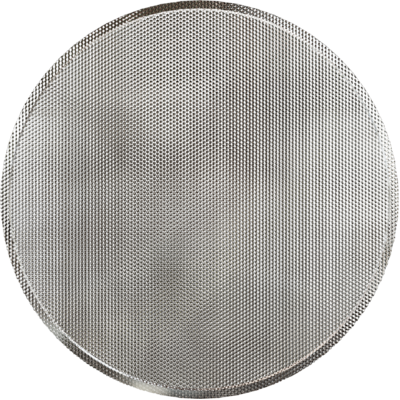

ECLPENDLENS60
ECLPENDLENS60
(optional)

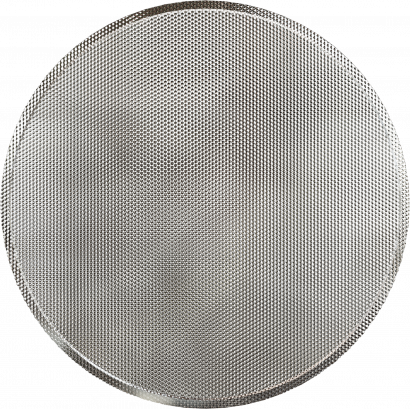

ECLPENDANT series 60° lens

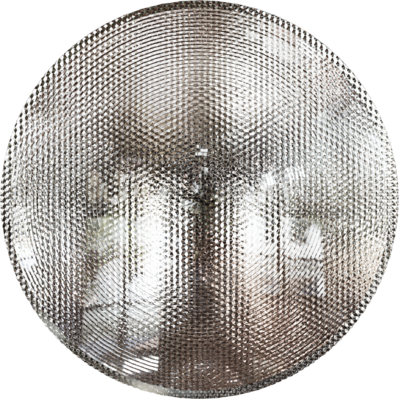

ECLPENDLENS40
ECLPENDLENS40
(optional)

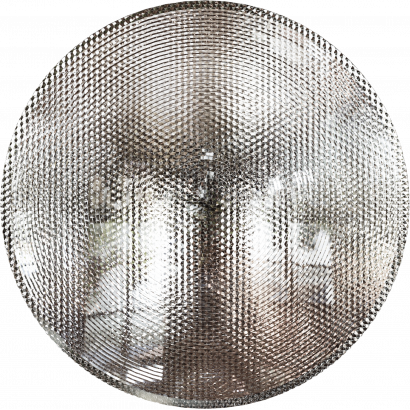

ECLPENDANT series 40° lens
ECLPENDLENS20
ECLPENDLENS20
(included)

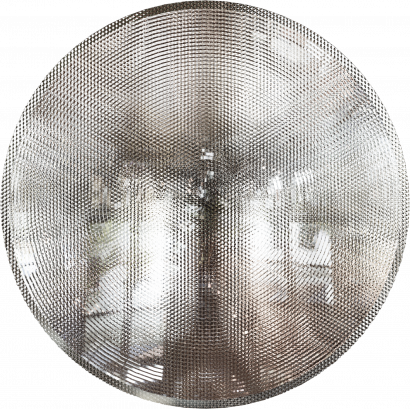

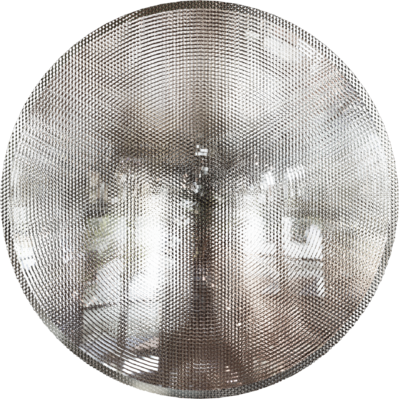

ECLPENDANT series 20° lens
ECLPENDHGBRKBK
ECLPENDHGBRKBK
(optional)

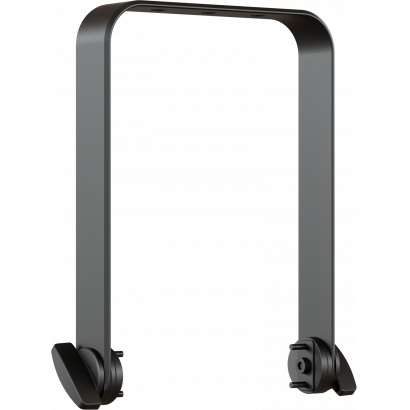

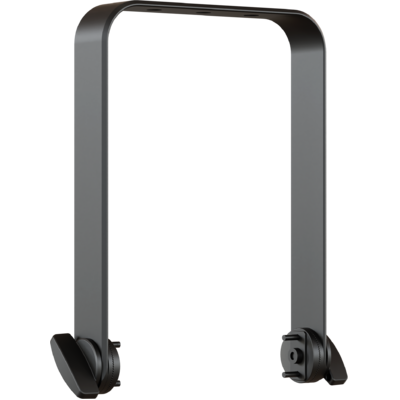

Hanging bracket for ECLPENDANT series, black
ECLPENDHGBRKWH
ECLPENDHGBRKWH
(optional)

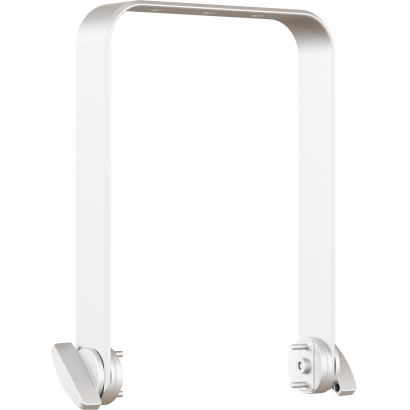

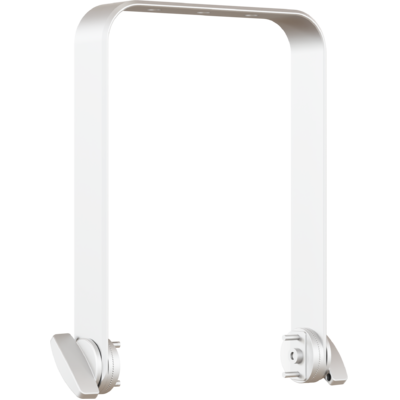

Hanging bracket for ECLPENDANT series, white
ECLPENDRECSKITBK
ECLPENDRECSKITBK
(optional)

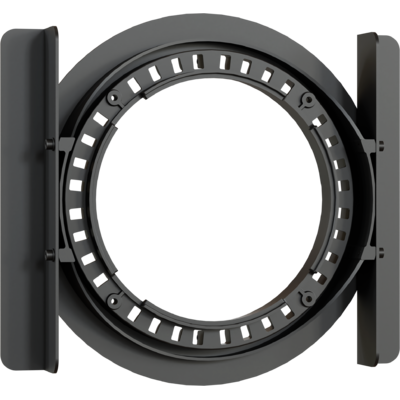

Ceiling recessed kit for ECLPENDANT series, black

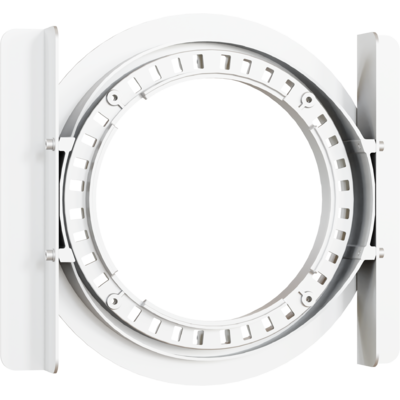

ECLPENDRECSKITWH
ECLPENDRECSKITWH
(optional)
Ceiling recessed kit for ECLPENDANT series, white
ECLPENDHSNOOTBK
ECLPENDHSNOOTBK
(optional)

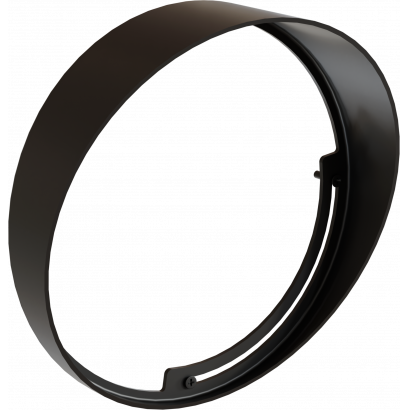

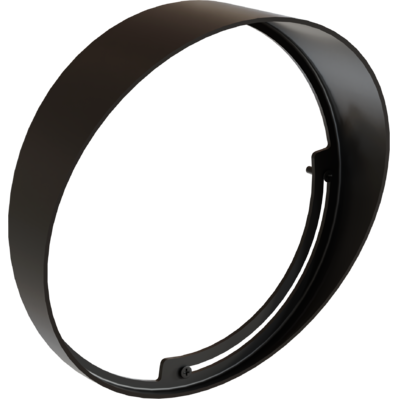

Half snoot for ECLPENDANT series, black
ECLPENDHSNOOTWH
ECLPENDHSNOOTWH
(optional)

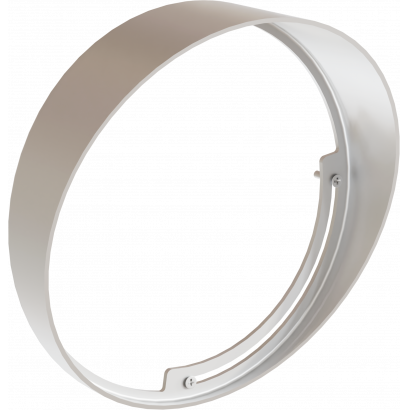

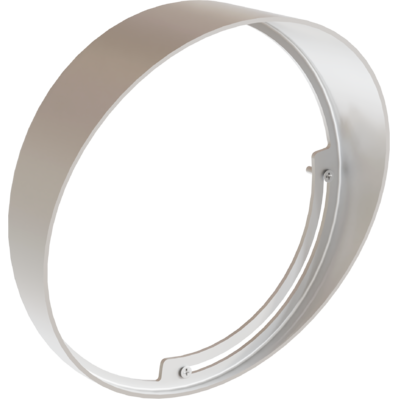

Half snoot for ECLPENDANT series, white

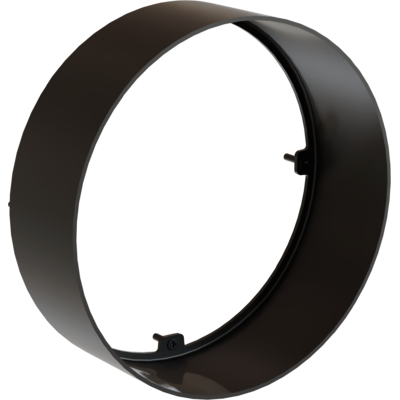

ECLPENDFSNOOTBK
ECLPENDFSNOOTBK
(optional)

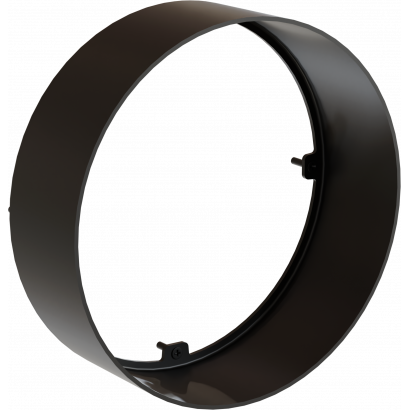

Full snoot for ECLPENDANT series, black
ECLPENDFSNOOTWH
ECLPENDFSNOOTWH
(optional)

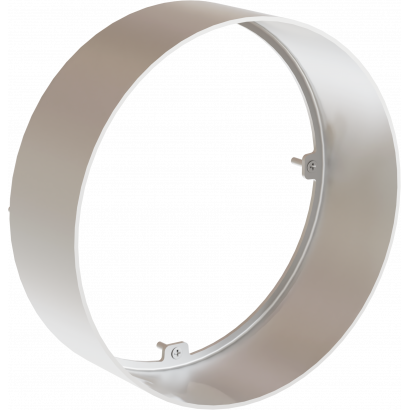

Full snoot for ECLPENDANT series, white
ECLPENDHLOUVREBK
ECLPENDHLOUVREBK
(optional)

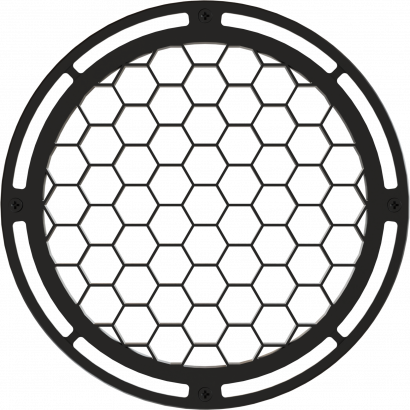

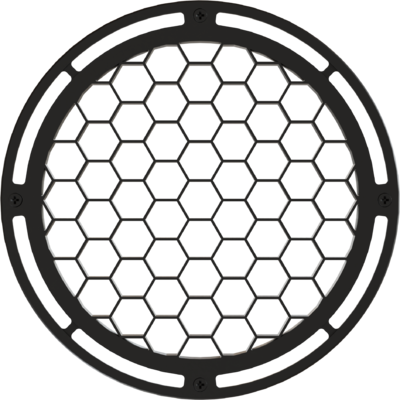

Honeycomb louvre for ECLPENDANT series, black

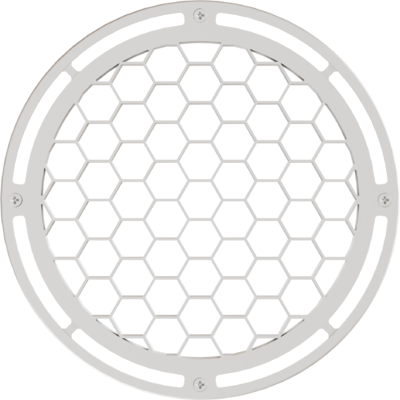

ECLPENDHLOUVREWH
ECLPENDHLOUVREWH
(optional)

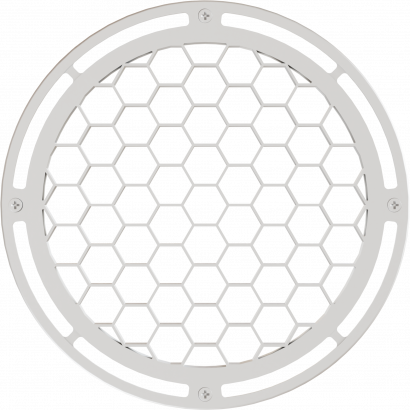

Honeycomb louvre for ECLPENDANT series, white

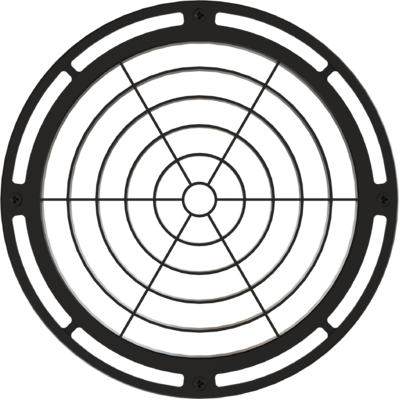

ECLPENDCLOUVREBK
ECLPENDCLOUVREBK
(optional)

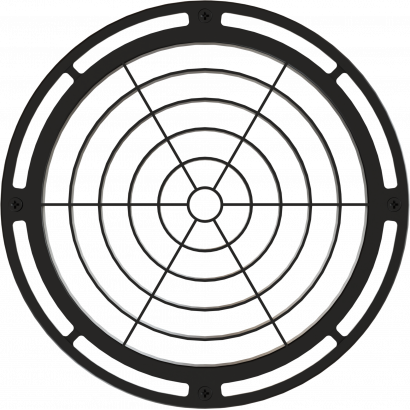

Concentric louvre for ECLPENDANT series, black

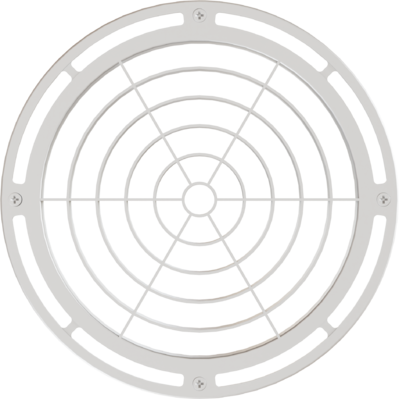

ECLPENDCLOUVREWH
ECLPENDCLOUVREWH
(optional)

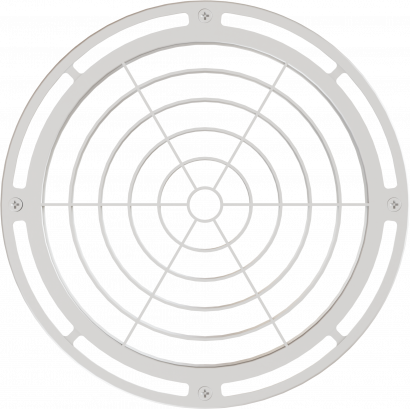

Concentric louvre for ECLPENDANT series, white
ECLPENDBDBK
ECLPENDBDBK
(optional)

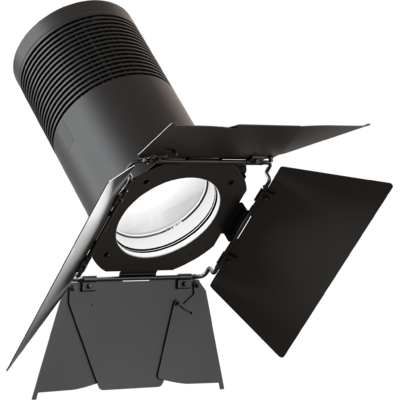

Barn door with 8 directional flaps to adjust the light beam for ECLPENDANT, blac
ECLPENDBDWH
ECLPENDBDWH
(optional)

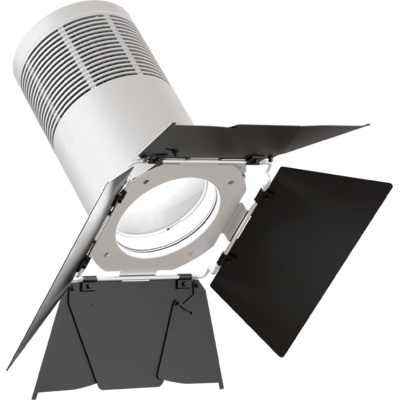

Barn door with 8 directional flaps to adjust the light beam for ECLPENDANT, whit
ECLPENDCEILKITBK
ECLPENDCEILKITBK
(optional)

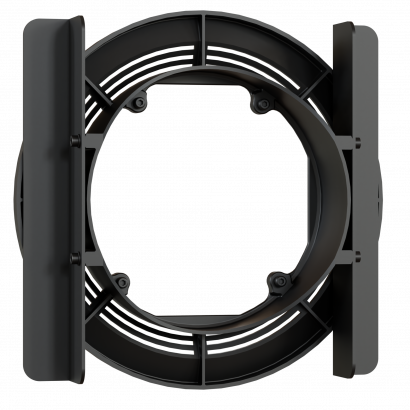

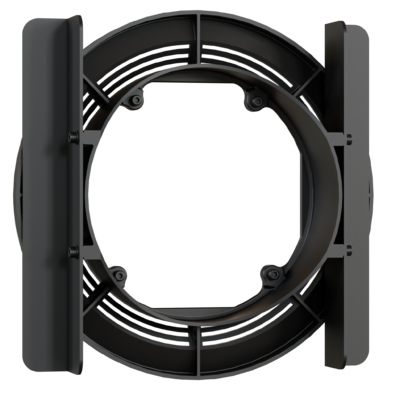

Ceiling-mounted kit (surface) for ECLPENDANT series, black

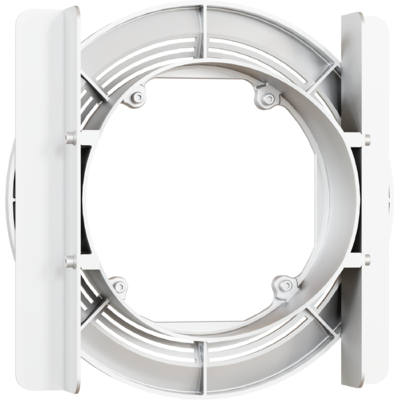

ECLPENDCEILKITWH
ECLPENDCEILKITWH
(optional)

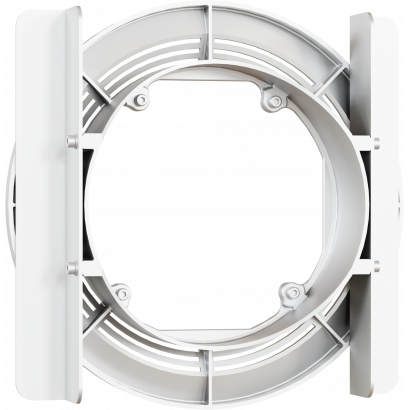

Ceiling-mounted kit (surface) for ECLPENDANT series, white
ECLPENDWALLBRKBK
ECLPENDWALLBRKBK
(optional)

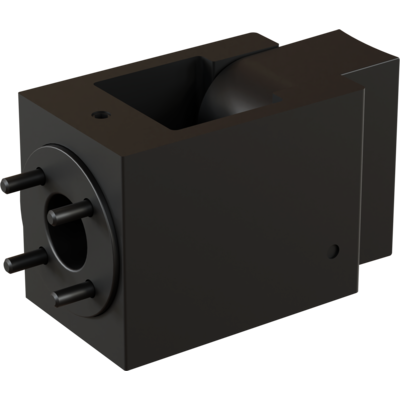

Wall mounting bracket for ECLPENDANT series, black
ECLPENDWALLBRKABK
ECLPENDWALLBRKABK
(optional)
Ring adapter for ECLPENDWALLBRK (not included), black
ECLPENDWALLBRKWH
ECLPENDWALLBRKWH
(optional)

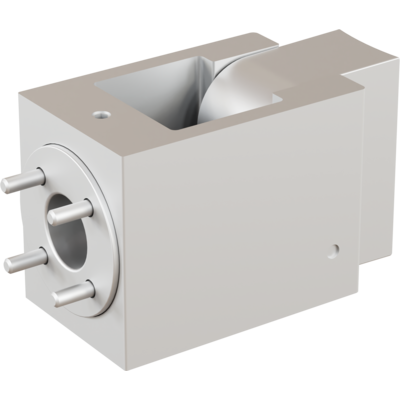

Wall mounting bracket for ECLPENDANT series, white
ECLPENDWALLBRKAWH
ECLPENDWALLBRKAWH
(optional)
Ring adapter for ECLPENDWALLBRK (not included), white
TOUR53415L03
TOUR53415L03
(optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
9533FXWL03
9533FXWL03
(optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
9513FXWL03
9513FXWL03
(optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
958225L03
958225L03
(optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

DMX chart & personalities

ECLPENDANT Firmware rev. 1.1.02.0
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

CAD symbols & drawings

Tech docs

File name File size Download

Software

File name File size Download

Firmware

Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOX1UP5 UPBOX1UP5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1.02.0 STABLE 02/05/2023 Fixed bug:
  • Strobe Channel @ 0 DMX Value not corresponding to Open function.
