EclPendant JrVW

100W Variable White innovative pendant light

The EclPendant JrVW is a beautifully designed house light packed with high-performing technology that makes any venue well-lit whilst staying eco-friendly.
This innovative series of pendant lights come with a full range of optics, accessories, mounting options and control.
The EclPendant JrVW has a 100-Watt LED source Variable White that have high-quality light output, a consistent colour temperature and unmatched durability.
Several advanced user settings are available from the unit's on-board GUI and control protocols like DALI, DMX + RDM and Wireless DMX (CRMX + W-DMX).
The EclPendant JrVW was made for several uses - its mounting options include pendant, surface, stem, wall mount, adjustable bracket, and recessed. It's also possible to wire the EclPendant JrVW series directly to mains (100-240AC or 48V DC) and DMX or DALI through terminal blocks or feed power and DMX using the TrueOne and DMX connections.
The fixture has a wide range of optics and accessories available, with an uncompromising approach to flexibility and precision. All the optics are easily changeable on-site, providing a hassle-free user experience.
The EclPendant JrVW has a fan-free thermal design and delivers a powerful and consistent lumen output over a long lifespan.

NOTE: the hanging bracket does not come with the product


5 YEARS WARRANTY

Main features:

  • 100W LED source power, Variable White with passive cooling
  • AC or DC power input. Control via DALI, DMX, RDM, Wireless DMX (CRMX+W-DMX)
  • Extensive mounting option possibilities, optics and accessories are all easily changeable

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 100W Variable White LED
  • CCT: 2'700K - 6'500K
  • Luminous flux: (2'700K) 6'092 lm; (6'500K) 8'287 lm; (FULL) 7'819
  • Lux: (2'700K) 1'104 lx; (6'500K) 1'468 lx; (FULL) 1'388lx @5 m
  • CRI: 96,5 @2'700K; 95,4 @6'500K; 96,2 @ full
  • R9: 93,9 @2'700K; 86,5 @6'500K; 92,3 @ full
  • TLCI: 96 @2'700K; 96 @6'500K; 97 @ full
  • TM30 Rf: 95,3 @2'700K; 90,5 @6'500K; 92,9 @ full
  • TM30 Rg: 103,3 @2'700K; 100,5 @6'500K; 103,6 @ full
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Beam angle: 24°
  • Field angle: 44°
  • Lens diameter: 122mm / 4.8''
  • Lens type: fresnel lens
  • Other: see available accessories
COLOUR SYSTEM
  • Colour mixing: tunable white
  • CCT: linear CCT control
  • Colour wheel: built-in white presets
  • Macros: several pre-built macros with adjustable speed
DYNAMIC EFFECTS
  • Static mode: selection of static dimmer and color temperature
  • Manual mode: manual adjustment of dimmer and strobe
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: RAL 9004 or RAL 9010
CONTROL
  • Protocols: DALI Type8, DMX512, RDM, CRMX
  • DMX channels: 1 / 2 / 5 / 9 / 13channel
  • Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Other: 16bit control of dimmer and colour
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1-30 Hz, electronic
  • Operating temperature: -10° ~ +45° Ta
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 40.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Low Voltage DC mains: DC 48V for emergency light use
  • Max power consumption: 121W
  • Output (at 230V): 24 units on a single power line
  • Power factor: > 0,92
PHYSICAL
  • IP rating: 20
  • Cooling: Heatsink with heat pipes, passive cooling and fan-free
  • Suspension and fixing: bracket for hanging and positioning (bracket not included on the product)
  • Signal connection: screw terminal block, Amphenol XLR 5p IN/OUT connectors
  • Power connection: screw terminal block, Neutrik powerCON TRUE1 IN/OUT connectors
  • Low Voltage DC connector: DC 48V through screw terminal block
  • Dimensions (WxHxD): 170x321x170mm / 6.69''x12.64''x6.69''
  • Weight: 5kg / 11.02lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, RCM, cTUVus
BOX CONTENT

Versions

Code
Finishing
ECLPENDANTJRVWBK
ECLPENDANTJRVWBK
Black
ECLPENDANTJRVWWH
ECLPENDANTJRVWWH
White

Accessories & Related Products

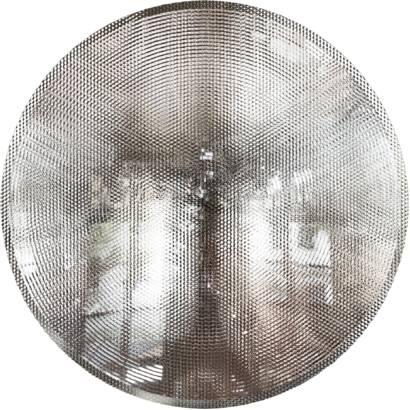

ECLPENDJRLENS60
ECLPENDJRLENS60
(Optional)

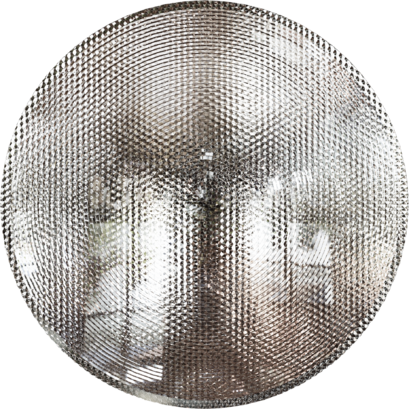

ECLPENDANTJR series 60° lens
ECLPENDJRLENS40
ECLPENDJRLENS40
(Optional)
ECLPENDANTJR series 40° lens
ECLPENDJRLENS20
ECLPENDJRLENS20
(Included)
ECLPENDANTJR series 20° lens

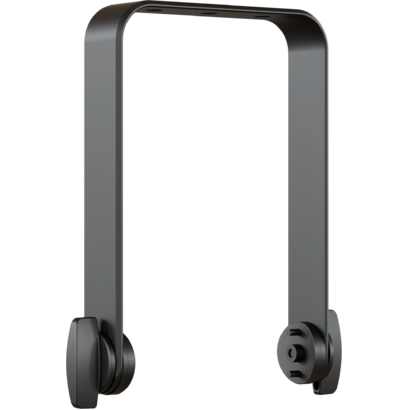

ECLPENDJRHGBRKBK
ECLPENDJRHGBRKBK
(Optional)

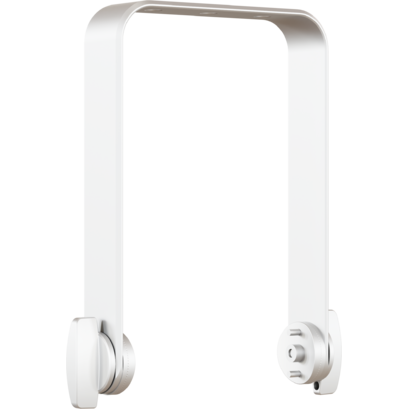

Hanging bracket for ECLPENDANTJR series, black
ECLPENDJRHGBRKWH
ECLPENDJRHGBRKWH
(Optional)
Hanging bracket for ECLPENDANTJR series, white
ECLPENDJRRECKITBK
ECLPENDJRRECKITBK
(Optional)

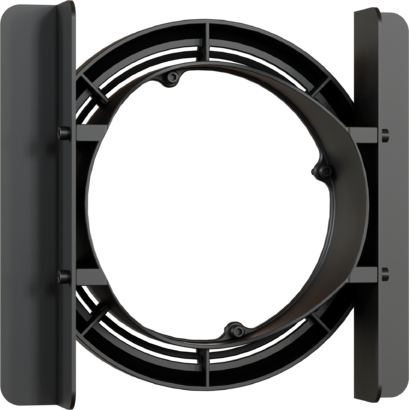

Ceiling recessed kit for ECLPENDANTJR series, black
ECLPENDJRRECKITWH
ECLPENDJRRECKITWH
(Optional)

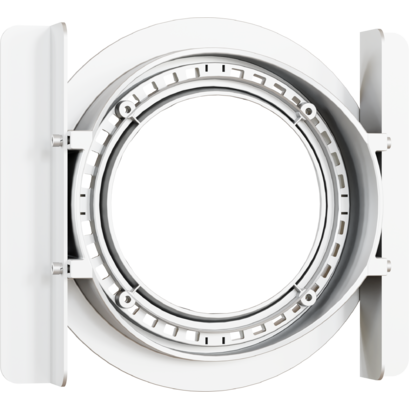

Ceiling recessed kit for ECLPENDANTJR series, white
ECLPENDJRHSNOOTBK
ECLPENDJRHSNOOTBK
(Optional)

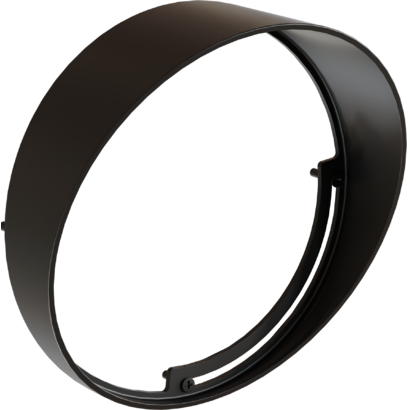

Half snoot for ECLPENDANTJR series, black

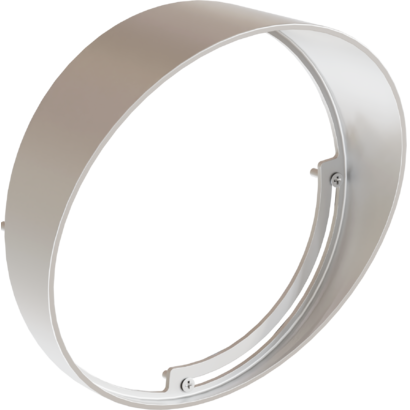

ECLPENDJRHSNOOTWH
ECLPENDJRHSNOOTWH
(Optional)
Half snoot for ECLPENDANTJR series, white

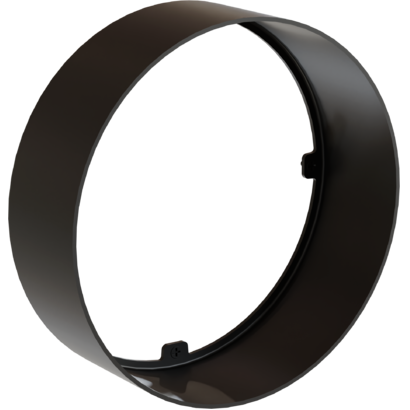

ECLPENDJRFSNOOTBK
ECLPENDJRFSNOOTBK
(Optional)
Full snoot for ECLPENDANTJR series, black
ECLPENDJRFSNOOTWH
ECLPENDJRFSNOOTWH
(Optional)

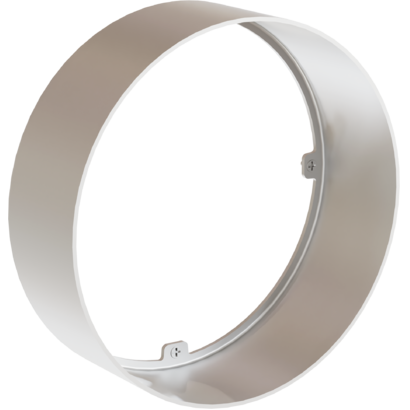

Full snoot for ECLPENDANTJR series, white

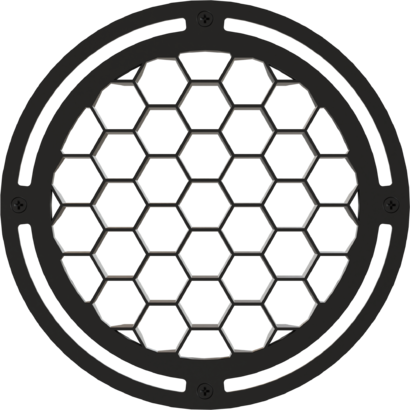

ECLPENDJRHLOUVBK
ECLPENDJRHLOUVBK
(Optional)
Honeycomb louvre for ECLPENDANTJR series, black
ECLPENDJRHLOUVWH
ECLPENDJRHLOUVWH
(Optional)

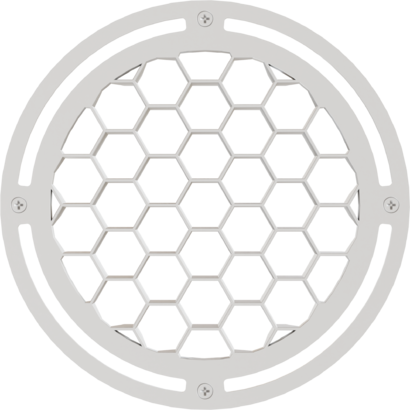

Honeycomb louvre for ECLPENDANTJR series, white

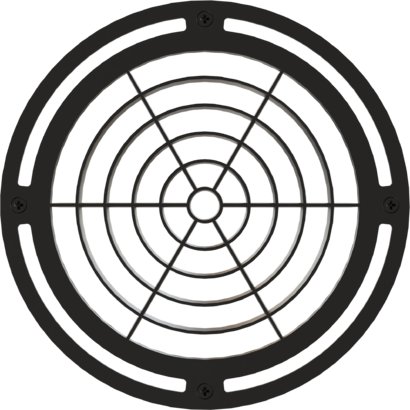

ECLPENDJRCLOUVBK
ECLPENDJRCLOUVBK
(Optional)

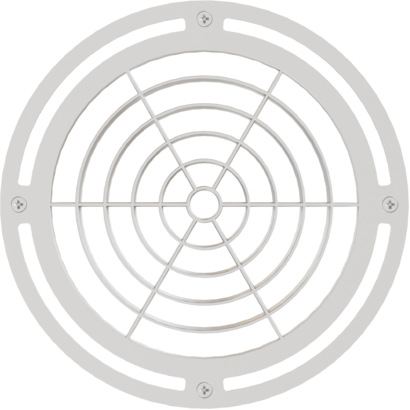

Concentric louvre for ECLPENDANTJR series, black
ECLPENDJRCLOUVWH
ECLPENDJRCLOUVWH
(Optional)
Concentric louvre for ECLPENDANTJR series, white

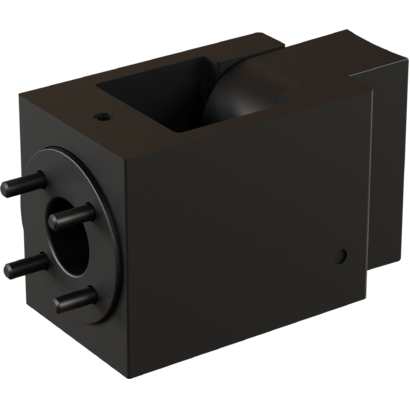

ECLPENDWALLBRKBK
ECLPENDWALLBRKBK
(Optional)
Wall mounting bracket for ECLPENDANT series, black

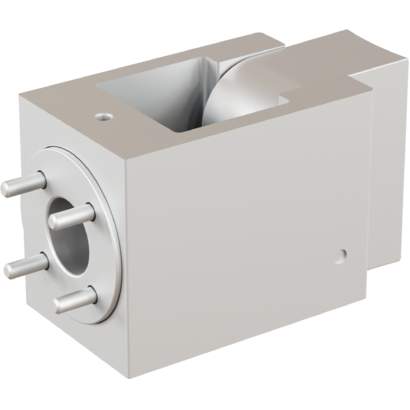

ECLPENDWALLBRKWH
ECLPENDWALLBRKWH
(Optional)
Wall mounting bracket for ECLPENDANT series, white
ECLPENDJCEILKITBK
ECLPENDJCEILKITBK
(Optional)
Ceiling-mounted kit (surface) for ECLPENDANTJR series, black
ECLPENDJCEILKITWH
ECLPENDJCEILKITWH
(Optional)
Ceiling-mounted kit (surface) for ECLPENDANTJR series, white
TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
9533FXWL03
9533FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
9513FXWL03
9513FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
958225L03
958225L03
(Optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

DMX chart & personalities

File name File size Download
DMX chartEclpendantjrvw_DMX_CHARTS.pdf117KB
ECLPENDANTJRVW Firmware rev. 1.1.00.0
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Tech docs

File name File size Download
Noise ReportEclpendantjrvw_NOISE_REPORT.pdf579KB

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1.00.0 STABLE 19/04/2024 Improvements:
  • Improved RDM protocol compliance.
  • Improved Dimmer behavior.
  • Improved Dali protocol behavior.
Fixed Bugs:
  • Incorrect default values in RDM.
  • It's not possible to performe the factory reload via RDM more than once, but it's necessary to reboot the device.
  • In Standard and Basic Mode, switching the CCT channel from 0% to 100%, transition occurs in fade.
