EclPendant SFC new

50W RGB+WarmWhite House light with passive cooling

The EclPendant S merges elegant design with cutting-edge, eco-friendly technology, ensuring optimal illumination for any venue. This series of pendant lights offers a diverse range of LED sources, including options in RGB + Warm White, Variable White and single color (3000K, 4000K and 5600K), each featuring a 50 Watt LED that provides high-quality light output, uniform color, and remarkable durability.

Completed by a wide range of optics, accessories, and versatile mounting solutions, the EclPendant S adapts to various installation needs. Mounting alternatives include pendant, surface, stem, wall, adjustable bracket, and recessed options. It can be directly wired to mains power (100-240 VAC or 48 VDC) and integrates seamlessly with control protocols like DMX + RDM and DALI, thanks to its accessible terminal blocks.

User-friendly settings are manageable via the unit's onboard GUI, enhancing its functionality. The fixture's wide array of optics and accessories is designed for utmost flexibility and precision, allowing easy on-site changes without complications.

Notably, the EclPendant S features a fan-free thermal design, ensuring quiet operation while delivering consistent and robust lumen output throughout its extended lifespan.



* Please note: The hanging bracket is not included with the product.

SPEKTRA5 YEARS WARRANTY

Main features:

  • House light with 50W RGB + Warm White LED source with passive cooling
  • 100-240 VAC or 48 VDC power input. Control via DALI, DMX, RDM
  • Extensive mounting option, optics and accessories available
See variants

PHOTO GALLERY

EclPendant SFC
EclPendant SFC
EclPendant SFC
EclPendant SFC

Technical specifications

LIGHT SOURCE
  • Source: 50W RGBWW LEDs
  • CCT: 2'800K - 10'000K
  • Luminous flux: 2'637 @Full
  • Lux: 513lx @5 m full
  • CRI: 92,3 @Full; 93,2 @3200K; 92,8 @5600K
  • R9: 97,1 @Full; 96,2 @3200K; 92,5 @5600K
  • TLCI: 91 @Full; 80 @3200K; 89 @5600K
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Beam angle: 20°
  • Field angle: 40°
  • Lens diameter: 100mm / 3.94''
  • Lens type: fresnel lens
  • Other: see available accessories
COLOUR SYSTEM
  • Colour mixing: RGB + Warm White
  • CCT: CCT control, + / - green correction, tungsten emulation
  • Colour wheel: gel filters included
  • Macros: several pre-built macros with adjustable speed
DYNAMIC EFFECTS
  • Static mode: selection of static dimmer, colors and color temperature
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: RAL 9004 or RAL 9010
CONTROL
  • Protocols: DALI Type8, DMX512, RDM
  • DMX channels: UNO / DUO / Basic / Standard / Extendedchannel
  • Wireless Control: optional, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX) (Order code SP018409)
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Other: 16bit control of dimmer and colour
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1-30 Hz, electronic
  • Operating temperature: -10° ~ +45° Ta
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 40.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Low Voltage DC mains: DC 48V for emergency light use
  • Max power consumption: 60W
  • Output (at 230V): 24 units on a single power line
  • Power factor: > 0,93
PHYSICAL
  • IP rating: 20
  • Cooling: Heatsink with heat pipes, passive cooling and fan-free
  • Suspension and fixing: bracket for hanging and positioning (bracket not included on the product)
  • Signal connection: Screw terminal block
  • Power connection: Screw terminal block
  • Dimensions (WxHxD): 135x300x135mm / 5.31''x11.81''x5.31''
  • Weight: 3,1kg / 6.83lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, RCM, FCC, cTUVus
BOX CONTENT

Versions

Code
Finishing
ECLPENDANTSFCBK
ECLPENDANTSFCBK (NEW)
Black
ECLPENDANTSFCWH
ECLPENDANTSFCWH (NEW)
White

Accessories & Related Products

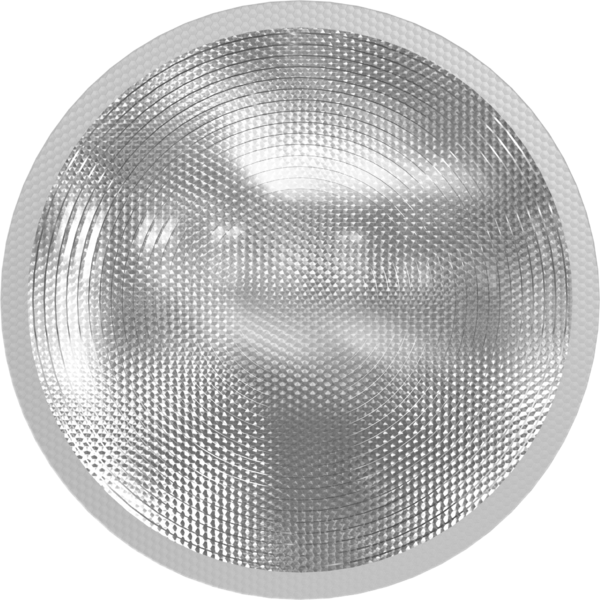

ECLPENDSLENS20
ECLPENDSLENS20
(Included)
ECLPENDANTS series 20° lens

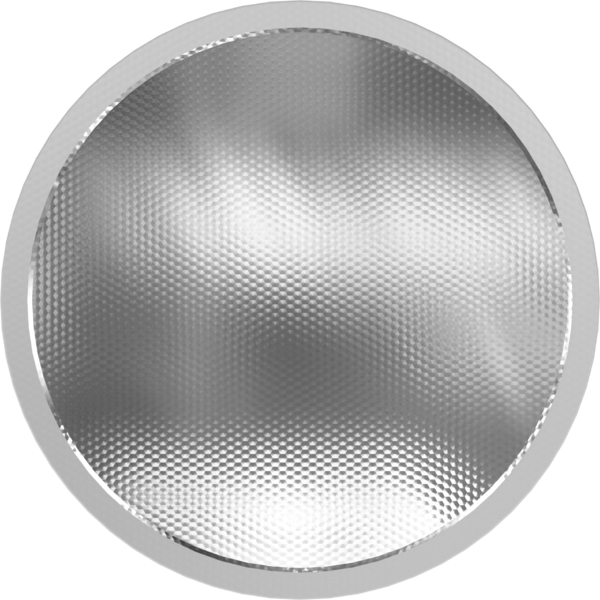

ECLPENDSLENS40
ECLPENDSLENS40
(Optional)
ECLPENDANTS series 40° lens

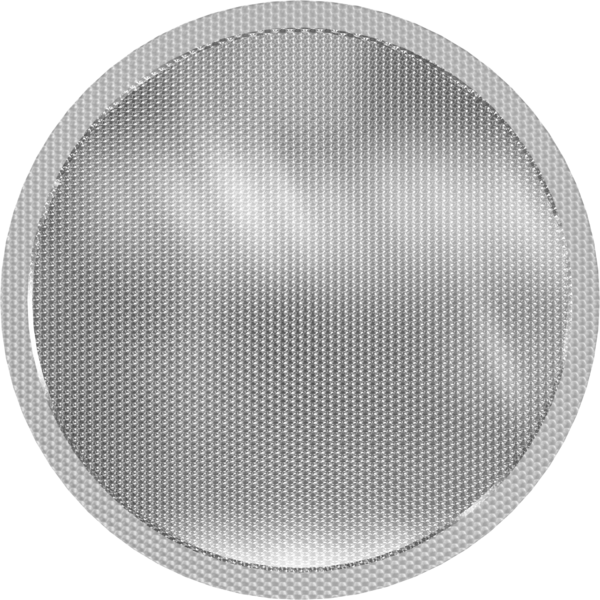

ECLPENDSLENS60
ECLPENDSLENS60
(Optional)
ECLPENDANTS series 60° lens

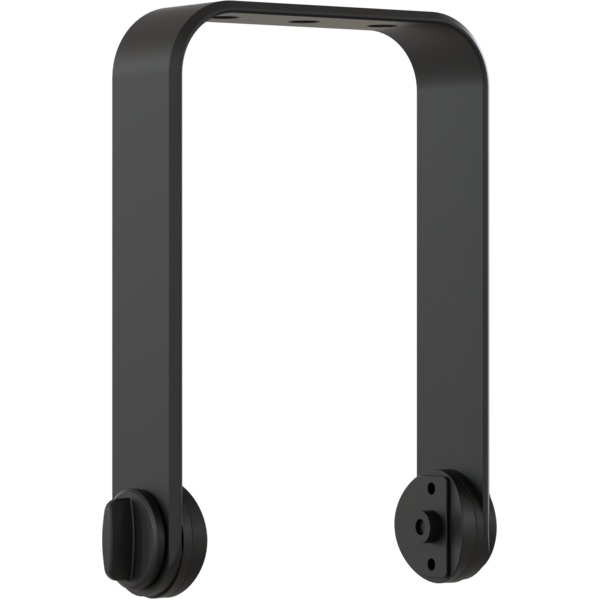

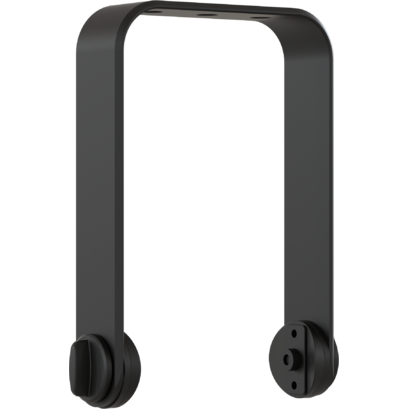

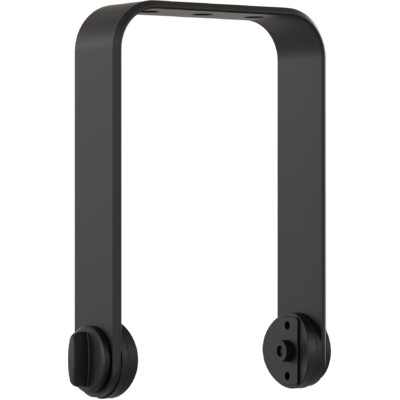

ECLPENDSHGBRKBK
ECLPENDSHGBRKBK
(Optional)
Hanging bracket for ECLPENDANTS series, black

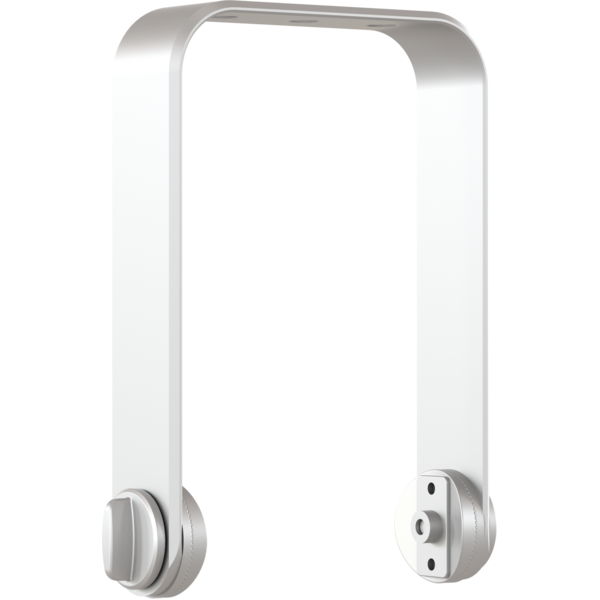

ECLPENDSHGBRKWH
ECLPENDSHGBRKWH
(Optional)
Hanging bracket for ECLPENDANTS series, white

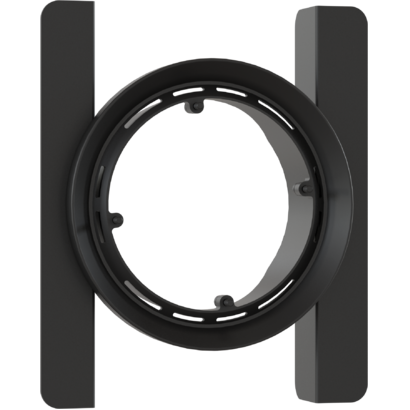

ECLPENDSRECSKITBK
ECLPENDSRECSKITBK
(Optional)
Ceiling recessed kit for ECLPENDANTS series, black

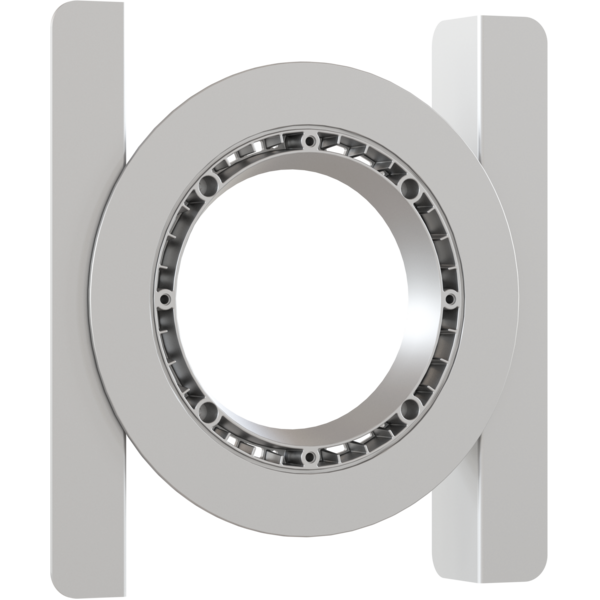

ECLPENDSRECSKITWH
ECLPENDSRECSKITWH
(Optional)
Ceiling recessed kit for ECLPENDANTS series, white

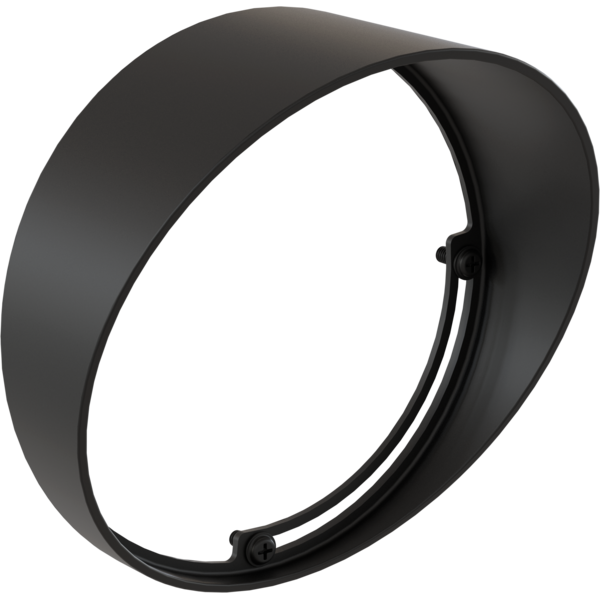

ECLPENDSHSNOOTBK
ECLPENDSHSNOOTBK
(Optional)
Half snoot for ECLPENDANTS series, black

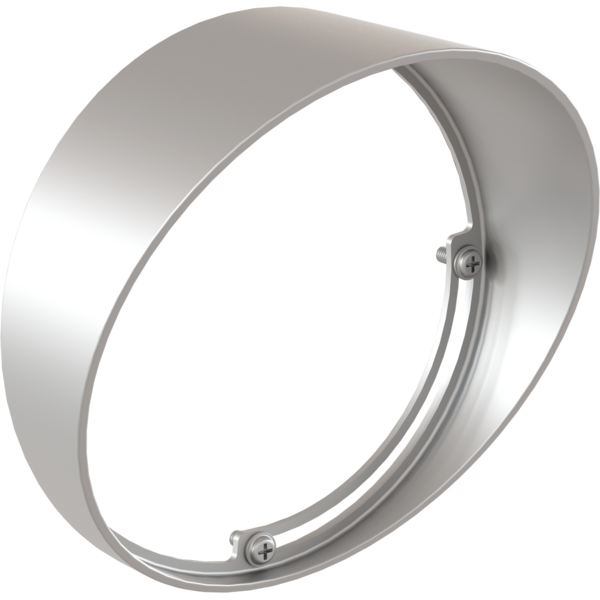

ECLPENDSHSNOOTWH
ECLPENDSHSNOOTWH
(Optional)
Half snoot for ECLPENDANTS series, white

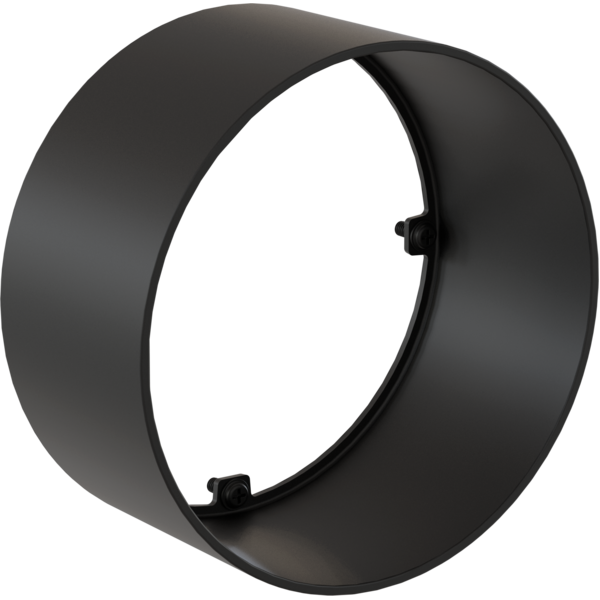

ECLPENDSFSNOOTBK
ECLPENDSFSNOOTBK
(Optional)
Full snoot for ECLPENDANTS series, black

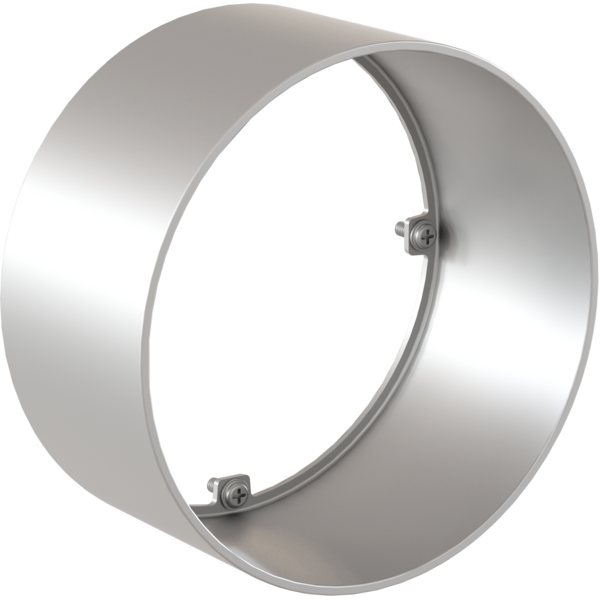

ECLPENDSFSNOOTWH
ECLPENDSFSNOOTWH
(Optional)
Full snoot for ECLPENDANTS series, white

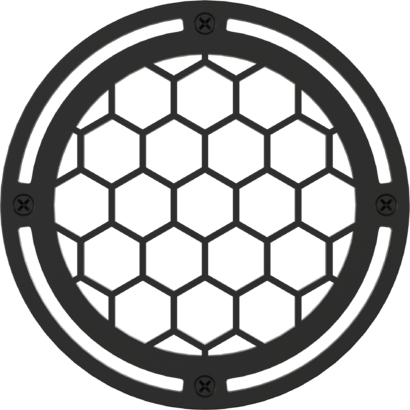

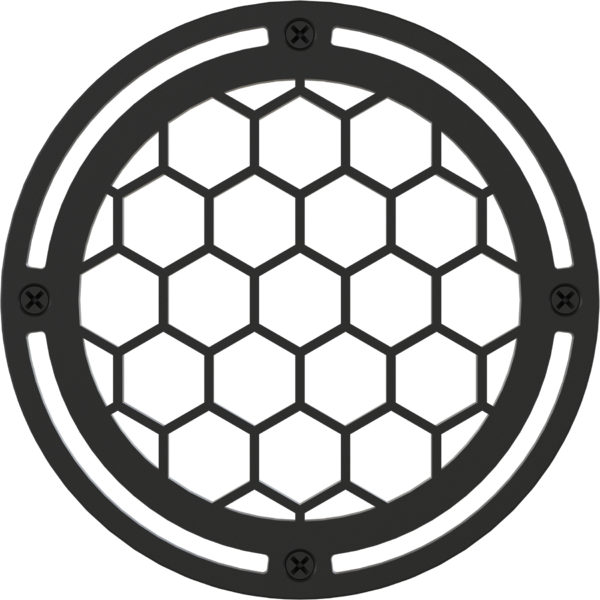

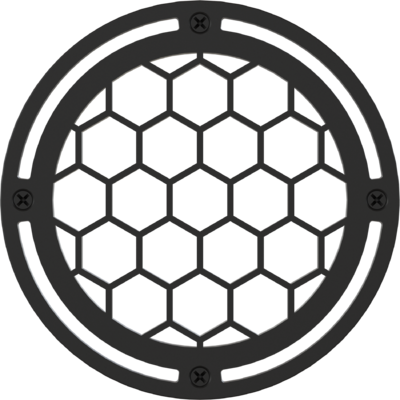

ECLPENDSHLOUVREBK
ECLPENDSHLOUVREBK
(Optional)
Honeycomb louvre for ECLPENDANTS series, black

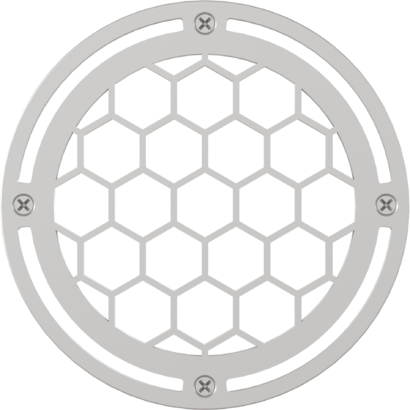

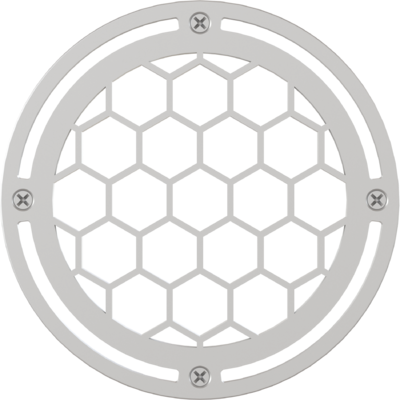

ECLPENDSHLOUVREWH
ECLPENDSHLOUVREWH
(Optional)
Honeycomb louvre for ECLPENDANTS series, white

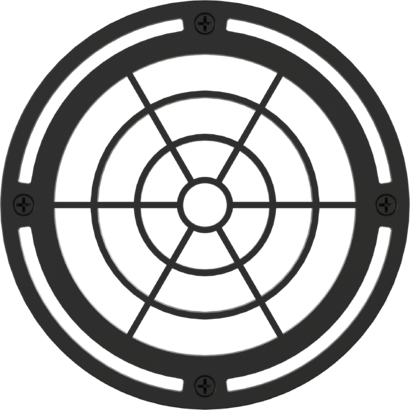

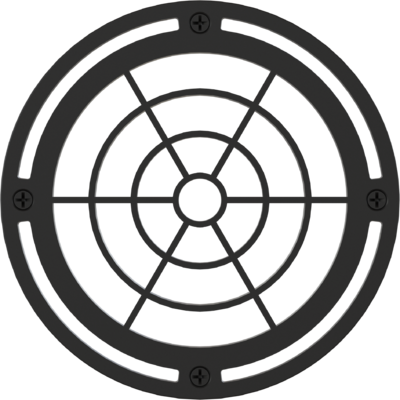

ECLPENDSCLOUVREBK
ECLPENDSCLOUVREBK
(Optional)
Concentric louvre for ECLPENDANTS series, black

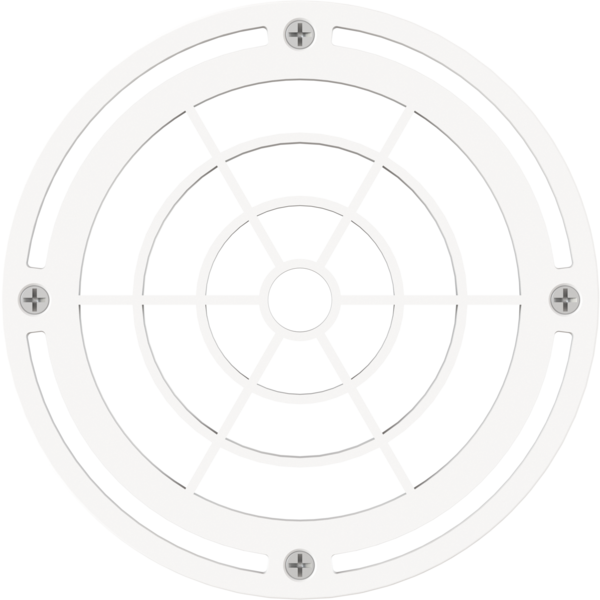

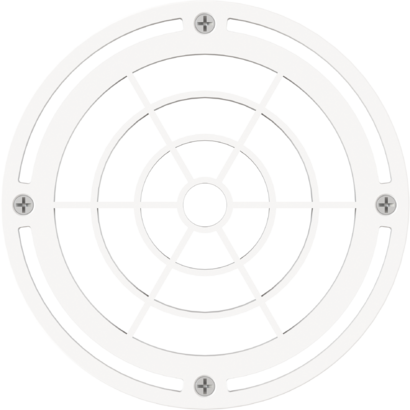

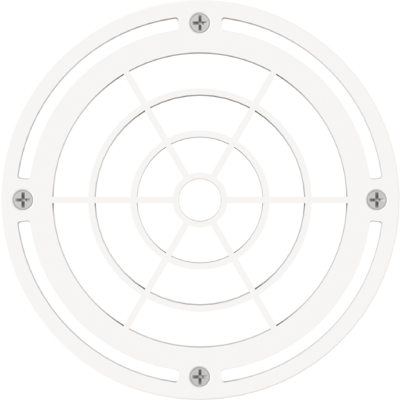

ECLPENDSCLOUVREWH
ECLPENDSCLOUVREWH
(Optional)
Concentric louvre for ECLPENDANTS series, white

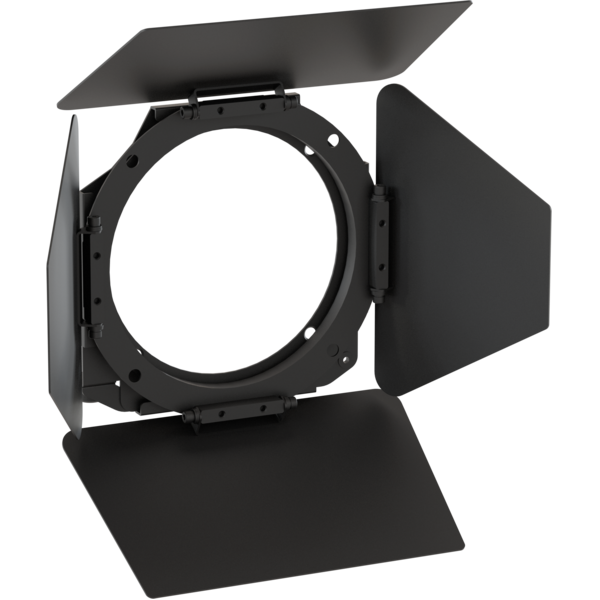

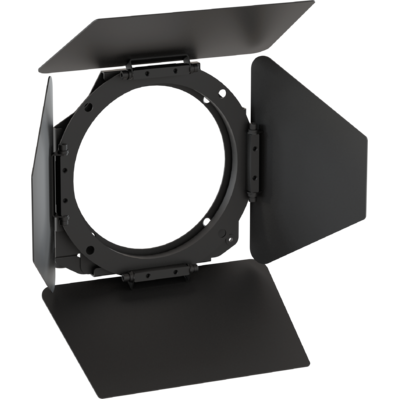

ECLPENDSBDBK
ECLPENDSBDBK
(Optional)
Barndoor with 4 directional flaps to adjust the light beam for ECLPENDANTS,black

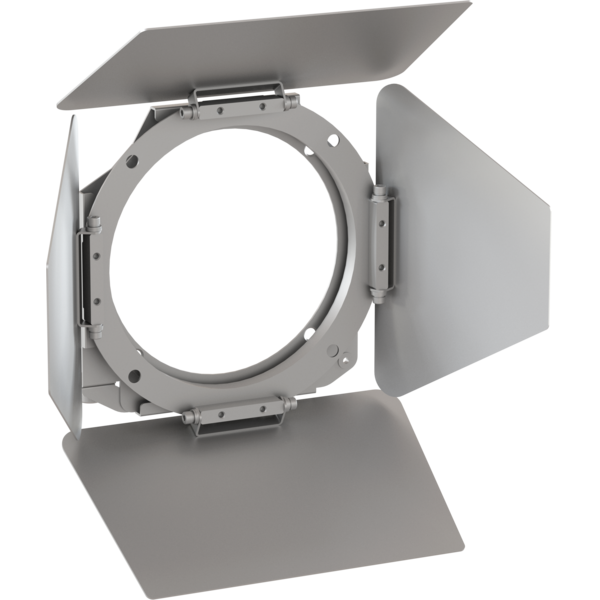

ECLPENDSBDWH
ECLPENDSBDWH
(Optional)
Barndoor with 4 directional flaps to adjust the light beam for ECLPENDANTS,white

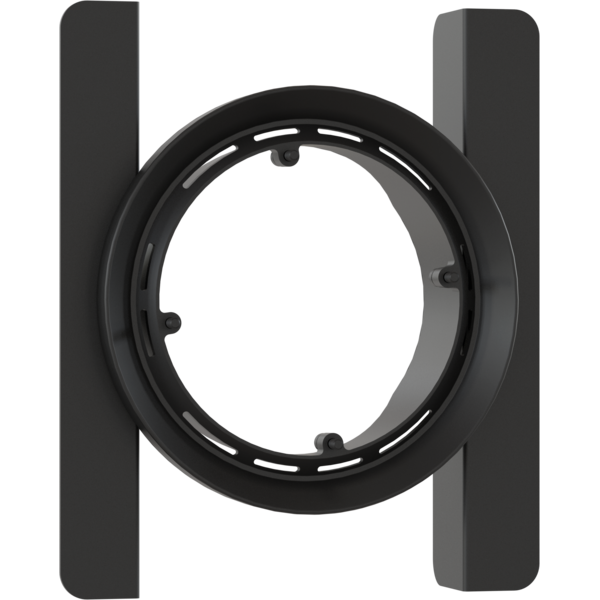

ECLPENDSCEILKITBK
ECLPENDSCEILKITBK
(Optional)
Ceiling-mounted kit (surface) for ECLPENDANTS series, black

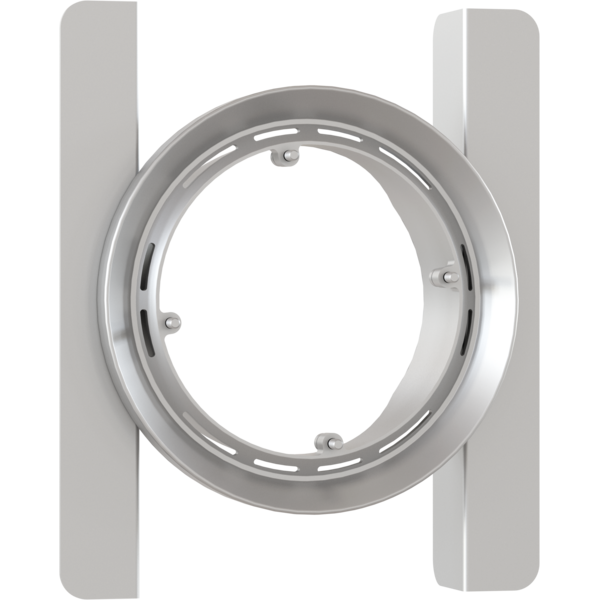

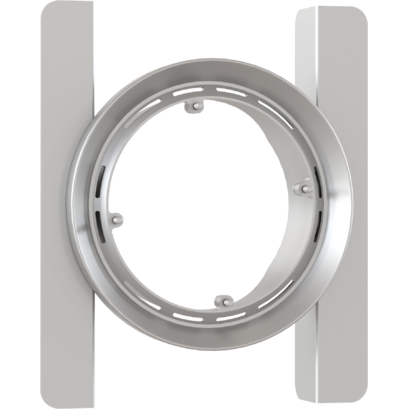

ECLPENDSCEILKITWH
ECLPENDSCEILKITWH
(Optional)
Ceiling-mounted kit (surface) for ECLPENDANTS series, white

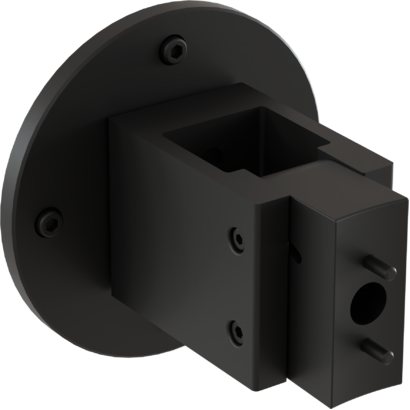

ECLPENDWALLBRKBK
ECLPENDWALLBRKBK
(Optional)
Wall mounting bracket for ECLPENDANT series, black
ECLPENDWALLBRKABK
ECLPENDWALLBRKABK
(Optional)
Ring adapter for ECLPENDWALLBRK (not included), black
ECLPENDWALLBRKWH
ECLPENDWALLBRKWH
(Optional)
Wall mounting bracket for ECLPENDANT series, white
ECLPENDWALLBRKAWH
ECLPENDWALLBRKAWH
(Optional)
Ring adapter for ECLPENDWALLBRK (not included), white
TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
9533FXWL03
9533FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
9513FXWL03
9513FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
958225L03
958225L03
(Optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
PLCPW93075
PLCPW93075
(Optional)
Power PVC cable H05VV-F 3G0,75, 1 meter lenght
PLCDX53D5
PLCDX53D5
(Optional)
120 Ohm DMX cable, 2 twisted poles, external sheath with reduced diameter, 1 m
PLCPD7501P14D
PLCPD7501P14D
(Optional)
Power & DMX 120 Ohm, 1 meter length, not suitable for track adapter connection
PLCPD7501P68D
PLCPD7501P68D
(Optional)
Power & DMX 120 Ohm
PLCYA7501P14D
PLCYA7501P14D
(Optional)
YY splitter cable Power 3x0.75 mm2 + 5p IN/OUT DMX 120 Ohm, bare end, 1 meter
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetEclpendantsfc_A4_DATASHEET_(EN).pdf396KB
Tender SpecificationEclpendantsfc_TENDER_SPECIFICATION.pdf221KB

User manual

DMX chart & personalities

File name File size Download
DMX chartEclpendantsfc_DMX_CHARTS.pdf311KB
ECLPENDANTSFC Firmware rev. 1.1.01.0
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D SKPEclpendantsfc_3D.skp608KB
2DECLPENDANTSFC_2D.zip9MB
3DEclpendantsfc_CAD_3D.dwg99KB
2D cad symbolsECLPENDANTSFC_2DSYMBOLS.zip89KB
Technical drawingECLPENDANTSFC_TECHNICAL DRAWINGS.zip2MB
VectorWorksECLPENDANTSFC_SYMBOLS.zip2MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB

Tech docs

File name File size Download
Noise ReportEclpendantsfc_NOISE_REPORT.pdf558KB

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1.01.0 STABLE 27/06/2024 Fixed Bug:
  • Device freezes every time you enter the Information/Wireless Quality menu. A reboot is required.
 Rev. 1.0

Info Request

News

CPC Production Services relies on PROLIGHTS for professional lighting
March 14, 2025
CPC Production Services relies on PROLIGHTS for professional lighting
Ipswich, Queensland - With a legacy of excellence dating back to 1984, CPC Production Services is a leading live event and broadcast production company in Australia. It has recently chosen to invest in PROLIGHTS solutions, supplied by Show Technology
PROLIGHTS Lights Up the Stage at Vibe Budapest
March 12, 2025
PROLIGHTS Lights Up the Stage at Vibe Budapest
The newly opened Vibe Budapest , the latest gem of the Costes Group , has chosen PROLIGHTS solutions to create spectacular lighting effects and an engaging atmosphere. The lighting system design and installation were managed by LISYS-Project Kft ., which
PROLIGHTS presents ÆtherBox: the single-universe CRMX transceiver with IP65 rating and multi-protocol support
March 11, 2025
PROLIGHTS presents ÆtherBox: the single-universe CRMX transceiver with IP65 rating and multi-protocol support
PROLIGHTS is proud to announce the launch of ÆtherBox , a single-universe CRMX transceiver with an IP65 protection rating, designed to offer versatility and robustness in any environment, from indoor venues to outdoor stages. With a wide range of connectivity
PROLIGHTS Illuminates the 4th Global Ministerial Conference on Road Safety in Morocco
March 07, 2025
PROLIGHTS Illuminates the 4th Global Ministerial Conference on Road Safety in Morocco
The 4th Global Ministerial Conference on Road Safety , held in Morocco, was a landmark event in the global effort to improve road safety. The conference brought together ministers, experts, and stakeholders globally to discuss innovative strategies and
Baycourt Community & Arts Centre Upgrades Stage Lighting with PROLIGHTS Solutions
March 04, 2025
Baycourt Community & Arts Centre Upgrades Stage Lighting with PROLIGHTS Solutions
Baycourt Community & Arts Centre , situated in the heart of downtown Tauranga, is the Bay of Plenty's premier performing arts facility. Designed to serve both the local community and international touring productions, the venue provides cutting-edge spaces
The Valencia's Museu de les Ciències shines with PROLIGHTS
February 27, 2025
The Valencia's Museu de les Ciències shines with PROLIGHTS
In the stunning setting of the Museu de les Ciències de Valencia, an exhibition center that invites visitors to explore the evolution of life, science, and technology through interactive experiences and scientific animations, NOX AUDIOVISUALES chose
HaluPix Duo Wins rAVe [PUBS] Best of ISE 2025 Award!
February 26, 2025
HaluPix Duo Wins rAVe [PUBS] Best of ISE 2025 Award!
PROLIGHTS has been recognized at the rAVe [PUBS] Best of ISE 2025 awards , with HaluPix Duo winning the title of Best New Event Lighting Product in the Rental, Staging & Live Events category. This award highlights the product's innovation, performance,
PROLIGHTS Unveils the Smart BatPlus Neo: Redefining battery uplight, again!
February 13, 2025
PROLIGHTS Unveils the Smart BatPlus Neo: Redefining battery uplight, again!
PROLIGHTS is proud to announce the launch of the Smart BatPlusNeo , the latest innovation in battery uplighting product category . Building on the success of the legendary SmartBat Plus series, this next-generation fixture brings groundbreaking advancements
PROLIGHTS launches Jet Profile 300LT: Compact, Long-Throw Profile moving light
February 11, 2025
PROLIGHTS launches Jet Profile 300LT: Compact, Long-Throw Profile moving light
PROLIGHTS announces the release of the Jet Profile300LT , an all-new moving profile fixture that merges high-precision keylight with the power and reach of a long-throw fixture. Delivering superior aerial effects and long-distance projections, the Jet
PROLIGHTS Launches Astra Profile900: The New Flagship Moving Profile in the High-Power Class
February 07, 2025
PROLIGHTS Launches Astra Profile900: The New Flagship Moving Profile in the High-Power Class
PROLIGHTS announces the release of the Astra Profile900 , a moving head designed to address the needs of lighting professionals in live productions, studios, theatres, and events. Combining brightness, adaptability, and advanced motion technology, the
PROLIGHTS Launches Astra Hybrid260IP: All-Weather Phosphor Laser Hybrid Luminaire
February 05, 2025
PROLIGHTS Launches Astra Hybrid260IP: All-Weather Phosphor Laser Hybrid Luminaire
PROLIGHTS announces the release of the Astra Hybrid260IP , a next-generation hybrid moving head luminaire that delivers unmatched performance and versatility in both indoor and outdoor events. Equipped with a 260W White Phosphor Laser source, the Astra
PROLIGHTS Introduces HaluPix DUO: Blending Pixel Surfaces with Dynamic Beams
February 03, 2025
PROLIGHTS Introduces HaluPix DUO: Blending Pixel Surfaces with Dynamic Beams
PROLIGHTS is proud to announce the launch of the HaluPix Duo , a cutting-edge dual-layer LED matrix panel that introduces a new level of innovation in lighting design for stages and television. This 50x50 cm panel seamlessly combines powerful, long-throw
Subscribe to our Newsletter
Loading...
