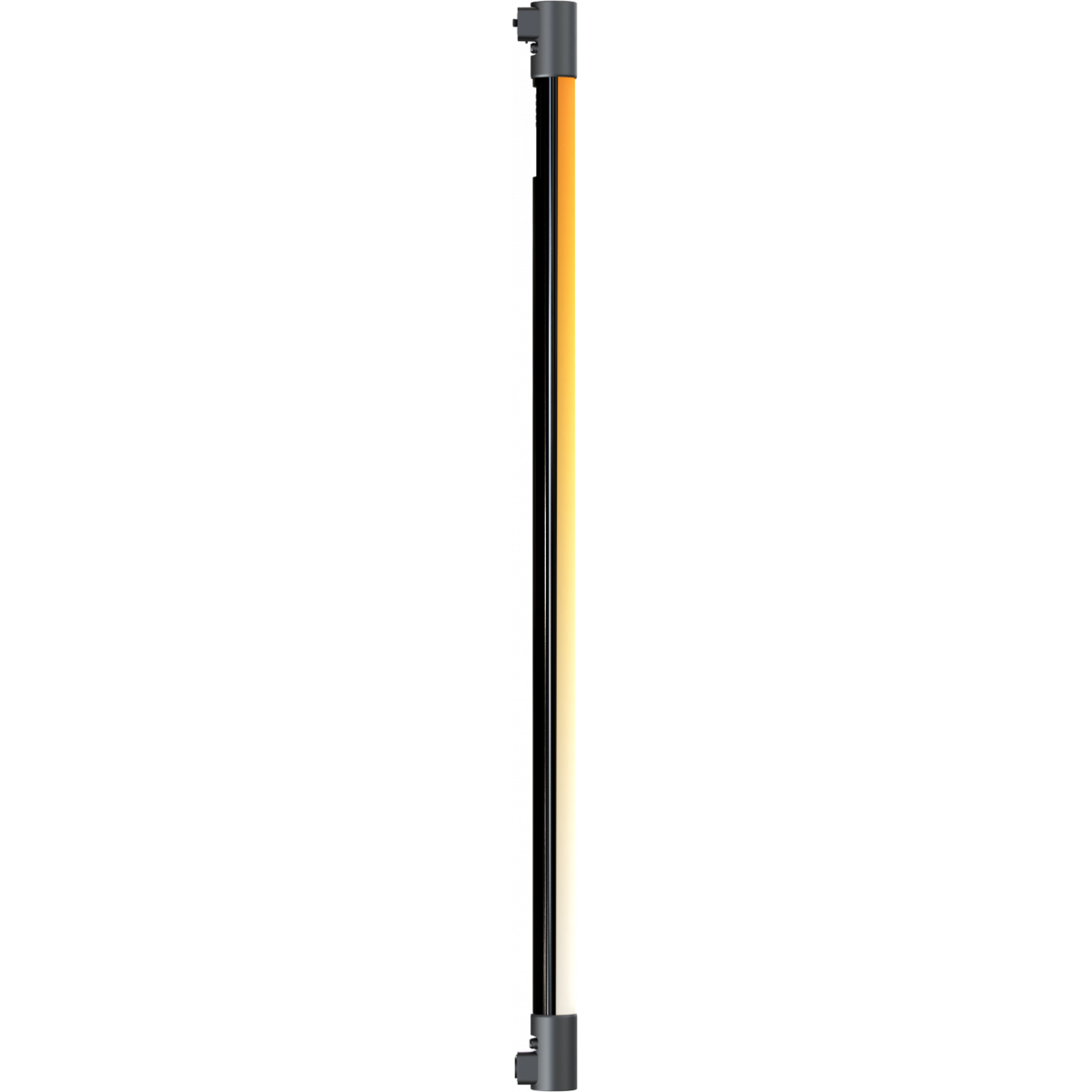

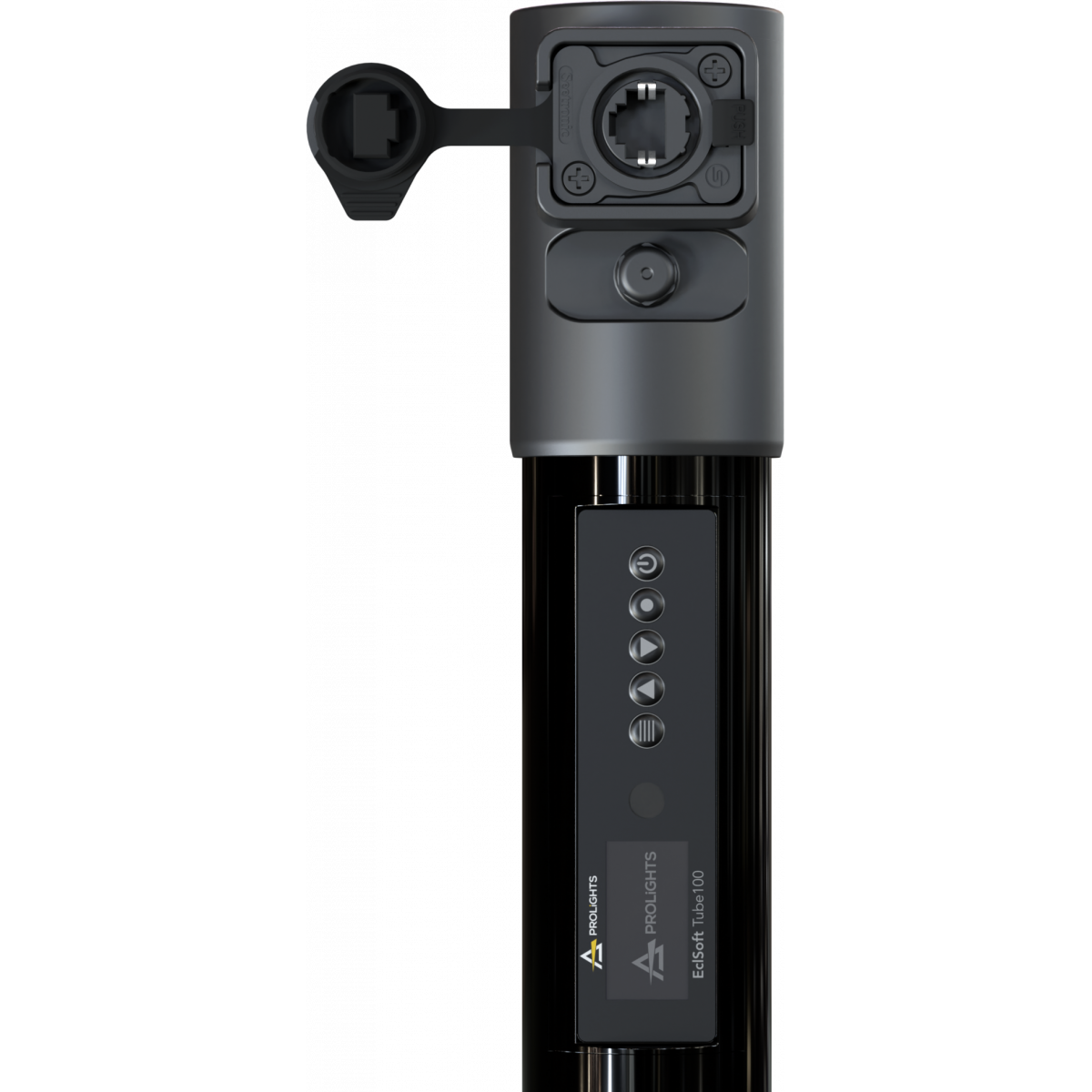

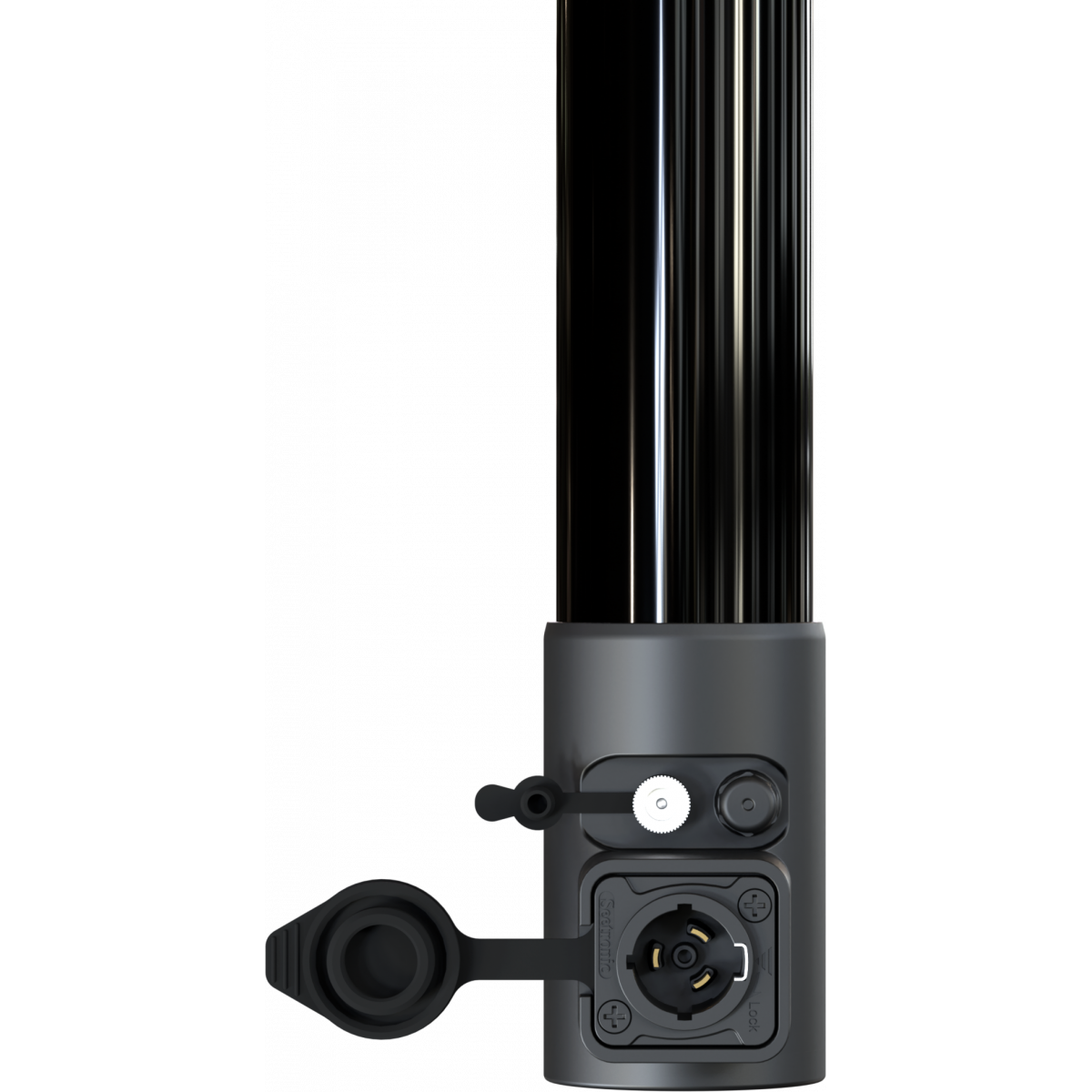

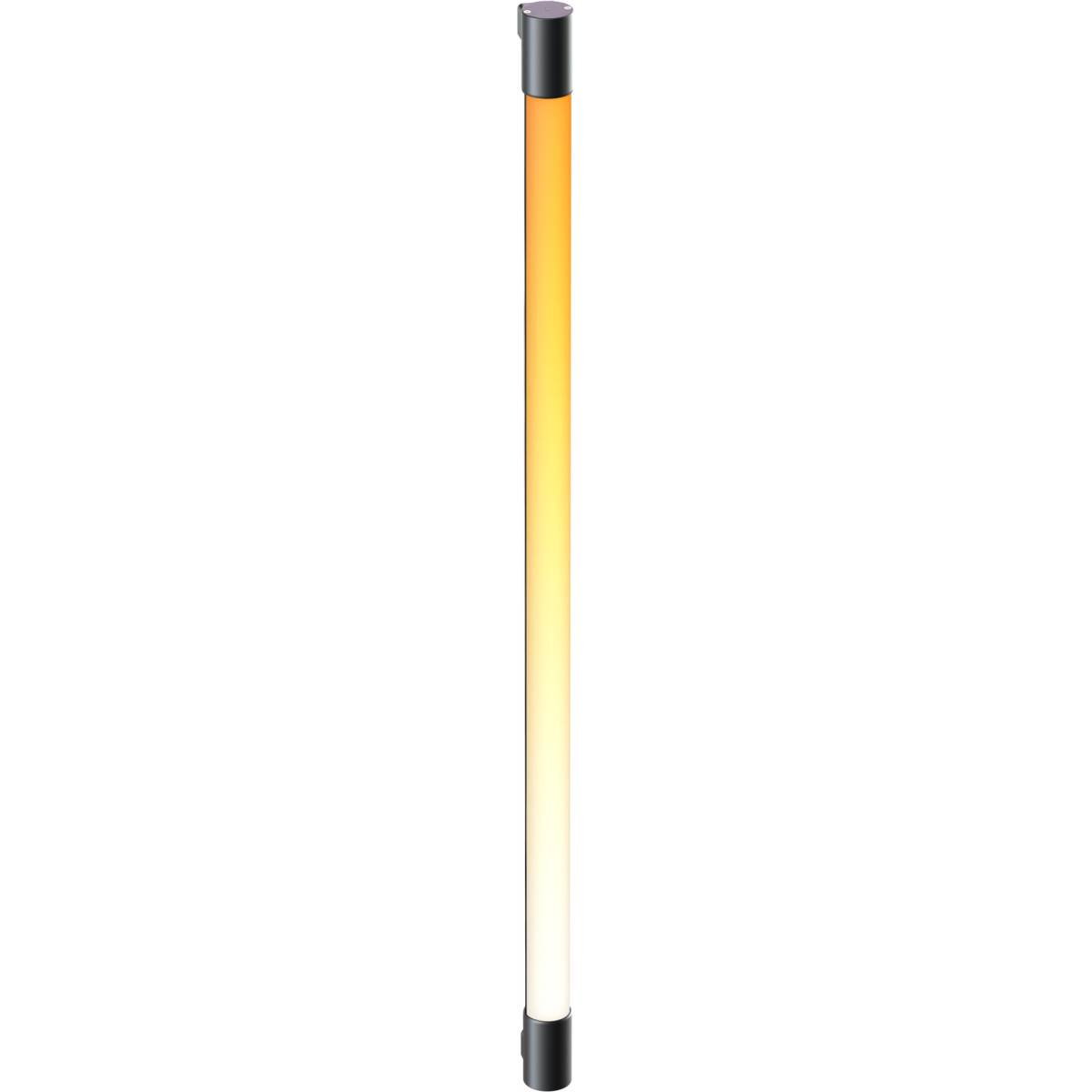

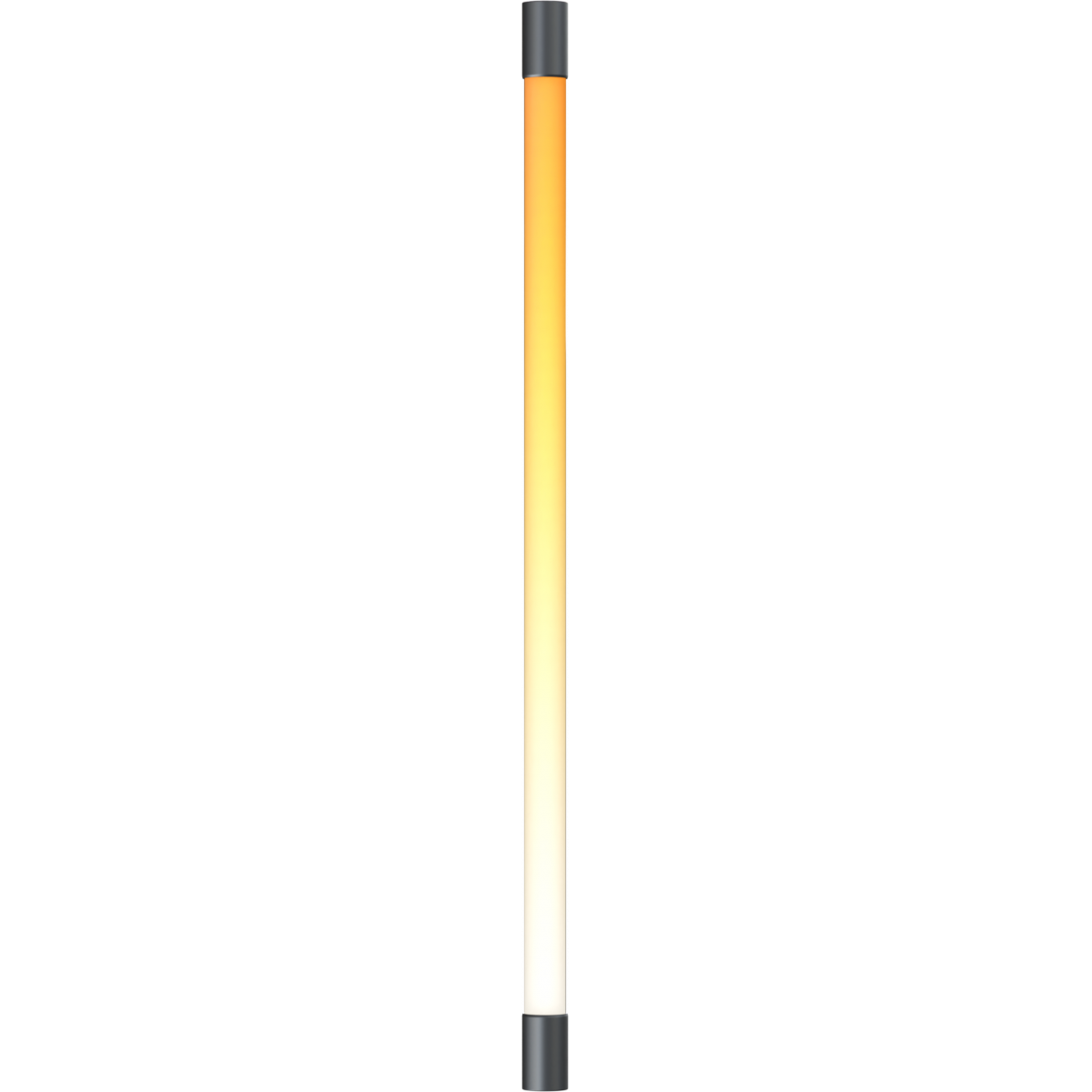

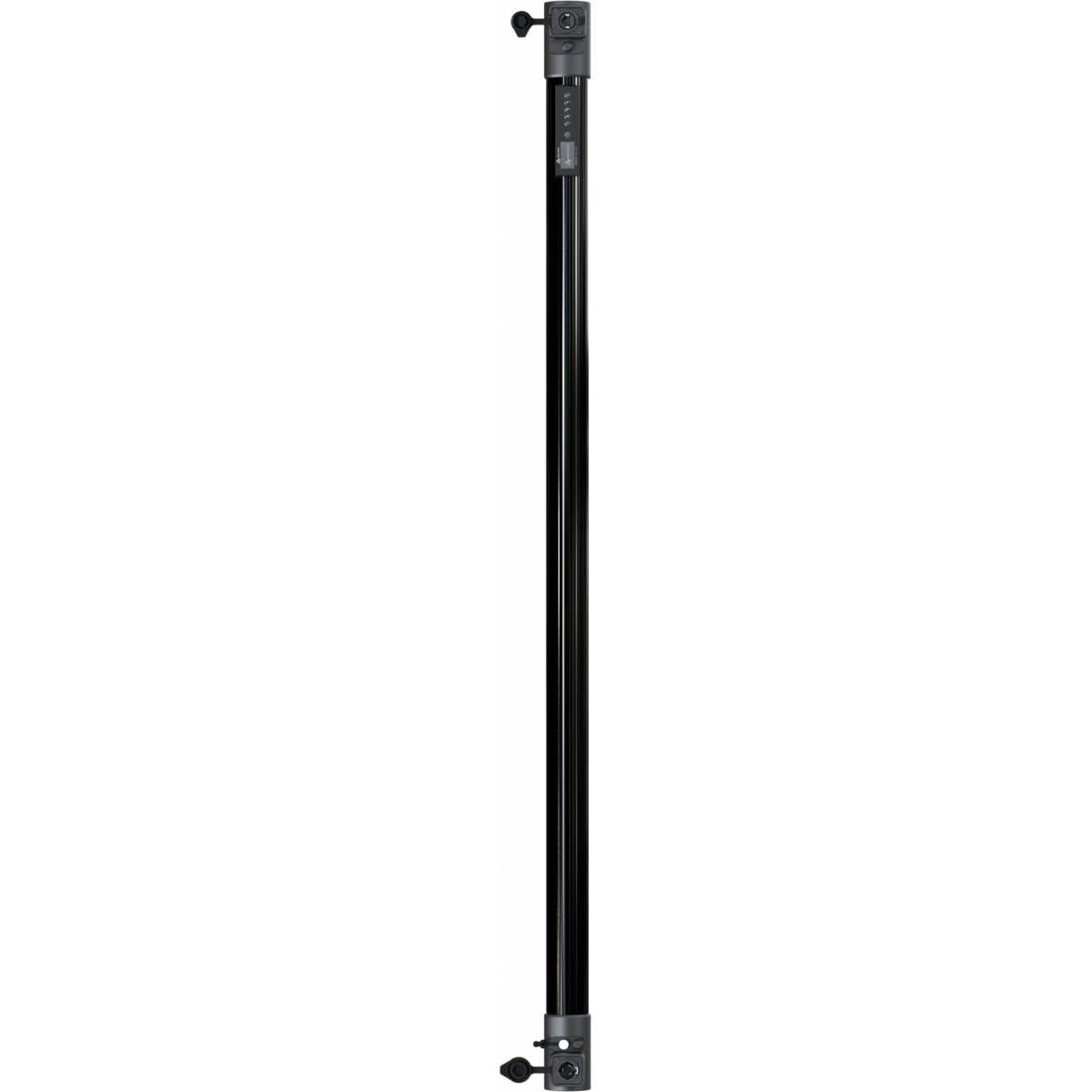

EclSoft Tube100 new

ORDER CODE: ECLSOFTTUBE100

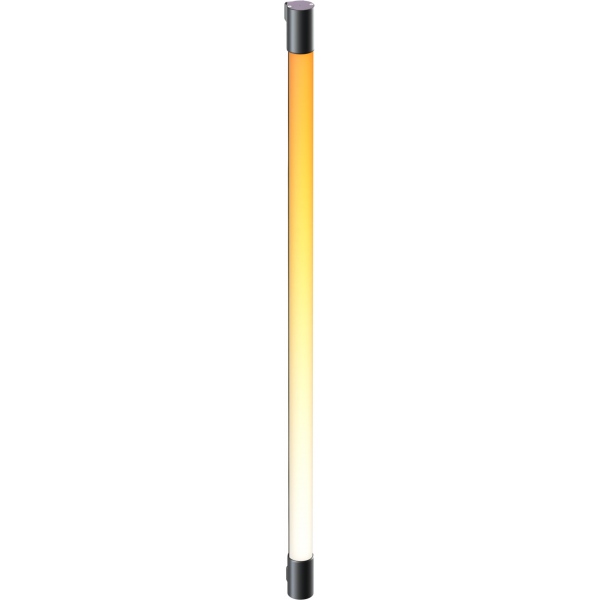

100 cm, battery-powered soft tube for Film & TV, IP65, with an RGB + Warm White LED source, wireless or wired

The EclSoft Tube100 is a multipurpose, IP65 wireless linear pixel tube designed for Film & TV, indoor and outdoor environments. The EclSoft Tube100 has a 48W RGB + Warm White LED source with 16 independently-controlled sections. Similar the other fixtures in the soft light range, it has an RGBW mode, RGB, CMY, HSI, XY, RAW Direct, CCT Linear and CCT Presets with +/- green shift, source emulation and industry-standard colour gels. This fixture has high-quality tunable white with ultra-high CRI, as well as on-board cinema effects and pixel effects. This fixture is also “Spektra™ Calibrated”, sharing the same colour calibration standard as some other luminaires. The EclSoft Tube100 can be used wirelessly with its on-board battery and Wireless DMX control (CRMX + W-DMX). There is also a wired connection for mains power and an ethernet port for Art-Net or s/ACN.

Main features:

  • Hybrid fixture, Wireless DMX (CRMX+W-DMX) / ethernet control, battery/mains power
  • Pixel control, on-board cinema pixel engine, RGB + Warm White LED source with high CRI (up to 93) and TLCI
  • IP65 for outdoor applications

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 48W RGB + Warm White
  • Luminous flux: 2'386lm @full
  • Lux: 71lx @3 m
  • Lux: 161lx @2 m
  • CRI: 93
  • R9: 92
  • TLCI: 91
  • TM30 Rf: 91
  • TM30 Rg: 105
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 128°
  • Field angle: 199°
  • Lens type: frosted acrylic tube
COLOUR SYSTEM
  • Colour control: XY, CCT, RGBW, Gel, HSI, Source Emulation, colour macros, CTO on colours
  • Colour mixing: RGB + Warm White
  • CCT: CCT control, + / - green correction, tungsten emulation
  • White presets: 2.800 K - 10.000K with 28 K resolution
  • Colour wheel: virtual colour wheel with macros
  • Macros: several pre-built pixel macros with adjustable speed
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer, colours
  • Pixel patterns: pre-programmed pixel macros and cinema lighting effects patterns
  • FX generator: 16 sections with adjustable foreground/background colour, index, speed, direction
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
  • Special features: linear crossfade channel from any white to any colour; virtual CTO on colours
BODY
  • Body: sturdy policarbonate and die casting aluminium
  • Body colour: black on the back and white wash on the front
CONTROL
  • Protocols: Art-Net, Kling-Net, sACN, CRMX+W-DMX
  • DMX channels: main personality 1 / 2 / 13 / 14 / 18 / 19 / 20 / 23 / 33 / 43channel
  • Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOX1+EST100UPBOXI) not included
  • IR: infrared sensor controlled by remote (included in the pack, not included in single unit)
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: 0° ~ +45°
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 3.000 / 6.000 /12.000 / 24.000 Hz
ELECTRICAL
  • Max power consumption: 55 W
  • Mains power supply: 100-240V - 50/60Hz
  • Low Voltage DC mains: 24V
  • Power factor: >0,96
BATTERY
  • Battery: 24V lithium
  • Estimated battery life: Selectable 3h / 6h / 8h / 12h / 16h / 18h
  • Re-charge connection: DC with jack and AC with standard powercon connector
  • Re-charge time: 5h/max
  • Battery status: shown on display
  • Other: Battery recharge in AC and DC, operation in main power with possibility to disable battery recharge throught software and charging operation in flightcase through external charger
PHYSICAL
  • IP rating: IP65 for temporary outdoor application, not for fixed installations
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: M5 threaded insert for eye bolt, floor stand and clamp for wall installation
  • Data connection: Seetronic RJ45 IP65 IN
  • Power connection: DC connector for battery recharge and Seetronic powerCON TRUE IP65 IN
  • Dimensions (WxHxD): 1.163x50x50mm / 0.05''x1.97''x1.97''
  • Weight: 2,4kg / 5.29lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Accessories & Related Products

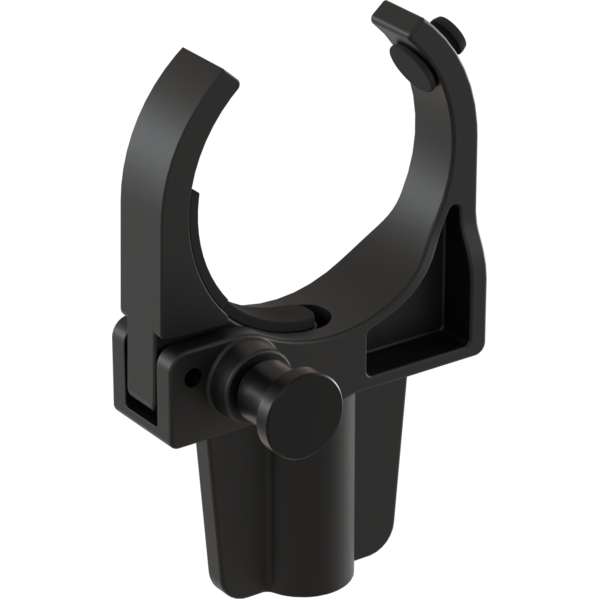

EST100OSPLUS
EST100OSPLUS
(optional)

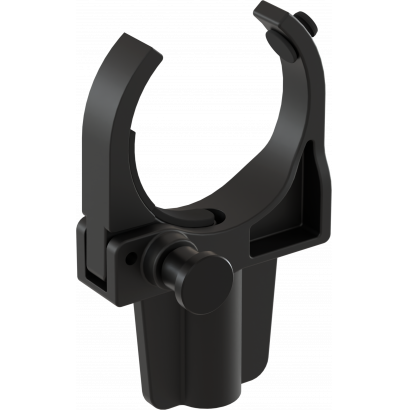

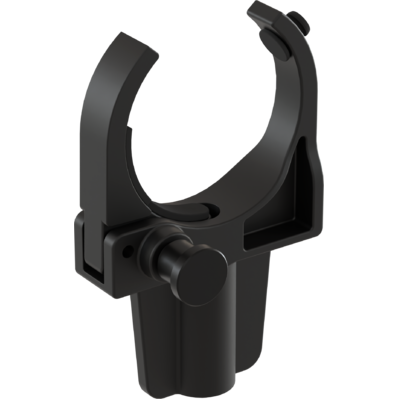

Clamp for ECLSOFTTUBE100
EST100OS
EST100OS
(optional)
Clamp for ECLSOFTTUBE100
ENPTWCMAG

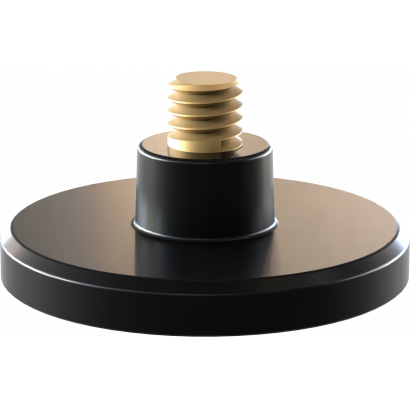

ENPTWCMAG
(optional)

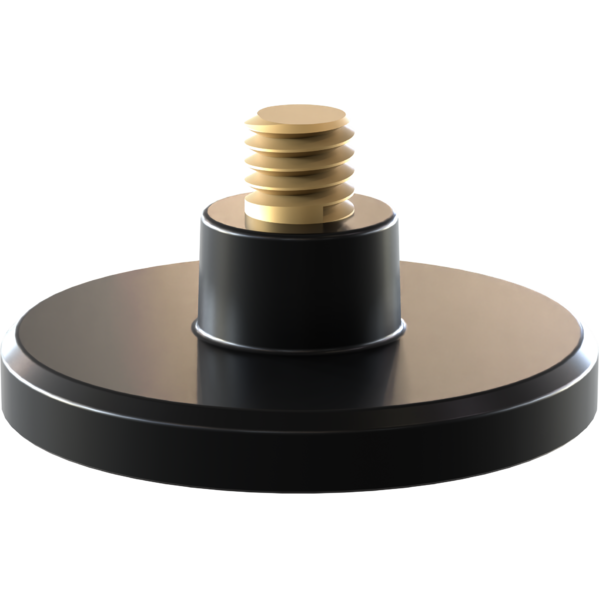

Fixing system with magnet for ECLNANOPANELTWC and ECLSOFTTUBE100

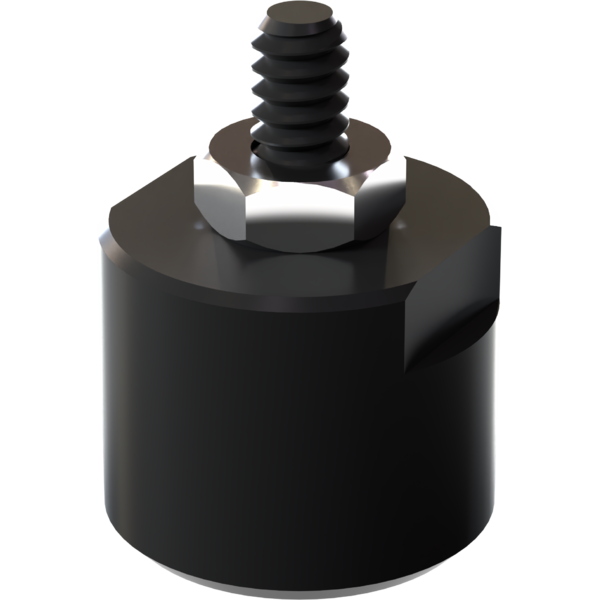

EST100MAGADP
EST100MAGADP
(optional)

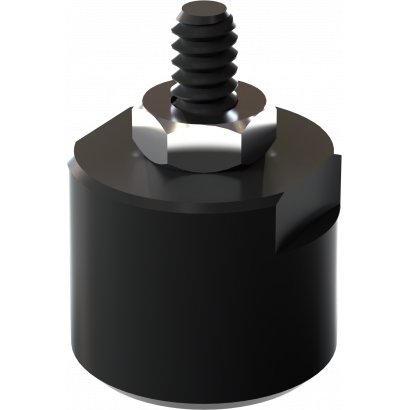

M10 to M5 adapter to use ENPTWCMAG with ECLNANOPANELTWC and ECLSOFTTUBE100

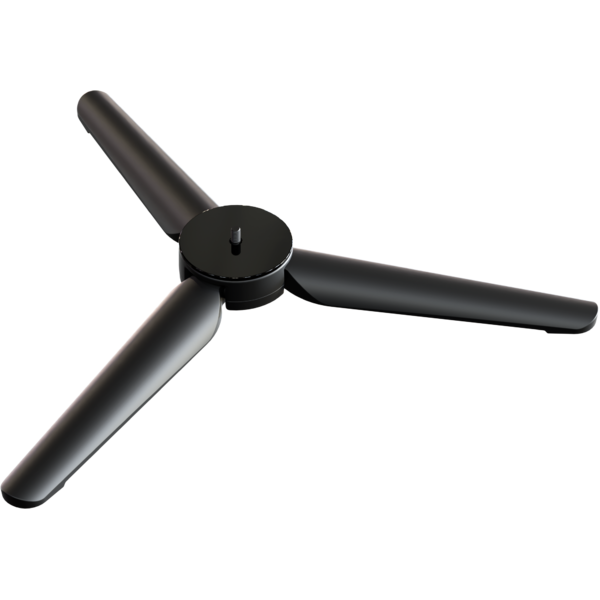

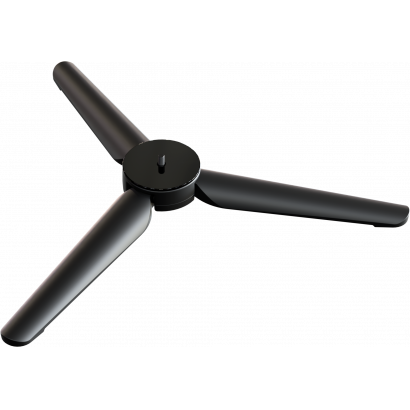

EST100FY
EST100FY
(optional)
Tripod for ECLNANOPANELTWC and ECLSOFTTUBE100

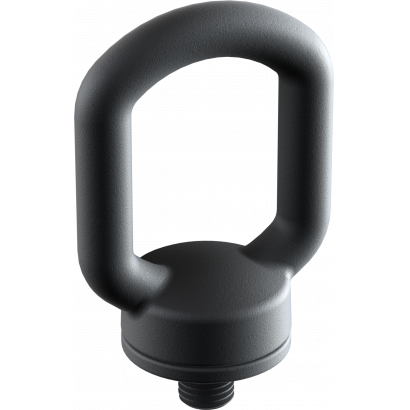

EST100EB
EST100EB
(optional)

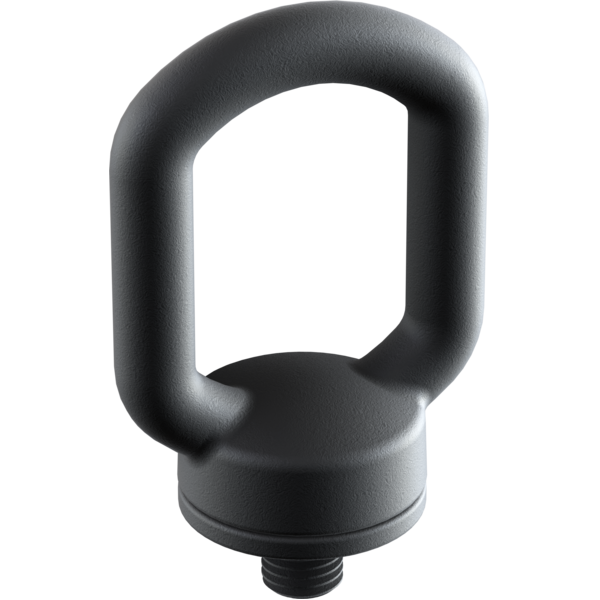

Eyebolt for ECLSOFTTUBE100

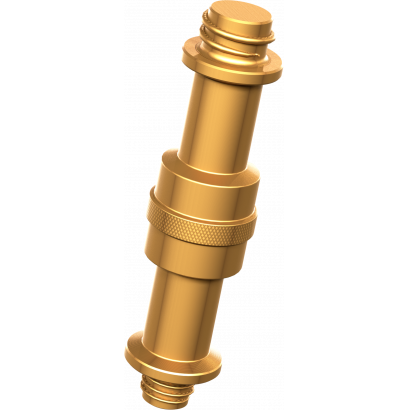

EST100BP
EST100BP
(optional)

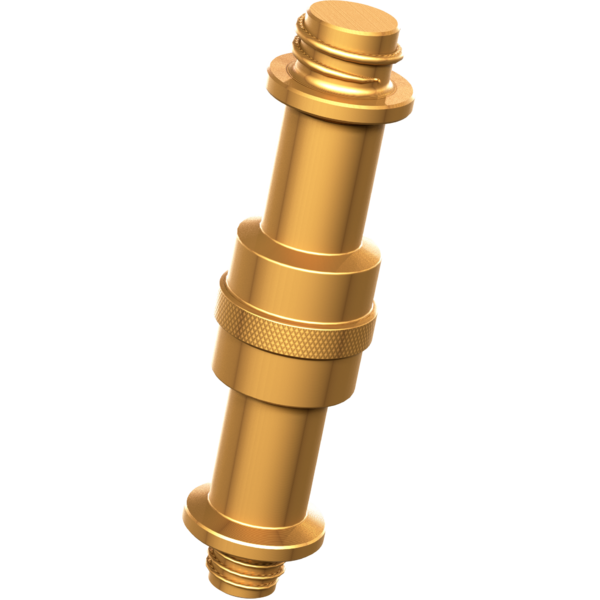

Baby Pin for ECLSOFTTUBE100

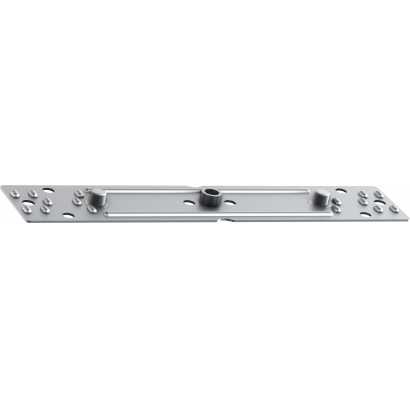

EST100WP
EST100WP
(optional)

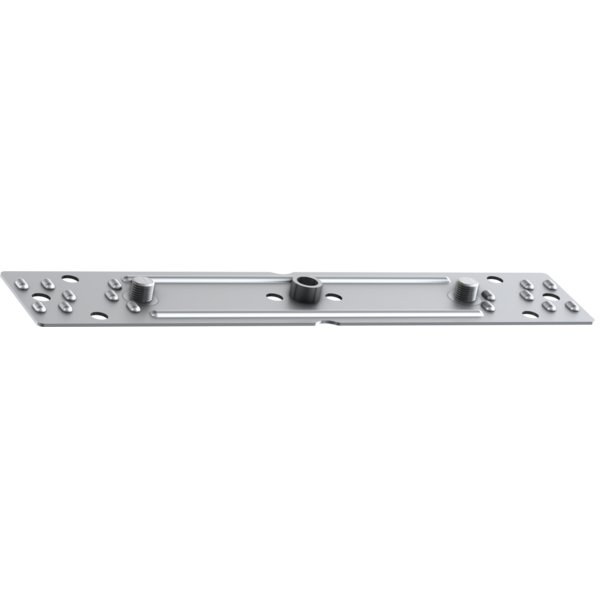

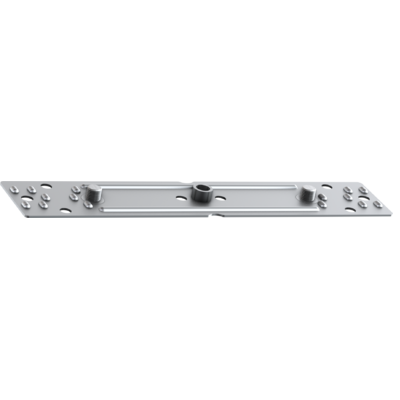

Wingplate for ECLSOFTTUBE100

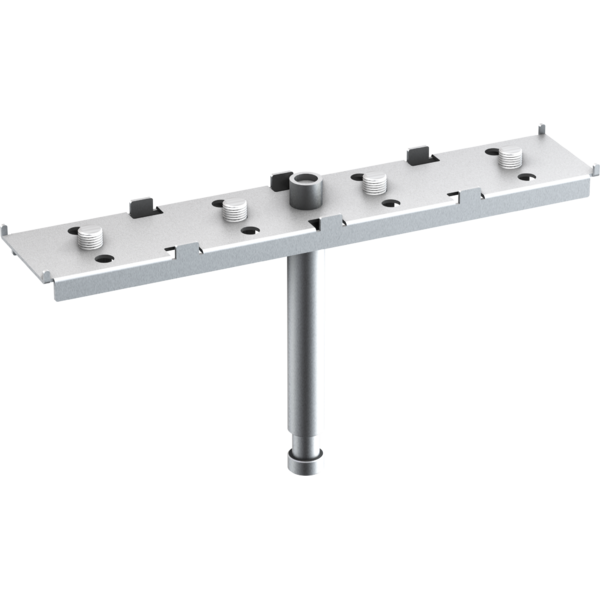

EST100CP
EST100CP
(optional)

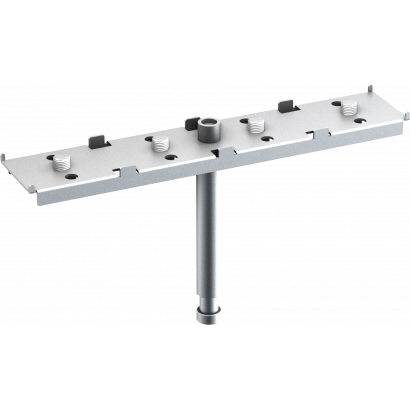

Crossplate for ECLSOFTTUBE100

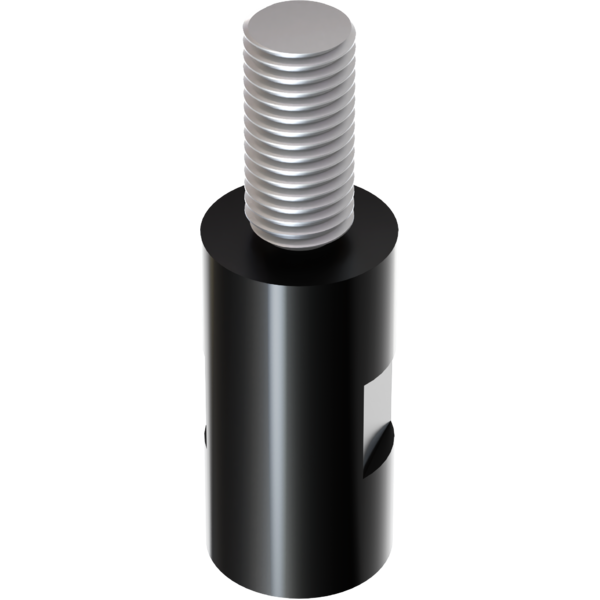

EST100SPCR
EST100SPCR
(optional)

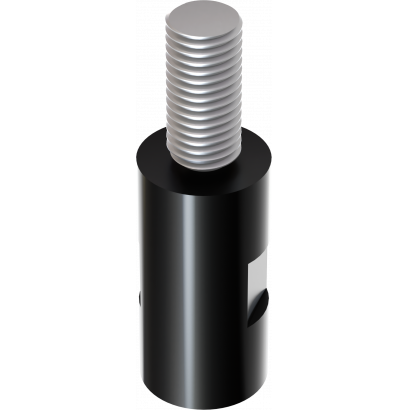

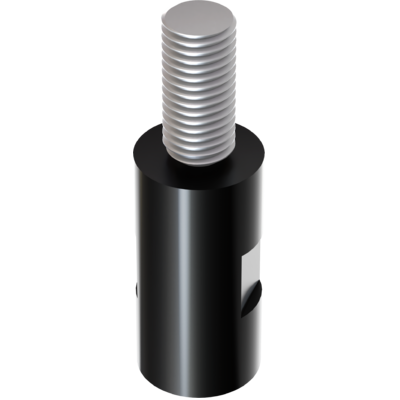

Spacer for ECLSOFTTUBE100

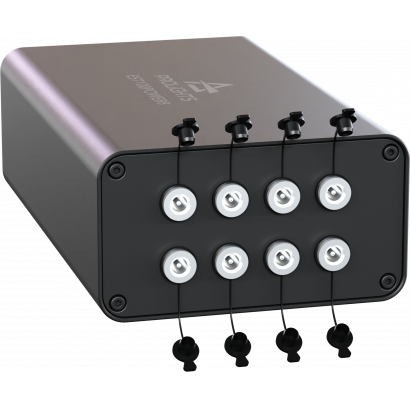

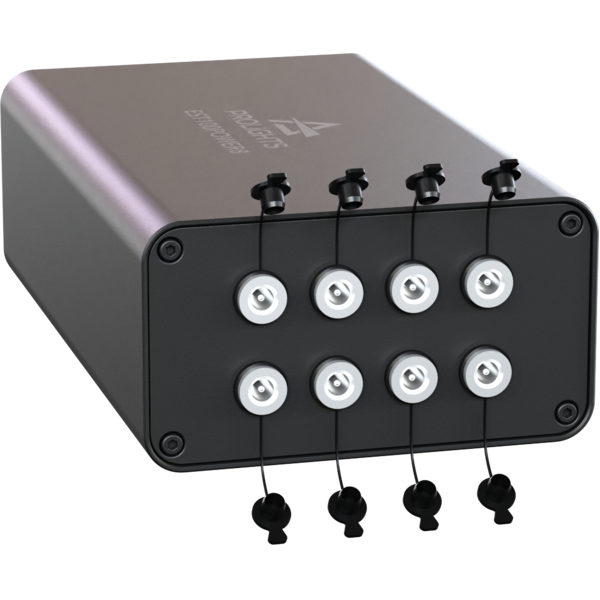

EST100POWER8
EST100POWER8
(optional)

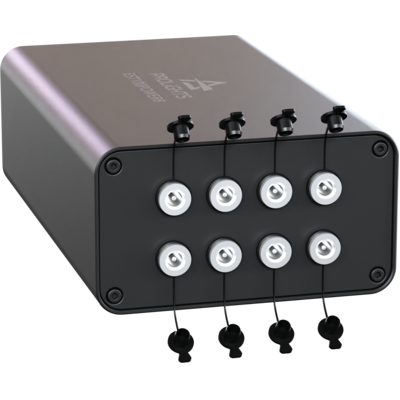

8-way charger for ECLSOFTTUBE100
EST100POWER
EST100POWER
(optional)

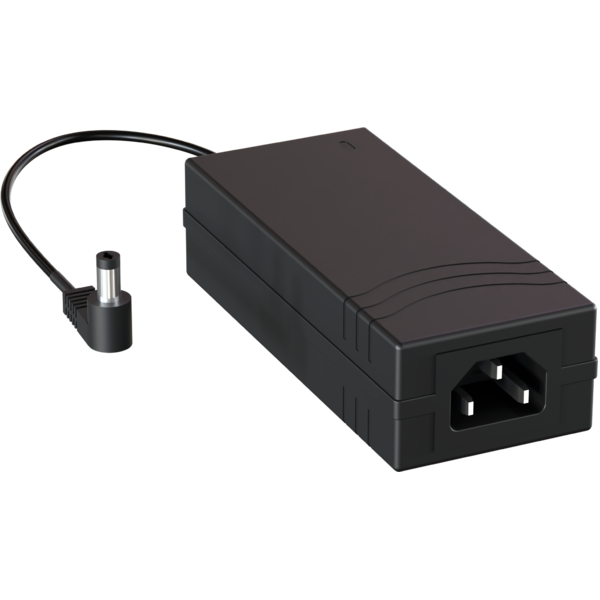

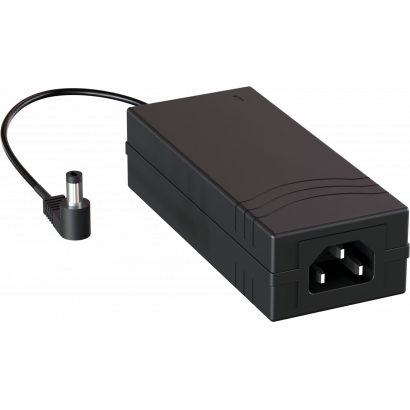

Single charger for ECLSOFTTUBE100
PRL-IRC
PRL-IRC
(optional)

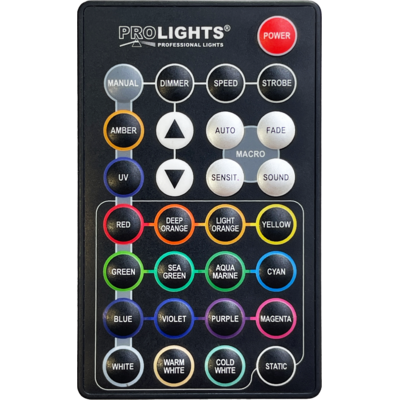

RGBWA IR controller, 29 buttons, manual/static colours, auto programs, fade

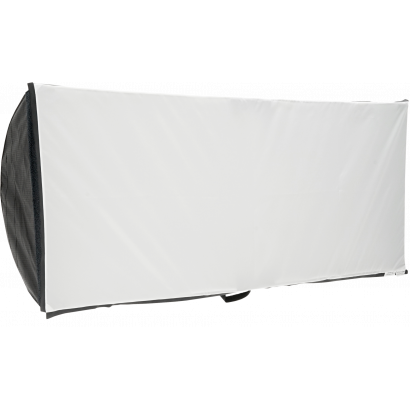

EST100SB
EST100SB
(optional)

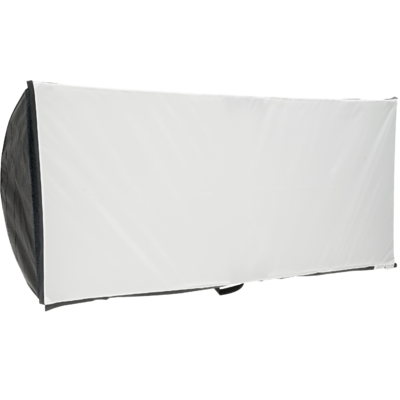

SnapBag per fino a 4 pcs ECLSOFTTUBE100 by DoP choice
EST100SG40
EST100SG40
(optional)

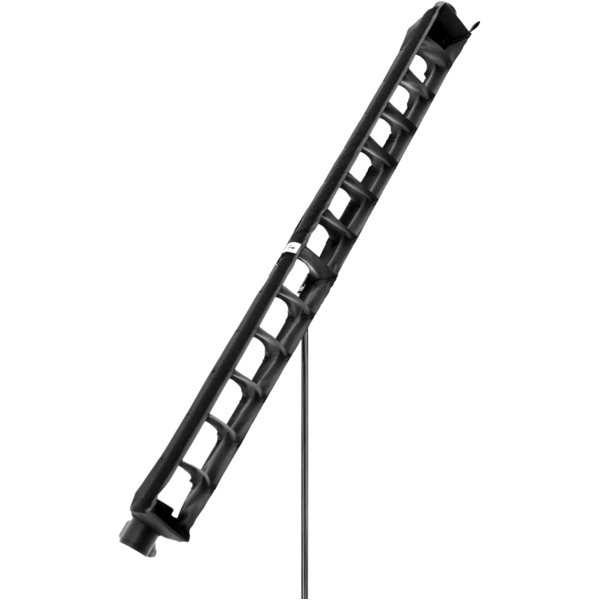

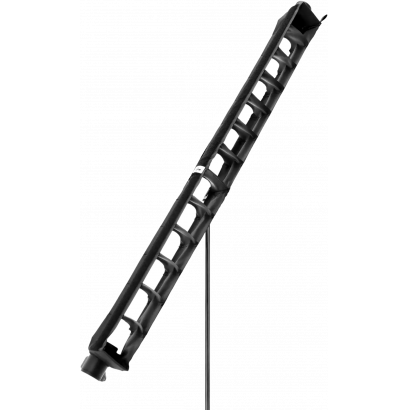

40° SnapGrid, for ECLSOFTTUBE100 by DoP choice
C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
LRLUNA
LRLUNA
(optional)
Single Universe DMX transceiver with Bluetooth

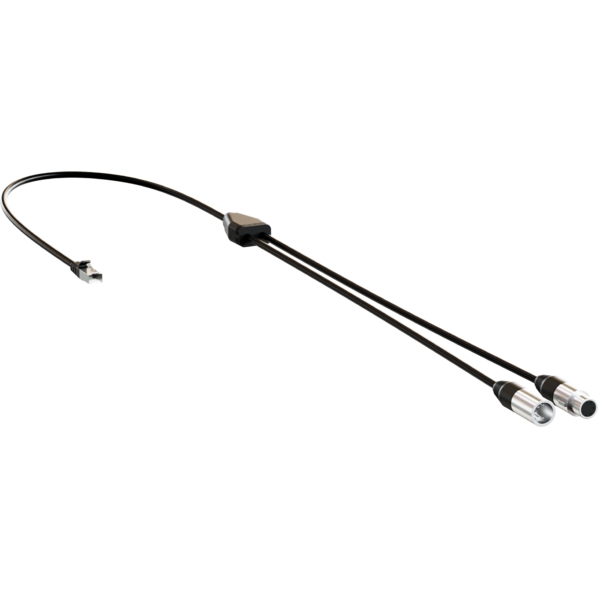

EST100UPBOXI
EST100UPBOXI
(optional)

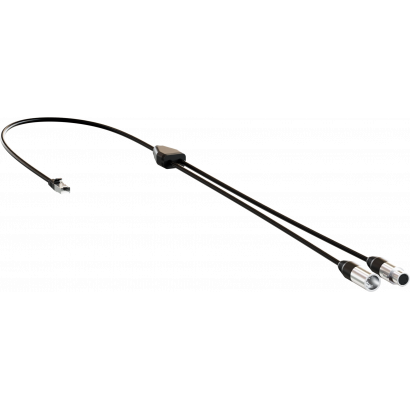

Interface for UPBOX1 and ECLSOFTTUBE100 for firmware upgrade and DMX control

IPTESTBOX
IPTESTBOX
(optional)
Portable vacuum and pressure tester for ProLights IP fixtures
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheet Eclsofttube100_A4_DATASHEET_(EN).pdf 462KB
Tender Specification Eclsofttube100_TENDER_SPECIFICATION.pdf 3MB

User manual

File name File size Download
User manual GENERAL_BATTERY_SAFETY_INFO.pdf 3MB
User manual Eclsofttube100_USER_MANUAL_EN.pdf 4MB
General safety info GENERAL_SAFETY_INFORMATION.pdf 10MB
User manual Eclsofttube100_Wireless_Protocol_Compatibilit_EN.pdf 4MB

DMX chart & personalities

File name File size Download
DMX chart Eclsofttube100_DMX_CHARTS.pdf 539KB
VectorWorks VECTORWORKS_SYMBOLS.vwx 212KB
VectorWorks +EST100FY_VECTORWORKS_SYMBOLS.vwx 658KB
VectorWorks PROLIGHTS_VECTORWORKS_v18_LIBRARY.vwx 444MB
VectorWorks PROLIGHTS_VECTORWORKS_v23_LIBRARY.vwx 304MB
ECLSOFTTUBE100 Firmware rev. 1.1.01.0
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
ECLSOFTTUBE100 Firmware rev. 1.1.00.0
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

File name File size Download
IES prolights_eclsofttube100_ldt_ies files.zip 52KB
PDF Photometrics Eclsofttube100_PHOTOMETRICS_REPORT.pdf 3MB
Dialux Download DIALux product catalogue -

CAD symbols & drawings

File name File size Download
3D sketchup ECLSOFTTUBE100_3D_SKETCHUP.zip 3MB
3D ECLSOFTTUBE100_3D.zip 3MB
2D Eclsofttube100_2D.dwg 12MB
2D cad symbols Eclsofttube100_2DSYMBOLS.dwg 48KB
Technical drawing Eclsofttube100_TECHNICAL_DRAWING.pdf 570KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware

Only the latest firmware versions for each hardware revision are available for download.
To download previous firmware versions, log in to the customer care section.
Update Tool: UPBOX1UP5 {CodiceUpBox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1.01.0 STABLE 29/05/2023 New functions:
  • Power Mode selector replaces FIXTURE TYPE.
    Power Mode selector allows you to select between 3 options:
    • BATTERY
      • If fixture is being used (Standalone or DMX/WDMX Active) and AC is plugged in, fixture will draw power from the mains and status of light output won't be affected (only max power will be higher than what available on battery).
      • If fixture is being used (Standalone or DMX/WDMX Active) and AC is plugged out, fixture will draw power from the battery and status of light output won't be affected (only max power will be reduced) .
      • Pressing Power button for 3 seconds without mains present --> fixture will turn on and follow its settings (Standalone or DMX/WDMX)
      • Pressing Power button for 3 seconds while using without mains present --> fixture will turn off.
      • Pressing Power button for 3 seconds while charging --> fixture will turn on and follow its settings (Standalone or DMX/WDMX), or would keep charging if nothing is setted/no signal received
      • Pressing Power button for 3 seconds while using with mains present--> fixture will turn off and start charging.
      • Plugging Mains power for 3 seconds while fixture is off --> fixture will start charghing.
      • Plugging Mains power OFF for 3 seconds while fixture is charghing --> fixture will stop charging and turn off.
    • AC
      • Fixture operates as a standard AC fixture. When AC is plugged in, fixture will turn on and operate normally.
      • If Battery recharge is enabled, battery will be recharged as soon as dimmer@0 dmx value or pressing the power button for 3 seconds.
      • If Battery recharge is disabled, battery won't be recharged.
      • Fixture will turn off as soon as AC is plugged out.
    • AC EMERGENCY:
      • Fixture operates as a standard AC fixture. When AC is plugged in, fixture will turn on and operate normally.
      • If Battery recharge is enabled, battery will be recharged as soon as dimmer@0 dmx value or pressing the power button.
      • If Battery recharge is disabled, battery won't be recharged.
      • Fixture will turn on at full power with 6000K White as soon as AC is missing. To turn off the fixture user can use control channel dedicated parameter or power button on the fixture.
  • Spektra Calibration: new modes available
    • ON: CCT and colors are fully calibrated, working in the common color space definition set by Spektra. This means that output of multiple fixtures will match with no visible differences. Color Saturation is slightly reduced.
    • PURE COLORS: CCT is calibrated, giving perfect white matching across multiple fixtures, but primary and secondary colors are calibrated to their native color space which allows maximum color saturation. The closer you move towards white, the more closely multiple fixtures will match each other's output. The further you move away from white and the closer you move towards saturated color, the less closely multiple fixtures will match each other's output.
    • OFF: CCT doesn't guarantee High CRI Values and color output of one fixture may or may not closely match that of other fixtures.
  • Added Dimmer Speed Off.
Improvements:
  • Power On/Off button requires 3 seconds to take effect.
  • Jump prediction added to crossfade channel.
  • Improve processing speed/loss ETH signal data.
  • Improved CMY colors.
  • Improved sync on Stand Alone Effects mode.
  • Improved Stand Alone Tour Effects, Color Macro, XY, Source Emulation.
  • Improved Tungsten Emulation.
  • Improved wireless indicator symbology.
  • Adjusted Control Channel to fit new functions as follows.
    • Spektra Calibration On (Control channel values 26 - 27 )
    • Spektra Calibration Pure Colors  (Control channel values 28 - 29)
    • Spektra Calibration Off (Control channel values 60-61)
    • Dimmer Speed Off (Control channel values 62-63)
    • Power Mode Battery (Control channel values 98-99)
    • Power Mode AC (Control channel values 100-101)
    • Power Mode AC Emergency (Control channel values 102-103)
    • Shutdown Fixture (Control channel values 104-105)
    • Battery Recharge Enable (Control channel values 110-111)
    • Battery Recharge Disable (Control channel values 112-113)
Fixed bugs:
  • Crossfade from Color to Pixel Engine not working correctly while using ArtNet in Unicast mode.
  • Fixed bugs related to switching between WDMX/ETH protocols.
  • Data Signal-DMX Fault transition is not instantaneous but takes place in fade.
  • Process Effect in Cine FX does not work properly.
  • Color Macro's "Bright Red" gel is missing.
  • Control Mode Selector does not work correctly.
  • Wireless Quality is not updated in real time.
Rev. 1.0
Rev. 1.1
