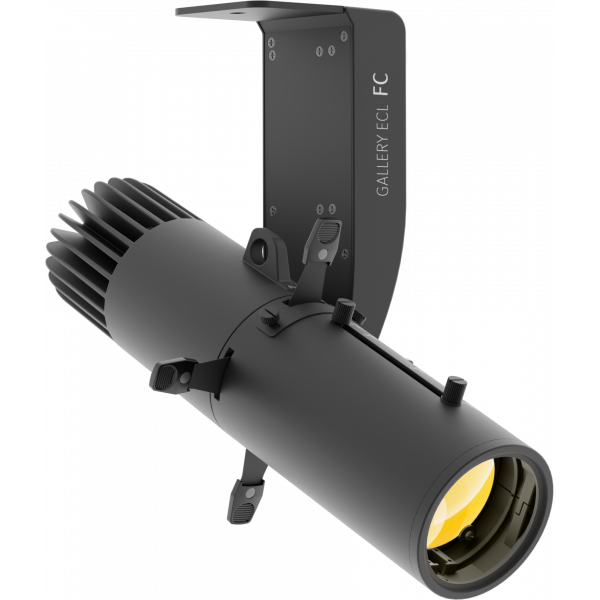

EclGalleryProfile FC

60W RGBW/FC zoomable LED ellipsoidals with framing shutter

EclGalleryProfile FC is a compact LED ellipsoidal luminaire engineered with a single 60W high power RGBW/FC LED by Osram for a limitless colour and white reporduction. The luminaire is designed with a stunning aesthetics and it offers a total control of the light, performing a linear zoom system from 20° to 37°, framing shutters for an accurate focusing of the light, and gobo mounting option for image projections. EclGalleryProfile FC is fitted with electronic and PSU on board, allowing to be implemented on lighting tracks simply applying a track adapter and the fixture can be easily controlled by wireless. EclGalleryProfile FC is truly flexible for any commercials, venues, artgalleries and churches.

Main features:

  • 60W RGBW/FC LED source
  • 20° to 37° on-board zoom with framing shutter and gobo holder
  • Wireless DMX control and optional track adapters for easy implementation
See variants

PHOTO GALLERY

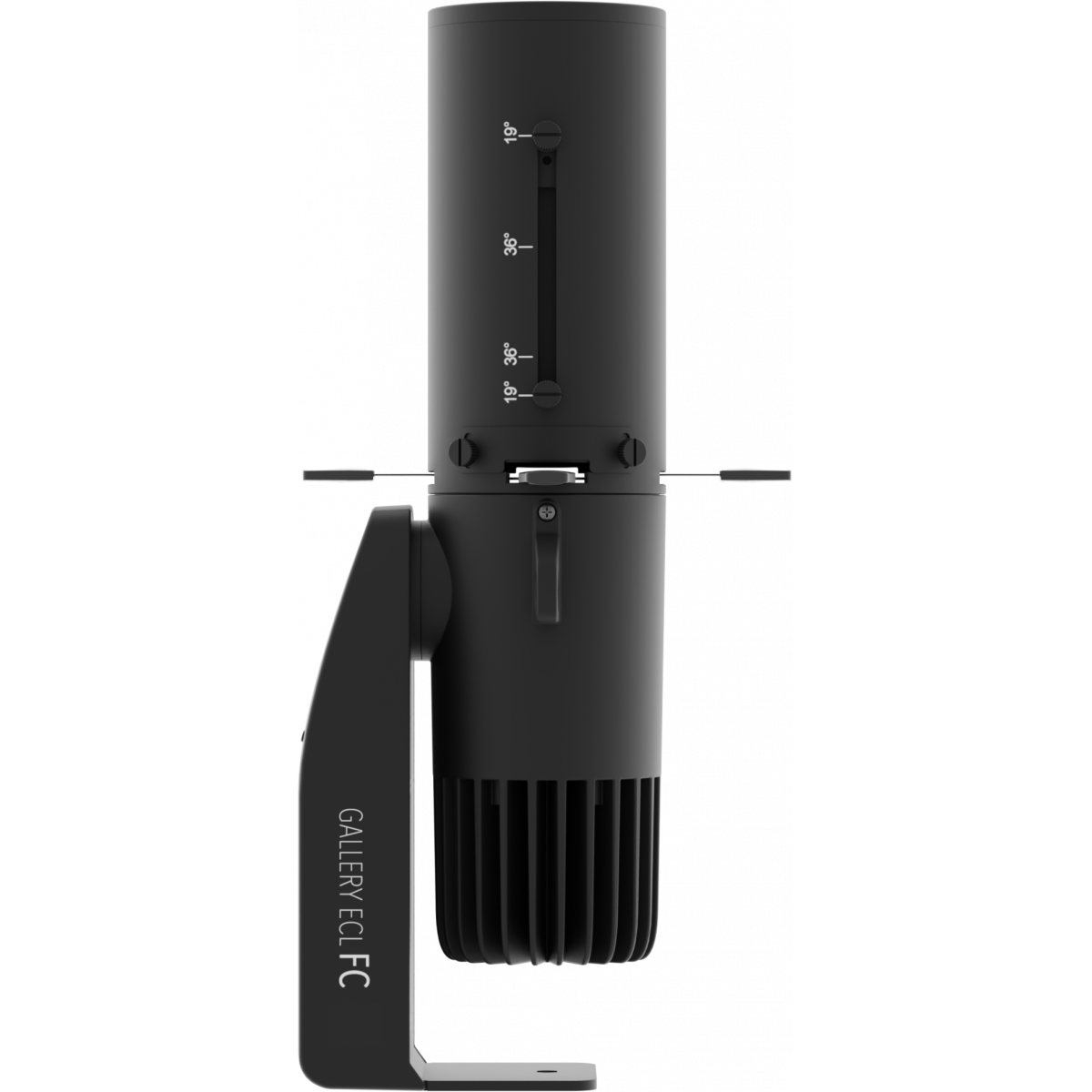

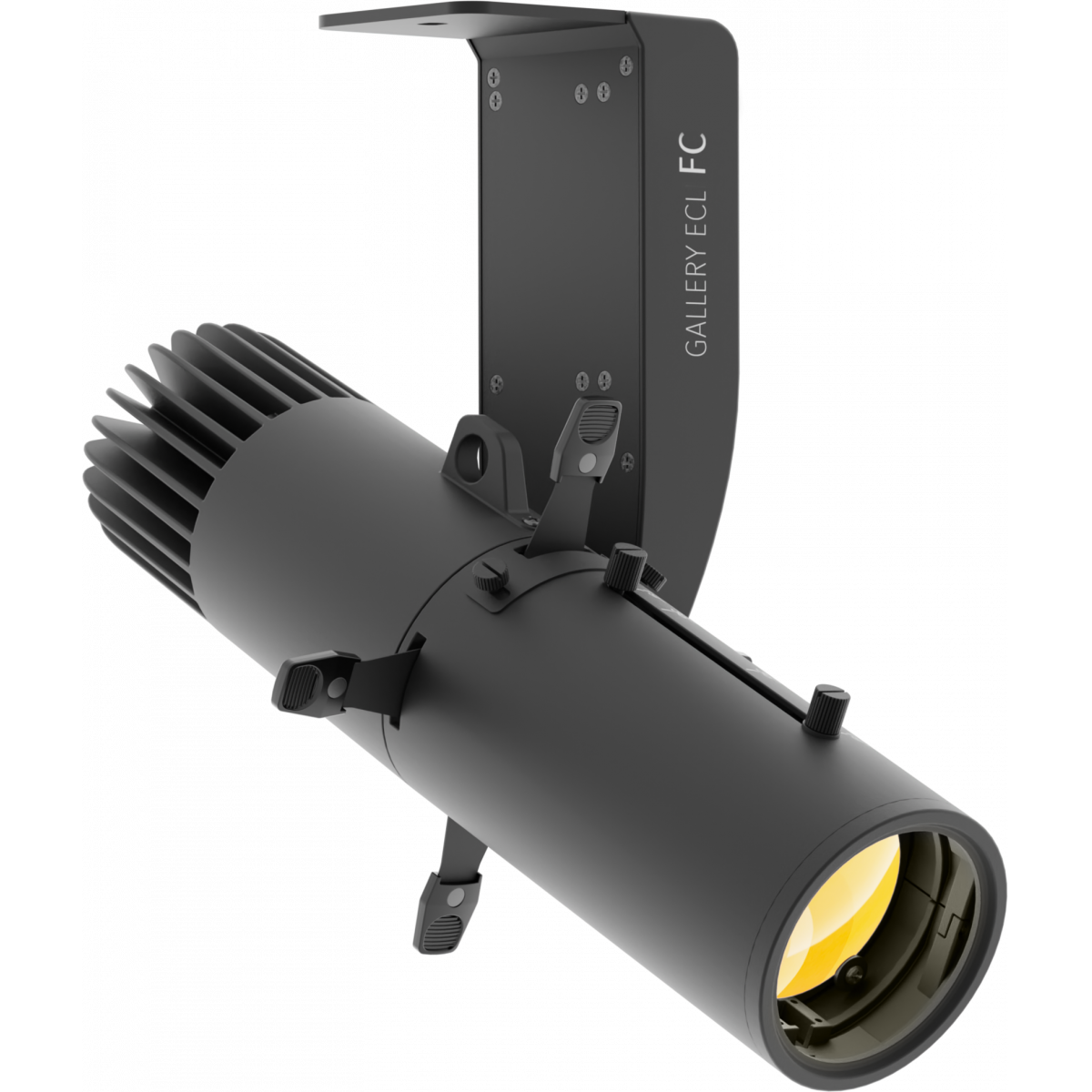

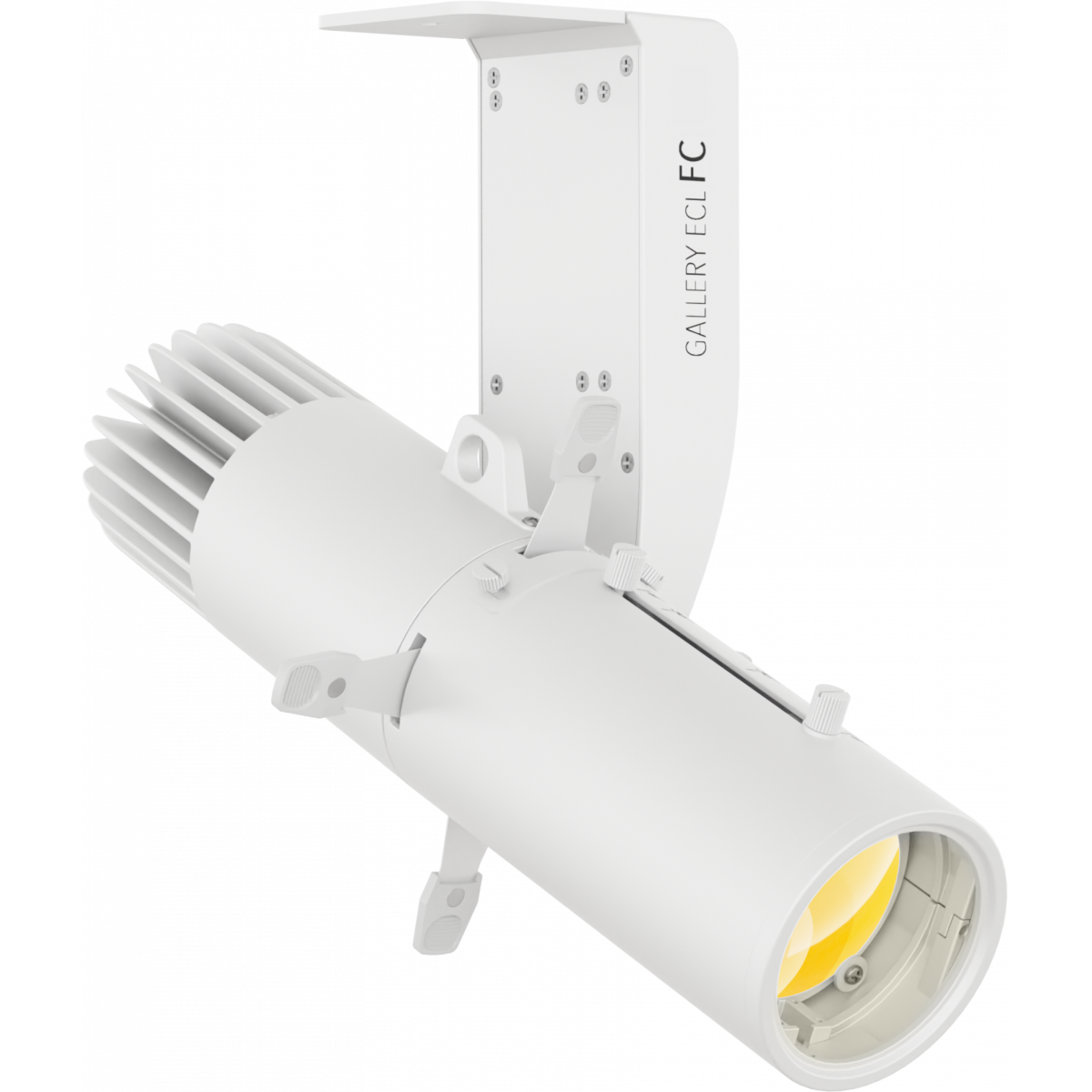

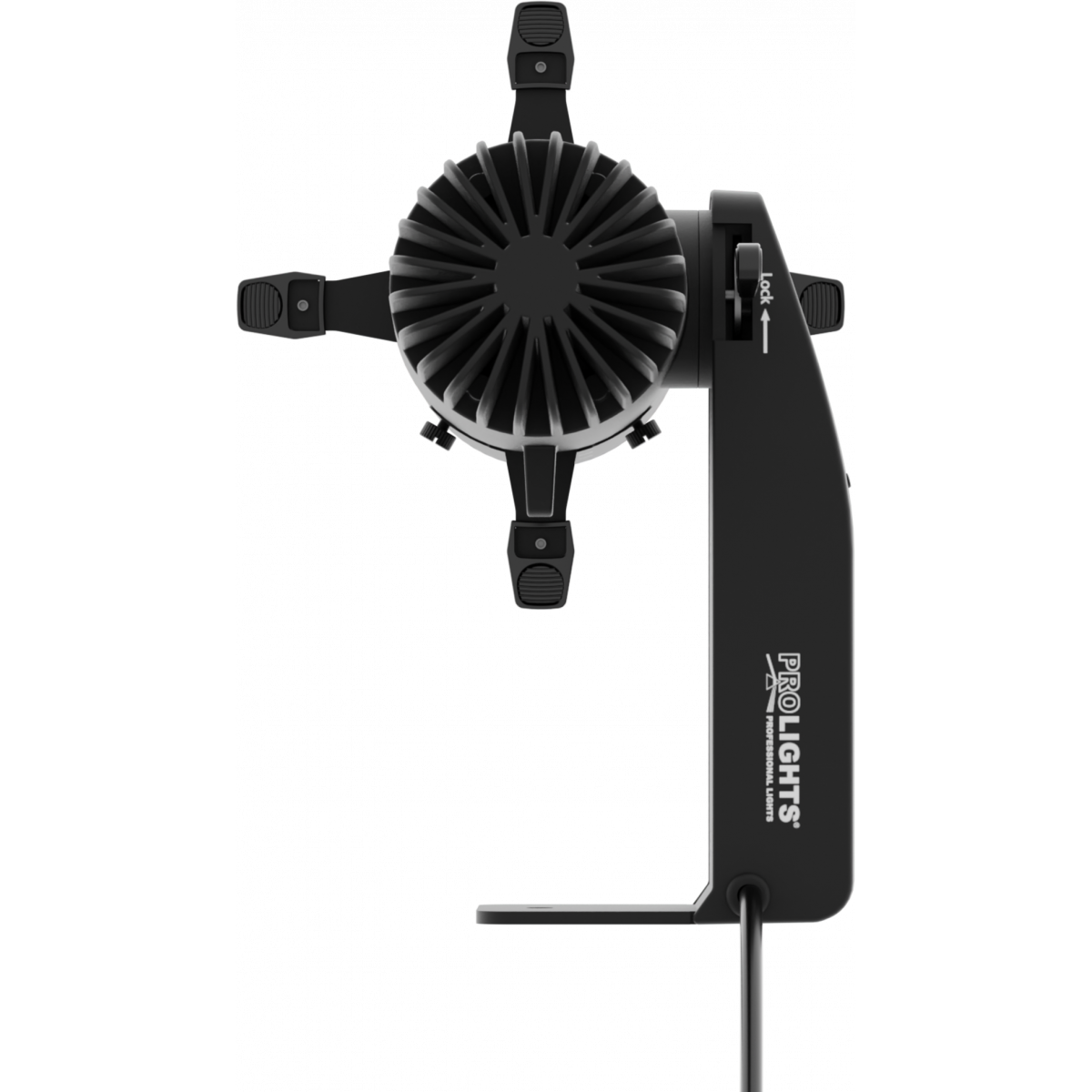

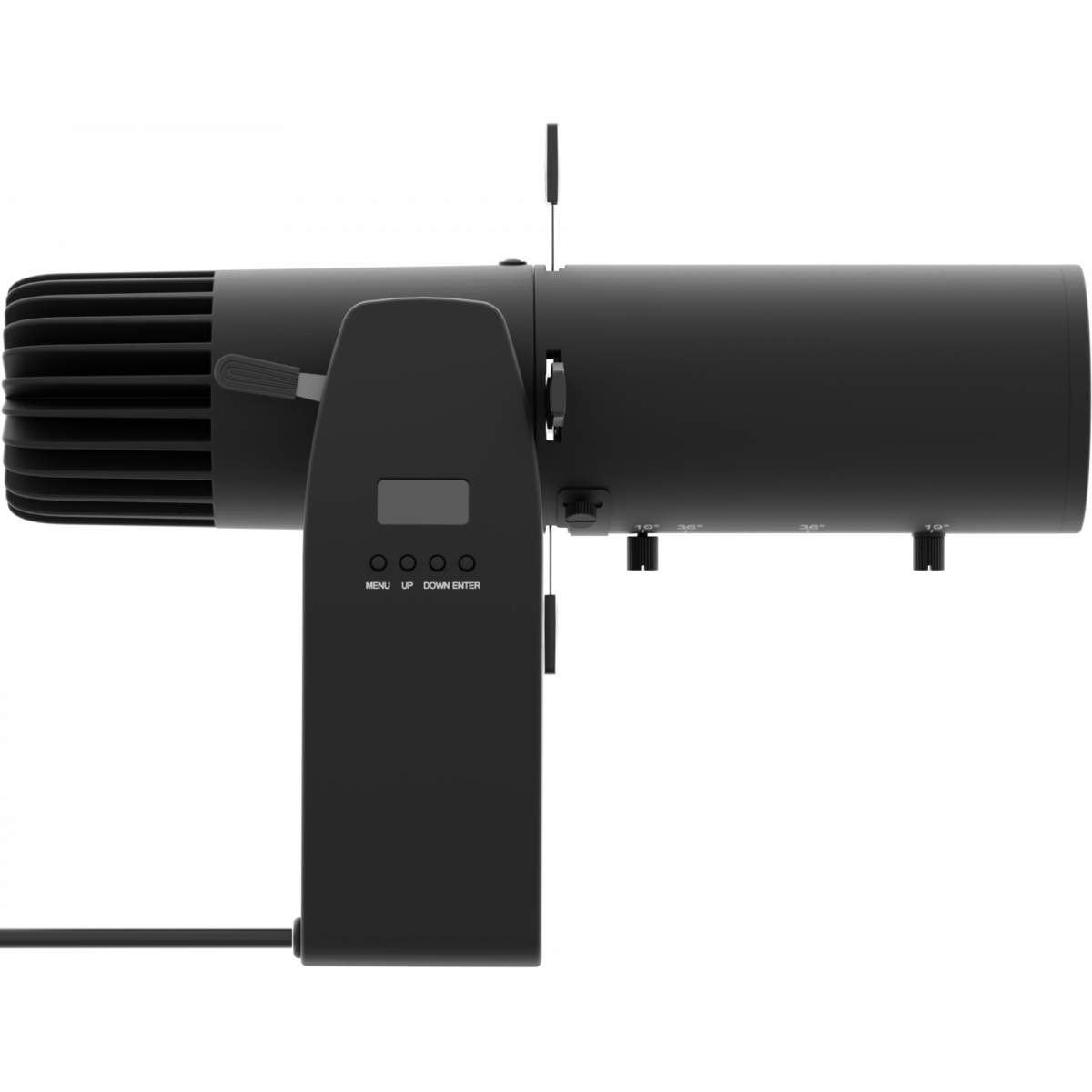

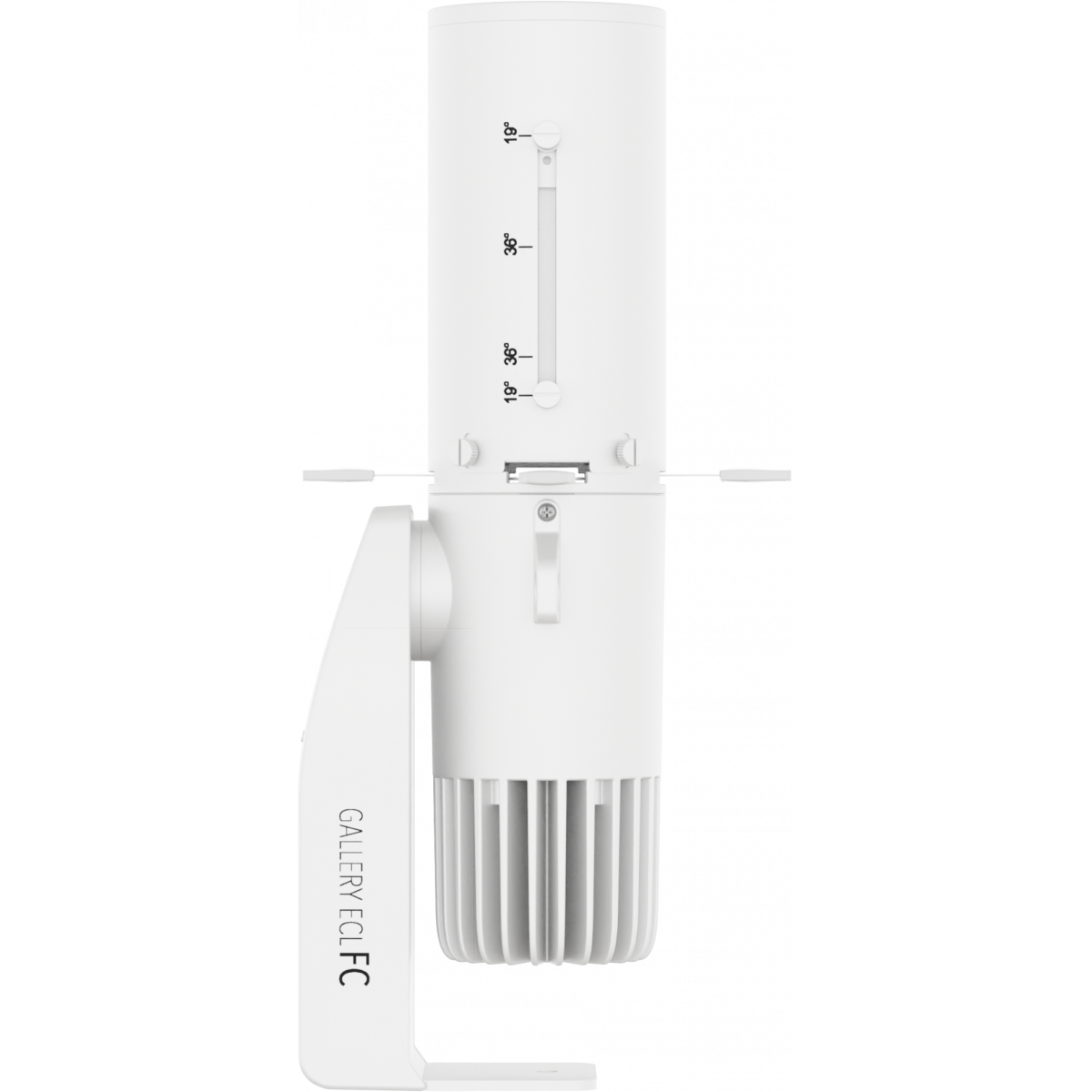

EclGalleryProfile FC
EclGalleryProfile FC
EclGalleryProfile FC
EclGalleryProfile FC
EclGalleryProfile FC
EclGalleryProfile FC

Technical specifications

LIGHT SOURCE
  • Source: 60W RGBW Osram LED
  • Luminous flux: (20°) 663 lm - (37°) 635 @Full
  • Lux: (20°) 264 lx - (37°) 93lx @5 m full
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Zoom range: 20° ~ 37° manual
  • Lens type: high-quality glass lens optics
  • Focus: manual
  • Other: accessory gobo holder for images and texture projection
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • CCT: CCT control through dedicated DMX channel
  • White presets: 2.800 K ~ 10.000K
  • Colour wheel: virtual colour wheel with macros
DYNAMIC EFFECTS
  • Gobo size: E, outer: 37 mm - image: 23 mm - thickness: 1,1 mm
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Hardware on-board: tilt lock on arm
  • Body: sturdy die-cast aluminium body
  • Body colour: RAL 9004 or RAL 9003
CONTROL
  • Protocols: W-DMX
  • DMX channels: 4 / 6 / 11channel
  • Wireless Control: included, wireless solution receiver
  • Display: Graphic User Interface
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 45W
  • Output (at 230V): 38 units on a single power line
  • Power factor: > 0,96
PHYSICAL
  • IP rating: 30
  • Cooling: passive cooling and fan-free
  • Data connection: W-DMX
  • Power connection: 1,5 metres 3G0,75 bare end connection
  • Dimensions (WxHxD): 196x293x378mm / 7.72''x11.54''x14.88''
  • Weight: 2,9kg / 6.39lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Code
Housing
GALLERYECLBFC
GALLERYECLBFC
Black
GALLERYECLWFC
GALLERYECLWFC
White

Accessories & Related Products

<b>ÆtherBox</b>
ÆtherBox
(Optional)
IP65 1 universe CRMX transceiver, DMX and Ethernet protocols, Wi-Fi, Bluetooth and battery ready
<b>ÆtherBox</b> LITE
ÆtherBox LITE
(Optional)
1 Universe CRMX Wireless Transceiver
NAKKT3013185
NAKKT3013185
(Optional)
Kit for NAXTSA683 adapter, white
NAKKT3013184
NAKKT3013184
(Optional)
Kit for NAXTSA682 adapter, black
LRLUNA
LRLUNA
(Optional)
Single Universe DMX transceiver with Bluetooth
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
GALLERYECLGH
GALLERYECLGH
(Included)
Gobo holder for GALLERYECL profiler series.
TRACKADA
TRACKADA
(Optional)

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetGalleryeclfc_A4_DATASHEET_(IT).pdf358KB
Letter datasheetGalleryeclfc_A4_DATASHEET_(EN).pdf386KB

User manual

File name File size Download
User manualGalleryeclfc_USER_MANUAL.pdf2MB

DMX chart & personalities

File name File size Download
DMX chartGalleryeclfc_DMX_CHARTS.pdf52KB
GALLERYECLFC Firmware rev. 1.4
manufacturer fixture library (Link) Link
prolights_galleryeclipsefc.d4Download
manufacturer fixture library (Link) Link
prolights_galleryeclipsef_4ch.hedDownload
prolights_galleryeclipsef_6ch.hedDownload
prolights_galleryeclipsef_11ch.hedDownload
prolights@galleryeclfc@11_channel.xmlDownload

Photometrics

CAD symbols & drawings

File name File size Download
3D RFAGalleryeclbfc_3D.rfa688KB
3D sketchupGALLERYECLFC_3D_SKETCHUP.zip513KB
2DGalleryeclfc_CAD_2D.dwg2MB
2D cad symbolsGalleryeclbfc_CAD_2DSYMBOLS.dwg60KB
3DGALLERYECLFC_3D.zip1MB
Technical drawingGalleryeclfc_TECHNICAL_DRAWING.pdf247KB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB
VectorWorksGALLERYECLFC_SYMBOLS.zip608KB

Tech docs

File name File size Download

Software

File name File size Download
SoftwareProlights Dialux Plug-In192MB

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: {Upbox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.4 STABLE 13/04/2023 Fixed bugs:
  • Factory reset not clearing Full On/Highlight status.
 Rev. 1.0
