GammaPix 48T1X2WF

ORDER CODE: GAMMAX48T1X2WF

Outdoor rental 4,8 mm LED screen, 50x100cm tile, black frame & white face LEDs

GammaPix 48T is a rental LED screen for outdoor use with a 4,8 mm pixel pitch, designed to meet requirements for touring, events and install applications. This series is available in both 50x50cm and 50x100cm tiles, mechanically compatible in order to assemble a large surface of screen in a shorter time.
The mechanical design of the tiles has been conceived to allow fast single person installation with automatic lock design and extra safety & handling features such as scratch protection of the lamp face, flip corner shield and bottom protection.
GammaPix 48T tiles have on board curve mechanics allowing both concave and convex precise installation of  +10° / -10° each tile and the weight has been reduced down to 6,4 kg (50x50cm tiles) and 11,4 kg (50x100 tiles).
The on-board electronics include the latest generation of Novastar A5s receiver card and refresh rate up to 3.840 Hz.

Main features:

  • Single person installation, auto lock design, scratch protection and flip corner shield
  • Built in curve mechanics for +10° / -10° concave & convex
  • Refresh rate of 3.840 Hz
See variants CONFIGURATOR

PHOTO GALLERY

GammaPix 48T1X2WF
GammaPix 48T1X2WF
GammaPix 48T1X2WF
GammaPix 48T1X2WF
GammaPix 48T1X2WF
GammaPix 48T1X2WF
GammaPix 48T1X2WF

Technical specifications

VIDEO
  • Driver chip type: ICN 2153
  • LED source: Nationstar SMD1921 black frame and white face
  • Pixel pitch: 4.8mm / 0.19''
  • Panel resolution: 104x208pixels
  • Module resolution: 52x52pixels
  • Luminous flux: 3.500nit
  • Contrast: 3.000:1
  • Grayscale: 14 bit
  • Refresh rate ≥: 3.840Hz
  • Drive Mode: 1/13 scan, constant current
  • Vertical viewing angle: 120°
  • Horizontal viewing angle: 140°
  • LED density: 43.264LED/sqm
  • Dead Pixel Ratio: <0,002
  • LED avg life span: 100.000
ELECTRICAL
  • Power input/output: IPKON Seetronic IN/OUT
  • Power supply: AC 110/230 V 50/60 Hz
  • Max power consumption (panel): 300W
  • Avg power consumption (panel): 100W
  • Max power consumption (sqm): 600W
  • Avg power consumption (sqm): 200W
  • Standby power consumption (pannello): 100W
  • Max rated current/panel:: AC 220 V / 1.36 A
  • Working temperature: -20°C / +50°C
  • Working humidity: 10~90 RH%
CONTROL
  • Receiving card type: A5S PLUS
  • Other controllers type: mapping, firmware copy, RCFGX restore, calibration chip on LDM (module flash)
  • Control protocol: Novastar
  • Signal input: RJ45
  • Signal output: RJ45
MECHANICS
  • Other specifics: curve configurations (mechanics on board), corner protection, bottom protection, auto-lock mechanics
  • Magnetic LED modules: not available
  • Module size (WxH): 250x250mm / 9.84''x9.84''
  • Panel size(WxHxD): 500×1000×64mm / 19.69''
  • Vertical hanging system: built-in aliscaf clamp support
  • Cooling: natural cooling of the peculiar chassis and to absence of fans
  • Connection: seamless locking system
  • Curvability: convex and concave -10° / +10°
  • Body: die-cast aluminium housing
  • Color: black
  • IP rating: IP65/IP54 (front and rear)
  • Panel weight: 11,4kg / 25.13lbs
  • Weight per square meter: 22,8kg / 50.27lbs
  • Hanging Panel Quantity ≤: 10 for hanging and 6 for stacking
  • Compliant Standard: CE, UKCA

Versions

Accessories & Related Products

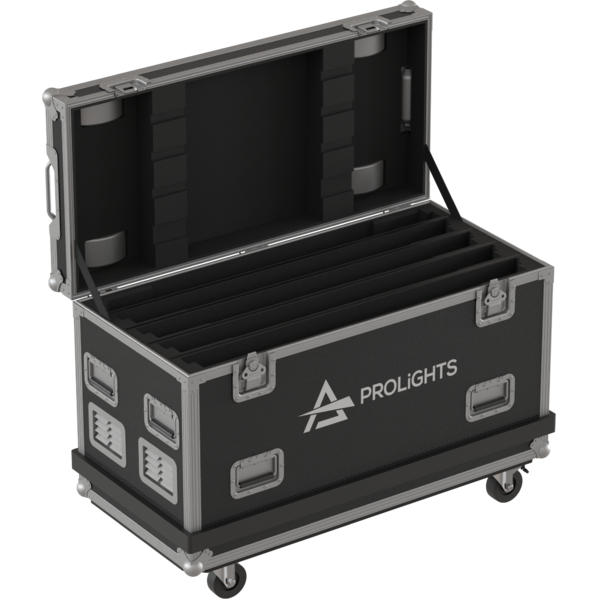

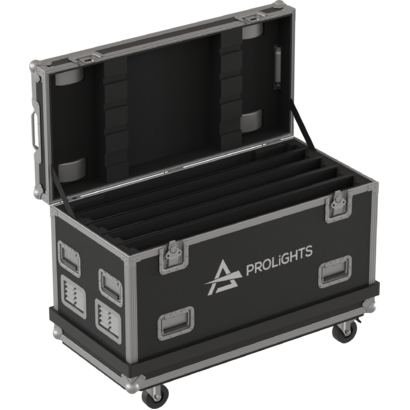

GXFCM50481X2
GXFCM50481X2
(Optional)
Flightcase 5 in1 for GAMMAX48T1X2WF

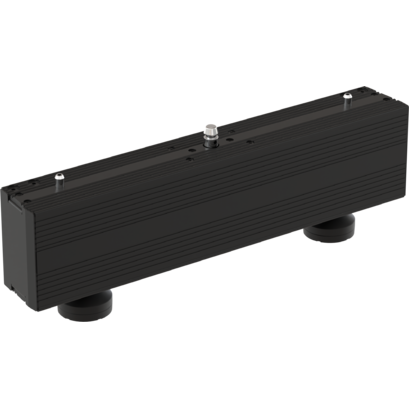

GXHGB01
GXHGB01
(Optional)
Fly bar / ground bar for GAMMAX29B and GAMMAX48T systems, 1 column
GXHGB02
GXHGB02
(Optional)
Fly bar / ground bar for GAMMAX29B and GAMMAX48T systems, 2 columns

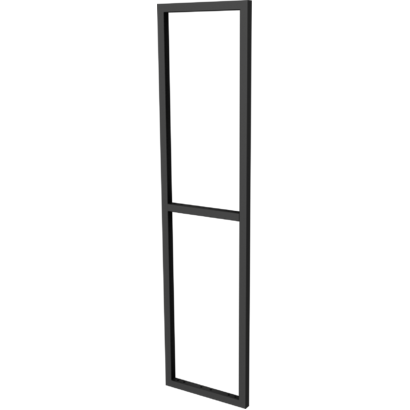

DXBS21
DXBS21
(Optional)
2in1 back support for DELTAX and GAMMAX series LED wall for ground system fixing

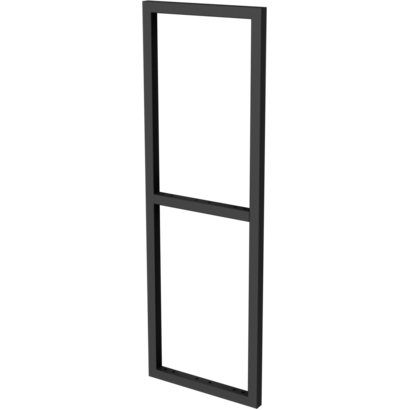

DXBS31
DXBS31
(Optional)
3in1 back support for DELTAX and GAMMAX series LED wall for ground system fixing
DXBS41
DXBS41
(Optional)
4in1 back support for DELTAX and GAMMAX series LED wall for ground system fixing

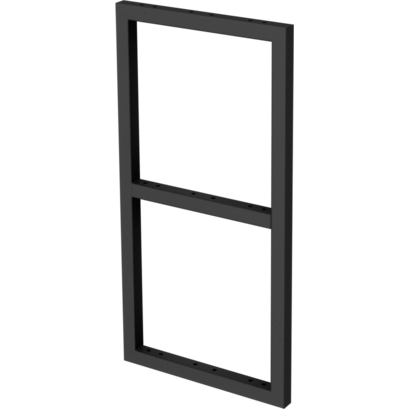

DXBSC
DXBSC
(Optional)
Back plate for DELTAX and GAMMAX series LED wall for ground system fixing

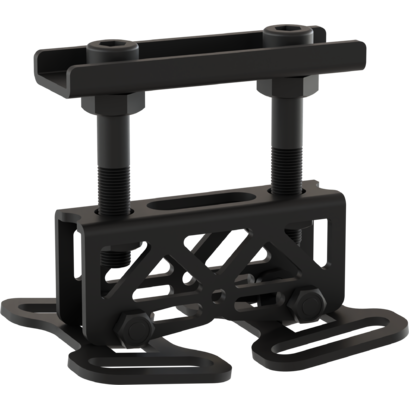

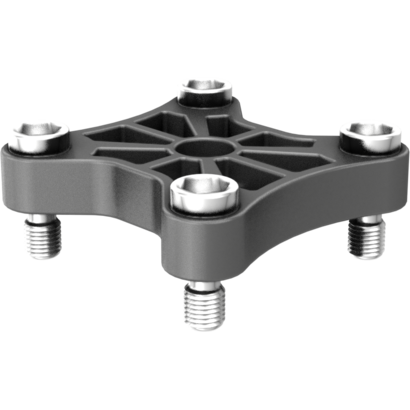

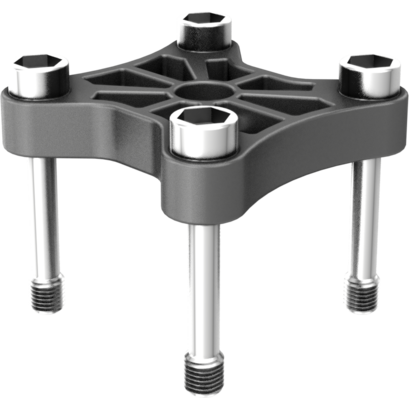

DXXJ
DXXJ
(Optional)
Metal joint to connect 4 x DELTAX/GAMMAX series cabinets, M10 hole for clamp
GXCJ
GXCJ
(Optional)
Cabinet curve metal plate for GAMMAX series LED wall

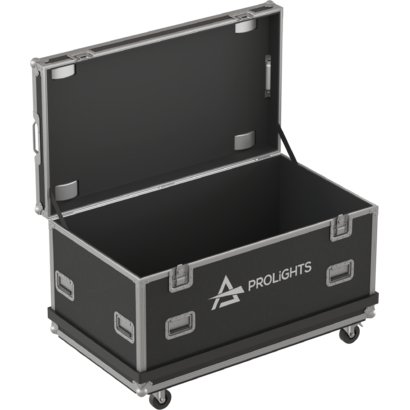

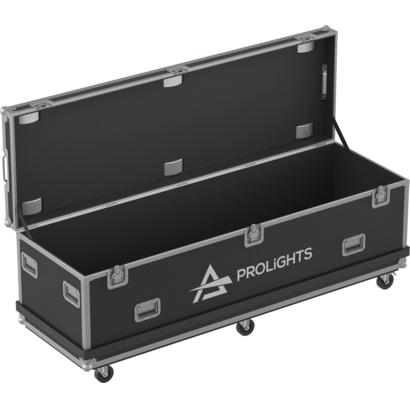

OXFCIS100
OXFCIS100
(Optional)
Rigging/ground-stack structure flightcase for all LEDScreen, 100cm
OXFCIS150
OXFCIS150
(Optional)
Rigging/ground-stack structure flightcase for all LEDScreen series, 150cm
OXFCIS200
OXFCIS200
(Optional)
Rigging/ground-stack structure flightcase for all LEDScreen series, 200cm
OXFCSP
OXFCSP
(Optional)
Spare part flightcase for OMEGAX-DELTAX series LED-display

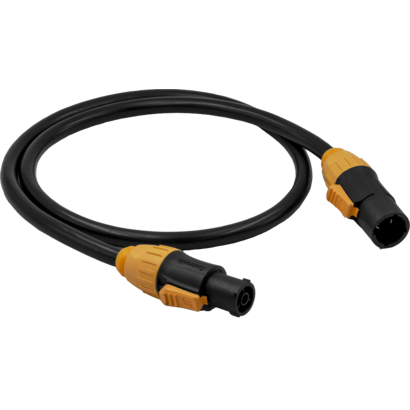

OXACL01
OXACL01
(Optional)
Power cable for LED display series, Seetronic, L.140 cm

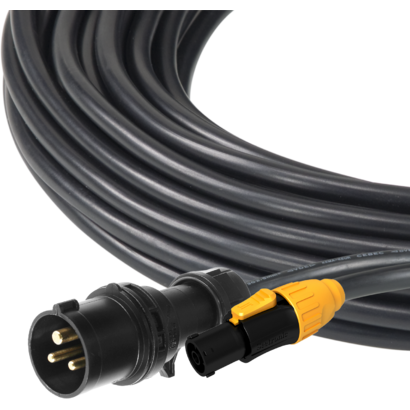

OXACL10
OXACL10
(Optional)
Power cable for LED display series, Seetronic, L.10 m

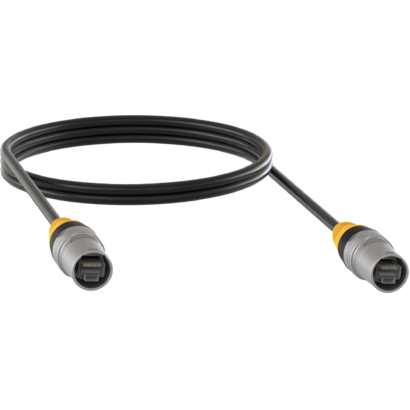

SXDCL01
SXDCL01
(Optional)
Data cable for SIGMAX LED display series assembled with RJ45, L 140 cm
SXDCL10
SXDCL10
(Optional)
Data cable for SIGMAX LED display series assembled with RJ45, L 10 m
