JETHYB200
PROLIGHTS

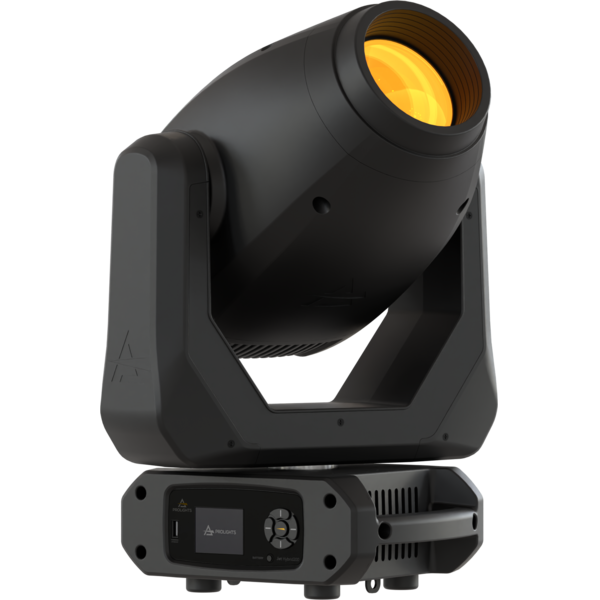

Jet Hybrid200

ORDER CODE: JETHYB200

200W Hybrid Moving head, with 3.5° - 40° zoom and color wheel

Jet Hyb200 is a budget-friendly, hybrid beam-spot moving light, offering high-quality and powerful output in a compact design.

Tailored for both mid-air effects and image projections, it boasts an impressive 8,000-lumen output from a 200W LED source. Its fast zoom ranges from 3.5° to 40°, making it an excellent replacement to compact discharge hybrid fixtures.

The Jet Hyb200's dynamic effects suite includes a color wheel with 13 dichroic filters, two gobo wheels featuring 8 rotating and 17 static gobos, along with prism and frost capabilities for diverse creative needs.

Main features:

  • Beam-Spot hybrid moving light with 200W LED source
  • Linear zoom ranging from 3.5° to 40°
  • 15 kg
See variants

PHOTO GALLERY

Jet Hybrid200
Jet Hybrid200
Jet Hybrid200
Jet Hybrid200

Technical specifications

LIGHT SOURCE
  • Source: 200W high-power white LED
  • CCT: 7.000
  • Luminous flux: (3,5°) 5'962 lm - (40°) 7'593
  • Lux: (3,5°) 69'503 lx - (40°) 1'461lx @5 m full
  • CRI: > 70 (CCT 6000K and CRI > 84 with filter on color wheel)
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Zoom range: 3,5° - 40° motorised linear zoom
  • Lens diameter: 100mm / 3.94''
  • Lens type: HD anti-reflection lenses with achromatic coating
  • Focus: motorised
COLOUR SYSTEM
  • CCT: on wheel 3.200 K
  • Colour wheel: 11 colour filters
  • Colour wheel: High CRI colour filters
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer
  • Rotating gobos: 8 rotating gobos + open, interchangeable, indexing
  • Gobo size: outer: 13,9 mm - image: 11 mm - thickness: up to 3 mm
  • Fixed gobos: 17 fixed gobos + open
  • Circular prism: 5f with bi-directional rotation, indexing
  • Frost: linear 0 - 100% light frost filter, interchangeable
BODY
  • Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
  • Pan range: 540°
  • Tilt range: 260°
  • Pan/Tilt resolution: bit 8 / 16-bit
  • Feedback: automatic repositioning after accidental movement
  • Body: aluminium structure with high-resistance polycarbonate cover
  • Body colour: RAL 9004
CONTROL
  • Protocols: DMX512, RDM
  • DMX channels: 20channel
  • RDM: RDM for remote monitoring and settings
  • Display: LCD high resolution colour display with autoflip
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX2 (USB-DMX interface not included) or via USB pen drive
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -10° ~ +45° Ta
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 50.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz (max absolutes range: 90-264V - 50/60Hz)
  • Max power consumption: 276W
  • Standby power: 56W
  • Output (at 230V): 9 units on a single power line
  • Power factor: > 0,94
PHYSICAL
  • IP rating: 20
  • Cooling: combination of heat pipe cooling system and low noise fan
  • Suspension and fixing: any position with quick-lock omega brackets
  • Pan / tilt lock: for transportation and maintenance
  • Signal connection: Neutrik IP XLR 5p IN/OUT connectors
  • Power connection: Seetronic powerCON TRUE IP65 IN/OUT
  • Dimensions (WxHxD): 356x538x205mm / 14.02''x21.18''x8.07''
  • Weight: 15kg / 33.07lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, RCM, FCC, cTUVus
BOX CONTENT

Versions

Accessories & Related Products

FCLJETH200
FCLJETH200
(Optional)

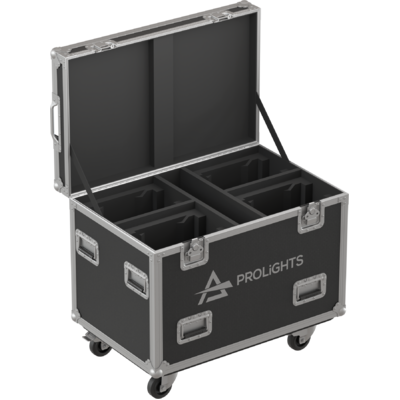

Flight case for 4 pcs of JETHYB200 / JETSPOT120
JHYB200BAG1U
JHYB200BAG1U
(Optional)

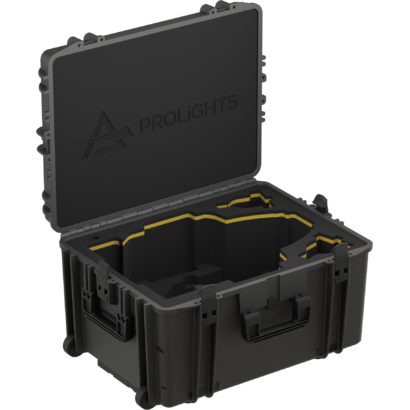

Empty ABS case for 1 pc of JETHYB200
JH200HF
JH200HF
(Optional)

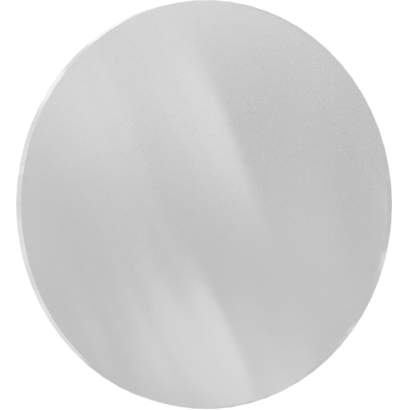

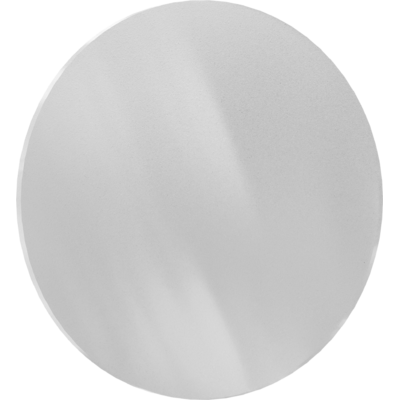

Optional accessory heavy frost filter for JETHYB200
OS24PLUS
OS24PLUS
(Included)
Quick-lock omega bracket, M12 hole
9533FXWL03
9533FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
9513FXWL03
9513FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
958225L03
958225L03
(Optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
RSR1235B
RSR1235B
(Optional)

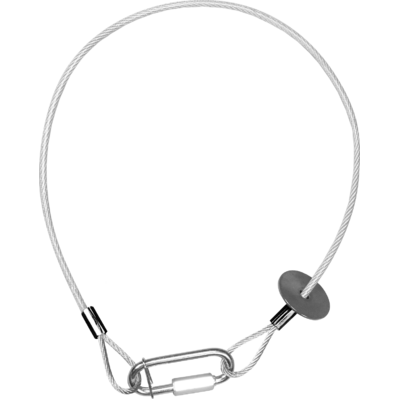

Steel security cable for hanging bodies, inox steel shackle, L=120 cm, black
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
C6016B
C6016B
(Optional)
Selflock slim clamp, 250Kg load, 48-51mm tubes, M10 bolt incl, Black&White& White
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetJethyb200_A4_DATASHEET_(EN).pdf504KB
Tender SpecificationJethyb200_TENDER_SPECIFICATION.pdf258KB

User manual

DMX chart & personalities

File name File size Download
DMX chartJethyb200_DMX_CHARTS.pdf905KB
JETHYB200 Firmware rev. 1.1.08.0
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D SKPJethyb200_3D.skp2MB
2DJethyb200_CAD_2D.dwg6MB
3DJethyb200_CAD_3D.dwg214KB
2D cad symbolsJethyb200_CAD_2DSYMBOLS.dwg37KB
Technical drawingJethyb200_TECHNICAL_DRAWING.pdf408KB
VectorWorksJETHYB200_SYMBOLS.vwx2MB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB

Tech docs

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1.08.0 STABLE 18/02/2025 Fixed Bug:
  • FIXED GOBO: When moving from DMX value 0 (Open) to DMX value 70 (Gobo 17) the fixture shows Gobo 16 for a few moments before arriving at Gobo 17.
 Rev. 1.0
Rev. 1.1
