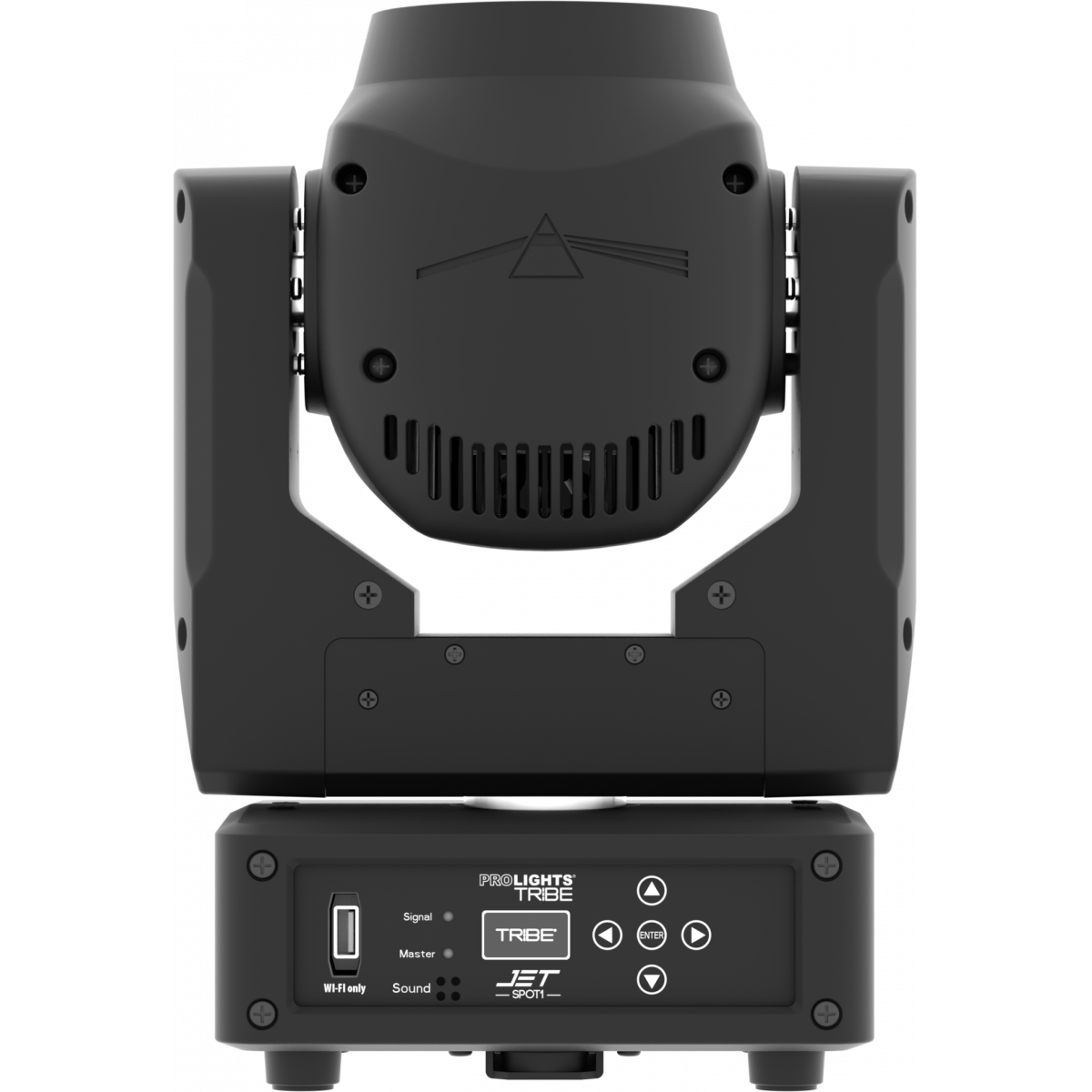

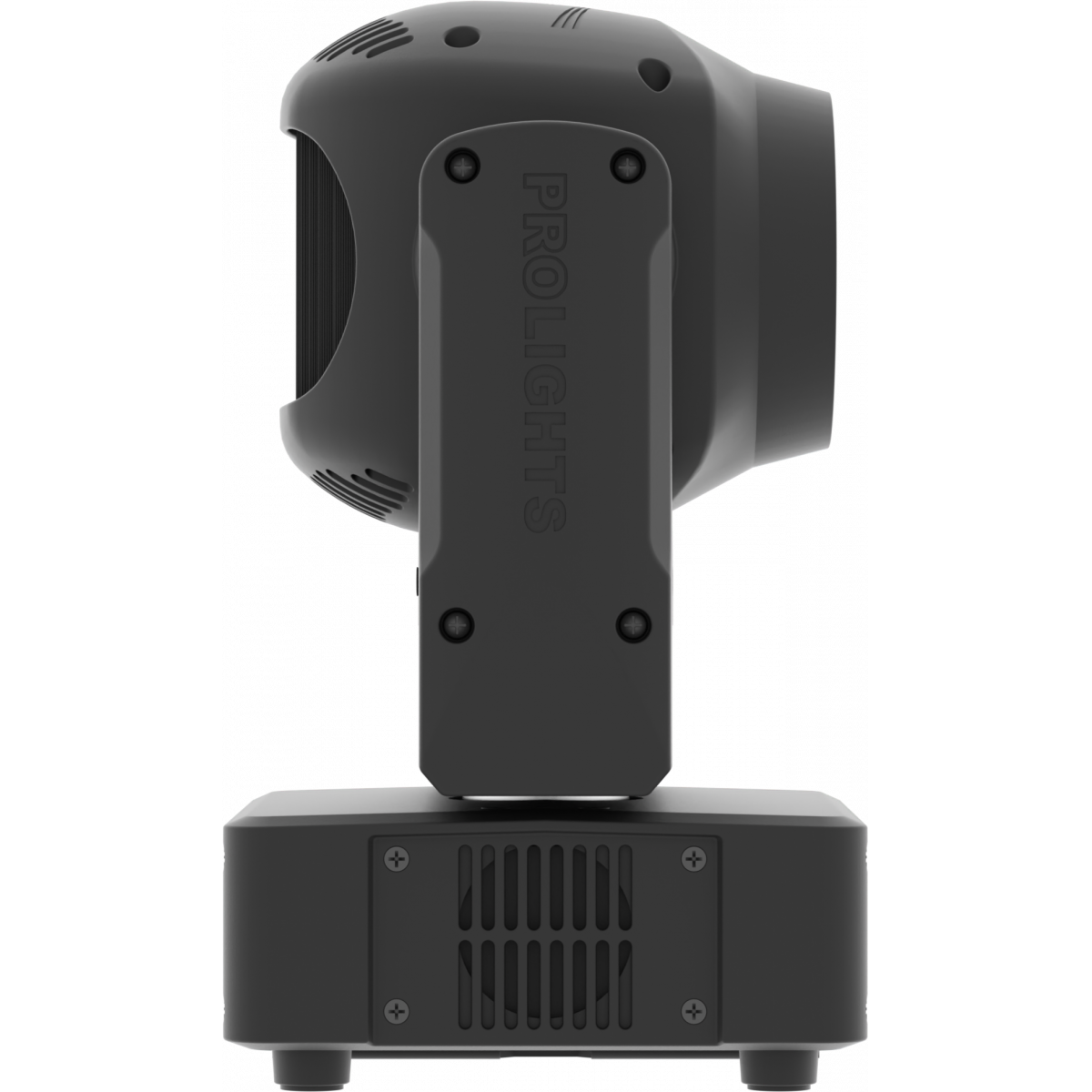

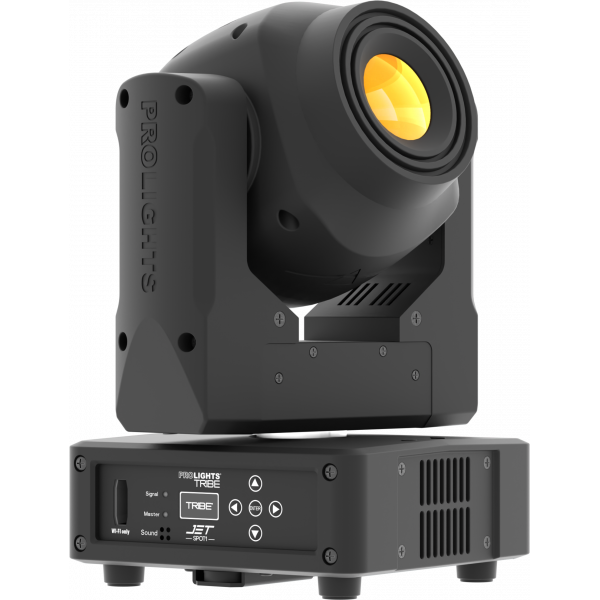

Jet Spot1

18W moving spot with white LED source

Jet Spot1 is an extremely compact LED spotlight designed to deliver a bright, even beam from the smallest footprint possible. Ideal where space is an issue, the Jet Spot1 simply offers the best value for money in its segment with a light output far exceeding expectations. All packaged in a compact size and offered at an affordable price.

Main features:

  • Ultra-efficient 18W white LED with 16° glass optics, to deliver an outstanding light level and even beam
  • Compact size for use where space is an issue - including clubs, bars, and events
  • 9 colours and 9 gobos giving a vast range of effect options

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 18W high-power white LED
  • CCT: 7.000
  • Luminous flux: 1'288lm
  • Lux: 2'533lx @3 m
  • Lux: 227,97lx @10 m
  • CRI: 73
  • Source life expectancy: > 30.000 h
OPTICS
  • Beam angle: 16°
  • Lens type: high-quality glass lens optics
COLOUR SYSTEM
  • Colour wheel: 9 colour filters
DYNAMIC EFFECTS
  • Fixed gobos: 9 fixed gobos + open
  • Auto mode: built-in programs with execution speed adjustment
  • Sound mode: music activation through internal microphone and sensitivity control
BODY
  • Pan angle: 540°
  • Tilt angle: 270°
  • Pan/Tilt resolution: bit 8 / 16-bit
  • Feedback: automatic repositioning after accidental movement
  • Body: aluminium structure with high-resistance polycarbonate cover
  • Body colour: black, white finishing available
CONTROL
  • Protocols: DMX512, RDM
  • DMX channels: 8 / 10channel
  • Wireless Control: optional, proprietary protocol compatible with WIFIBOX, WDBOX
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Strobe / shutter: 0 ~ 30 Hz, electronic
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 40,6W
  • Max power consumption (at 120V): 39,7W
  • Output (at 230V): 67 units on a single power line
  • Output (at 120V): 37 units on a single power line
PHYSICAL
  • IP rating: 20
  • Cooling: active, silent operation
  • Suspension and fixing: any position with quick-lock omega brackets
  • Data: USB port for USB WIFI transmitter (optional)

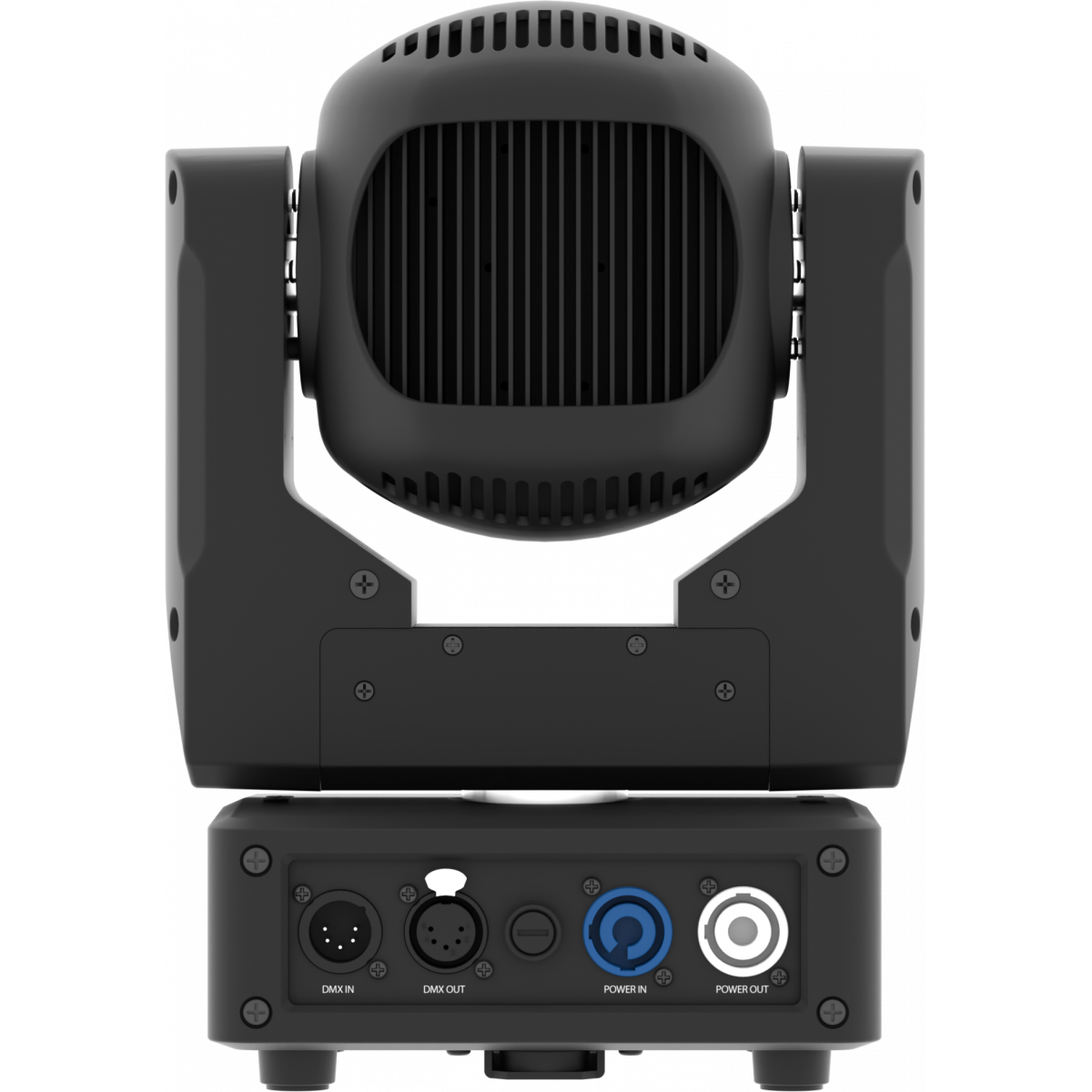

  • Signal connection: XLR 5p IN/OUT connectors
  • Power connection: Seetronic powerCON IN/OUT connectors
  • Dimensions (WxHxD): 210x308x170mm / 8.27''x12.13''x6.69''
  • Weight: 4,2kg / 9.26lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Code
Housing
JETSPOT1BK
JETSPOT1BK (DISCONTINUED)
Black

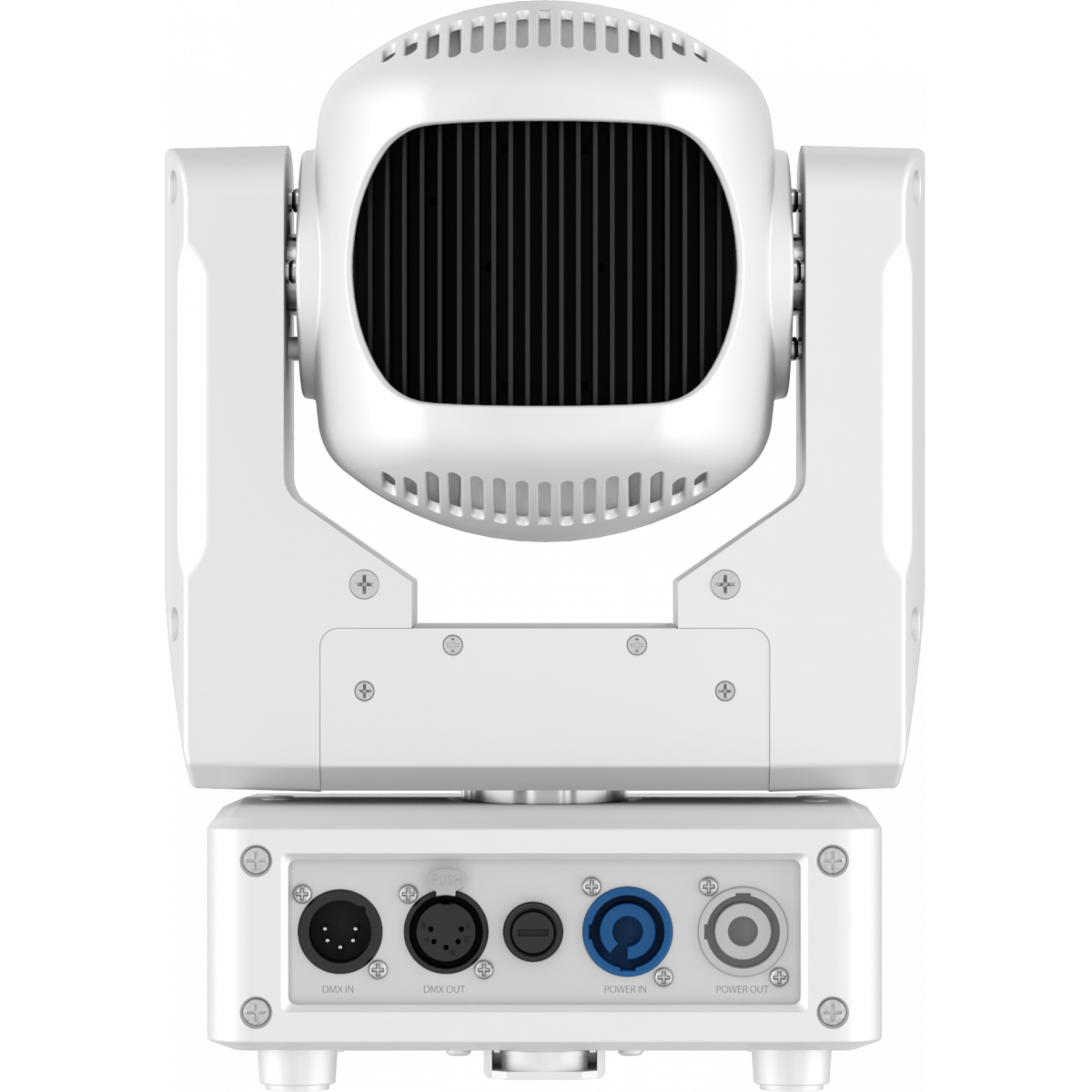

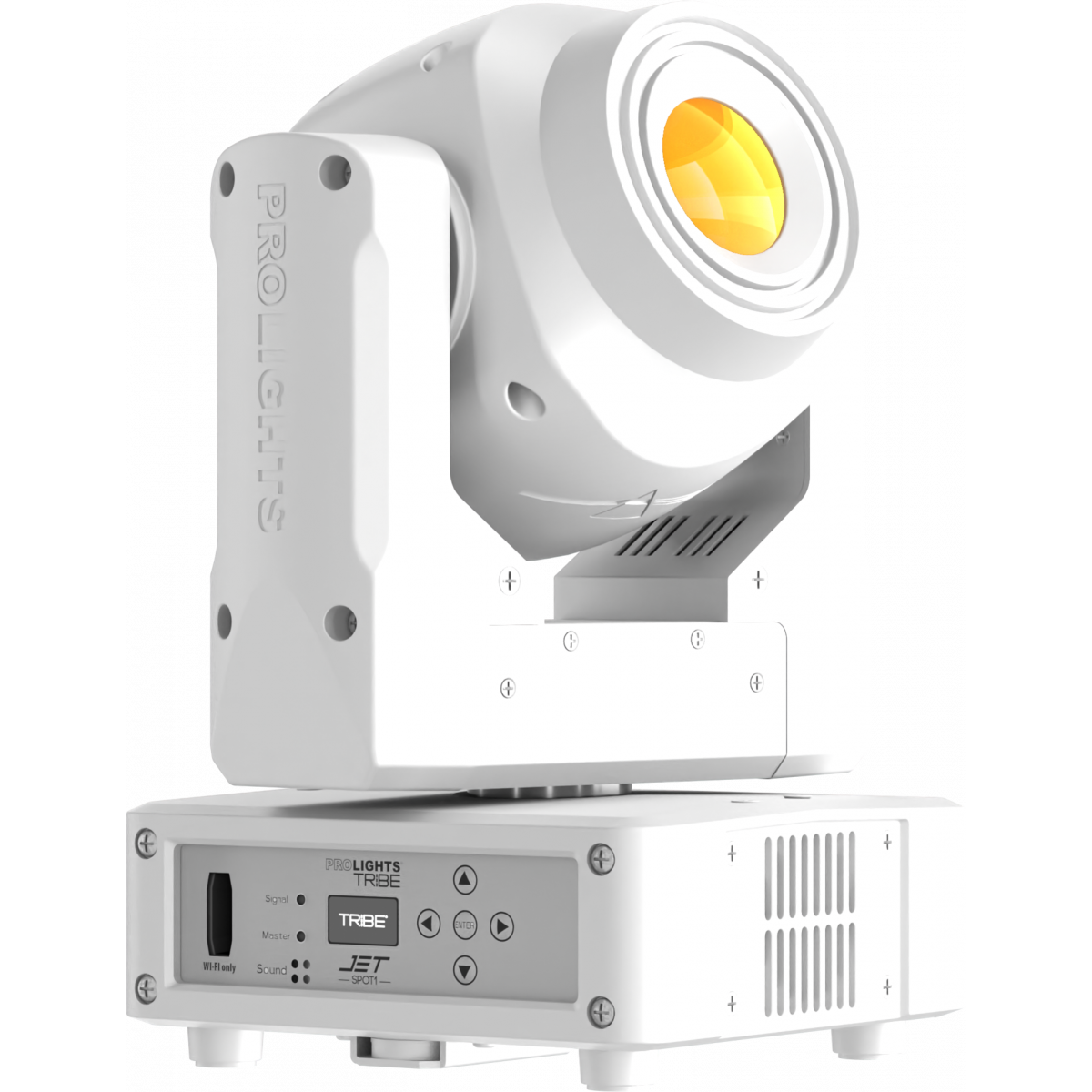

JETSPOT1WH
JETSPOT1WH (END OF LIFE)
White

Accessories & Related Products

RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
TOUR53415L03
TOUR53415L03
(optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m

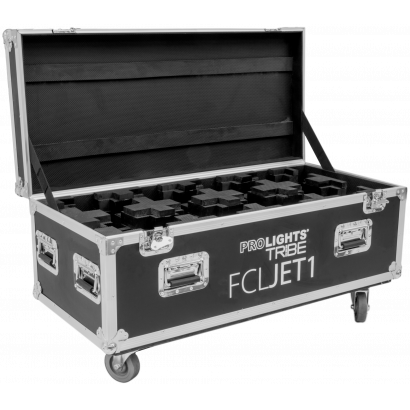

FCLJET1
FCLJET1
(optional)
Flight case for 8 pcs JETBEAM1 / JETSPOT1
C6016B
C6016B
(optional)
Selflock slim clamp, 250Kg load, 48-51mm tubes, M10 bolt incl, Black
WIFIUSB
WIFIUSB
(optional)
USB Wi-Fi transreceiver, compatible with WIFIBOX and WDBOX

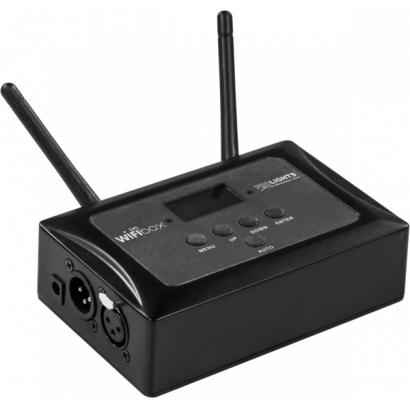

WIFIBOX
WIFIBOX
(optional)
DMX controller interface, Wi-Fi/DMX IN, Wi-Fi / DMX OUT

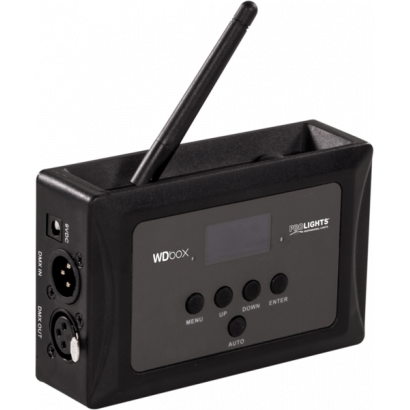

<b>WDBox</b>
WDBox
(optional)
Wireless DMX Transceiver, IN/OUT 3-pin XLR, distance 200m, 2.4 GHz, 0.6 kg
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheet Jetspot1_A4_DATASHEET_(EN).pdf 158KB
Letter datasheet Jetspot1_A4_DATASHEET_(IT).pdf 166KB

User manual

File name File size Download
User manual Jetspot1_USER_MANUAL_ITEN.pdf 4MB

DMX chart & personalities

JETSPOT1 Firmware rev. 1.5
manufacturer fixture library (Link) Link
prolights_jetspot1.d4Download
manufacturer fixture library (Link) Link
prolights_jetspot1_bas8.hedDownload
prolights_jetspot1_bas16.hedDownload
jetspot1_8ch.fdfDownload
jetspot1_10ch.fdfDownload
prolights@jetspot-1_bas16@bas-16.xmlDownload
prolights@jetspot-1_bas8@bas-8.xmlDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

File name File size Download
Photometrics Jetspot1_PHOTOMETRICS.pdf 158KB
Dialux Download DIALux product catalogue -

CAD symbols & drawings

Tech docs

File name File size Download
Color Document Jetspot1_COLOR.pdf 38KB
Gobos Document Jetspot1_GOBOS.pdf 51KB

Software

File name File size Download

Firmware

Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed
Update Tool: UPBOX1UP5 UPBOX1UP5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.5 STABLE 04/12/2018 10 second default display backlight
