JETSPOT120
PROLIGHTS

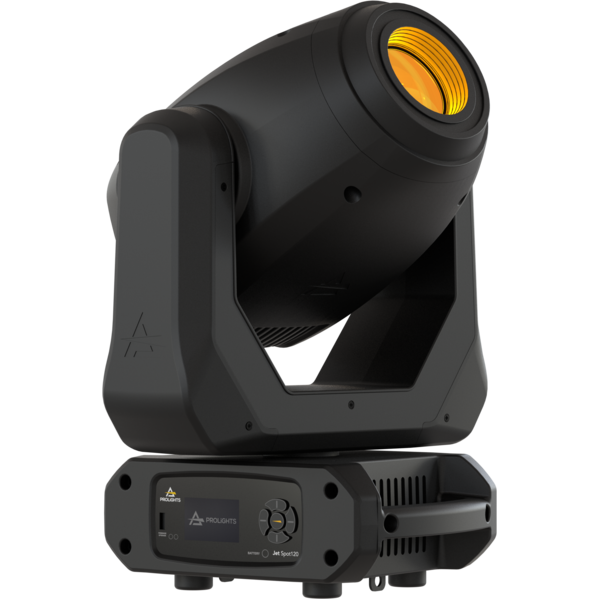

Jet Spot120 new

ORDER CODE: JETSPOT120

120W Spot Moving head with 9° - 46° zoom

Jet Spot120 is a budget friendly, zoomable, and compact moving spotlight, making it a perfect fit for various venues and corporate events with its compact form factors.

Jet Spot120 delivers remarkable flexibility with its motorized zoom, which ranges from 9° to 46°. The 120W white LED source produces a surprising 5.600 lumen fixture output.

The effect section includes one color wheel, one rotating and one static gobo wheel, prism and frost, meeting the creative demands of lighting designers.

Main features:

  • 120W White LED source, 5.600 fixture lumen output
  • Motorized zoom from 9° to 46°
  • One color wheel, one rotating and one static gobo wheels, prism and frost
See variants

PHOTO GALLERY

Jet Spot120
Jet Spot120
Jet Spot120
Jet Spot120

Technical specifications

LIGHT SOURCE
  • Source: 120W high-power white LED
  • CCT: 7.500K
  • Luminous flux: (9,1°) 4'502 lm - (46,3°) 5'686 lm @Full
  • Lux: (9,1°) 9'452 lx - (46,3°) 681lx @5 m full
  • Source life expectancy: > 30.000 h
OPTICS
  • Zoom range: 9,1° - 46,3° motorised linear zoom
  • Lens diameter: 75mm / 2.95''
  • Lens type: HD anti-reflection lenses with achromatic coating
  • Focus: motorised
COLOUR SYSTEM
  • CCT: on wheel 3.200 K
  • Colour wheel: open+8 colour filters
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer
  • Rotating gobos: 7 rotating gobos + open, interchangeable, indexing
  • Gobo size: 22,5 mm - image: 17 mm - thickness: up to 3 mm
  • Fixed gobos: 10 fixed gobos + open
  • Circular prism: 3f with bi-directional rotation, indexing, interchangeable
  • Frost: linear 0 - 100% light frost filter, interchangeable
BODY
  • Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
  • Pan range: 540°
  • Tilt range: 260°
  • Pan/Tilt resolution: bit 16-bit
  • Feedback: automatic repositioning after accidental movement
  • Body: aluminium structure with high-resistance polycarbonate cover
  • Body colour: RAL 9004
CONTROL
  • Protocols: DMX512, RDM
  • DMX channels: 20channel
  • RDM: RDM for remote monitoring and settings
  • Display: LCD high resolution colour display with autoflip
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX2 (USB-DMX interface not included) or via USB pen drive
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -10° ~ +45° Ta
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 50.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 238W
  • Standby power: 50,2 W
  • Output (at 230V): 16 units on a single power line
  • Power factor: > 0,94
PHYSICAL
  • IP rating: 20
  • Cooling: active, silent operation
  • Suspension and fixing: any position with quick-lock omega brackets
  • Signal connection: Neutrik XLR 5p IN/OUT connectors
  • Power connection: Seetronic powerCON TRUE IP65 IN/OUT
  • Dimensions (WxHxD): 340 x 479 x 205mm / 13.39''x18.86''x8.07''
  • Weight: 13,5kg / 29.76lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, RCM
BOX CONTENT

Versions

Accessories & Related Products

FCLJETH200
FCLJETH200
(Optional)

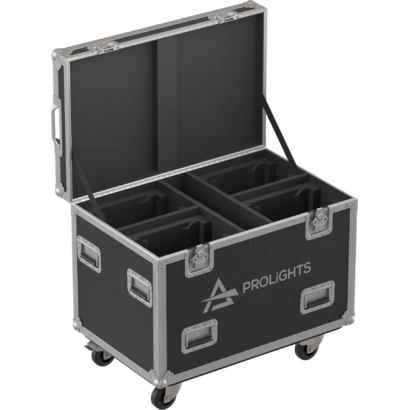

Flight case for 4 pcs of JETHYB200 / JETSPOT120
JS120HF
JS120HF
(Optional)

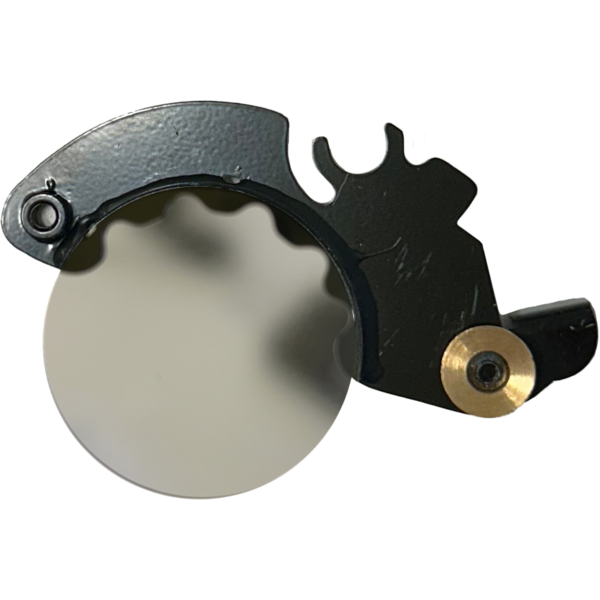

Optional accessory heavy frost filter for JETSPOT120
JS120LF
JS120LF
(Included)

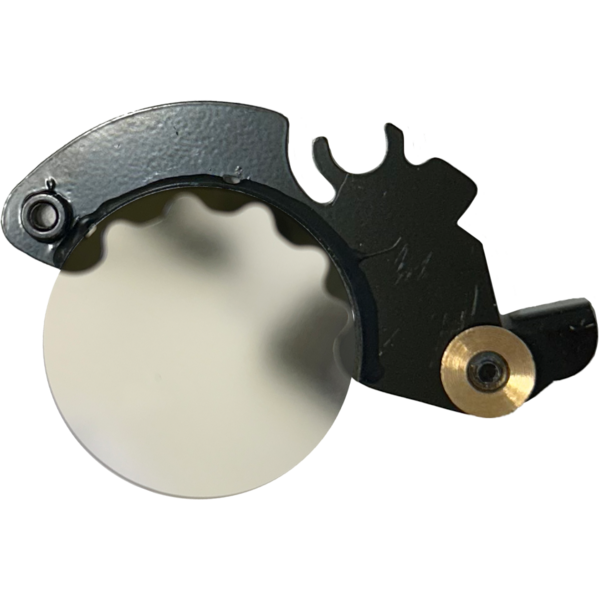

Included accessory light frost filter for JETSPOT120
JS120P5F
JS120P5F
(Optional)

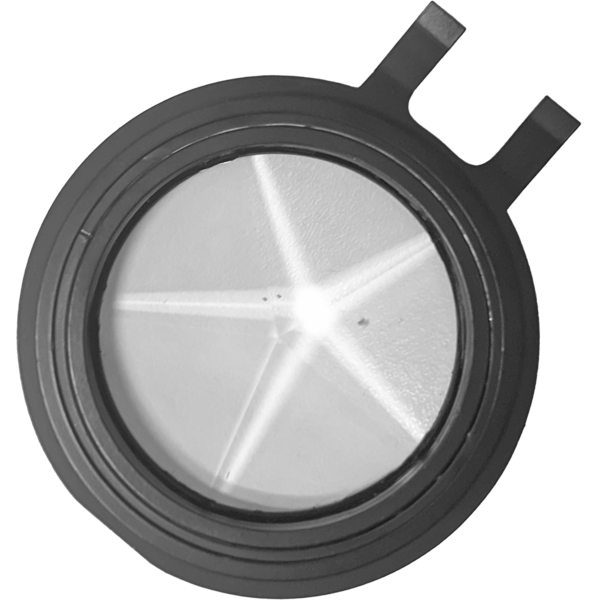

Optional accessory 5F prism for JETSPOT120
JS120P4F
JS120P4F
(Optional)
Optional accessory 4F prism for JETSPOT120
JS120P3F
JS120P3F
(Included)

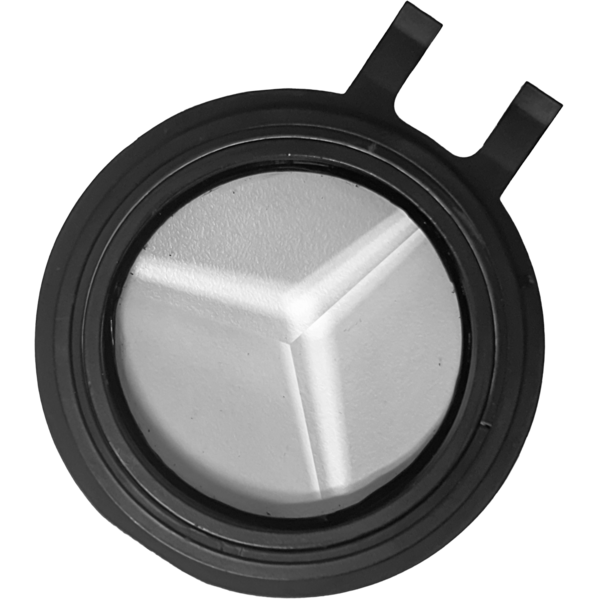

Included accessory 3F prism for JETSPOT120
OS24PLUS
OS24PLUS
(Included)
Quick-lock omega bracket, M12 hole
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
RSR1235B
RSR1235B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=120 cm, black
9533FXWL03
9533FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
9513FXWL03
9513FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
958225L03
958225L03
(Optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetJetspot120_A4_DATASHEET_(EN).pdf464KB
Tender SpecificationJetspot120_TENDER_SPECIFICATION.pdf256KB

User manual

DMX chart & personalities

File name File size Download
DMX chartJetspot120_DMX_CHARTS.pdf885KB
JETSPOT120 Firmware rev. 1.1.00.0
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D SKPJetspot120_3D.skp9MB
2DJetspot120_CAD_2D.dwg6MB
3DJetspot120_CAD_3D.dwg2MB
Technical drawingJetspot120_TECHNICAL_DRAWING.pdf329KB
VectorWorksJETSPOT120_SYMBOLS.vwx924KB

Tech docs

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1.00.0 STABLE 18/02/2025 New Functions:
  • Added Power Consumption section to Information menu.
Improvements:
  • Improved PAN-TILT movements.
  • Set CUSTOM P DEGREE@0% and CUSTOM T DEGREE@0% by default.
  • Improved "Color Wheel Blackout" function: it works on the Color Wheel channel in the dmx range 160-199. Color Wheel Blackout does not work in the range 0-159 dmx and 200-255 dmx value on the Color Wheel channel.
  • Minor improvements.
Fixed Bugs:
  • If Zoom and Focus are very close to each other it is not possible to insert the Prism because the Prism crashes into the focus.
  • Performing a Factory Reload (psw 050), not all calibration values revert to factory settings.
  • Inserting a gobo from the “Gobo Rotation” section (range 68-123) and switching the Gobo Rotation channel from 100% to 0%, the Gobo does not stop immediately but slowly.
  • PRISM ROTATION: going from dmx value 35 to 36 and from 36 to 35 there is a speed jump (the increase-decrease in speed must be linear).
  • "Basic Reload" [0x82C8] Manufacturer PID in RDM does not work correctly.
 Rev. 1.0
