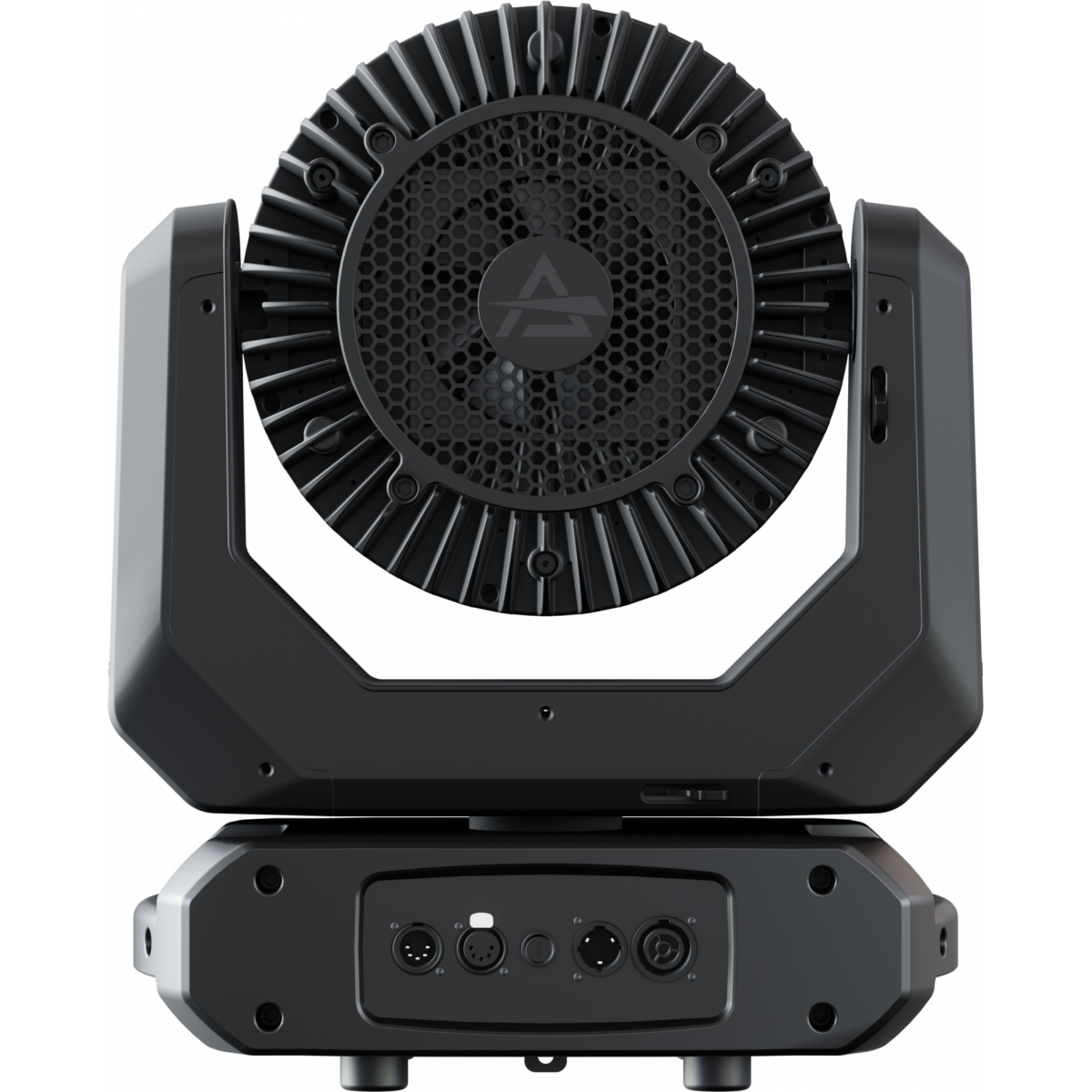

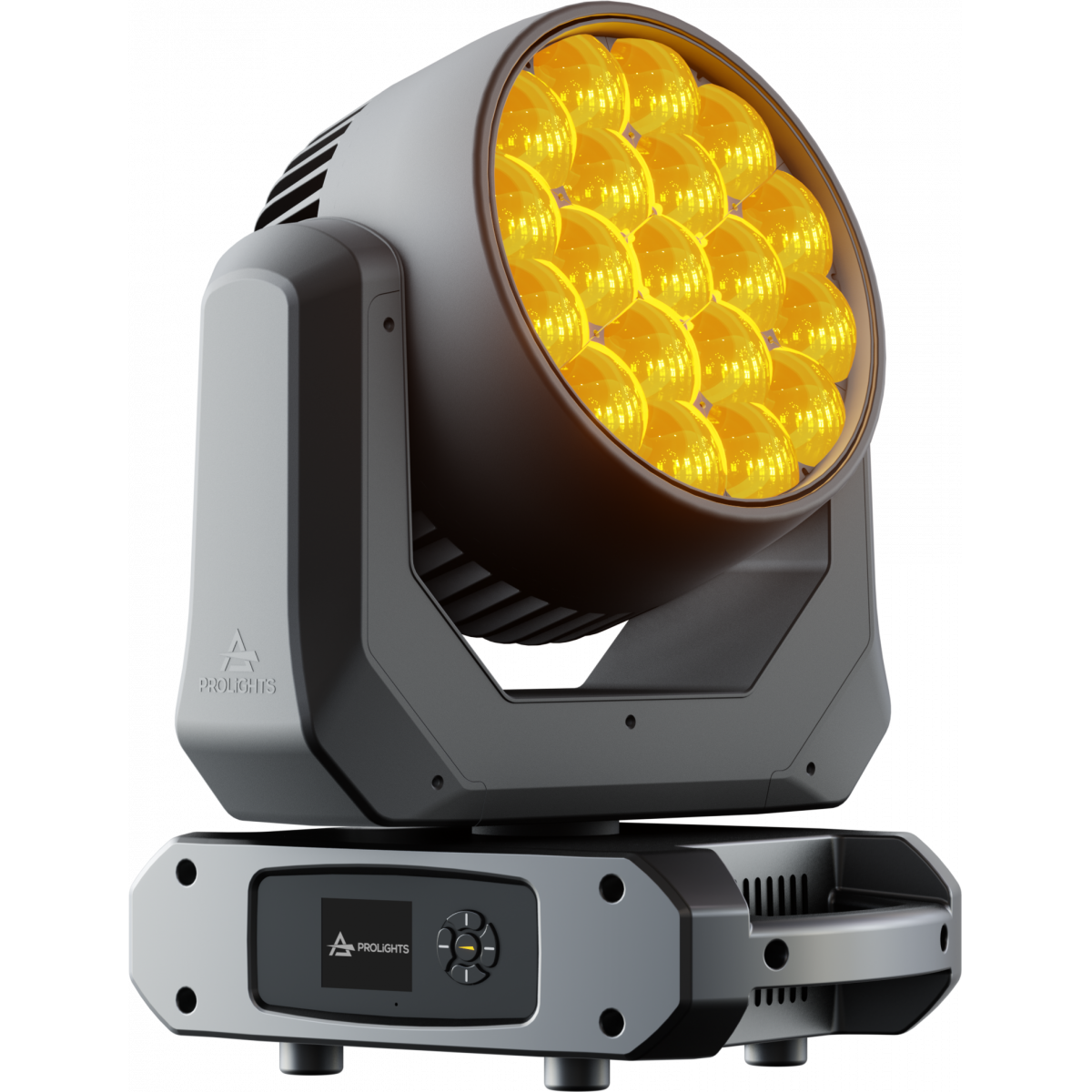

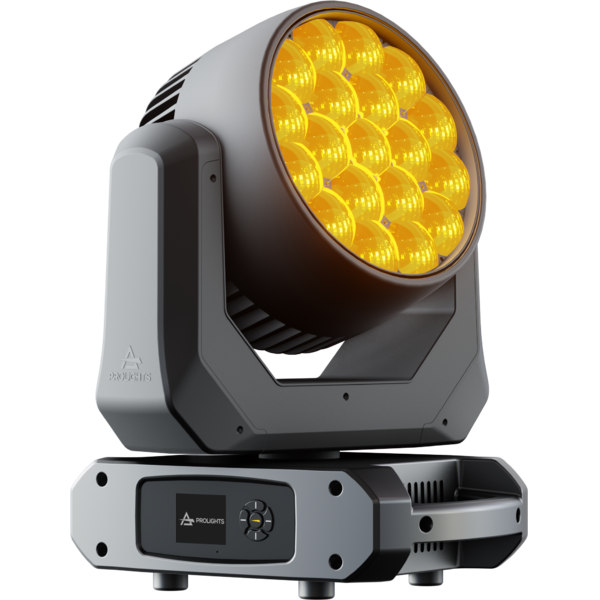

Jet Wash19

19x20W RGBW moving wash light with 4°- 52° zoom

The Jet Wash19 is a compact and fast LED moving wash light with motorized zoom control.
The 20W Osram RGBW LED source provides plenty of output and combined with a highly efficient optical system capable of zooming from 4° to 52°, this unit can easily work as beam or wash light.
The Jet Wash19's colour mixing system features precise and advanced control with superior white and saturated tones, and a clean and intuitive user interface similar to the other series.

Main features:

  • Compact form factor and fast movements
  • Zoom from 4° to 52° with high optical efficiency
  • Precise white CCT and colour mixing
See variants

PHOTO GALLERY

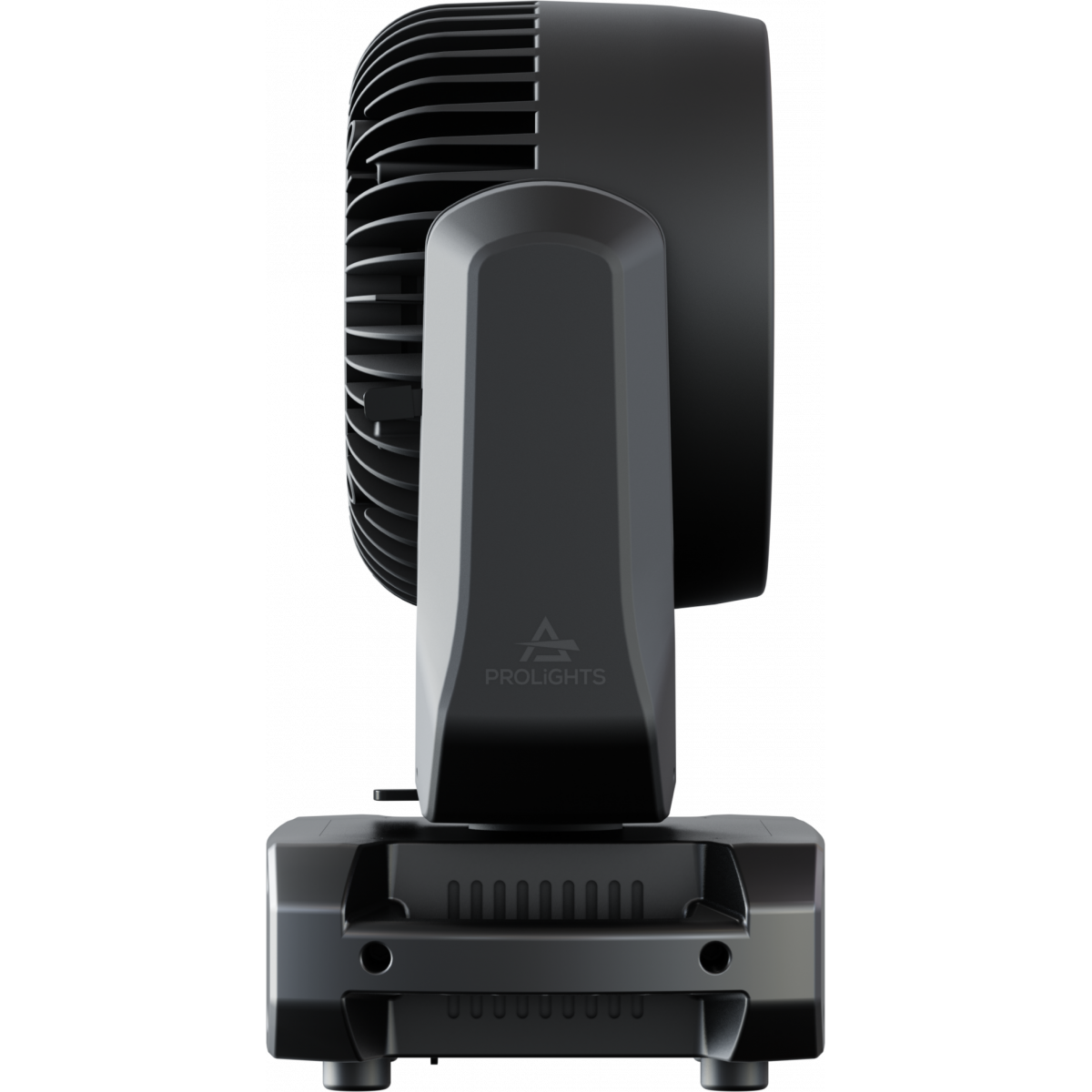

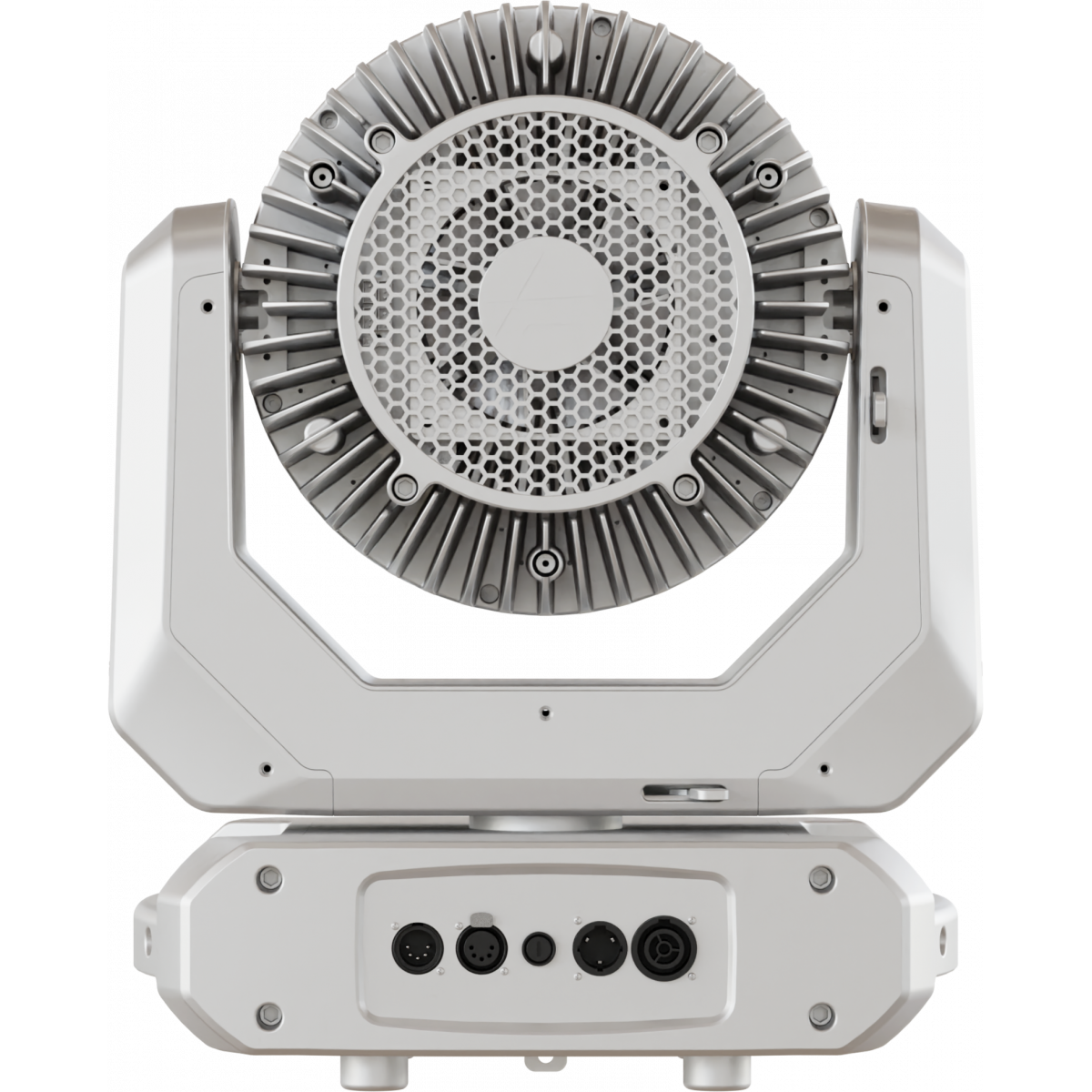

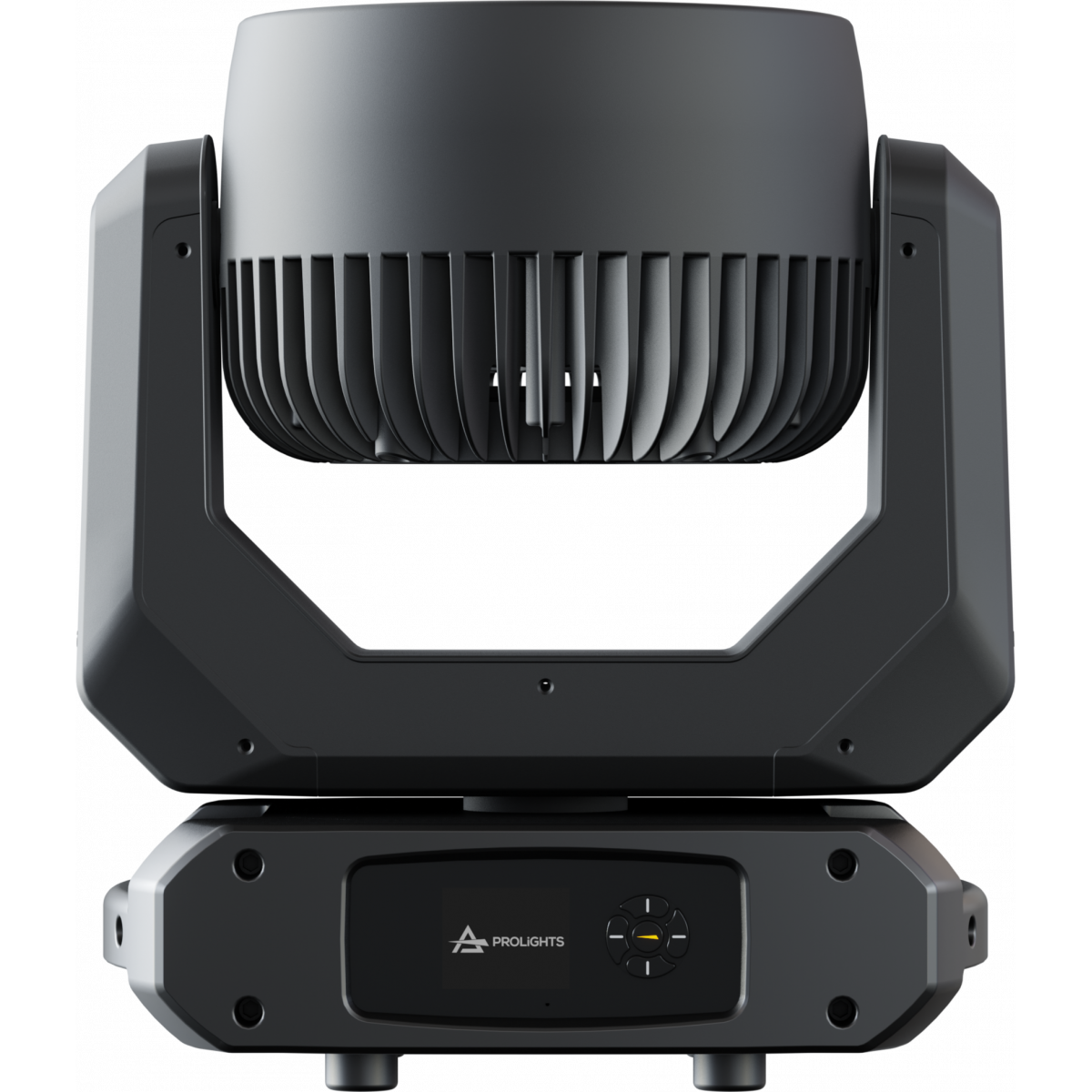

Jet Wash19
Jet Wash19
Jet Wash19
Jet Wash19
Jet Wash19
Jet Wash19

Technical specifications

LIGHT SOURCE
  • Source: 19x20W RGBW Osram Ostar LEDs
  • Luminous flux: (4°) 3'019 lm - (52°) 5'337 @Full
  • Lux: (4°) 23'781 lx - (52°) 682lx @5 m full
  • Source life expectancy: > 50.000 h
OPTICS
  • Zoom range: 4° - 52° motorised linear zoom
  • Lens type: honeycomb gapless plano-convex optics
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • CCT: CCT control, + / - green correction, tungsten emulation
  • White presets: 2.800 K ~ 10.000K
  • Colour wheel: virtual colour wheel with macros
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer
  • Special features: linear crossfade channel from any white to any colour; virtual CTO on colours
BODY
  • Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
  • Pan range: 540°
  • Tilt range: 233°
  • Pan/Tilt resolution: bit 16-bit
  • Feedback: automatic repositioning after accidental movement
  • Body: aluminium structure with high-resistance polycarbonate cover
  • Body colour: see variants
CONTROL
  • Protocols: DMX512, RDM
  • DMX channels: 23channel
  • RDM: RDM for remote monitoring and settings
  • Display: LCD high resolution colour display with autoflip
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX2 (USB-DMX interface not included)
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: -10° ~ +45° Ta
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 350W
  • Standby power: 24 W
  • Output (at 230V): 7 units on a single power line
  • Power factor: > 0,96
PHYSICAL
  • IP rating: 20
  • Cooling: forced air with fan
  • Suspension and fixing: any position with quick-lock omega brackets
  • Pan / tilt lock: for transportation and maintenance
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
  • Dimensions (WxHxD): 396x487x250mm / 15.59''x19.17''x9.84''
  • Weight: 14,7kg / 32.41lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Code
Finishing
RAL
JETWASH19
JETWASH19
Black
9004

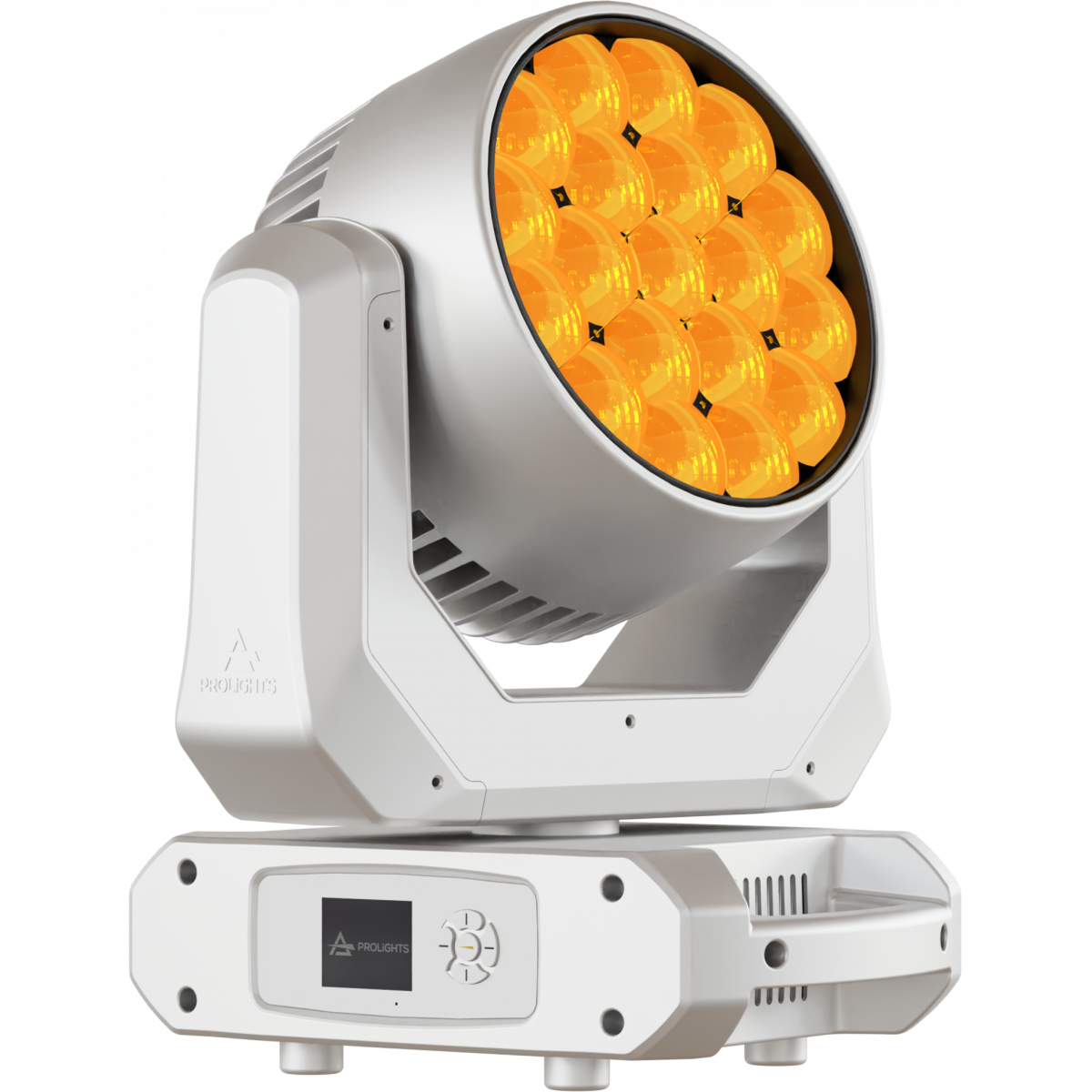

JETWASH19WH
JETWASH19WH
White
9010

Accessories & Related Products

9533FXWL03
9533FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m

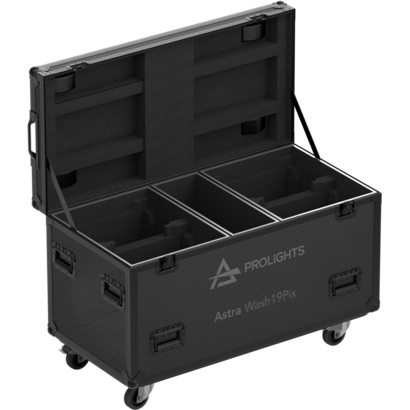

FCLASTRAW19PIX
FCLASTRAW19PIX
(Optional)

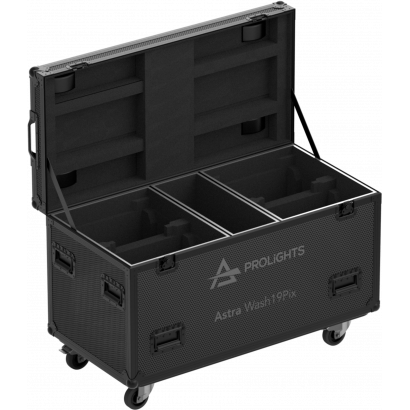

Flight case for 4 pcs of ASTRAWASH19PIX / JETWASH19
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
9513FXWL03
9513FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
958225L03
958225L03
(Optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m

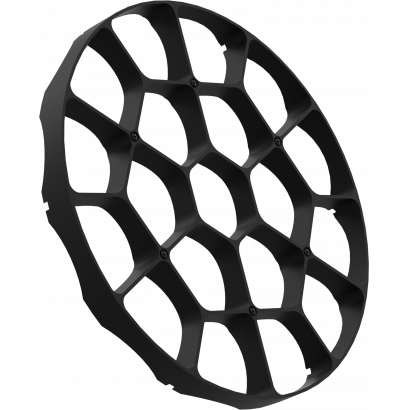

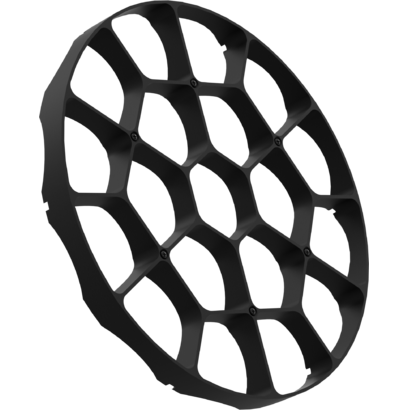

ASTRAW19PEC
ASTRAW19PEC
(Optional)
Egg Crate for ASTRAWASH19PIX

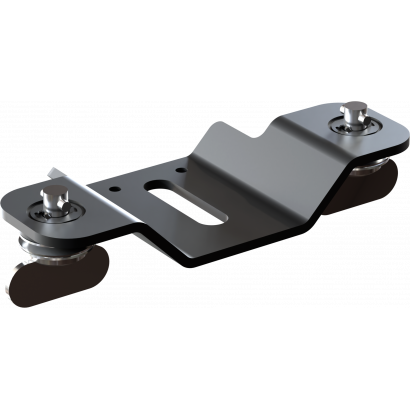

OS24D13
OS24D13
(Included)
Quick-lock omega bracket, M12 hole
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetJetwash1_A4_DATASHEET_(EN).pdf566KB
Tender SpecificationJetwash1_TENDER_SPECIFICATION.pdf4MB

User manual

DMX chart & personalities

File name File size Download
DMX chartJetwash19_DMX_CHARTS.pdf2MB
JETWASH19 Firmware rev. 1.0.08
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D SKPJetwash1_3D.skp505KB
2DJetwash1_CAD_2D.dwg16MB
3DJetwash1_CAD_3D.dwg547KB
2D cad symbolsJetwash1_CAD_2DSYMBOLS.dwg316KB
Technical drawingJetwash1_TECHNICAL_DRAWING.pdf570KB
VectorWorksVECTORWORKS_SYMBOLS.vwx551KB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB

Tech docs

File name File size Download
Noise ReportJetwash19_NOISE_REPORT.pdf244KB

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.0.08 STABLE 20/10/2023 Improvement:
  • Fan management improvements.
 Rev. Rev:1.0
