LUMIPAR12UAW
PROLIGHTS

LumiPar 12UAW

12x8W Tunable White high-power PAR LED

LumiPar 12UAW is a super-slim PAR LED designed for professional use and to be a powerful wash light. It's equipped with 12x8W high-efficiency tunable white/amber LED light source, conceived to offer an advanced colour generation with fully controlable colour saturation and temperature. LumiPar 12UAW is compatible with the infrared remote controller, for intuitive and interactive use without the need of any external DMX units and can be also controlled wirelessly through the optional USB WIFI transceiver in combination with WIFIBOX and the SmartColor app.

Main features:

  • 12x8W Tunable White high-power LED
  • Independent CT channel from 2.600 K to 6.000 K
  • Flicker-free operations with selectable PWM
  • USB port for USB WIFI transceiver (optional)
  • Silent operation and HD dimming system
See variants

PHOTO GALLERY

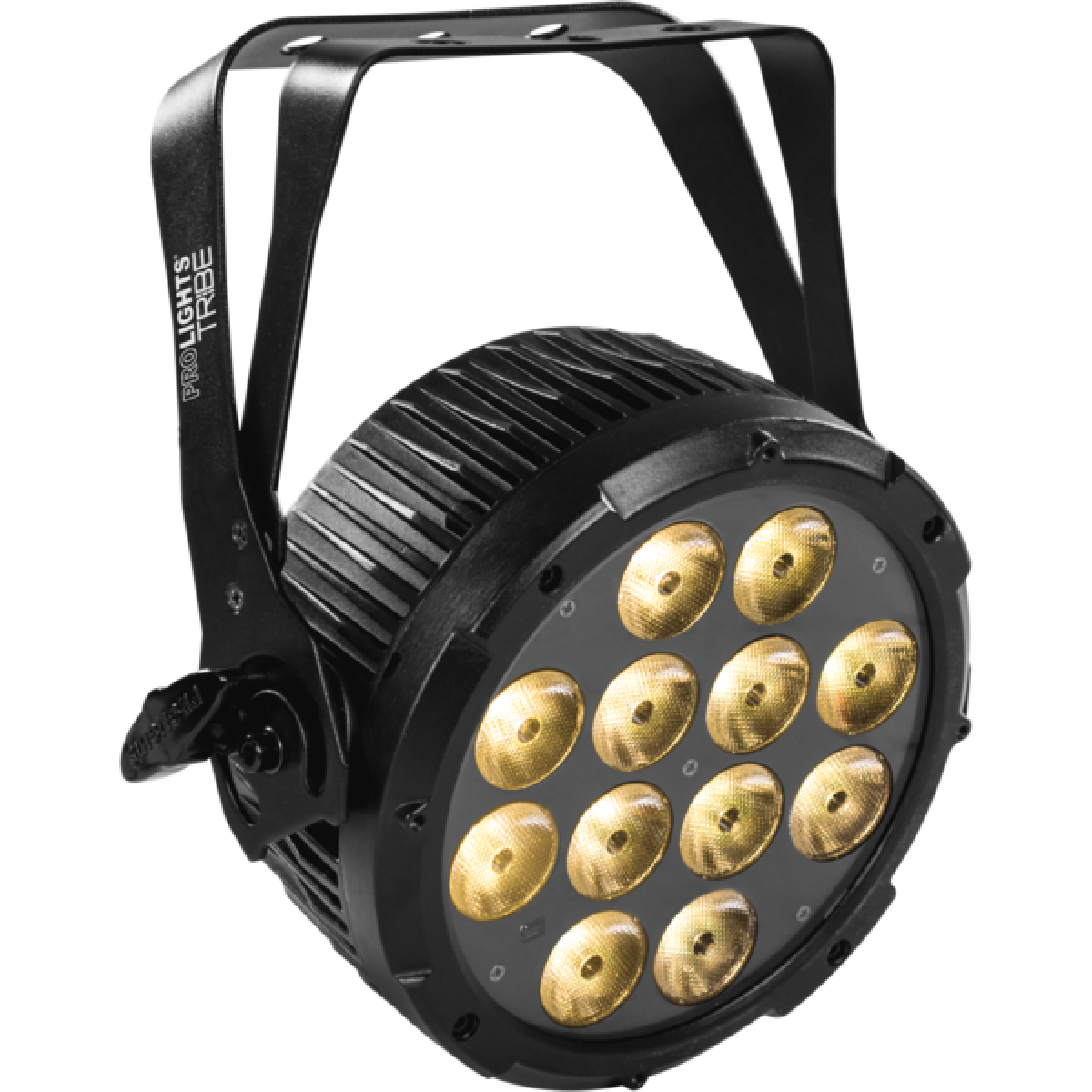

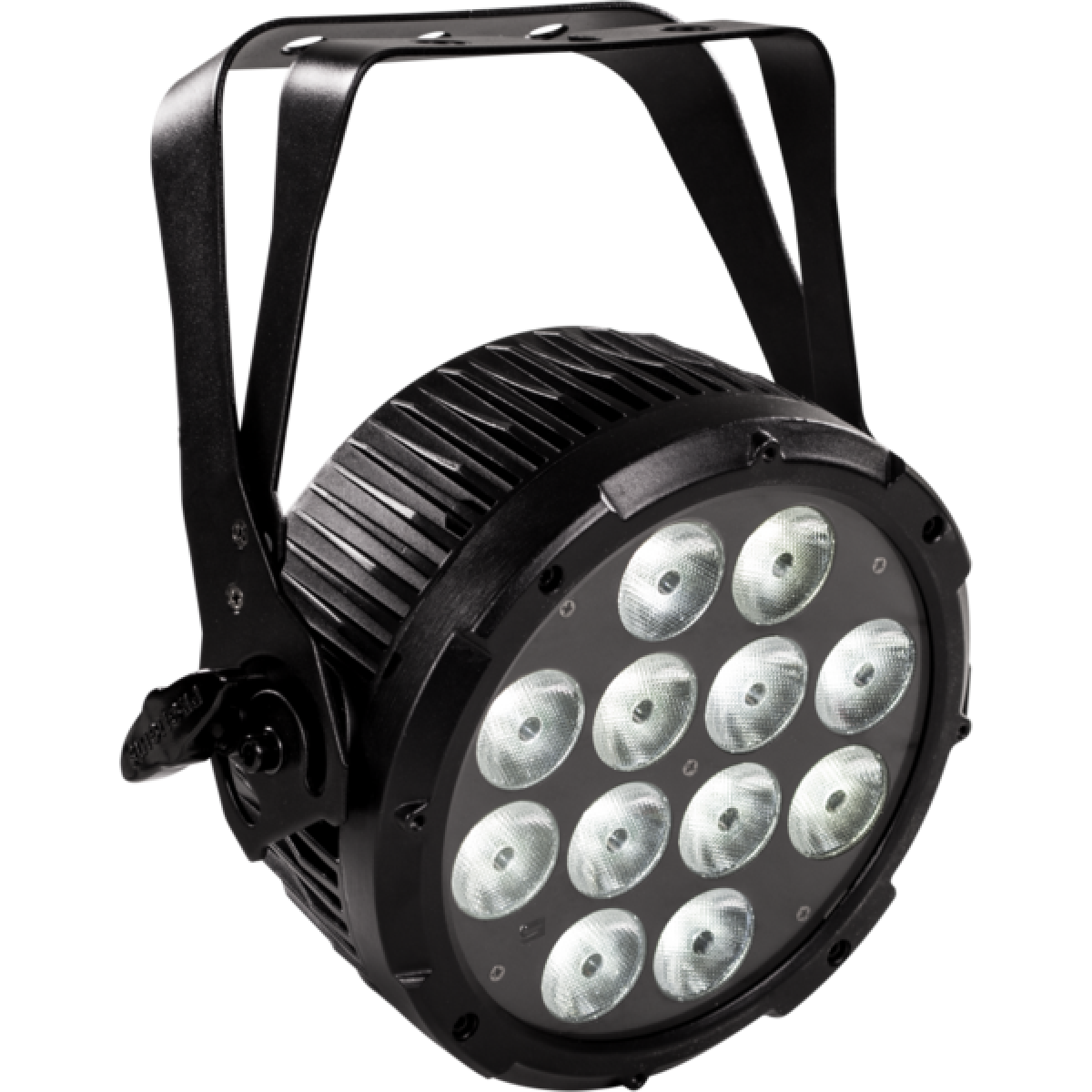

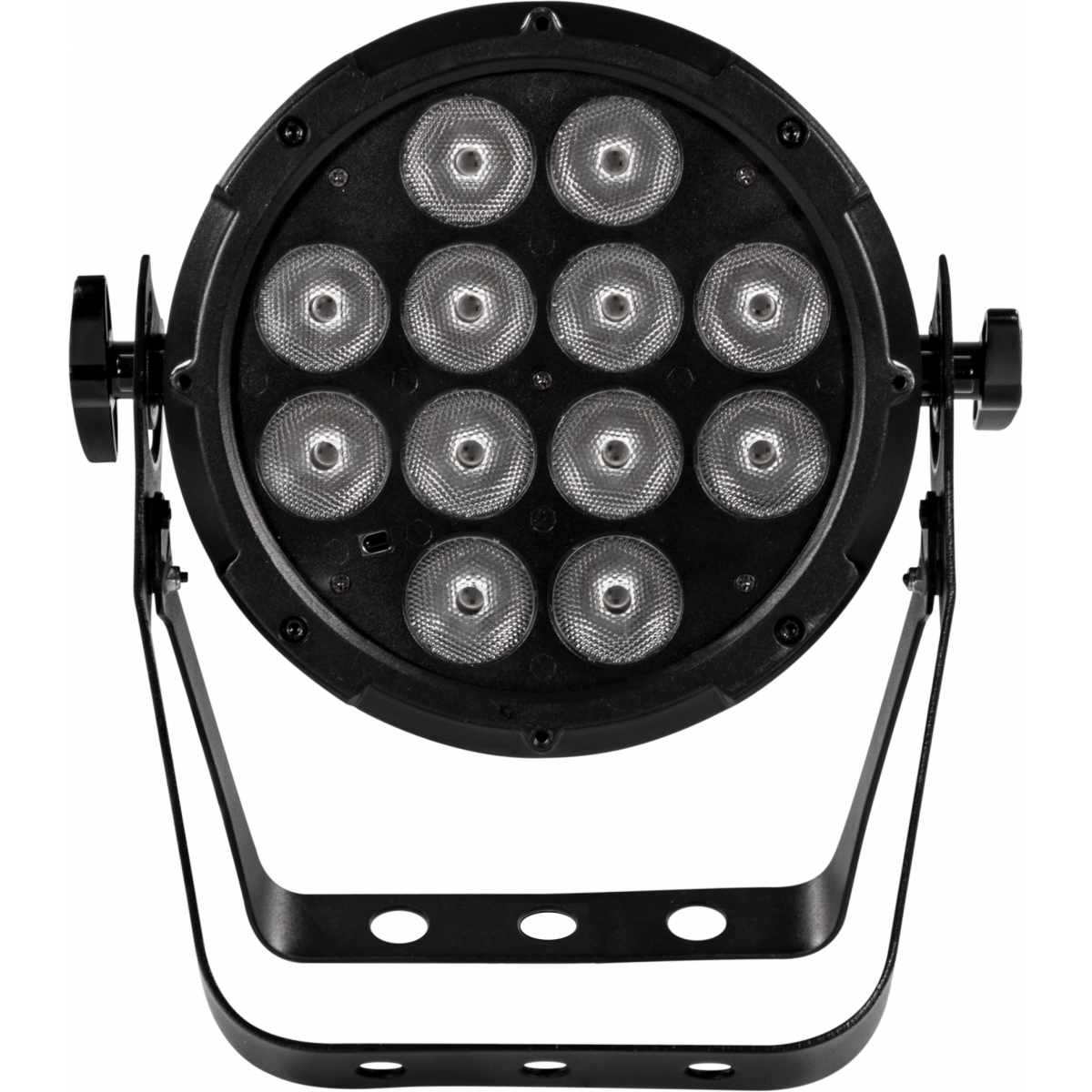

LumiPar 12UAW
LumiPar 12UAW
LumiPar 12UAW
LumiPar 12UAW
LumiPar 12UAW

Technical specifications

LIGHT SOURCE
  • Source: 12x6W Tunable White LEDs
  • CCT: (WW) 2.600 K - 2.850 K - (CW) 6.000 K - 6.500 K - (ALL) 1.600
  • Luminous flux: 1'844
  • Lux: 1'336lx @3 m
  • CRI: (WW) 82 - (CW) 80
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 16°
  • Field angle: 36°
  • Lens diameter: 38mm / 1.5''
  • Additional optics: 45° (optional)
COLOUR SYSTEM
  • Colour mixing: tunable white
  • CCT: CCT control through dedicated DMX channel
  • White presets: 2.600 K ~ 6.000K
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of dimmer and strobe
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: black
CONTROL
  • Protocols: DMX512
  • DMX channels: 3 / 7channel
  • Wireless Control: optional, proprietary protocol compatible with WIFIBOX, WDBOX
  • Display: LED display user interface
  • IR: infrared sensor controlled by remote
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Operating temperature: -10° ~ +45° Ta
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 61W
  • Max power consumption (at 120V): 61,5W
  • Output (at 230V): 40 units on a single power line
  • Output (at 120V): 21 units on a single power line
PHYSICAL
  • IP rating: 44
  • IK rating: 07
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
  • Data: USB port for USB WIFI transmitter (optional)
  • Signal connection: variants available
  • Power connection: Seetronic powerCON IN/OUT connectors
  • Dimensions (WxHxD): 253x200x237mm / 9.96''x7.87''x9.33''
  • Weight: 3,3kg / 7.28lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM

Versions

Code
Power
DMX

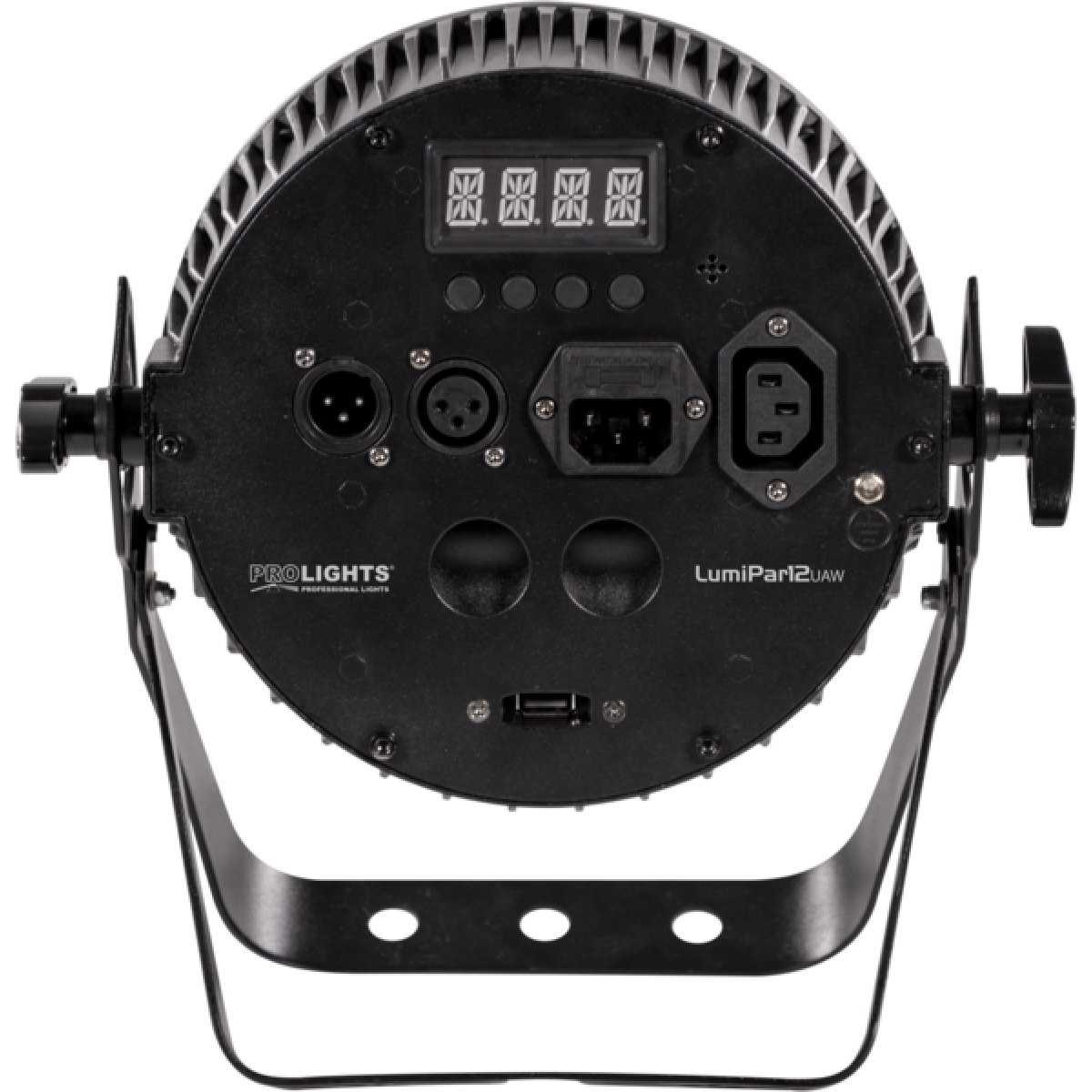

LUMIPAR12UAW3
LUMIPAR12UAW3
IEC
3p

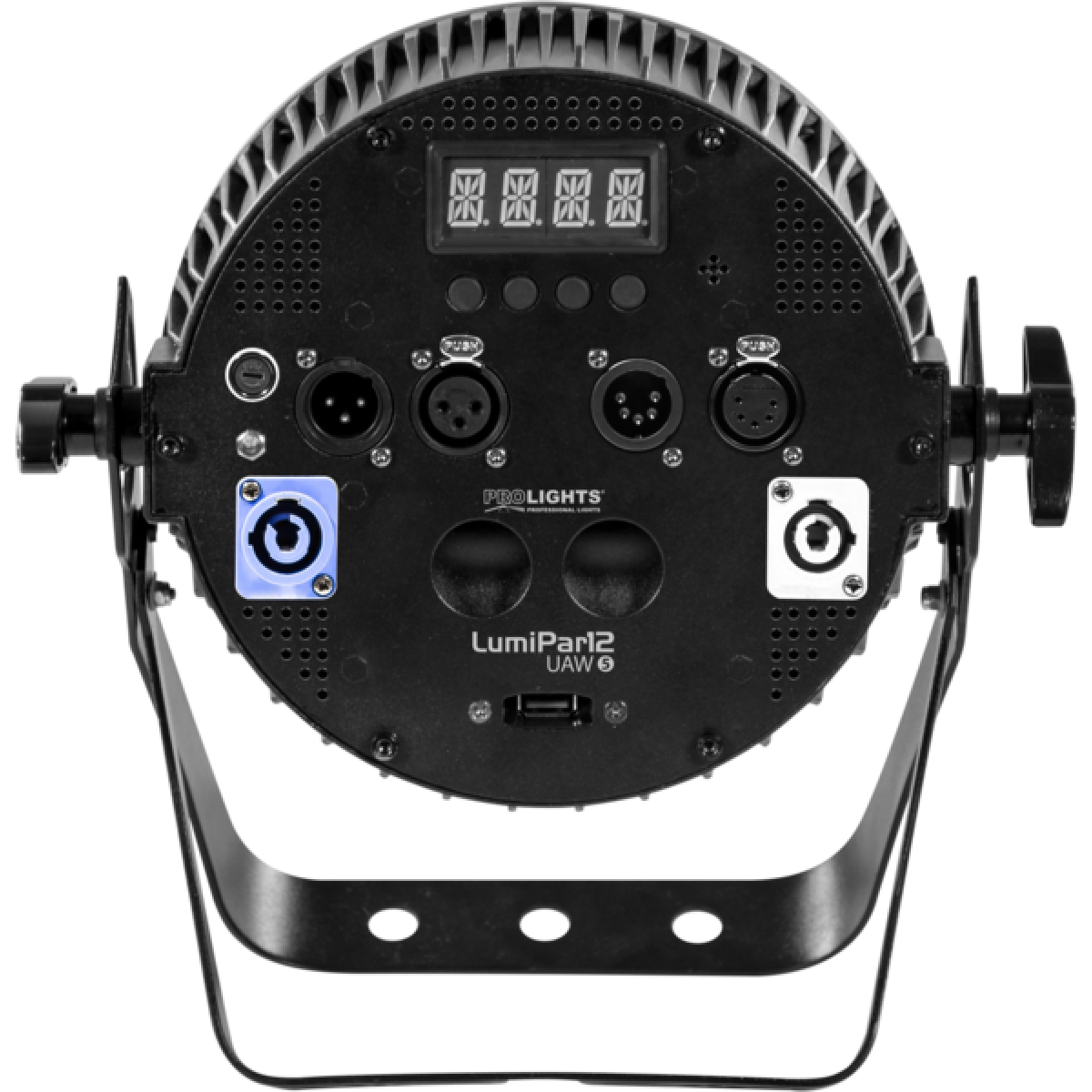

LUMIPAR12UAW5
LUMIPAR12UAW5 (END OF LIFE)
PowerCON
3p+5p

Accessories & Related Products

C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
TOUR53413L03
TOUR53413L03
(Optional)
Dmx cable HC5340. CANC3MXX XLR 3p->CANC3FXX XLR (f) 3p, L.3m
TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
ARCLUMIL45D38
ARCLUMIL45D38
(Optional)
Optic lens 45°, D.38mm
<b>WIFI</b>-USB
WIFI-USB
(Optional)
USB Wi-Fi transreceiver, compatible with WIFIBOX and WDBOX
<b>WIFI</b>-Box
WIFI-Box
(Optional)
DMX controller interface, Wi-Fi/DMX IN, Wi-Fi / DMX OUT
<b>WD</b>-Box
WD-Box
(Optional)
Wireless DMX Transceiver, IN/OUT 3-pin XLR, distance 200m, 2.4 GHz, 0.6 kg
LUMIPARIRCH
LUMIPARIRCH
(Optional)
RGBWA IR remote controller, manual / auto modes, for LUMIPAR IR series
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetLumipar12uaw_A4_DATASHEET_(IT).pdf257KB
Letter datasheetLumipar12uaw_A4_DATASHEET_(EN).pdf266KB

User manual

File name File size Download
User manualLumipar12uaw_USER_MANUAL_ITEN.pdf2MB

DMX chart & personalities

File name File size Download
LUMIPAR12UAW Firmware rev. 1.4
manufacturer fixture library (Link) Link
prolights_lumipar12uaw_3ch.hedDownload
prolights_lumipar12uaw_7ch.hedDownload

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download
2DLUMIPAR12UAW_2D.zip9MB
Technical drawingLUMIPAR12UAW_TECHNICAL DRAWINGS.zip675KB
VectorWorksLUMIPAR12UAW_SYMBOLS.zip2MB
VectorWorksPROLIGHTS_VECTORWORKS_v2025_LIBRARY.vwx321MB
VectorWorksPROLIGHTS_VECTORWORKS_v2025_LIBRARY.vwx321MB
VectorWorksPROLIGHTS_VECTORWORKS_v2020_LIBRARY.vwx276MB
VectorWorksPROLIGHTS_VECTORWORKS_v2020_LIBRARY.vwx276MB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.4 STABLE 05/08/2016 Improved power management. Improved temperature management.
