LUMIPAR7IP
PROLIGHTS

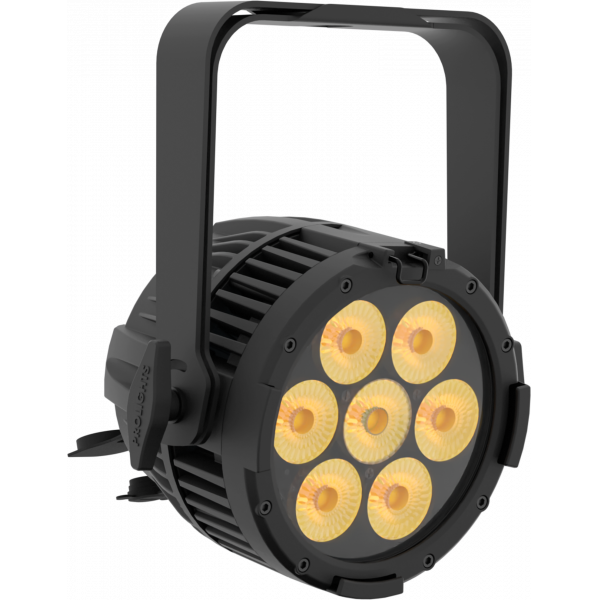

LumiPar 7IP

7x9W RGBW compact IP65 LED PAR

LumiPar 7IP is a compact and flexible IP LED PAR made for small concerts and theatres, and to perform as architectural accent luminaire for outdoor events. The housing in die-cast aluminium is designed to feature both as a robust workhorse and totally fanless being totally silent during its operation.

Main features:

  • IP65 die-cast aluminium housing
  • 7x9W RGBW LED PAR
  • Fanless and flicker-free operation for IMAG and broadcast
  • Filter frame included
See variants

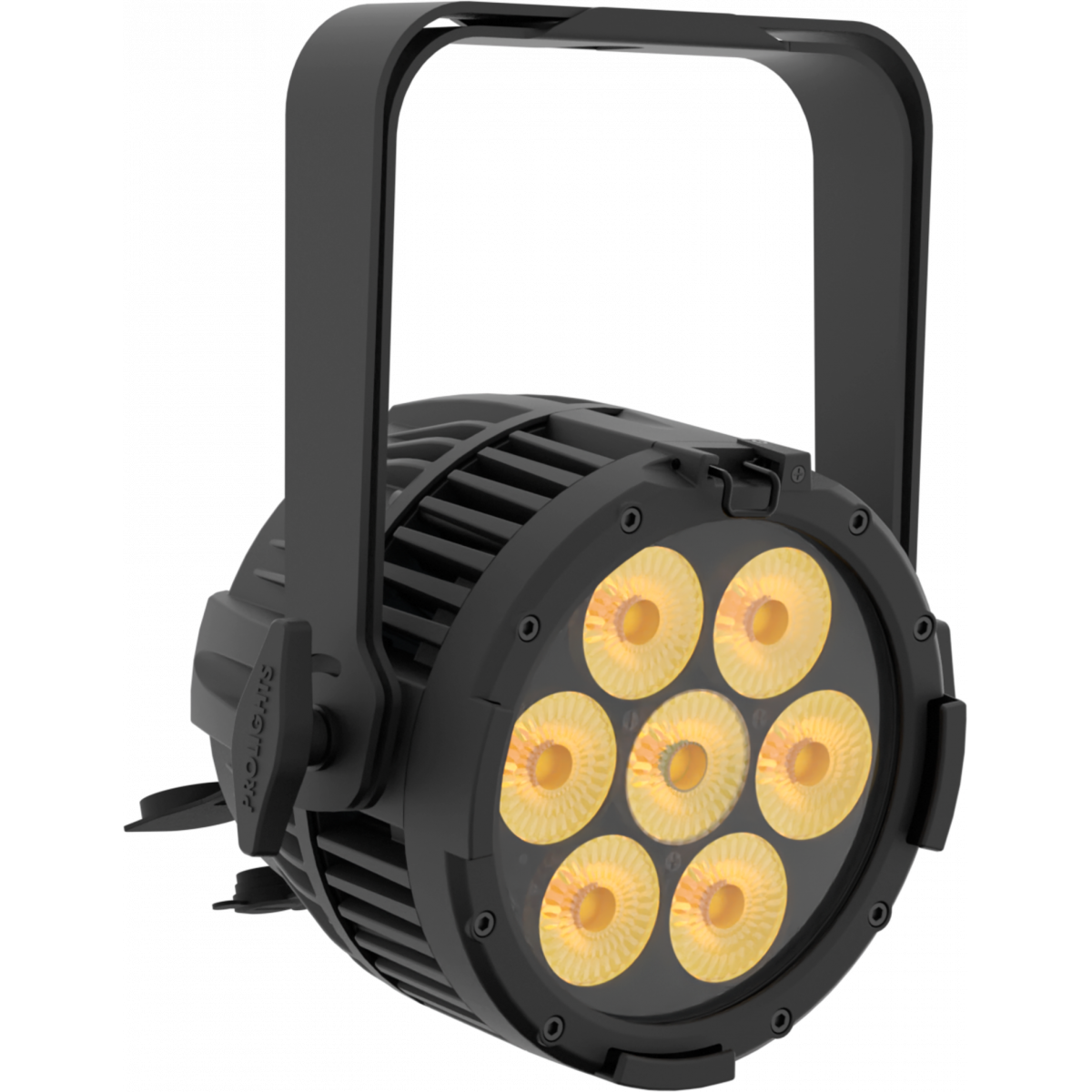

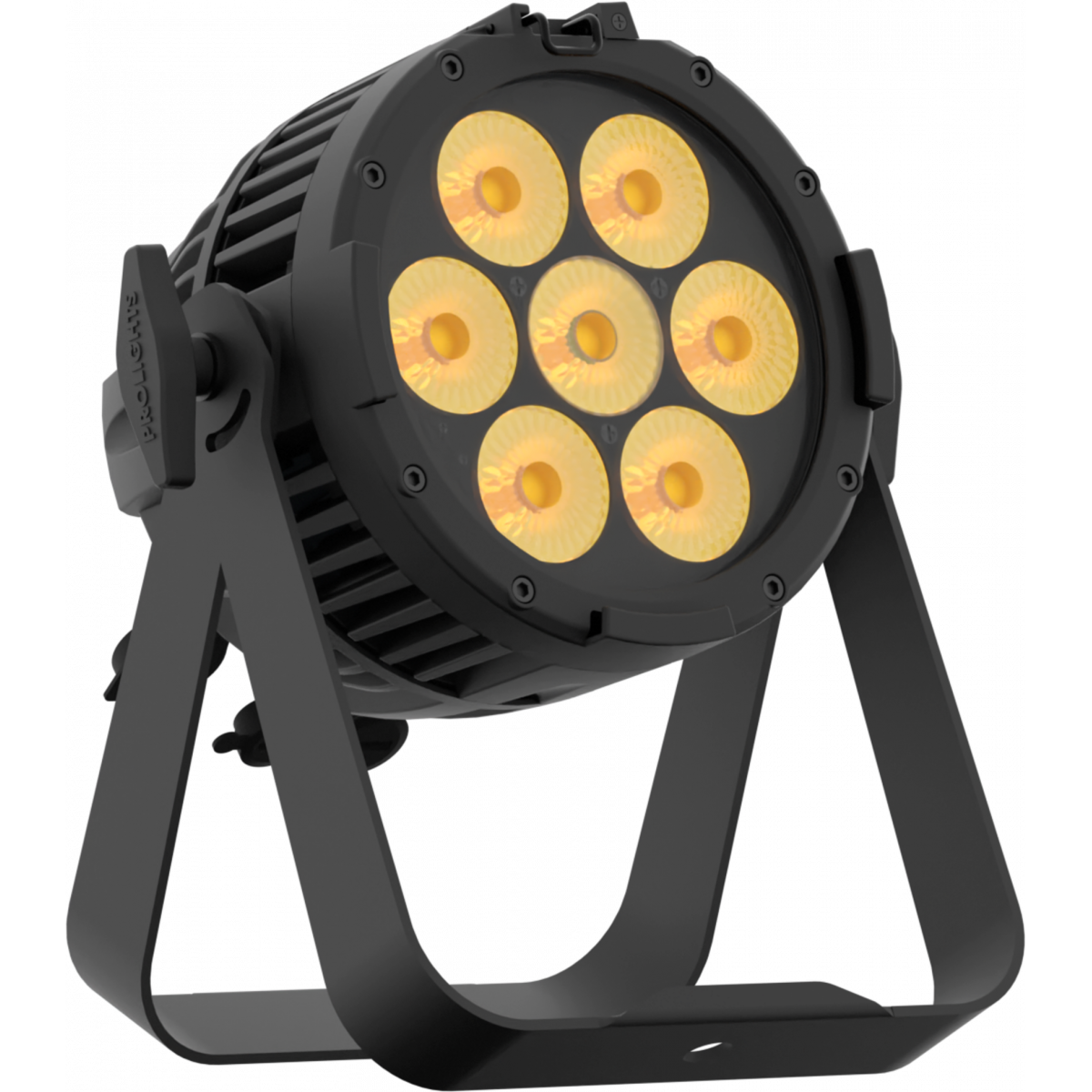

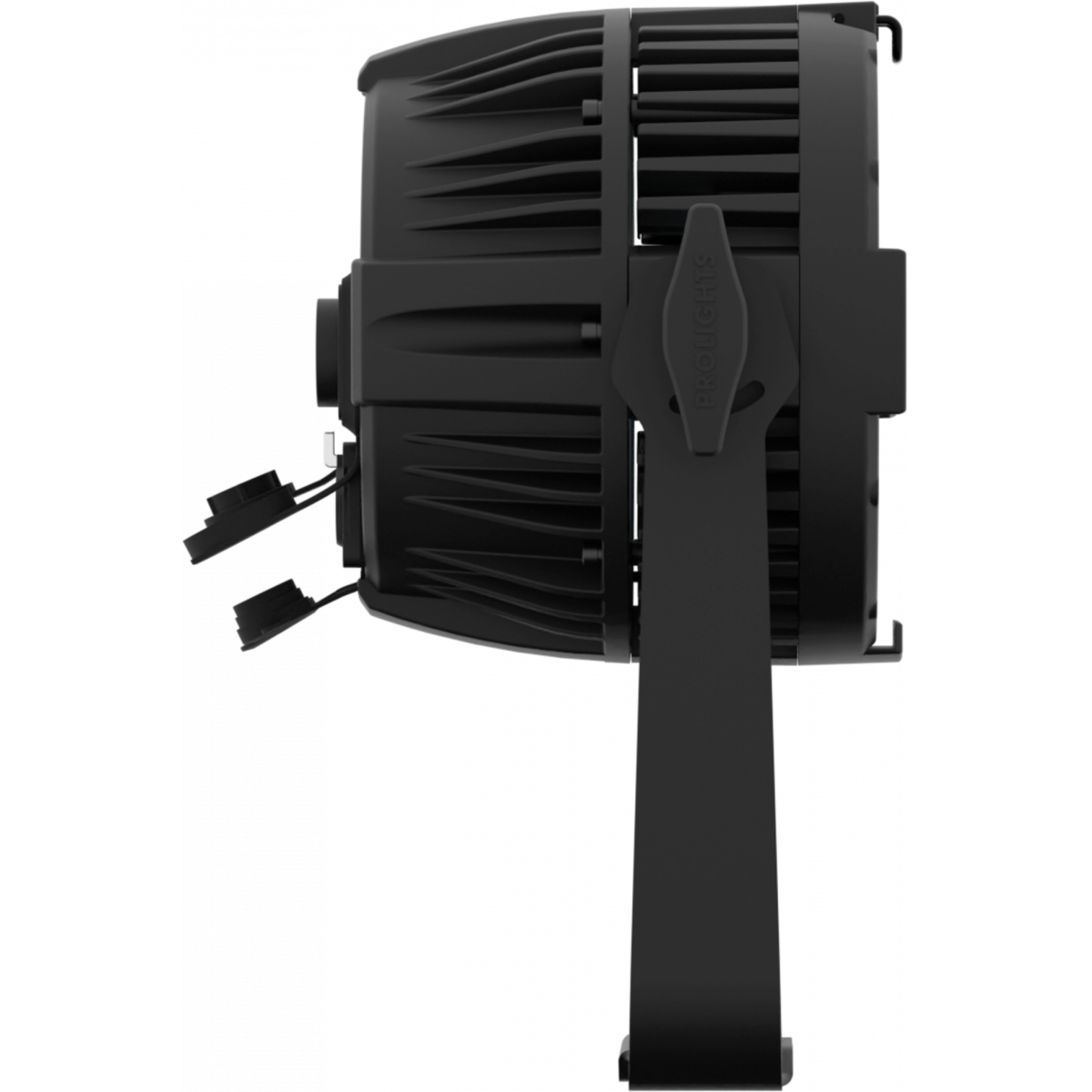

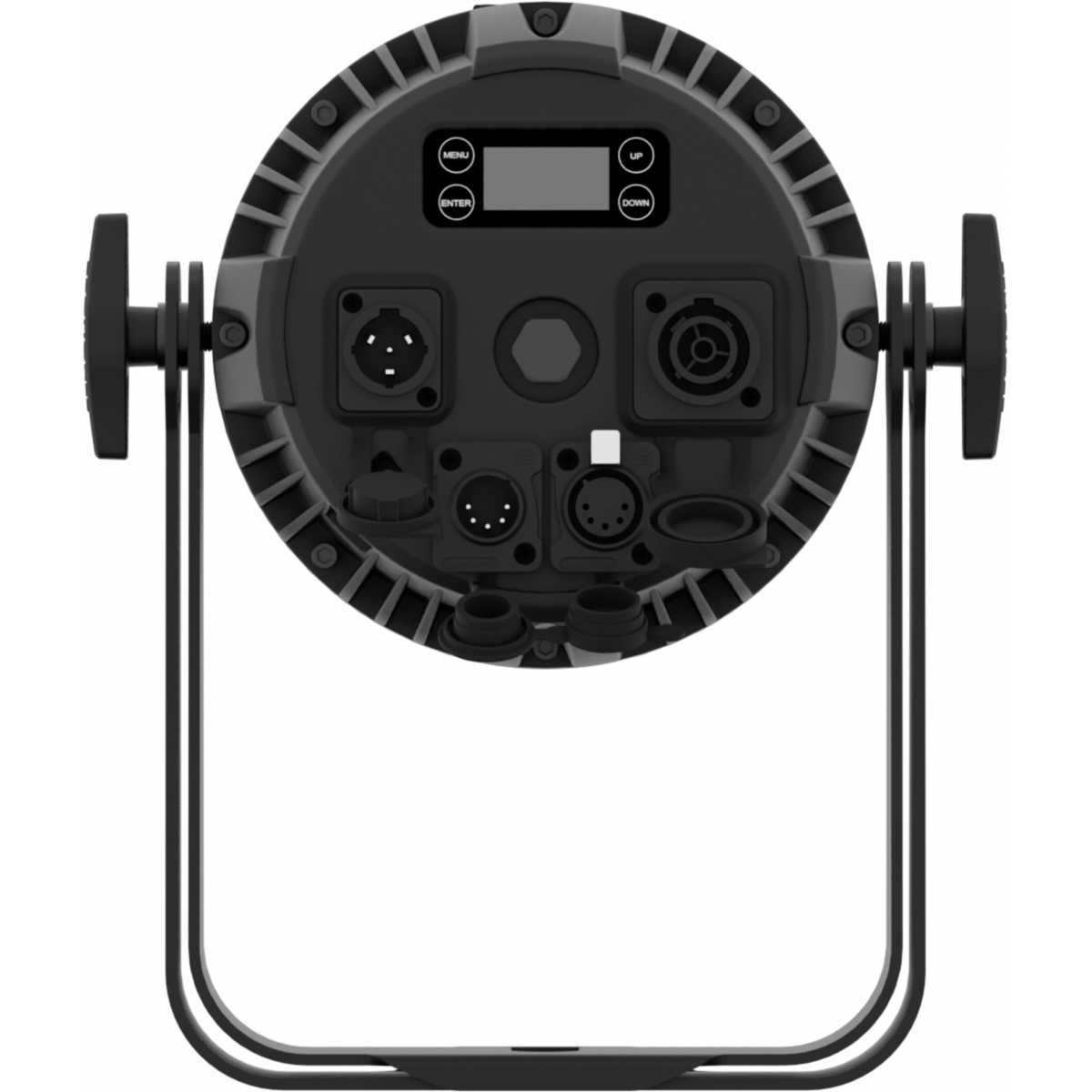

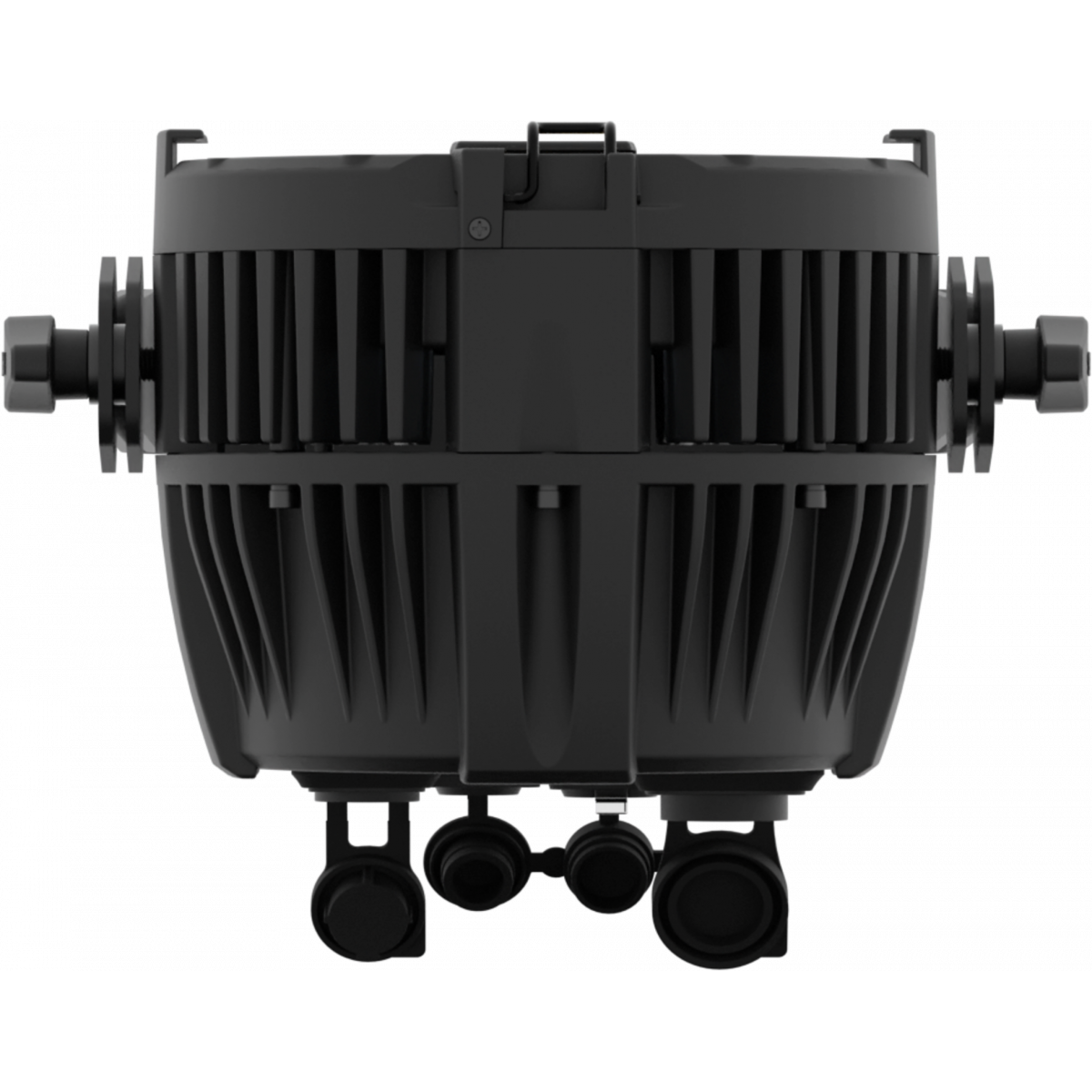

PHOTO GALLERY

LumiPar 7IP
LumiPar 7IP
LumiPar 7IP
LumiPar 7IP
LumiPar 7IP

Technical specifications

LIGHT SOURCE
  • Source: 7x9W RGBW LEDs
  • Luminous flux: (20°) 2'945 lm - (45°) 3'835
  • Lux: (20°) 1'923lx @3 m full
  • Lux: (45°) 654lx @3 m full
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: available in 20° or 45°
  • Field angle: 36° or 60°
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • White presets: 3.000 K ~ 10.000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: built-in white presets
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: black
CONTROL
  • Protocols: DMX512
  • DMX channels: 4 / 6 / 11channel
  • Display: black OLED touch display
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 0 - 30 Hz, electronic
  • Operating temperature: -20° ~ +45° Ta
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 65W
  • Max power consumption (at 120V): 64W
  • Output (at 230V): 32 units on a single power line
PHYSICAL
  • IP rating: 65 for temporary outdoor application, not for fixed installations
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
  • Signal connection: Seetronic XLR 5p IN/OUT connectors
  • Power connection: Seetronic powerCON TRUE IP65 IN/OUT
  • Dimensions (WxHxD): 240x286x154mm / 9.45''x11.26''x6.06''
  • Weight: 3,64kg / 8.02lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Code
Optics
LUMIPAR7IP20D
LUMIPAR7IP20D
20°
LUMIPAR7IP45D
LUMIPAR7IP45D (DISCONTINUED)
45°

Accessories & Related Products

ARCLUMIL15D45
ARCLUMIL15D45
(Optional)
Optic lens 15°, D.45mm
ARCLUMIL25D45
ARCLUMIL25D45
(Optional)
Optic lens 25°, D.45mm
ARCLUMIL45D45
ARCLUMIL45D45
(Optional)
Optic lens 45°, D.45mm
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetLumipar7ip_A4_DATASHEET_(IT).pdf172KB
Letter datasheetLumipar7ip_A4_DATASHEET_(EN).pdf172KB

User manual

DMX chart & personalities

File name File size Download
DMX chartLumipar7ip_DMX_CHARTS.pdf46KB
LUMIPAR7IP Firmware rev. 1.3
manufacturer fixture library (Link) Link
prolights_lumipar7ip.d4Download
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights_lumipar7ip_4ch.hedDownload
prolights_lumipar7ip_6ch.hedDownload
prolights_lumipar7ip_11ch.hedDownload
manufacturer fixture library (Link) Link
prolights@lumipar7ip@4ch.xmlDownload
prolights@lumipar7ip@6ch.xmlDownload
prolights@lumipar7ip@11ch.xmlDownload
manufacturer fixture library (Link) Link
LUMIPAR7IP Firmware rev. 1.2
manufacturer fixture library (Link) Link
prolights_lumipar7ip.d4Download
manufacturer fixture library (Link) Link
prolights_lumipar7ip_4ch.hedDownload
prolights_lumipar7ip_6ch.hedDownload
prolights_lumipar7ip_11ch.hedDownload
prolights@lumipar7ip@4ch.xmlDownload
prolights@lumipar7ip@6ch.xmlDownload
prolights@lumipar7ip@11ch.xmlDownload

Photometrics

CAD symbols & drawings

File name File size Download
2DLumipar7ip_CAD_2D.dwg11MB
Technical drawingLumipar7ip_TECHNICAL_DRAWING.pdf397KB
VectorWorksLUMIPAR7IP_SYMBOLS.zip956KB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.3 STABLE 08/02/2023 New functions:
  • Added RDM functionality

Fixed bugs:
  • Fixed display bug on power off
1.2 STABLE 17/12/2018 10 second default display backlight
