LUMIPIX12QIP

LumiPix 12QIP

DISCONTINUED

Order Code: LUMIPIX12QIP

Source
12x8W RGBW LED
IP rating
 IP65 for temporary outdoor application, not for fixed installations
Weight
7,1kg / 15.65lbs

Key Features

  • 12x8W RGBW / FC high-power LED
  • Pixel control of every individual LED
  • IP65 design to be robust, waterproof and silent for studio application
  • Flicker free operations
  • Silent operation and linear dimming system

LUMIPIX12QIP is an outdoor linear LED batten of 100 cm size designed for professional use giving unprecedented chromatic performance. The super-slim design coupled with its extreme colour precision and light output make LUMIPIX12QIP a flexible and versatile solution for every kind of application as architectural, cyclorama, wall-washer, pixel effect, blinder.

Read less
LUMIPIX12QIP is an outdoor linear LED batten of 100 cm size designed for professional use giving unprecedented chromatic performance. The super-slim design coupled with its extreme colour precision an...

Photo Gallery

LUMIPIX12QIP
LUMIPIX12QIP
LUMIPIX12QIP
LUMIPIX12QIP

Specifications

LIGHT SOURCE
  • Source: 12x8W RGBW LED
  • Luminous flux: 3'550
  • Lux: (22°) 2'902lx @3 m full
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 22°
  • Lens diameter: 42mm / 1.65''
  • Additional optics: 25° - 45° (optional)
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • Colour wheel: virtual colour wheel with macros
  • Macros: several pre-built pixel macros with adjustable speed
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: black
CONTROL
  • Protocols: DMX512
  • DMX channels: 4 / 6 / 10 / 48 / 53channel
  • Pixel control: pixel2pixel control
  • Display: LCD display
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 5 selectable dimming modes available
  • Strobe / shutter: 1 - 25 Hz, electronic
  • Operating temperature: -10° ~ +45° Ta
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 120W
  • Max power consumption (at 120V): 120W
  • Output (at 230V): 16 units on a single power line
PHYSICAL
  • IP rating: IP65 for temporary outdoor application, not for fixed installations
  • Cooling: natural convection cooling enabled by a fanless design and a chassis engineered for passive heat dissipation
  • Suspension and fixing: bracket for hanging and positioning
  • Adaptors: XLR and BARE END 16A adaptors included
  • Signal connection: IP IN/OUT DMX connector
  • Power connection: IP IN/OUT power connector
  • Dimensions (WxHxD): 995x100x186mm / 39.17''x3.94''x7.32''
  • Weight: 7,1kg / 15.65lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT
  • 1 x LUMIPIX12QIP
  • 1 x BARE END - IP connection adapter
  • 1 x 5p XLR - IP connection male adapter
  • 1 x 5p XLR - IP connection female adapter
  • User Manual

Accessories & Related Products

Included ARCLUMIL15D42

Optic lens 22°, D.42mm

Order Code: ARCLUMIL15D42

Optional RSR0630B

Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black

Order Code: RSR0630B

Optional C6002B

Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White

Order Code: C6002B

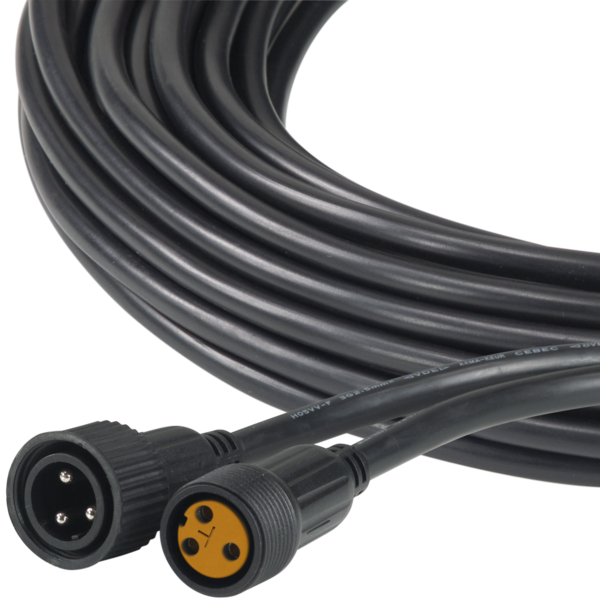

Optional ARCEXAC3

Order Code: ARCEXAC3

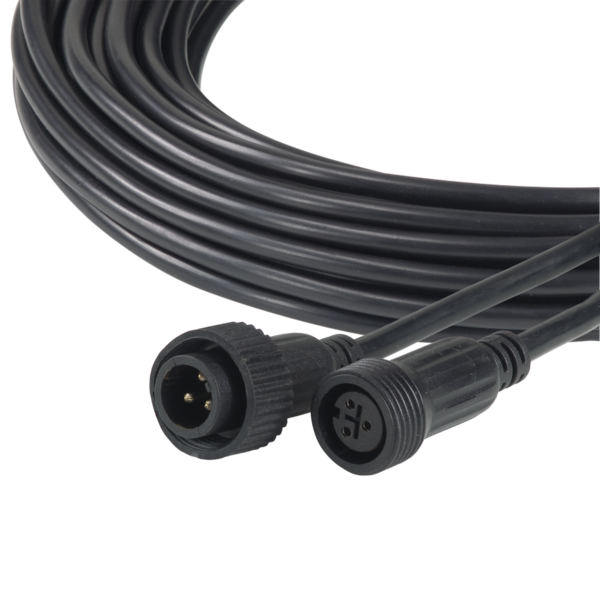

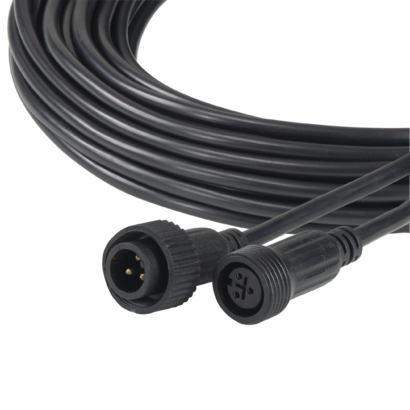

Optional ARCEXDC3

Order Code: ARCEXDC3

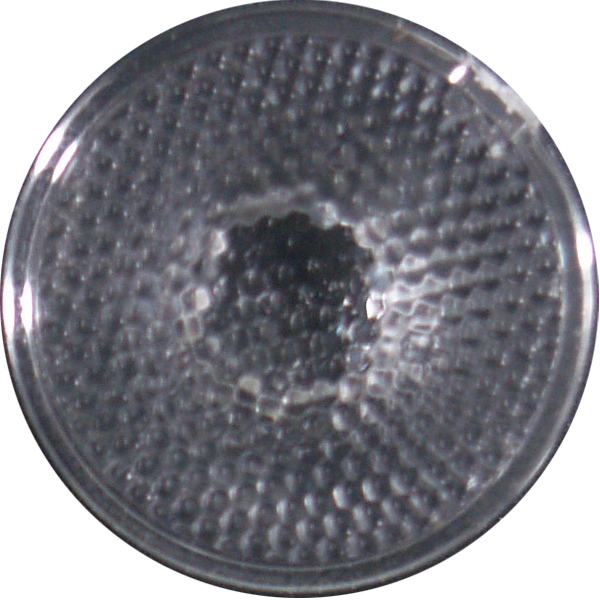

Optional ARCLUMIL25D42

Optic lens 25°, D.42mm

Order Code: ARCLUMIL25D42

Optional ARCLUMIL45D42

Optic lens 45°, D.42mm

Order Code: ARCLUMIL45D42

Optional UPBOXPRO

Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

Order Code: UPBOXPRO

Downloads

Technical documentation and support files

Data sheet & specs Data sheet & specs

File name File size Download
Letter datasheetLumipix12qip_A4_DATASHEET_(EN).pdf(25/09/2024)360KB
Letter datasheetLumipix12qip_A4_DATASHEET.pdf(19/06/2020)521KB

User manual User manual

File name File size Download
User manualLumipix12qip_USER_MANUAL_ITEN.pdf(23/12/2013)3MB

DMX chart & personalities DMX chart & personalities

File name File size Download
DMX chartLumipix12qip_DMX_CHARTS.pdf(07/11/2017)51KB

LUMIPIX12QIP Firmware rev. 1.5

manufacturer fixture library (Link) Link
prolights_lumipix12qip.d4Download
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
lumipix12qip_4ch.fdfDownload
lumipix12qip_6ch.fdfDownload
lumipix12qip_10ch.fdfDownload
lumipix12qip_48ch.fdfDownload
lumipix12qip_53ch.fdfDownload
lumipix12qip_4ch.ssl2Download
lumipix12q_6ch.ssl2Download
lumipix12q_10ch.ssl2Download
lumipix12qip_48ch.ssl2Download
lumipix12qip_53ch.ssl2Download
manufacturer fixture library (Link) Link
prolights@lumipix12qip_4ch@.xmlDownload
prolights@lumipix12qip_6ch@.xmlDownload
prolights@lumipix12qip_10ch@.xmlDownload
prolights@lumipix_12q_ip@53_channel@ma_library_update_v15.0.xmlpDownload
prolights@lumipix_12q_ip@48_channel@ma_library_update_v13.5.xmlpDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
lumipix 12q ip 4 channel.fix2Download
lumipix 12q ip 6 channel.fix2Download
lumipix 12q ip 10 channel.fix2Download
lumipix 12q ip 48 channel.fix2Download
lumipix 12q ip 53 channel.fix2Download
manufacturer fixture library (Link) Link

Photometrics Photometrics

File name File size Download
IESprolights_lumipix12qip_blue_15°.ies(17/07/2018)64KB
IESprolights_lumipix12qip_full_15°.ies(17/07/2018)64KB
IESprolights_lumipix12qip_green_15°.ies(17/07/2018)64KB
IESprolights_lumipix12qip_red_15°.ies(17/07/2018)64KB
IESprolights_lumipix12qip_white_15°.ies(17/07/2018)64KB
DialuxDownload DIALux product catalogue-

CAD symbols & drawings CAD symbols & drawings

File name File size Download
2DLumipix12qip_CAD_2D.dwg(28/04/2021)602KB
Technical drawingLumipix12qip_TECHNICAL_DRAWING.pdf(28/04/2021)123KB

Firmware


Firmware update instructions

1 Download the firmware (complete download is available on Customer Care - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Additional info:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all interfaces (UPBOXPRO, UPBOX1 and UPBOX2)
  • It's possible to update NET boards (with .EHEX files) following this guide with software Professional Uploader
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.5 STABLE 06/03/2017 Improved power on management. Rev. 1
