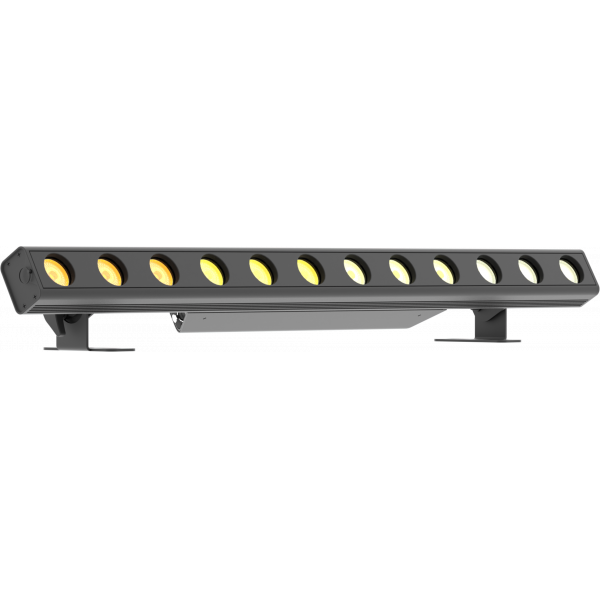

LumiPix 12QTour

ORDER CODE: LUMIPIX12QTOUR

12x10W RGBW/FC indoor LED batten

LumiPix 12QTour is a 100 cm linear LED batten designed for professional use granting unprecedented chromatic performance. The super-slim design combined with its extreme colour precision and light output make LumiPix 12QTour a highly flexible and versatile solution for any kind of application or venue such as architectural, cyclorama, wall-washer, pixel effect or blinder.

Main features:

  • 12x10W RGBW/FC high-power LED
  • Pixel control of every individual LED
  • PowerCON IN/OUT and XLR 5p IN/OUT
See variants

PHOTO GALLERY

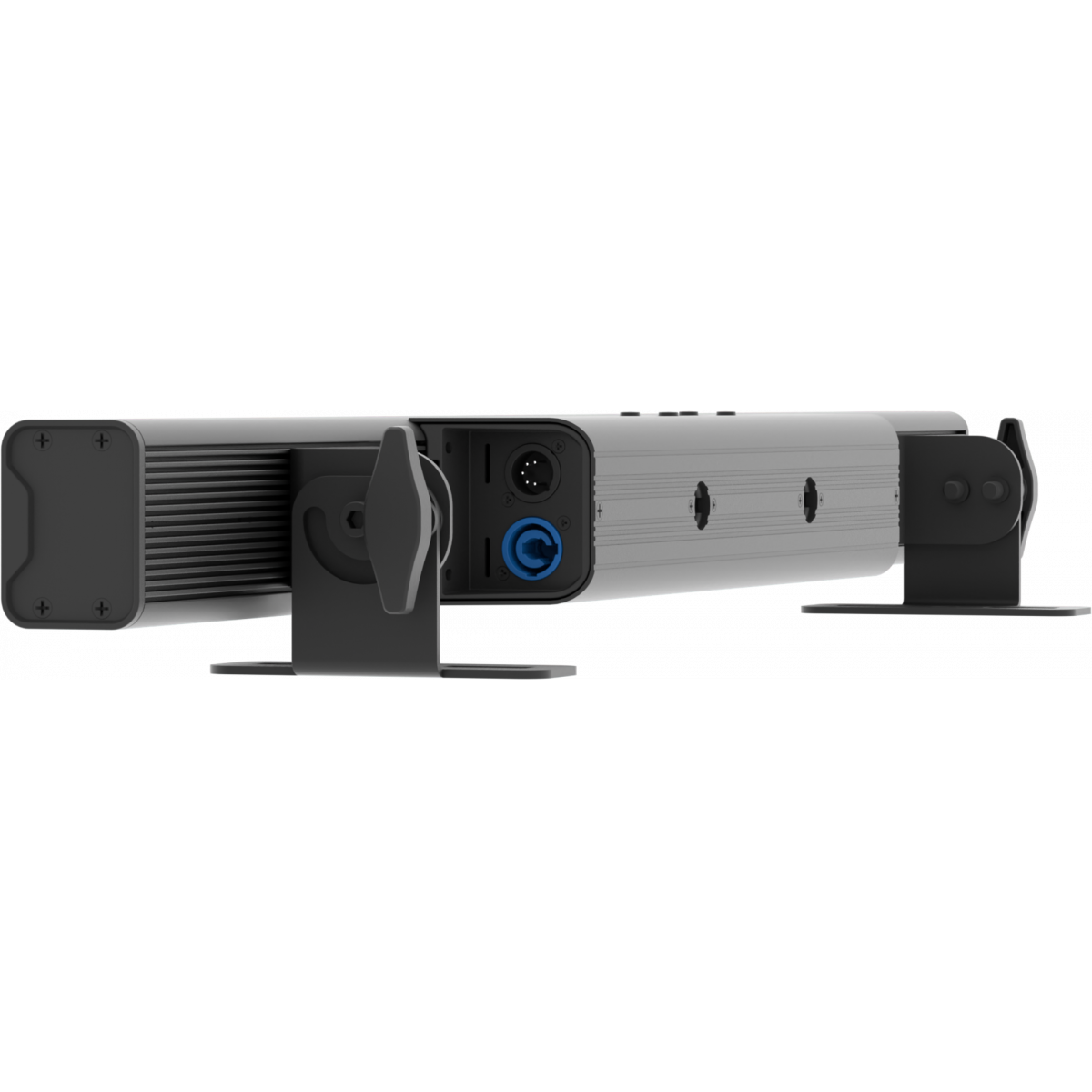

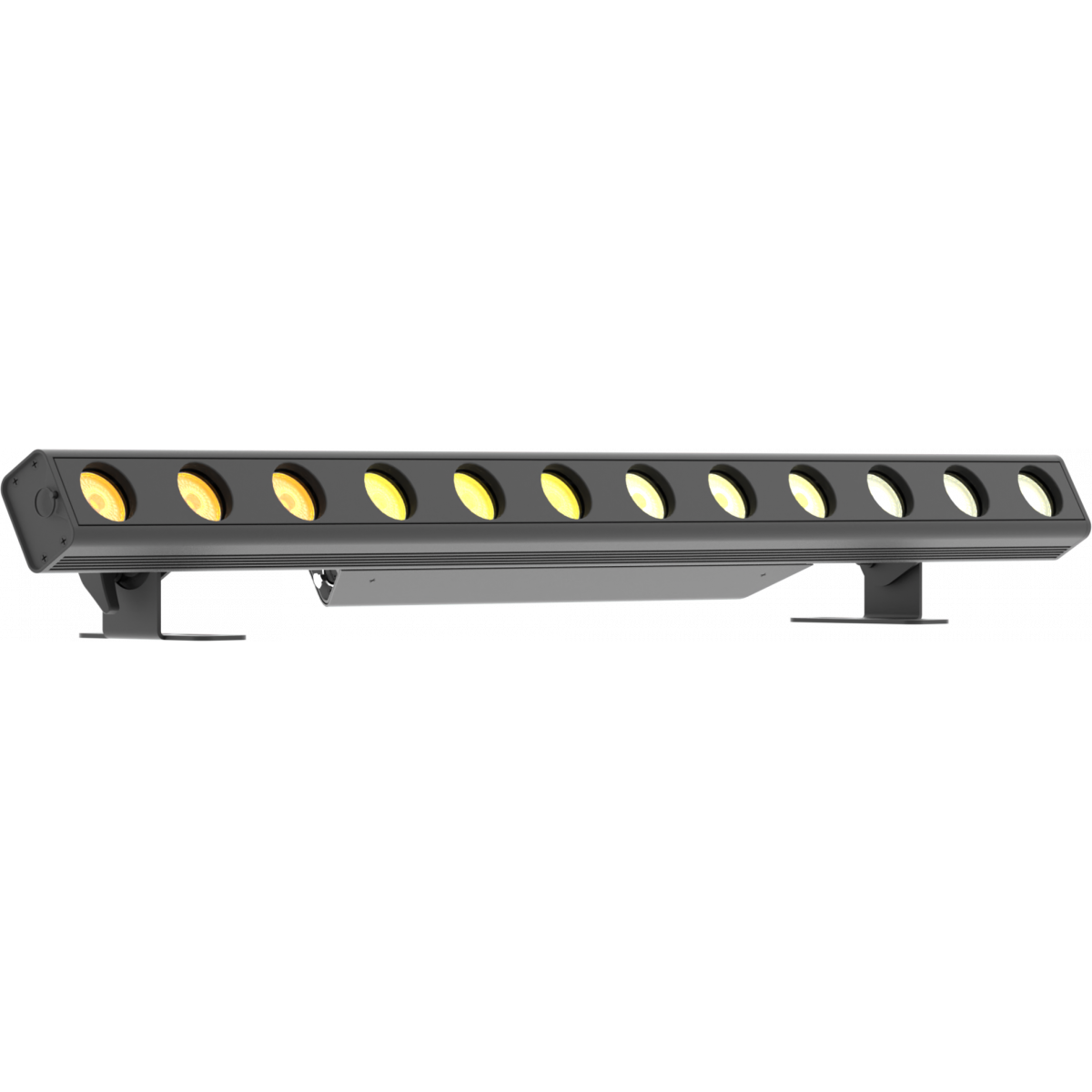

LumiPix 12QTour

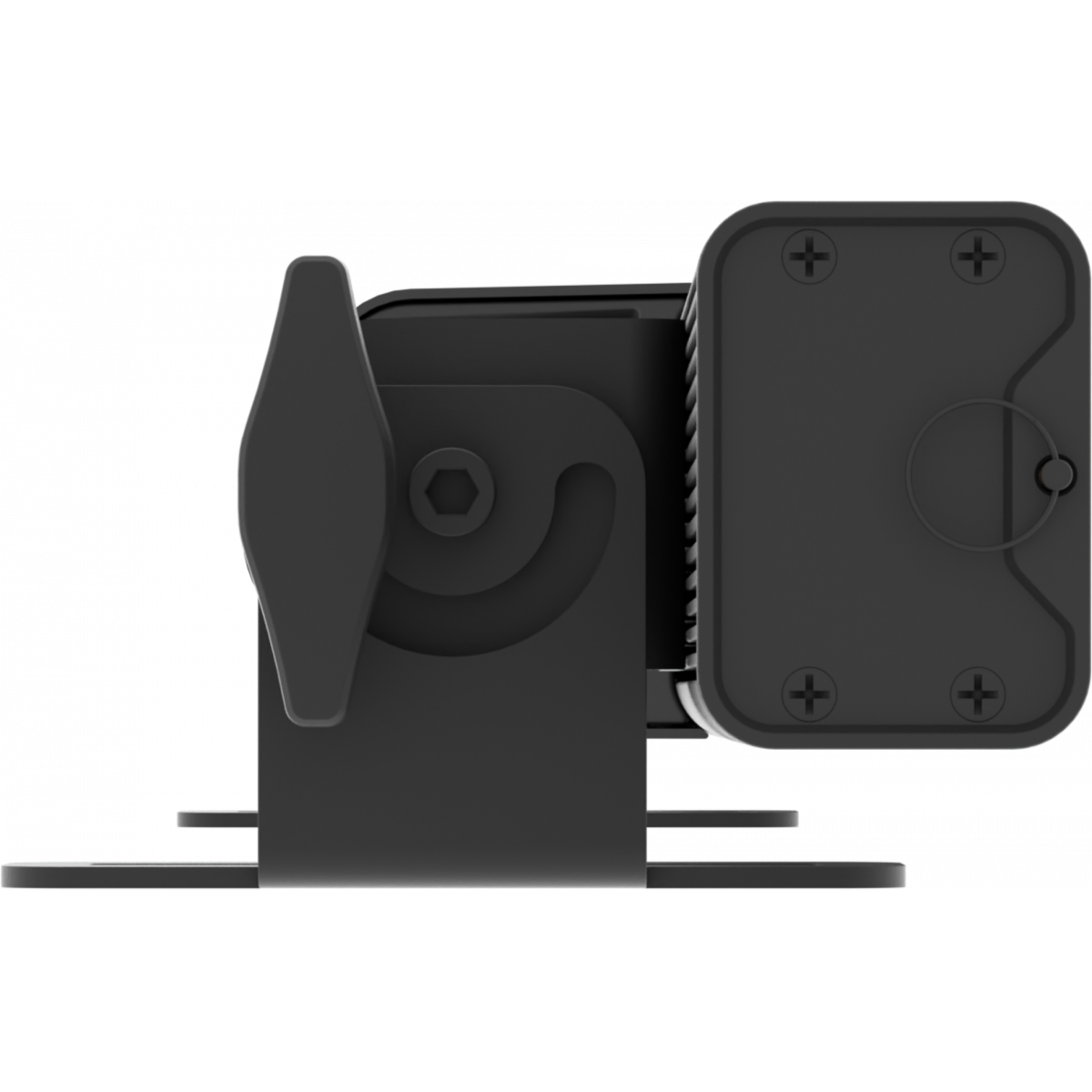

LumiPix 12QTour

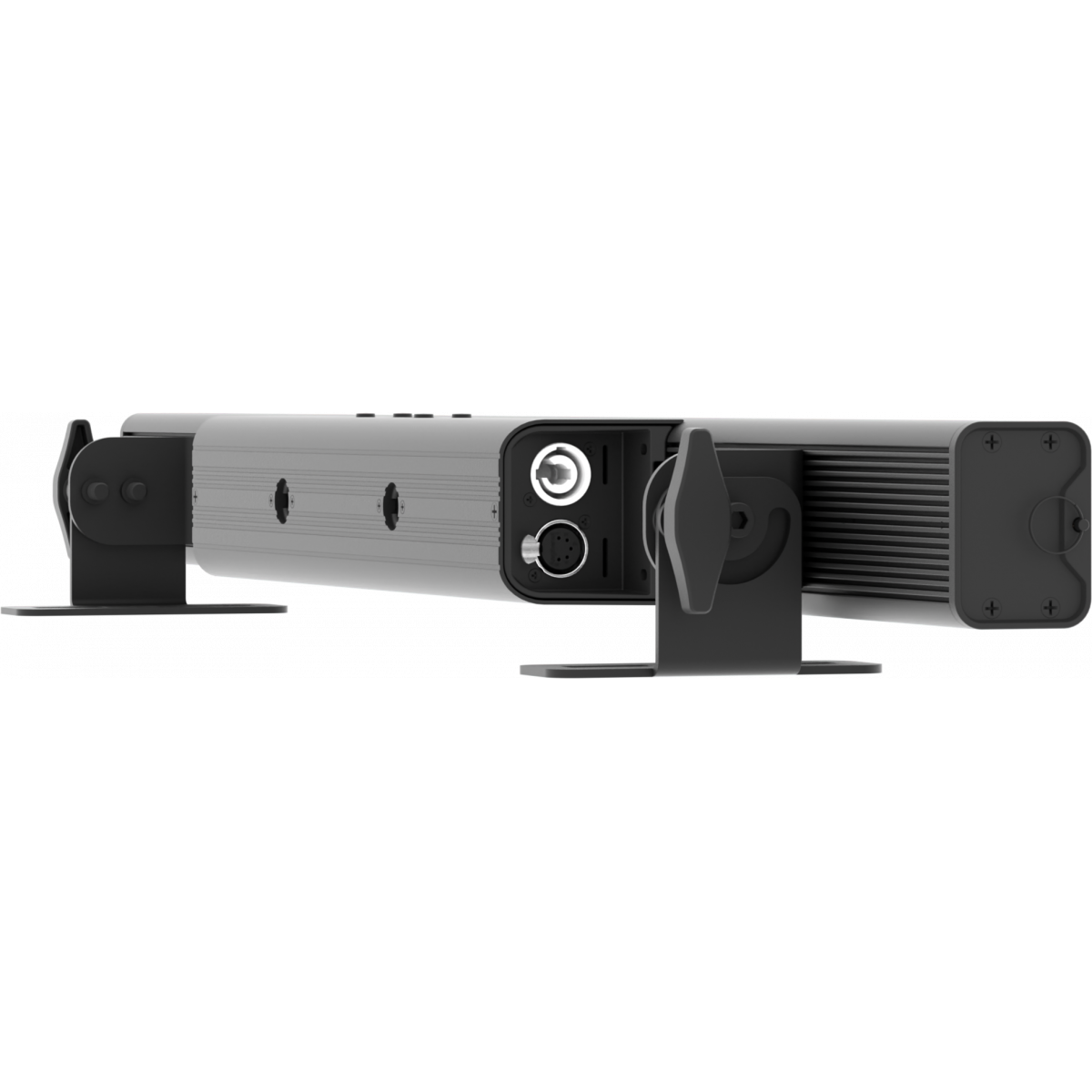

LumiPix 12QTour

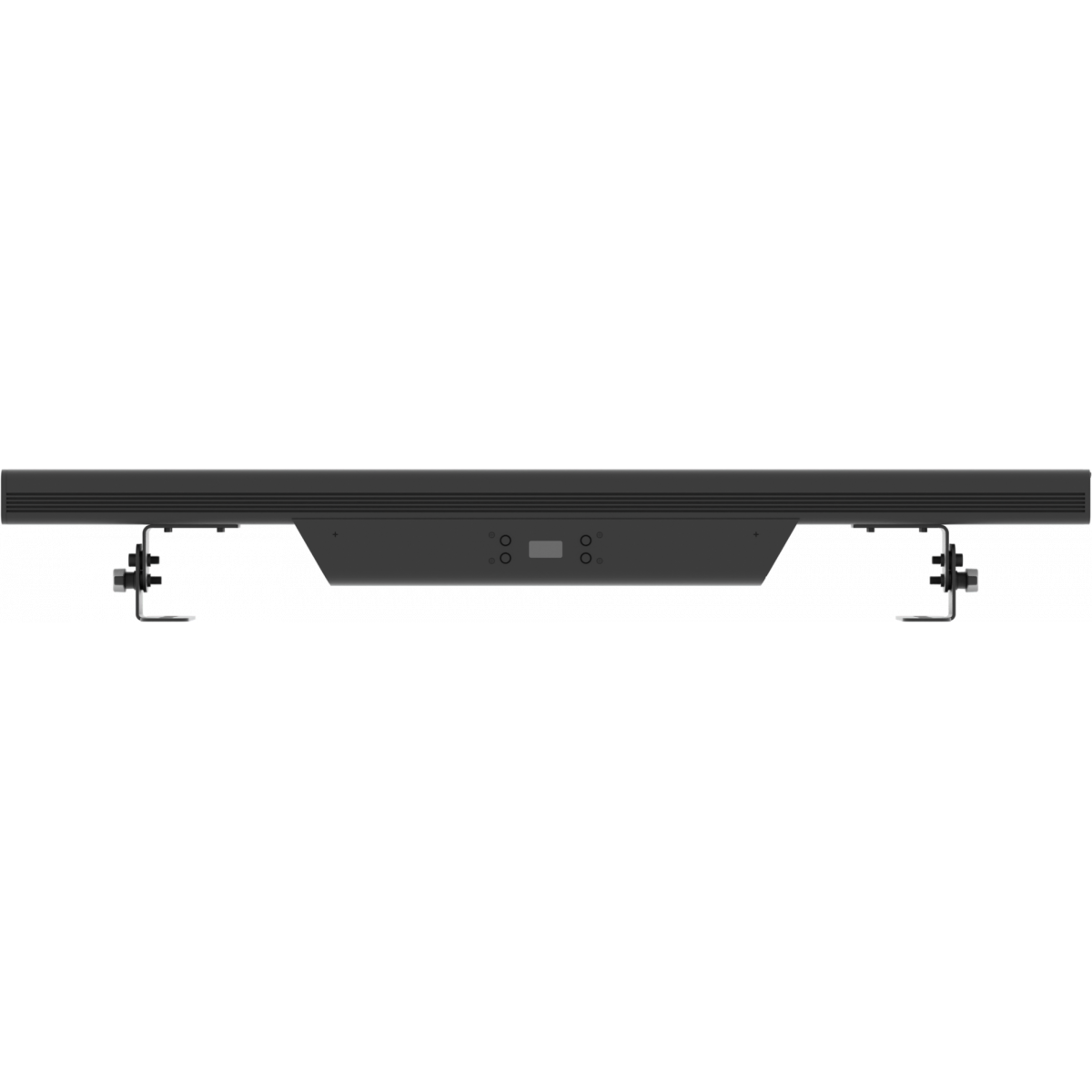

LumiPix 12QTour
LumiPix 12QTour

Technical specifications

LIGHT SOURCE
  • Source: 12x10W RGBW LEDs
  • Luminous flux: (15°) 3'657 lm - (45°) 3'630 @Full
  • Lux: (15°) 2'901lx @5 m full
  • Lux: (45°) 325lx @5 m full
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 22,6°
  • Field angle: 39°
  • Lens diameter: 45mm / 1.77''
  • Additional optics: 15° (opt) - 45° (opt)
  • Other: on board magnetic frost holder
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • Colour wheel: virtual colour wheel with macros
  • Macros: several pre-built pixel macros with adjustable speed
DYNAMIC EFFECTS
  • Pixel patterns: pre-programmed dynamic and static patterns
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
  • Body: sturdy die-cast aluminium body
  • Body colour: black
CONTROL
  • Protocols: DMX512
  • DMX channels: 5 / 7 / 9 / 49channel
  • Pixel control: pixel2pixel control
  • Display: Graphic User Interface
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 7 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: -10° ~ +45° Ta
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 100W
  • Max power consumption (at 120V): 105W
  • Output (at 230V): 30 units on a single power line
  • Output (at 120V): 14 units on a single power line
  • Power factor: 0,94
PHYSICAL
  • IP rating: 30
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Power connection: Seetronic powerCON IN/OUT connectors
  • Dimensions (WxHxD): 994x138x70mm / 39.13''x5.43''x2.76''
  • Weight: 5,4kg / 11.9lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Accessories & Related Products

TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
ARCLUMIL25D45
ARCLUMIL25D45
(Included)
Optic lens 25°, D.45mm
ARCLUMIL15D45
ARCLUMIL15D45
(Optional)

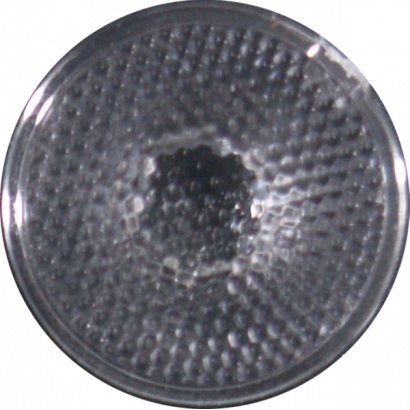

Optic lens 15°, D.45mm
ARCLUMIL45D45
ARCLUMIL45D45
(Optional)
Optic lens 45°, D.45mm
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetLumipix12qtour_A4_DATASHEET_(IT).pdf274KB
Letter datasheetLumipix12qtour_A4_DATASHEET_(EN).pdf282KB

User manual

File name File size Download
User manualLumipix12qtour_USER_MANUAL_ITEN.pdf3MB

DMX chart & personalities

File name File size Download
DMX chartLumipix12qtour_DMX_CHARTS.pdf109KB
LUMIPIX12QTOUR Firmware rev. 1.5
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights@lumipix_12q_tour@49_channel.xmlDownload
prolights@lumipix_12q_tour@5_channel@ma_library_update_v14.5.xmlpDownload
prolights@lumipix_12q_tour@7_channel@ma_library_update_v14.5.xmlpDownload
prolights@lumipix_12q_tour@9_channel@ma_library_update_v14.5.xmlpDownload
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D RFALumipix12qtour_3D.rvt389KB
3D SKPLumipix12qtour_3D.skp277KB
2DLumipix12qtour_CAD_2D.dwg789KB
3DLumipix12qtour_CAD_3D.dwg648KB
2D cad symbolsLumipix12qtour_CAD_2DSYMBOLS.dwg24KB
Technical drawingLumipix12qtour_TECHNICAL_DRAWING.pdf98KB
VectorWorksVECTORWORKS_SYMBOLS.vwx414KB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.5 STABLE 06/02/2025 New Function:
  • Added new DMX mode "11CH".
 Rev. 1.0

Info Request
