LUMIPIX15IP
PROLIGHTS

Lumipix 15IP

ORDER CODE: LUMIPIX15IP

15x10W outdoor linear pixel batten

Lumipix 15IP is a tour-ready LED pixel batten conceived to be fully versatile and perform outdoor, delivering advanced brightness and colour mixing by offering individual pixel control of each cell. The robust die-cast aluminium structure with omega quick lock socket on the bracket and the waterproof power and signal connector make Lumipix 15IP suitable for the most demanding environments.

Main features:

  • LED batten with 15 individually controllable RGBW LED
  • Waterproof housing and connections for outdoor usage
  • Extensive colour palette with precise mixing and powerful output
See variants

PHOTO GALLERY

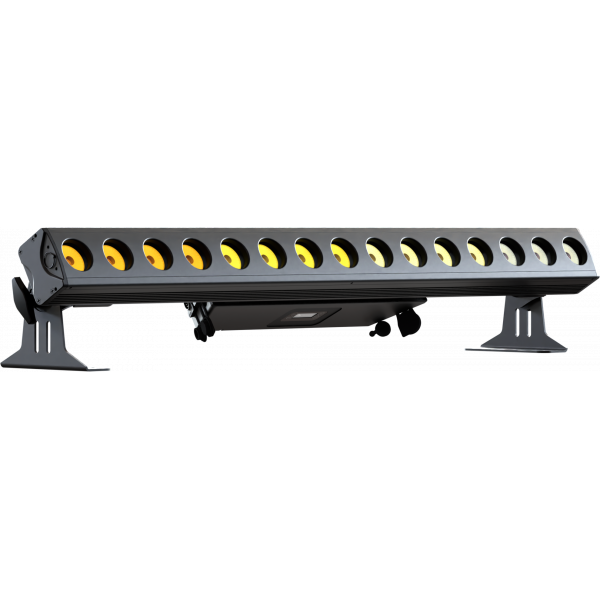

Lumipix 15IP

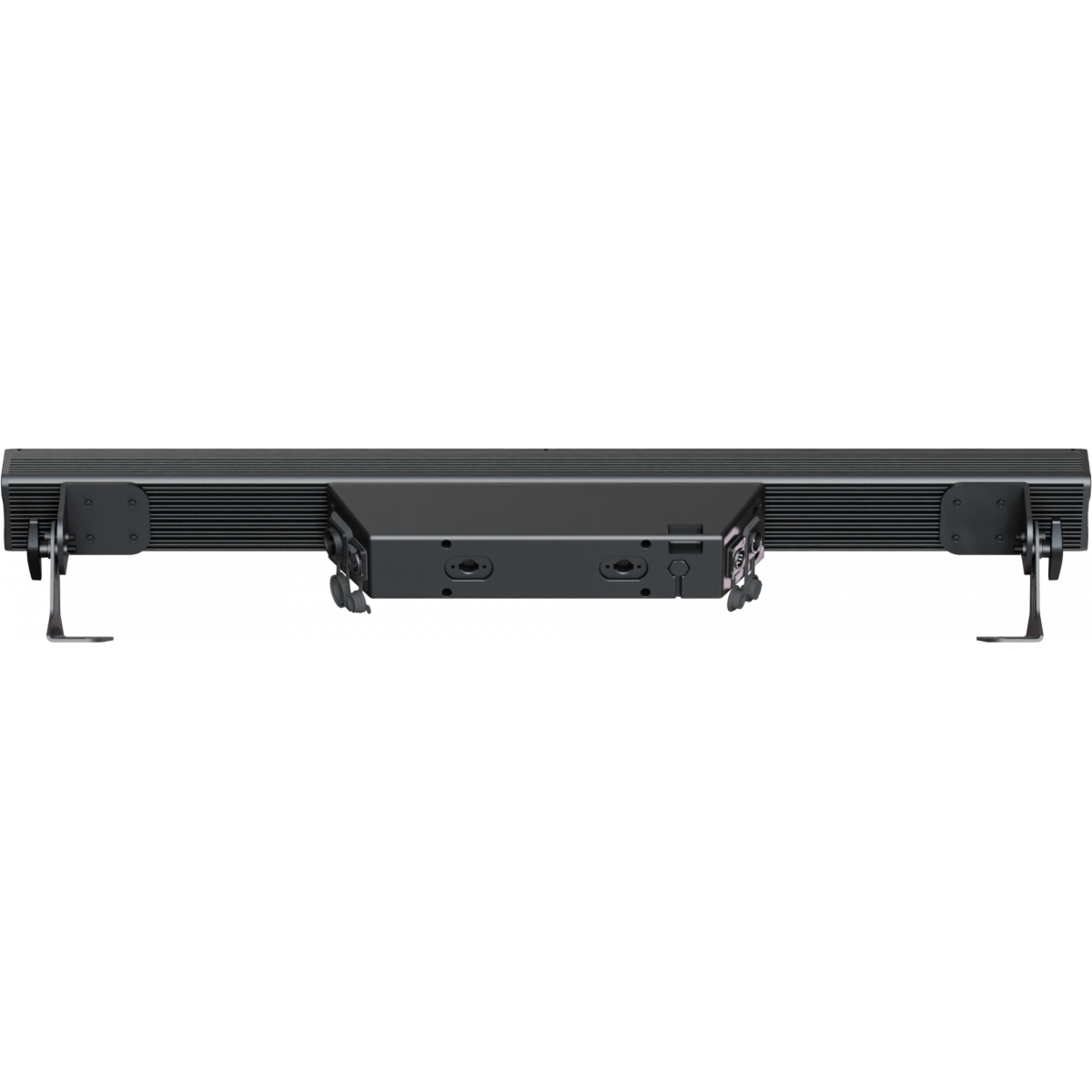

Lumipix 15IP

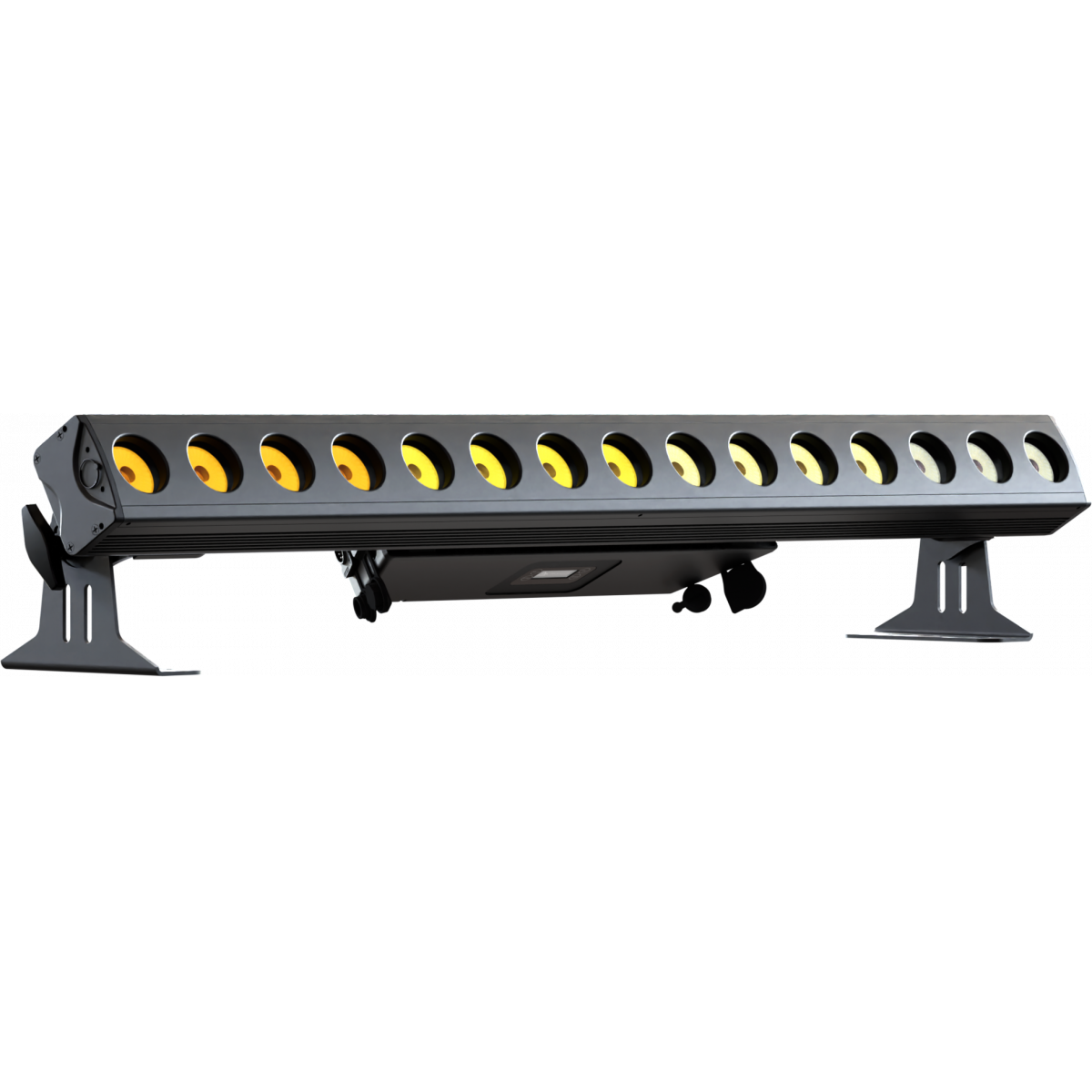

Lumipix 15IP

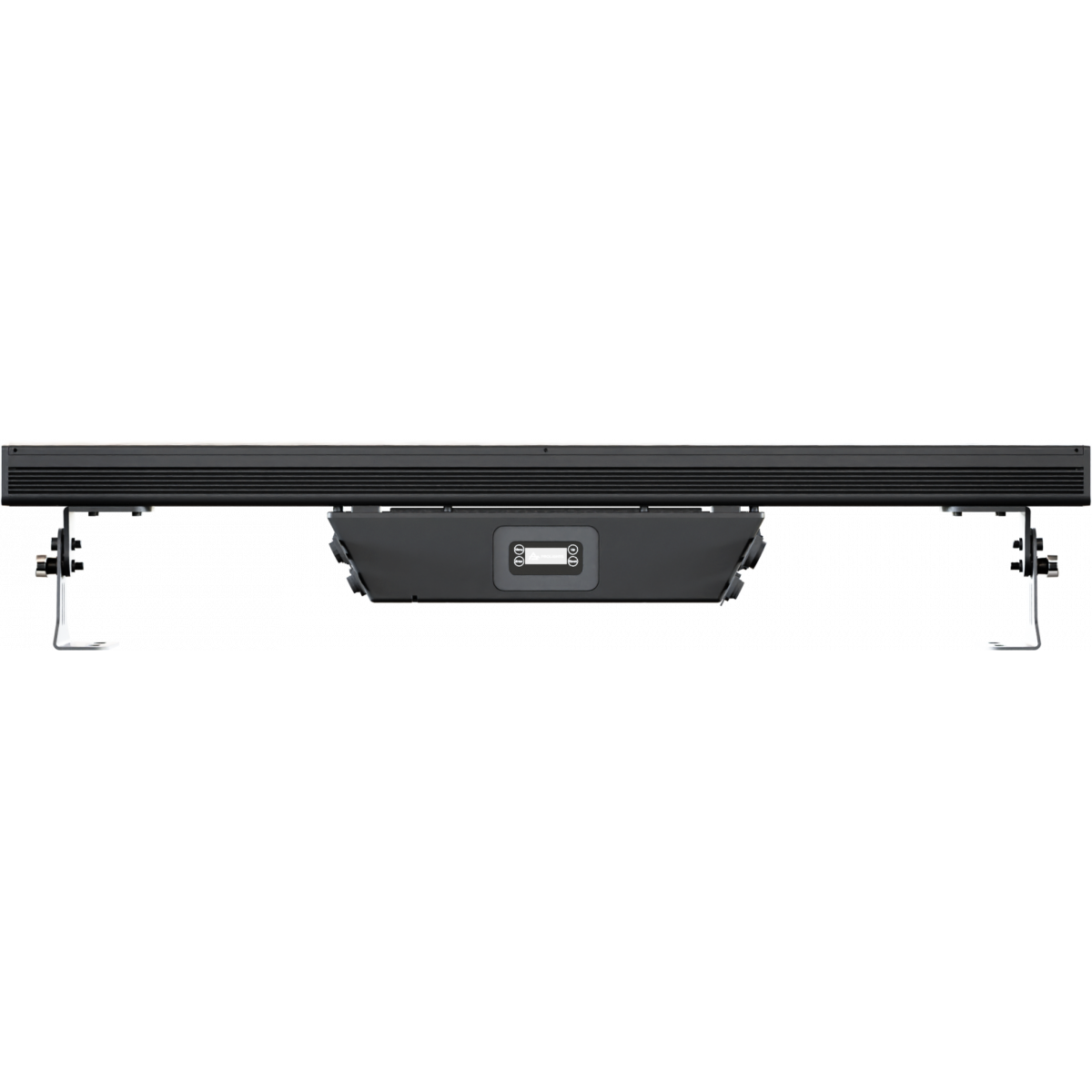

Lumipix 15IP

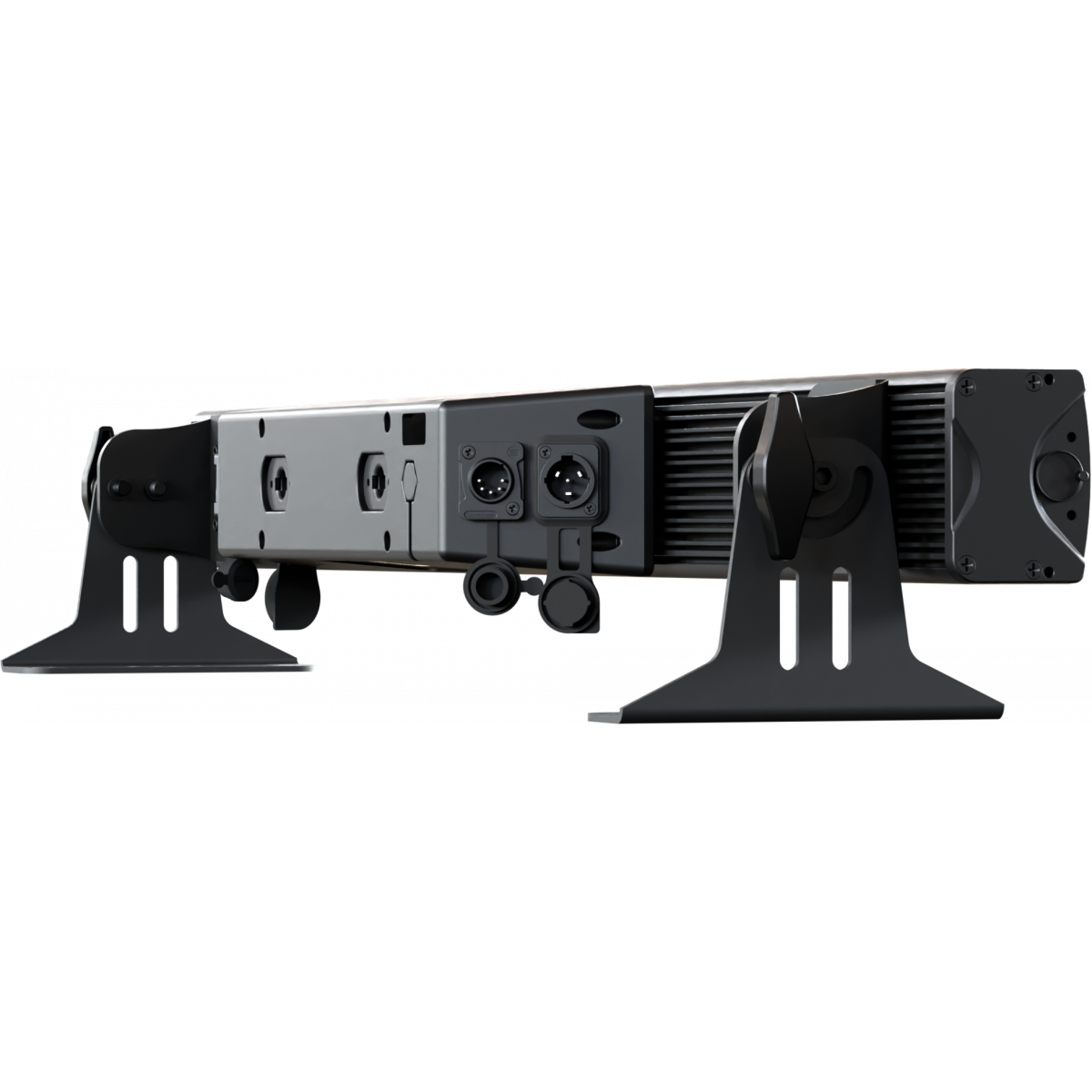

Lumipix 15IP

Technical specifications

LIGHT SOURCE
  • Source: 15x10W RGBW LEDs
  • Luminous flux: (16° + diffused) 4'983 lm - (16°) 5'394 @full
  • Lux: (16° + diffused) 1'886 lm - (16°) 2'454lx @5 m full
  • Source life expectancy: > 30.000 h
OPTICS
  • Beam angle: 16°
  • Field angle: 31°
  • Additional optics: magnetic frost holder on board
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • CCT: CCT control through dedicated DMX channel
  • White presets: 2.800 K - 10.000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: several pre-built pixel macros with adjustable speed
DYNAMIC EFFECTS
  • Pixel patterns: pre-programmed dynamic and static patterns
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
BODY
  • Hardware on-board: sockets for quick-Lock Omega bracket (clamp included)
  • Body: sturdy die-cast aluminium body
  • Body colour: black
CONTROL
  • Protocols: DMX512
  • DMX channels: 4 / 6 / 10 / 60 / 65channel
  • Pixel control: pixel2pixel control
  • Wireless Control: included, wireless solution receiver
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 0 ~ 30 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free frequency with adjustable PWM
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 161W
  • Max power consumption (at 120V): 162W
  • Output (at 230V): 16 units on a single power line
  • Output (at 120V): 12 units on a single power line
  • Inrush current: 110VAC/12.0A, 230VAC/13.59A
PHYSICAL
  • IP rating: 65 for temporary outdoor application, not for fixed installations
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
  • Signal connection: Seetronic XLR 5p IN/OUT connectors
  • Data connection: W-DMX receiver
  • Power connection: Seetronic powerCON waterproof IN/OUT connectors
  • Dimensions (WxHxD): 992x206x160mm / 39.06''x8.11''x6.3''
  • Weight: 8,6kg / 18.96lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Accessories & Related Products

LRLUNA
LRLUNA
(optional)
Single Universe DMX transceiver with Bluetooth
OS25D13
OS25D13
(included)
Quick-Lock omega bracket, M12 hole
C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheet Lumipix15ip_A4_DATASHEET_(EN).pdf 461KB
Letter datasheet Lumipix15ip_A4_DATASHEET_(IT).pdf 327KB

User manual

DMX chart & personalities

File name File size Download
DMX chart Lumipix15ip_DMX_CHARTS.pdf 51KB
LUMIPIX15IP Firmware rev. 1.3
manufacturer fixture library (Link) Link
prolights_lumipix15ip.d4Download
manufacturer fixture library (Link) Link
prolights@lumipix_15_ip@4_channel@ma_library_update_v15.0.xmlpDownload
prolights@lumipix_15_ip@6_channel@ma_library_update_v15.0.xmlpDownload
prolights@lumipix_15_ip@10_channel@ma_library_update_v15.0.xmlpDownload
prolights@lumipix_15_ip@60_channel@ma_library_update_v15.0.xmlpDownload

Photometrics

CAD symbols & drawings

File name File size Download
3D RFA Lumipix15ip_3D.rfa 576KB
3D SKP Lumipix15ip_3D.skp 441KB
2D Lumipix15ip_CAD_2D.dwg 1MB
3D Lumipix15ip_CAD_3D.dwg 652KB
2D cad symbols Lumipix15ip_CAD_2DSYMBOLS.dwg 21KB
Technical drawing Lumipix15ip_TECHNICAL_DRAWING.pdf 204KB
VectorWorks VECTORWORKS_SYMBOLS.vwx 200KB
VectorWorks PROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx 317MB
VectorWorks PROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx 488MB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOX1UP5 UPBOX1UP5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.3 STABLE 02/01/2019 Improved power on feature with high temperture. Rev. 1
