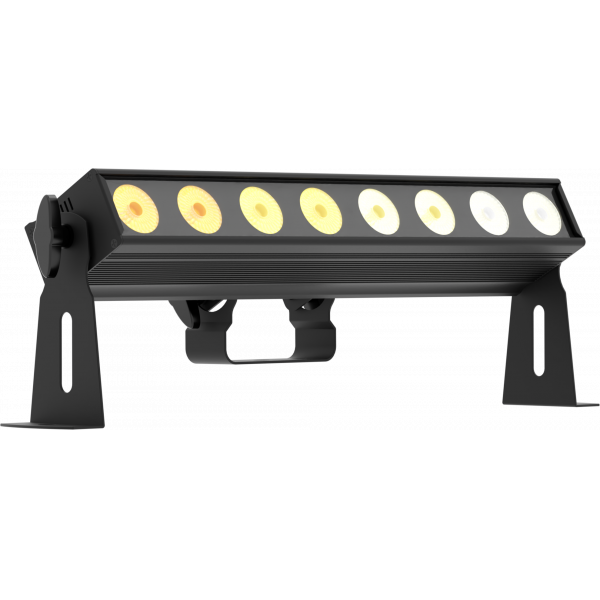

LumiPix 8H

ORDER CODE: LUMIPIX8H

8x12W high power LED pixel batten with RGBWA + UV mixing

Lumipix 8H is a linear 50 cm LED batten designed for professional use, employing an innovative optical system combined with a new light source performing 6 primary colour mixing, RGBWAP full colour, granting unprecedented chromatic performance. The super-slim design combined with the extreme colour precision and light output make Lumipix 8H a flexible and versatile solution for every kind of application or within venues as their architectural, cyclorama, wall-washer, pixel effect or blinder.

Main features:

  • LED batten with 8 individually controllable 12W RGBWA + UV LEDs
  • Extensive colour palette and powerful output
  • Flicker-free operation for IMAG and broadcast

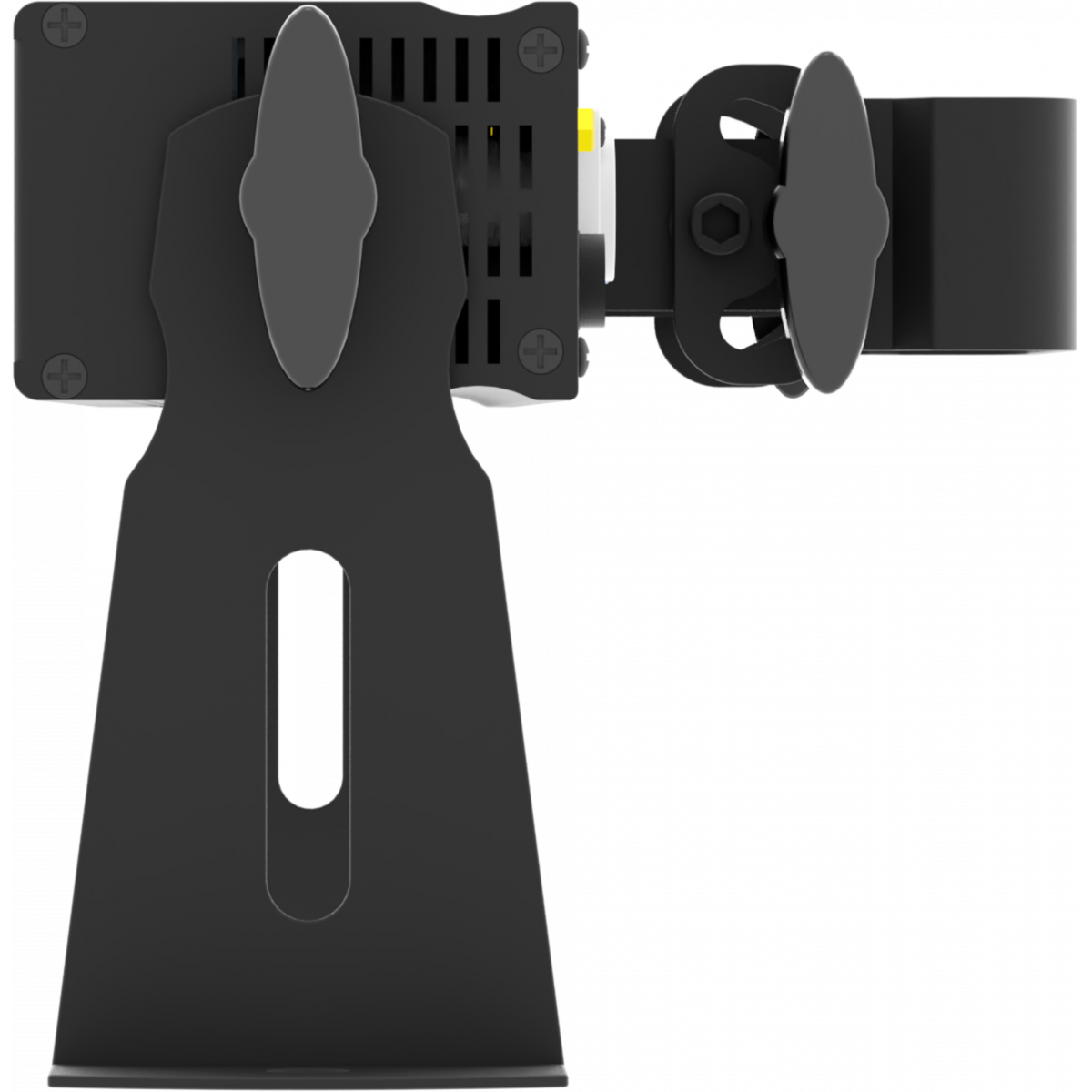

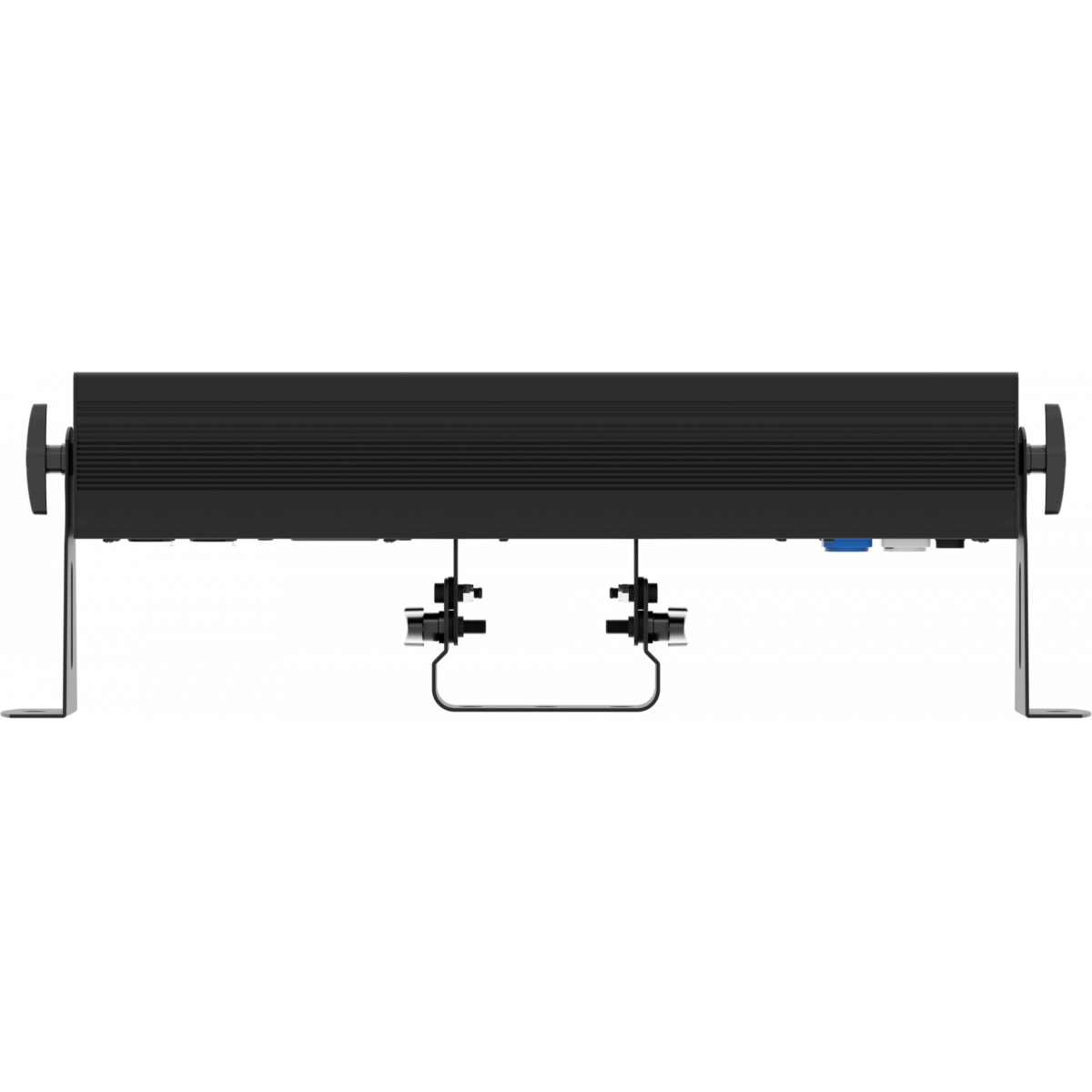

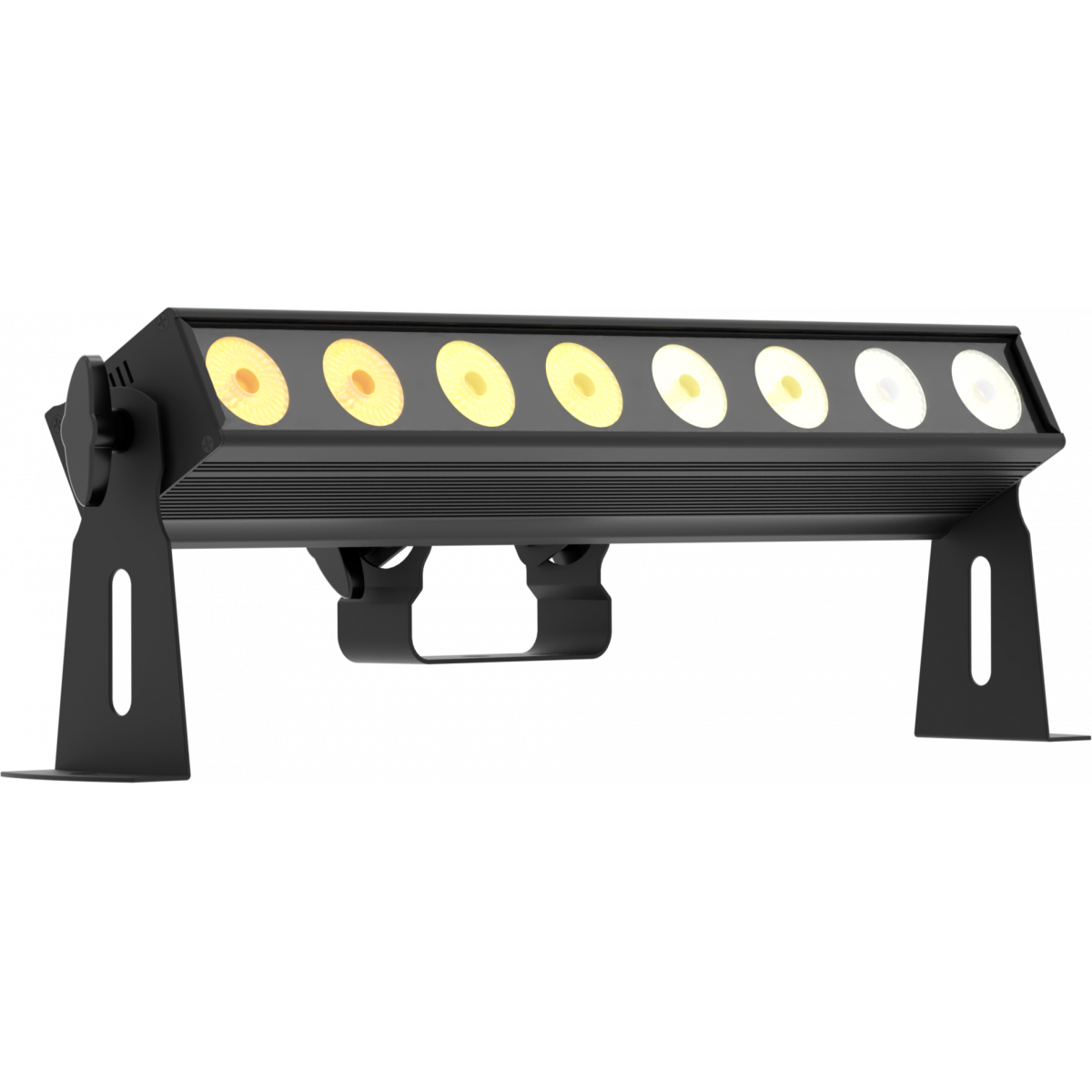

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 8x12W RGBWAP LEDs
  • Luminous flux: 2'065lm
  • Lux: (15°) 1'214lx @3 m full
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 22°
  • Field angle: 36°
  • Lens diameter: 42mm / 1.65''
  • Additional optics: 25° and 45° (optional)
COLOUR SYSTEM
  • Colour mixing: RGBWAP / FC
  • White presets: 3.200 K -10.000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: several pre-built pixel macros with adjustable speed
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: black
CONTROL
  • Protocols: DMX512
  • DMX channels: 3 / 6 / 8 / 12 / 48 / 53channel
  • Pixel control: pixel2pixel control
  • Display: LCD display
  • Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 25 Hz, electronic
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 85W
  • Max power consumption (at 120V): 87W
  • Output (at 230V): 16 units on a single power line
PHYSICAL
  • IP rating: 33
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: bracket for hanging and positioning

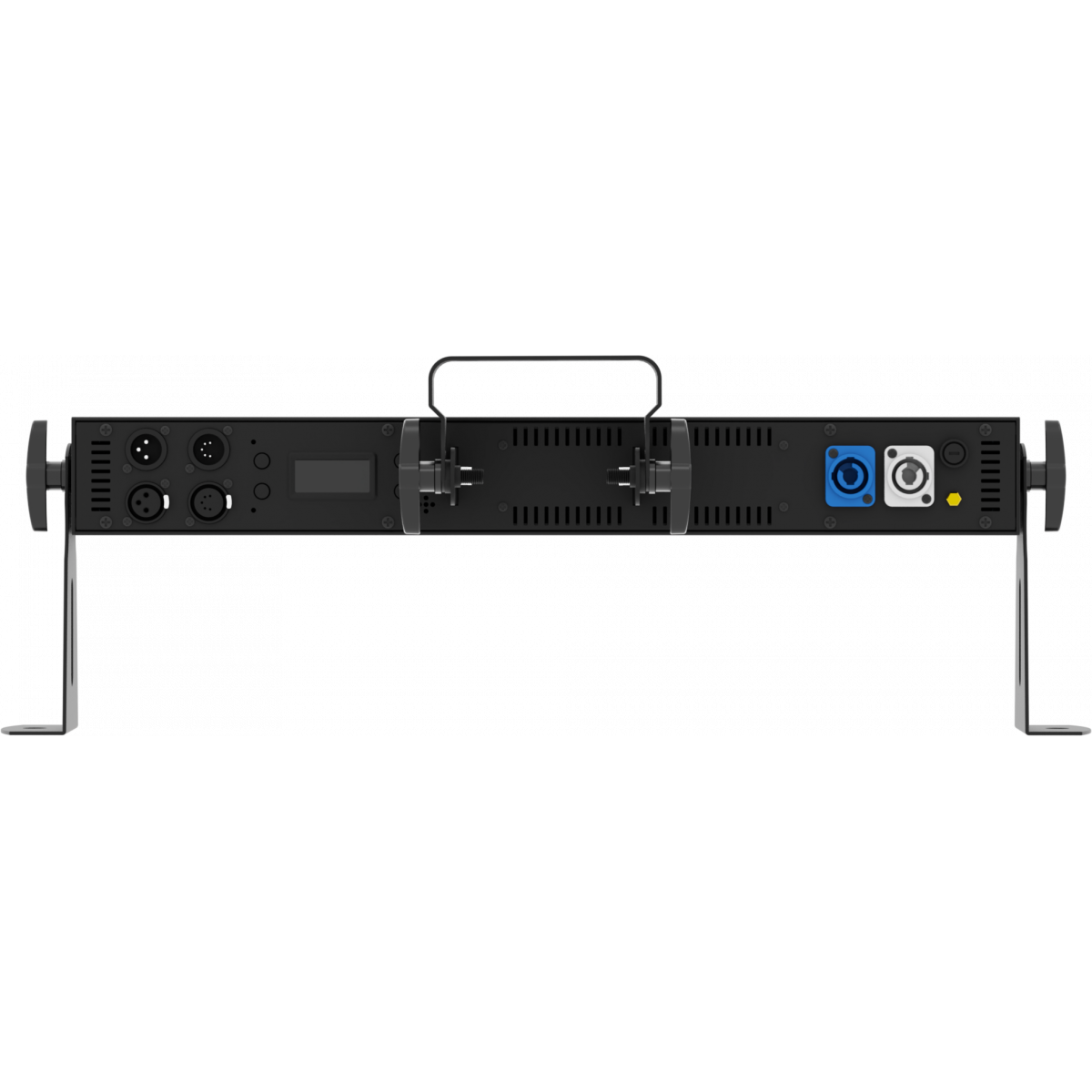

  • Signal connection: XLR 3p + 5p IN/OUT connectors
  • Power connection: Neutrik powerCON IN/OUT connectors
  • Dimensions (WxHxD): 582x80x183mm / 22.91''x3.15''x7.2''
  • Weight: 3,3kg / 7.28lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Accessories & Related Products

RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
9513FCAL03
9513FCAL03
(optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FCA socket, L.3m
9533FCAL03
9533FCAL03
(optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FCA socket, L.3m
TOUR53413L03
TOUR53413L03
(optional)
Dmx cable HC5340. CANC3MXX XLR 3p->CANC3FXX XLR (f) 3p, L.3m
C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
ARCLUMIL15D42
ARCLUMIL15D42
(included)

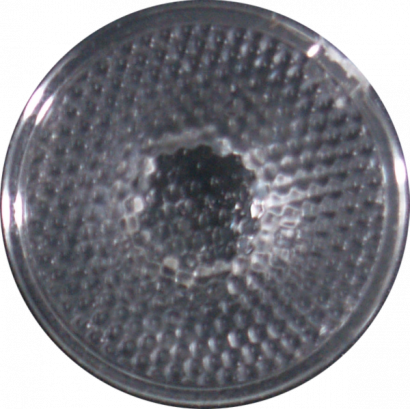

Optic lens 15°, D.42mm
TOUR53415L03
TOUR53415L03
(optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
958025L03
958025L03
(optional)
3x2.5mm TH07 Cable, 20A 3p PwCon FCA, 20A 3p PwCon FCB, L. 3m
ARCLUMIL25D42
ARCLUMIL25D42
(optional)
Optic lens 25°, D.42mm
ARCLUMIL45D42
ARCLUMIL45D42
(optional)
Optic lens 45°, D.42mm
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheet Lumipix8h_A4_DATASHEET_(EN).pdf 150KB
Letter datasheet Lumipix8h_A4_DATASHEET_(IT).pdf 164KB

User manual

File name File size Download
User manual Lumipix8h_USER_MANUAL_ITEN.pdf 3MB

DMX chart & personalities

File name File size Download
DMX chart Lumipix8h_DMX_CHARTS.pdf 53KB
VectorWorks VECTORWORKS_SYMBOLS.vwx 445KB
VectorWorks PROLIGHTS_VECTORWORKS_v23_LIBRARY.vwx 304MB
VectorWorks PROLIGHTS_VECTORWORKS_v18_LIBRARY.vwx 444MB
LUMIPIX8H Firmware rev. 1.2
manufacturer fixture library (Link) Link
prolights_lumipix8h.d4Download
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
lumipix8h_3ch-1.fdfDownload
lumipix8h_3ch-2.fdfDownload
lumipix8h_6ch.fdfDownload
lumipix8h_8ch.fdfDownload
lumipix8h_12ch.fdfDownload
lumipix8h_48ch.fdfDownload
lumipix8h_53ch.fdfDownload
manufacturer fixture library (Link) Link
prolights_lumipix8h_ma2.zipDownload
lumipix 8h 6 channel.fix2Download
lumipix 8h 8 channel.fix2Download
lumipix 8h 12 channel.fix2Download
lumipix 8h 48 channel.fix2Download
lumipix 8h 53 channel.fix2Download
lumipix 8h hsi.fix2Download
lumipix 8h hsv.fix2Download

Photometrics

File name File size Download
IES prolights_lumipix8h_amber_22°.ies 64KB
IES prolights_lumipix8h_blue_22°.ies 64KB
IES prolights_lumipix8h_full_22°.ies 64KB
IES prolights_lumipix8h_green_22°.ies 64KB
IES prolights_lumipix8h_purple_22°.ies 64KB
IES prolights_lumipix8h_red_22°.ies 64KB
IES prolights_lumipix8h_white_22°.ies 64KB
Dialux Download DIALux product catalogue -

CAD symbols & drawings

File name File size Download
3D RFA Lumipix8h_3D_REVIT.rfa 2MB
2D Lumipix8h_2D.dwg 1MB
3D Lumipix8h_3D.dwg 4MB
Technical drawing Lumipix8h_TECHNICAL_DRAWING.pdf 197KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware

Only the latest firmware versions for each hardware revision are available for download.
To download previous firmware versions, log in to the customer care section.
Update Tool: UPBOX1UP5 {CodiceUpBox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.2 STABLE 25/10/2015 Improved the firmware functionality. Rev. 1.0
