MINIECLFRVW
PROLIGHTS


EclMiniFresnel VW new

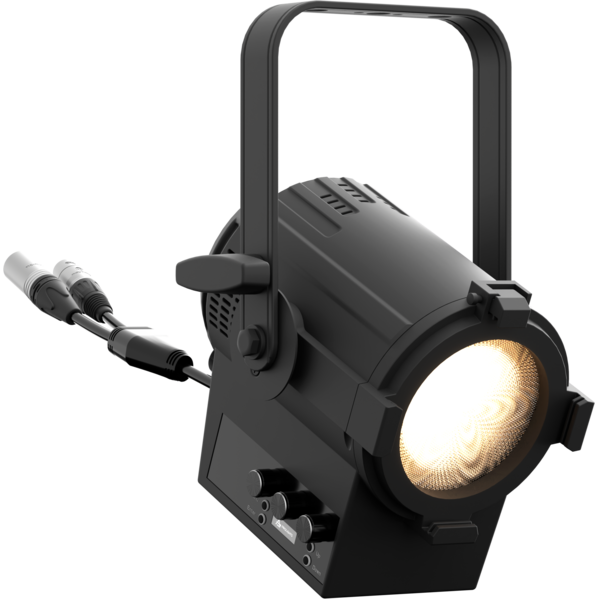

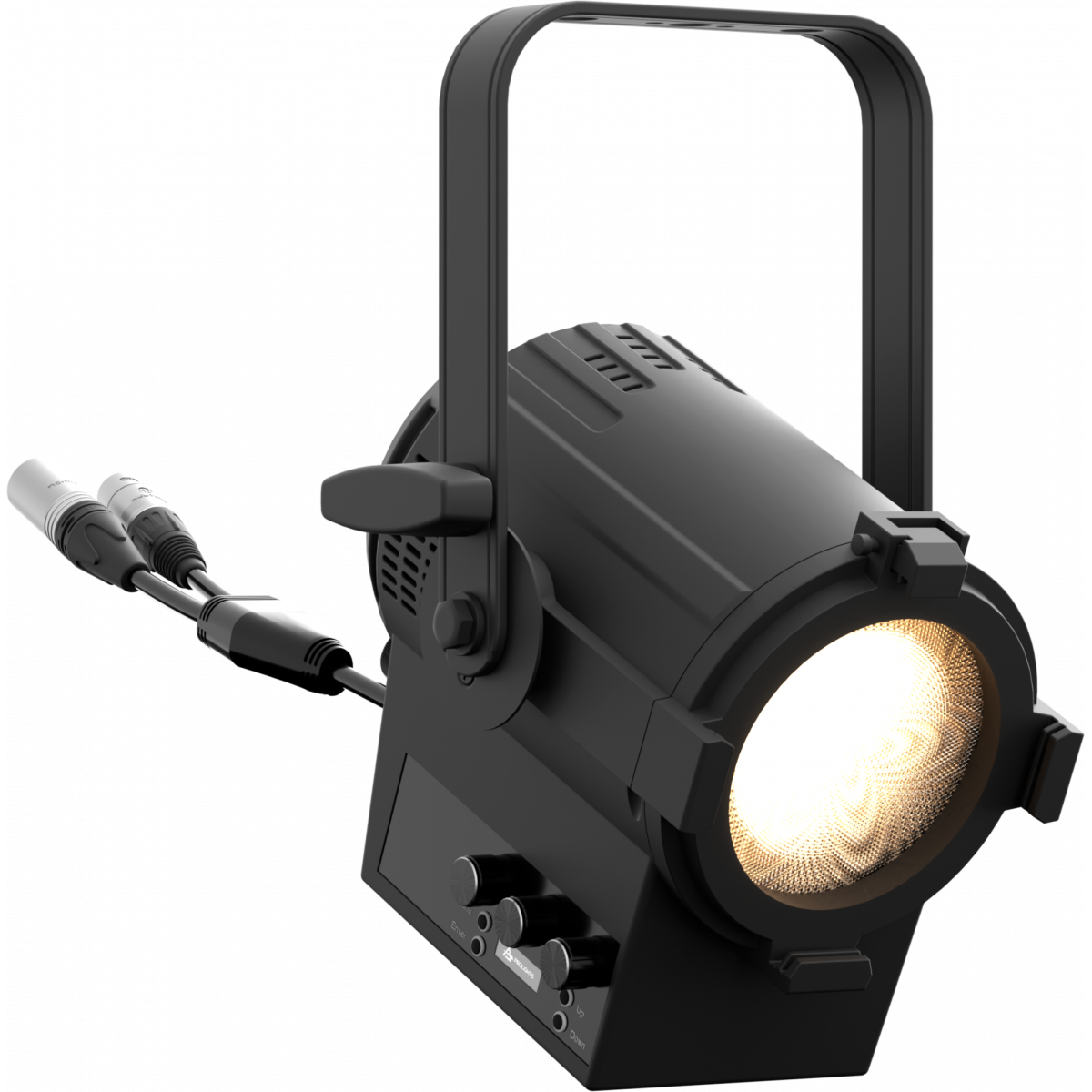

60W Variable White LED Mini Fresnel (2,700K - 5,600K), with manual zoom 21° - 83°

The EclMiniFresnel VW is an ultra-compact LED Fresnel lamp, designed as a replacement for a 300W fixture, with a bright and high-quality variable-white light, from 2,700K to 5,600K, using a 60W LED source.
This is the perfect luminaire for those applications requiring high-quality white rendering, such as in TV studios, galleries, and virtual productions, with high CRI (>96), TLCI (>96), TM-30 and R9.
The EclMiniFresnel VW has a manual zoom range from 21° to 83°, with precise focusing, and barndoors (included).
This fixture has an intuitive user interface with rotatory knobs. It also has stand-alone settings, PowerCon True in & through connections and XLR in & through, offering an incredible user experience and easy setup.

Main features:

  • Linear white CCT, from 2,700K to 5,600K
  • 60W Variable White LED with CRI >96; TLCI >96; high TM-30 and R9
  • Barndoor and filter frame included
See variants

PHOTO GALLERY

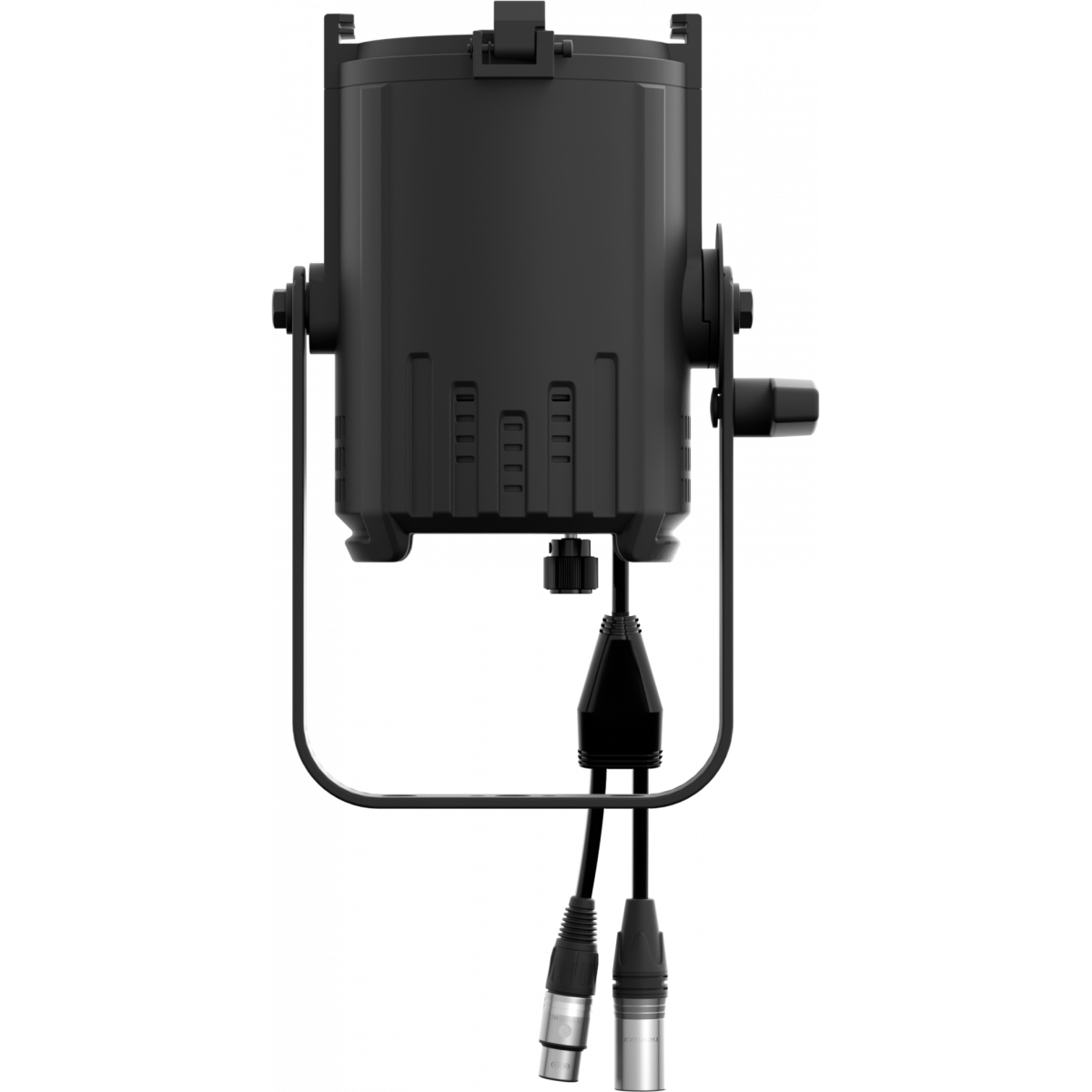

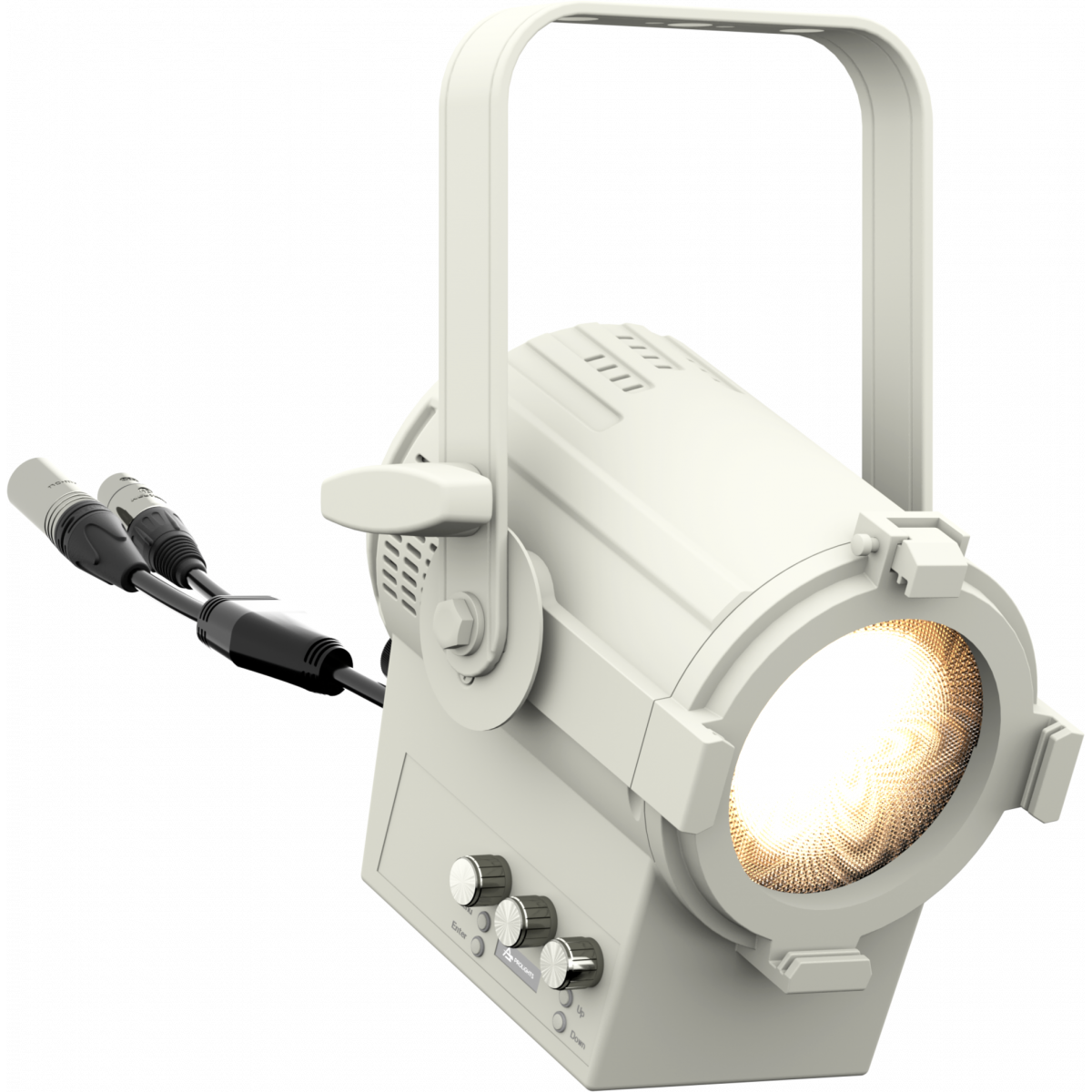

EclMiniFresnel VW
EclMiniFresnel VW
EclMiniFresnel VW
EclMiniFresnel VW
EclMiniFresnel VW
EclMiniFresnel VW

Technical specifications

LIGHT SOURCE
  • Source: 60W Variable White LED
  • CCT: 2.700 K - 5.600
  • Luminous flux: (21°) 877 lm - (83°) 2'320lm @full
  • Lux: (21°) 630 lx - (83°) 238lx @3 m
  • CRI: 96 @WW; 95 @CW; 95 @full
  • R9: 91 @WW; 88 @CW; 86 @full
  • TLCI: 95 @WW; 98 @CW; 97 @full
  • TM30 Rf: > 94 @WW; >93 @CW; > 94 @full
  • TM30 Rg: < 103 @WW; < 104 @CW; < 104 @full
  • Source life expectancy: > 50.000 h
OPTICS
  • Zoom: 21° - 83° manual
  • Lens diameter: 3.93'' - 100mm / 0.15''
  • Lens type: fresnel zoom lens
COLOUR SYSTEM
  • Colour mixing: tunable white
  • CCT: CCT control through dedicated DMX channel
  • White presets: 2.700 K - 5.600K
  • Colour wheel: built-in white presets
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer
  • Static mode: selection of static dimmer and color temperature
  • Manual mode: manual adjustment of intensity and CT from knob
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Hardware on-board: filter frame, 4 doors barndoor, spigot
  • Body: sturdy die-cast aluminium body
  • Body colour: RAL 9004 or RAL 9003
CONTROL
  • Protocols: DMX512, RDM
  • Stand Alone: 3 rotatory knobs
  • DMX channels: 1 / 2 / 4 / 5 / 11channel
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: -20° ~ +45°
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 55W
  • Power factor: > 0,52
PHYSICAL
  • IP rating: 20
  • Cooling: active, silent operation
  • Suspension and fixing: bracket for hanging and positioning

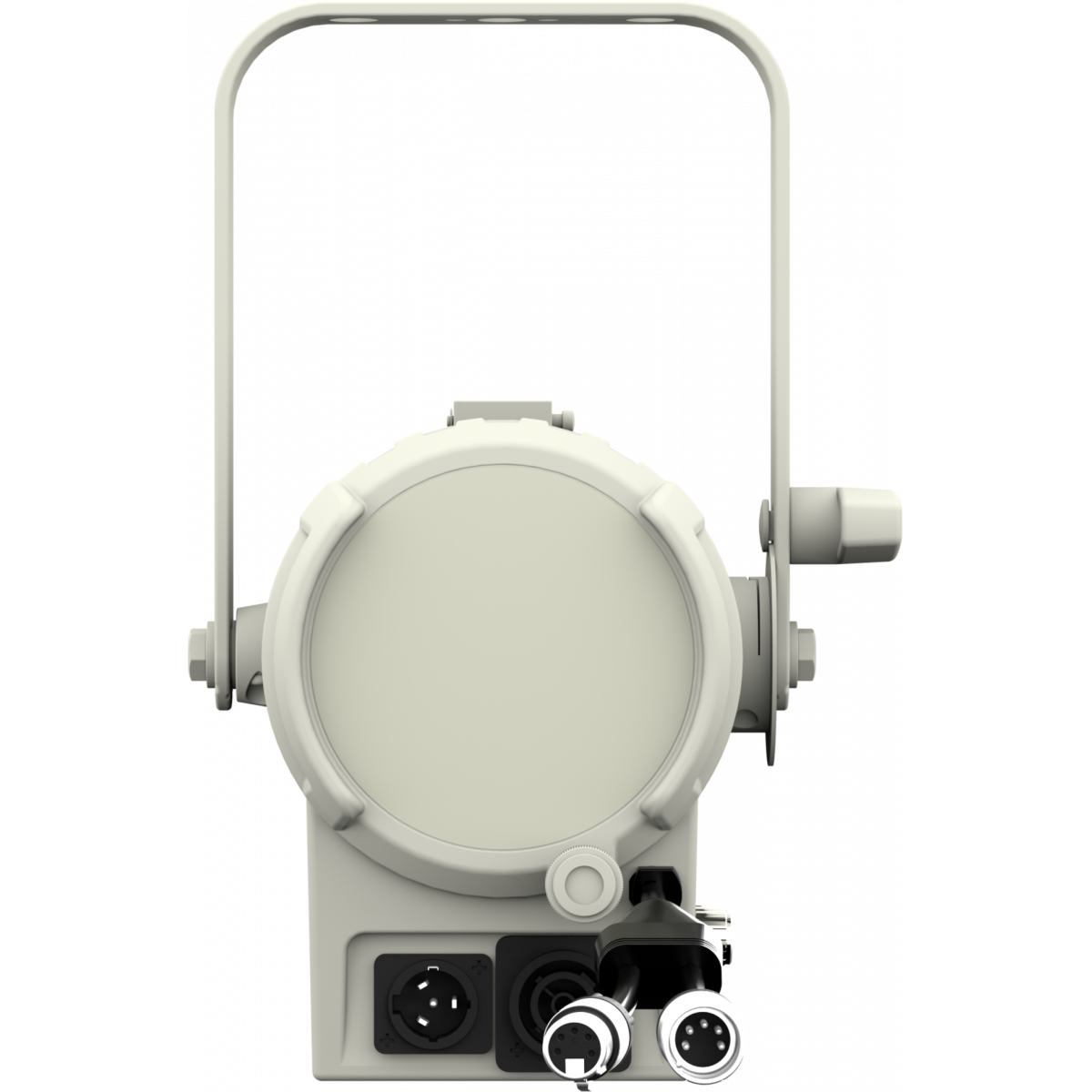

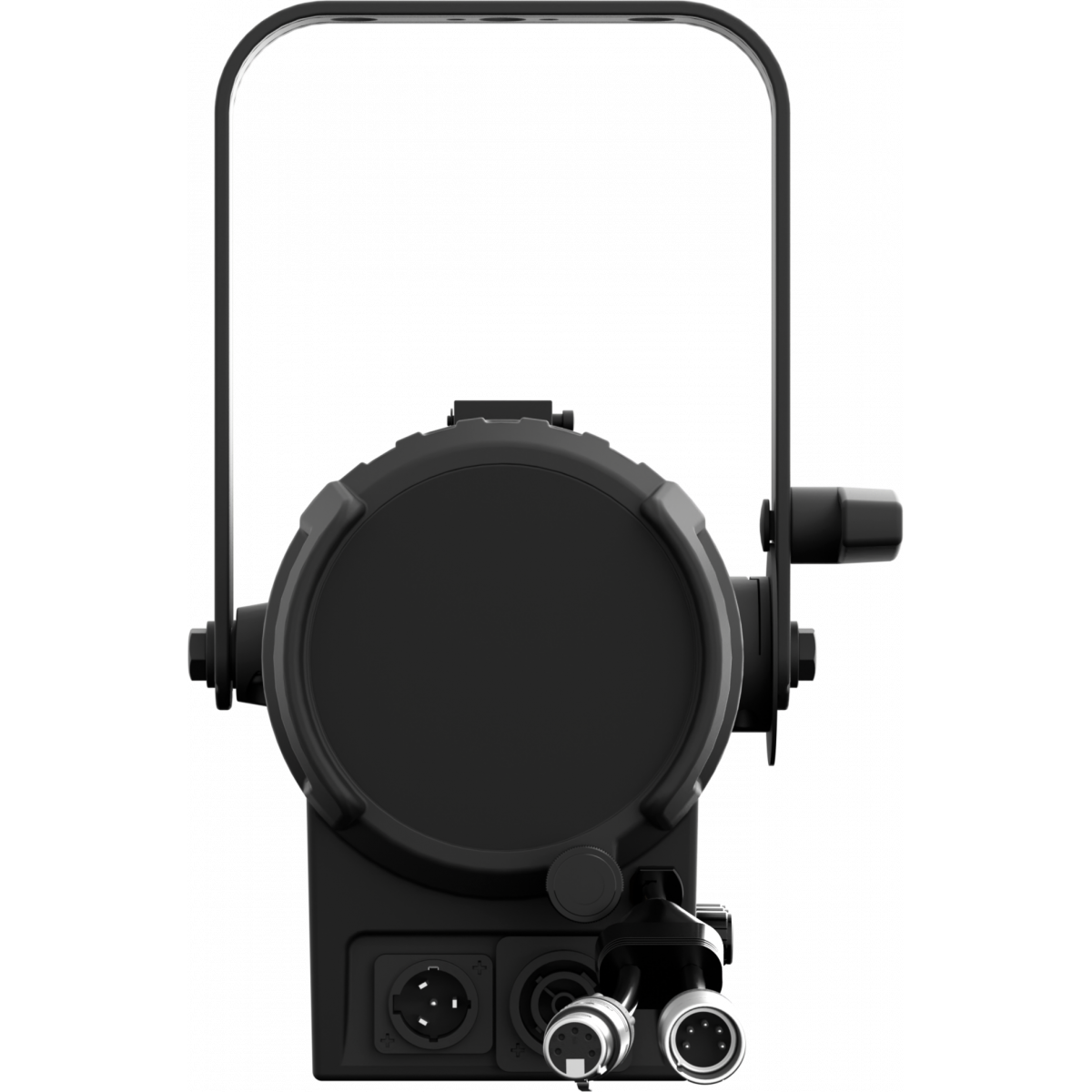

  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
  • Dimensions (WxHxD): 191x281x203mm / 7.52''x11.06''x7.99''
  • Weight: 2,5kg / 5.51lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Code
Finishing
Pole Operated
MINIECLFRVWBK
MINIECLFRVWBK (NEW)
Black
No
MINIECLFRVWWH
MINIECLFRVWWH (NEW)
White
No

Accessories & Related Products

C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
C6040B
C6040B
(optional)
Aluminum clamp for 28mm spigot, 200kg load, 48-51mm tubes, black
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
TOUR53415L03
TOUR53415L03
(optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
ECLFRSPG
ECLFRSPG
(optional)
Spigot for PROLIGHTS fixtures
MINIECLFRBD
MINIECLFRBD
(included)

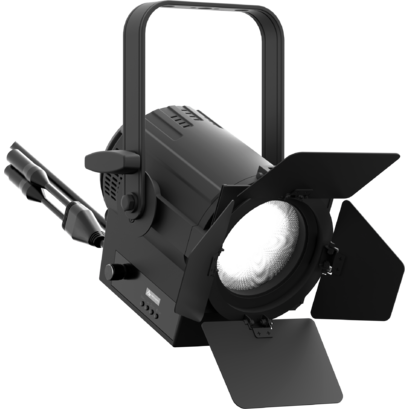

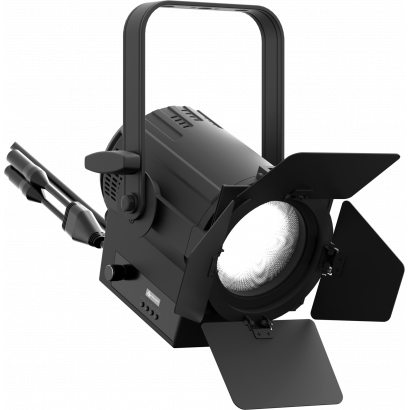

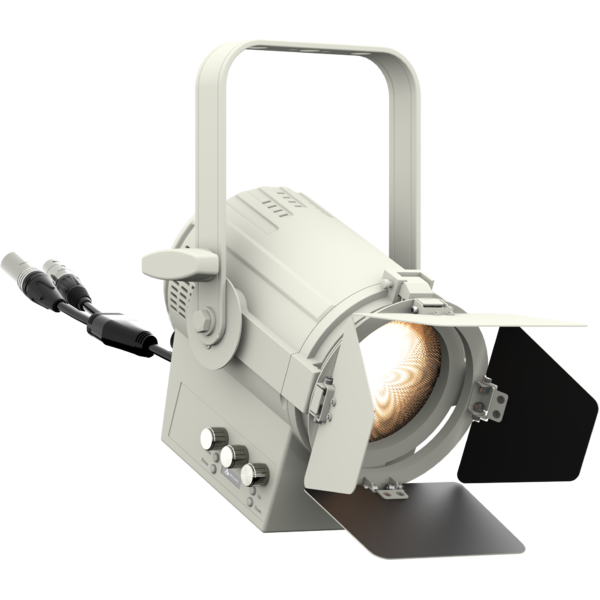

Black barn door 4 directional flaps to adjust the light beam
MINIECLFRTPG
MINIECLFRTPG
(included)

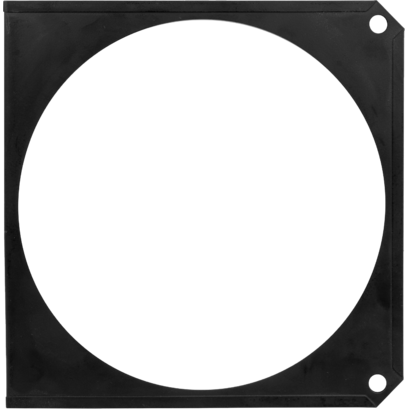

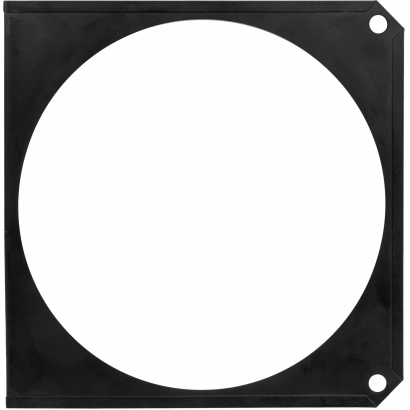

Filter frame for MINIECLFR series
SPGM10
SPGM10
(optional)
28mm spigot for fixtures, M10 bolt
SPGM12
SPGM12
(optional)
28mm spigot for fixtures, M12 bolt
<b>Upbox</b> 1
Upbox 1
(optional)
