EclMiniProfile TR

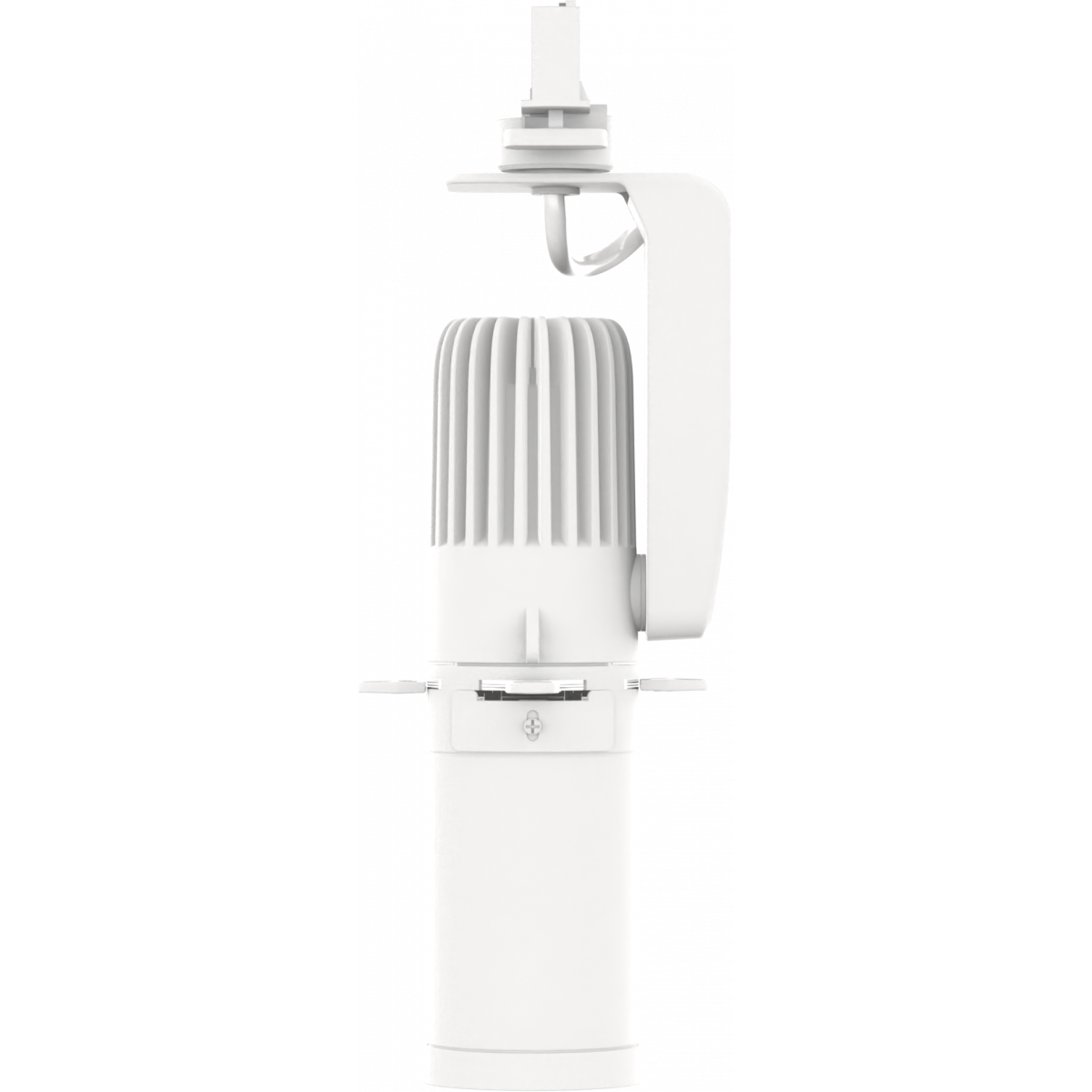

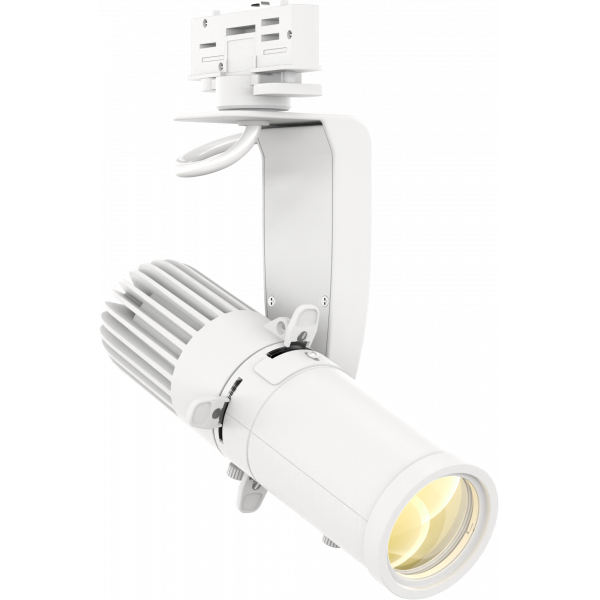

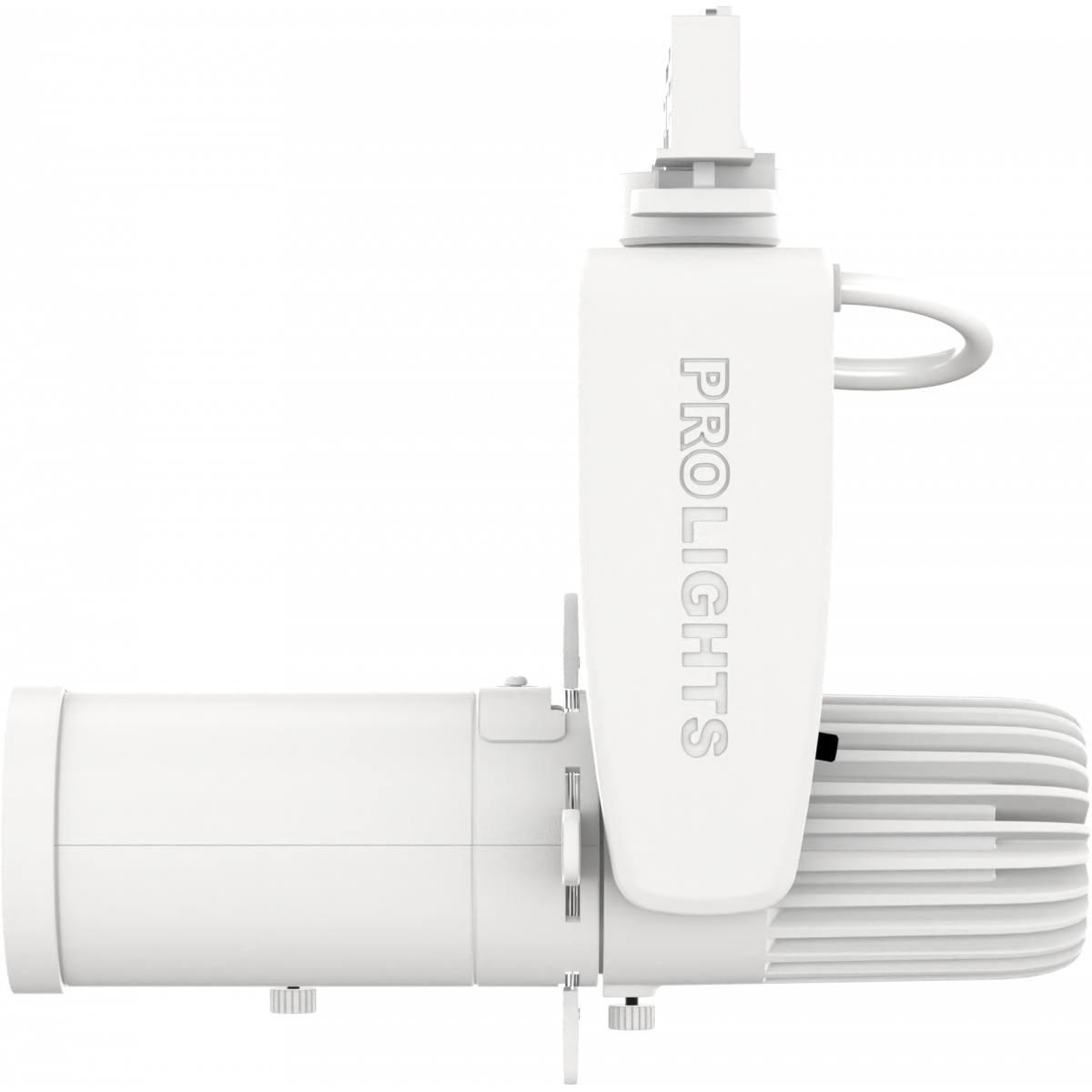

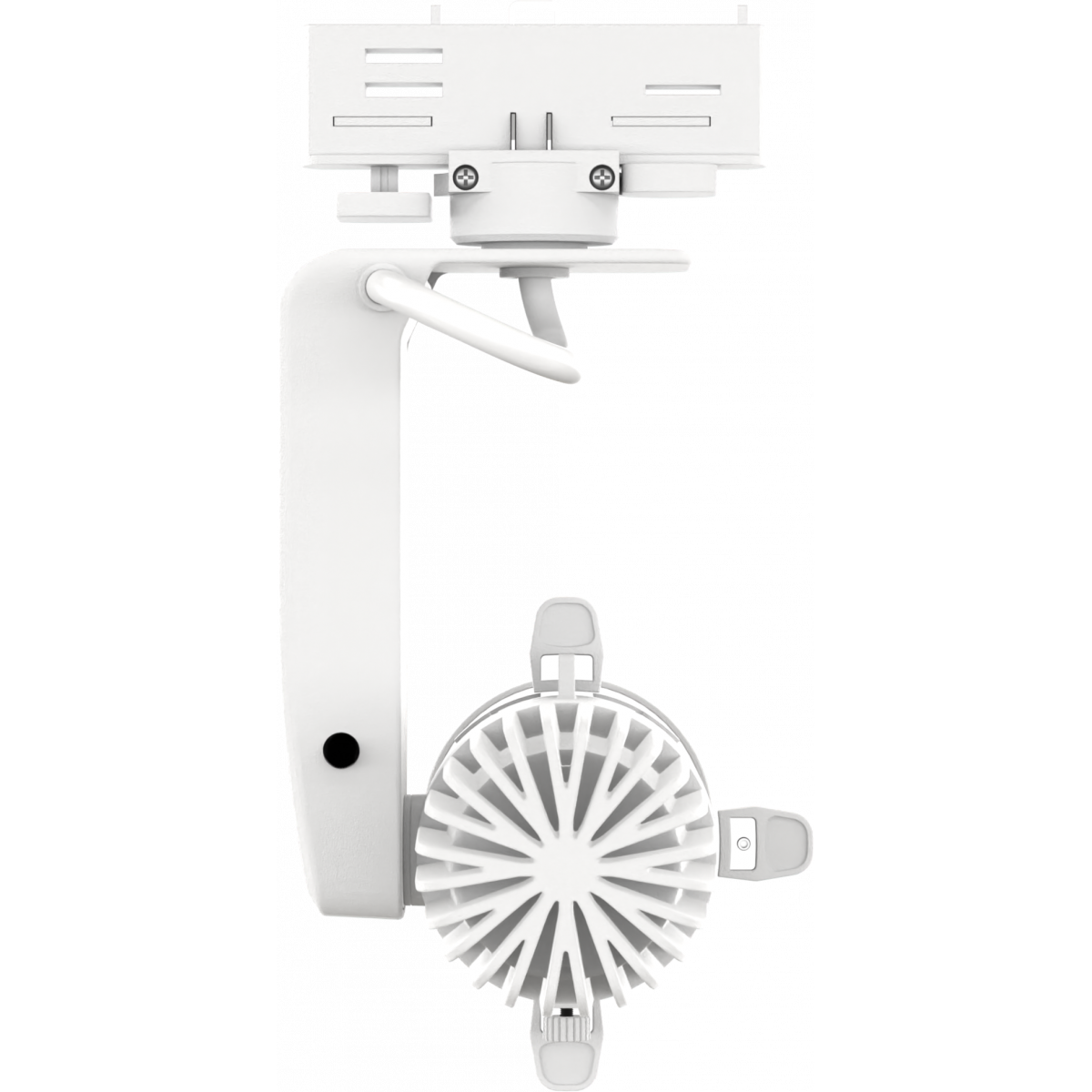

28W track mounted mini LED profile with knob-dimming

EclMiniProfile TR is a 28W CREE LED new concept of mini LED ellipsoidal. Demonstrating a stylish design, ease of use, due to the manual knob, has precise optics, sharp image projection and bright even projection - all in a compact housing that is just a quarter of the size of the traditional ellipsoidal fixtures. EclMiniProfile is designed for applications in commercial spaces, museums, restaurants, churches, educational theatres and any other installation where size is an important factor. Available in tungsten and daylight versions, EclMiniProfile performs even field projection with high CRI at any level of brightness and linear dimmer over the entire curve.

Main features:

  • 28W White LED source available in Tungsten and Daylight variants
  • 19° / 26° / 36° / 50° optional lenses
  • Local knob dimming and removable track adapters for easy implementation
See variants

PHOTO GALLERY

EclMiniProfile TR
EclMiniProfile TR
EclMiniProfile TR
EclMiniProfile TR
EclMiniProfile TR

Technical specifications

LIGHT SOURCE
  • Source: 28W CREE LED
  • CCT: (TU) 3.000 K - (DY) 5.700
  • Luminous flux: (TU) (19°) 563 lm - (26°) 554 lm - (36°) 582 lm - (50°) 552lm @full
  • Luminous flux: (DY) (19°) 731 lm - (26°) 729 lm - (36°) 743 lm - (50°) 693 lm @full
  • Lux: (TU) (19°) 330 lx - (26°) 180 lx - (36°) 96 lx - (50°) 51lx @5 m full
  • Lux: (DY) (19°) 397 lx - (26°) 212 lx - (36°) 107 lx - (50°) 52lx @5 m full
  • CRI: (TU) >92; (DY) >80
  • TLCI: (TU) >90; (DY) >68
  • TM30 Rf: (TU) >90; (DY) >79
  • TM30 Rg: (TU) >97; (DY) >97
  • Source life expectancy: > 70.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Beam angle: optional profile lens 19° / 26° / 36° / 50° (gobo holder included) - wash zoom lens 15°-30°/ 25°-50°
  • Lens type: high-quality glass lens optics
DYNAMIC EFFECTS
  • Fixed gobos: gobo holder included in optics
  • Gobo size: E, outer: 37,3 mm - image: 24 mm - thickness: 1,1 mm
BODY
  • Body: sturdy aluminum profile
  • Body colour: RAL 9003
ELECTRONICS
  • Dimmer: linear 0 ~ 100%, manual knob dimmer
  • Operating temperature: -20° C / +45° C (-4° F / +113° F)
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 22W
  • Power factor: >0,40
PHYSICAL
  • IP rating: 20
  • Cooling: passive cooling and fan-free
  • Power connection: track adaptor (EUTRAC, STAFF, GLOBAL, IVELA, Eurostandard Plus compatible)
  • Dimensions (WxHxD): 112x210x226mm / 4.41''x8.27''x8.9''
  • Weight: 1kg / 2.2lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Code
CT
CRI
Lumen

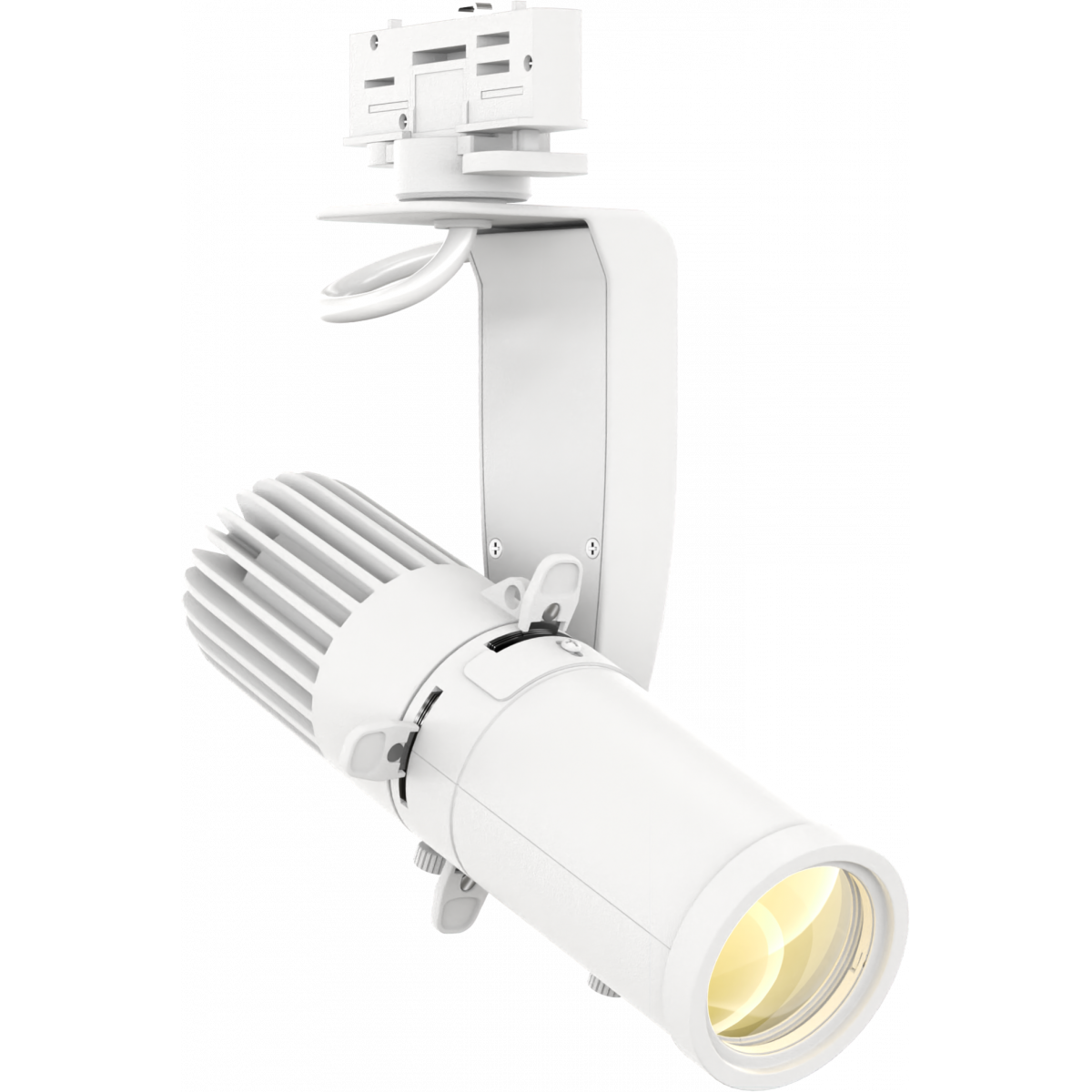

MINIECLTRTU
MINIECLTRTU
3.000 K
92
582 lm

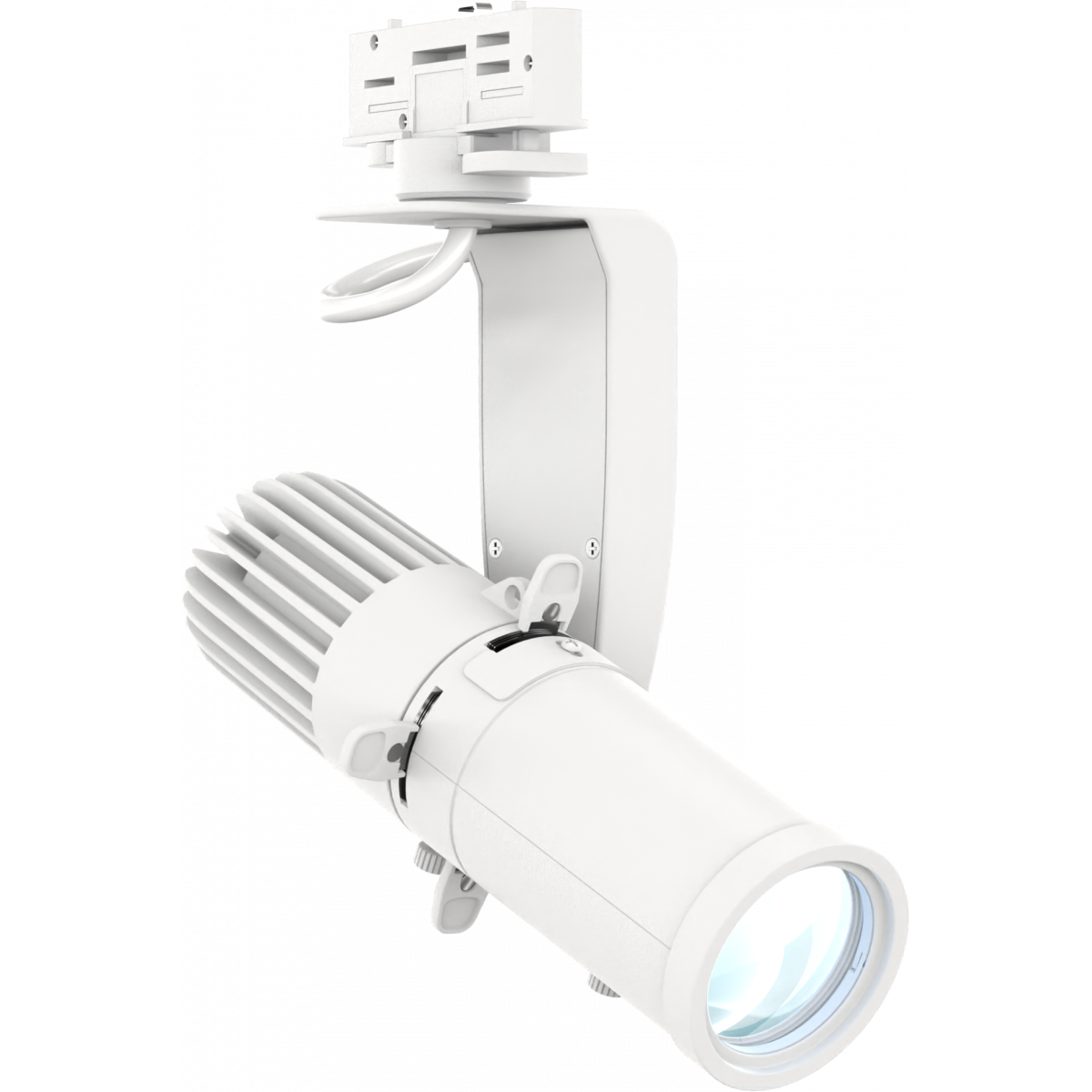

MINIECLTRDY
MINIECLTRDY
5.700 K
80
743 lm
MINIECLTRDY2
MINIECLTRDY2
TBD
TBD
TBD

Accessories & Related Products

RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
MINIECLTRL19
MINIECLTRL19
(optional)

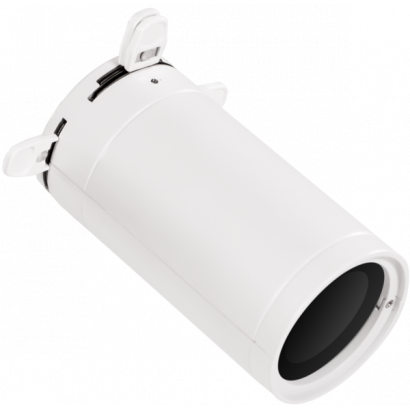

Optics for MINIECLTR profiler, gobo holder included, 19° beam
MINIECLTRL26
MINIECLTRL26
(optional)
Optics for MINIECLTR profiler, gobo holder included, 26° beam
MINIECLTRL36
MINIECLTRL36
(optional)
Optics for MINIECLTR profiler, gobo holder included, 36° beam
MINIECLTRL50
MINIECLTRL50
(optional)
Optics for MINIECLTR profiler, gobo holder included, 50° beam

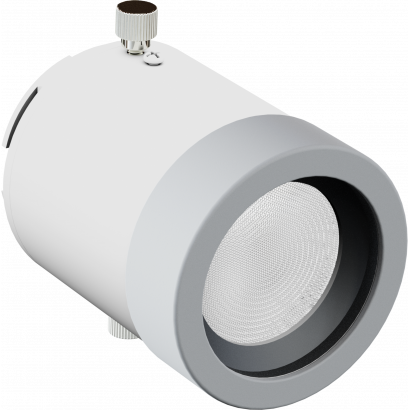

<b>EclMini</b> WashLens 15°- 30°
EclMini WashLens 15°- 30°
(optional)

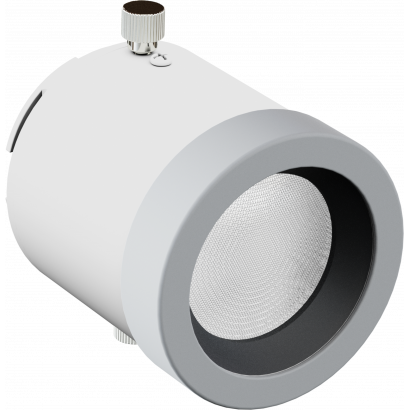

Zoomable Wash Lens 15-30° for EclMini, white
<b>EclMini</b> WashLens 25°- 50°
EclMini WashLens 25°- 50°
(optional)
Zoomable Wash Lens 25-50° for EclMini, white
<b>EclMini</b> Half Snoot
EclMini Half Snoot
(optional)
Half Snoot for EclMinix, white
<b>EclMini</b> Full Snoot
EclMini Full Snoot
(optional)
Full Snoot for EclMini, white

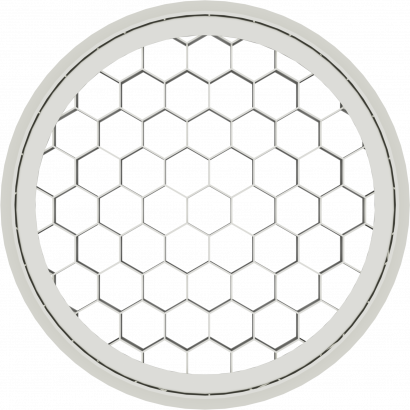

<b>EclMini</b> Louvre
EclMini Louvre
(optional)
Anti-glare louvre for EclMini, white

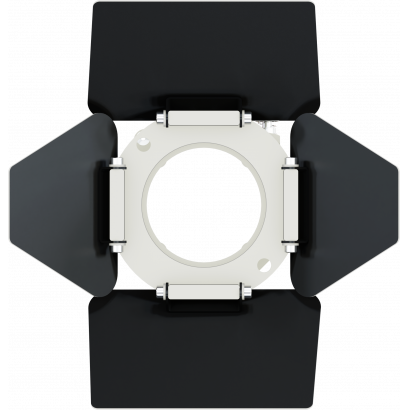

<b>EclMini</b> Barndoor+Frame
EclMini Barndoor+Frame
(optional)
Barndoor and filter frame (compatible with Wash Lenses) for EclMini, white
TRACKADA
TRACKADA
(included)
Track adaptor, max load 10Kg
