MINIECLTRWD
PROLIGHTS

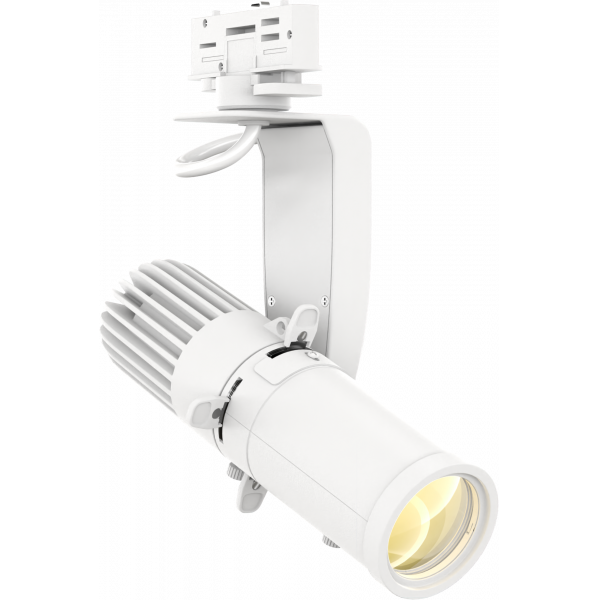

EclMiniProfile TRWD

28W track mounted mini LED profile with W-DMX control

EclMiniProfile TRWD is a new concept of mini LED ellipsoidal based on a 28 W CREE LED. Performing a stylish design, ease of use, precise optics, sharp image projection and bright even projection all in a compact housing that is just a quarter of the size of traditional ellipsoidals. EclMiniProfile TRWD comes with a built-in Wireless DMX (W-DMX) module for cable-free operation, extending the possible applications of this light. Designed for applications in commercial installations, museums, restaurant, churches, educational theatres, and any other installation where size is an important factor. Available in Tungsten and Daylight versions, EclMiniProfile TRWD performs even field projection, high CRI at any level of brightness and linear dimmer over the entire ramp.

Main features:

  • 28W White LED source available in Tungsten and Daylight variants
  • 19° / 26°/ 36°/ 50° optional lenses
  • Wireless DMX control and removable track adapters for easy implementation
See variants

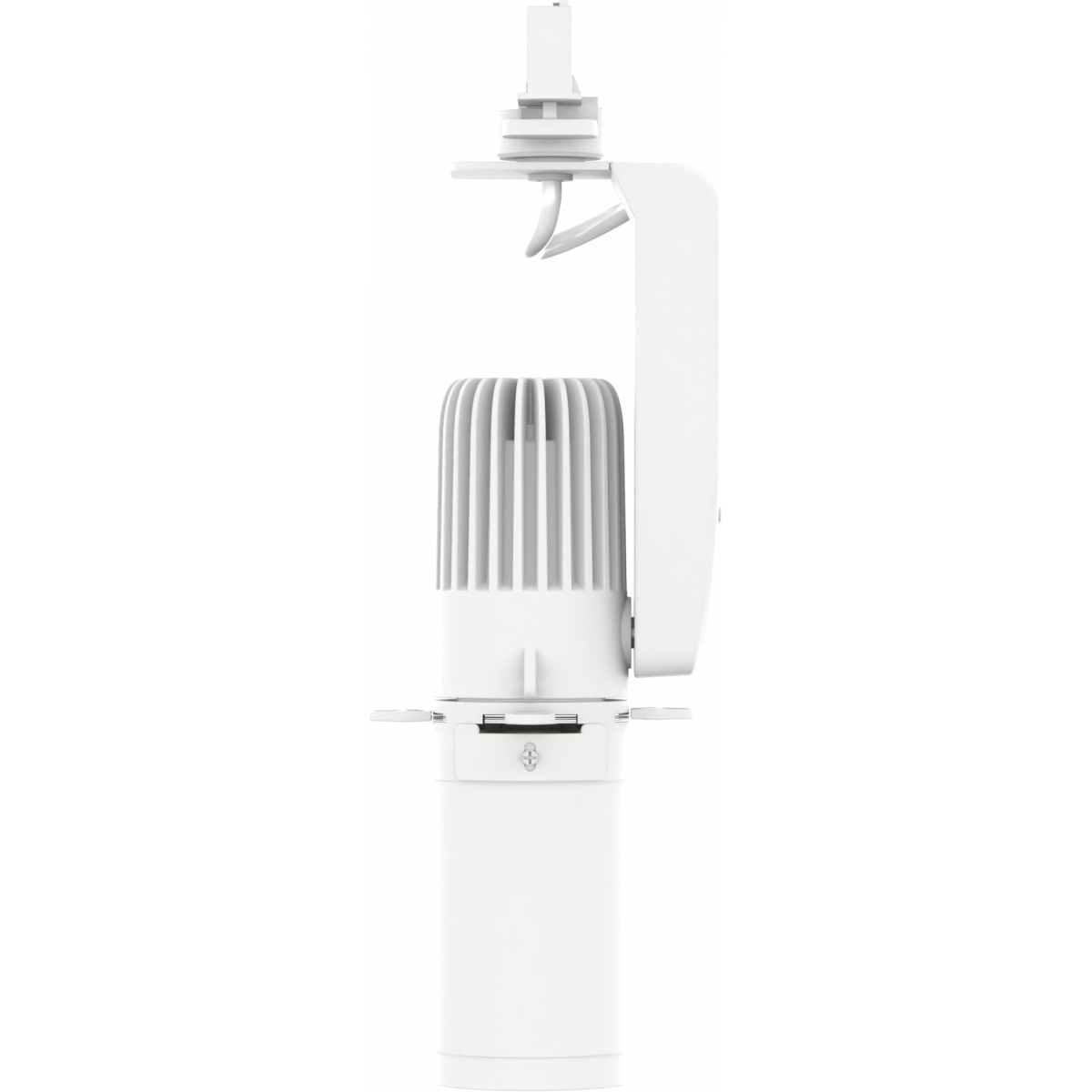

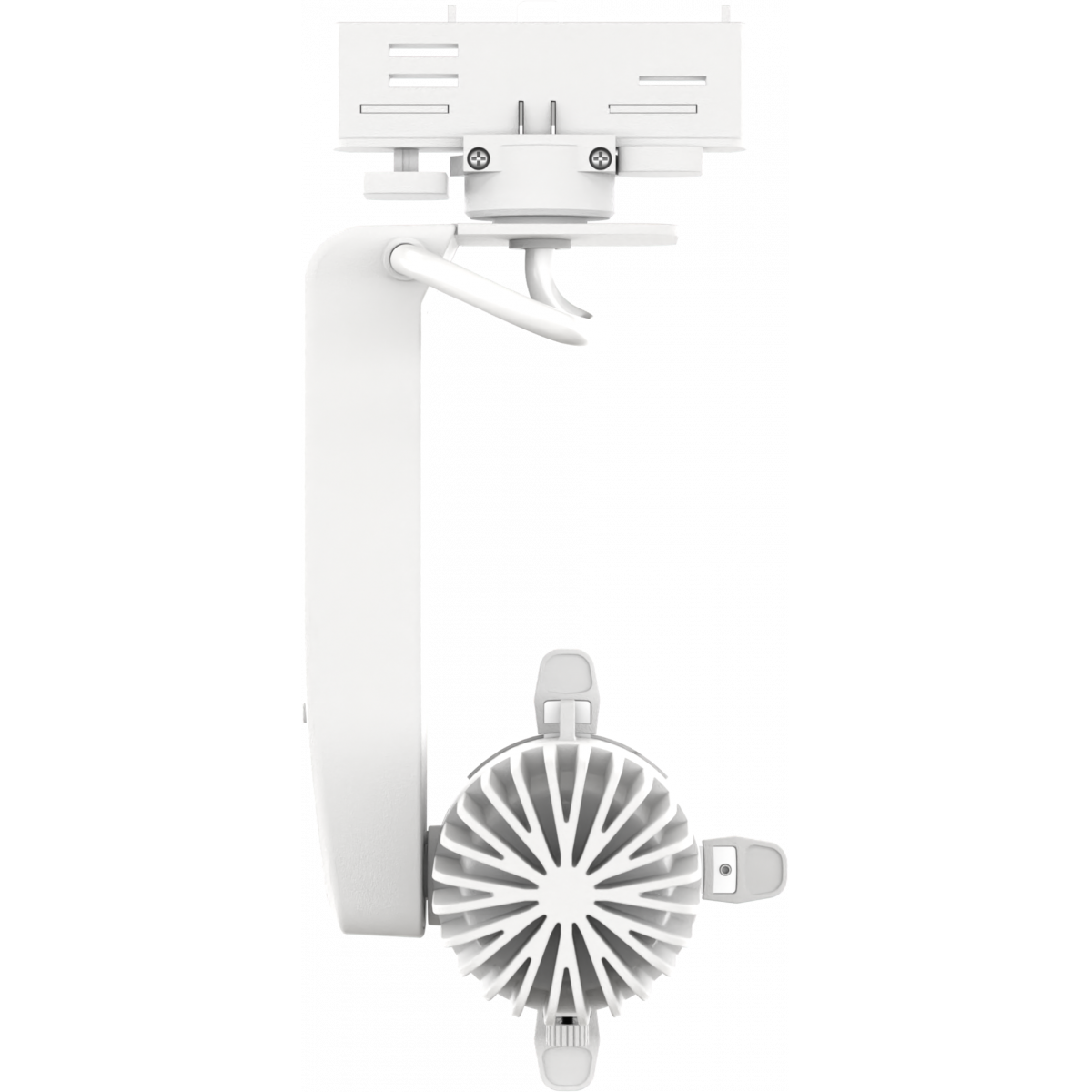

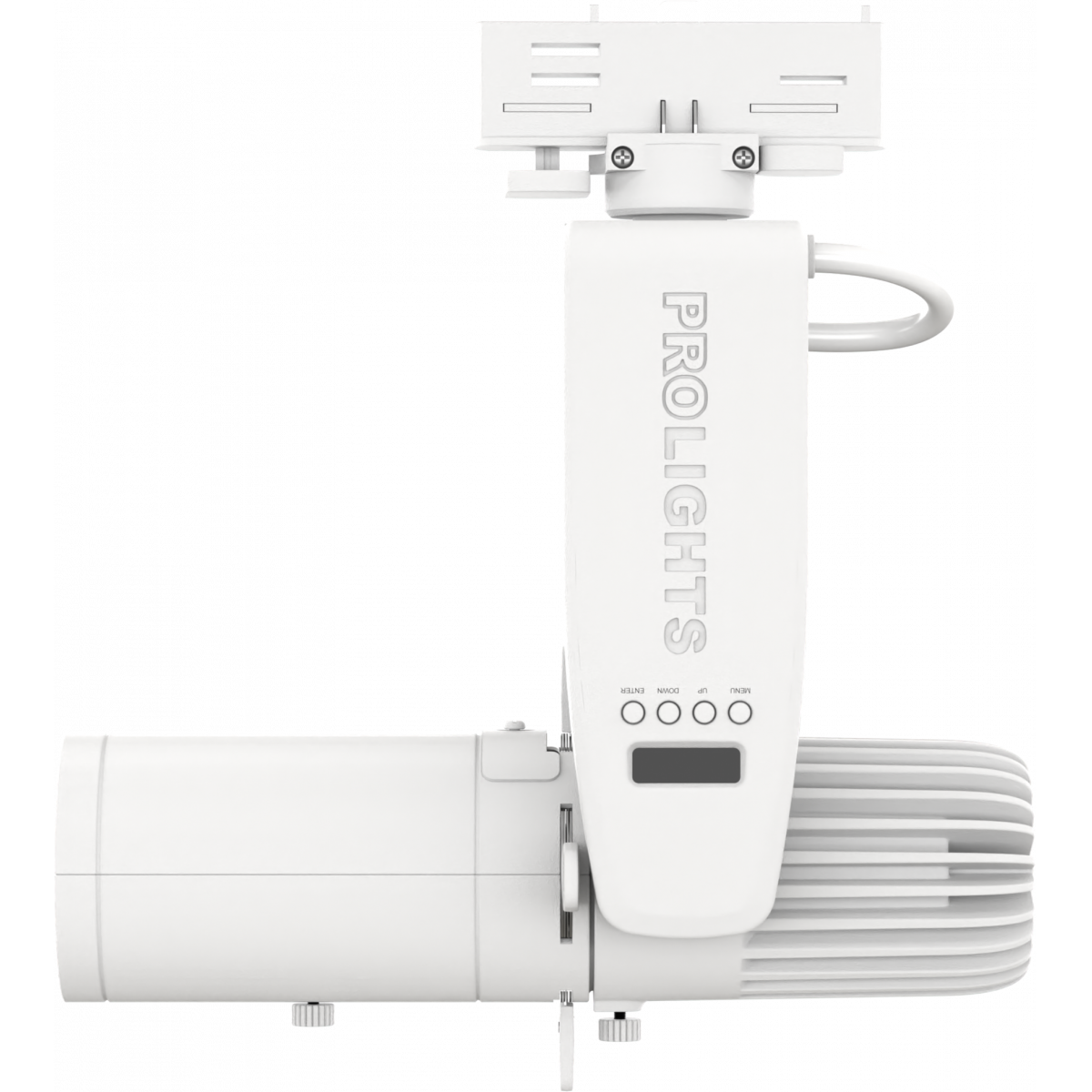

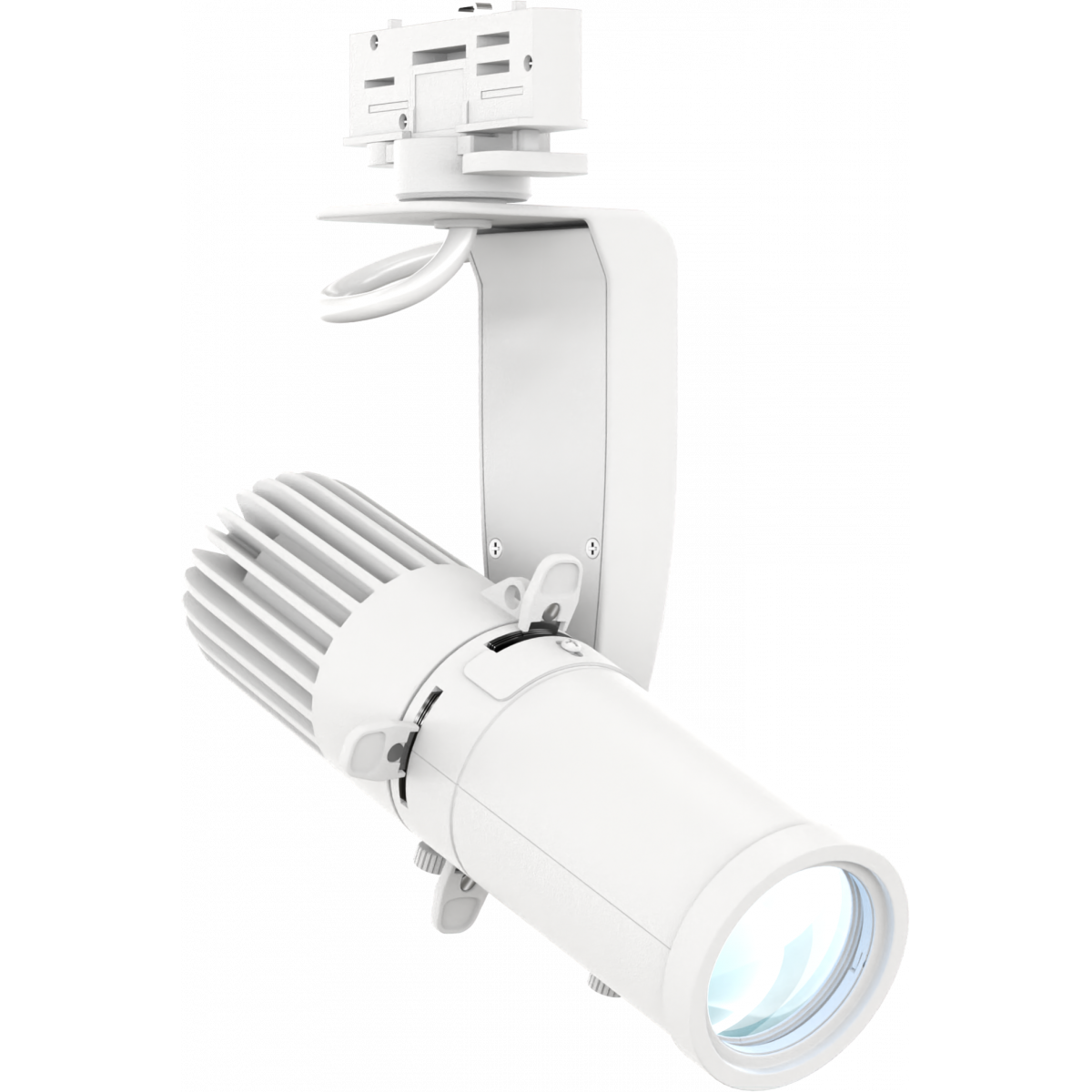

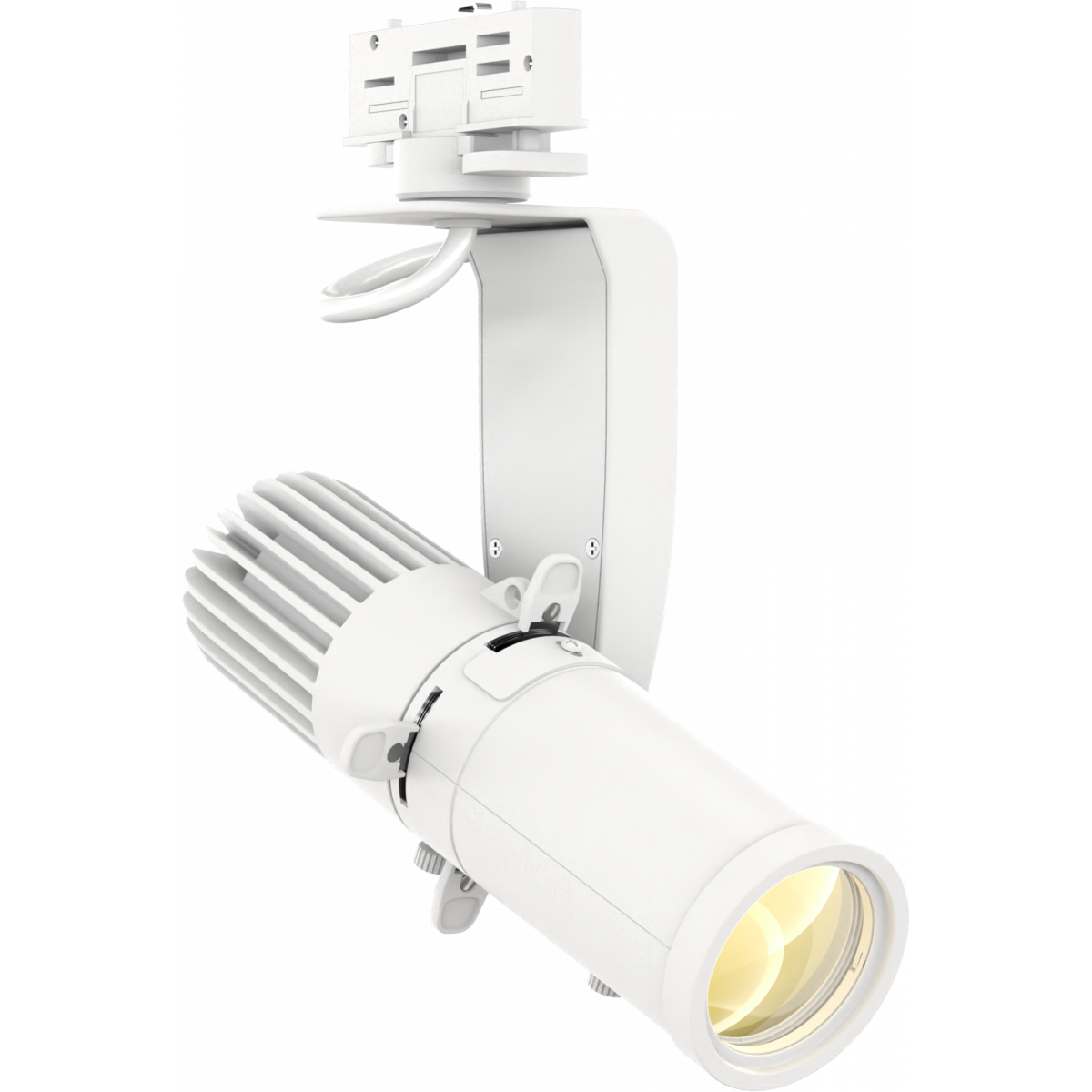

PHOTO GALLERY

EclMiniProfile TRWD
EclMiniProfile TRWD
EclMiniProfile TRWD
EclMiniProfile TRWD
EclMiniProfile TRWD

Technical specifications

LIGHT SOURCE
  • Source: 28W CREE LED
  • CCT: (TU) 3.000 K - (DY) 5.700
  • Luminous flux: (TU) (19°) 563 lm - (26°) 554 lm - (36°) 582 lm - (50°) 552 @Full
  • Luminous flux: (DY) (19°) 731 lm - (26°) 729 lm - (36°) 743 lm - (50°) 693 lm @full
  • Lux: (TU) (19°) 330 lx - (26°) 180 lx - (36°) 96 lx - (50°) 51lx @5 m full
  • Lux: (DY) (19°) 397 lx - (26°) 212 lx - (36°) 107 lx - (50°) 52lx @5 m full
  • CRI: (TU) >92; (DY) >80
  • TLCI: (TU) >90; (DY) >68
  • TM30 Rf: (TU) >90; (DY) >79
  • TM30 Rg: (TU) >97; (DY) >97
  • Source life expectancy: > 70.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Beam angle: optional profile lens 19° / 26° / 36° / 50° (gobo holder included) - wash zoom lens 15°-30°/ 25°-50°
  • Lens type: high-quality glass lens optics
DYNAMIC EFFECTS
  • Fixed gobos: gobo holder included in optics
  • Gobo size: E, outer: 37 mm - image: 23 mm - thickness: 1,1 mm
  • Manual mode: manual adjustment of dimmer and strobe
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: RAL 9003
CONTROL
  • Protocols: W-DMX
  • DMX channels: 1 / 2 / 5channel
  • Wireless Control: included, wireless solution receiver
  • Display: LCD display
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 25 Hz, electronic
  • Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 22W
  • Output (at 230V): 43 units on a single power line
  • Power factor: >0,40
PHYSICAL
  • IP rating: 20
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: track-adapter included for suspension and fixing
  • Power connection: track adaptor (EUTRAC, STAFF, GLOBAL, IVELA, Eurostandard Plus compatible)
  • Dimensions (WxHxD): 112x229x226mm / 4.41''x9.02''x8.9''
  • Weight: 1kg / 2.2lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Code
CT
CRI
Lumen
MINIECLTRWDTU
MINIECLTRWDTU
3.000 K
92
582 lm
MINIECLTRWDDY
MINIECLTRWDDY (END OF LIFE)
5.700 K
80
743 lm
MINIECLTRWDDY2
MINIECLTRWDDY2
5.700 K
89
690 lm

Accessories & Related Products

<b>ÆtherBox</b>
ÆtherBox
(Optional)
IP65 1 universe CRMX transceiver, DMX and Ethernet protocols, Wi-Fi, Bluetooth and battery ready
<b>ÆtherBox</b> LITE
ÆtherBox LITE
(Optional)
1 Universe CRMX Wireless Transceiver
LRLUNA
LRLUNA
(Optional)
Single Universe DMX transceiver with Bluetooth
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
TRACKADA
TRACKADA
(Included)
MINIECLTRL19
MINIECLTRL19
(Optional)
Optics for MINIECLTR profiler, gobo holder included, 19° beam
MINIECLTRL26
MINIECLTRL26
(Optional)
Optics for MINIECLTR profiler, gobo holder included, 26° beam
MINIECLTRL36
MINIECLTRL36
(Optional)
Optics for MINIECLTR profiler, gobo holder included, 36° beam
MINIECLTRL50
MINIECLTRL50
(Optional)
Optics for MINIECLTR profiler, gobo holder included, 50° beam
<b>EclMini</b> PHDZL1540
EclMini PHDZL1540
(Optional)
15° - 40° Zoomable High definition profile lenses for Ecl Mini series, white
<b>EclMini</b> PHDZL1020
EclMini PHDZL1020
(Optional)
10° - 20° Zoomable High definition profile lenses for Ecl Mini series, white
ECLMINIGOBOHINDB
ECLMINIGOBOHINDB
(Optional)
Gobo holder for EclMini with manual adjustable index position system, black
<b>EclMini</b> WashLens 15°- 30°
EclMini WashLens 15°- 30°
(Optional)
Zoomable Wash Lens 15-30° for EclMini, white
<b>EclMini</b> WashLens 25°- 50°
EclMini WashLens 25°- 50°
(Optional)
Zoomable Wash Lens 25-50° for EclMini, white
<b>EclMini</b> Half Snoot
EclMini Half Snoot
(Optional)
Half Snoot for EclMinix, white
<b>EclMini</b> Full Snoot
EclMini Full Snoot
(Optional)
Full Snoot for EclMini, white
<b>EclMini</b> Louvre
EclMini Louvre
(Optional)
Anti-glare louvre for EclMini, white
<b>EclMini</b> Barndoor+Frame
EclMini Barndoor+Frame
(Optional)
Barndoor and filter frame (compatible with Wash Lenses - not compatible with Profile lenses) EclMini

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetMiniecltrwd_A4_DATASHEET_(IT).pdf351KB
Letter datasheetMiniecltrwd_A4_DATASHEET_(EN).pdf358KB

User manual

DMX chart & personalities

File name File size Download
DMX chartMiniecltrwd_DMX_CHARTS.pdf76KB
DMX chartMiniecltrwddy_DMX_CHARTS.pdf50KB
MINIECLTRWD Firmware rev. 1.1
manufacturer fixture library (Link) Link
prolights_minieclipsewddy.d4Download
prolights_minieclipsewdtu.d4Download
manufacturer fixture library (Link) Link
prolights_minieclipsewd_1ch.hedDownload
prolights_minieclipsewd_2ch.hedDownload
prolights_minieclipsewd_5ch.hedDownload
minieclipse_tr tu_1ch.fdfDownload
minieclipse_tr dy_1ch.fdfDownload

Photometrics

CAD symbols & drawings

File name File size Download
3D SKPMiniecltrwd_3D.skp314KB
3D revitMINIECLTRWD_3D_REVIT.zip2MB
2DMiniecltrwd_CAD_2D.dwg2MB
3DMiniecltrwd_CAD_3D.dwg542KB
Technical drawingMiniecltrwd_TECHNICAL_DRAWING.pdf200KB
VectorWorksVECTORWORKS_SYMBOLS.vwx448KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: {Upbox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1 STABLE 19/12/2018 Improvement:
  • Backlight time is set to 10s by default.
 Rev. 1
Rev. 1.0
