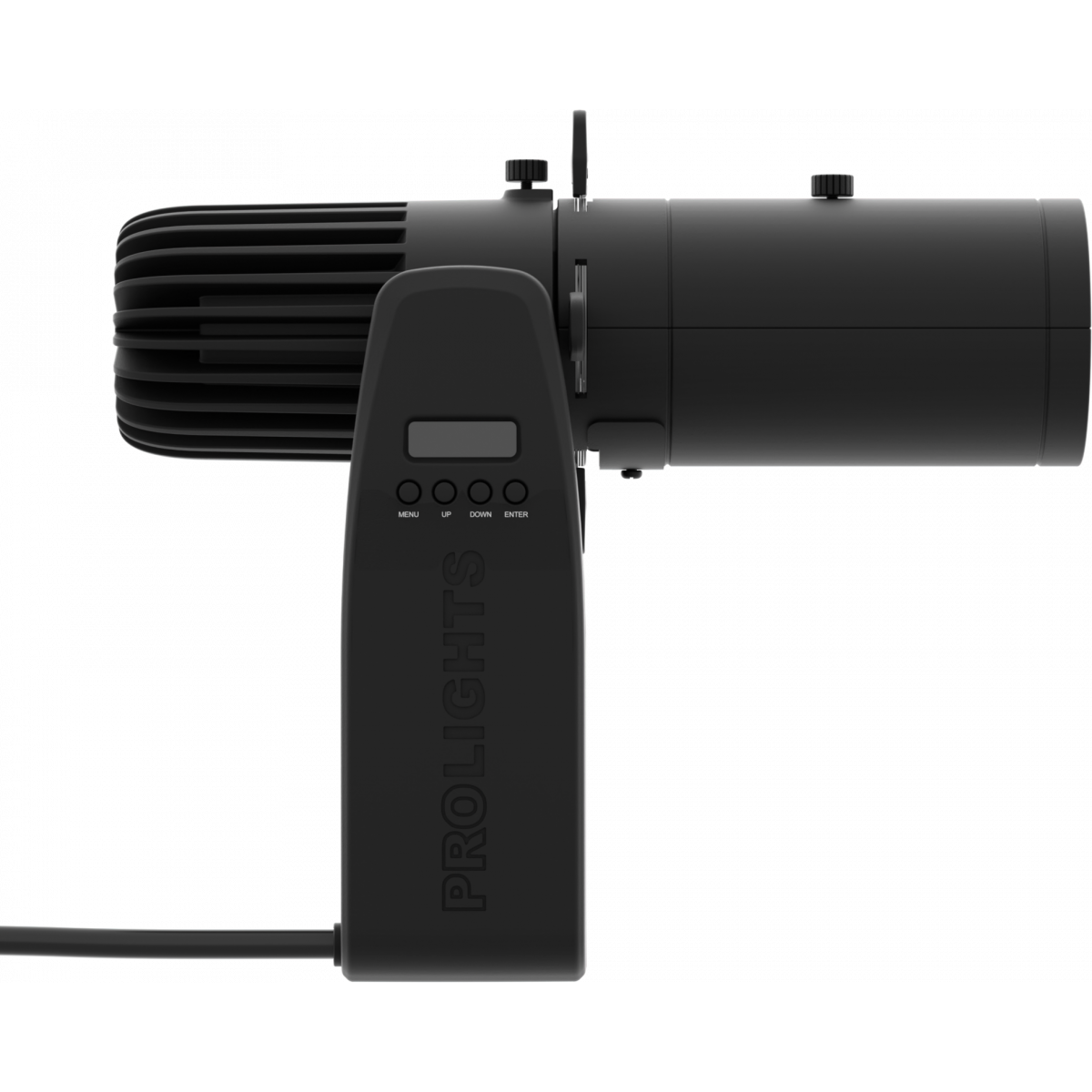

EclMiniProfile WDMX

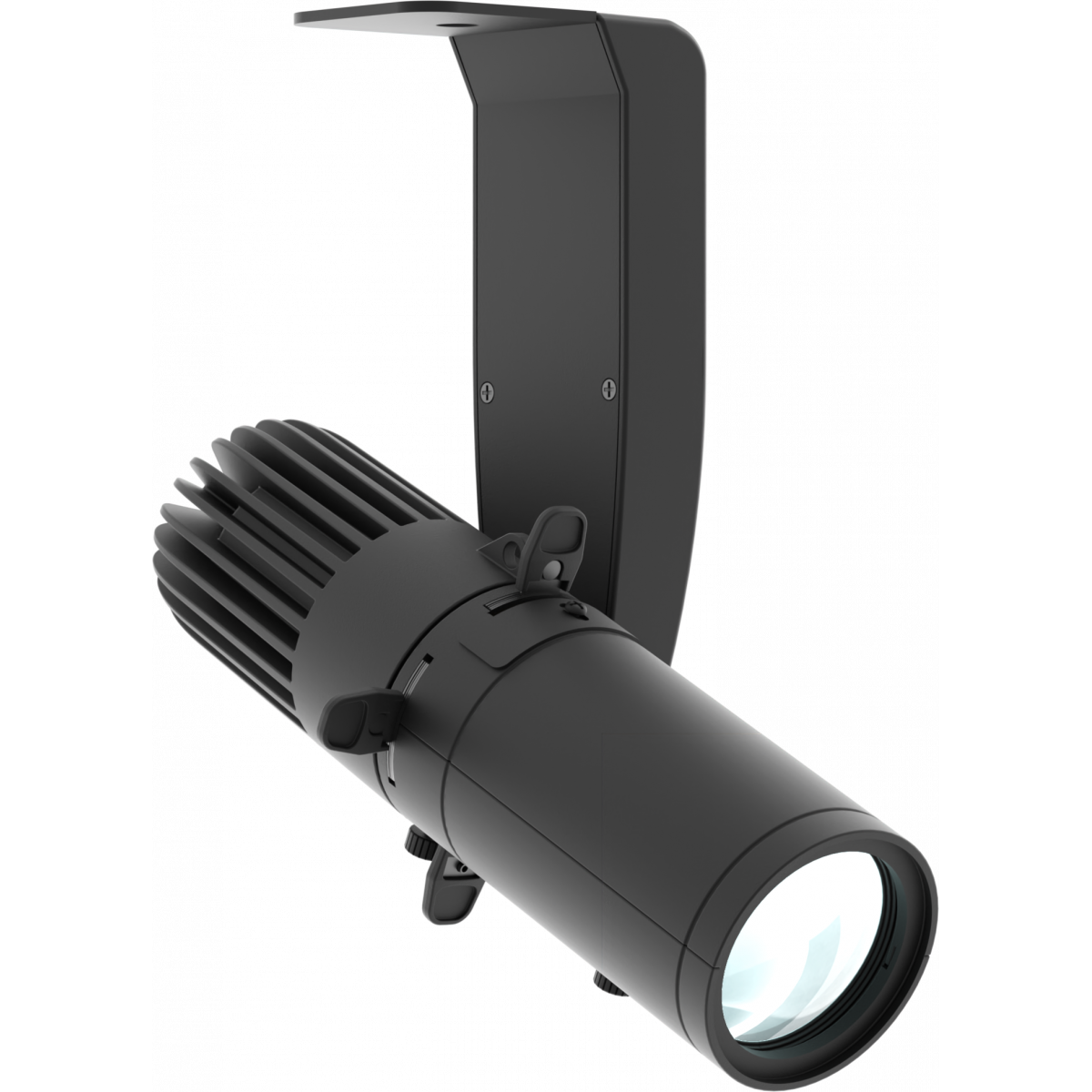

Mini LED profile with WDMX control

EclMiniProfile WDMX is a new concept of mini LED ellipsoidal. Showcasing a stylish design, ease of use, precise optics, sharp image projection and bright even projection all in a compact housing that is just a quarter of the size of traditional ellipsoidals. EclMiniProfile WDMX comes with a built-in Wireless DMX (WDMX) module for cable-free operation, extending the possible applications of this light. Designed for applications in commercial installtions, museums, restaurant, churches, educational theatres, and any other installation where size is an important factor. Available in Tungsten and Daylight versions, EclMiniProfile WDMX performs even field projection, high CRI at any level of brightness and linear dimmer over the entire ramp.

Main features:

  • Bright, compact LED ellipsoidal with sharp optics and wireless DMX control.
  • Available with Warm and Cold White High CRI LED sources.
  • 19° - 26° - 36° - 50° lens options
See variants

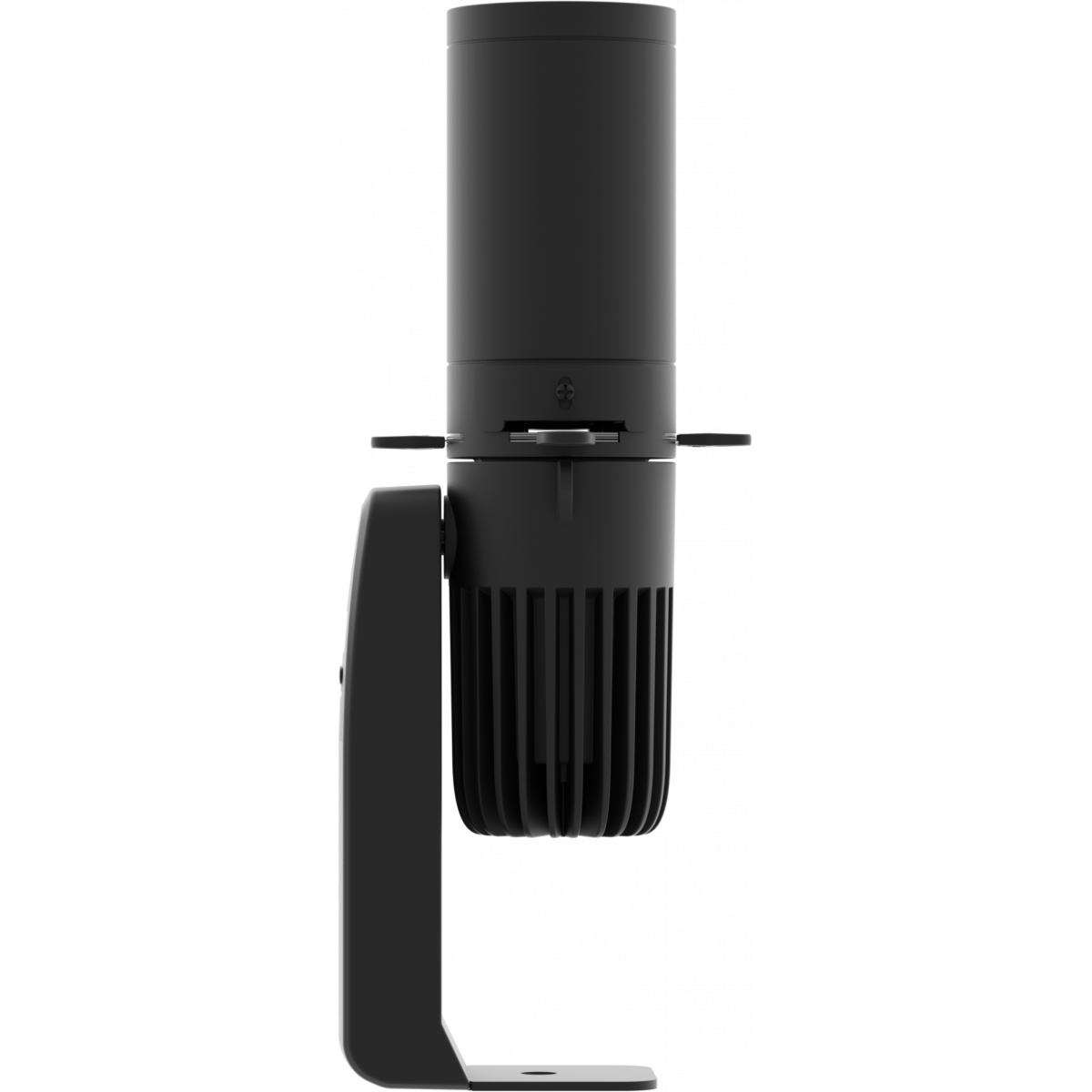

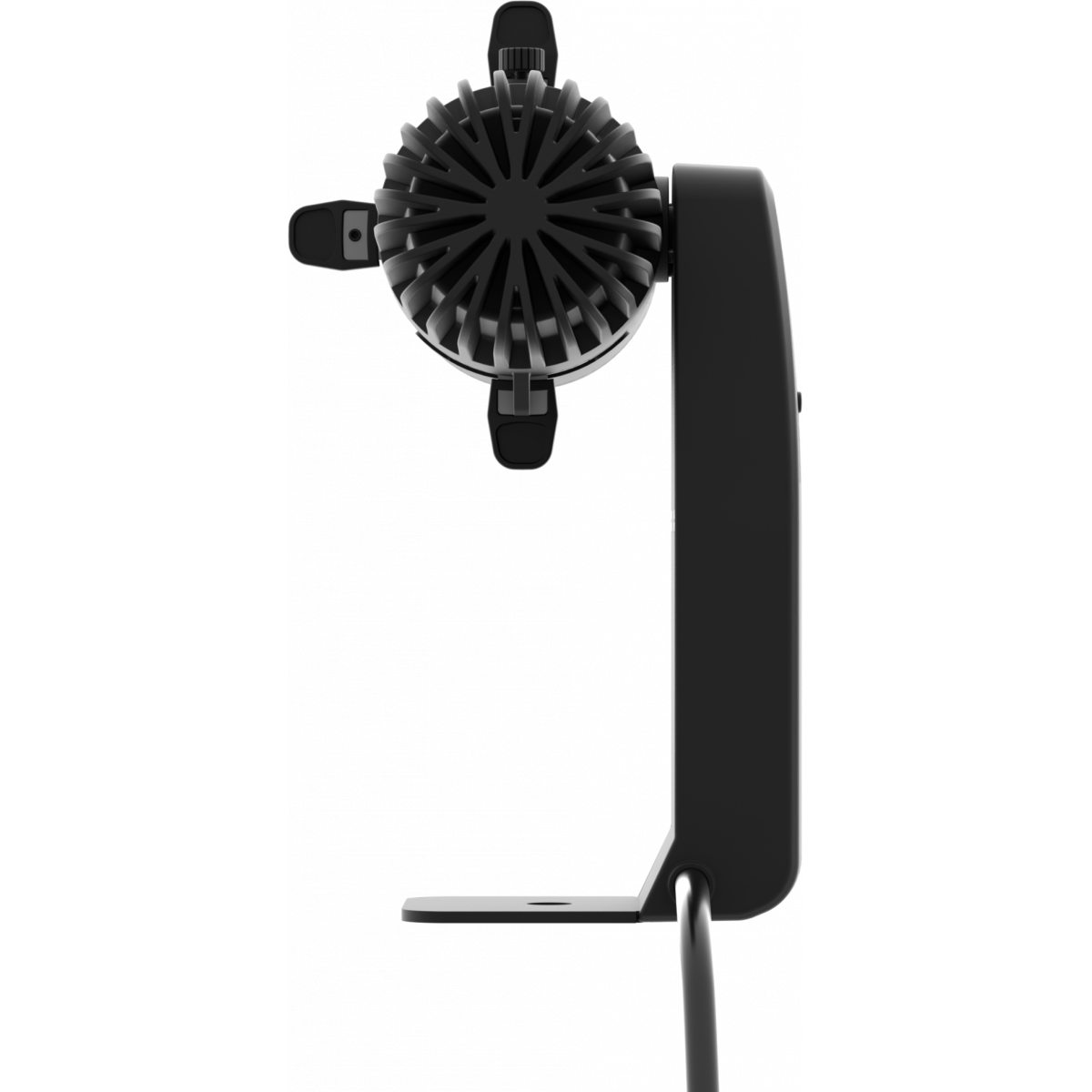

PHOTO GALLERY

EclMiniProfile WDMX
EclMiniProfile WDMX
EclMiniProfile WDMX
EclMiniProfile WDMX
EclMiniProfile WDMX

Technical specifications

LIGHT SOURCE
  • Source: 28W CREE LED
  • CCT: (TU) 3.000 K - (DY) 5.700
  • Luminous flux: (TU) (19°) 563 lm - (26°) 554 lm - (36°) 582 lm - (50°) 552 @Full
  • Luminous flux: (DY) (19°) 731 lm - (26°) 729 lm - (36°) 743 lm - (50°) 693 lm @full
  • Lux: (TU) (19°) 330 lx - (26°) 180 lx - (36°) 96 lx - (50°) 51lx @5 m full
  • Lux: (DY) (19°) 397 lx - (26°) 212 lx - (36°) 107 lx - (50°) 52lx @5 m full
  • CRI: (TU) >92; (DY) >80
  • TLCI: (TU) >90; (DY) >68
  • TM30 Rf: (TU) >90; (DY) >79
  • TM30 Rg: (TU) >97; (DY) >97
  • Source life expectancy: > 70.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Beam angle: optional profile lens 19° / 26° / 36° / 50° (gobo holder included) - wash zoom lens 15°-30°/ 25°-50°
  • Lens type: high-quality glass lens optics
DYNAMIC EFFECTS
  • Fixed gobos: gobo holder Included in optics
  • Gobo size: E, outer: 37 mm - image: 23 mm - thickness: 1,1 mm
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of dimmer and strobe
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: RAL 9004
CONTROL
  • Protocols: W-DMX
  • DMX channels: 1 / 2 / 5channel
  • Wireless Control: included, wireless solution receiver
  • Display: LCD display
  • Firmware upgrade:
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 25 Hz, electronic
  • Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 22W
  • Output (at 230V): 43
  • Power factor: >0,40
PHYSICAL
  • IP rating: 20
  • Cooling: passive cooling and fan-free
  • Power connection: 16 A Schuko plug
  • Dimensions (WxHxD): 112x202x226mm / 4.41''x7.95''x8.9''
  • Weight: 1kg / 2.2lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Code
CT
CRI
Lumen
MINIECLWDTU
MINIECLWDTU
3.000 K
92
582 lm
MINIECLWDDY
MINIECLWDDY (DISCONTINUED)
5.700 K
80
743 lm
MINIECLWDDY2
MINIECLWDDY2
5.700 K
89
690 lm

Accessories & Related Products

<b>ÆtherBox</b>
ÆtherBox
(Optional)
IP65 1 universe CRMX transceiver, DMX and Ethernet protocols, Wi-Fi, Bluetooth and battery ready
<b>ÆtherBox</b> LITE
ÆtherBox LITE
(Optional)
1 Universe CRMX Wireless Transceiver
LRLUNA
LRLUNA
(Optional)
Single Universe DMX transceiver with Bluetooth
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
NAKKT3013185
NAKKT3013185
(Optional)
Kit for NAXTSA683 adapter, white
NAKKT3013184
NAKKT3013184
(Optional)
Kit for NAXTSA682 adapter, black

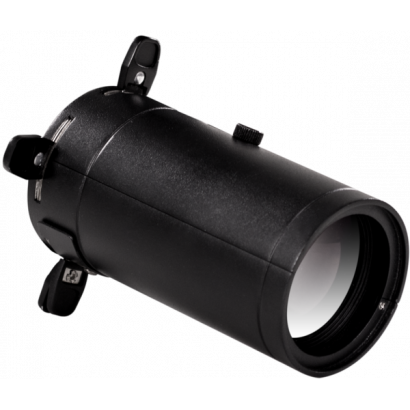

MINIECLL19
MINIECLL19
(Optional)
Optics for MINIECL profiler, gobo holder included, 19° beam
MINIECLL26
MINIECLL26
(Optional)
Optics for MINIECL profiler, gobo holder included, 26° beam
MINIECLL36
MINIECLL36
(Optional)
Optics for MINIECL profiler, gobo holder included, 36° beam
MINIECLL50
MINIECLL50
(Optional)
Optics for MINIECL profiler, gobo holder included, 50° beam
<b>EclMini</b> PHDZL1540
EclMini PHDZL1540
(Optional)
15° - 40° Zoomable High definition profile lenses for Ecl Mini series, black
<b>EclMini</b> PHDZL1020
EclMini PHDZL1020
(Optional)
10° - 20° Zoomable High definition profile lenses for Ecl Mini series, black
ECLMINIGOBOHINDB
ECLMINIGOBOHINDB
(Optional)
Gobo holder for EclMini with manual adjustable index position system, black

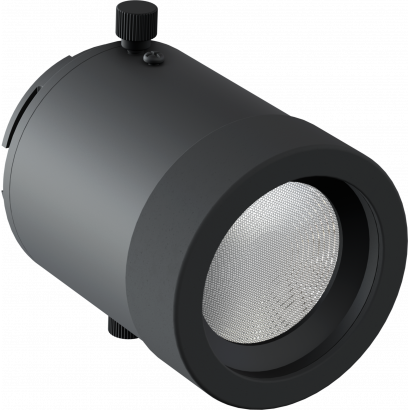

<b>EclMini</b> WashLens 15°- 30°
EclMini WashLens 15°- 30°
(Optional)
Zoomable Wash Lens 15-30° for EclMini, black

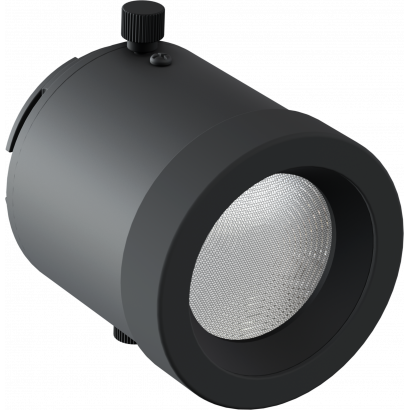

<b>EclMini</b> WashLens 25°- 50°
EclMini WashLens 25°- 50°
(Optional)
Zoomable Wash Lens 25-50° for EclMini, black

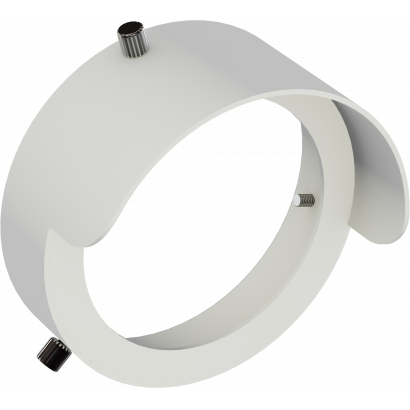

<b>EclMini</b> Half Snoot
EclMini Half Snoot
(Optional)
Half Snoot for EclMinix, white

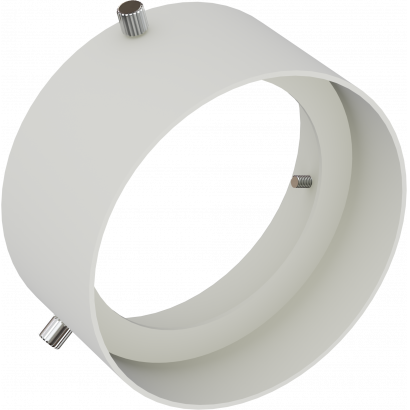

<b>EclMini</b> Full Snoot
EclMini Full Snoot
(Optional)
Full Snoot for EclMini, white

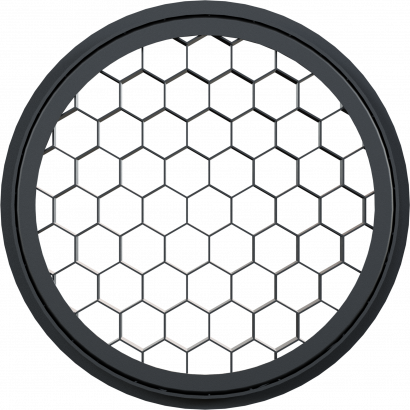

<b>EclMini</b> Louvre
EclMini Louvre
(Optional)
Anti-glare louvre for EclMini, black

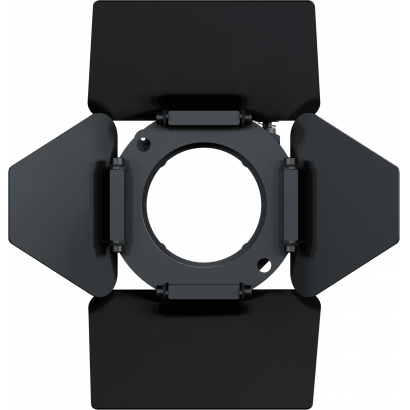

<b>EclMini</b> Barndoor+Frame
EclMini Barndoor+Frame
(Optional)
Barndoor and filter frame (compatible with Wash Lenses - not compatible with Profile lenses) EclMini

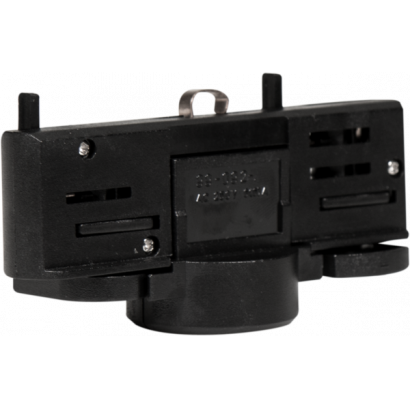

TRACKADA
TRACKADA
(Optional)

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetMinieclwd_A4_DATASHEET_(IT).pdf327KB
Letter datasheetMinieclwd_A4_DATASHEET_(EN).pdf339KB

User manual

File name File size Download
User manualMinieclwd_USER_MANUAL_EN.pdf3MB

DMX chart & personalities

File name File size Download
DMX chartMinieclwd_DMX_CHARTS.pdf76KB
MINIECLWD Firmware rev. 1.1
manufacturer fixture library (Link) Link
prolights_minieclipsewddy.d4Download
prolights_minieclipsewdtu.d4Download
manufacturer fixture library (Link) Link
prolights_minieclipsewd_1ch.hedDownload
prolights_minieclipsewd_2ch.hedDownload
prolights_minieclipsewd_5ch.hedDownload
minieclipse_tr dy_1ch.fdfDownload
minieclipse_tr tu_1ch.fdfDownload
prolights@minieclipsewdtu@1ch.xmlDownload
prolights@minieclipsewdtu@2ch.xmlDownload
prolights@minieclipsewdtu@5ch.xmlDownload
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D revitMINIECLWD_3D_REVIT.zip1MB
3D SKPMinieclwd_3D.skp258KB
2D cad symbolsMINIECLWD_2DSYMBOLS.zip118KB
3DMinieclwd_CAD_3D.dwg527KB
Technical drawingMinieclwd_TECHNICAL_DRAWING.pdf207KB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB
VectorWorksMINIECLWD_SYMBOLS.zip851KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: {Upbox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1 STABLE 15/12/2018 10 second default display backlight Rev. 1.0
