MINIVERSAPAR
PROLIGHTS

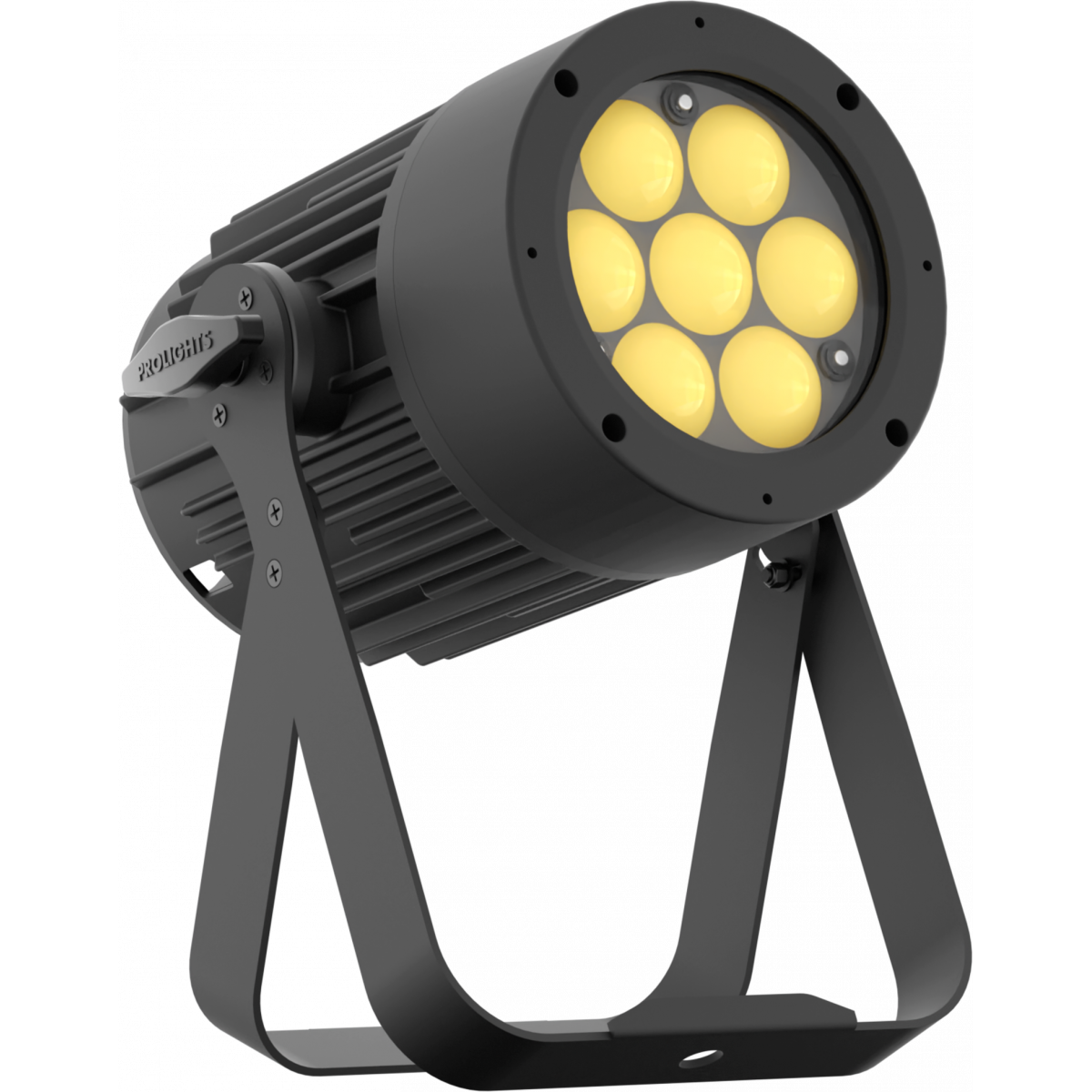

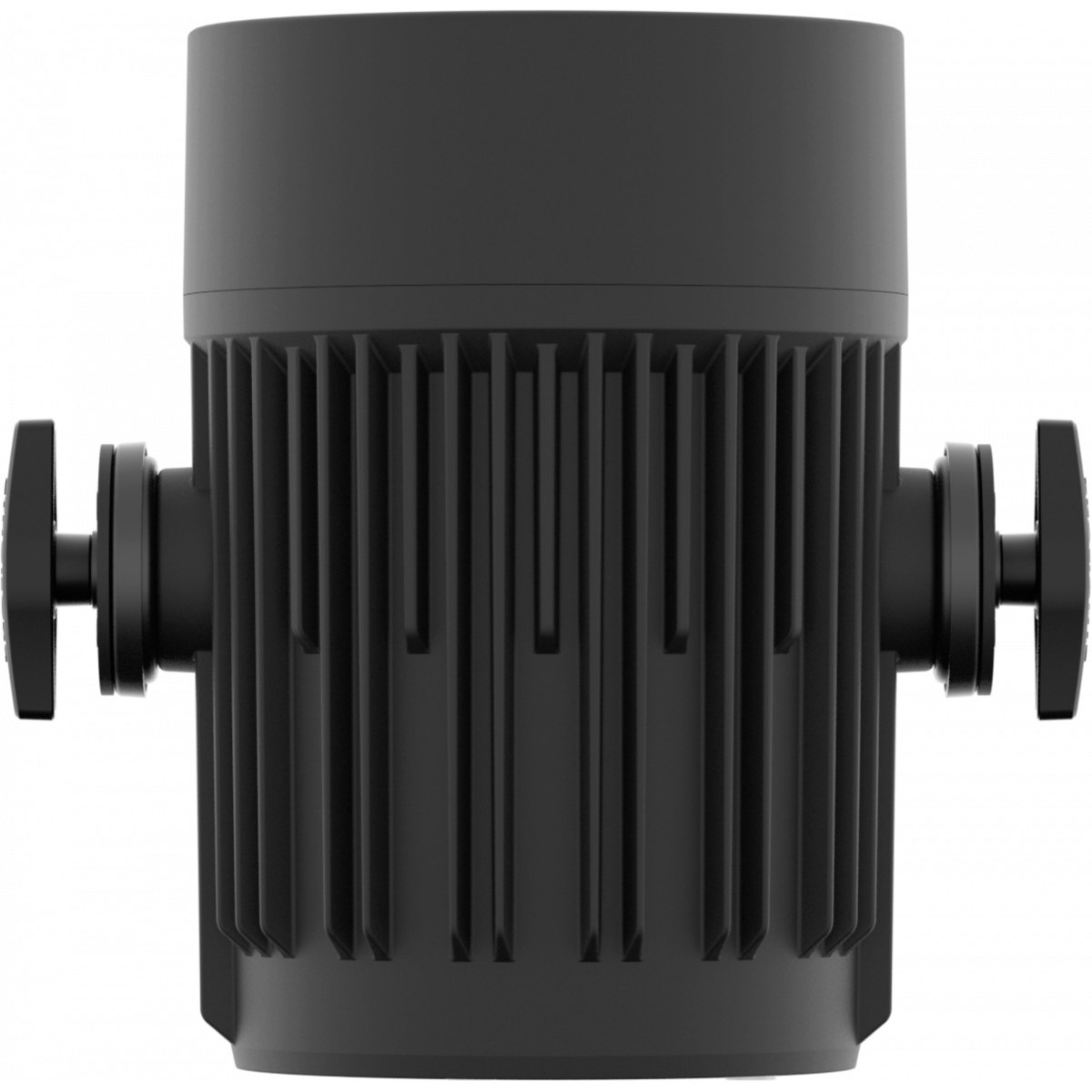

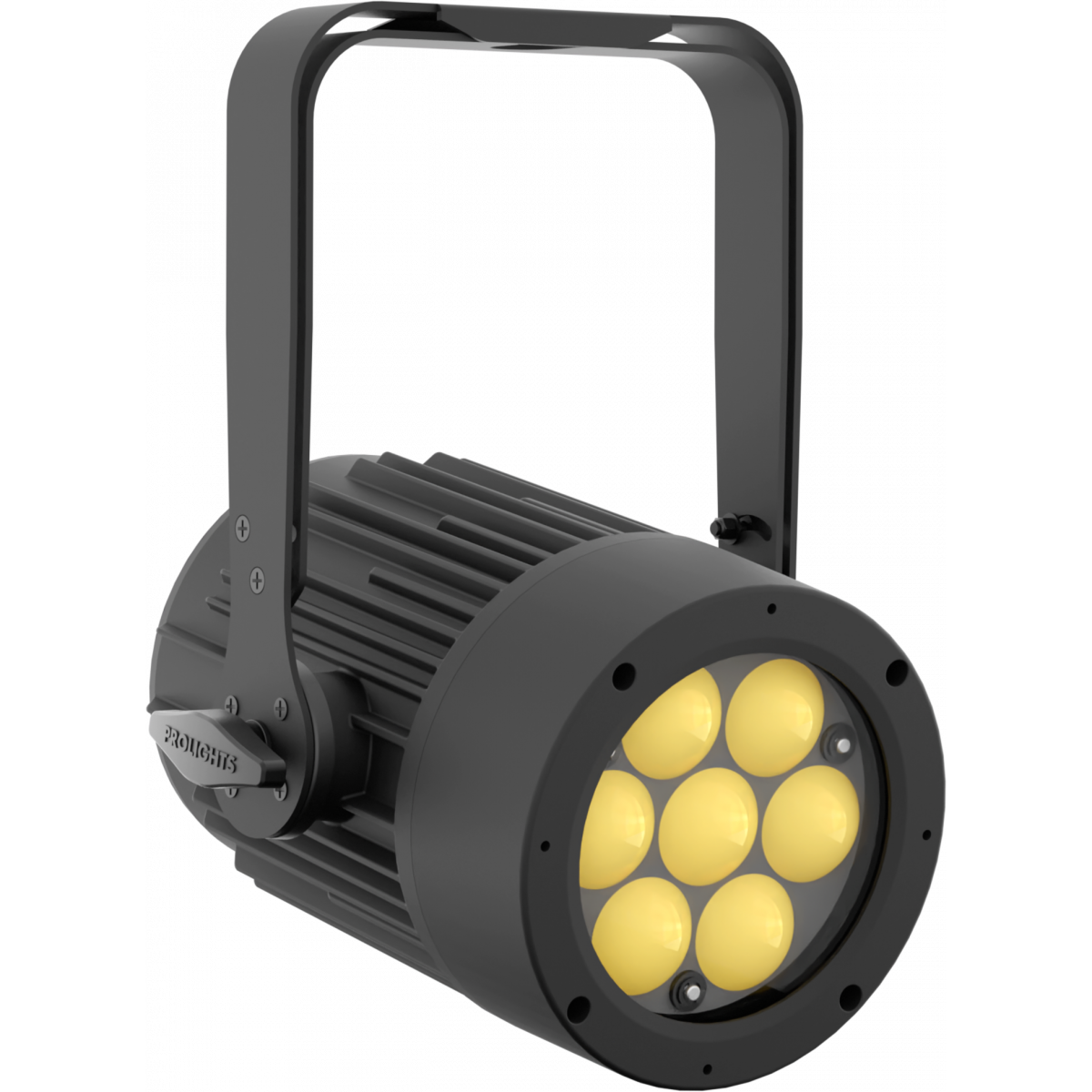

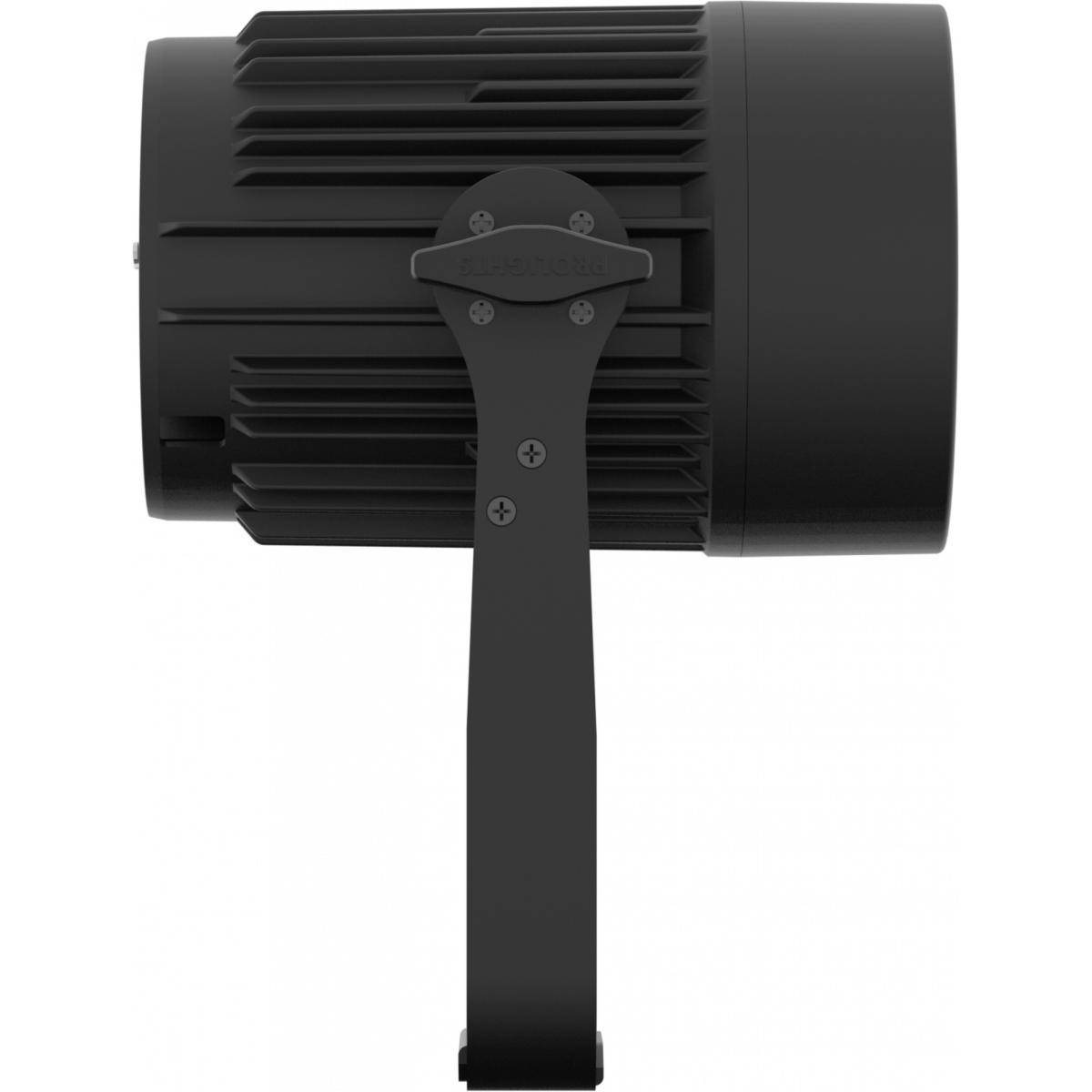

Mini VersaPar

ORDER CODE: MINIVERSAPAR

7x10W RGBW compact zoom PAR

Mini VersaPar is a compact indoor LED zoom PAR designed for rental companies. The multi-purpose concept combining high brightness, wide zoom range and advanced colour mixing truly makes this a unique fixture. Mini VersaPar is equipped with 10° - 40° unrivalled zoom range, high efficiency, perfect chromatic uniformity, HDL dimming technology and totally silent operation.

Main features:

  • 7x10W RGBW/FC LED
  • Wide zoom range from 10° - 40° (1:4 zoom)
  • Silent operation for studio application
See variants

PHOTO GALLERY

Mini VersaPar
Mini VersaPar
Mini VersaPar
Mini VersaPar
Mini VersaPar

Technical specifications

LIGHT SOURCE
  • Source: 7x10W RGBW LEDs
  • Luminous flux: (10°) 1'012 lm - (40°) 1'335
  • Lux: (10°) 4'415 lx - (40°) 378lx @3 m
  • Source life expectancy: > 50.000 h
OPTICS
  • Zoom range: 10° - 40° motorised linear zoom
  • Lens type: honeycomb gapless plano-convex optics
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • White presets: 2.800 K - 10.000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: several pre-built pixel macros with adjustable speed
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
  • Sound mode: music activation through internal microphone and sensitivity control
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: black
CONTROL
  • Protocols: DMX512
  • DMX channels: 5 / 7 / 10channel
  • Wireless Control: optional, proprietary protocol compatible with WIFIBOX, WDBOX
  • Display: 4 chars display
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: selectable dimming modes available
  • Strobe / shutter: 1 / 28 Hz, electronic
  • Operating temperature: -10° ~ +40° Ta
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 69,2W
  • Max power consumption (at 120V): 70W
  • Output (at 230V): 20 units on a single power line
  • Output (at 120V): 11 units on a single power line
PHYSICAL
  • IP rating: 30 with a protective vent to prevent condensation, dust, compensate pressure
  • Cooling: active, silent operation
  • Data: USB port for USB WIFI transmitter (optional)

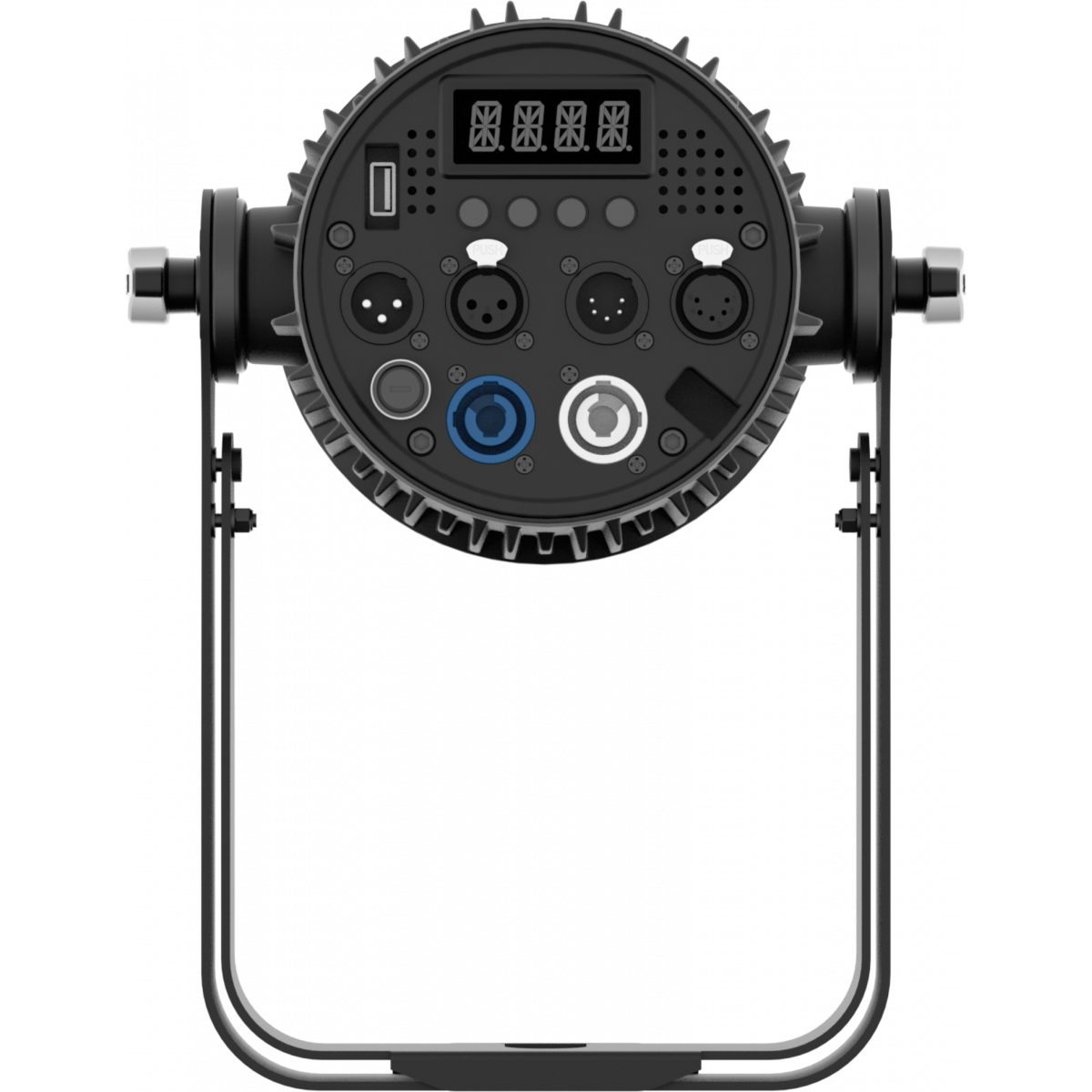

  • Signal connection: XLR 3p + 5p IN/OUT connectors
  • Power connection: Seetronic powerCON IN/OUT connectors
  • Dimensions (WxHxD): 235xx301x223mm / 9.25''x11.85''
  • Weight: 4kg / 8.82lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Accessories & Related Products

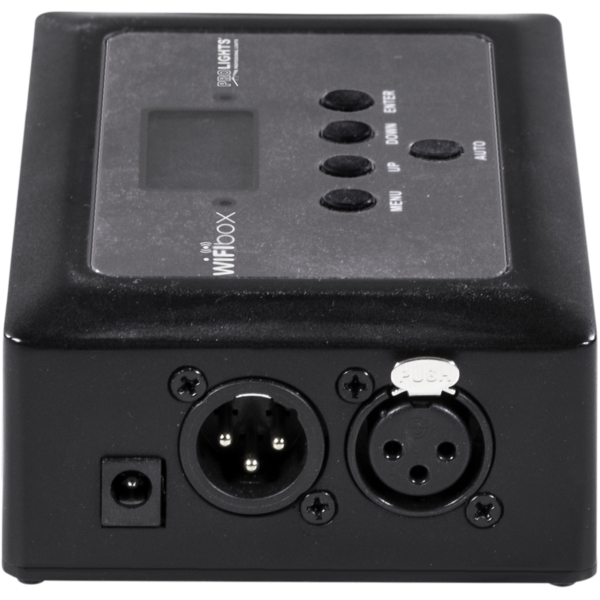

<b>WIFI</b>-Box
WIFI-Box
(Optional)
DMX controller interface, Wi-Fi/DMX IN, Wi-Fi / DMX OUT
TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
TOUR53413L03
TOUR53413L03
(Optional)
Dmx cable HC5340. CANC3MXX XLR 3p->CANC3FXX XLR (f) 3p, L.3m
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
<b>WD</b>-Box
WD-Box
(Optional)
Wireless DMX Transceiver, IN/OUT 3-pin XLR, distance 200m, 2.4 GHz, 0.6 kg

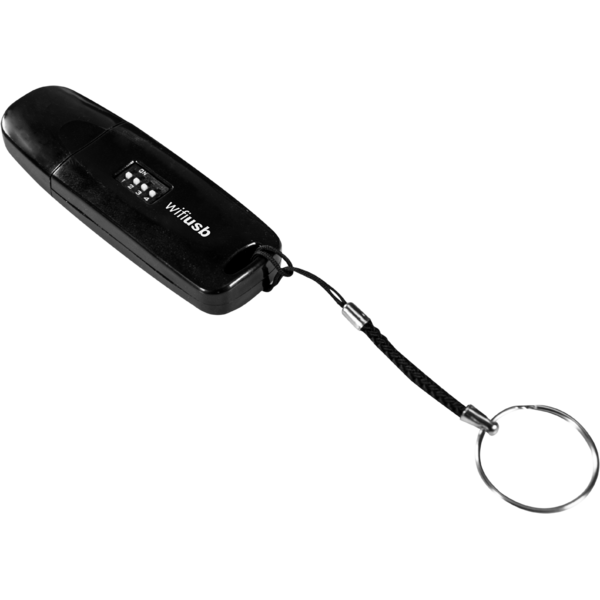

<b>WIFI</b>-USB
WIFI-USB
(Optional)
USB Wi-Fi transreceiver, compatible with WIFIBOX and WDBOX
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetMiniversapar_A4_DATASHEET_(IT).pdf162KB
Letter datasheetMiniversapar_A4_DATASHEET_(EN).pdf165KB

User manual

File name File size Download
User manualMiniversapar_USER_MANUAL_ITEN.pdf2MB

DMX chart & personalities

File name File size Download
DMX chartMiniversapar_DMX_CHARTS.pdf426KB
MINIVERSAPAR Firmware rev. 1.2
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D SKPMiniversapar_3D.skp2MB
3D RFAMiniversapar_3D.rfa972KB
2DMiniversapar_CAD_2D.dwg12MB
3DMiniversapar_CAD_3D.dwg492KB
Technical drawingMiniversapar_TECHNICAL_DRAWING.pdf307KB
VectorWorksVECTORWORKS_SYMBOLS.vwx379KB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.2 STABLE 10/04/2018 Improved motor management system.
