OMEGAX39C45RT

ORDER CODE: OMEGAX39C45RT

3,9 mm pixel pitch outdoor rental LED screen right corner

Seamless 90° corners through special 45° cutter cabinets.

Main features:

  • Curve configurations both concave and convex through curving mounting plates:
  • • 0-10° concave (10° - 5° - 2°)
  • • 0-5° convex (5° - 2°)

PHOTO GALLERY

Technical specifications

VIDEO
  • Driver chip type: MBI 5151
  • LED source: Nationstar SMD1921 black frame
  • Pixel pitch: 3.9mm / 0.15''
  • Panel resolution: 128x128pixels
  • Module resolution: 64x64pixels
  • Luminous flux: 5.000nit
  • Contrast: 3.000:1
  • Grayscale: 18 bit
  • Refresh rate ≥: 3.840Hz
  • Drive Mode: 1/8 scan, constan current
  • Vertical viewing angle: 120°
  • Horizontal viewing angle: 120°
  • LED density: 65.536LED/sqm
  • Dead Pixel Ratio: <0,002
  • LED avg life span: 100.000
ELECTRICAL
  • Power input/output: Seetronic TRUE powerCON
  • Power supply: AC 110/230 V 50/60 Hz
  • Max power consumption (panel): 210W
  • Avg power consumption (panel): 60W
  • Max power consumption (sqm): 840W
  • Avg power consumption (sqm): 240W
  • Standby power consumption (pannello): 16W
  • Max rated current/panel:: AC 220 V / 0,91 A
  • Working temperature: -20°C / +50°C
  • Working humidity: 10~90 RH%
CONTROL
  • Receiving card type: A8S
  • Other controllers type: rotation, 18bit+, clearview, mapping, firmware copy, RCFGX restore, calibration restore
  • Control protocol: Novastar
  • Signal input: waterproof Seetronic RJ45
  • Signal output: waterproof Seetronic RJ45
MECHANICS
  • Magnetic LED modules: not available
  • Other specifics: curve configurations, climbable, rear panel swapping, corner protection for transport, velcro strips for gapless mounting
  • Module size (WxH): 250x250mm / 9.84''x9.84''
  • Panel size(WxHxD): 500×500×90.6mm / 19.69''
  • Vertical hanging system: built-in aliscaf clamp support
  • Cooling: natural cooling of the peculiar chassis and to absence of fans
  • Connection: seamless locking system
  • Curvability: concave 2°, 5°, 10° - convex 2°, 5°
  • Body: die-cast aluminium housing
  • Color: black
  • IP rating: IP65 (front and rear)
  • Panel weight: 9kg / 19.84lbs
  • Weight per square meter: 36kg / 79.37lbs
  • Hanging Panel Quantity ≤: 20
  • Compliant Standard: CE, EMC, UL

Versions

Accessories & Related Products

OXFCM80C45
OXFCM80C45
(optional)

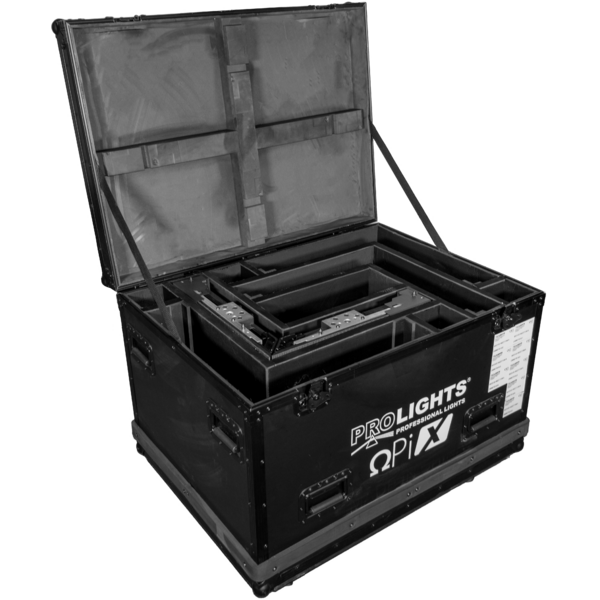

Flightcase for 8 45° corner modules OMEGAPIX series LED-display
OXDCL01
OXDCL01
(optional)
Data cable for OMEGAX LED display series assembled with RJ45, L.1 m
OXACL01
OXACL01
(optional)
Power cable for OMEGAX and DELTAX LED display series L.1 m
OXHGB01C45R
OXHGB01C45R
(optional)

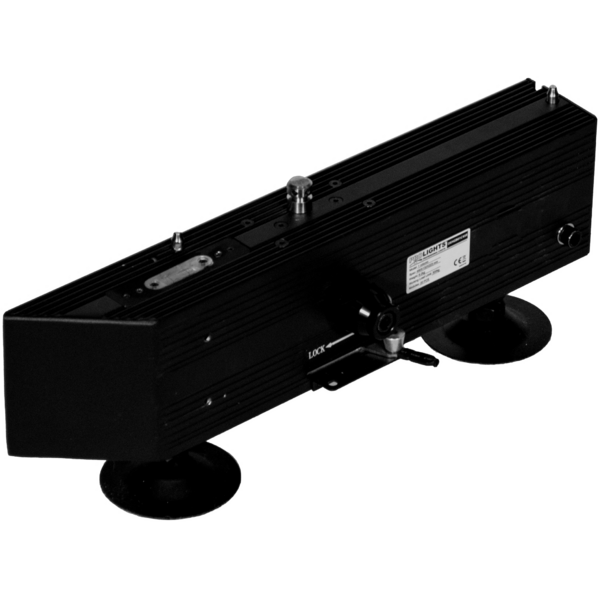

Hanging / ground bar 45° right
OXCJ88
OXCJ88
(optional)
Cabinet curve plate concave, 2°
OXCJ85
OXCJ85
(optional)
Cabinet curve plate concave, 5°
OXCJ80
OXCJ80
(optional)
Cabinet curve plate concave, 10°
OXCJ92
OXCJ92
(optional)
Cabinet curve plate convex, 2°
OXCJ95
OXCJ95
(optional)
Cabinet curve plate convex, 5°
NOVAMCTRLR5
NOVAMCTRLR5
(optional)
Video processor sender, res. 3840x1080, 8xRJ45 out, 4.6 kg
OXXJ
OXXJ
(optional)
Metal joint used to connect 4 pcs OMEGAX26B, OMEGAX39B or OMEGAX39T, M10 hole
OXC45MP
OXC45MP
(optional)
Mounting plate per 45° cutting-edge cabinet
