OMEGAX48T
PROLIGHTS

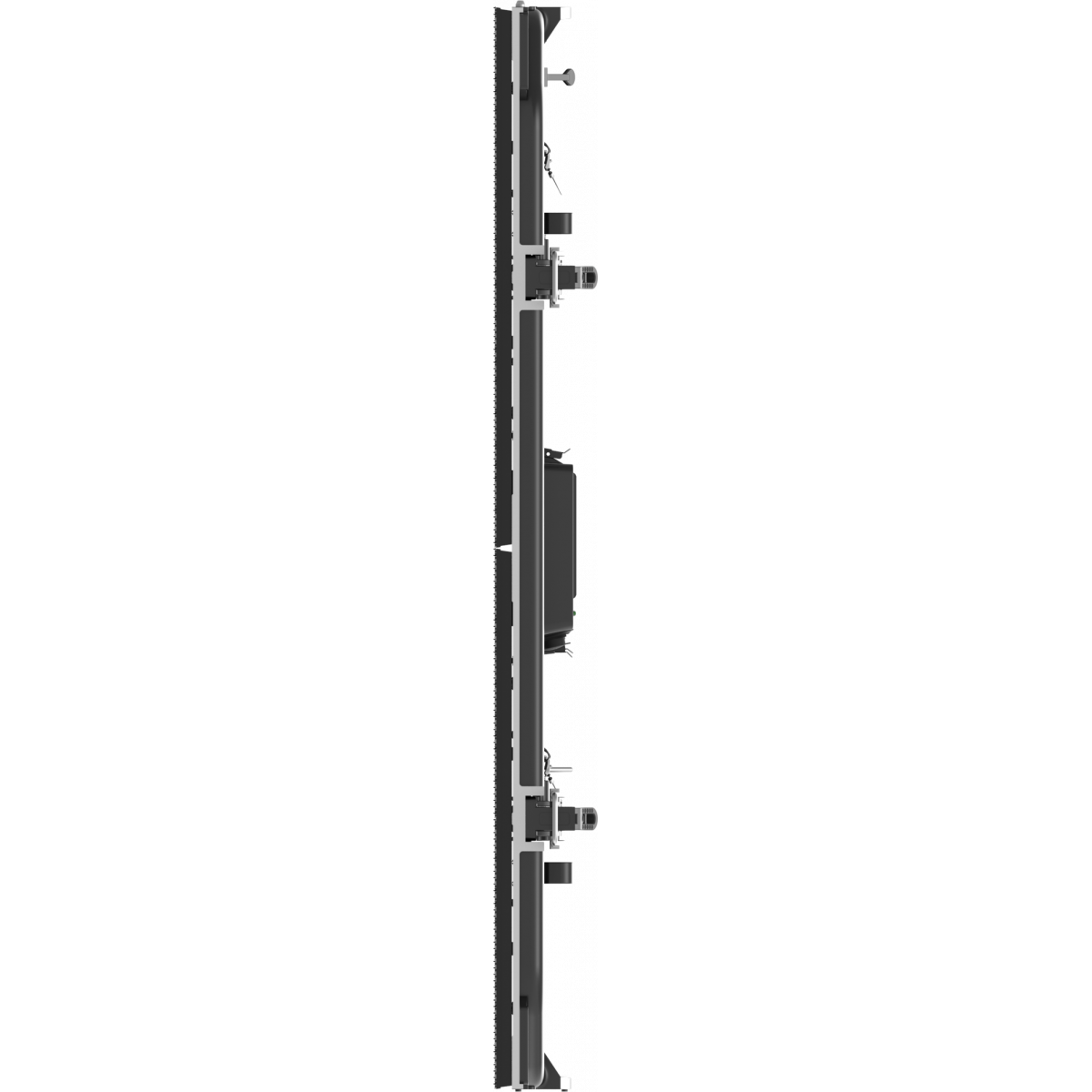

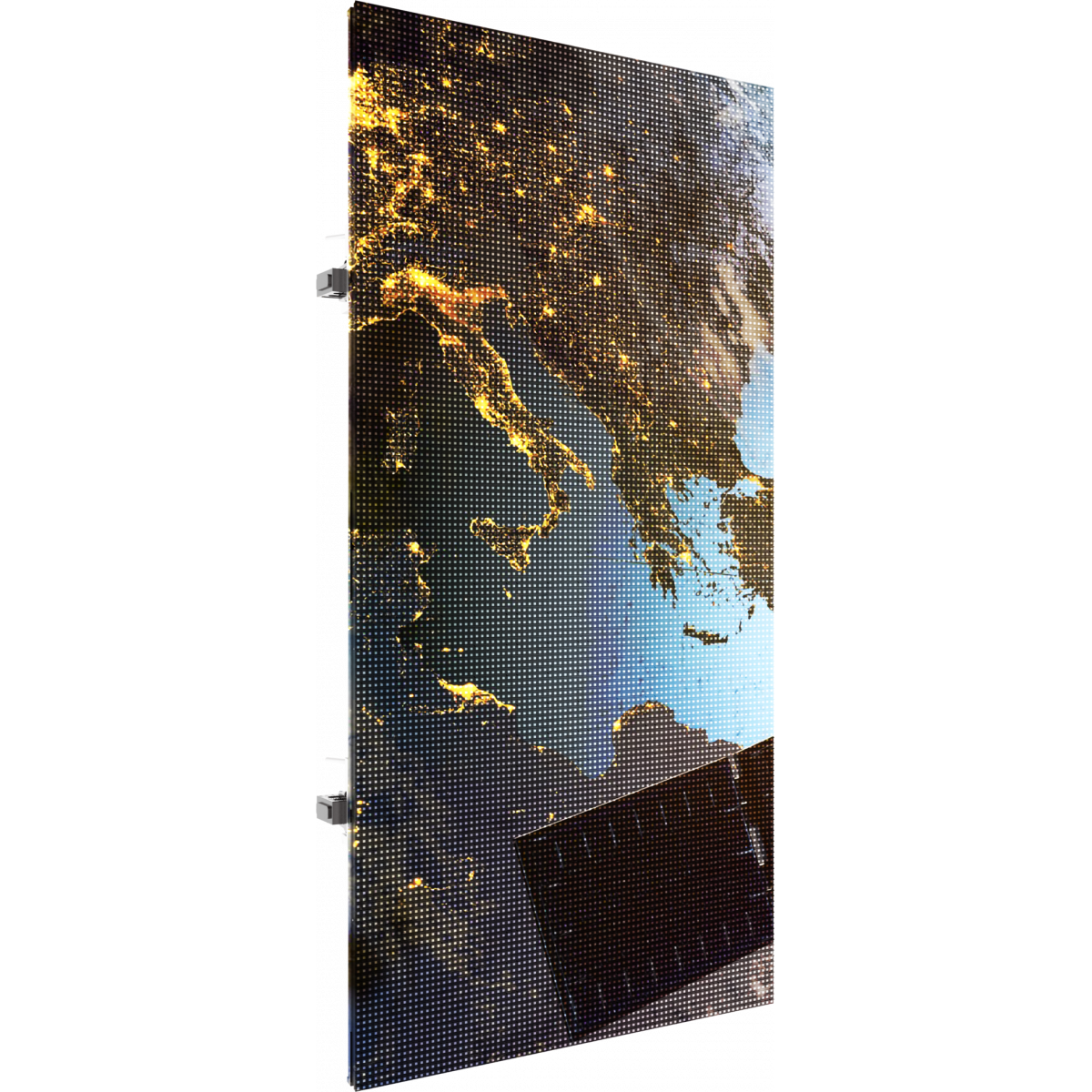

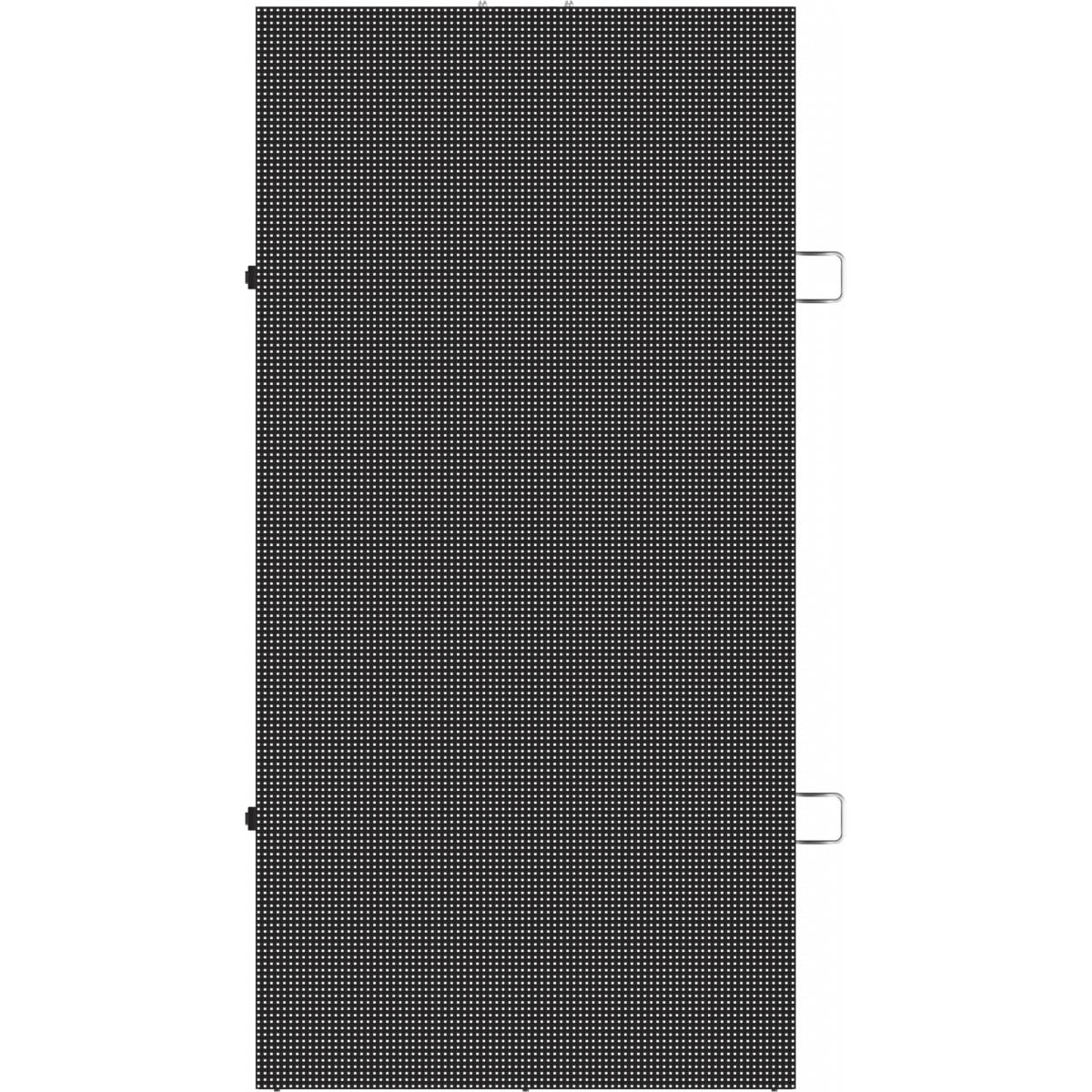

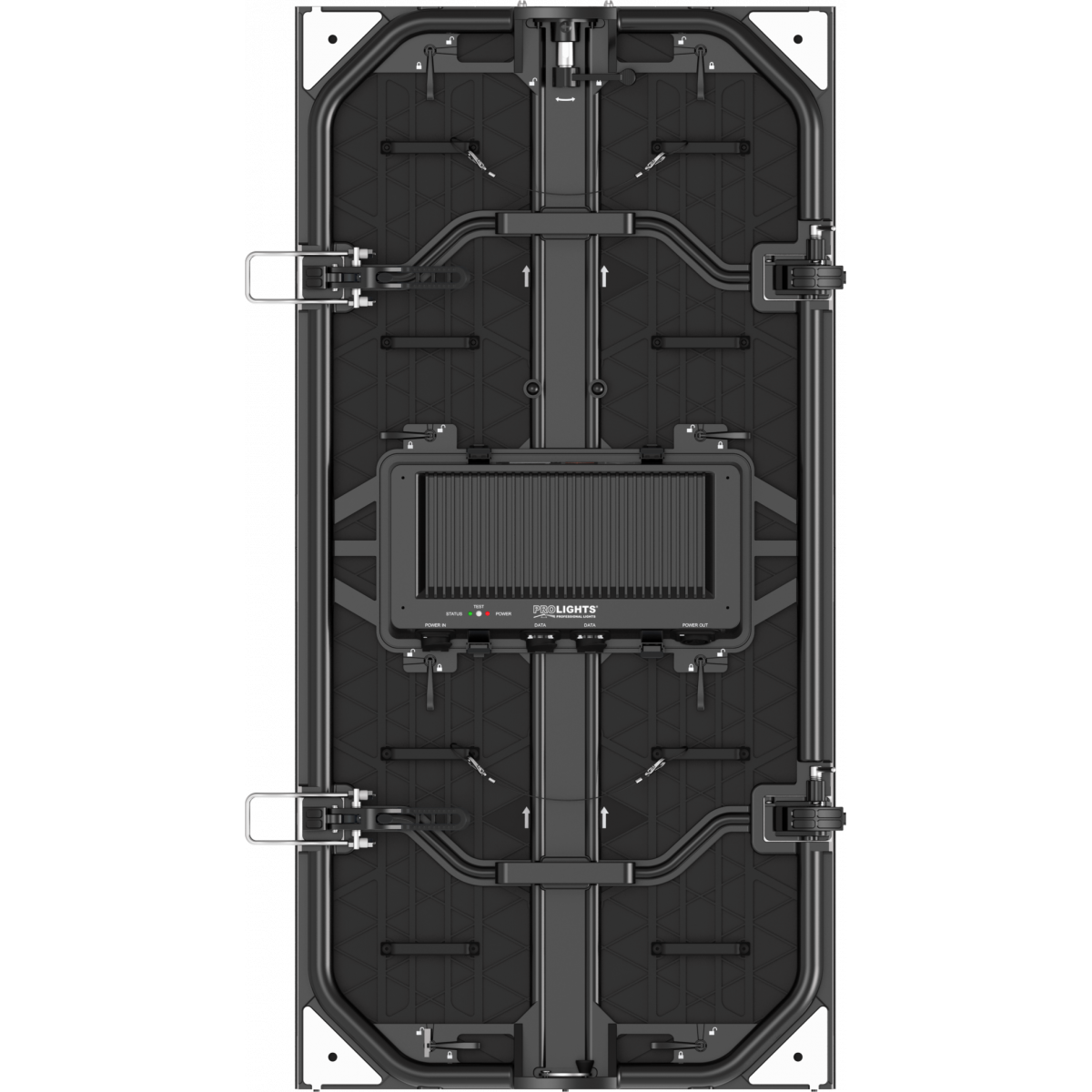

OmegaPix 48T

ORDER CODE: OMEGAX48T

4,8 mm pixel pitch outdoor rental LED screen

OmegaPix 48T is a revolutionary outdoor 4,8 mm LED screen rental panel. Specially designed to offer advanced mechanical features, more creative configurations and enhanced video image quality.

Mechanical/Assembly features:

  • Curve configurations both concave and convex through curving mounting plates +15° / -15° onboard
  • Hot swapping of the back panel to replace PSU & electronics
  • Fast lock connections for LDMs swapping
  • Assisted mounting magnets allowing for a 1 man quick setup
  • Ground Stacking accessories available
  • Velcro on edges to avoid any gaps

Main features:

  • 4,8 mm pixel pitch outdoor rental LED screen
  • Curve configurations, concave and convex
  • Fly bar hanging/stacking
  • New Novastar A8s with 18bit+, Clearview and image rotation
See variants CONFIGURATOR

PHOTO GALLERY

OmegaPix 48T
OmegaPix 48T
OmegaPix 48T
OmegaPix 48T

Technical specifications

VIDEO
  • Driver chip type: MBI 5252
  • LED source: Kinglight SMD2525
  • Pixel pitch: 4.8mm / 0.19''
  • Panel resolution: 104x208pixels
  • Module resolution: 52x104pixels
  • Luminous flux: 4.000nit
  • Contrast: 3.000:1
  • Grayscale: 18 bit
  • Refresh rate ≥: 2.880Hz
  • Drive Mode: 1/13 scan, constant current
  • Vertical viewing angle: 120°
  • Horizontal viewing angle: 140°
  • LED density: 43.264LED/sqm
  • Dead Pixel Ratio: <0,002
  • LED avg life span: 100.000
ELECTRICAL
  • Power input/output: IPKON Seetronic IN/OUT
  • Power supply: AC 110/230 V 50/60 Hz
  • Max power consumption (panel): 400W
  • Avg power consumption (panel): 133W
  • Max power consumption (sqm): 800W
  • Avg power consumption (sqm): 266W
  • Standby power consumption (pannello): 35W
  • Max rated current/panel:: AC 220 V / 1,6 A
  • Working temperature: -20°C / +50°C
  • Working humidity: 10~90 RH%
CONTROL
  • Receiving card type: A8S
  • Other controllers type: rotation, 18bit+, clearview, mapping, firmware copy, RCFGX restore, calibration restore
  • Control protocol: Novastar
  • Signal input: IP data Seetronic IN
  • Signal output: IP data Seetronic OUT
MECHANICS
  • Magnetic LED modules: not magnetic, removible by joint
  • Other specifics: curve configurations, rear panel swapping, velcro strips for gapless mounting
  • Module size (WxH): 250x500mm / 9.84''x19.69''
  • Panel size(WxHxD): 500x1.000x76mm / 19.69''x0.04''x2.99''
  • Vertical hanging system: built-in aliscaf clamp support
  • Cooling: natural cooling of the peculiar chassis and to absence of fans
  • Connection: seamless locking system
  • Curvability: mechanics on board, -15° to +15°, can be adjusted by the unit of 2.5°
  • Body: die-cast aluminium housing
  • Color: black
  • IP rating: IP65 (front and rear)
  • Panel weight: 12kg / 26.46lbs
  • Weight per square meter: 24kg / 52.91lbs
  • Hanging Panel Quantity ≤: 10
  • Compliant Standard: CE, EMC, UL

Versions

Accessories & Related Products

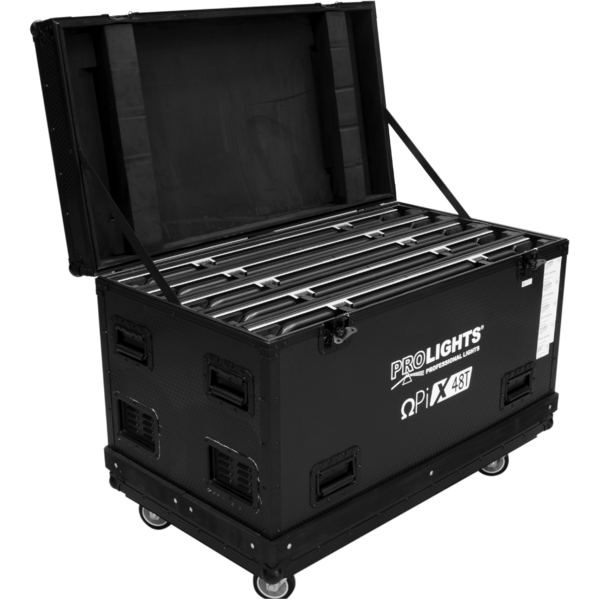

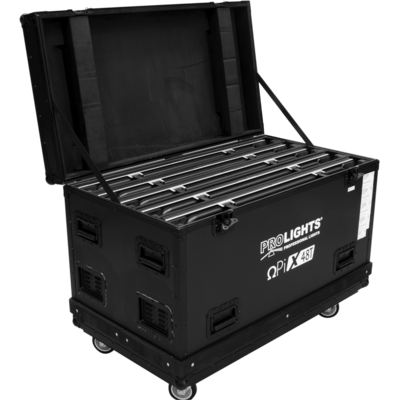

OXFCL48
OXFCL48
(Optional)

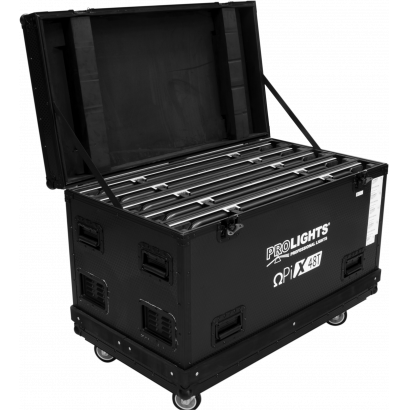

5in1 flightcase for OMEGAX48T
OXDCL01
OXDCL01
(Optional)
Data cable for OMEGAX LED display series assembled with RJ45, Seetronic, L.1,4 m
OXACL01
OXACL01
(Optional)
Power cable for LED display series, Seetronic, L.140 cm

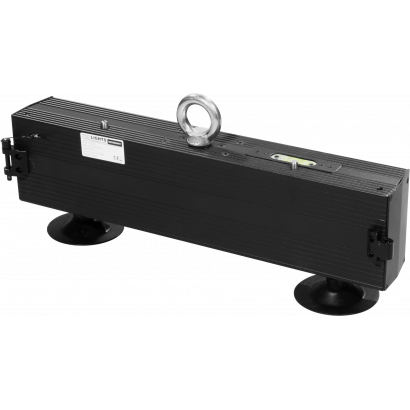

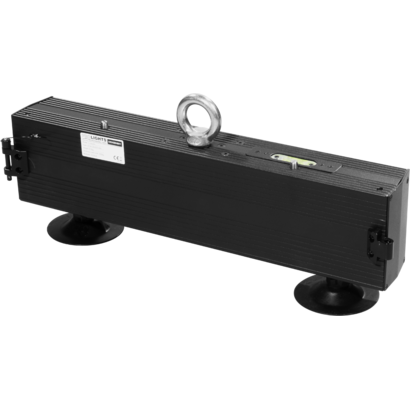

OXHGB4801
OXHGB4801
(Optional)
Fly bar and ground bar for OMEGAX48 systems, 1 column

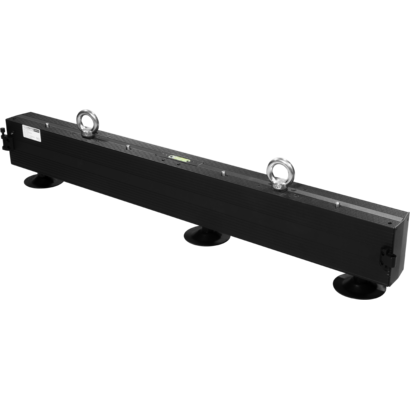

OXHGB4802
OXHGB4802
(Optional)

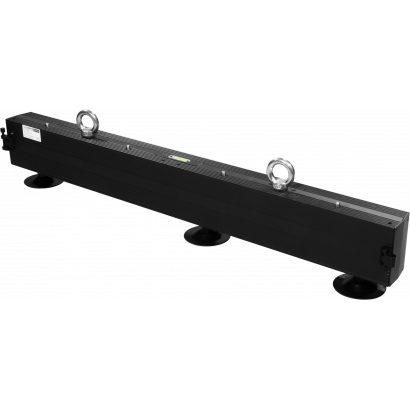

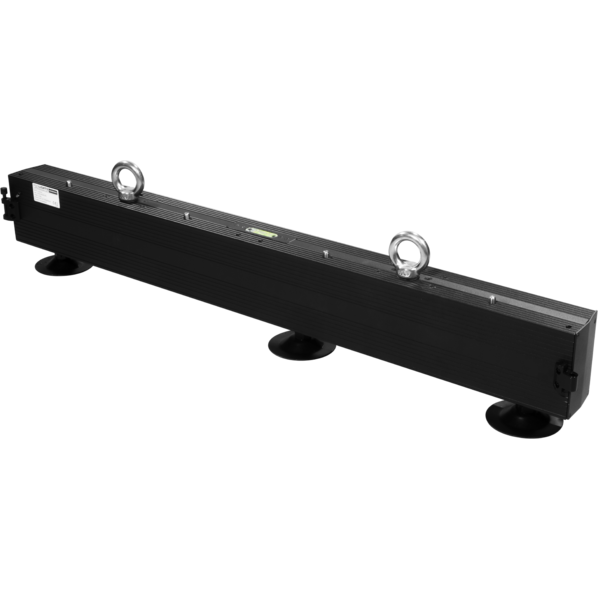

Fly bar and ground bar for OMEGAX48 systems, 2 columns

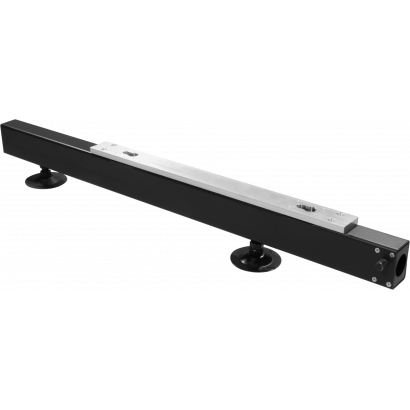

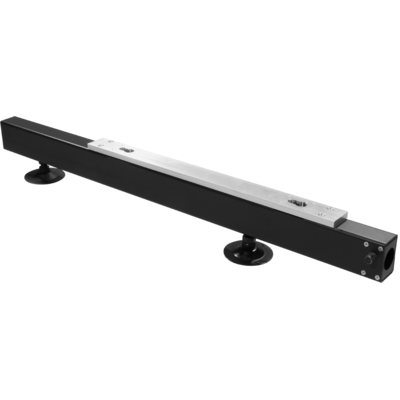

OXCJB48
OXCJB48
(Optional)

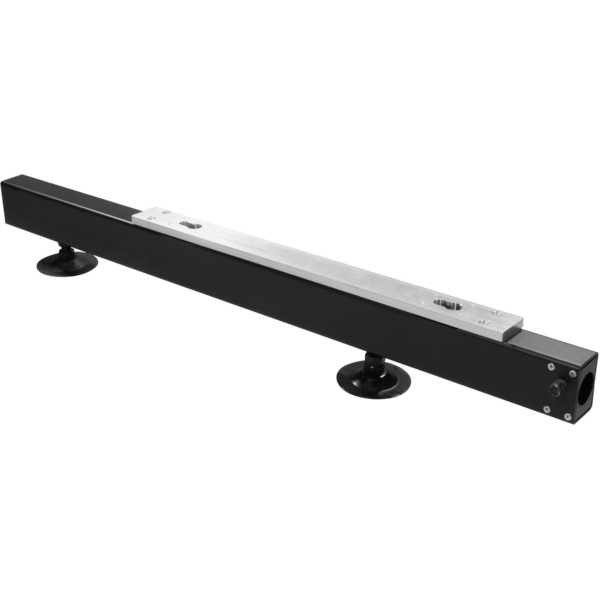

Ground system back horizontal support for OMEGAX48T LED wall ground system

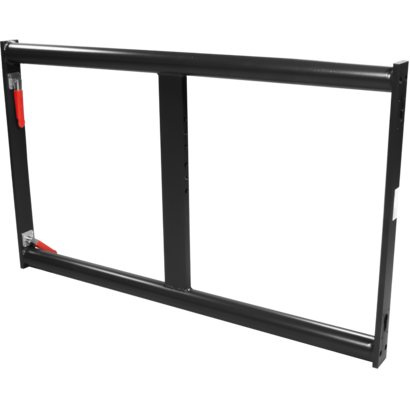

OXBS48
OXBS48
(Optional)

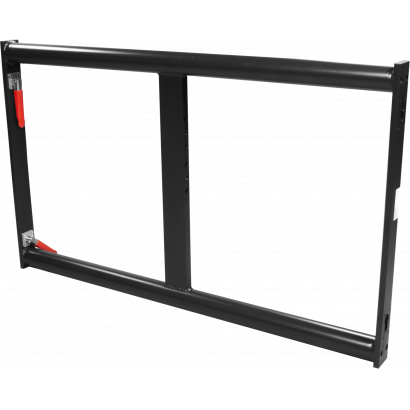

Vertical back support for OMEGAX48T LED wall for ground system fixing
OXBSC
OXBSC
(Optional)
Back support connectors
OXGBMP02
OXGBMP02
(Optional)

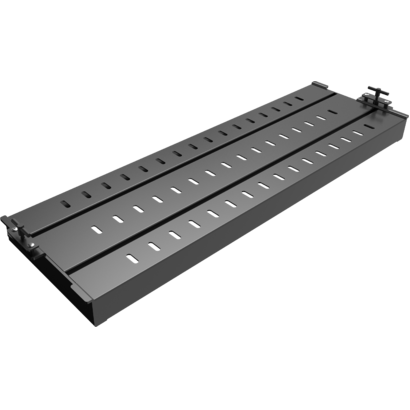

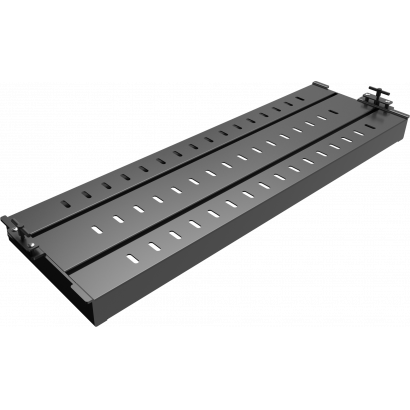

Ground beam maintenance platform 2
OXGBMP03
OXGBMP03
(Optional)

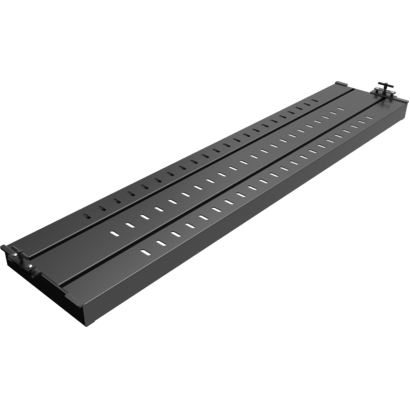

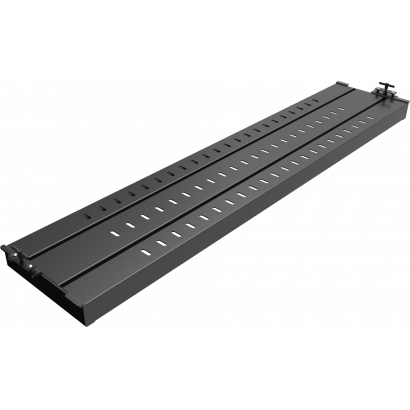

Ground beam maintenance platform 3

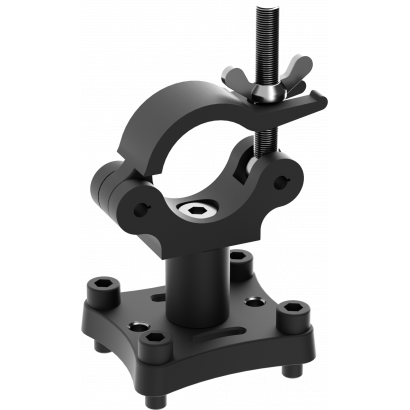

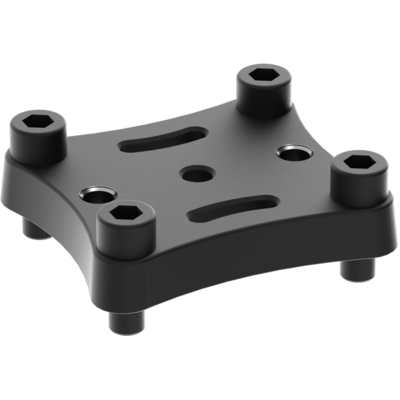

OXXJ48
OXXJ48
(Optional)

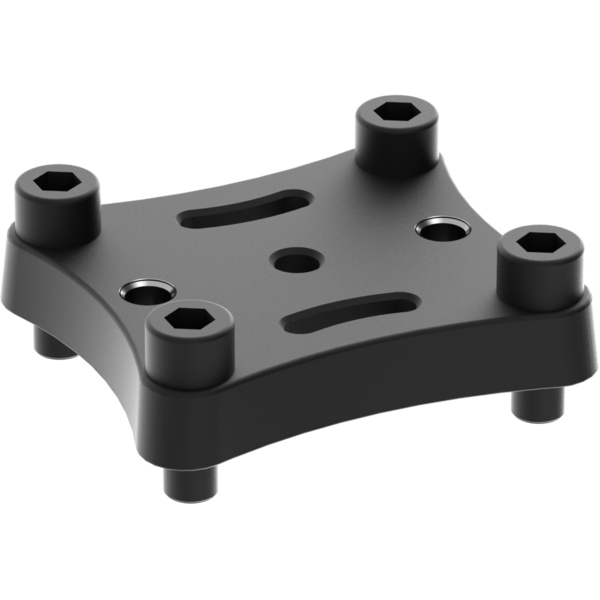

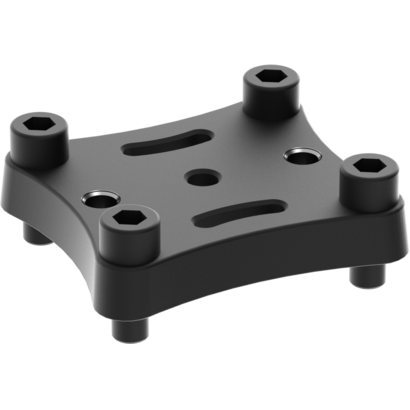

Metal joint used to connect 4 pcs OMEGAX48T cabinets, M10 hole for clamp
OXFCIS100
OXFCIS100
(Optional)
Rigging/ground-stack structure flightcase for all LEDScreen, 100cm
OXFCIS200
OXFCIS200
(Optional)
Rigging/ground-stack structure flightcase for all LEDScreen series, 200cm
OXFCSP
OXFCSP
(Optional)
Spare part flightcase for OMEGAX-DELTAX series LED-display

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetOmegax48t_A4_DATASHEET_(IT).pdf1MB
Letter datasheetOmegax48t_A4_DATASHEET_(EN).pdf1MB
Letter datasheetOmegax48t_OMEGAPIX_SERIES_BROCHURE.pdf12MB

User manual

DMX chart & personalities

File name File size Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download
2DOmegax48t_CAD_2D.dwg4MB
Technical drawingOmegax48t_TECHNICAL_DRAWING.pdf410KB
VectorWorksPROLIGHTS_VIDEO_VECTORWORKS_23_LIBRARY.vwx7MB
VectorWorksPROLIGHTS_VIDEO_VECTORWORKS_18_LIBRARY.vwx11MB

Tech docs

File name File size Download

Software

File name File size Download
SoftwareHADZ181449 - 2880 Hz.zip9KB

Firmware

Update Tool: {Upbox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
4.5.0.56 STABLE 01/02/2017 Definitive Stable Version.
