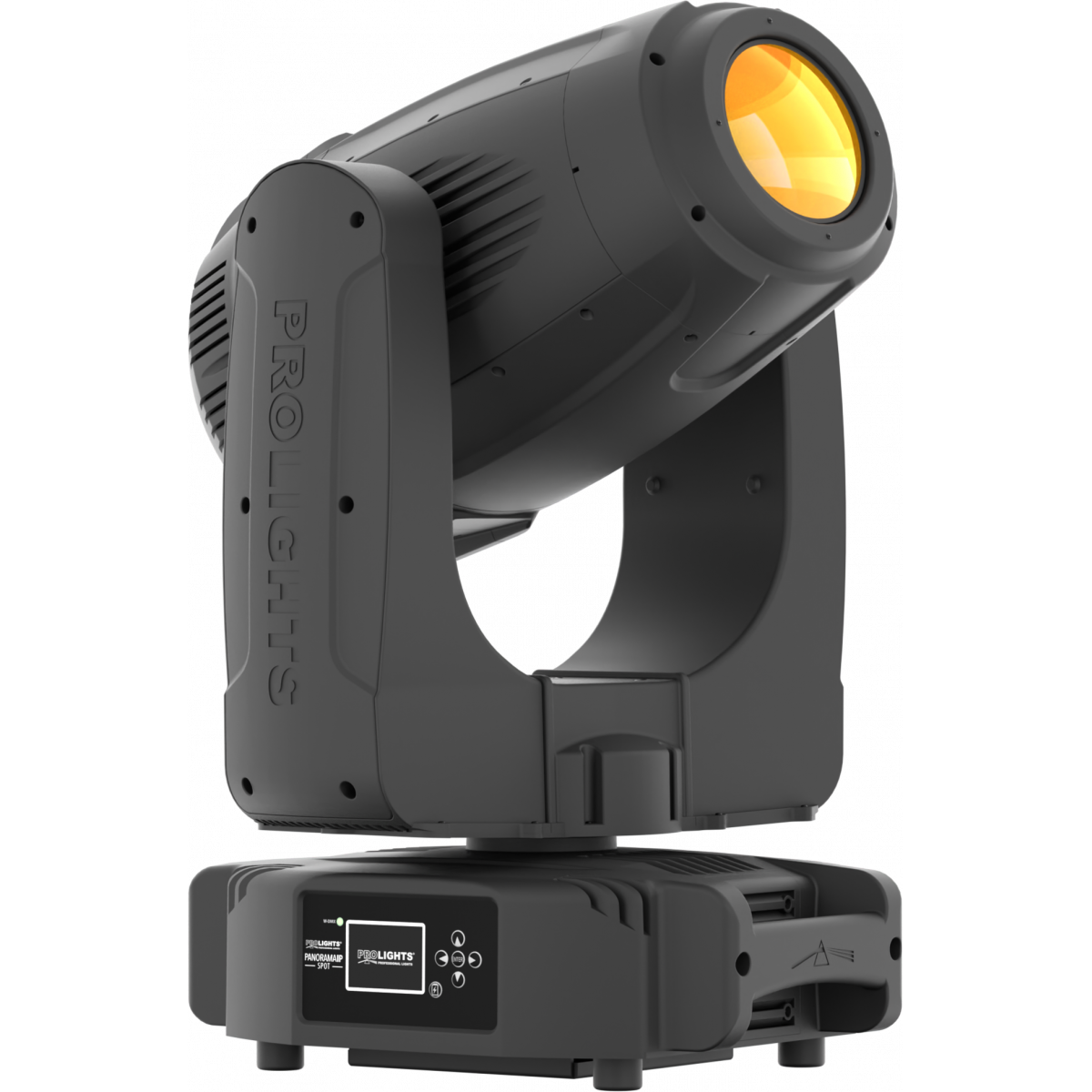

PanoramaIP Spot

ORDER CODE: PANORAMAIPSPOT

420 W IP rated moving LED spot with zoom and colour mixing

PanoramaIP Spot is a powerful and flexible IP65 rated moving LED spot designed to deliver a stunning brightness level, all packaged in a compact housing. Equipped with a 1:10 zoom and a complete feature set, PanoramaIP Spot really stands out in any environment, from festivals and arenas to large outdoor events.

Main features:

  • IP65 rated for outdoor events and temporary installations.
  • 420 W high power LED with 7.000 K CT and 5° - 50° linear zoom.
  • Extensive range of effects including linear CMY and CTO mixing, colour wheel, rotating gobo wheel, static gobo wheel, circular prisms, linear frost and focus.
See variants

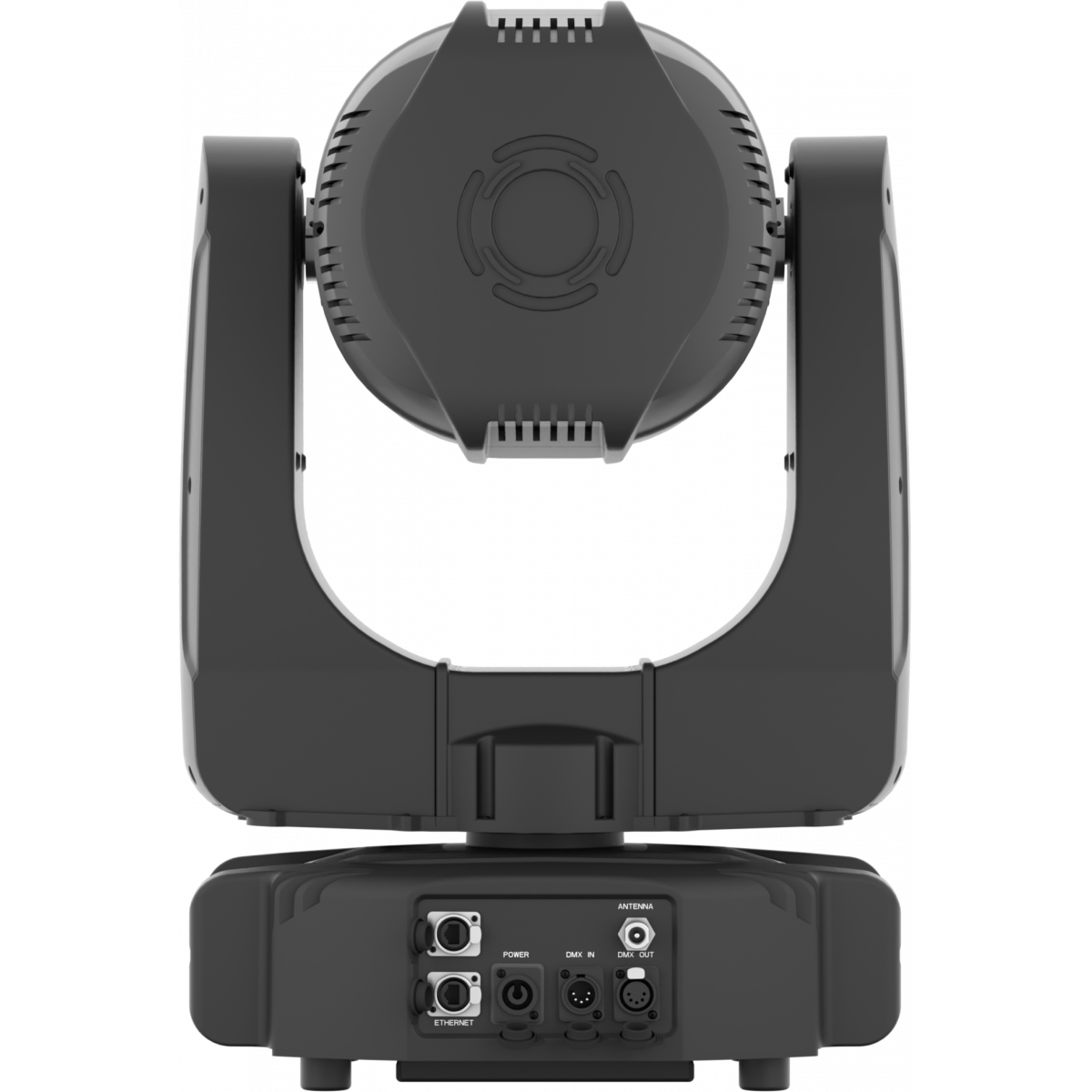

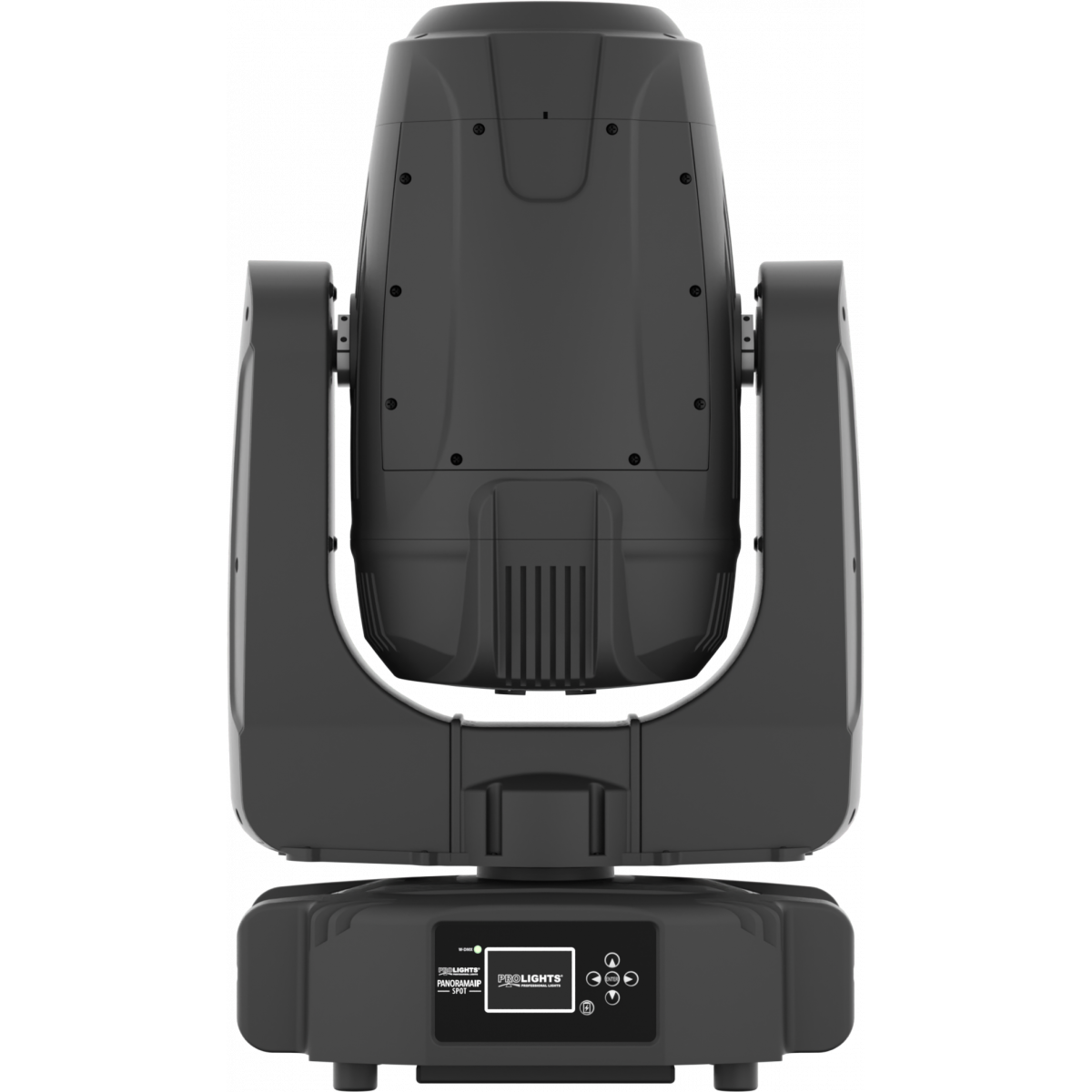

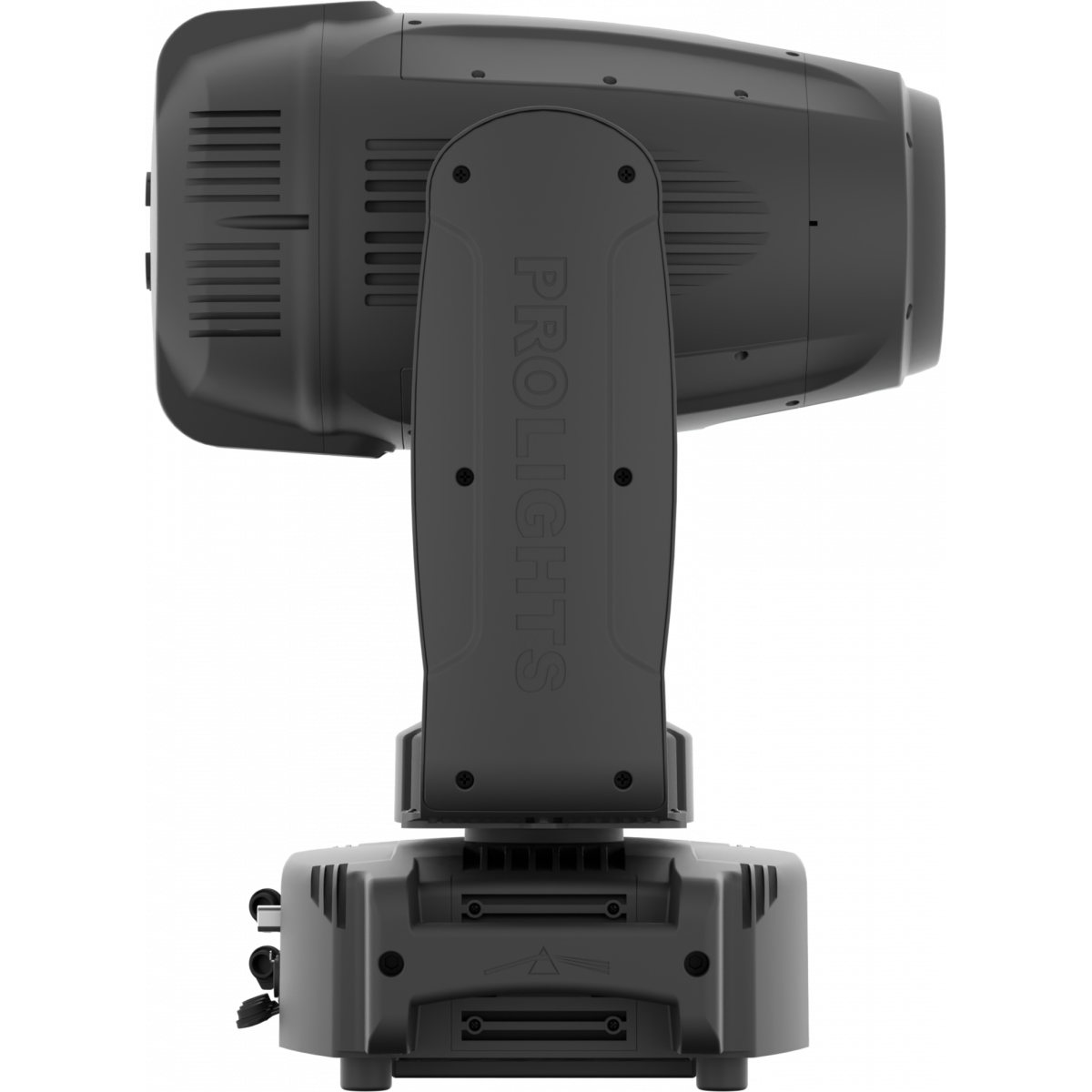

PHOTO GALLERY

PanoramaIP Spot
PanoramaIP Spot
PanoramaIP Spot
PanoramaIP Spot

Technical specifications

LIGHT SOURCE
  • Source: 420W high-power white LED
  • CCT: 7.000
  • Lux: (5°) 21'362lx @5 m full
  • Lux: (50°) 1'173lx @5 m full
  • Source life expectancy: > 20.000 h
OPTICS
  • Zoom range: 5° - 50° motorised linear zoom
  • Lens diameter: 120mm / 4.72''
  • Lens type: HD anti-reflection lenses with achromatic coating
  • Focus: motorised with auto-focus
COLOUR SYSTEM
  • Colour mixing: linear CMY
  • CCT: linear CTO correction 2.700 K ~ 6.000 K
  • Colour wheel: 8 colour filters
DYNAMIC EFFECTS
  • Rotating gobos: 7 rotating gobos + open, interchangeable, indexing
  • Gobo size: outer: 26,9 mm - image: 19 mm - max thickness: 2 mm
  • Fixed gobos: 6 fixed gobos + open, interchangeable
  • Gobo size: outer: 26,9 mm - image: 19 mm - max thickness: 0,5 mm
  • Circular prism: 3f with bi-directional rotation, indexing
  • Frost: linear 0 - 100% frost filter
  • Iris: 5 - 100% motorised iris
BODY
  • Pan range: 540 - 630°
  • Tilt range: 233°
  • Pan/Tilt resolution: bit 8 / 16-bit
  • Feedback: automatic repositioning after accidental movement
  • Body: aluminium structure with high-resistance polycarbonate cover
  • Body colour: black
CONTROL
  • Protocols: DMX512, RDM, Art-Net, W-DMX
  • DMX channels: 19 / 21 / 28 / 29 / 36channel
  • Wireless Control: included, wireless solution receiver
  • RDM: RDM for remote monitoring and settings
  • Display: LCD high resolution colour display
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX2 (USB-DMX interface not included)
  • Hibernation: power safe mode when lost DMX
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Strobe / shutter: 1 - 28 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -20° ~ +40° Ta
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 492W
  • Max power consumption (at 120V): 501W
PHYSICAL
  • IP rating: 65 for temporary outdoor application, not for fixed installations
  • Cooling: combination of heat pipe cooling system and low noise fan
  • Suspension and fixing: any position with quick-lock omega brackets
  • Pan / tilt lock: for transportation and maintenance
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Data connection: Art-Net RJ45 IN/OUT
  • Power connection: Seetronic powerCON waterproof IN/OUT connectors
  • Dimensions (WxHxD): 441x740x315mm / 17.36''x29.13''x12.4''
  • Weight: 38kg / 83.78lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

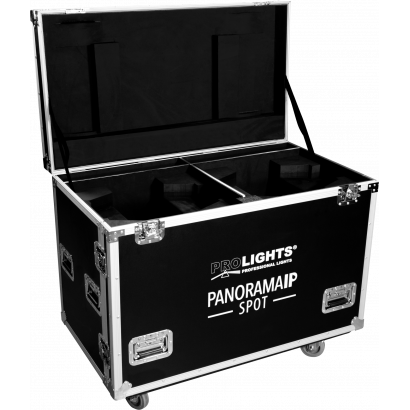

Versions

Accessories & Related Products

LRLUNA
LRLUNA
(Optional)
Single Universe DMX transceiver with Bluetooth
RSR0670B
RSR0670B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6016B
C6016B
(Optional)
Selflock slim clamp, 250Kg load, 48-51mm tubes, M10 bolt incl, Black&White& White
OSIPD13
OSIPD13
(Included)
IP65 quick-lock omega bracket compatible with IP65 moving heads, M12 hole
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetPanoramaipspot_A4_DATASHEET_(EN).pdf198KB
Letter datasheetPanoramaipspot_A4_DATASHEET_(IT).pdf201KB

User manual

DMX chart & personalities

File name File size Download
DMX chartPanoramaipspot_DMX_CHARTS.pdf5MB
PANORAMAIPSPOT Firmware rev. 2.0.01
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights@panoramaipspot@19ch.xmlDownload
prolights@panoramaipspot@28ch.xmlDownload
prolights@panoramaipspot@29ch.xmlDownload
prolights@panoramaipspot@36ch.xmlDownload
panorama ip spot standard.hog4showDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
panorama ip spot standard.fix2Download
panorama ip spot extended.fix2Download
panorama ip spot extended - 16 bit.fix2Download
panorama ip spot bas-8.fix2Download
panorama ip spot bas-16.fix2Download
PANORAMAIPSPOT Firmware rev. 2.0.00
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights_panoramaipspot_ba1.hedDownload
prolights_panoramaipspot_ba2.hedDownload
prolights_panoramaipspot_ex.hedDownload
prolights_panoramaipspot_ex2.hedDownload
prolights_panoramaipspot_st.hedDownload
prolights@panoramaipspot@19ch.xmlDownload
prolights@panoramaipspot@28ch.xmlDownload
prolights@panoramaipspot@29ch.xmlDownload
prolights@panoramaipspot@36ch.xmlDownload
panorama ip spot standard.hog4showDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
panorama ip spot standard.fix2Download
panorama ip spot extended.fix2Download
panorama ip spot extended - 16 bit.fix2Download
panorama ip spot bas-8.fix2Download
panorama ip spot bas-16.fix2Download

Photometrics

CAD symbols & drawings

File name File size Download
3D RFAPanoramaipspot_3D.rfa2MB
3D sketchupPANORAMAIPSPOT_3D_SKETCHUP.zip7MB
2DPanoramaipspot_CAD_2D.dwg3MB
3DPanoramaipspot_CAD_3D.dwg3MB
2D cad symbolsPanoramaipspot_CAD_2DSYMBOLS.dwg73KB
Technical drawingPanoramaipspot_TECHNICAL_DRAWING.pdf559KB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB
VectorWorksVECTORWORKS_SYMBOLS.vwx877KB

Tech docs

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
2.0.01 STABLE 21/09/2020 Improved Pan/Tilt Management Improved Focus Management
2.0.00 STABLE 17/01/2019 Stable firmware. Rev. 1
