Pin Spot

13W professional LED pinspot

Pin Spot LED is a true LED replacement for a traditional Pin Spot. Featuring both the beam and output characteristics of the original, the Pin Spot is able to be used in all the same applications.

Main features:

  • High power LED source and parabolic reflector delivering a tight, bright beam
  • Available in both Tungsten and Daylight colour temperature versions
  • Remove heat, dimmers and lamp changes in one go
See variants

PHOTO GALLERY

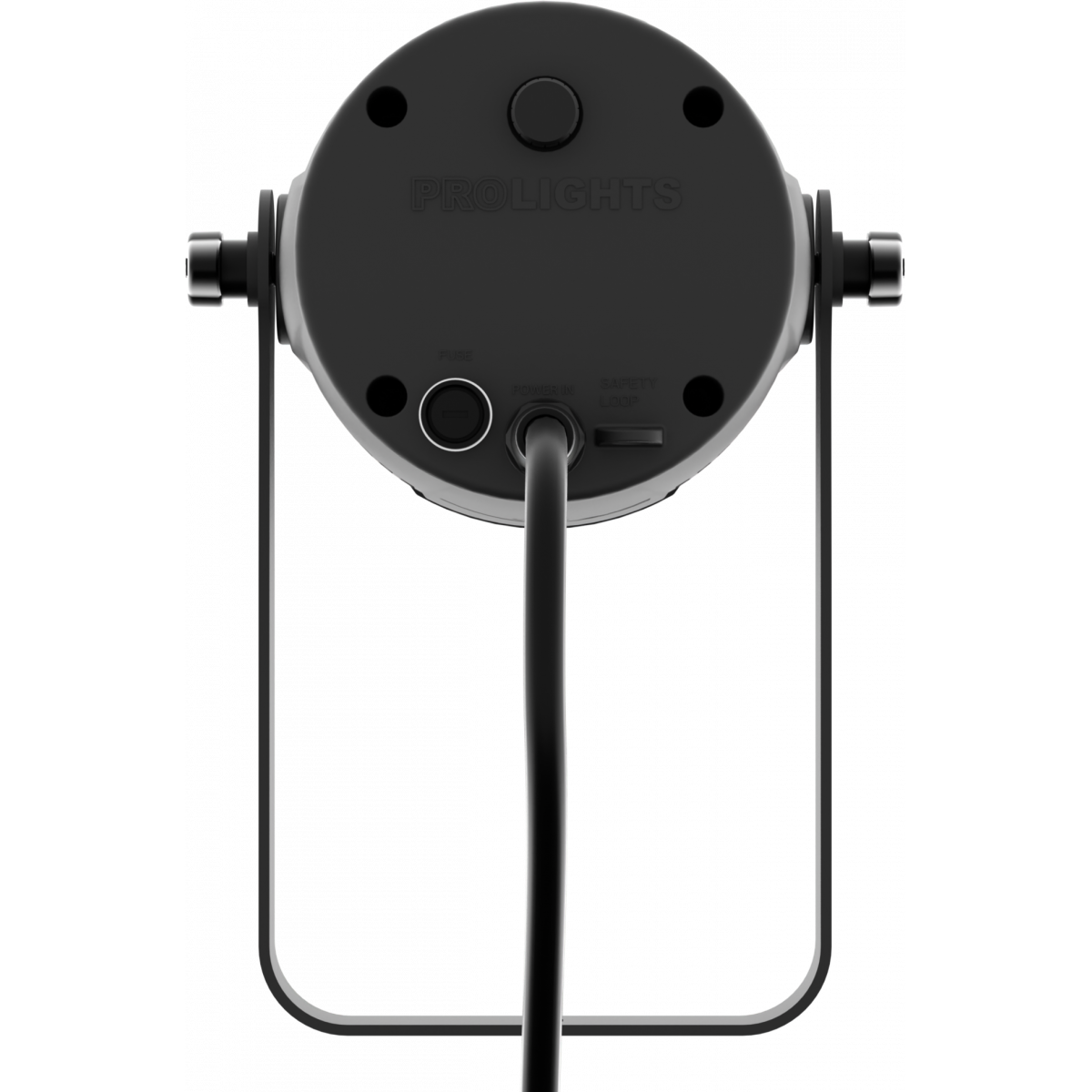

Pin Spot

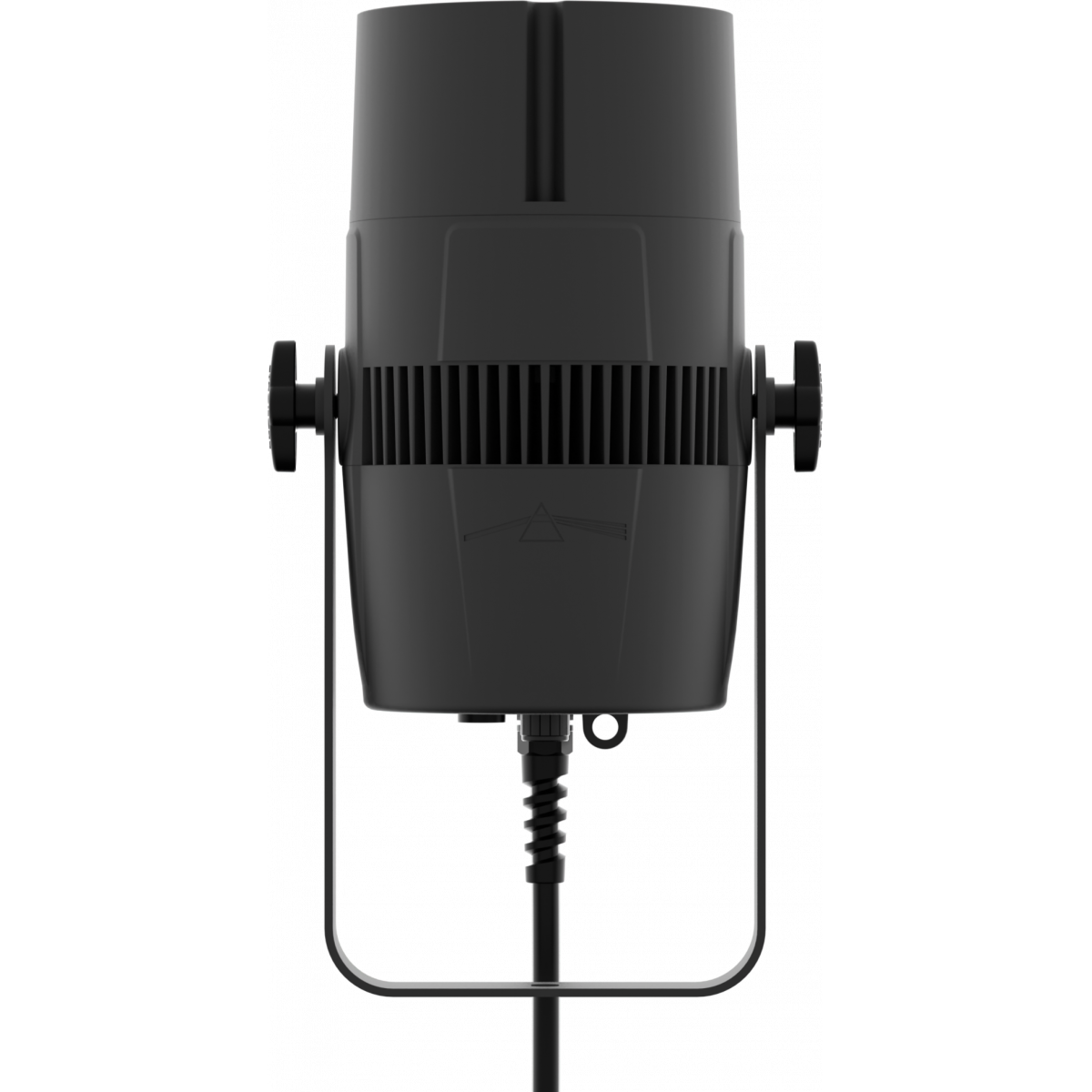

Pin Spot

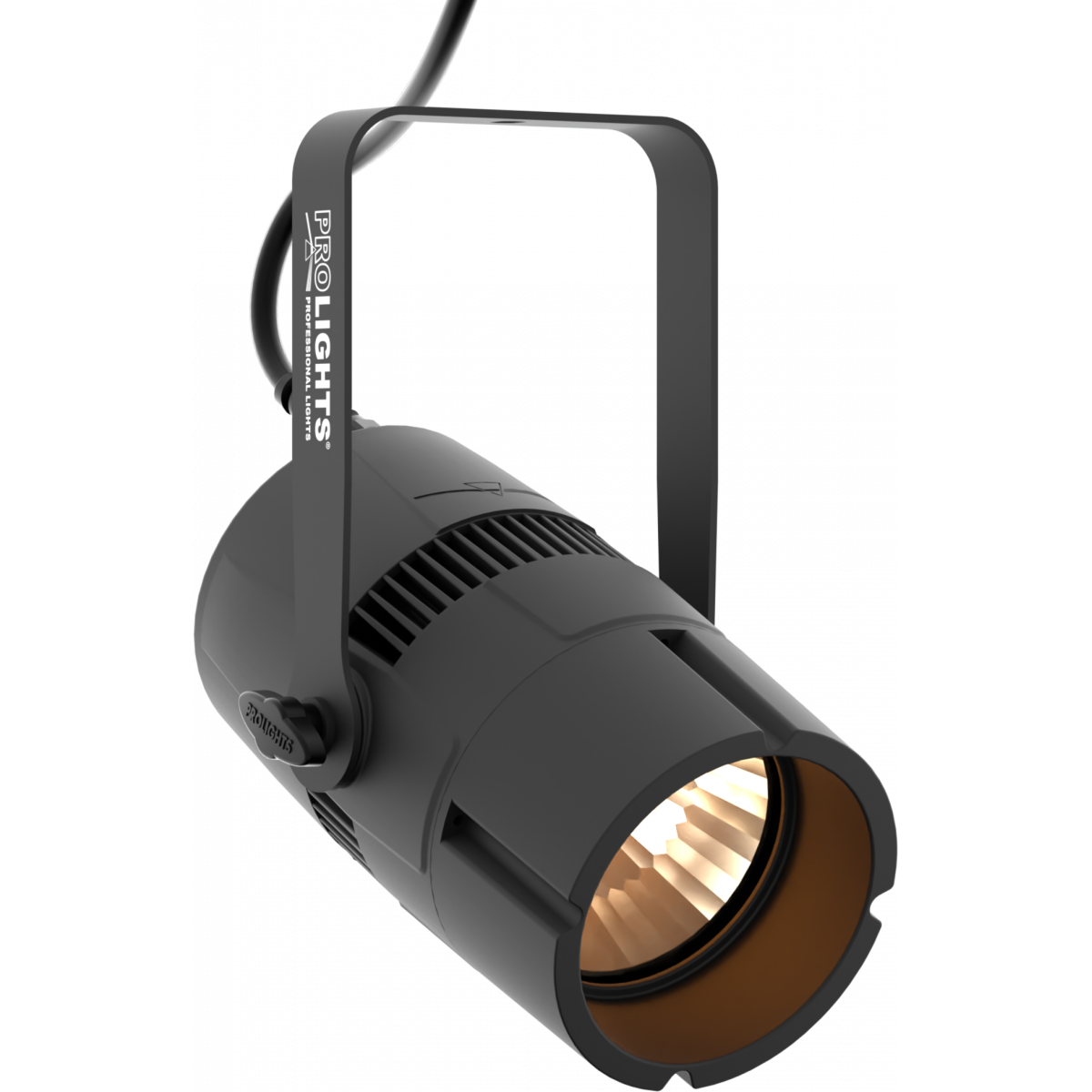

Pin Spot

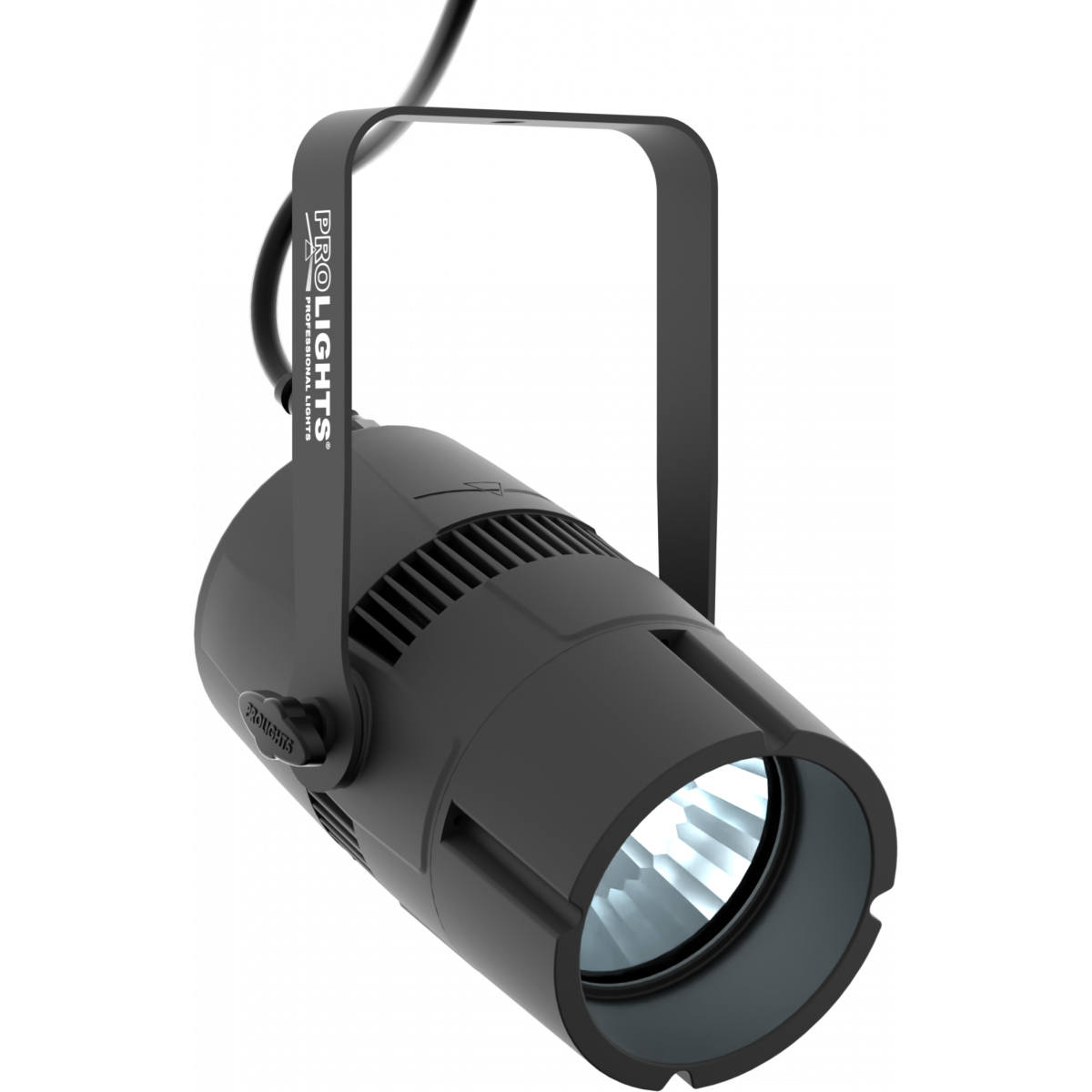

Pin Spot

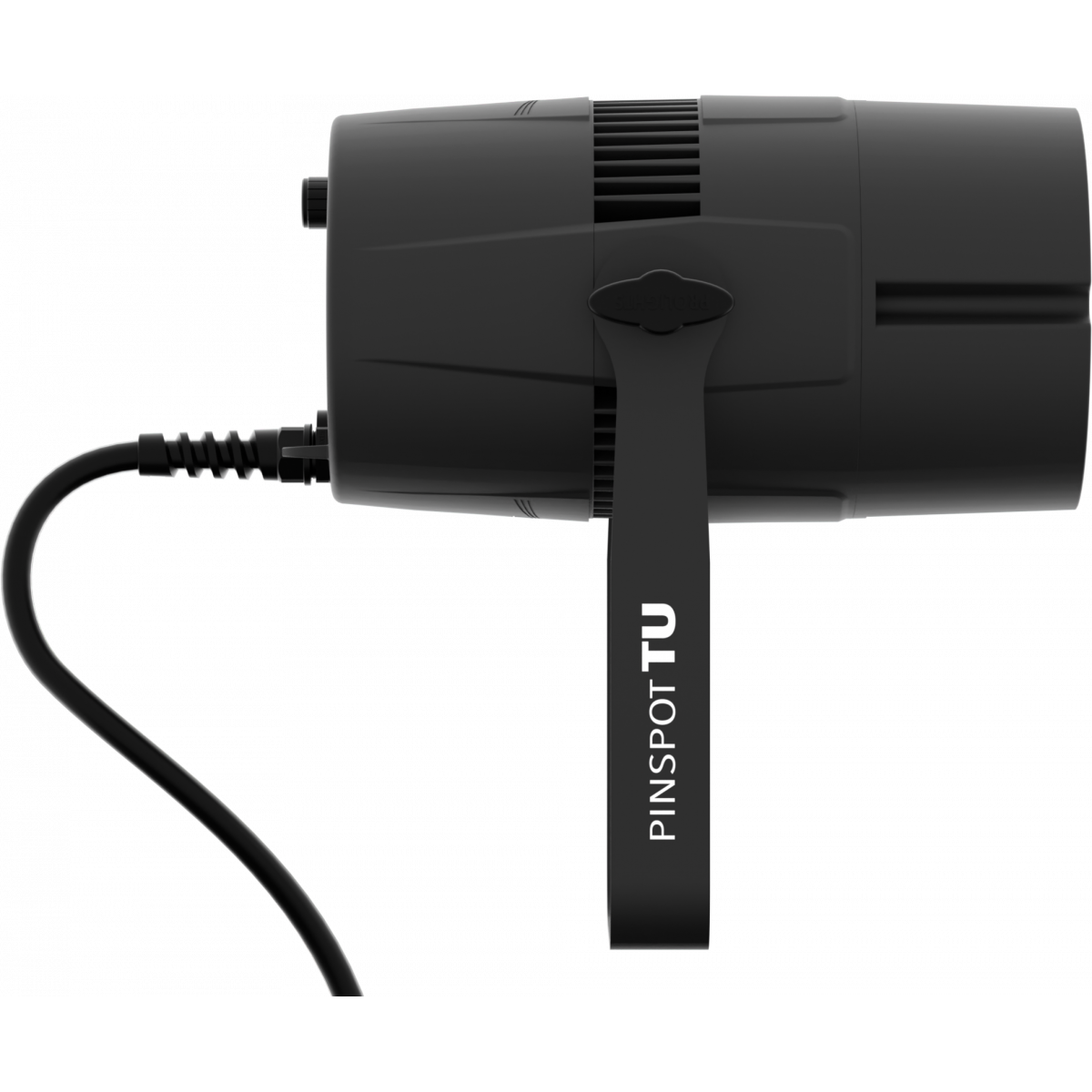

Pin Spot

Technical specifications

LIGHT SOURCE
  • Source: 13W high-power white LED
  • CCT: (TU) 2.800 K - (DY) 6.100
  • Luminous flux: (TU) 574 lm - (DY) 816
  • Lux: (TU) 4'474 lx - (DY) 6'608lx @3 m
  • CRI: (TU) 90 - (DY) 80
  • Source life expectancy: > 30.000 h
OPTICS
  • Beam angle: 6°
  • Field angle: 11°
DYNAMIC EFFECTS
  • Manual mode: manual adjustment of dimmer
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: black
ELECTRONICS
  • Dimmer: linear 0 ~ 100%, manual knob dimmer
  • Operating temperature: -10° ~ +45° Ta
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 18,9W
  • Max power consumption (at 120V): 19,6W
PHYSICAL
  • IP rating: 30
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: bracket for hanging and positioning
  • Power connection: moulded IP power IN connector
  • Dimensions (WxHxD): 209x167x238mm / 8.23''x6.57''x9.37''
  • Weight: 1,8kg / 3.97lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Code
CT
CRI
Lumen
PINSPOTTU
PINSPOTTU (DISCONTINUED)
2.900 K
90 Ra
755 lm
PINSPOTDY
PINSPOTDY
6.100 K
80 Ra
978 lm

Accessories & Related Products

PINSPOTPGBK
PINSPOTPGBK
(Optional)

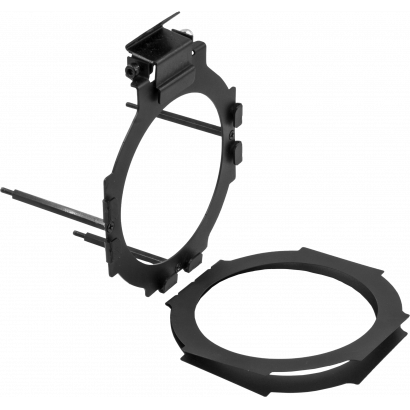

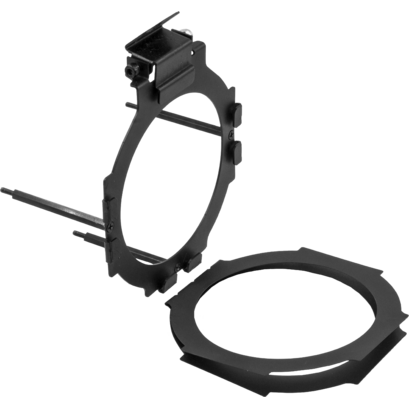

Black&White& White filter frame kit for PINSPOT projectors
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetPinspot_A4_DATASHEET_(IT).pdf135KB
Letter datasheetPinspot_A4_DATASHEET_(EN).pdf146KB

User manual

File name File size Download
User manualPinspot_USER_MANUAL_ITEN.pdf881KB

DMX chart & personalities

File name File size Download

Photometrics

CAD symbols & drawings

File name File size Download
3D SKPPinspot_3D.skp2MB
2DPinspot_CAD_2D.dwg2MB
3DPinspot_CAD_3D.dwg409KB
Technical drawingPinspot_TECHNICAL_DRAWING.pdf469KB
VectorWorksPINSPOT_SYMBOLS.zip670KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: {Upbox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1 STABLE 17/12/2018 10 second default display backlight
