PINSPOTTR
PROLIGHTS

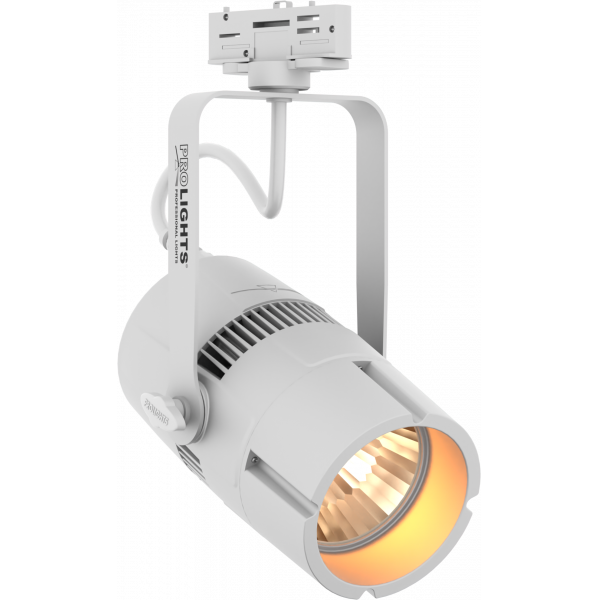

Pin SpotTR

13W track mounted LED pinspot

Pin SpotTR LED is a true LED replacement for a traditional Pin Spot. Featuring both the beam and output characteristics of the original, the Pin SpotTR is able to be used in all the same applications.

Main features:

  • High power LED source and parabolic reflector delivering a tight, bright beam
  • Available in both Tungsten and Daylight colour temperature versions
  • Remove heat, dimmers and lamp changes in one go
See variants

PHOTO GALLERY

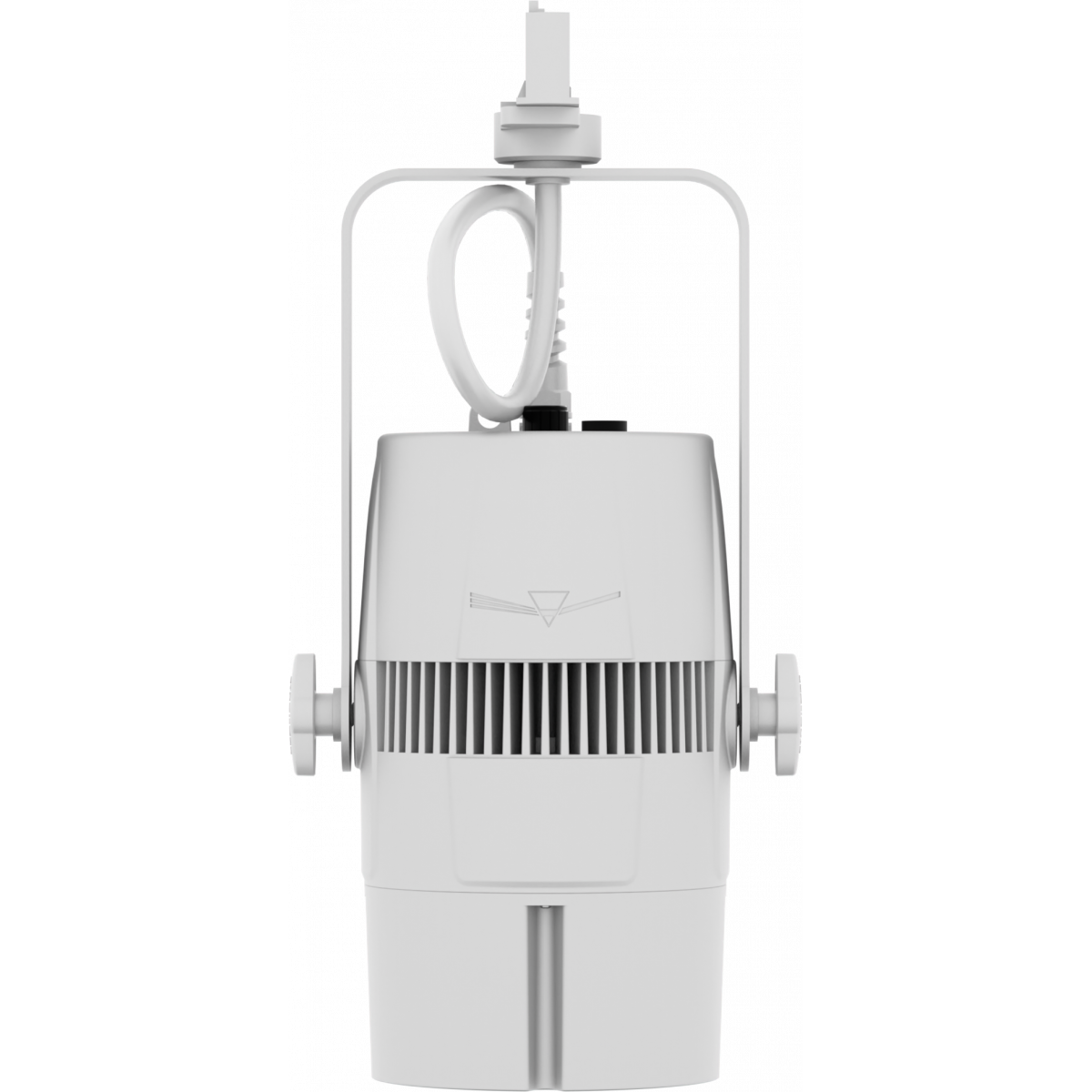

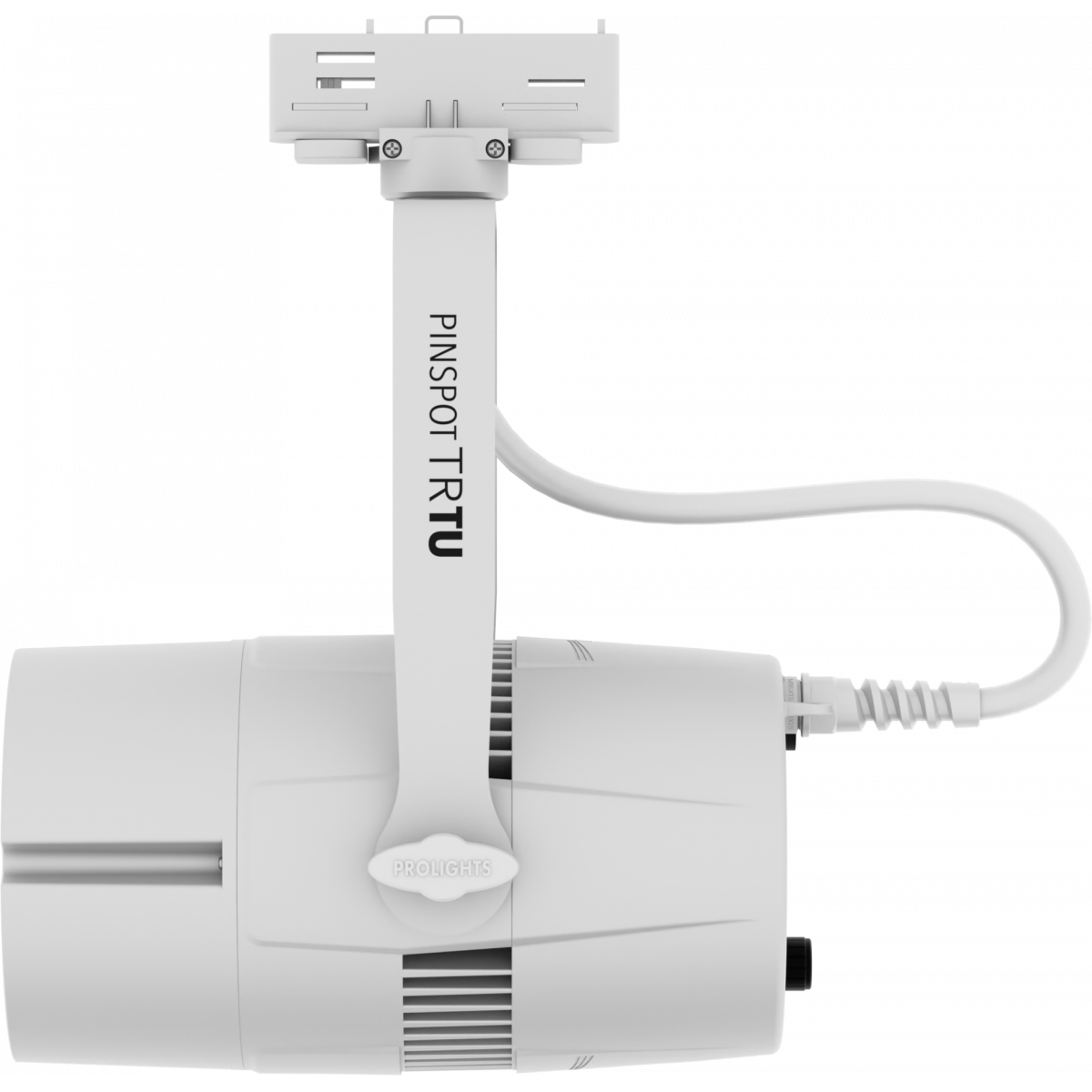

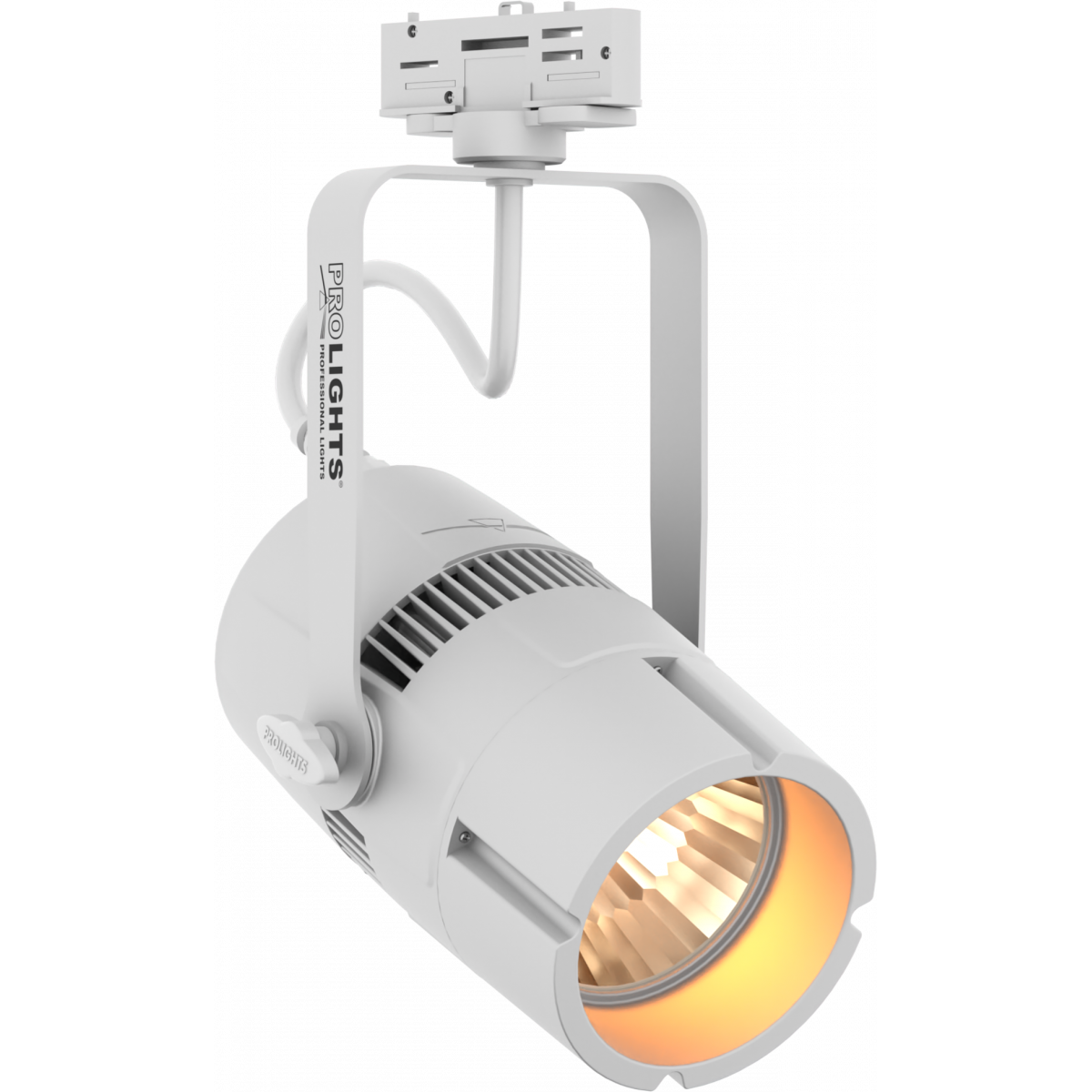

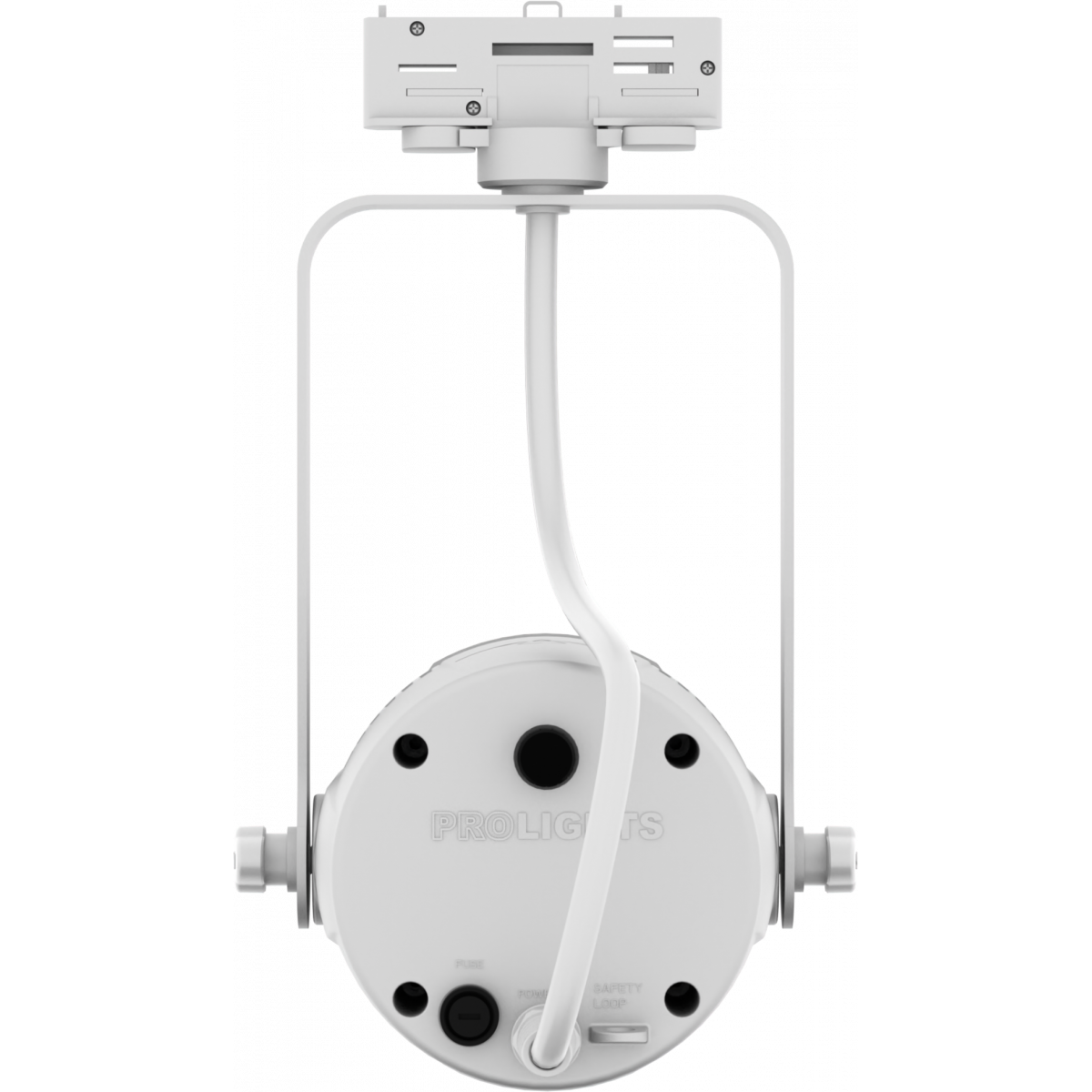

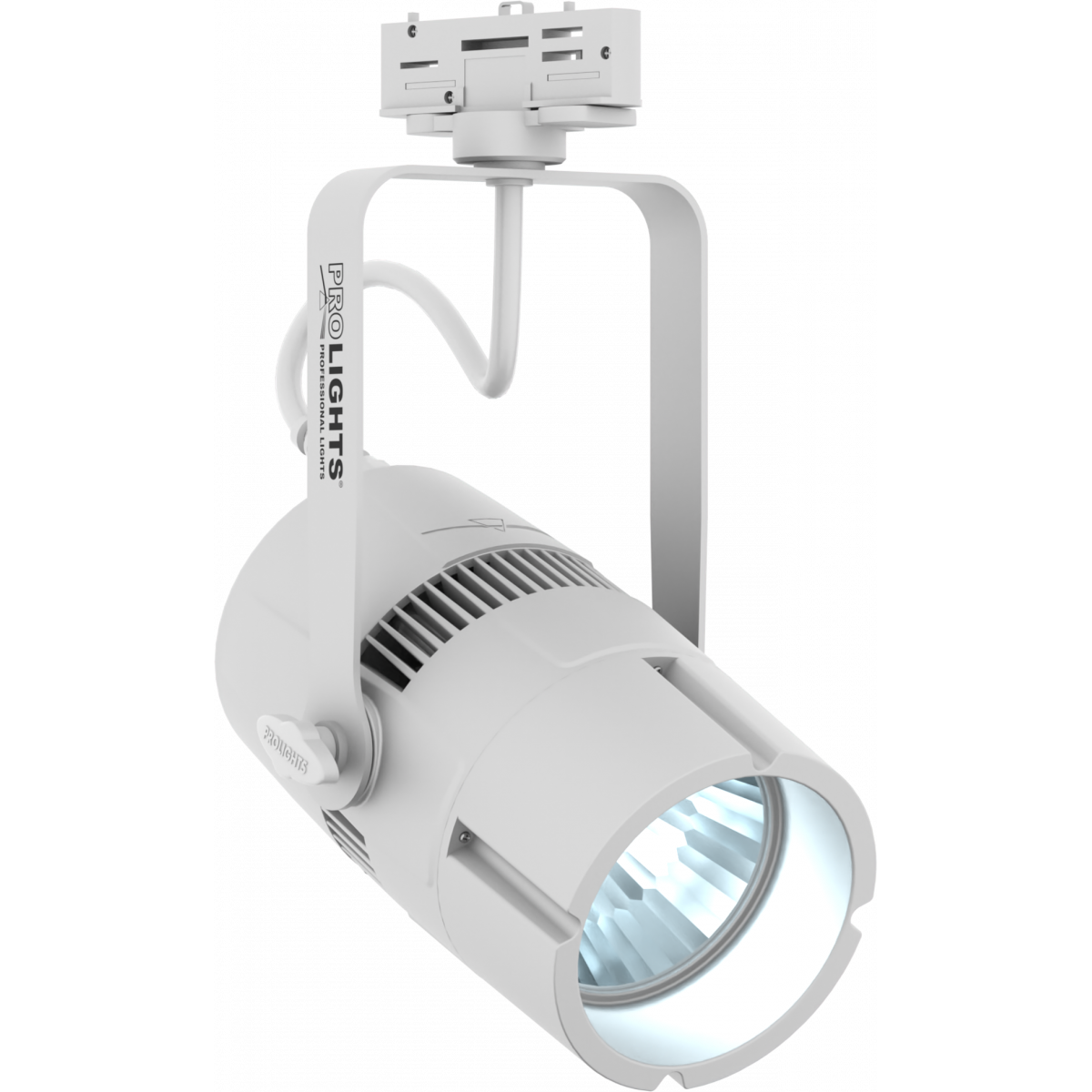

Pin SpotTR
Pin SpotTR
Pin SpotTR
Pin SpotTR
Pin SpotTR

Technical specifications

LIGHT SOURCE
  • Source: 13W high-power white LED
  • CCT: (TU) 2.800 K - (DY) 6.100
  • Luminous flux: (TU) 775 lm - (DY) 978lm
  • Lux: (TU) 5'030 lux - (DY) 6'320lx @3 m
  • CRI: (TU) 90 - (DY) 80
  • Source life expectancy: > 30.000 h
OPTICS
  • Beam angle: 6°
  • Field angle: 12°
DYNAMIC EFFECTS
  • Static mode: selection of static dimmer
  • Manual mode: manual adjustment of dimmer and strobe
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: white
ELECTRONICS
  • Dimmer: linear 0 ~ 100%, manual knob dimmer
  • Operating temperature: -10° ~ +45°
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 18,9W
  • Max power consumption (at 120V): 19,6W
PHYSICAL
  • IP rating: 30
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: track-adapter included for suspension and fixing
  • Power connection: track adaptor (EUTRAC, STAFF, GLOBAL, IVELA, Eurostandard Plus compatible)
  • Dimensions (WxHxD): 209x167x238mm / 8.23''x6.57''x9.37''
  • Weight: 1,8kg / 3.97lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Code
CT
CRI
Lumen
PINSPOTTRTU
PINSPOTTRTU
2.800 K
90 Ra
775 lm
PINSPOTTRDY
PINSPOTTRDY
6.100 K
80 Ra
978 lm

Accessories & Related Products

C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheet Pinspottr_A4_DATASHEET_(EN).pdf 148KB
Letter datasheet Pinspottr_A4_DATASHEET_(IT).pdf 140KB

User manual

File name File size Download
User manual Pinspottr_USER_MANUAL_ITEN.pdf 881KB

DMX chart & personalities

File name File size Download
VectorWorks VECTORWORKS_SYMBOLS.vwx 379KB
VectorWorks VECTORWORKS_SYMBOLS.vwx 379KB

Photometrics

File name File size Download
IES prolights_pinspot_ldt_ies files.zip 4KB
PDF Photometrics Pinspottrtu_PHOTOMETRICS_REPORT.pdf 2MB
PDF Photometrics Pinspottrdy_PHOTOMETRICS_REPORT.pdf 2MB
Dialux Download DIALux product catalogue -

CAD symbols & drawings

File name File size Download
3D SKP Pinspottr_3D_SKETCHUP.skp 352KB
2D Pinspottr_2D.dwg 2MB
3D Pinspottr_3D.dwg 535KB
Technical drawing Pinspottr_TECHNICAL_DRAWING.pdf 351KB
