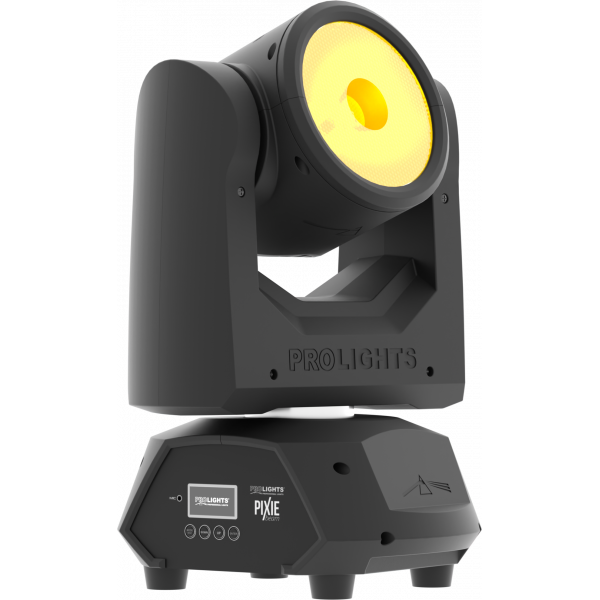

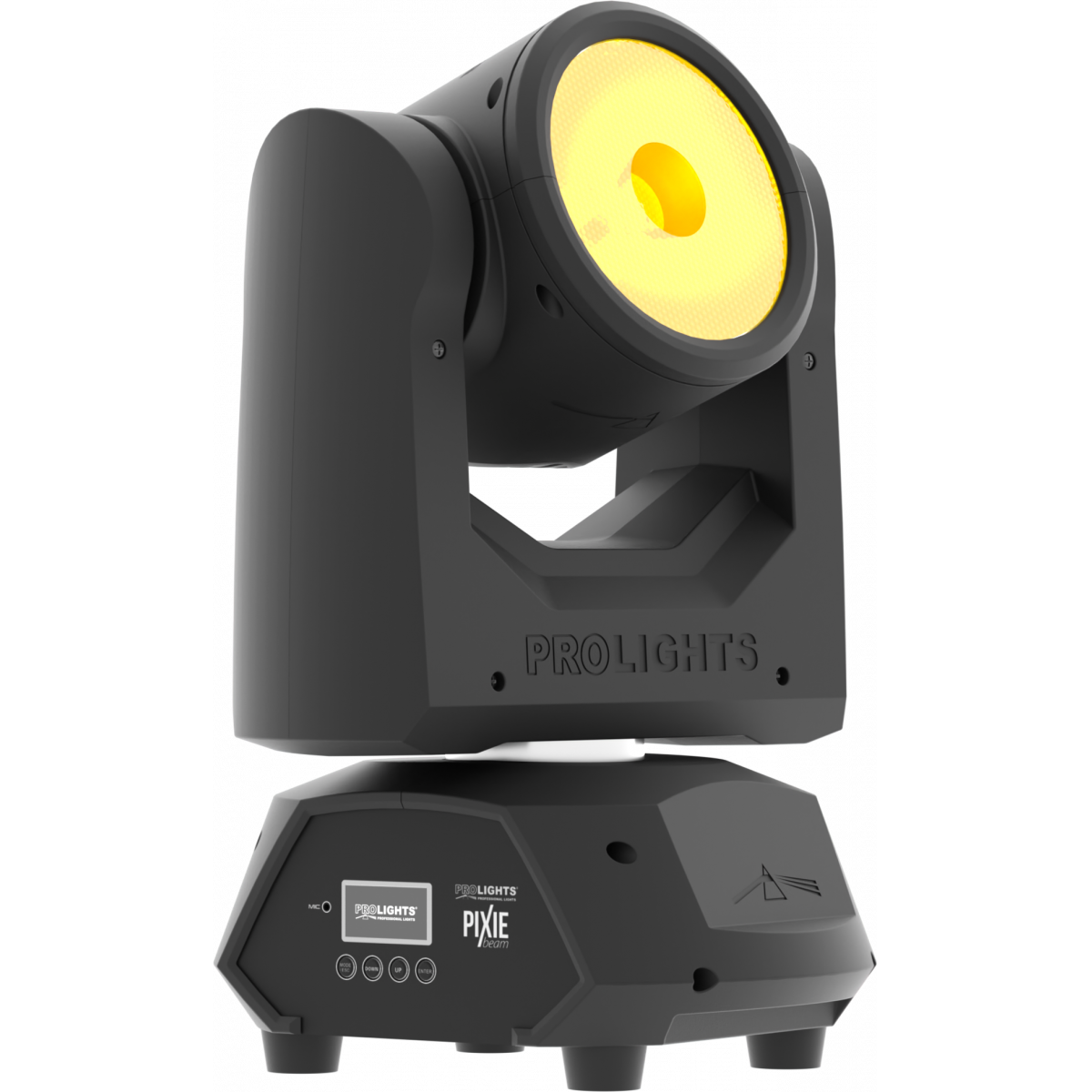

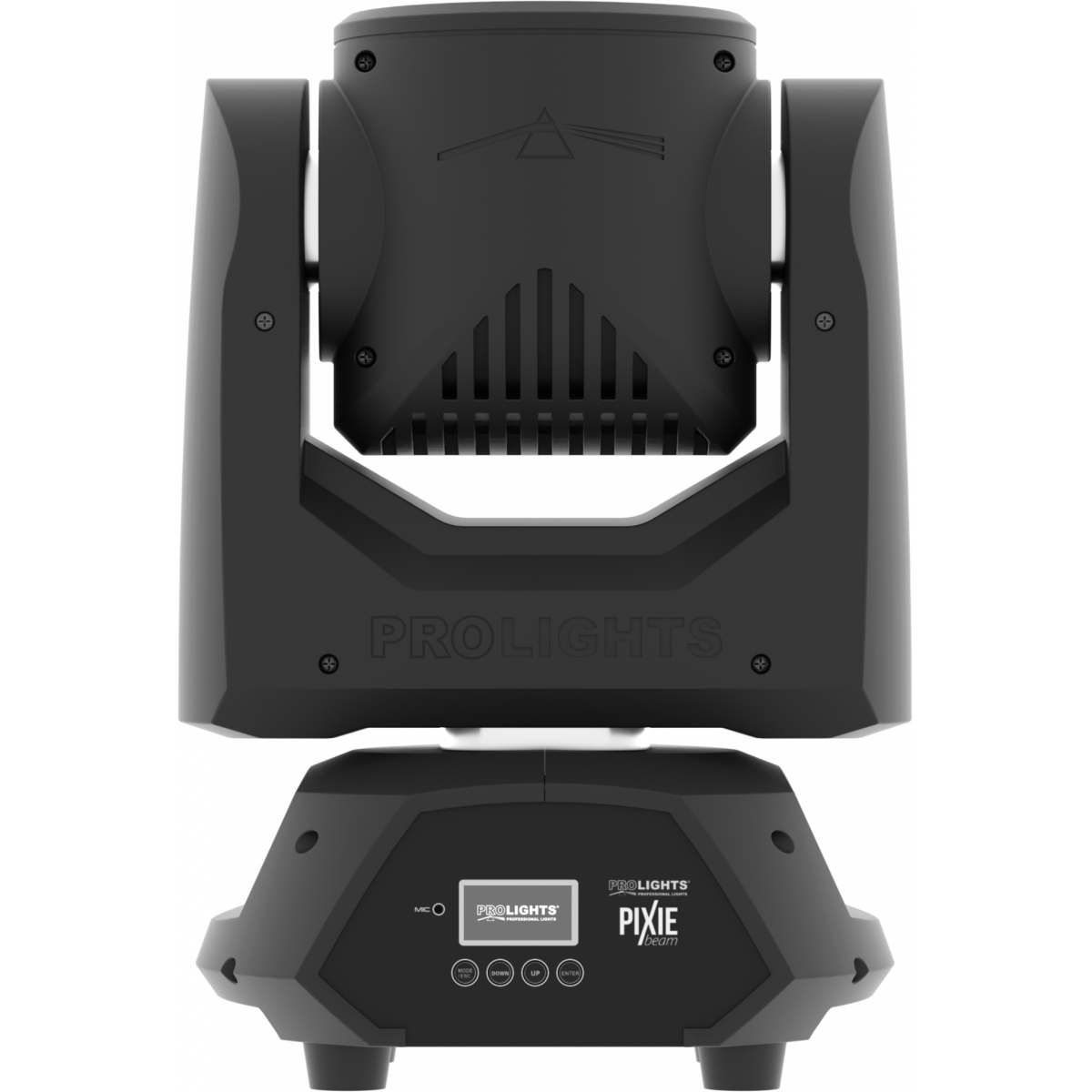

Pixie Beam

ORDER CODE: PIXIEBEAM

60W single source moving LED beam luminaire with continuous rotation

Pixie Beam is a fast, bright and compact moving LED beam luminaire. Some looks are all about scale. The Pixie Beam takes this idea to a different level featuring incredible speed and infinite rotation of both pan and tilt.

Main features:

  • Single 60W Osram Ostar RGBW LED with 100 mm lens delivers a bright, consistent 4,5° beam
  • Compact, lightweight and incredibly fast - the Pixie Beam moves with 'moving mirror' speed
  • Infinite pan and tilt rotation for additional effects
See variants

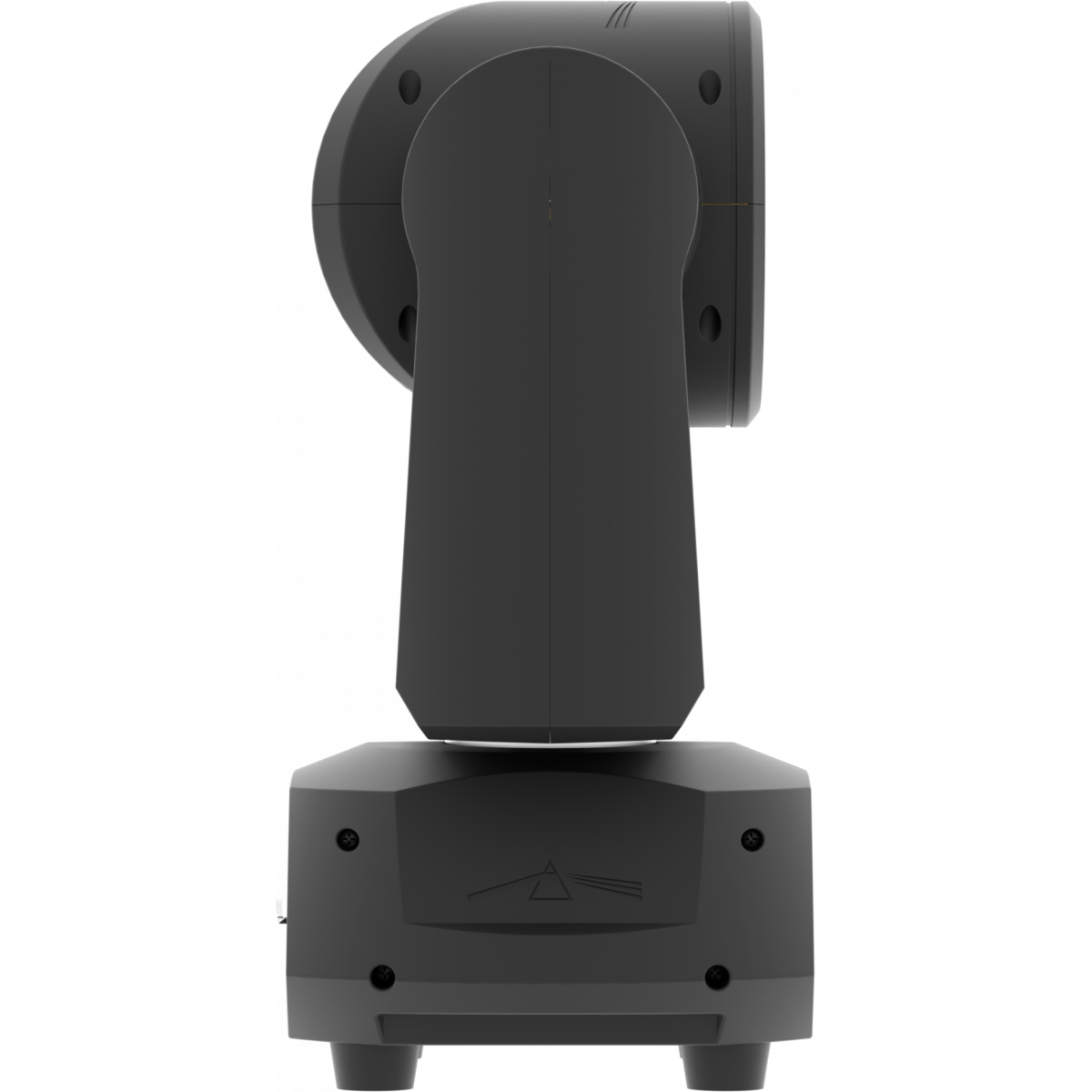

PHOTO GALLERY

Pixie Beam
Pixie Beam
Pixie Beam
Pixie Beam

Technical specifications

LIGHT SOURCE
  • Source: 60W RGBW Osram Ostar LEDs
  • Lux: 11'120lx @3 m full
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 4,5°
  • Lens diameter: 100mm / 3.94''
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • CCT: CCT control through dedicated DMX channel
  • White presets: 2.000 K ~ 8.000K
  • Colour wheel: virtual colour wheel with macros
BODY
  • Pan range: ° with 360° continuous rotation
  • Tilt range: ° with 360° continuous rotation
  • Pan/Tilt resolution: bit 8 / 16-bit
  • Feedback: automatic repositioning after accidental movement
  • Body: aluminium structure with high-resistance polycarbonate cover
  • Body colour: black
CONTROL
  • Protocols: DMX512, RDM
  • DMX channels: 14 / 16 / 18channel
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX2 (USB-DMX interface not included)
  • Hibernation: power safe mode when lost DMX
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Strobe / shutter: 1 - 25 Hz, electronic
  • Operating temperature: -10° ~ +45° Ta
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 100W
  • Max power consumption (at 120V): 100W
  • Output (at 230V): 15 units on a single power line
PHYSICAL
  • IP rating: 20
  • Cooling: active, silent operation
  • Suspension and fixing: any position with quick-lock omega brackets

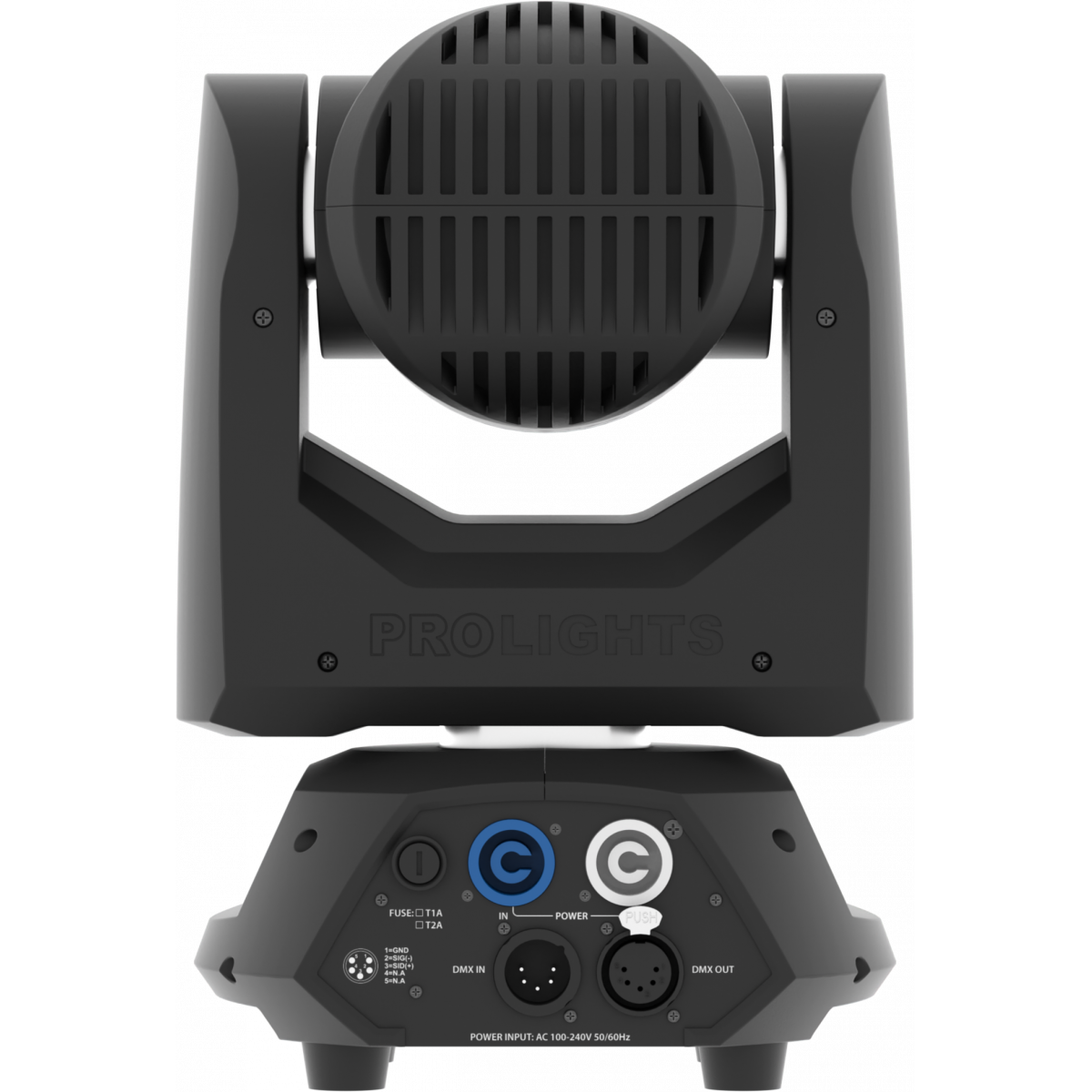

  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Power connection: Neutrik powerCON IN/OUT connectors
  • Dimensions (WxHxD): 208x300x144mm / 8.19''x11.81''x5.67''
  • Weight: 4kg / 8.82lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Accessories & Related Products

9533FCAL03
9533FCAL03
(Optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FCA socket, L.3m
TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m

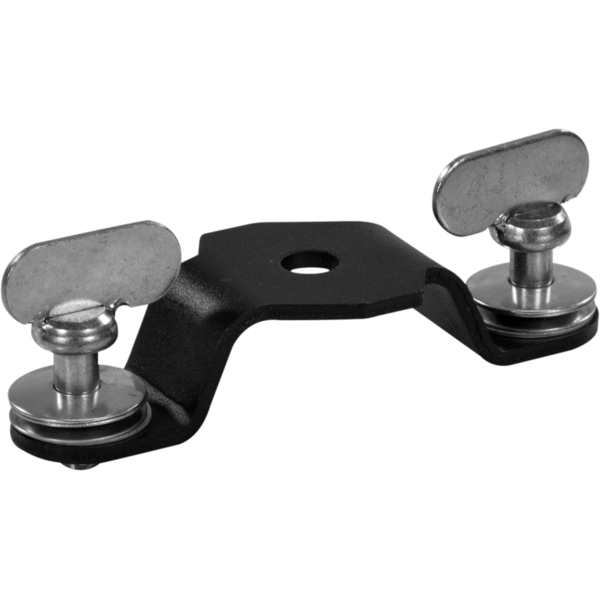

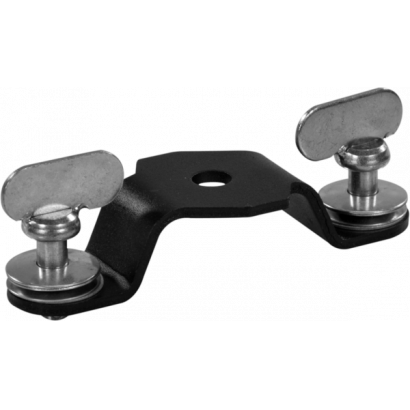

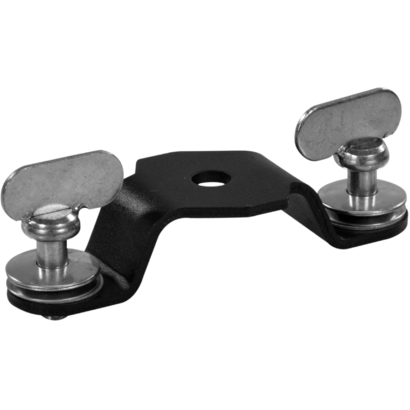

OS105
OS105
(Included)
Quick-lock omega bracket compatible with PIXIEBEAM
C6016B
C6016B
(Optional)
Selflock slim clamp, 250Kg load, 48-51mm tubes, M10 bolt incl, Black&White& White
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
958025L03
958025L03
(Optional)
3x2.5mm TH07 Cable, 20A 3p PwCon FCA, 20A 3p PwCon FCB, L. 3m
9513FCAL03
9513FCAL03
(Optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FCA socket, L.3m

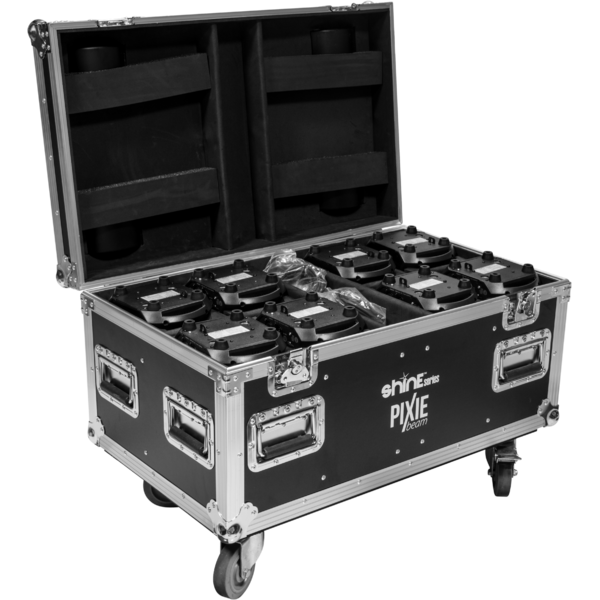

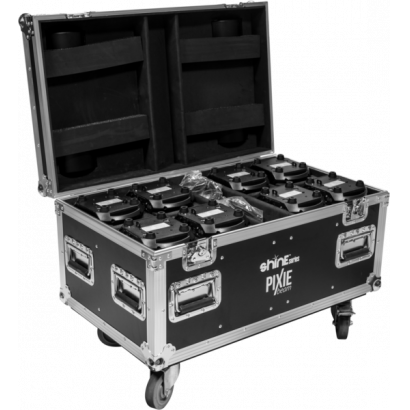

FCLPIXIEBEAM
FCLPIXIEBEAM
(Optional)

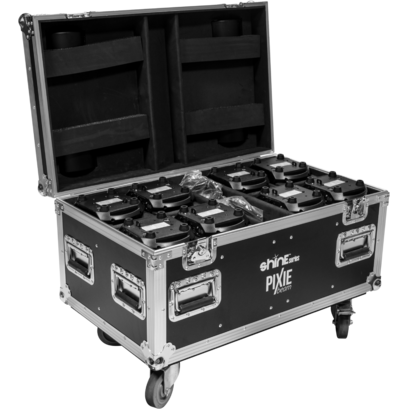

Flight case for 8pcs of PIXIEBEAM
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetPixiebeam_A4_DATASHEET_(IT).pdf150KB
Letter datasheetPixiebeam_A4_DATASHEET_(EN).pdf151KB

User manual

DMX chart & personalities

File name File size Download
DMX chartPixiebeam_DMX_CHARTS.pdf47KB
PIXIEBEAM Firmware rev. 2.2.02
manufacturer fixture library (Link) Link
prolights_pixiebeam.d4Download
manufacturer fixture library (Link) Link
prolights_pixiebeam_14ch.hedDownload
prolights_pixiebeam_16ch.hedDownload
manufacturer fixture library (Link) Link
pixiebeam_14ch.fdfDownload
pixiebeam_16ch.fdfDownload
pixiebeam_ssl1.zipDownload
pixiebeam_ssl2.zipDownload
manufacturer fixture library (Link) Link
prolights@pixiebeam_14@basic1.xmlDownload
prolights@pixiebeam_16@standard.xmlDownload
manufacturer fixture library (Link) Link
pixiebeam_hog3.zipDownload
pixiebeam_bas.hog4showDownload
pixiebeam_std.hog4showDownload
manufacturer fixture library (Link) Link
pixiebeam_martin.zipDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
pixie beam basic1.fix2Download
pixie beam standard.fix2Download
manufacturer fixture library (Link) Link
PIXIEBEAM Firmware rev. 1.2.02
manufacturer fixture library (Link) Link
prolights_pixiebeam.d4Download
manufacturer fixture library (Link) Link
prolights_pixiebeam_14ch.hedDownload
prolights_pixiebeam_16ch.hedDownload
manufacturer fixture library (Link) Link
pixiebeam_14ch.fdfDownload
pixiebeam_16ch.fdfDownload
pixiebeam_ssl1.zipDownload
pixiebeam_ssl2.zipDownload
manufacturer fixture library (Link) Link
prolights@pixiebeam_14@basic1.xmlDownload
prolights@pixiebeam_16@standard.xmlDownload
manufacturer fixture library (Link) Link
pixiebeam_hog3.zipDownload
pixiebeam_bas.hog4showDownload
pixiebeam_std.hog4showDownload
manufacturer fixture library (Link) Link
pixiebeam_martin.zipDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
pixie beam basic1.fix2Download
pixie beam standard.fix2Download
manufacturer fixture library (Link) Link
PIXIEBEAM Firmware rev. 2.0.00
manufacturer fixture library (Link) Link
prolights_pixiebeam.d4Download
manufacturer fixture library (Link) Link
prolights_pixiebeam_14ch.hedDownload
prolights_pixiebeam_16ch.hedDownload
manufacturer fixture library (Link) Link
pixiebeam_14ch.fdfDownload
pixiebeam_16ch.fdfDownload
pixiebeam_ssl1.zipDownload
pixiebeam_ssl2.zipDownload
manufacturer fixture library (Link) Link
prolights@pixiebeam_14@basic1.xmlDownload
prolights@pixiebeam_16@standard.xmlDownload
manufacturer fixture library (Link) Link
pixiebeam_hog3.zipDownload
pixiebeam_bas.hog4showDownload
pixiebeam_std.hog4showDownload
manufacturer fixture library (Link) Link
pixiebeam_martin.zipDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
pixie beam basic1.fix2Download
pixie beam standard.fix2Download
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D RFAPixiebeam_3D.rfa8MB
2DPixiebeam_CAD_2D.dwg2MB
3DPixiebeam_CAD_3D.dwg31MB
2D cad symbolsPixiebeam_CAD_2DSYMBOLS.dwg69KB
Technical drawingPixiebeam_TECHNICAL_DRAWING.pdf281KB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB
VectorWorksVECTORWORKS_SYMBOLS.vwx475KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
2.2.02 STABLE 25/09/2023 Firmware for Hardware Revision 2.

Improvement:
  • Improved display management.
 Rev. 1.0
1.2.02 STABLE 18/11/2019 Improved display management. Rev. 1
2.0.00 STABLE 17/11/2019 Firmware for Hardware Revision 2. Rev. 1.0
