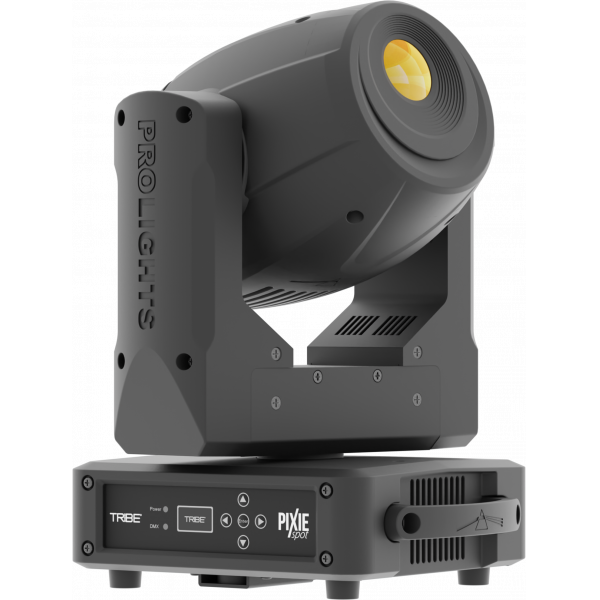

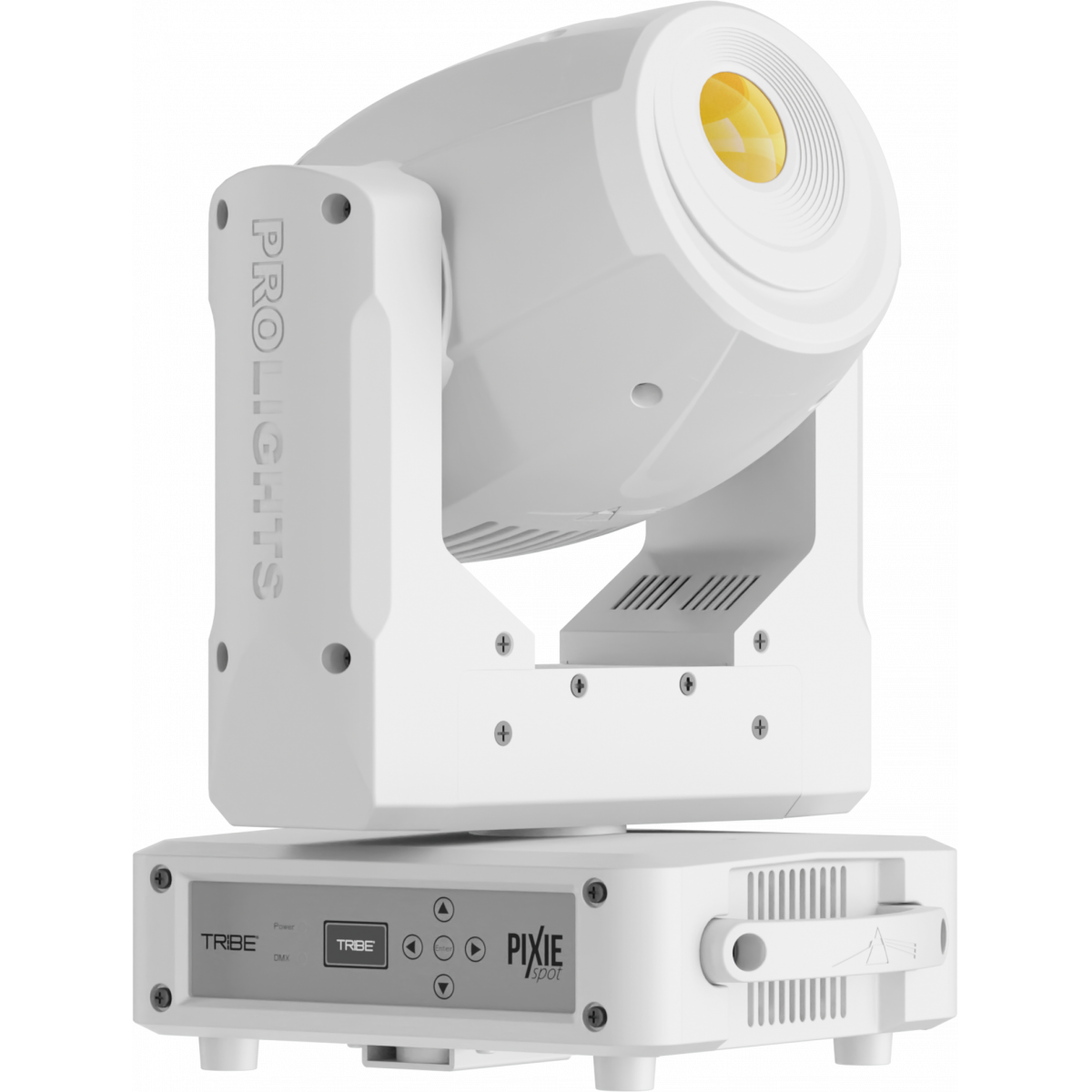

Pixie Spot

60W moving spot with RGBW LED source

Pixie Spot was the first TRIBE spot moving head to deliver a full spectrum chromatic synthesis, equipped with a 60W RGBW/FC LED light source to perform limitless brightness, intense and saturated colours as well as proper whites. Pixie Spot can be also controlled wireless through the optional USB Wi-Fi transceiver in combination with WIFIBOX and the SmartColor app.

Main features:

  • 60W RGBW/FC Osram Ostar LED source
  • Colour mixing featuring rich saturated and pastel colours and white reproduction
  • Effect section equipped with 3f circular prism
  • Gobo wheel: 7 rotating gobos
  • USB IN for control through SmartColor app through Wi-Fi USB
See variants

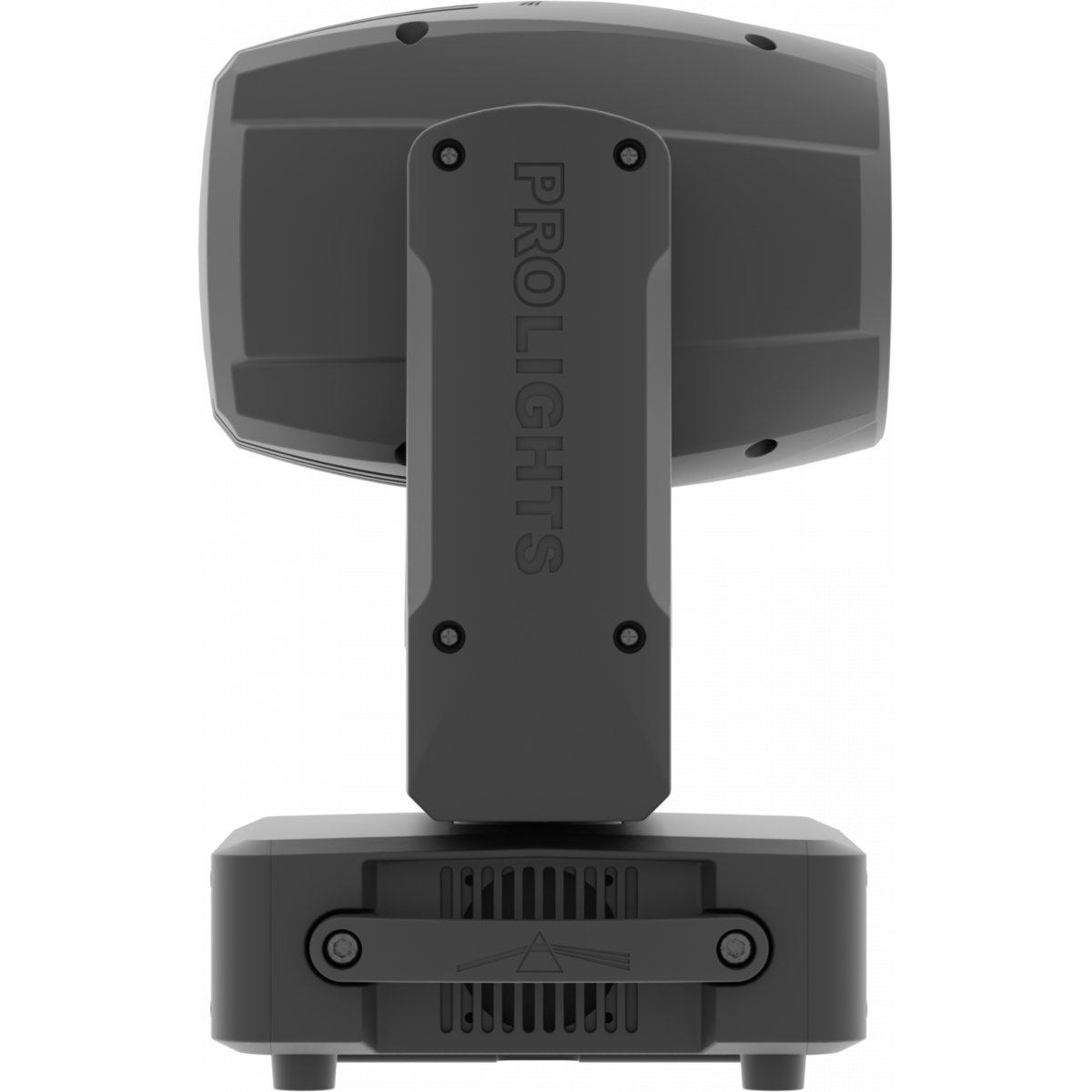

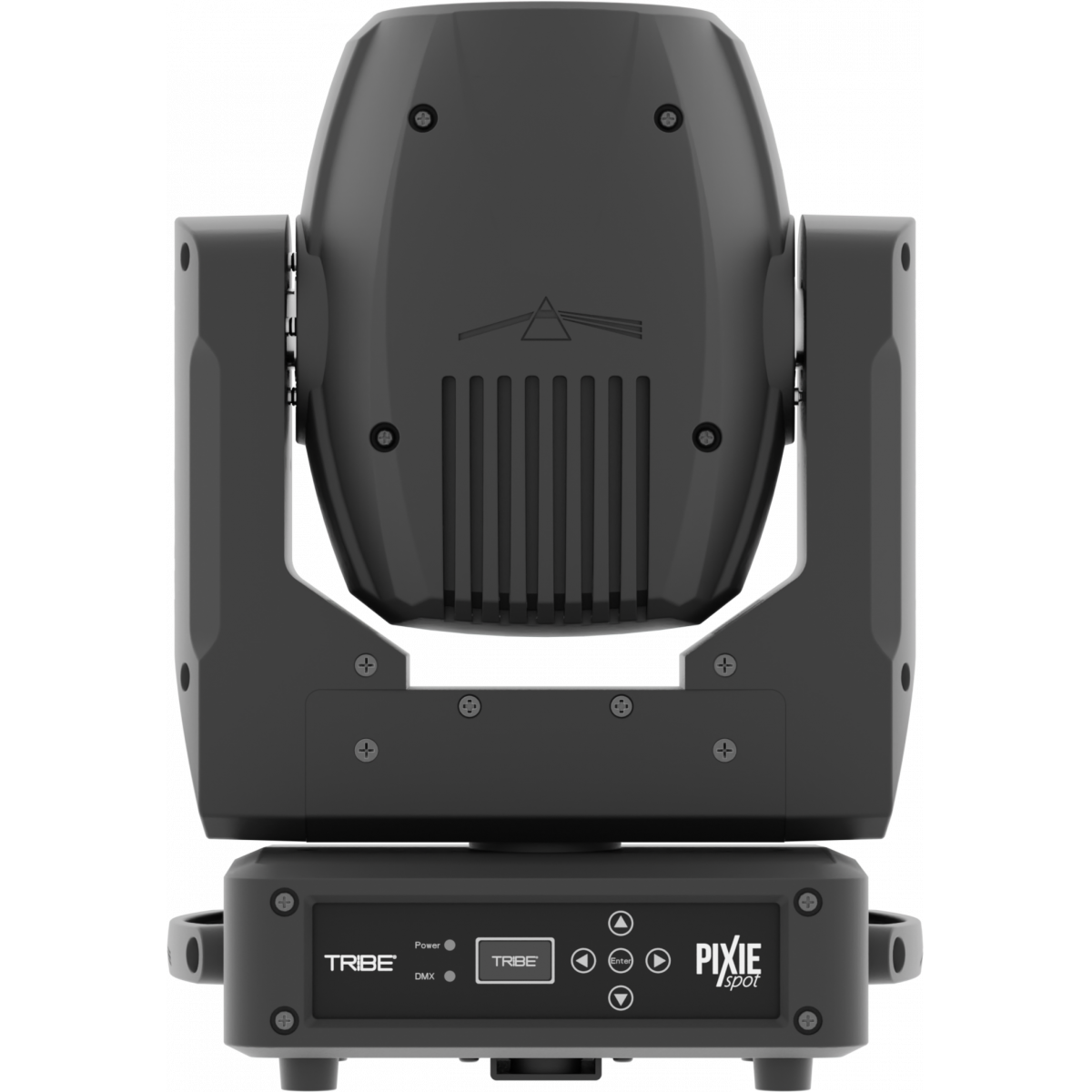

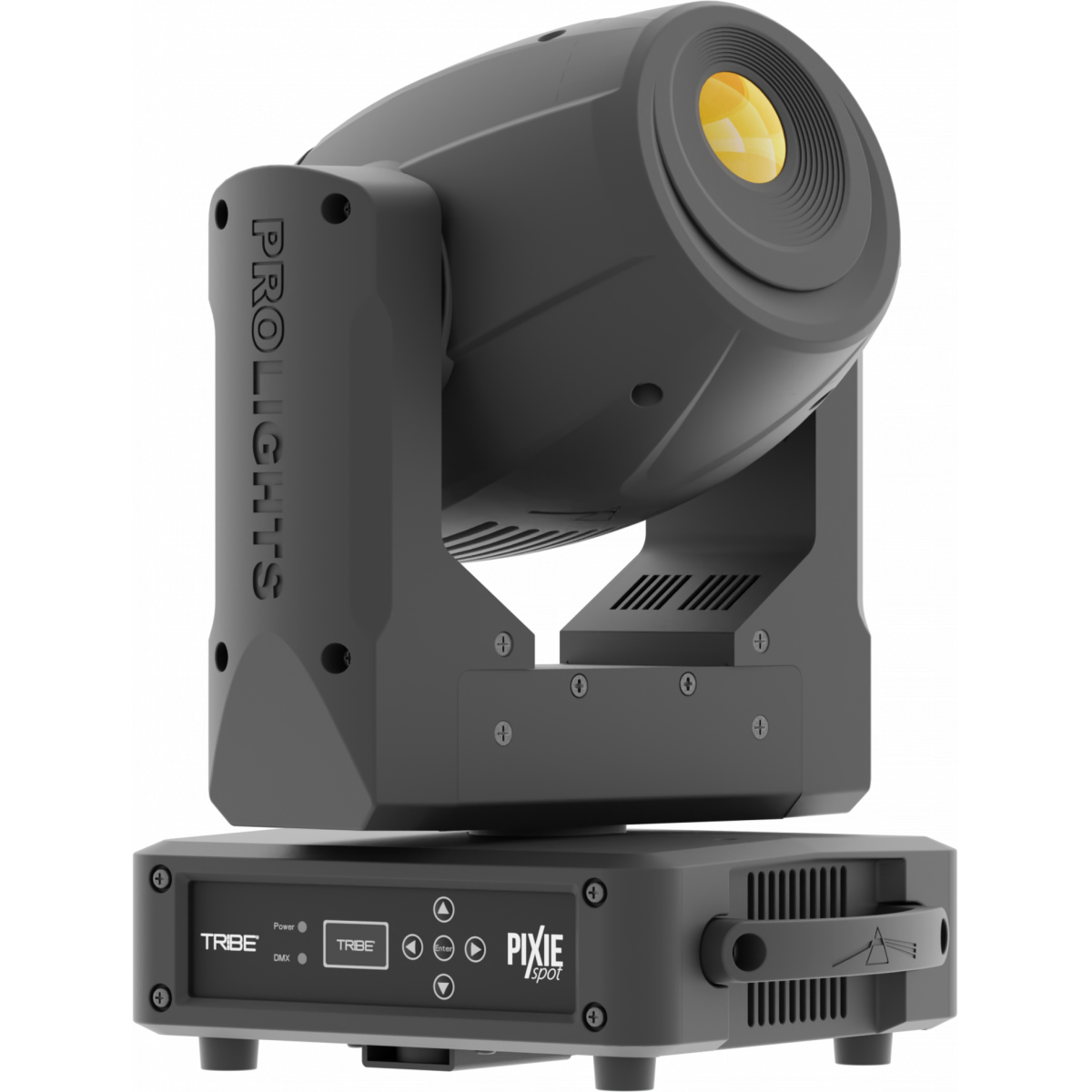

PHOTO GALLERY

<b>Pixie</B> Spot
<b>Pixie</B> Spot
<b>Pixie</B> Spot
<b>Pixie</B> Spot
<b>Pixie</B> Spot
<b>Pixie</B> Spot

Technical specifications

LIGHT SOURCE
  • Source: 60W RGBW Osram LED
  • Luminous flux: 1'069lm
  • Lux: 1'682lx @3 m full
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 18°
  • Lens type: high-quality glass lens optics
  • Focus: motorised
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • CCT: linear CTO correction 2.700 K ~ 6.000 K
  • Colour wheel: virtual colour wheel with macros
DYNAMIC EFFECTS
  • Rotating gobos: 7 rotating gobos + open, interchangeable
  • Gobo size: outer Ø 16.9 mm; image Ø 14 mm; thickness 0.2 ÷ 1.1 mm
  • Circular prism: 3f with bi-directional rotation
  • Auto mode: built-in programs with execution speed adjustment
  • Sound mode: music activation through internal microphone and sensitivity control
BODY
  • Pan angle: 540°
  • Tilt angle: 270°
  • Pan/Tilt resolution: bit 8 / 16-bit
  • Body: aluminium structure with high-resistance polycarbonate cover

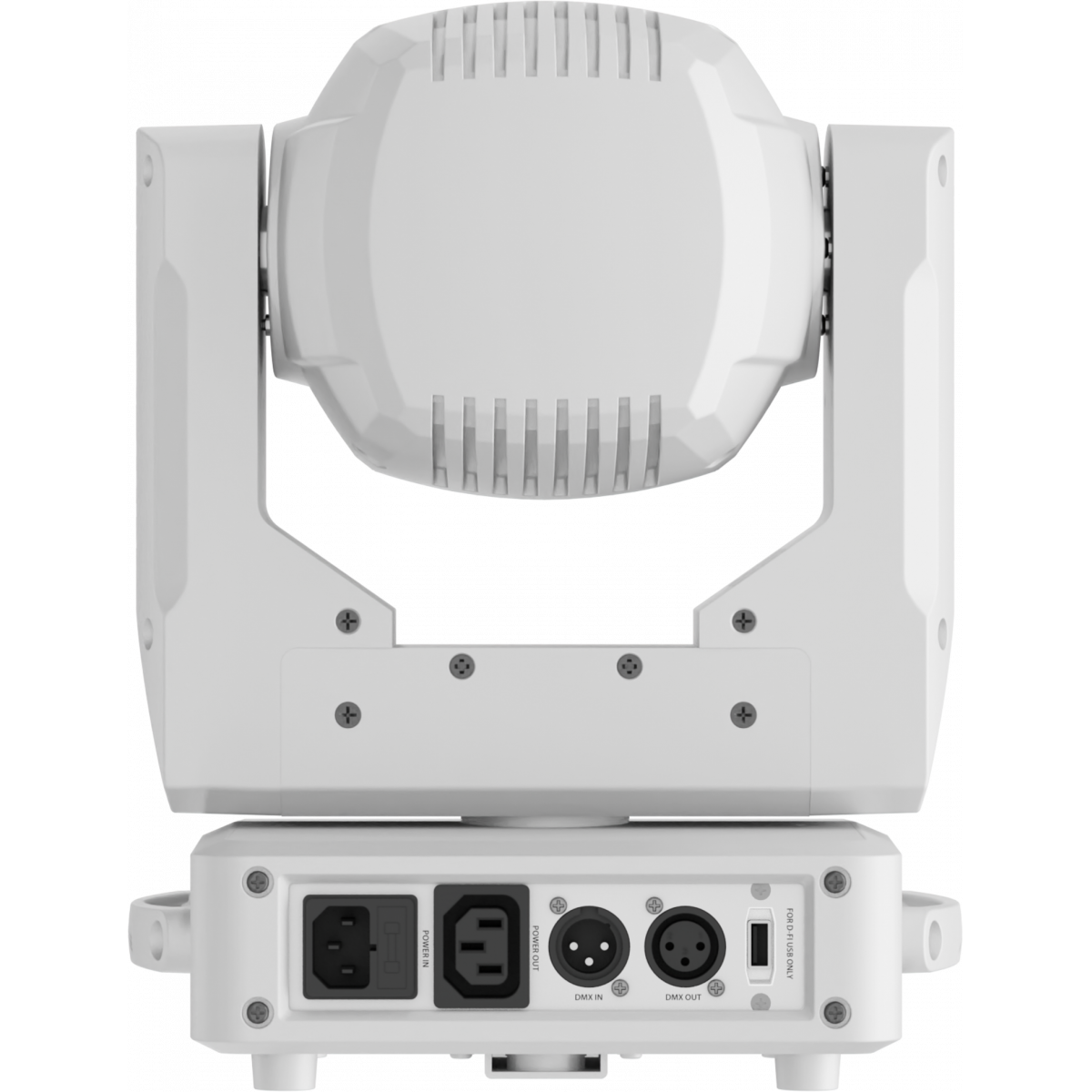

  • Body colour: black, white finishing available
CONTROL
  • Protocols: DMX512
  • DMX channels: 15 / 18 / 23channel
  • Wireless Control: optional, proprietary protocol compatible with WIFIBOX, WDBOX
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: selectable dimming modes available
  • Strobe / shutter: 1 / 28 Hz, electronic
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 118W
  • Max power consumption (at 120V): 120.3W
  • Output (at 230V): 17 units on a single power line
  • Output (at 120V): 9
PHYSICAL
  • IP rating: 20
  • Cooling: active, silent operation
  • Suspension and fixing: any position with quick-lock omega brackets
  • Data: USB port for USB WIFI transmitter (optional)

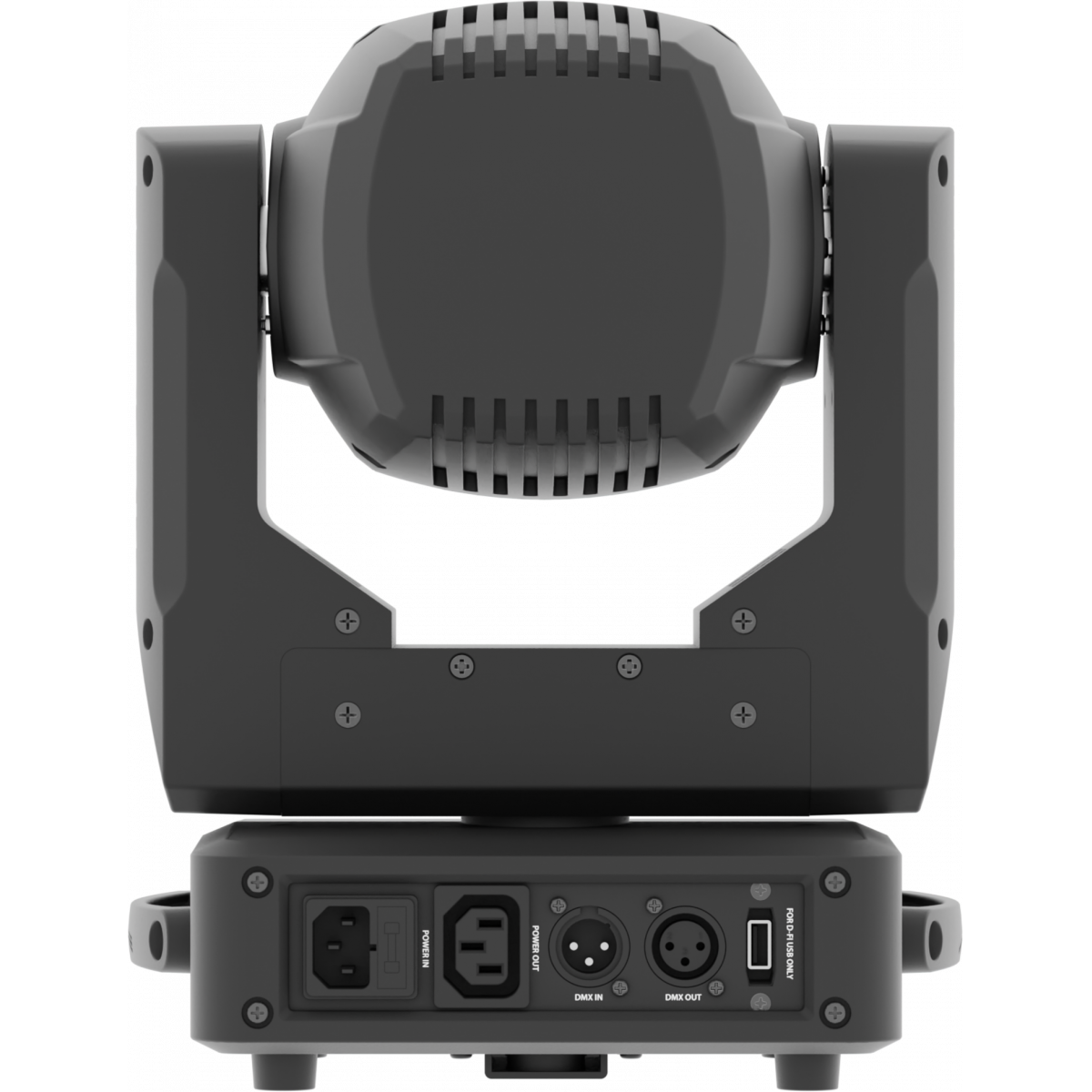

  • Signal connection: XLR 3p IN/OUT connectors
  • Power connection: IEC IN/OUT connectors
  • Dimensions (WxHxD): 253x352x192mm / 9.96''x13.86''x7.56''
  • Weight: 7kg / 15.43lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Code
Housing
PIXIESPOTBK
PIXIESPOTBK (DISCONTINUED)
Black
PIXIESPOTWH
PIXIESPOTWH (END OF LIFE)
White

Accessories & Related Products

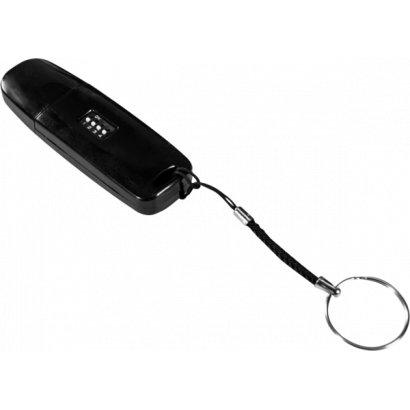

WIFIUSB
WIFIUSB
(optional)
USB Wi-Fi transreceiver, compatible with WIFIBOX and WDBOX
C6016B
C6016B
(optional)
Quick-trigger slim clamp, 250Kg load, 48-51mm tubes, M10 bolt incl, Black
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black

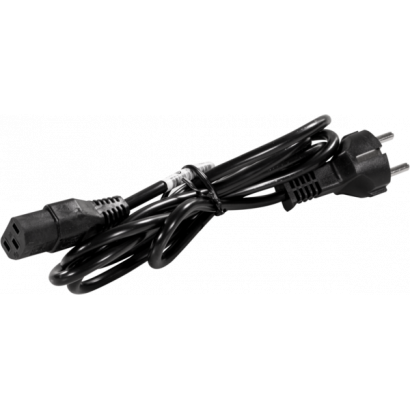

VDE15SEU
VDE15SEU
(optional)
Power cable VDE socket, Shuko plug
TOUR53413L03
TOUR53413L03
(optional)
Dmx cable HC5340. CANC3MXX XLR 3p->CANC3FXX XLR (f) 3p, L.3m

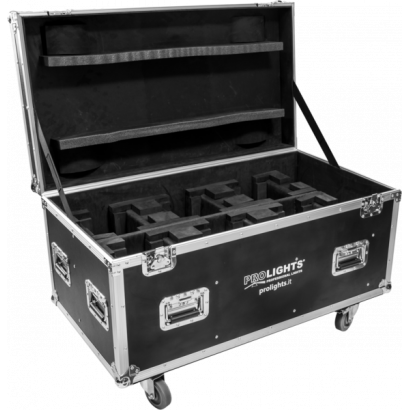

FCLPIXIESW
FCLPIXIESW
(optional)
Flight case for 6 PIXIEWASH, PIXIESPOT
OS24
OS24
(included)
Quick-lock omega bracket, M10 hole
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT

DOWNLOAD

Data sheet & specs

File name File size Download
Pixiespot_A4_DATASHEET_(EN).pdf 160KB
Pixiespot_A4_DATASHEET_(IT).pdf 157KB
Pixiespot_LETTER_DATASHEET_(EN).pdf 160KB

User manual

File name File size Download
Pixiespot_Tech_spec_for_custom_gobos.pdf 73KB
Pixiespot_USER_MANUAL_ITEN.pdf 3MB

DMX chart & personalities

File name File size Download
Pixiespot_DMX_CHARTS.pdf 48KB
VECTORWORKS_SYMBOLS.vwx 437KB
VECTORWORKS_SYMBOLS.vwx 443KB
PROLIGHTS_VECTORWORKS_v23_LIBRARY.vwx 304MB
PROLIGHTS_VECTORWORKS_v18_LIBRARY.vwx 443MB
PIXIESPOT Firmware rev. 1.3
manufacturer fixture library (Link) Link
prolights_pixiespot.d4Download
manufacturer fixture library (Link) Link
prolight_pixiespot_15ch.hedDownload
prolight_pixiespot_18ch.hedDownload
prolight_pixiespot_23ch.hedDownload
manufacturer fixture library (Link) Link
pixiespot_15ch.fdfDownload
pixiespot_18ch.fdfDownload
pixiespot_23ch.fdfDownload
pixiespot_ssl2.zipDownload
manufacturer fixture library (Link) Link
prolights@pixiespot@23_channel@created_by_sille.xmlDownload
manufacturer fixture library (Link) Link
pixiespot_hog3.zipDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
pixiespot 15 channel.fix2Download
pixiespot 18 channel.fix2Download
pixiespot 23 channel.fix2Download

Photometrics

File name File size Download
Pixiespot_PHOTOMETRICS.pdf 2MB
Download DIALux product catalogue -

CAD symbols & drawings

File name File size Download
Pixiespot_3D_SKETCHUP.skp 7MB
Pixiespot_3D_REVIT.rfa 3MB
Pixiespot_2D.dwg 6MB
Pixiespot_3D.dwg 3MB
Pixiespot_TECHNICAL_DRAWING.pdf 318KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware

Only the latest firmware versions for each hardware revision are available for download.
To download previous firmware versions, log in to the customer care section.
Update Tool: UPBOX1UP5
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.3 STABLE 08/03/2019 Added Studio mode Added menù function: switch on/off led on the base.
