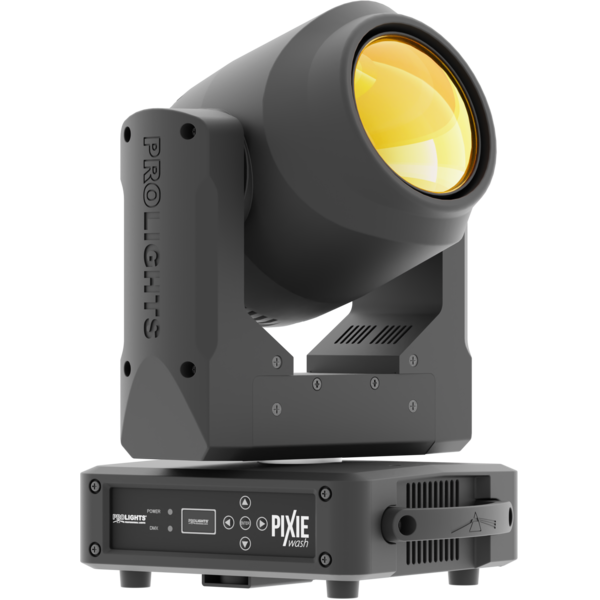

Pixie Wash

60W single source compact and zoomable LED wash luminaire

Pixie Wash is a single source, compact LED wash luminaire with a 7° to 40° zoom. Featuring a single 60W LED, its small form factor and near-silent cooling make it ideal for low ceilings or noise-sensitive environments.

Main features:

  • Single 60W Osram Ostar RGBW LED with extensive colour range
  • Massive 7° to 40° linear zoom with a smooth, even beam
  • HD dimming
See variants

PHOTO GALLERY

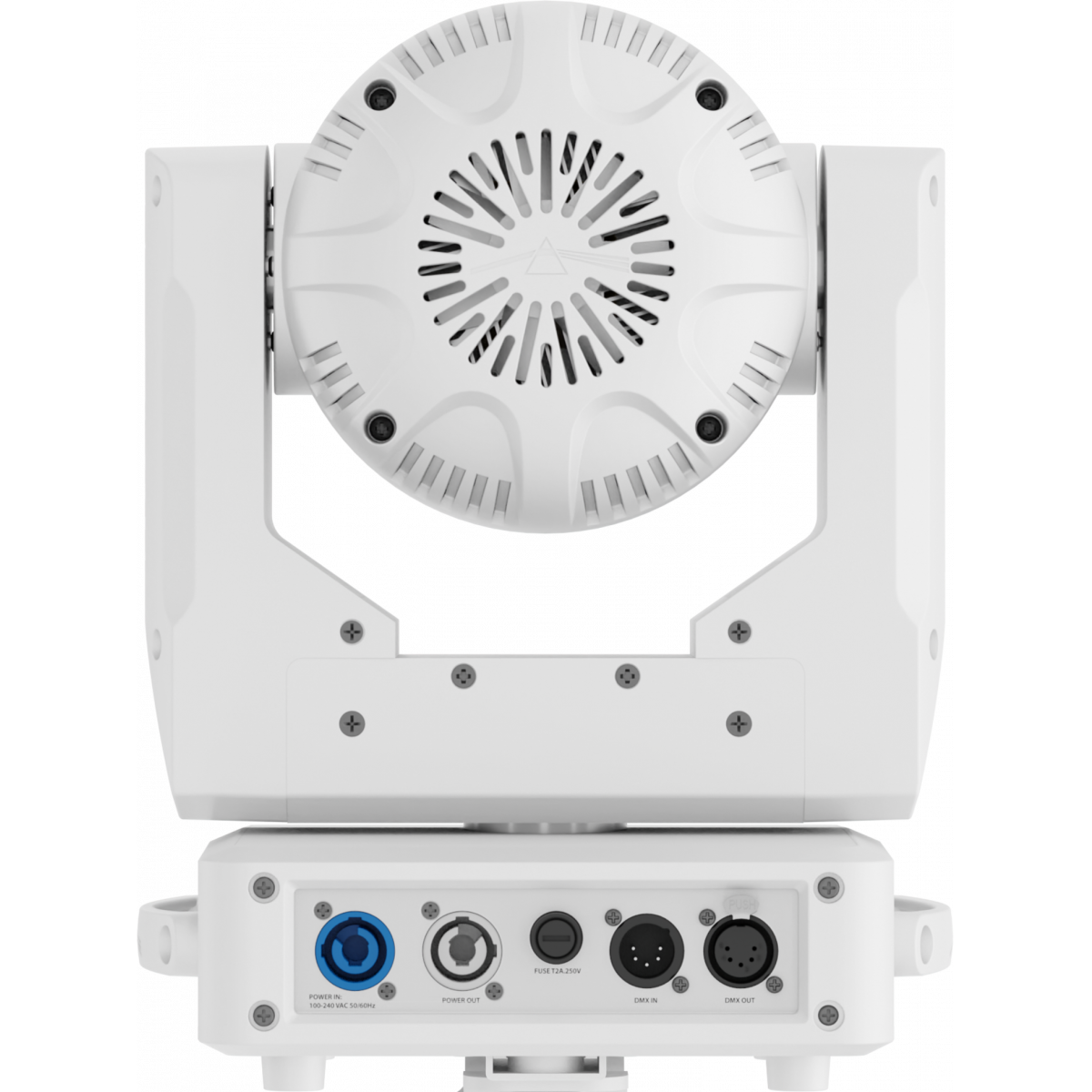

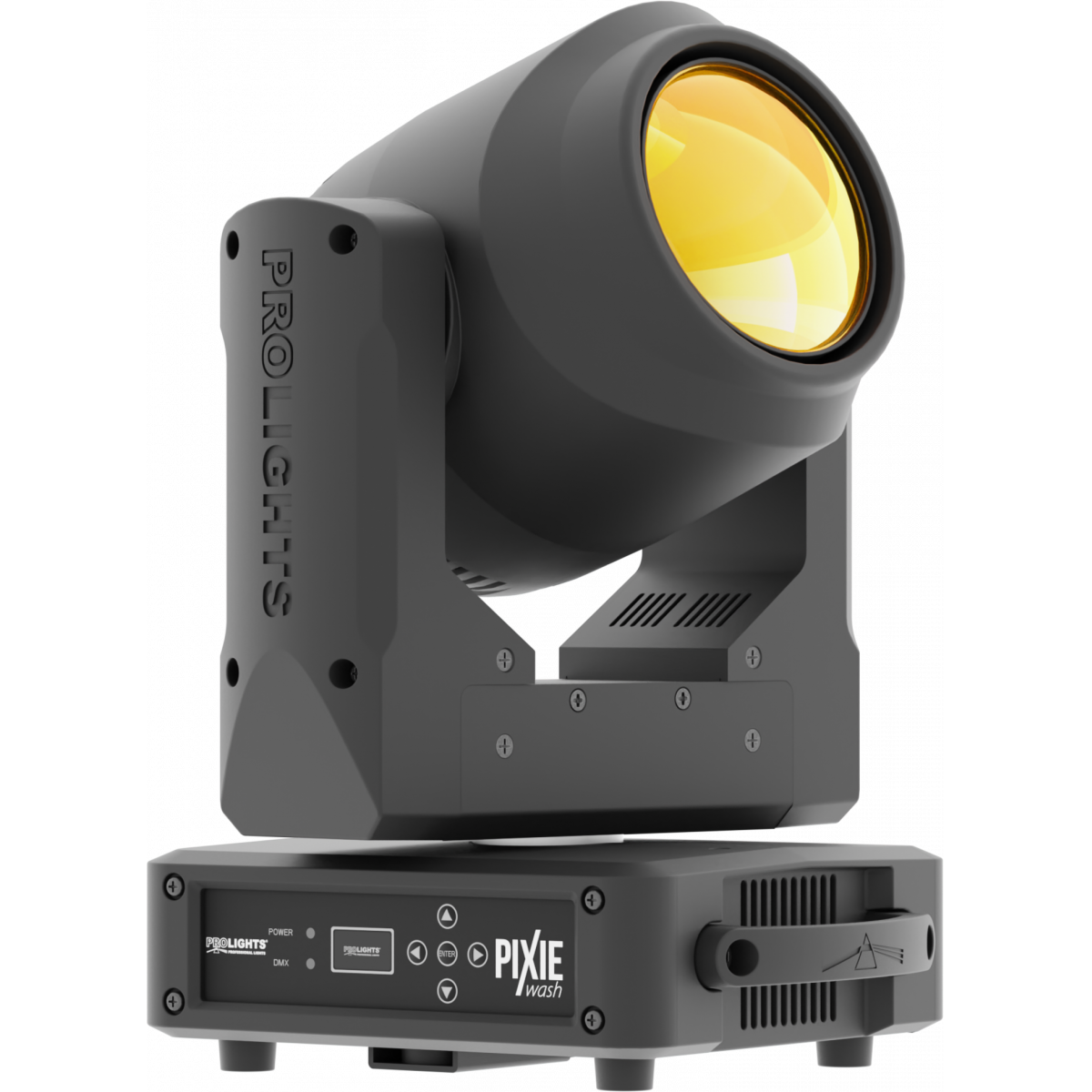

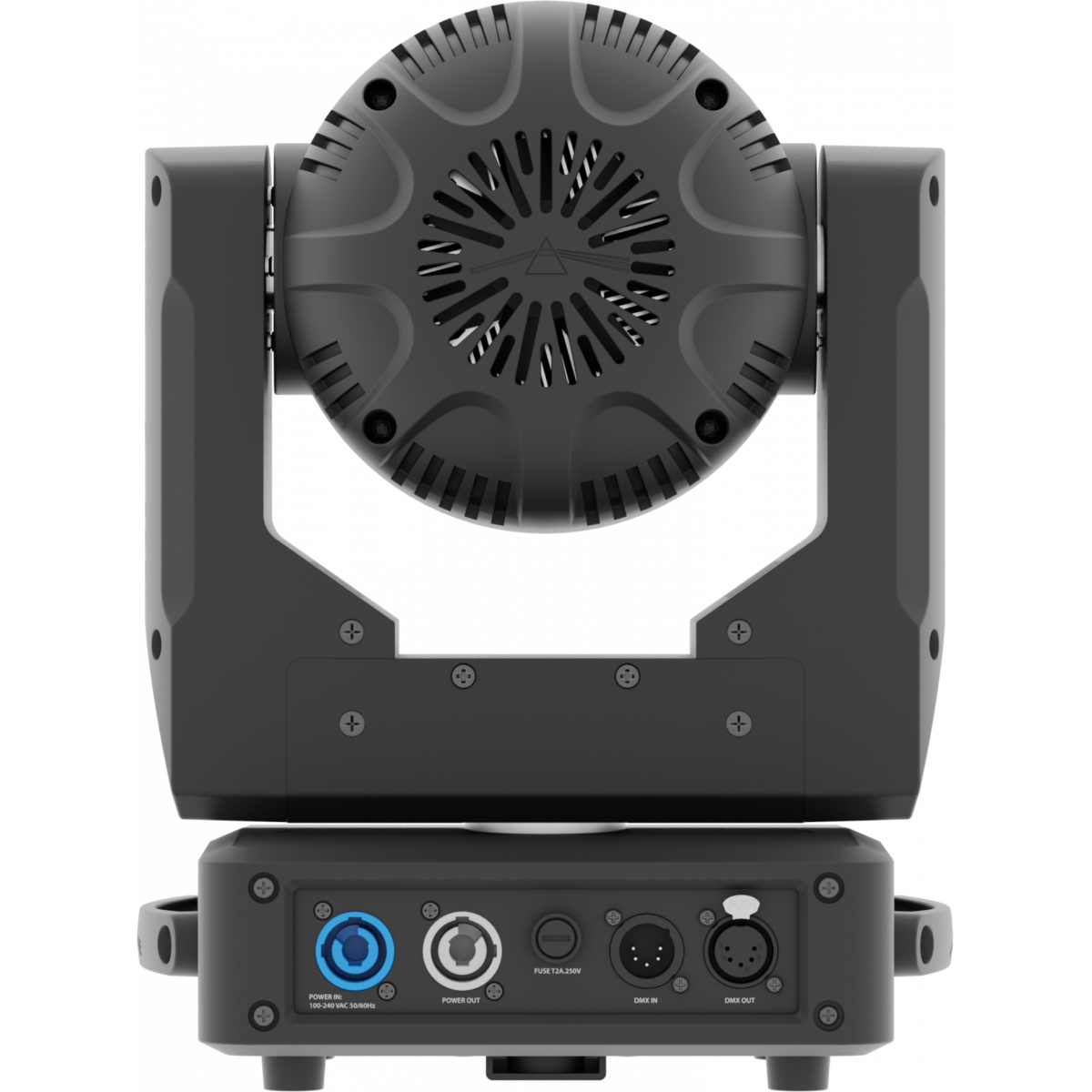

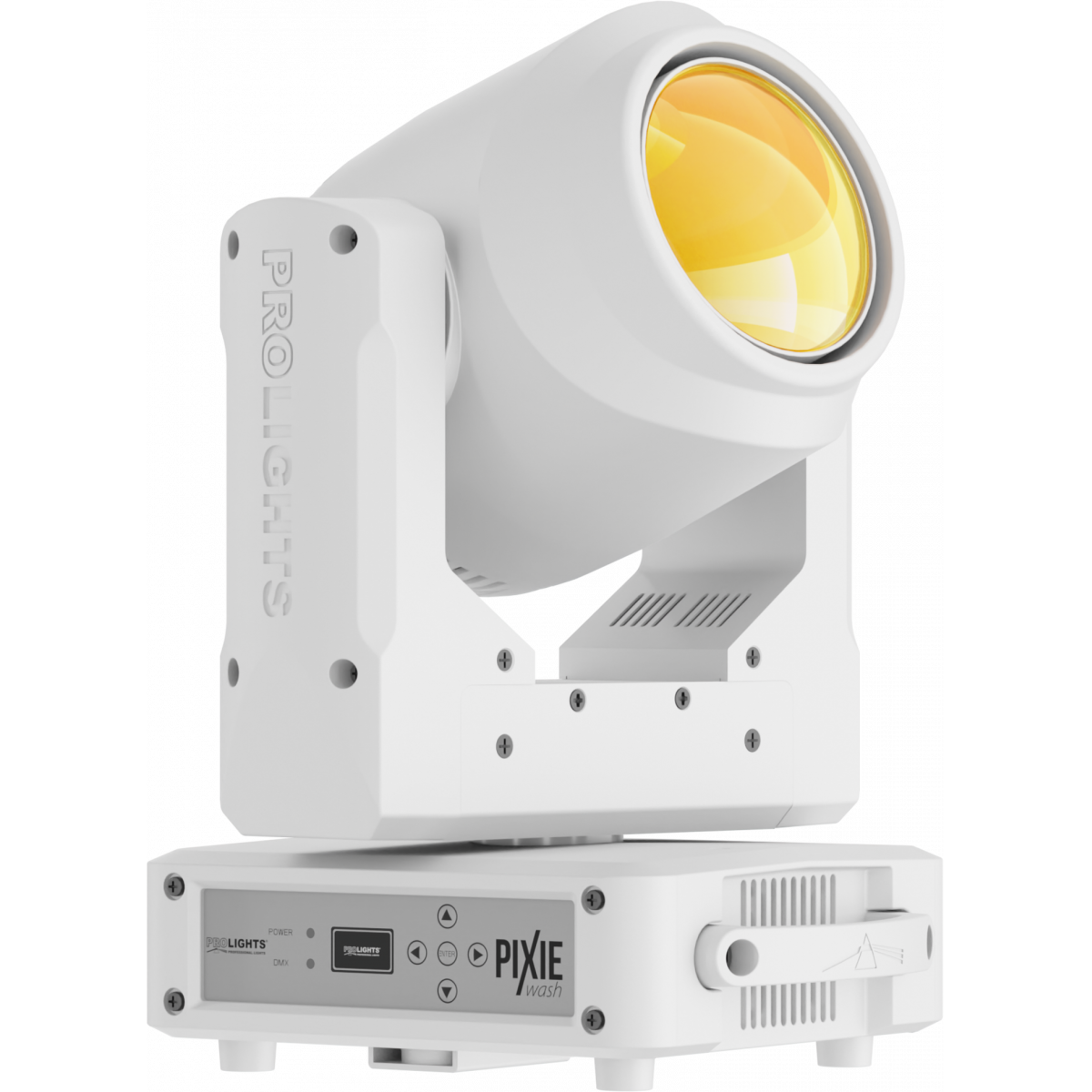

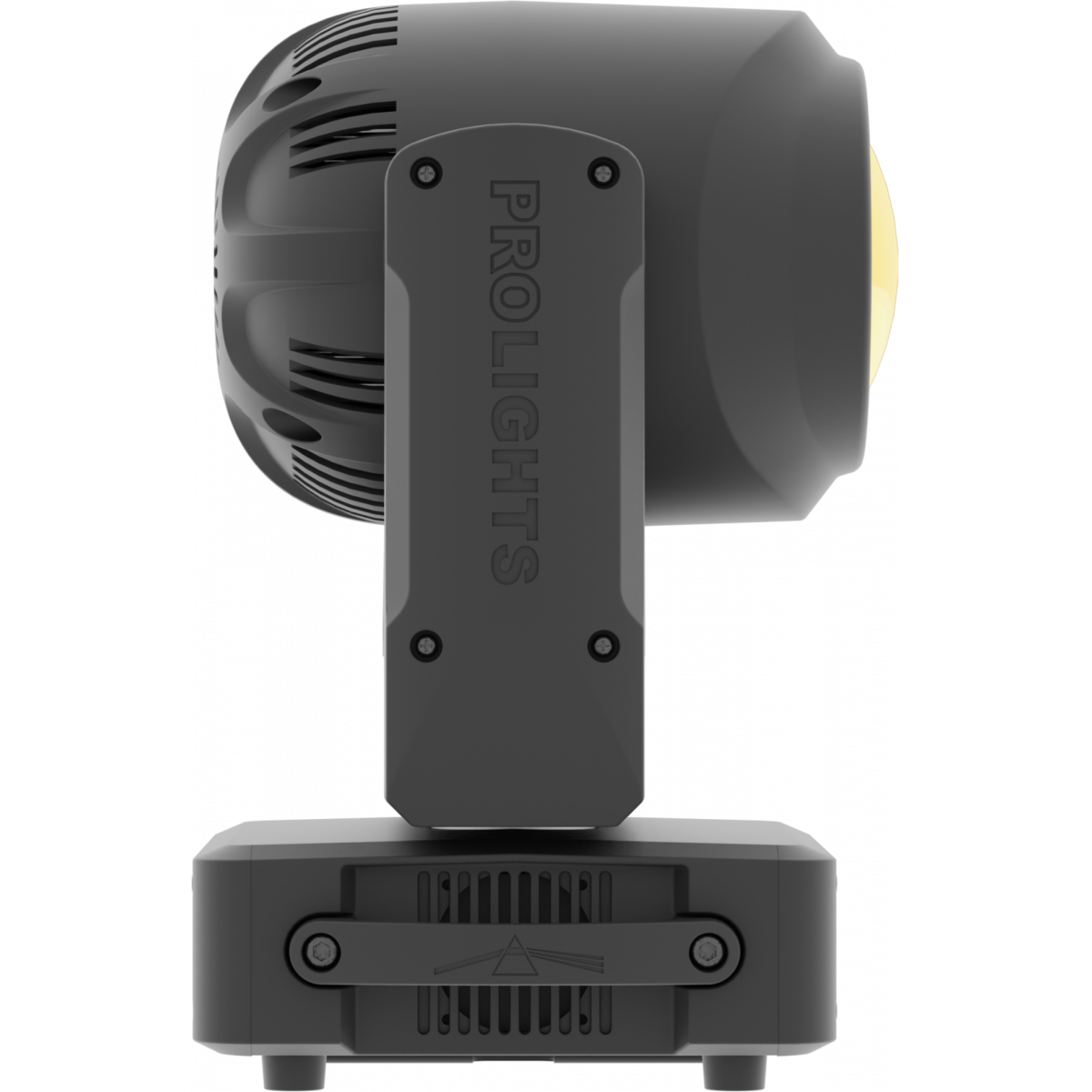

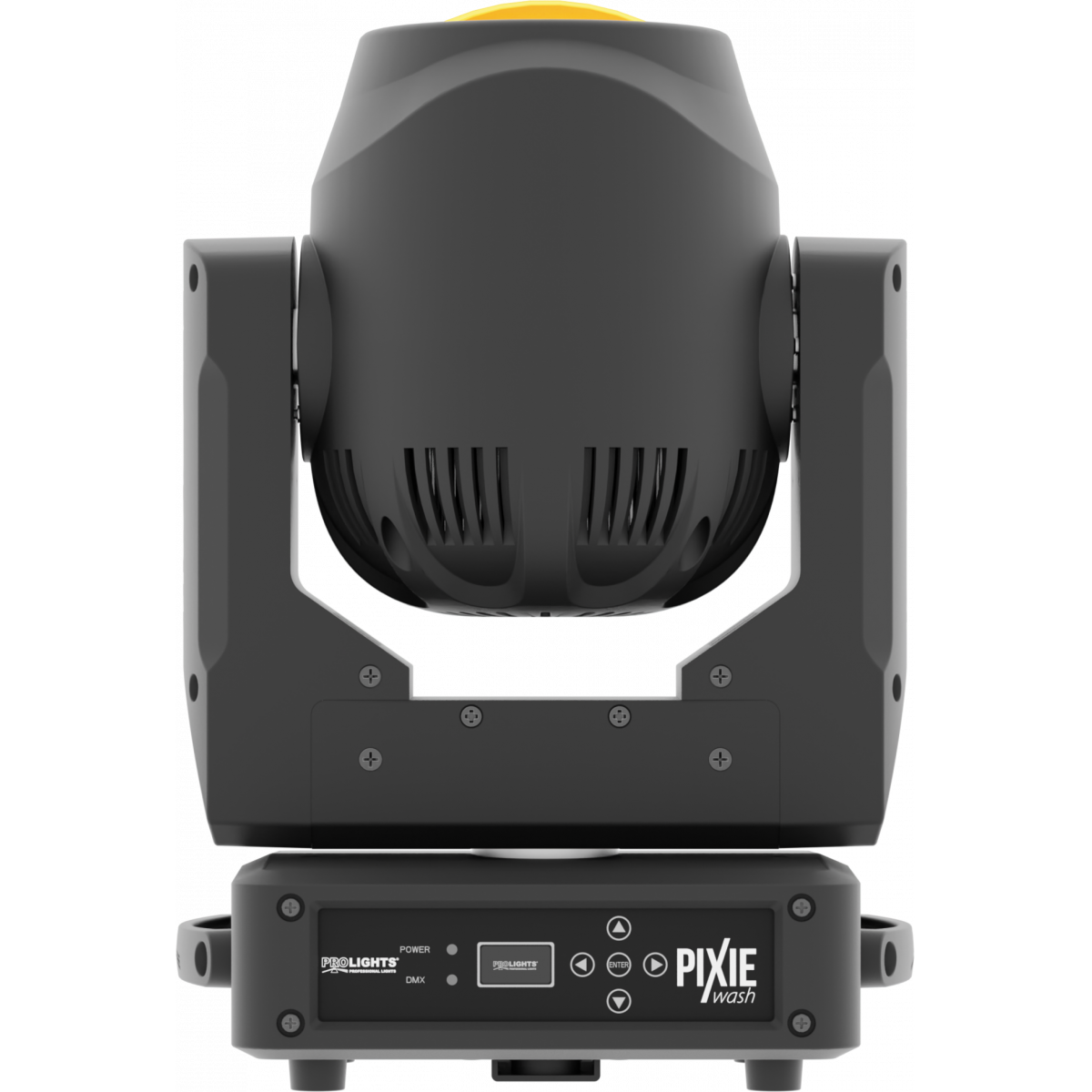

Pixie Wash
Pixie Wash
Pixie Wash
Pixie Wash
Pixie Wash
Pixie Wash

Technical specifications

LIGHT SOURCE
  • Source: 60W RGBW Osram Ostar LED
  • Luminous flux: (7°) 1'432 lm - (40°) 1'311lm @full
  • Lux: (7°) 3'808 lx - (40°) 296lx @5 m full
  • Source life expectancy: > 50.000 h
OPTICS
  • Zoom: 7° - 40° motorised linear zoom
  • Lens diameter: 100mm / 3.94''
  • Lens type: high-quality glass lens optics
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • CCT: CCT control through dedicated DMX channel
  • White presets: 2.700 K ~ 8.000K
  • Colour wheel: virtual colour wheel with macros
DYNAMIC EFFECTS
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Pan angle: 540°
  • Tilt angle: 270°
  • Pan/Tilt resolution: bit 8 / 16-bit
  • Feedback: automatic repositioning after accidental movement
  • Body: aluminium structure with high-resistance polycarbonate cover
  • Body colour: black, white finishing available
CONTROL
  • Protocols: DMX512
  • DMX channels: 13 / 16channel
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 112W
  • Output (at 230V): 22 units on a single power line
PHYSICAL
  • IP rating: 20
  • Cooling: active, silent operation
  • Suspension and fixing: any position with quick-lock omega brackets
  • Signal connection: XLR 5p IN/OUT connectors
  • Power connection: Neutrik powerCON IN/OUT connectors
  • Dimensions (WxHxD): 253x329x205mm / 9.96''x12.95''x8.07''
  • Weight: 7kg / 15.43lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Code
Housing
PIXIEWASHBK
PIXIEWASHBK
Black
PIXIEWASHWH
PIXIEWASHWH (DISCONTINUED)
White

Accessories & Related Products

9533FCAL03
9533FCAL03
(optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FCA socket, L.3m
OS24
OS24
(included)
Quick-lock omega bracket, M10 hole
C6016B
C6016B
(optional)
Selflock slim clamp, 250Kg load, 48-51mm tubes, M10 bolt incl, Black
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
OS24D13
OS24D13
(optional)
Quick-lock omega bracket, M12 hole
9513FCAL03
9513FCAL03
(optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FCA socket, L.3m
958025L03
958025L03
(optional)
3x2.5mm TH07 Cable, 20A 3p PwCon FCA, 20A 3p PwCon FCB, L. 3m
TOUR53415L03
TOUR53415L03
(optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
FCLPIXIESW
FCLPIXIESW
(optional)

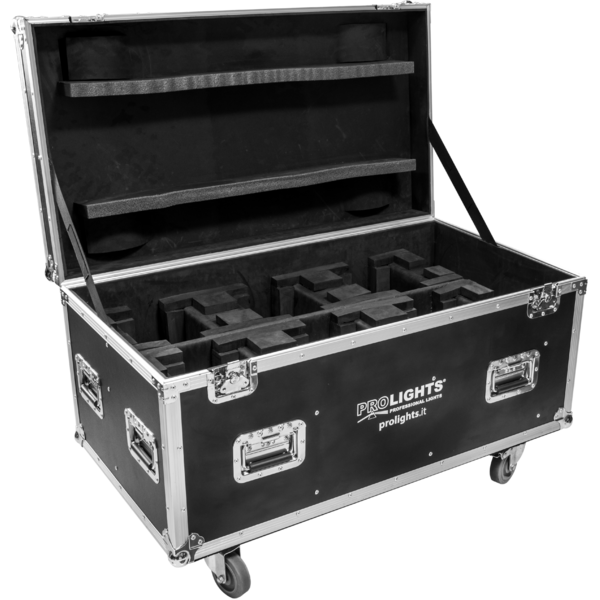

Flight case for 6 PIXIEWASH, PIXIESPOT
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheet Pixiewash_A4_DATASHEET_(EN).pdf 417KB
Letter datasheet Pixiewash_A4_DATASHEET_(IT).pdf 410KB
Letter datasheet Pixiewash_LETTER_DATASHEET_(EN).pdf 418KB

User manual

File name File size Download
User manual Pixiewash_USER_MANUAL_ITEN.pdf 3MB

DMX chart & personalities

File name File size Download
DMX chart Pixiewash_DMX_CHARTS.pdf 55KB
VectorWorks PROLIGHTS_VECTORWORKS_v23_LIBRARY.vwx 304MB
VectorWorks VECTORWORKS_SYMBOLS.vwx 1MB
VectorWorks VECTORWORKS_SYMBOLS.vwx 2MB
VectorWorks PROLIGHTS_VECTORWORKS_v18_LIBRARY.vwx 444MB
PIXIEWASH Firmware rev. 1.6
manufacturer fixture library (Link) Link
prolights_pixiewash.d4Download
manufacturer fixture library (Link) Link
prolight_pixiewash_13ch.hedDownload
prolight_pixiewash_16ch.hedDownload
manufacturer fixture library (Link) Link
pixiewash_13ch.fdfDownload
pixiewash_16ch.fdfDownload
pixiewash_ssl.zipDownload
pixiewash_ssl2.zipDownload
manufacturer fixture library (Link) Link
prolights@pixiewash_16ch@16ch.xmlDownload
prolights@pixiewash_13ch@13ch.xmlDownload
manufacturer fixture library (Link) Link
pixiewash_hog3.zipDownload
pixiewash_16ch.hog4showDownload
pixiewash_13ch.hog4showDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
pixie wash 13 channel.fix2Download
pixie wash 16 channel.fix2Download
manufacturer fixture library (Link) Link

Photometrics

File name File size Download
IES prolights_pixiewash_blue_50°.ies 30KB
IES prolights_pixiewash_blue_6°.ies 30KB
IES prolights_pixiewash_full_50°.ies 30KB
IES prolights_pixiewash_full_6°.ies 30KB
IES prolights_pixiewash_green_50°.ies 30KB
IES prolights_pixiewash_green_6°.ies 30KB
IES prolights_pixiewash_red_50°.ies 30KB
IES prolights_pixiewash_red_6°.ies 30KB
IES prolights_pixiewash_white_50°.ies 30KB
IES prolights_pixiewash_white_6°.ies 30KB
PDF Photometrics Pixiewash_PHOTOMETRICS.pdf 307KB
Dialux Download DIALux product catalogue -

CAD symbols & drawings

File name File size Download
3D RFA Pixiewash_3D_REVIT.rfa 760KB
3D SKP Pixiewash_3D_SKETCHUP.skp 4MB
2D Pixiewash_2D.dwg 7MB
3D Pixiewash_3D.dwg 526KB
2D cad symbols Pixiewash_2DSYMBOLS.dwg 173KB
Technical drawing Pixiewash_TECHNICAL_DRAWING.pdf 365KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware

Only the latest firmware versions for each hardware revision are available for download.
To download previous firmware versions, log in to the customer care section.
Update Tool: UPBOX1UP5 {CodiceUpBox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.6 STABLE 22/06/2019 Improved zoom functionality. Rev. 1.0
