POLAR3000
PROLIGHTS
end of life

Polar 3000

ORDER CODE: POLAR3000

POLAR3000 is a revolutionary LED strobe, engineered to offer a true explosion of light and a range of dynamic effects - all in a unique fixture. The light source is composed by 892 SMD 6.500 K x 0,5 W LEDs allows a full-ON continuous operation with 6 independent section controls. Fully capable to offer an equal output of conventional 3.000 W Xenon strobe from just a sixth of the nominal power.

Main features:

  • 892x0,5 W SMD Cold White LEDs
  • 6 segment control featuring special effects generation
  • Capability to feature full-On operation like a blinder
  • Super-slim design despite its outstanding output
  • Comparable to a 3k Xenon strobe
See variants

PHOTO GALLERY

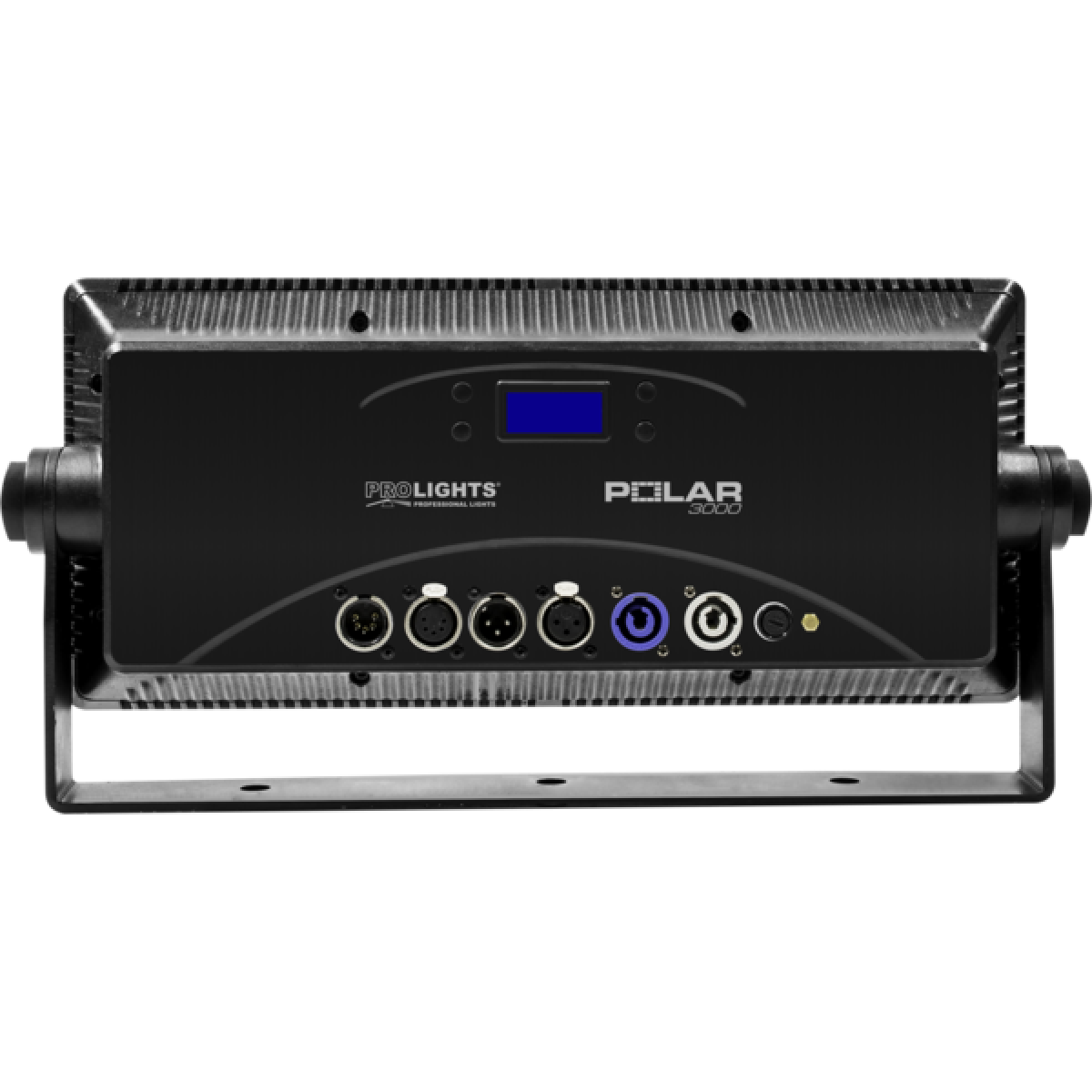

Polar 3000

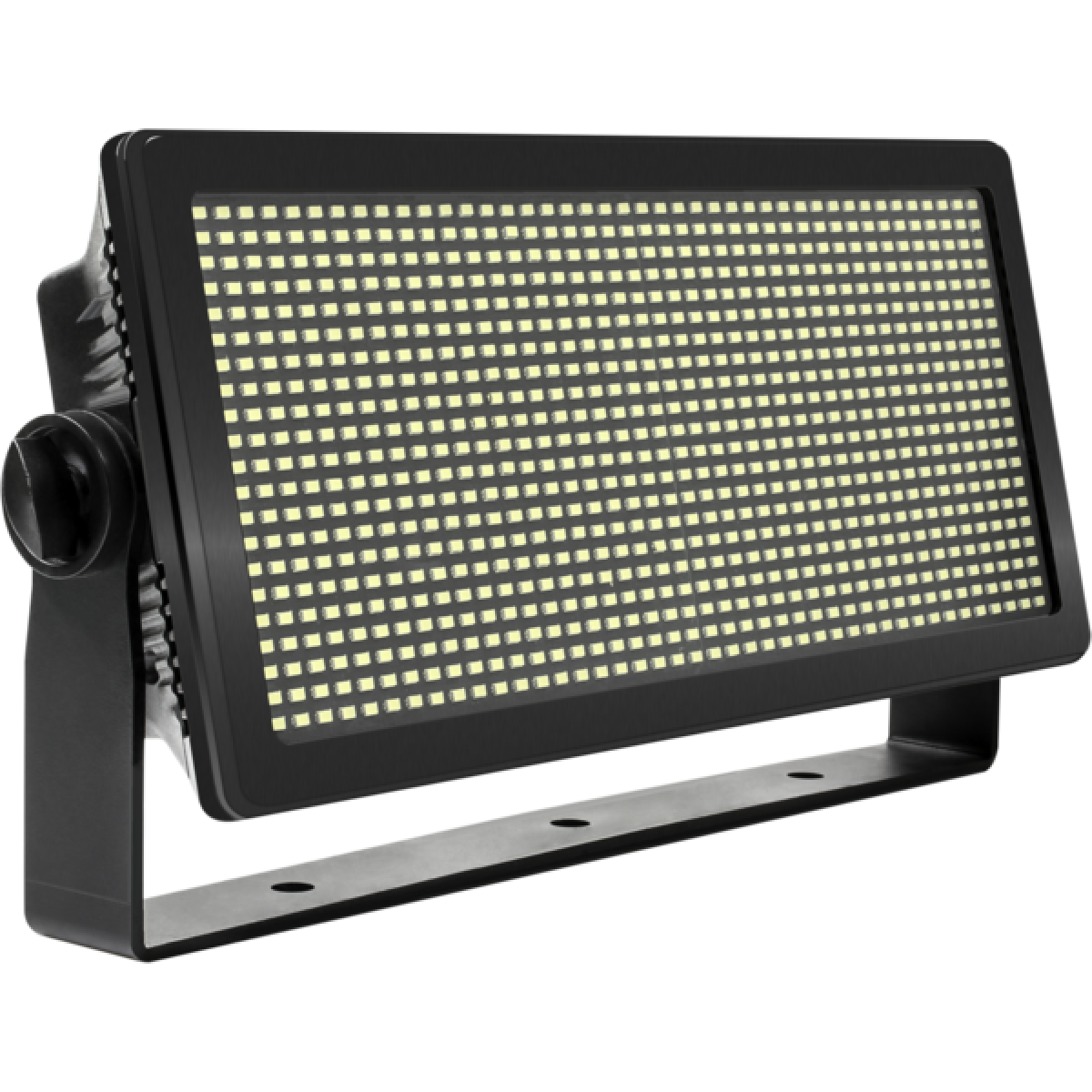

Polar 3000

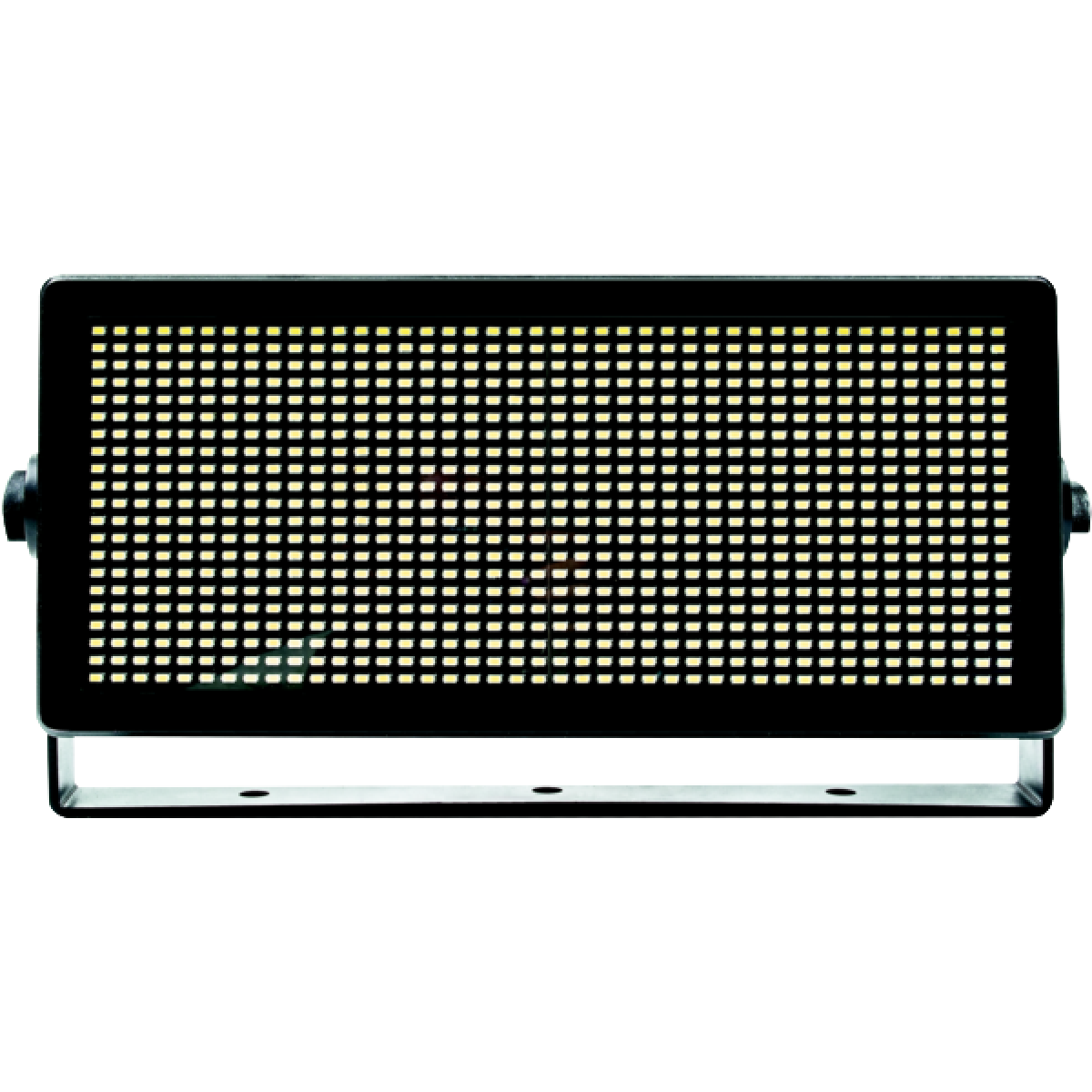

Polar 3000

Technical specifications

LIGHT SOURCE
  • Source: 882x0,5W Cold White LED
  • CCT: 6.500
  • Luminous flux: 14'871
  • Lux: 1'800lx @3 m
  • Source life expectancy: > 50.000 h
OPTICS
  • Field angle: 120°
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of dimmer and strobe
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: black
CONTROL
  • Protocols: DMX512
  • DMX channels: 3 / 5 / 8 / 13channel
  • Pixel control: section control
  • Display: LCD display
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Strobe / shutter: 1 - 28 Hz, electronic
  • Operating temperature: -10° ~ +45° Ta
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 462W
  • Max power consumption (at 120V): 470W
  • Output (at 230V): 5 units on a single power line
PHYSICAL
  • IP rating: 44
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
  • Signal connection: 3p + 5p in
  • Power connection: Neutrik powerCON IN/OUT connectors
  • Dimensions (WxHxD): 455x221x80mm / 17.91''x8.7''x3.15''
  • Weight: 4,5kg / 9.92lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA
BOX CONTENT

Versions

Accessories & Related Products

C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
9533FCAL03
9533FCAL03
(Optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FCA socket, L.3m
9513FCAL03
9513FCAL03
(Optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FCA socket, L.3m
958025L03
958025L03
(Optional)
3x2.5mm TH07 Cable, 20A 3p PwCon FCA, 20A 3p PwCon FCB, L. 3m
TOUR53413L03
TOUR53413L03
(Optional)
Dmx cable HC5340. CANC3MXX XLR 3p->CANC3FXX XLR (f) 3p, L.3m
TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download
User manualPolar3000_USER_MANUAL_ITEN.pdf3MB

DMX chart & personalities

File name File size Download
DMX chartPolar3000_DMX_CHARTS.pdf45KB
POLAR3000 Firmware rev. 1.2
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
polar3000_3ch.fdfDownload
polar3000_5ch.fdfDownload
polar3000_6ch.fdfDownload
polar3000_11ch.fdfDownload
polar3000_ssl2.zipDownload
manufacturer fixture library (Link) Link
prolights@polar3000_5ch@.xmlDownload
prolights@polar_3000@3_channel@initial.xmlpDownload
prolights@polar_3000@6_channel@initial.xmlpDownload
prolights@polar_3000@11_channel@initial.xmlpDownload
manufacturer fixture library (Link) Link
polar3k_5ch_h3_8.hog4showDownload
polar3000_hog3.zipDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
polar 3000 3 channel.fix2Download
polar 3000 5 channel.fix2Download
polar 3000 6 channel.fix2Download
polar 3000 11 channel.fix2Download
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
2DPolar3000_CAD_2D.dwg3MB
3DPolar3000_CAD_3D.dwg514KB
Technical drawingPolar3000_TECHNICAL_DRAWING.pdf699KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.2 STABLE 16/11/2016 Improved firmware functionality.
