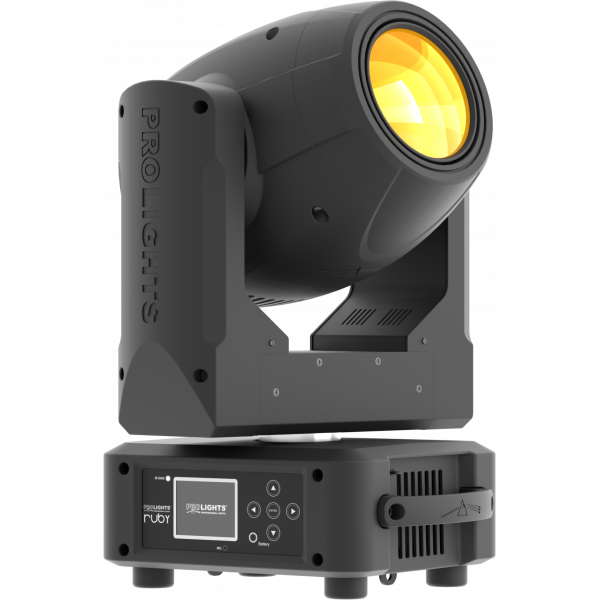

Ruby

132 W compact beam light

Ruby is a compact beam light that harnesses all the power of its Osram Sirius 132 W lamp into a tight, bright and sharp 2° beam. Designed to cut through even the brightest stage, the Ruby's clean and concentrated beam competes with much more powerful beam lights.

Main features:

  • 14 position colour wheel including CTC filters
  • Compact and lightweight design for creative freedom and easy rigging
  • Extensive effect options: frost, fixed gobo wheel and dual indexing with rotating prisms
See variants

PHOTO GALLERY

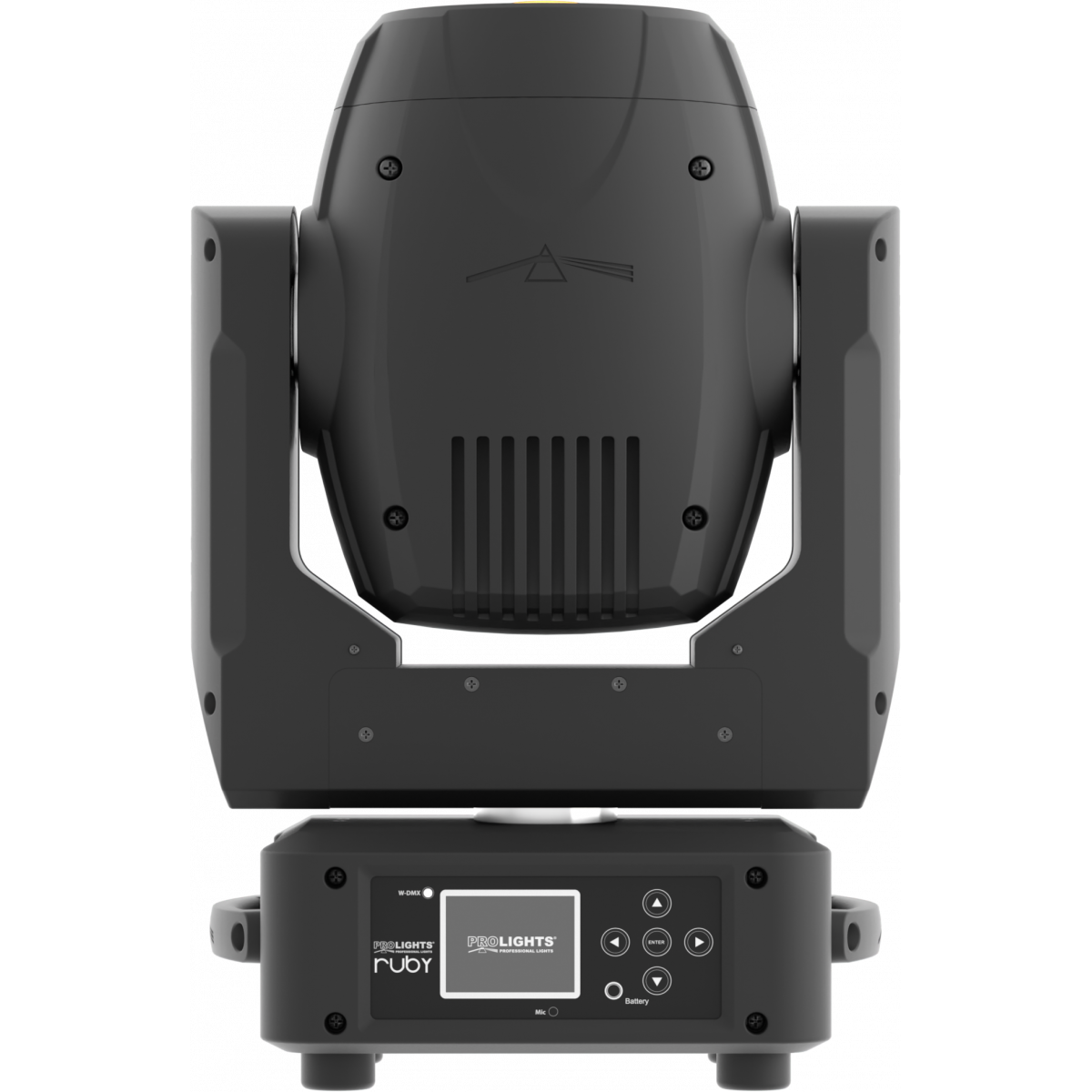

Ruby
Ruby
Ruby
Ruby
Ruby

Technical specifications

LIGHT SOURCE
  • Source: 132W S Osram Sirius HRI
  • CCT: 9.200
  • Luminous flux: 5'150
  • Lux: 393'000lx @5 m full
  • CRI: 60
  • Source life expectancy: 6.000 h
OPTICS
  • Beam angle: 2°
  • Lens diameter: 98mm / 3.86''
  • Lens type: high-quality glass lens optics
  • Focus: motorised
COLOUR SYSTEM
  • CCT: on wheel 2.500 K and 3.200 K + CTB
  • Colour wheel: 14 colour filters
  • Macros: linear, half colours, colour bounce
DYNAMIC EFFECTS
  • Fixed gobos: 17 fixed gobos + open
  • Circular prism: 8f with bi-directional rotation, indexing
  • Linear prism: 6f with bi-directional rotation, indexing
  • Frost: frost unit to soften the beam edge
BODY
  • Pan range: 630° - 540°
  • Tilt range: 265°
  • Pan/Tilt resolution: bit 8 / 16-bit
  • Feedback: automatic repositioning after accidental movement
  • Body: aluminium structure with high-resistance polycarbonate cover
  • Body colour: black, white finishing available
CONTROL
  • Protocols: DMX512, RDM
  • DMX channels: 11 / 13 / 14 / 17channel
  • Wireless Control: optional, wireless solution receiver
  • RDM: RDM for remote monitoring and settings
  • Display: LCD high resolution colour display
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX2 (USB-DMX interface not included)
  • Hibernation: power safe mode when lost DMX
ELECTRONICS
  • Dimmer: linear 0 ~ 100% mechanical dimmer
  • Strobe / shutter: 1 - 25 flash(s), mechanical
  • Display battery: self-charging battery backup
  • Operating temperature: -10° ~ +45° Ta
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 212W
  • Max power consumption (at 120V): 212W
  • Standby power: 64.3W
  • Output (at 230V): 8 units on a single power line
PHYSICAL
  • IP rating: 20
  • Cooling: active, silent operation
  • Suspension and fixing: any position with quick-lock omega brackets
  • Signal connection: Amphenol XLR 3p + 5p IN/OUT connectors
  • Power connection: Neutrik powerCON IN/OUT connectors
  • Dimensions (WxHxD): 294x437x200mm / 11.57''x17.2''x7.87''
  • Weight: 10,5kg / 23.15lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Code
Housing
RUBYBK
RUBYBK
Black

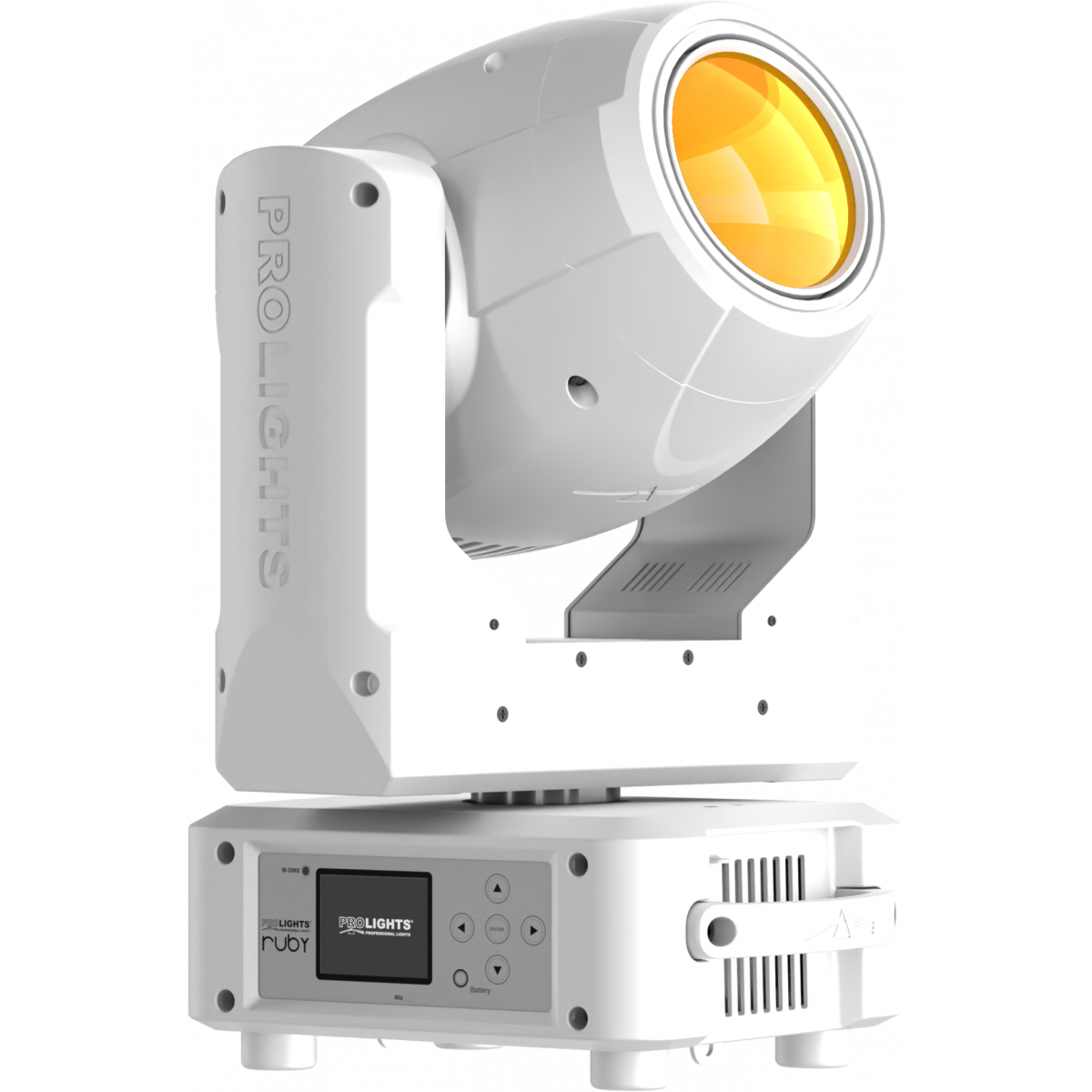

RUBYWH
RUBYWH (DISCONTINUED)
White
RUBYCR
RUBYCR (DISCONTINUED)
Chrome

Accessories & Related Products

RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
9513FCAL03
9513FCAL03
(Optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FCA socket, L.3m
C6016B
C6016B
(Optional)
Selflock slim clamp, 250Kg load, 48-51mm tubes, M10 bolt incl, Black&White& White
958025L03
958025L03
(Optional)
3x2.5mm TH07 Cable, 20A 3p PwCon FCA, 20A 3p PwCon FCB, L. 3m
TOUR53413L03
TOUR53413L03
(Optional)
Dmx cable HC5340. CANC3MXX XLR 3p->CANC3FXX XLR (f) 3p, L.3m
TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
9533FCAL03
9533FCAL03
(Optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FCA socket, L.3m
OS24D13
OS24D13
(Included)
Quick-lock omega bracket, M12 hole

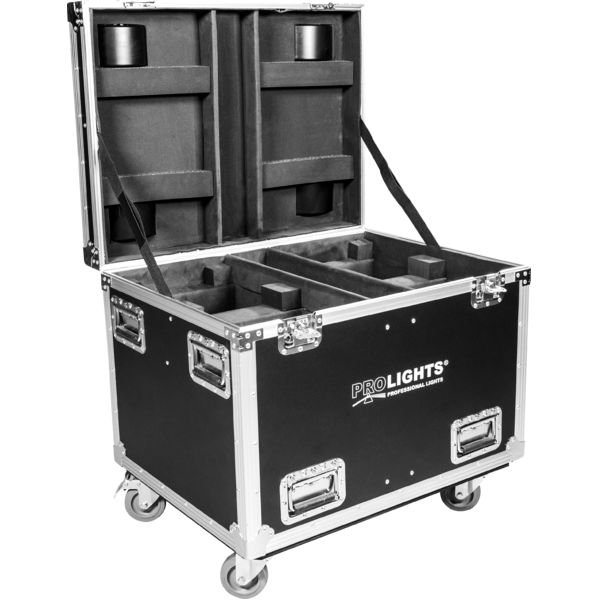

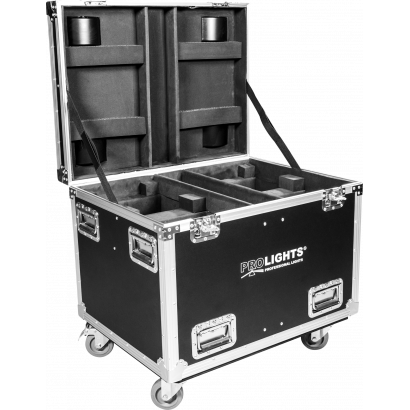

FCLSHINE332
FCLSHINE332
(Optional)
Flight case for 4pcs of RUBY / ONYX / CRYSTAL / RUBYFCX
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetRuby_A4_DATASHEET_(IT).pdf184KB
Letter datasheetRuby_A4_DATASHEET_(EN).pdf164KB

User manual

DMX chart & personalities

File name File size Download
DMX chartRuby_DMX_CHARTS.pdf81KB
RUBY Firmware rev. 1.0.05
manufacturer fixture library (Link) Link
prolights_ruby.d4Download
manufacturer fixture library (Link) Link
prolights_ruby_11ch.hedDownload
prolights_ruby_13ch.hedDownload
prolights_ruby_14ch.hedDownload
prolights_ruby_17ch.hedDownload
manufacturer fixture library (Link) Link
ruby_11ch.fdfDownload
ruby_13ch.fdfDownload
ruby_14ch.fdfDownload
ruby_17ch.fdfDownload
ruby_ssl.zipDownload
ruby_ssl2.zipDownload
manufacturer fixture library (Link) Link
prolights@ruby@standard.xmlDownload
prolights@ruby@extended.xmlDownload
prolights@ruby@basic-8bit@initial.xmlpDownload
prolights@ruby@basic-16bit@initial.xmlpDownload
manufacturer fixture library (Link) Link
ruby_hog3.zipDownload
ruby basic-16bit_bck.hog4showDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
ruby basic-8bit.fix2Download
ruby basic-16bit.fix2Download
ruby extended.fix2Download
ruby standard.fix2Download
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D RFARubybk_3D.rvt1MB
3D SKPRuby_3D.skp3MB
2DRuby_CAD_2D.dwg1MB
3DRuby_CAD_3D.dwg1MB
2D cad symbolsRubybk_CAD_2DSYMBOLS.dwg88KB
VectorWorksPROLIGHTS_VECTORWORKS_v2025_LIBRARY.vwx321MB
VectorWorksPROLIGHTS_VECTORWORKS_v2020_LIBRARY.vwx276MB
VectorWorksRUBY_SYMBOLS.zip3MB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.0.05 STABLE 16/11/2018 Different Pan/Tilt function management. Rev. 1
