Smart BatPlusNeo new

Battery Uplighter with 60W LED source RGB+WW, IP rated

The Smart BatPlus Neo builds on the groundbreaking legacy of the iconic SmartBat Plus series, a product line that transformed the battery uplighter market over a decade blending the original SmartBat DNA with state-of-the-art technologies and upgrades.

Equipped with 7x RGB+WW emitters, the Smart BatPlus Neo offers a significant performance boost. Delivering up to 3,000 lumens, it provides double the brightness of its predecessor during a 3-hour runtime. Even when operating at full power, it achieves 20% greater output over the same runtime and an average 60% improvement in primary and mixed colors, thanks to its enhanced light source. Its advanced color-mixing capabilities ensure deeper, richer tones and precision white light with high color rendering (CRI up to 90), making it a versatile and reliable choice for lighting professionals.

With a smaller footprint and available in both the classic chrome and a sleek black finish, the Neo adapts effortlessly to various event designs while maintaining its hallmark reliability and adaptability.

Its advanced Battery Management System (BMS) ensures safer recharging, selectable runtime, optimized performance and robust handling.

The Smart BatPlus Neo supports a comprehensive range of accessories and optical modifiers, offering unparalleled flexibility for diverse applications. Its intuitive magnetic mounting system allows users to attach and adjust accessories easily for precise light focusing.

Main features:

  • IP rated battery uplighter with 7x10W RGB+WW LEDs
  • CRMX wireless supported
  • Legacy mode ensures backward compatibility with previous Smartbat+ DMX personality and color setting

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 7x10W RGB + Warm White LED
  • Luminous flux: 2'927 lm @Full
  • Lux: 1'493lx @5 m full
  • CRI: Up to 90
  • R9: Up to 80
  • TLCI: Up to 80
  • TM30 Rf: > 90
  • TM30 Rg: < 107
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 11°
  • Field angle: 21°
  • Additional optics: see available accessories
  • Other: see available accessories
COLOUR SYSTEM
  • Colour mixing: RGB + Warm White
  • White presets: 2.700 K -10.000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: built-in white presets
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer, colours
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Tilt range: 20° adjustable foot support for tilt regulation (up to 20°)
  • Body: sturdy die-cast aluminium body
  • Body colour: black, mirror finishing available
CONTROL
  • Protocols: CRMX+W-DMX, DMX512, RDM
  • DMX channels: 4/6/10/3 ch in legacy mode | 1/5/11/17channel
  • Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • IR: infrared sensor controlled by remote (included in the pack, not included in single unit)
  • Master/Slave: for multi-unit sync, set one unit as wireless TX (master DMX) and all others as slave receivers.
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 25 Hz, electronic
  • Operating temperature: 0° ~ +45° Ta
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz (SBPLUSNEOPOWER charger not included)
  • Max power consumption: 66W
BATTERY
  • Battery: 16,8V lithium
  • Estimated battery life: Selectable 3h / 6h / 8h / 12h / 18h
  • Re-charge connection: magnetic fast-charge in case
  • Re-charge time: 4h/max
  • Battery status: shown on display
PHYSICAL
  • IP rating: 65 for temporary outdoor application, not for fixed installations
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: M12 threaded insert for easy clamp installation
  • Data connection: CRMX transceiver compatible with CRMX and W-DMX G3/G4s
  • Dimensions (WxHxD): 138x180x147mm / 5.43''x7.09''x5.79''
  • Weight: 3,4kg / 7.5lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, RCM
BOX CONTENT

Versions

Code
Finishing
SMARTBATPLUSNEO
SMARTBATPLUSNEO (NEW)
Chrome
SMARTBATPLUSNEOBK
SMARTBATPLUSNEOBK (NEW)
Black

Accessories & Related Products

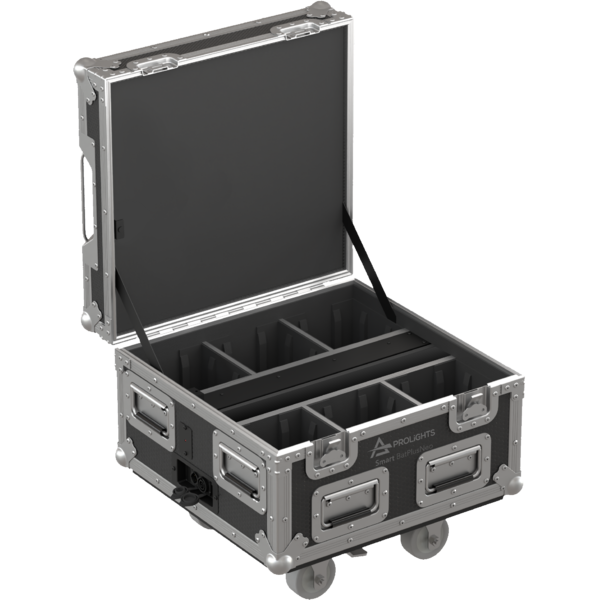

FCLSMARTBATPNEO
FCLSMARTBATPNEO
(Optional)

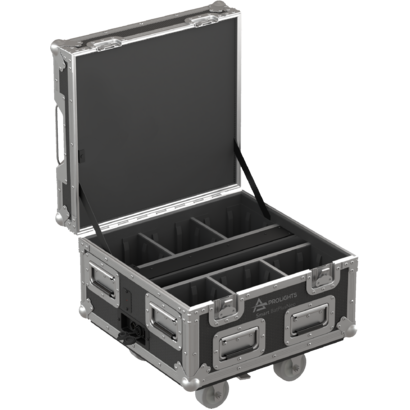

Flight case for 6 SMARTBATPLUSNEO, battery charger included
<b>IR</b> Controller
IR Controller
(Optional)
RGBWA IR controller, 29 buttons, manual/static colours, auto programs, fade
SBPNEOL10
SBPNEOL10
(Included)

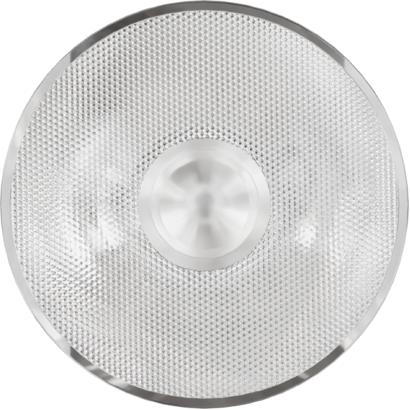

Lens for SMARTBATPLUSNEO series, 10°

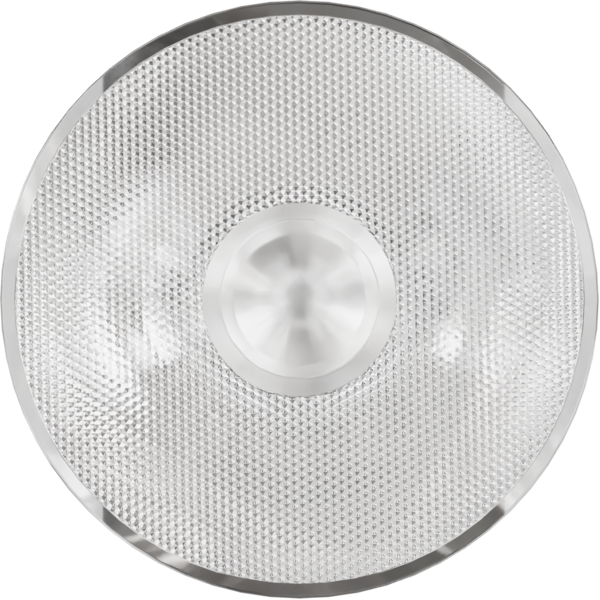

SBPNEOL20
SBPNEOL20
(Optional)
Lens for SMARTBATPLUSNEO series, 20°
SBPNEOL35
SBPNEOL35
(Optional)
Lens for SMARTBATPLUSNEO series, 35°
SBPNEOL60
SBPNEOL60
(Optional)
Lens for SMARTBATPLUSNEO series, 60°
SBPNEOFILT20
SBPNEOFILT20
(Optional)
Light diffusion filter for SMARTBATPLUSNEO series, 20°
SBPNEOFILT40
SBPNEOFILT40
(Optional)
Light diffusion filter for SMARTBATPLUSNEO series, 40°
SBPNEOFILT60
SBPNEOFILT60
(Optional)

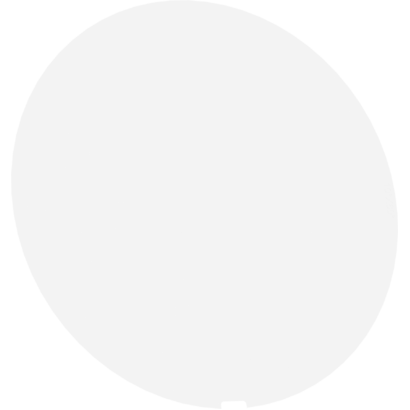

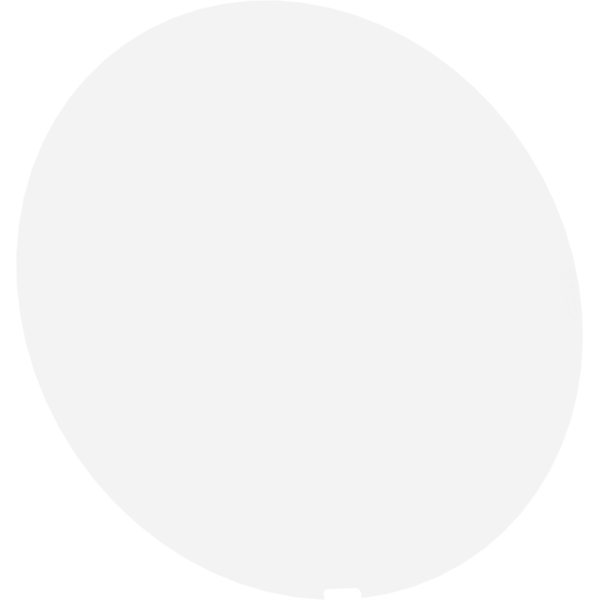

Light diffusion filter for SMARTBATPLUSNEO series, 60°
SBPNEOFILT1060
SBPNEOFILT1060
(Optional)
Light diffusion filter for SMARTBATPLUSNEO series, 10°x60°
SBPNEOFILT3060
SBPNEOFILT3060
(Optional)
Light diffusion filter for SMARTBATPLUSNEO series, 30°x60°
SBPNEOFF
SBPNEOFF
(Optional)

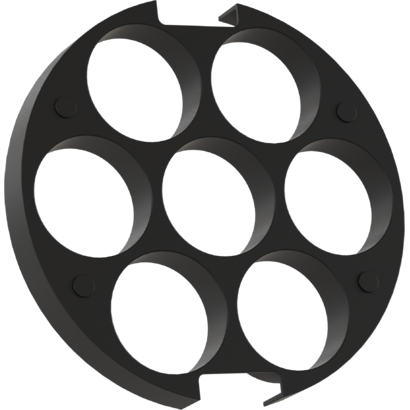

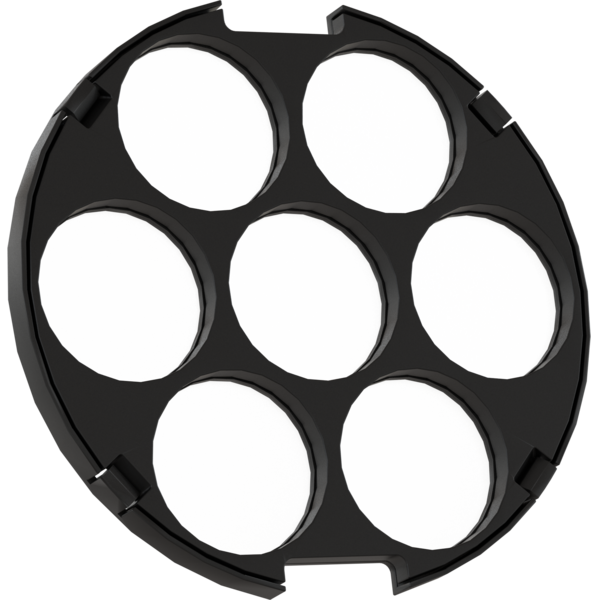

Filter frame for SMARTBATPLUSNEO series
SBPNEOSNOOT
SBPNEOSNOOT
(Optional)
Snoot for SMARTBATPLUSNEO series

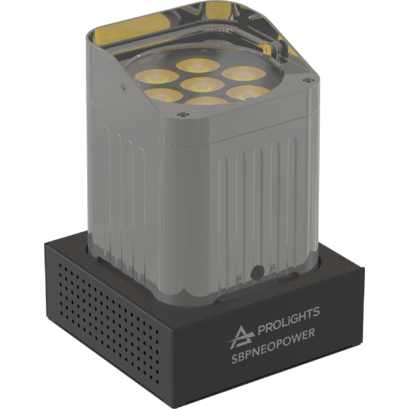

SBPNEOPOWER
SBPNEOPOWER
(Optional)
SMARTBATPLUSNEO recharging base
SBPUPBOXI
SBPUPBOXI
(Optional)
Interface between UPBOX1 and SMARTBATPLUS and SMARTBATPLUSNEO for make firmware upgrade

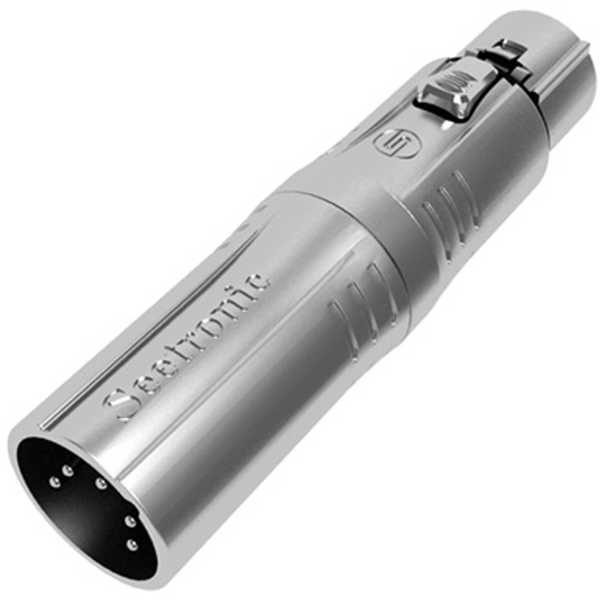

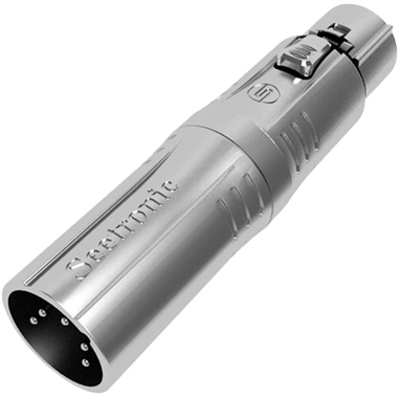

SETMA5M3F
SETMA5M3F
(Optional)
Male 5-pin XLR adapter <=> female 3-pin XLR
C6018A
C6018A
(Optional)

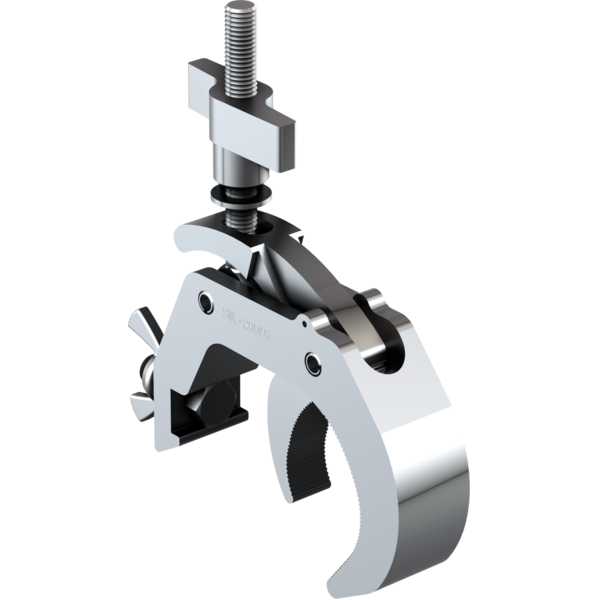

Selflock slim clamp, 200 kg load, 48-80 mm tubes, M12 bolt incl, aluminium
C6018B
C6018B
(Optional)

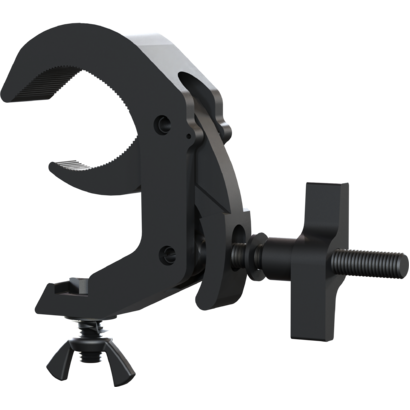

Selflock slim clamp, 200 kg load, 48-80 mm tubes, M12 bolt incl, black
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

DMX chart & personalities

File name File size Download
DMX chartSmartbatplusne_DMX_CHARTS.pdf305KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1.02.0 STABLE 26/02/2025 New Function:
  • Added Run Time "Legacy" (default value). It has been added on the menu, in RDM and on the Control ch (dmx range 120-121)
Improvements:
  • Legacy DMX modes aligned with those of SMARTBATPLUS (behavior, dimmer, colorimetry, color mix).
  • Set IR Remote@ON by default.
  • Improved IR Remote management. Now, to use the device via IR Controller in the absence of DMX signal:
    1. Set DMX Fault@Stand Alone (default value).
    2. Press "power" button on IR Controller.
    3. Press "Static" or "Manual" button on IR Controller to set the desired color.
Note:
The color set via IR Controller will be transmitted to other devices:
  • Via Wireless if the device works as TX and Stand Alone@Master DMX.
  • If the other receiving devices are in Stand Alone@Slave.
  • It is possible to transmit to/receive from other Prolights devices that work with IR Controller, such as SMARTBATWASH/SMARTBATPLUSG2 and others.
Rev. 1.0
