SMARTBATPLUSPACK
PROLIGHTS

Smart BatPlusPack

ORDER CODE: SMARTBATPLUSPACK

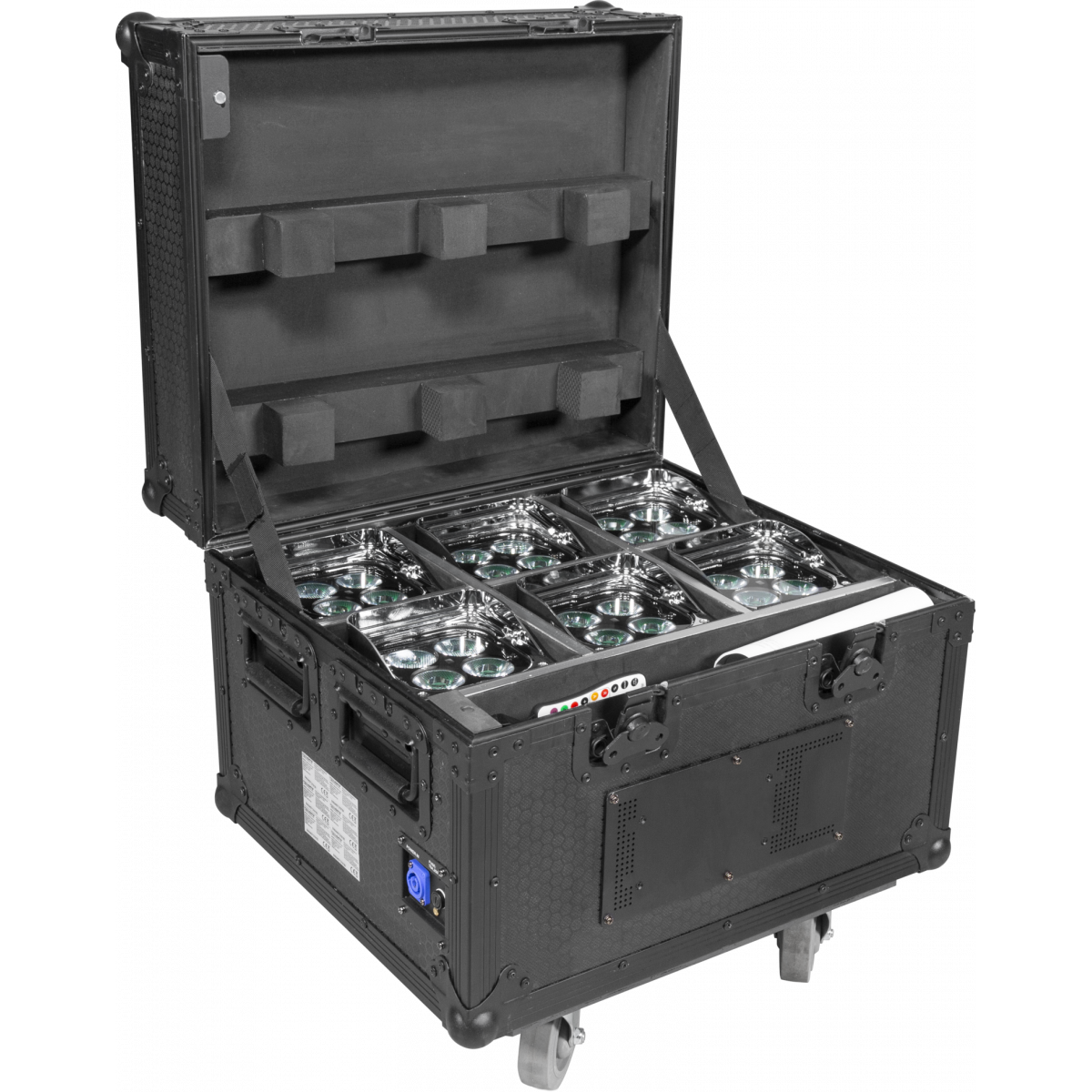

Pack with 6 SMARTBATPLUS, battery charger flight case, IR controller, power cable

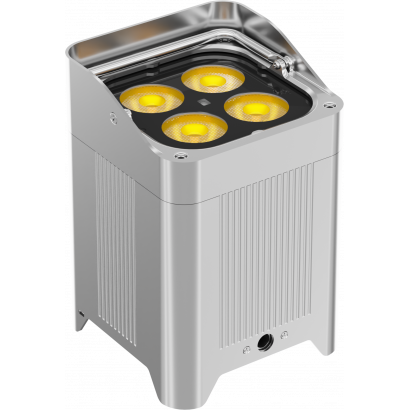

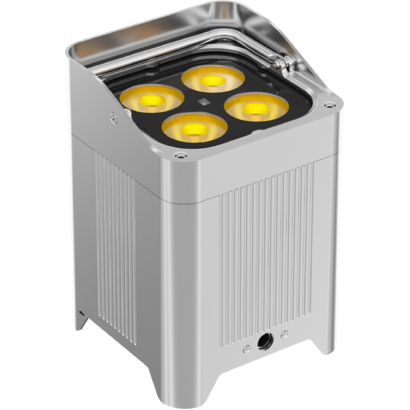

SMARTBATPLUS is the more-advanced member of the successfull SMARTBAT range offering more advanced features such as WDMX wirelss card, waterproof housing, increased brightness, high definition optics and fast-charge magnetic connector. It's packed in a super-slim compact housing with mirror finishing useful when hiding fixtures from view.

The pack includes:

  • 6 pcs SMARTBATPLUS

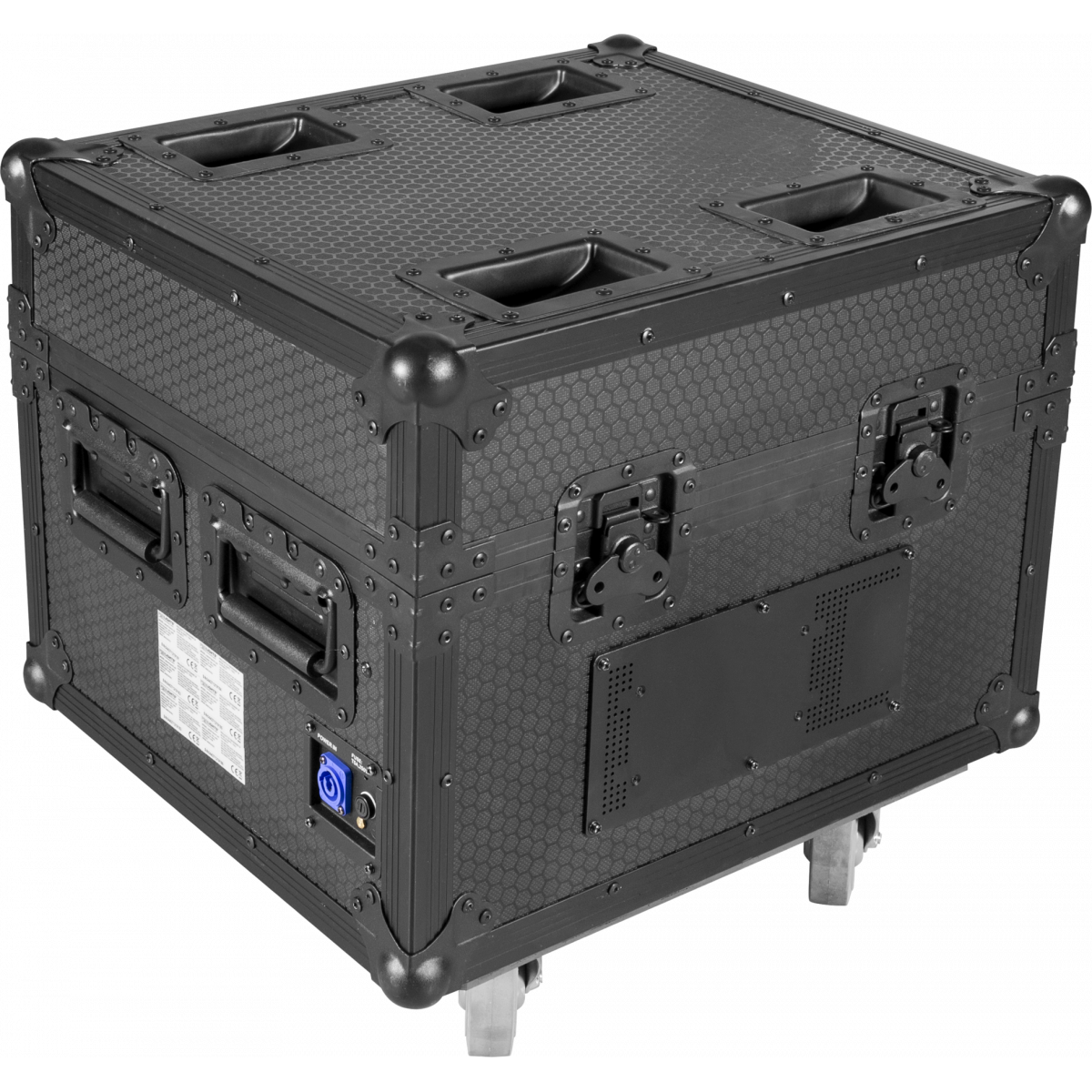

  • 1 FLIGHT CASE with integrated battery charger kit
  • 1 IR controller
  • 1 PowerCON power cable

Main features:

  • 4x12W RGBW/FullColor high-power LED delivers 905lm
  • Long lasting battery capacity: 12h colour changing / 8h FULL
  • Mirror finish to hide the luminaire to audience
  • Protection: IP65/IP54, for temporary outdoor use
  • Built-in antenna transceiver (2,4 Ghz) by Wireless Solution Sweden
  • Fast charge magnetic connector
  • Adjustable foot support for tilt regulation (up to 20°)
See variants

PHOTO GALLERY

Smart BatPlusPack
Smart BatPlusPack
Smart BatPlusPack
Smart BatPlusPack
Smart BatPlusPack
Smart BatPlusPack
Smart BatPlusPack
Smart BatPlusPack
Smart BatPlusPack

Technical specifications

LIGHT SOURCE
  • Source: 4x12W RGBW LEDs
  • Luminous flux: 905
  • Lux: 759lx @5 m full
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 11°
  • Field angle: 19°
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • White presets: 3.200 K -9.000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: built-in white presets
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Tilt range: 20° adjustable foot support for tilt regulation (up to 20°)
  • Body: sturdy die-cast aluminium body
  • Body colour: mirror finishing
CONTROL
  • Protocols: W-DMX
  • DMX channels: 4 / 6 / 10channel
  • Wireless Control: included, wireless solution receiver
  • Display: black OLED touch display
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • IR: infrared sensor controlled by remote
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 25 Hz, electronic
  • Operating temperature: 0° ~ +40° Ta
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz (SBPLUSPOWER charger not included)
BATTERY
  • Battery: 16,8V lithium
  • Estimated battery life in colour change mode up to: 12h
  • Estimated battery life in full-mode up to: 8h
  • Re-charge connection: magnetic fast-charge in case
  • Re-charge time: 4h/max
  • Battery status: shown on display
PHYSICAL
  • IP rating: for temporary outdoor use - IP65 (front) - IP54 (bottom)
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: M12 threaded insert for easy clamp installation
  • Data connection: W-DMX receiver
  • Dimensions (WxHxD): 138x202x145mm / 5.43''x7.95''x5.71''
  • Weight: 3,6kg / 7.94lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Accessories & Related Products

<b>ÆtherBox</b>
ÆtherBox
(Optional)
IP65 1 universe CRMX transceiver, DMX and Ethernet protocols, Wi-Fi, Bluetooth and battery ready
<b>ÆtherBox</b> LITE
ÆtherBox LITE
(Optional)
1 Universe CRMX Wireless Transceiver
LRLUNA
LRLUNA
(Optional)
Single Universe DMX transceiver with Bluetooth
C6018B
C6018B
(Optional)
Selflock slim clamp, 200 kg load, 48-80 mm tubes, M12 bolt incl, black
958025L03
958025L03
(Optional)
3x2.5mm TH07 Cable, 20A 3p PwCon FCA, 20A 3p PwCon FCB, L. 3m
9513FCAL03
9513FCAL03
(Optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FCA socket, L.3m
9533FCAL03
9533FCAL03
(Optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FCA socket, L.3m
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
LUMIPARIRCH
LUMIPARIRCH
(Included)
RGBWA IR remote controller, manual / auto modes, for LUMIPAR IR series
FCLSMARTBATPLUSE
FCLSMARTBATPLUSE
(Included)
Flight case for 6 SMARTBATPLUS, battery charger included
<b>Smart</b> BatPlus
Smart BatPlus
(Included)
Battery LED projector, 4x12W RGBW/FC, 11°, 12h, IP65 (front), 3.6 kg, WDMX
