SMARTBATWASHPACK
PROLIGHTS


Smart BatWashPack new

ORDER CODE: SMARTBATWASHPACK

15x20W LED Wash Light, IP65 rated, with an RGB + Warm White LED source, wirelessly controlled with battery or wired with mains power

The SmartBat Wash is a high-powered LED Wash Light, that can be operated wirelessly or wired.
This IP65 Wash Light has 15 x 20W RGB + Warm White LED emitters, it's SPEKTRA calibrated to guarantee consistency, high-quality white values (CRI >93), a dynamic array of true colours with smooth colour mixing, and a powerful 6,282 lumen output.
The SmartBat Wash is extremely flexible, and it can be used wirelessly with the built-in battery, using CRMX, W-DMX and RDM or, alternatively, wired with power and data cables, bypassing the battery, and enabling higher brightness levels.
The beam angle can easily be adjustable through a magnetic beam shaper filter, allowing a wider coverage whilst keeping a high output. The SmartBat Wash has all the software features of the Ecl range, sharing the same user settings and capabilities.

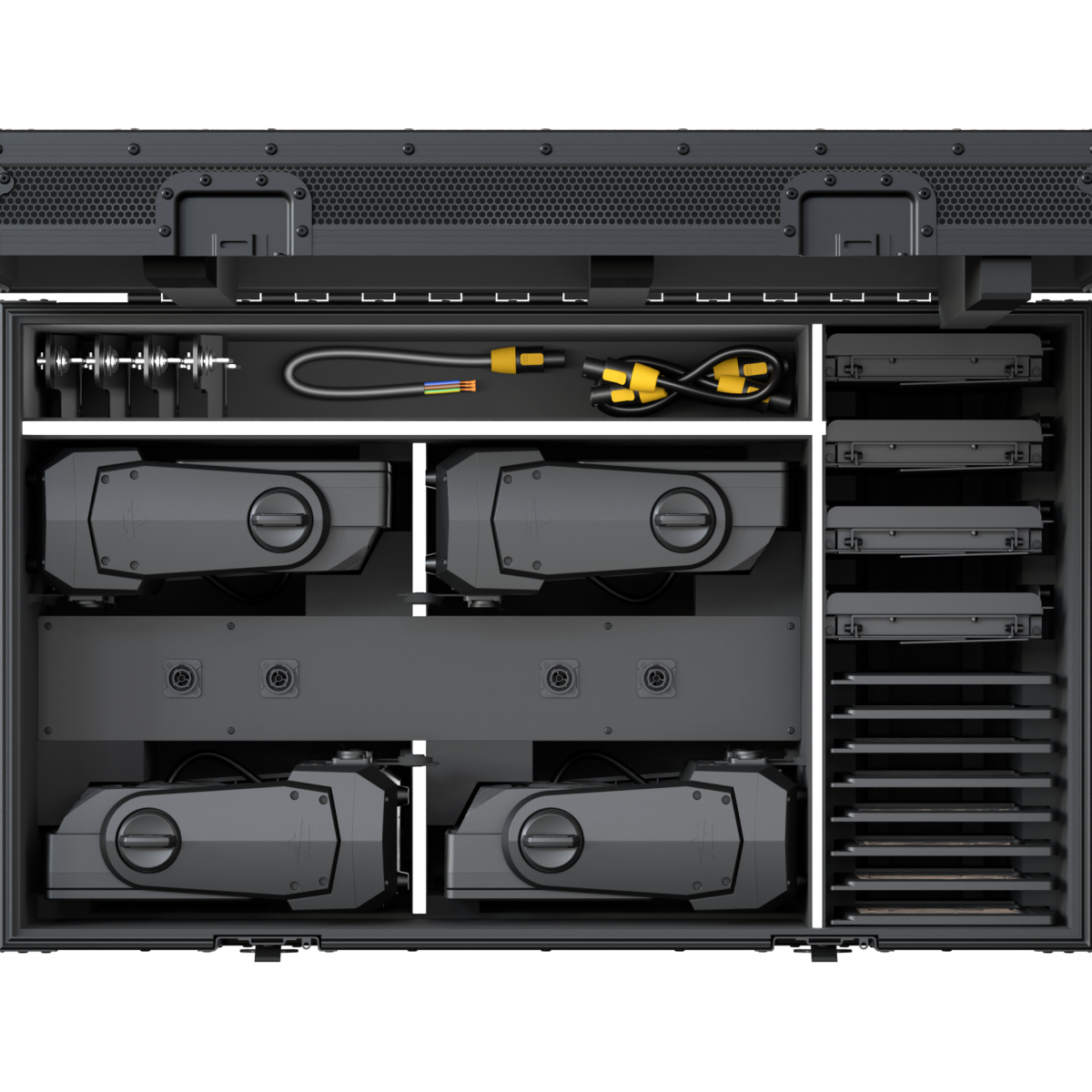

 The pack includes:

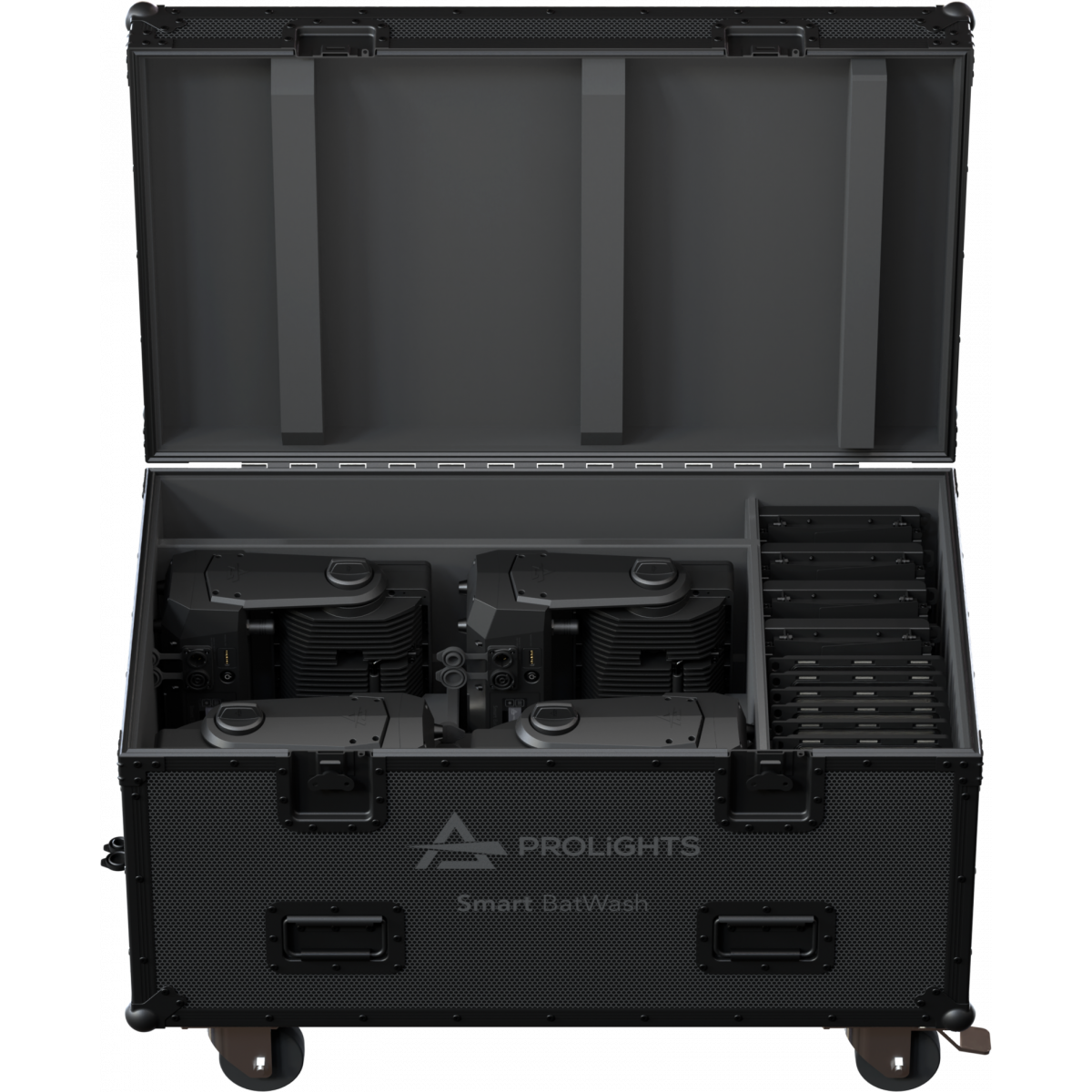

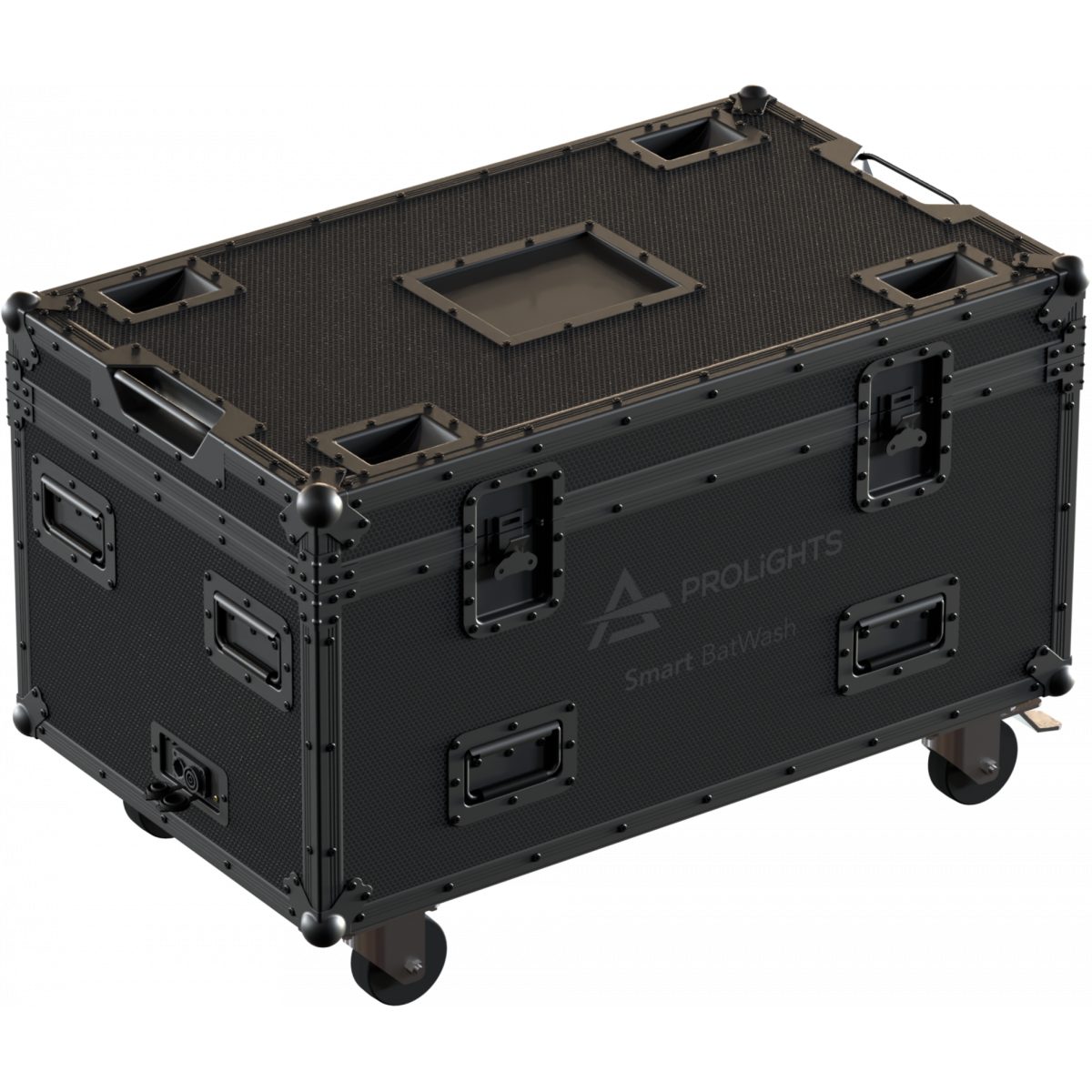

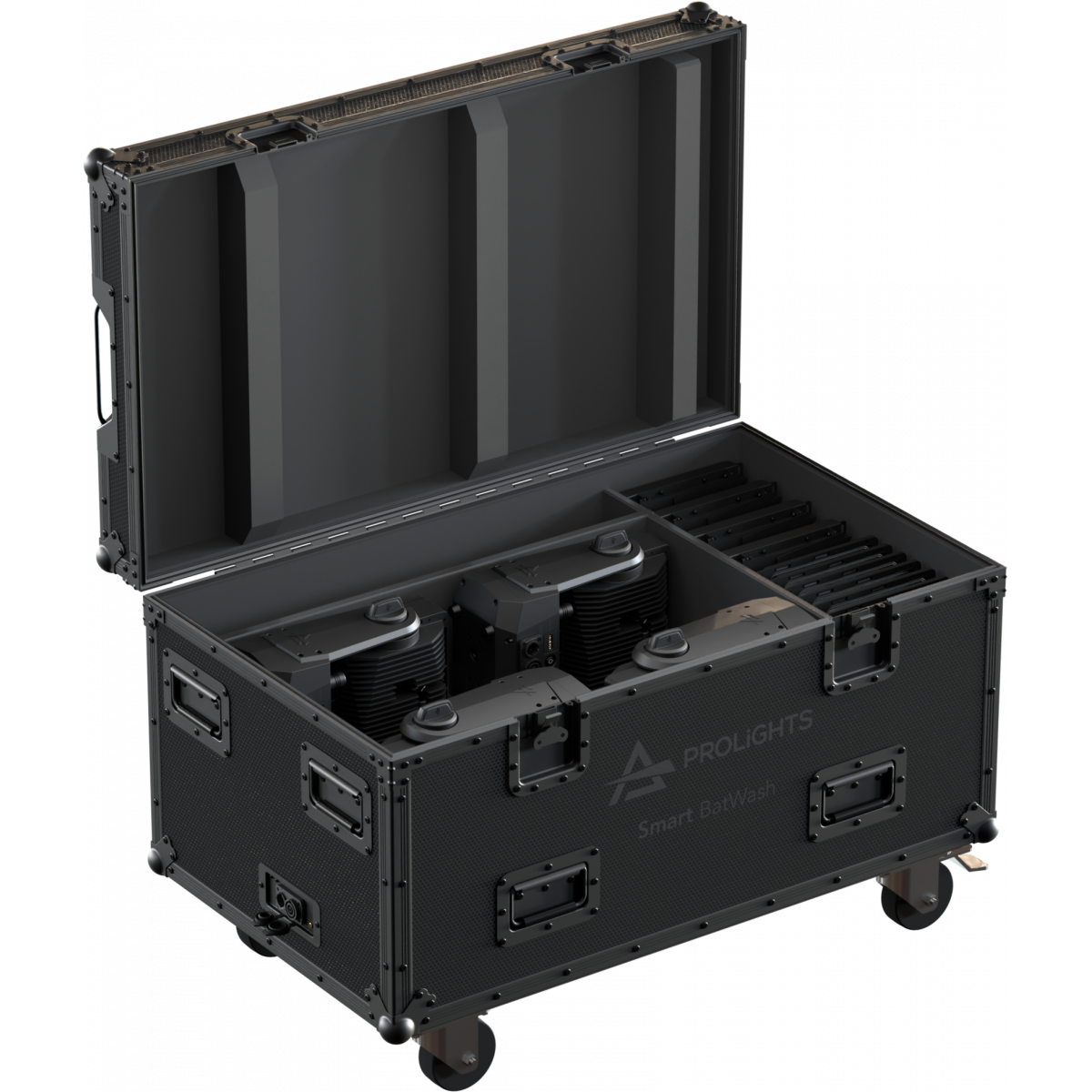

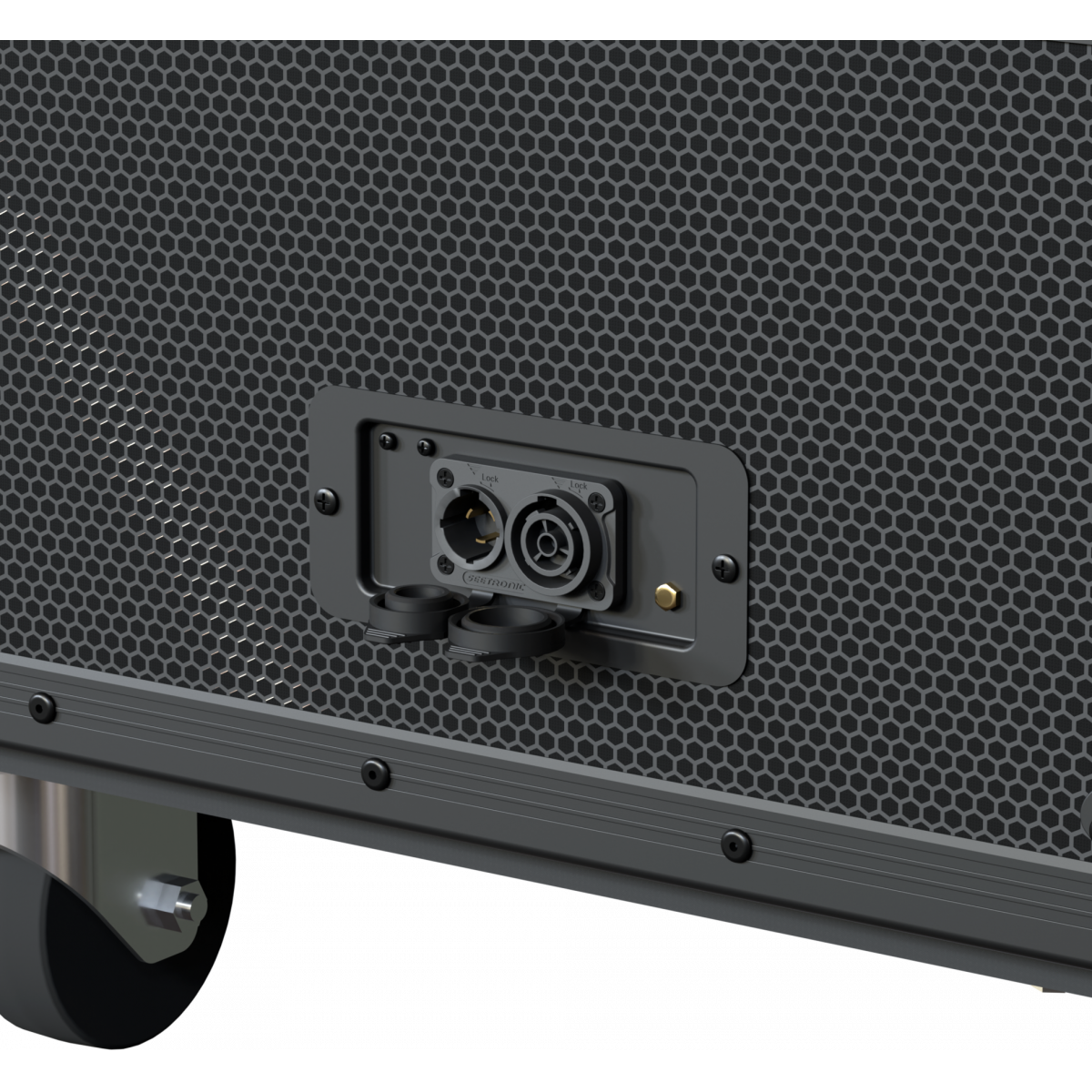

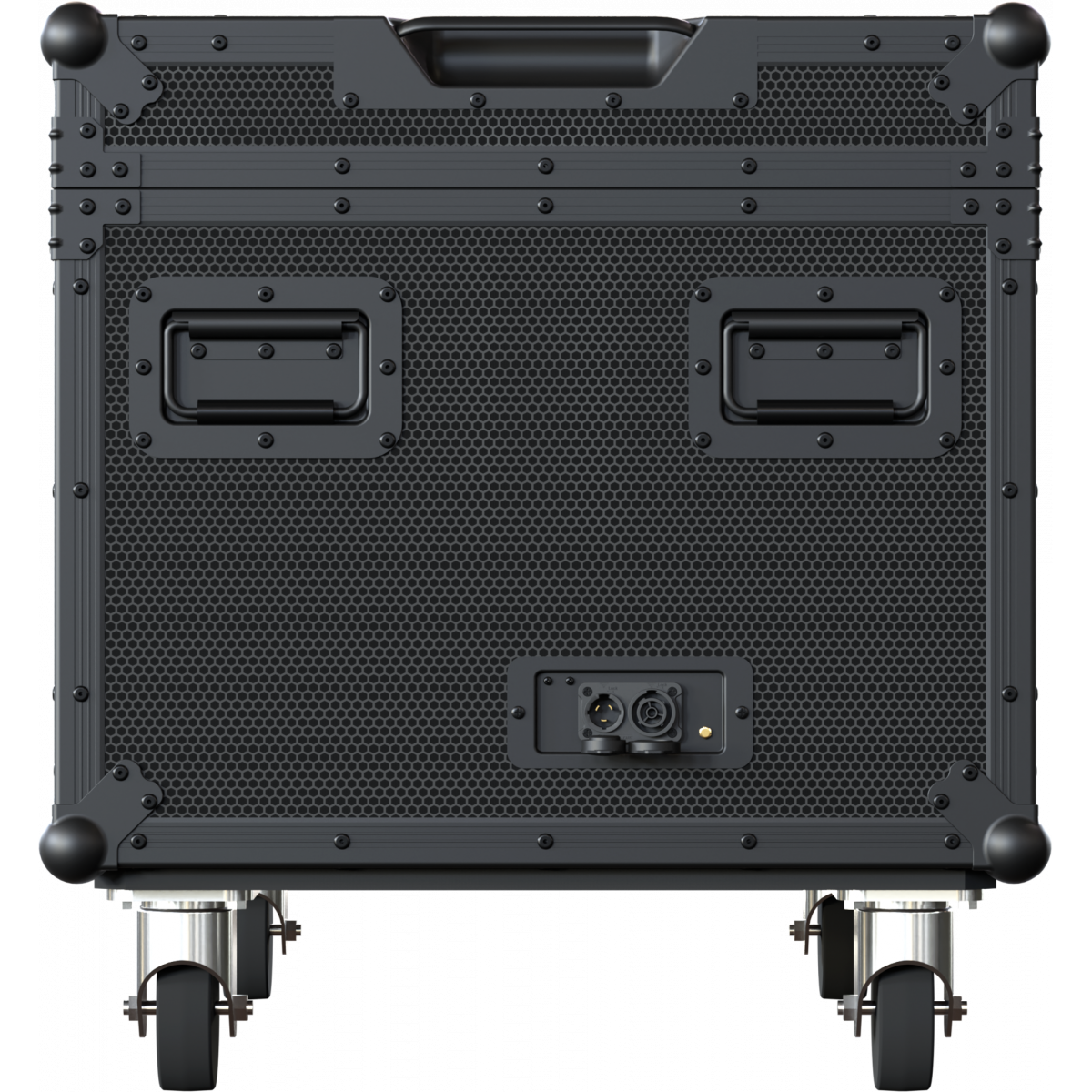

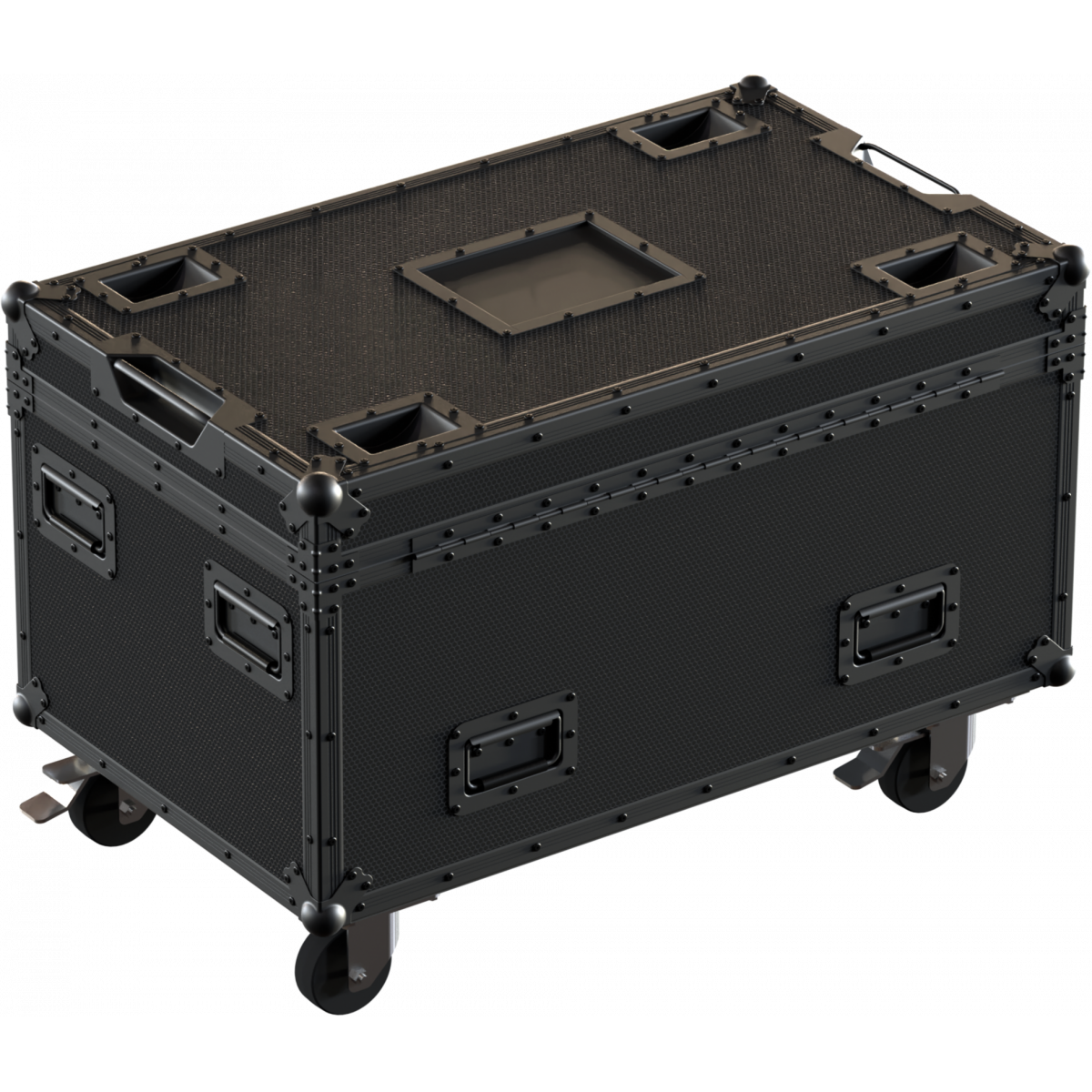

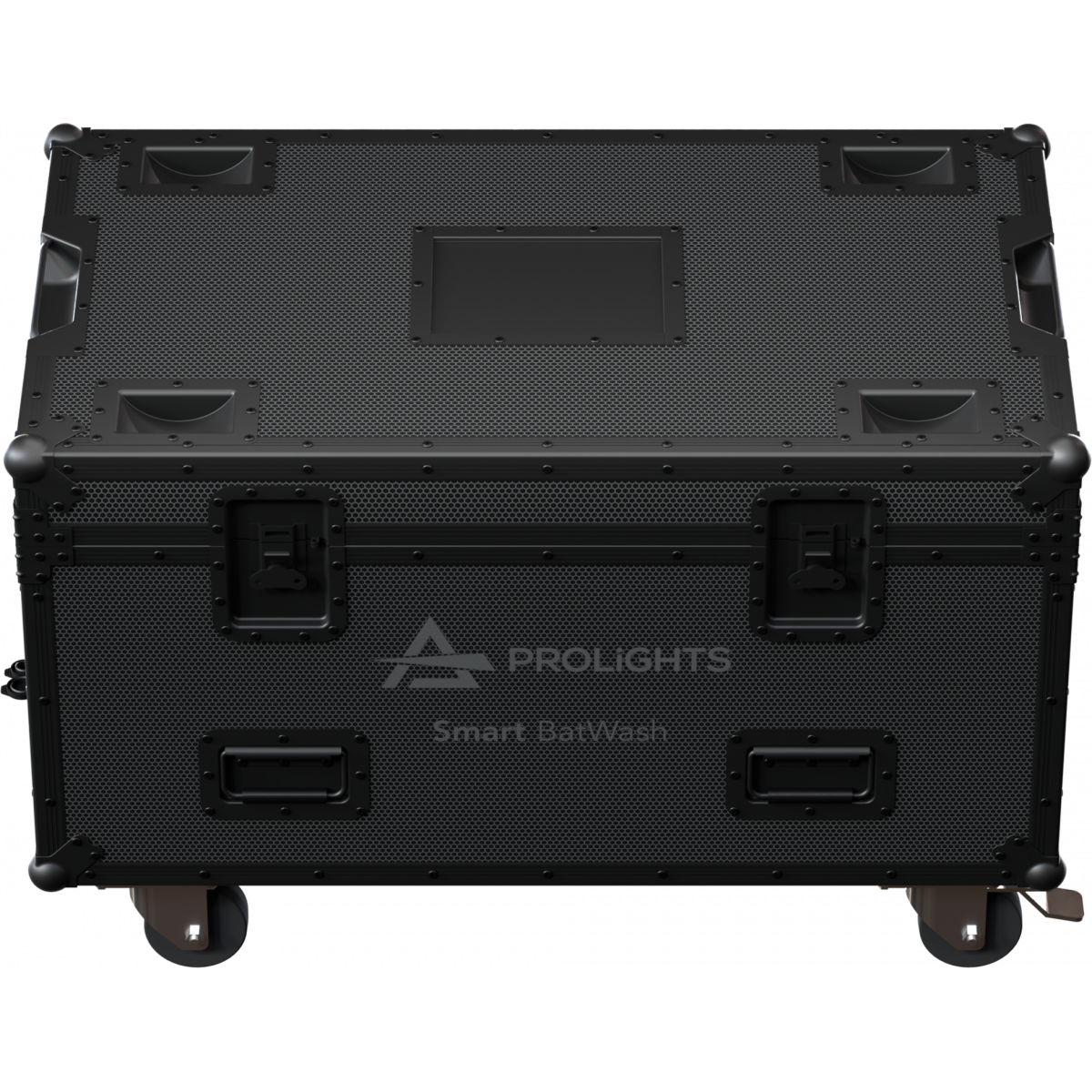

1 x FLIGHT CASE with AC SEETRONIC IP65 power IN/OUT connector outside and 4 x AC power OUT connectors inside
4 x SMARTBATWASH with 25° magnetics filter on-board
4 x barndoors (SBWBD)
1 x 1,5 meters power cable (BARE END - SEETRONIC IP65 power IN connector)
4 x 1,5 meters link power cable (SEETRONIC IP65 power OUT connector - SEETRONIC IP65 power IN connector)
4 x omega clamp (OS25)
1 x User Manual


Main features:

  • High-powered IP65 LED Wash Light, wireless (CRMX+W-DMX)/wired control, battery/AC power
  • 15x20W RGB + Warm White LED source, powerful 6,282 lumen output high CRI (>93)
  • Range of holographic filters that modify the shape of the beam angle

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 15x20W RGB + Warm White LED
  • Luminous flux: 6'300 lm @full
  • Lux: 4'451lx @5 m full
  • CRI: > 95 @3200K ; > 93 @5600K
  • R9: > 98 @3200K ; > 93 @5600K
  • TLCI: > 84 @5600K
  • TM30 Rf: 94.2 @3200K ; > 92 @5600K
  • TM30 Rg: 104.4 @3200K ; > 105 @5600K
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 10°
COLOUR SYSTEM
  • Colour mixing: RGBWW
  • CCT: CCT control through dedicated DMX channel
  • White presets: 2'800K - 10'000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: built-in white presets
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer, colours
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: RAL 9004
CONTROL
  • Protocols: CRMX+W-DMX, DMX512, RDM
  • Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
  • IR: infrared sensor controlled by remote
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: 0° ~ +45°
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 180W
  • Output (at 230V): (Data for SMARTBATWASHPACK) 2 units on a single power line
  • Output (at 120V): (Data for SMARTBATWASHPACK) 1 units on a single power line
  • Power factor: >0,94
BATTERY
  • Battery: 16,8V lithium
  • Estimated battery life: Selectable 3h / 6h / 8h / 12h / 16h / 18h
  • Re-charge connection: Directly from the mains power or magnetic fast-charge in case
  • Re-charge time: 5h/max
  • Battery status: shown on display
  • Other: Battery recharge in AC and DC, operation in main power with possibility to disable battery recharge throught software and charging operation in flightcase
PHYSICAL
  • IP rating: 65 for temporary outdoor application, not for fixed installations
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: any position with quick-lock omega brackets
  • Signal connection: IP65 Seetronic XLR 5p IN/OUT connectors
  • Power connection: magnetic DC connector for battery recharge and Seetronic powerCON TRUE IP65 IN/OUT connector
  • Dimensions (WxHxD): 381x344x143mm / 15''x13.54''x5.63''
  • Weight: 9,8kg / 21.61lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC

Versions

Accessories & Related Products

FCLSMARTBATWASH
FCLSMARTBATWASH
(included)

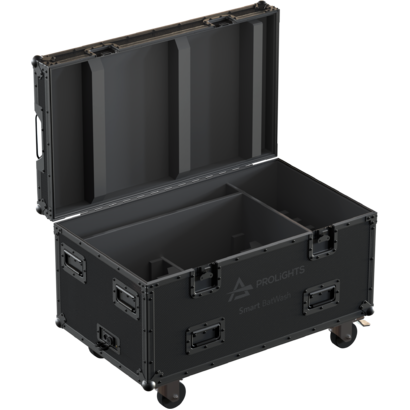

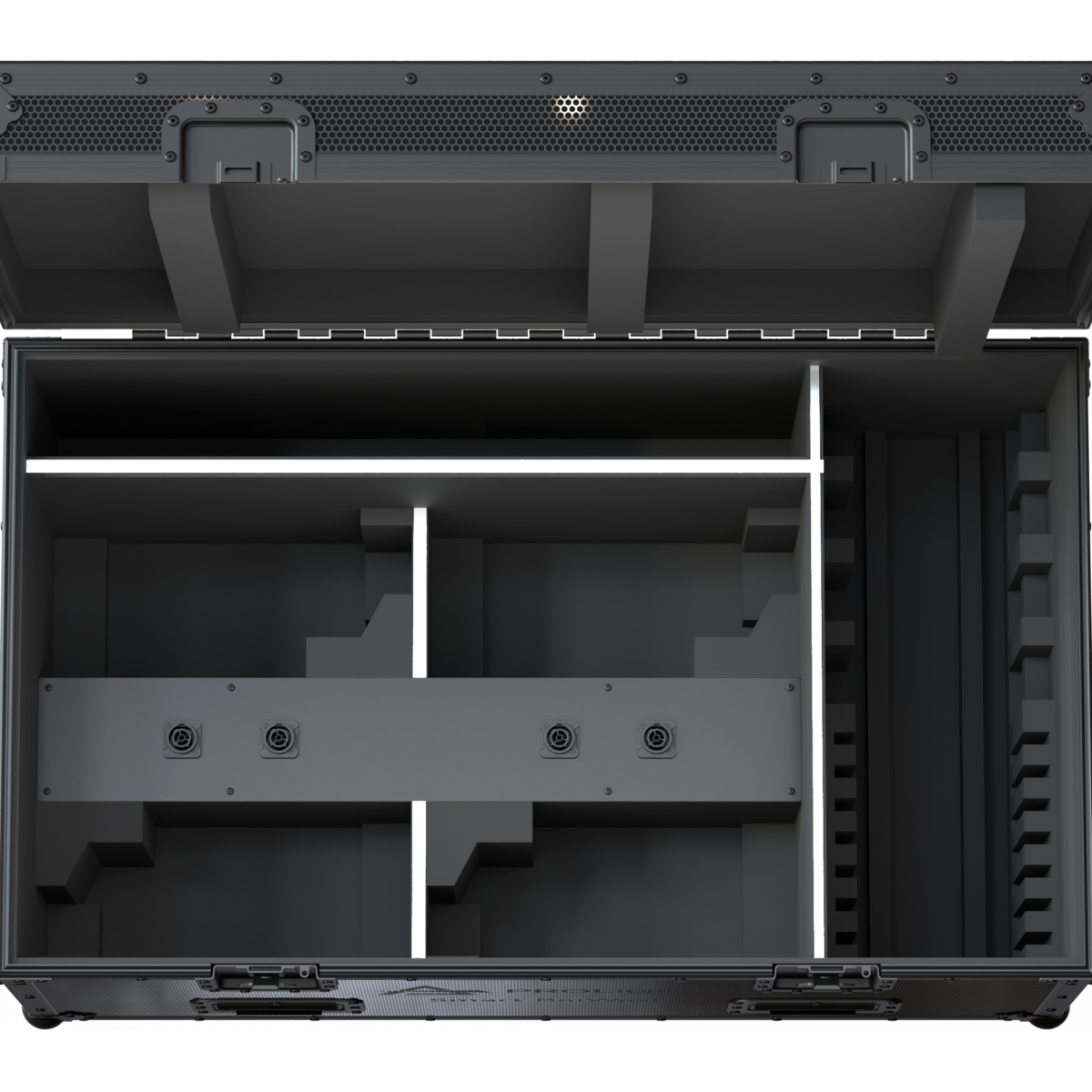

Flight case for 4 SMARTBATPLUSWASH, internal AC battery charging
SBWFILTER25
SBWFILTER25
(included)

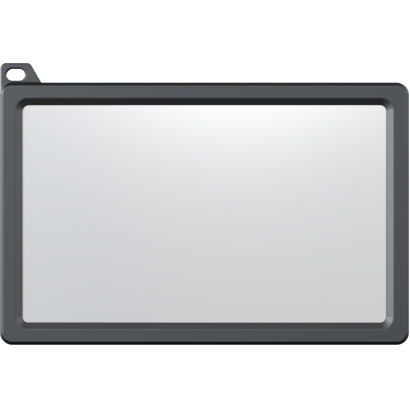

25° symmetric light diffusion filter for SMARTBATWASH
SBWFILTER40
SBWFILTER40
(optional)
40° symmetric light diffusion filter for SMARTBATWASH
SBWFILTER1060
SBWFILTER1060
(optional)
10x60° asymmetric light diffusion filter for SMARTBATWASH
SBWBD
SBWBD
(included)

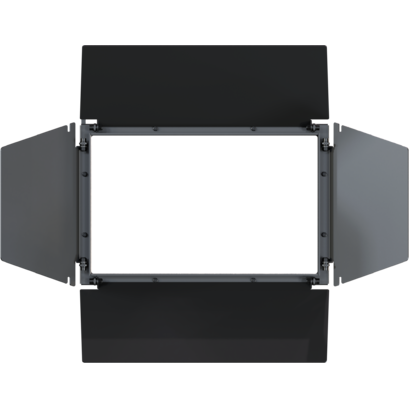

Black barn door 4 directional flaps to adjust the light beam, comp. SMARTBATWASH
OS25D13
OS25D13
(included)
Quick-Lock omega bracket, M12 hole
SBWPOWER
SBWPOWER
(optional)

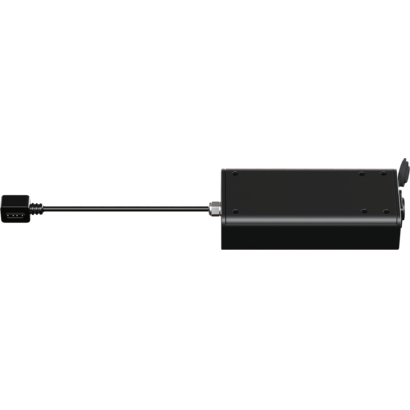

Single charger for SMARTBATWASH
PRL-IRC
PRL-IRC
(optional)
RGBWA IR controller, 29 buttons, manual/static colours, auto programs, fade
C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
9533FXWL03
9533FXWL03
(optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
LRLUNA
LRLUNA
(optional)
Single Universe DMX transceiver with Bluetooth
IPTESTBOX
IPTESTBOX
(optional)
Portable vacuum and pressure tester for ProLights IP fixtures
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheet Smartbatwashpack_A4_DATASHEET_(EN).pdf 690KB
Letter datasheet Smartbatwashpack_LETTER_DATASHEET_(EN).pdf 704KB

User manual

File name File size Download
User manual GENERAL_BATTERY_SAFETY_INFO.pdf 3MB
User manual Smartbatwashpack_USER_MANUAL_EN.pdf 3MB
General safety info GENERAL_SAFETY_INFORMATION.pdf 10MB
User manual Smartbatwashpack_Wireless_Protocol_Compatibilit_EN.pdf 4MB

DMX chart & personalities

File name File size Download
DMX chart Smartbatwashpack_DMX_CHARTS.pdf 116KB

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download

Tech docs

File name File size Download

Software

File name File size Download

Firmware
