Smart Disk

Full colour and pixel controlled table centre with battery

Smart Disk is an IP rated, wireless battery powered RGBW LED table centre. Designed for both branding events and adding a controllable element to a table - it adds an extra dimension to any event design.

Main features:

  • Battery powered and wireless DMX control for fast deployment and accurate control
  • Separate control of each RGBW LED pixel of up-light and side-light for dynamic effects

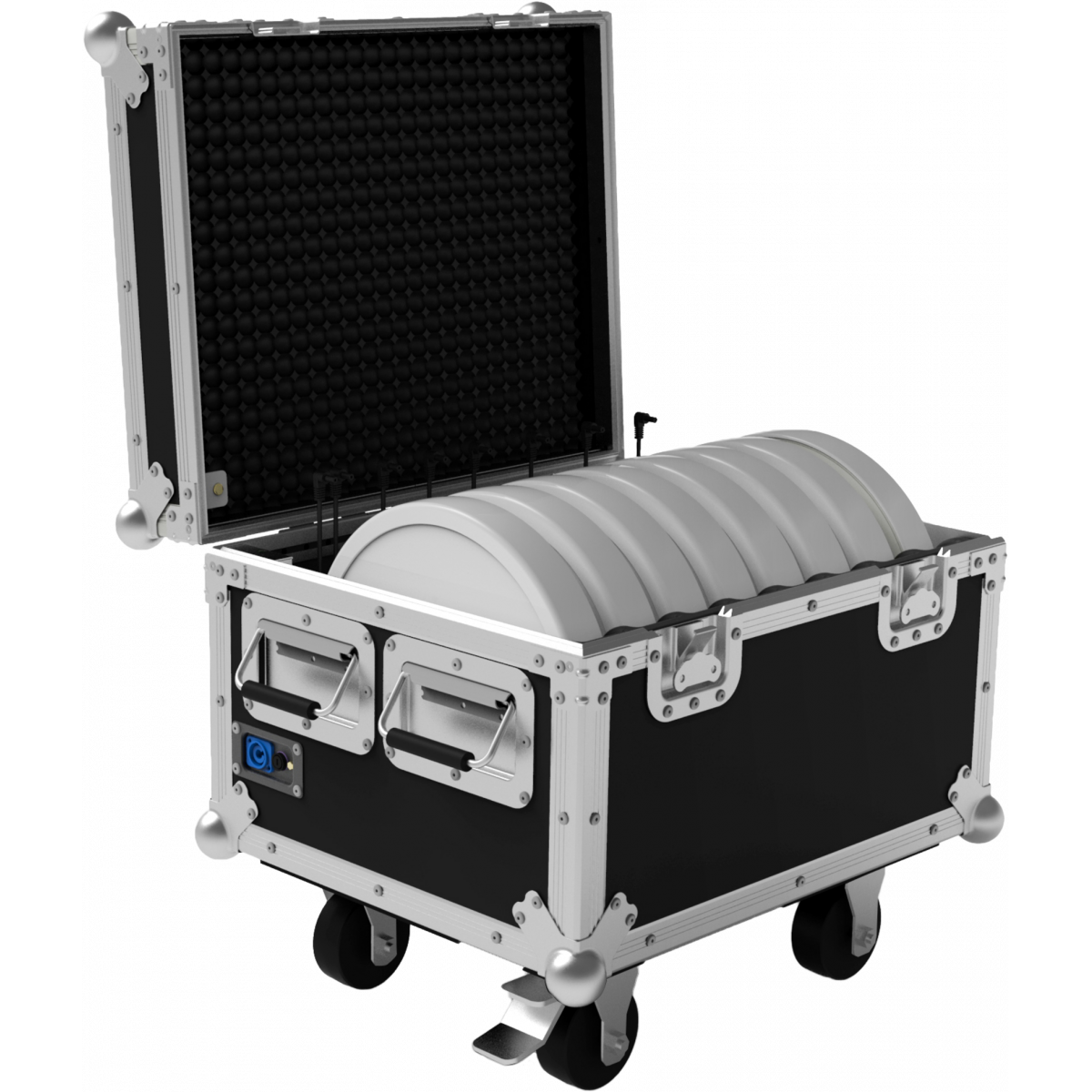

  • Available in a SMARTDISKPACK featuring 8 lights with accessories in an case with foam shell
See variants

PHOTO GALLERY

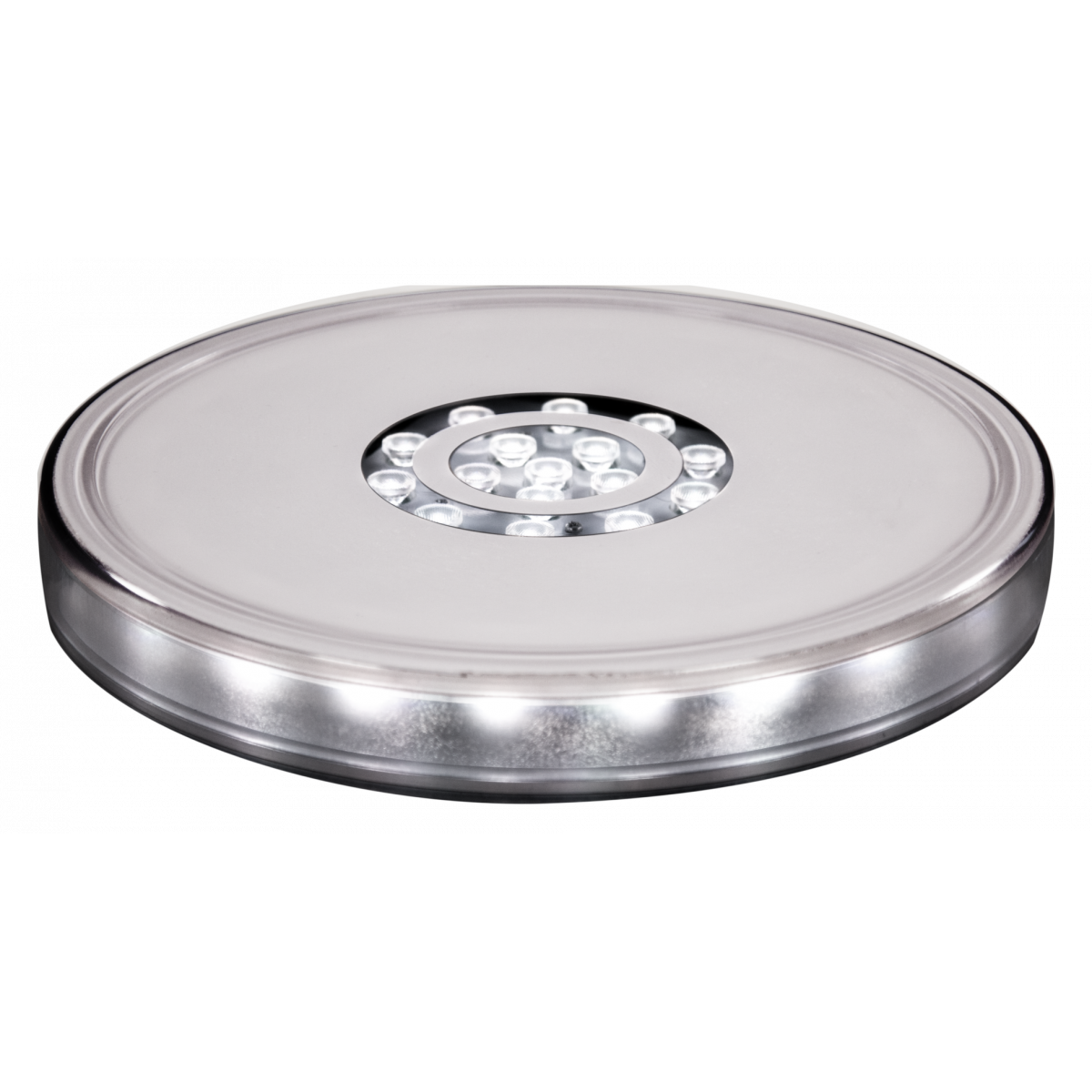

Smart Disk

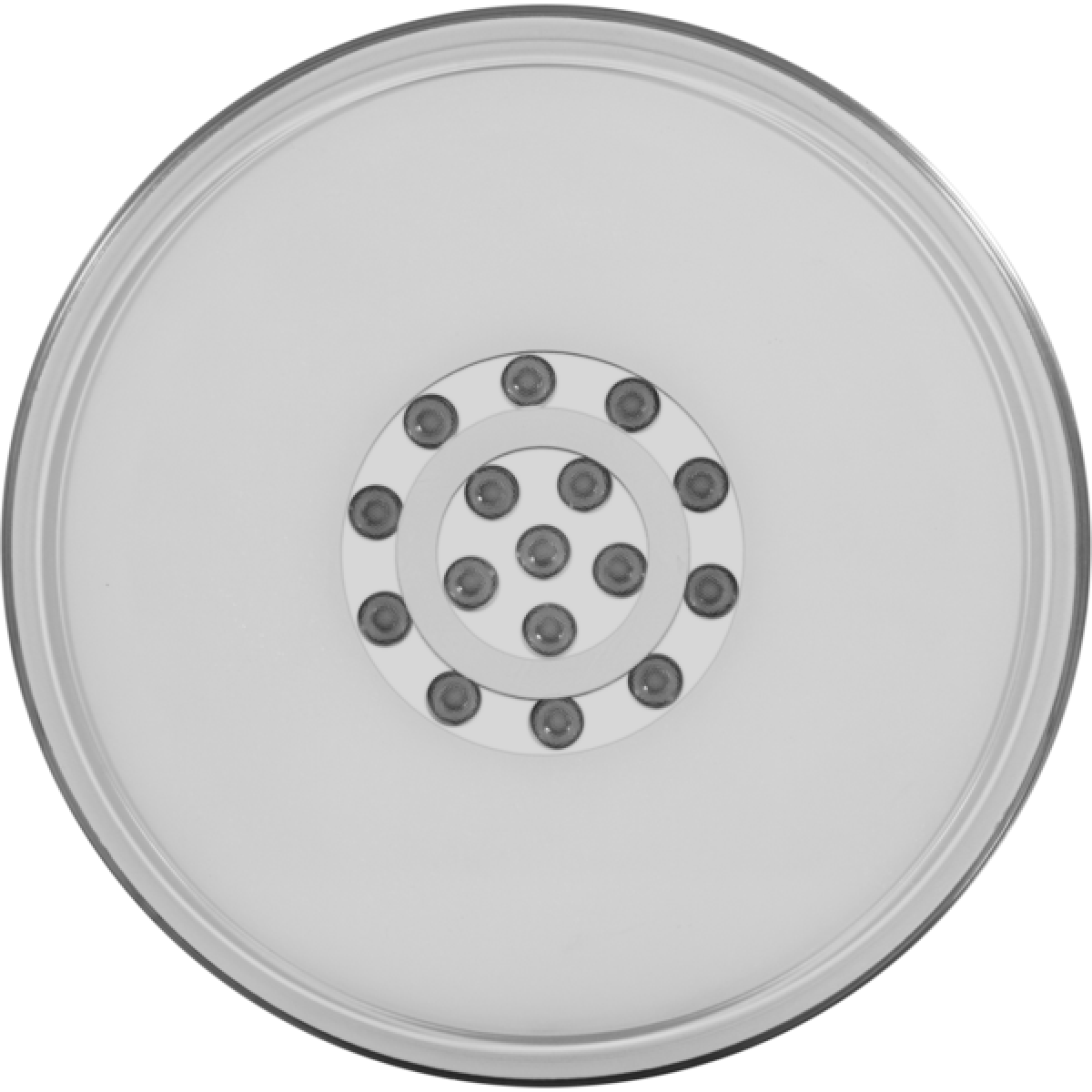

Smart Disk

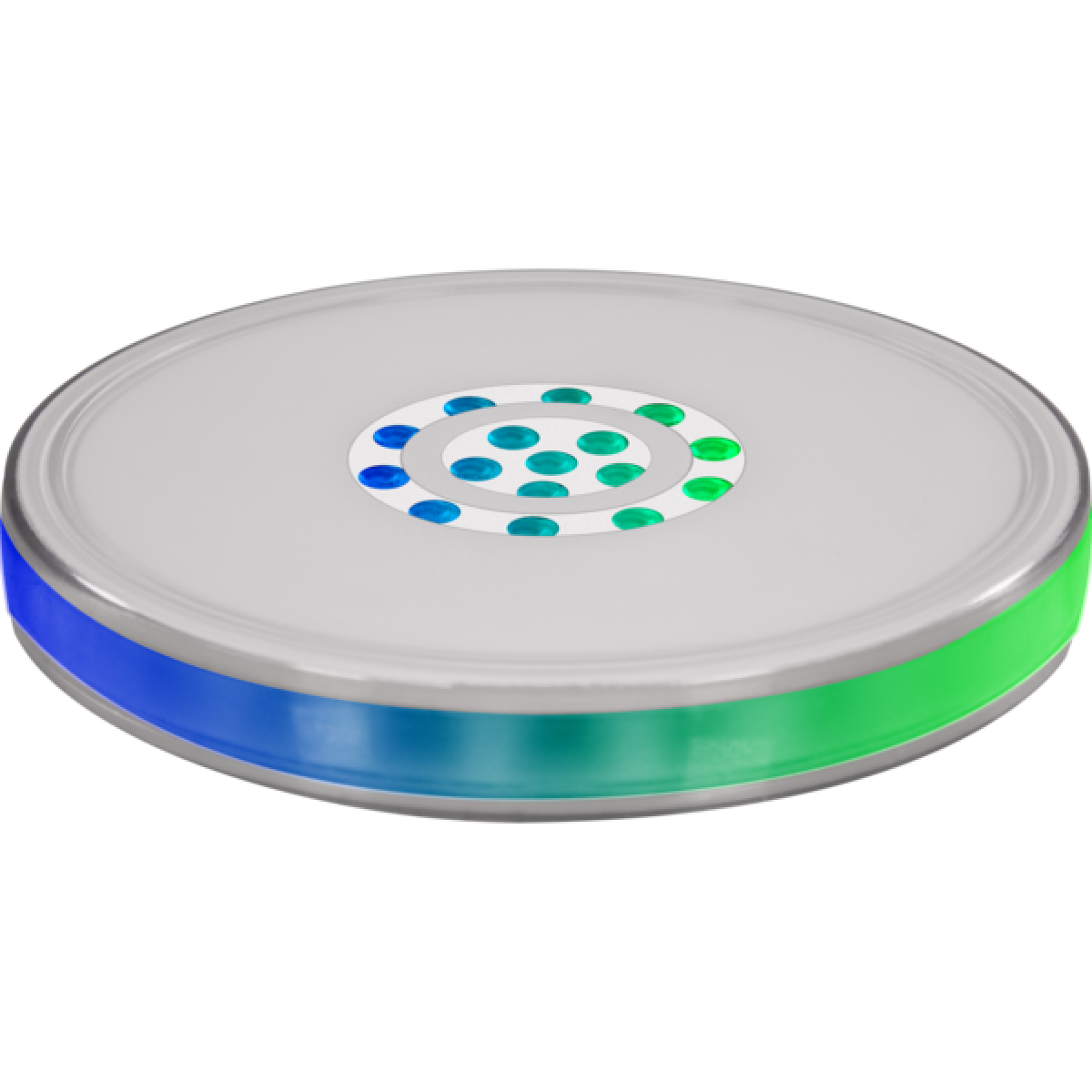

Smart Disk

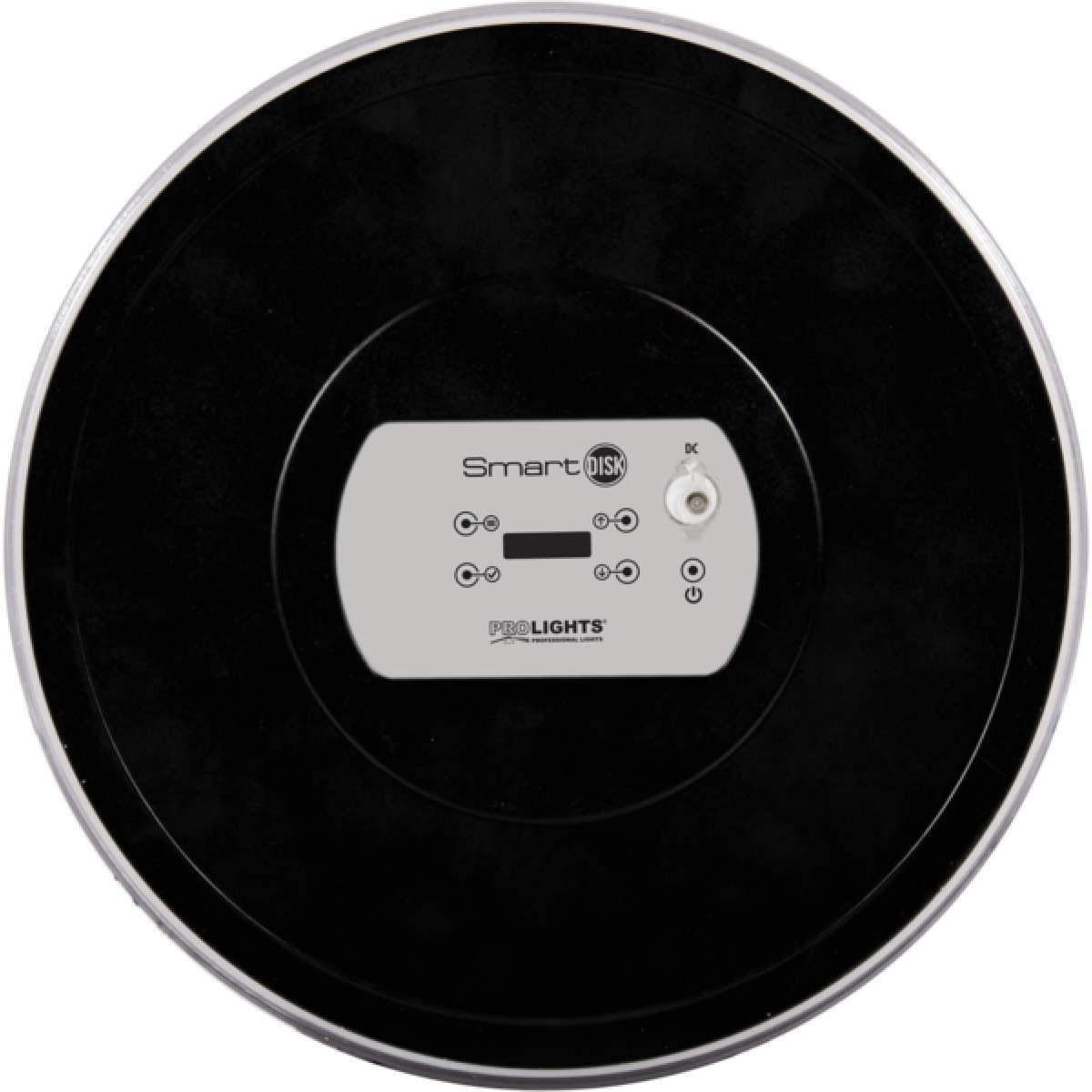

Smart Disk
Smart Disk

Technical specifications

LIGHT SOURCE
  • Source: 39x0,25W RGB + Warm White
  • CCT: 2.800 K ~ 6.000
  • Source life expectancy: > 30.000 h
OPTICS
  • Beam angle: 360° to light up tables and 25° to light up objects on top
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • Macros: several pre-built pixel macros with adjustable speed
DYNAMIC EFFECTS
  • FX generator: adjustable foreground/background colour, index, speed, direction
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
BODY
  • Body: sturdy policarbonate body
  • Body colour: white
CONTROL
  • Protocols: W-DMX
  • DMX channels: 4 / 8 / 17 / 165channel
  • Pixel control: pixel2pixel control
  • Wireless Control: included, wireless solution receiver
  • Display: LCD display
  • Firmware upgrade: via DMX with UPBOX1U (USB-DMX interface not included)
  • IR: infrared sensor controlled by remote
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: 0° ~ +45° Ta
ELECTRICAL
  • Max power consumption: 19,9W
BATTERY
  • Battery: 4,4 Ah - 11,1V lithium
  • Estimated battery life in colour change mode up to: 15h
  • Estimated battery life in single colour mode up to: 24h
  • Estimated battery life in full-mode up to: 8h
  • Re-charge connection: power cable
  • Re-charge time: 5h/max
  • Battery status: shown on display
PHYSICAL
  • IP rating: 54
  • Data connection: W-DMX receiver
  • Dimensions (WxHxD): 300x40x300mm / 11.81''x1.57''x11.81''
  • Weight: 1,62kg / 3.57lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Code
SmartDisk
IRC
Case with recharger
Recharger
SMARTDISK1
SMARTDISK1
1
1
No
1x1
SMARTDISKPACK
SMARTDISKPACK
8
1
1
No

Accessories & Related Products

<b>ÆtherBox</b>
ÆtherBox
(Optional)
IP65 1 universe CRMX transceiver, DMX and Ethernet protocols, Wi-Fi, Bluetooth and battery ready
<b>ÆtherBox</b> LITE
ÆtherBox LITE
(Optional)
1 Universe CRMX Wireless Transceiver
LRLUNA
LRLUNA
(Optional)
Single Universe DMX transceiver with Bluetooth
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
<b>IR</b> Controller
IR Controller
(Optional)
RGBWA IR controller, 29 buttons, manual/static colours, auto programs, fade

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetSmartdisk_A4_DATASHEET_(IT).pdf244KB
Letter datasheetSmartdiskpack_A4_DATASHEET_(IT).pdf244KB
Letter datasheetSmartdisk_A4_DATASHEET_(EN).pdf239KB
Letter datasheetSmartdiskpack_A4_DATASHEET_(EN).pdf239KB

User manual

DMX chart & personalities

File name File size Download
DMX chartSmartdisk1_DMX_CHARTS.pdf54KB
SMARTDISK Firmware rev. 1.0
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights_smartdisk_basic.hedDownload
prolights_smartdisk_easy.hedDownload
prolights_smartdisk_ext.hedDownload
prolights_smartdisk_std.hedDownload
manufacturer fixture library (Link) Link
prolights@smartdisk@basic@ma_library_update_v14.2.xmlpDownload
prolights@smartdisk@easy@ma_library_update_v14.2.xmlpDownload
manufacturer fixture library (Link) Link
smartdisk basic.fix2Download
smartdisk easy.fix2Download
smartdisk extended.fix2Download
smartdisk standard.fix2Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download
3D RFASmartdisk1_3D.rvt350KB
3D SKPSmartdisk_3D.skp116KB
2DSmartdisk1_CAD_2D.dwg1MB
3DSmartdisk1_CAD_3D.dwg1MB
2D cad symbolsSmartdisk1_CAD_2DSYMBOLS.dwg72KB
Technical drawingSMARTDISK_TECHNICAL DRAWINGS.zip1MB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB
VectorWorksVECTORWORKS_SYMBOLS.vwx177KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: {Upbox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.0 STABLE 04/01/2017 Definitive stable version.
