Smart Modula

ORDER CODE: SMARTMODULA

New form of decor and modular battery light

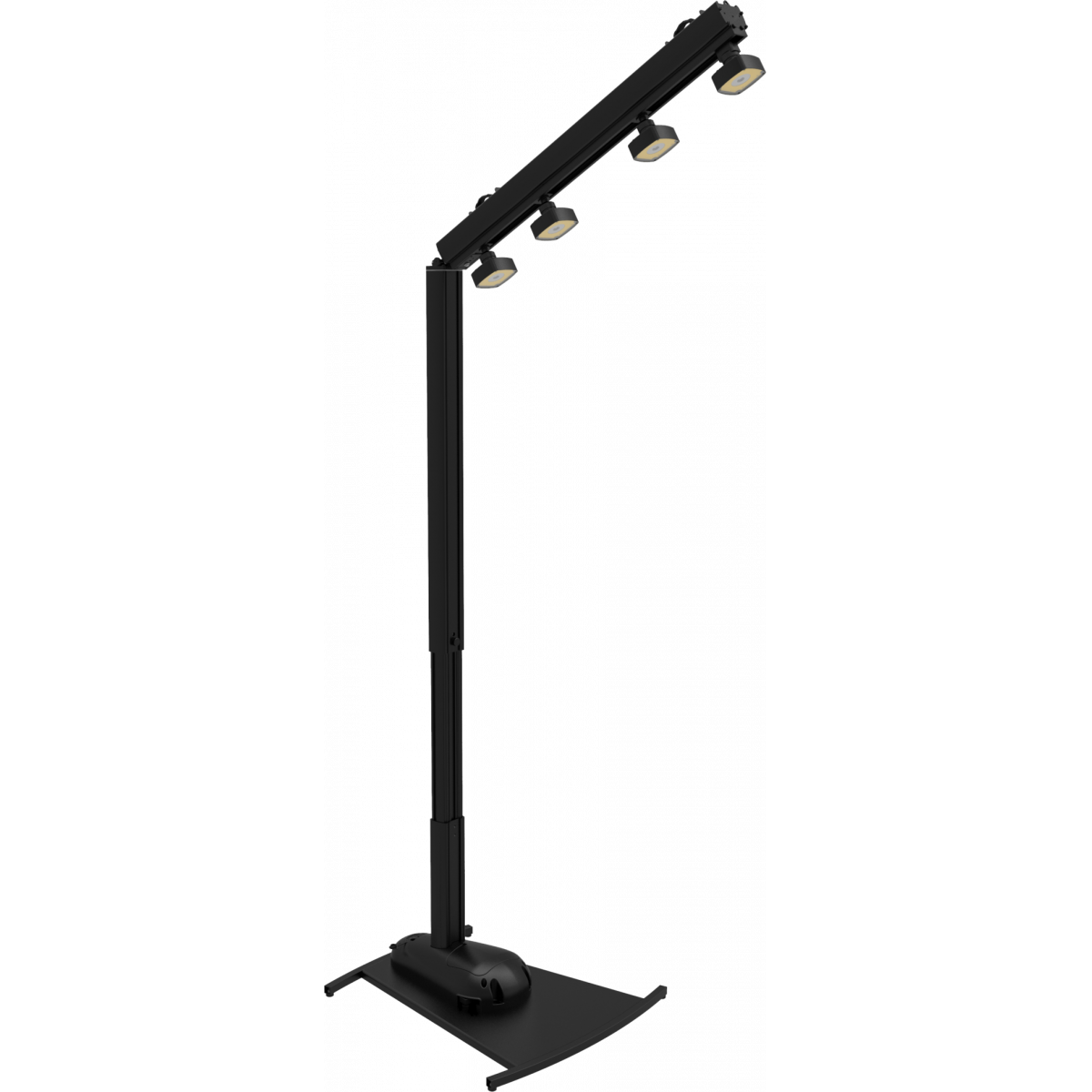

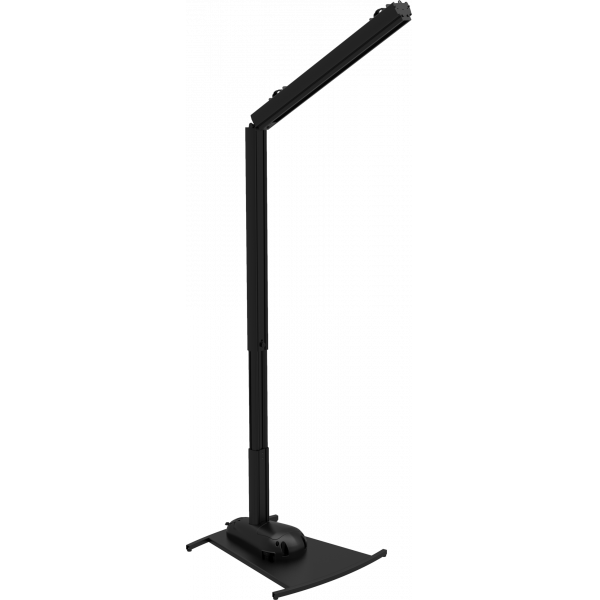

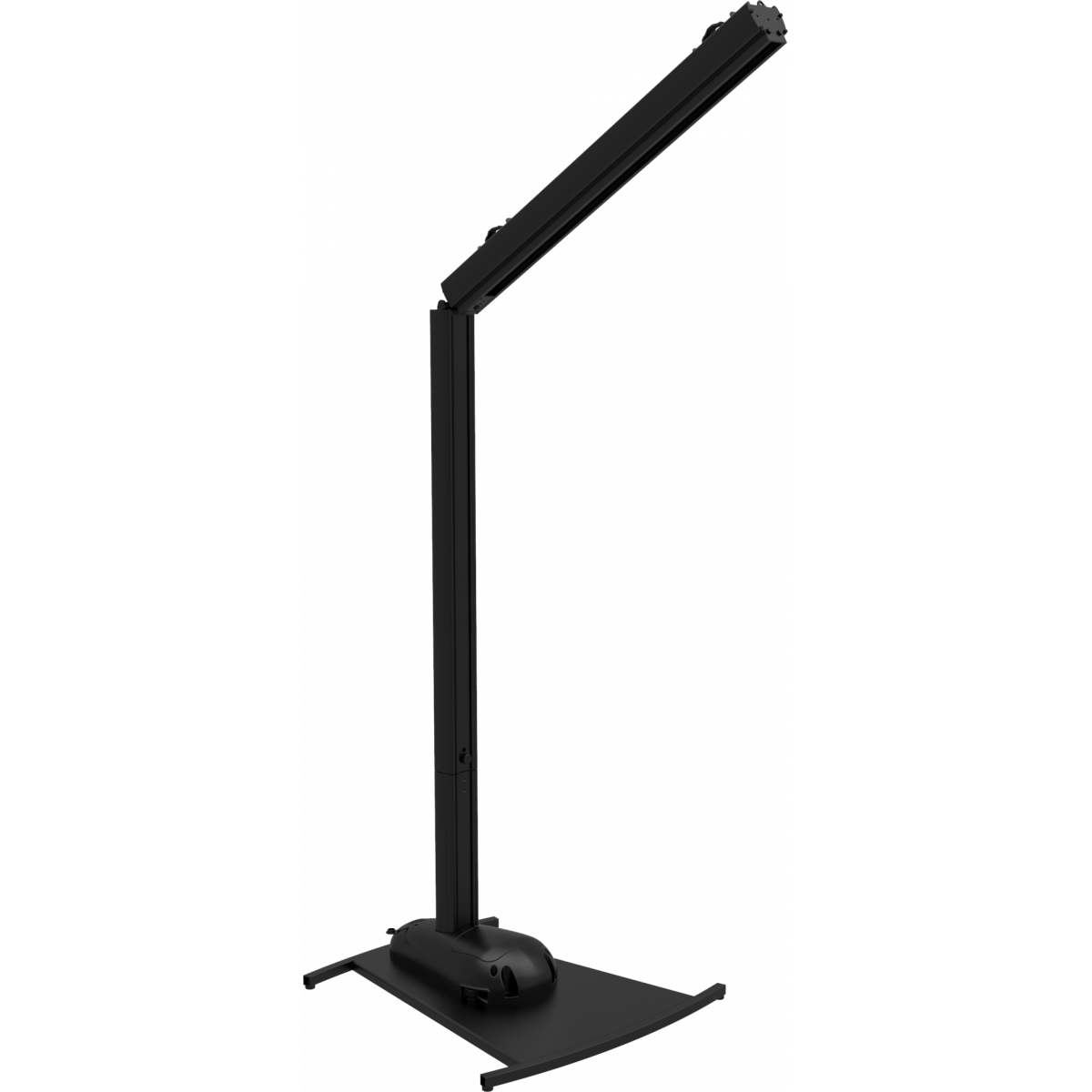

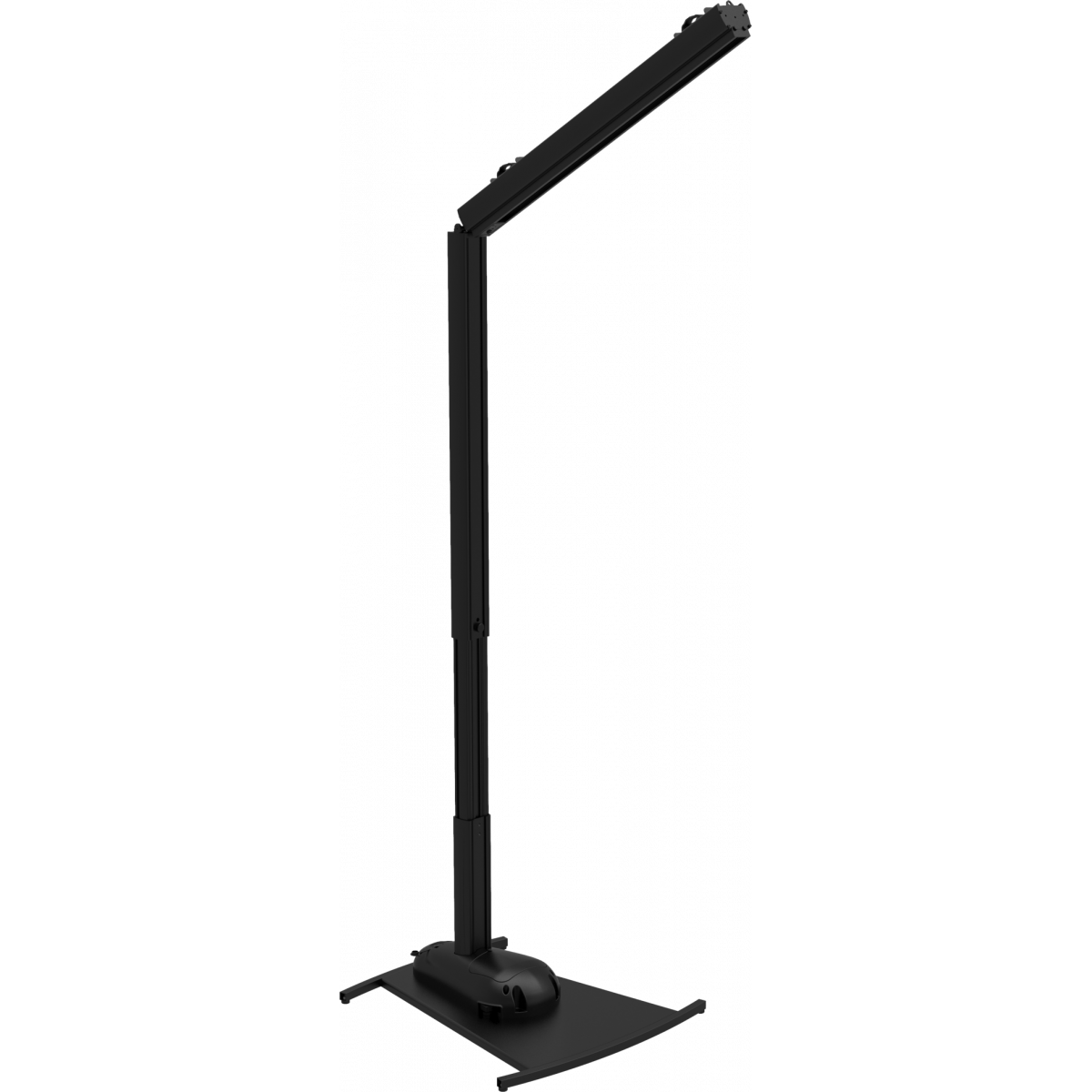

Smart Modula is a cable-free battery fixture which establishes a new form of decorative lighting for events, banquets and gardens. Its modular and customisable assembly allows for the light to stand from the floor or hang as a PINSPOT four-bar and to be packed in a comfortable carry-on size. The light emitters are adjustable and can slide on the track allowing for perfect focusing as well as fully interchangeable allowing for spot/wash or mixed configurations. All available in full colour or white colour mixing.

Smart Modula (Core components to be completed with accessories) includes:
- Metal baseplate
- Baseplate with supporting bar
- Extension bar with the adjustable height
- Heading bar with light track and electronics (containing 1 battery)

OPTIONAL accessories to complete the core element:
- MODULASPOT: 2pcs spot LED dot with 1 LED source 15° beam, available in full colour or white colour mixing (Max 6pcs on each SMARTMODULA)
- MODULAWASH: 1pc wash LED strip with 12 LED source, 60° beam, available in full colour or white colour mixing (Max 1pcs on each SMARTMODULA + 2 spot)
- MODULABBAT: 1pc base extra-battery to be installed inside the base to extend battery operation (Max 1pcs MODULABBAT in each baseplate)

Main features:

  • Smart Modula design allows floor standing with flexible swivel joints, tilt-able stand or hanging with quick-lock omega brackets
  • Accessory fixtures available in RGBW / FC and white colour mixing as well as with spot or wash optics
  • Each emitter is pixel mapped and can slide and be focused individually (not included)
  • The base houses room for an extra battery (optional) and the stand can be height adjusted

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: W light source is supplied as accessory as spot, wash, full colour or white
  • CCT: optional - FC or WH SPOT 5.600 K - WH WASK 6.400
  • Other: Light source is supplied as accessory as SPOT or WASH, FC or White
  • Source life expectancy: > 30.000 h
OPTICS
  • Beam angle: SPOT (Opt) 15° - WASH (Opt) 60°
COLOUR SYSTEM
  • Colour mixing: interchangeable light source: spot or wash with full colour or white LED source
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Hardware on-board: see the introduction description
  • Pan angle: 360° metal joint for 360° rotation of header bar
  • Tilt angle: 120° with manual regulation
  • Body: sturdy stretching aluminium body conceived for long-time durability
  • Body colour: matte black
CONTROL
  • Protocols: W-DMX
  • Pixel control: pixel2pixel control
  • Wireless Control: included, wireless solution receiver
  • Display: Graphic User Interface
  • IR: infrared sensor controlled by remote
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Strobe / shutter: 1 - 25 Hz, electronic
  • Operating temperature: -10° ~ +40°
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
BATTERY
  • Battery: (head) 1 x 14,8 V - (base - optional) 1 x 14,8V lithium
  • Estimated battery life in colour change mode up to: refer to the user manualh
  • Estimated battery life in single colour mode up to: refer to the user manualh
  • Estimated battery life in full-mode up to: refer to the user manualh
  • Re-charge connection: power cable
  • Re-charge time: head battery 5,5 h/max - base battery 11h/max
  • Battery status: LED battery status indicator
  • Other: check user manual for further information about battery autonomy for all possible compositions
PHYSICAL
  • IP rating: 20
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: bracket for hanging and positioning
  • Power connection: Neutrik powerCON IN connector
  • Dimensions (WxHxD): 739x(2.920~3.475)x689mm / 29.09''x0''x27.13''
  • Weight: /23,5-38,5kg / 0lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Accessories & Related Products

C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
LRLUNA
LRLUNA
(optional)
Single Universe DMX transceiver with Bluetooth
958025L03
958025L03
(optional)
3x2.5mm TH07 Cable, 20A 3p PwCon FCA, 20A 3p PwCon FCB, L. 3m
9513FCAL03
9513FCAL03
(optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FCA socket, L.3m
9533FCAL03
9533FCAL03
(optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FCA socket, L.3m
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
MODULAWASHFC
MODULAWASHFC
(optional)

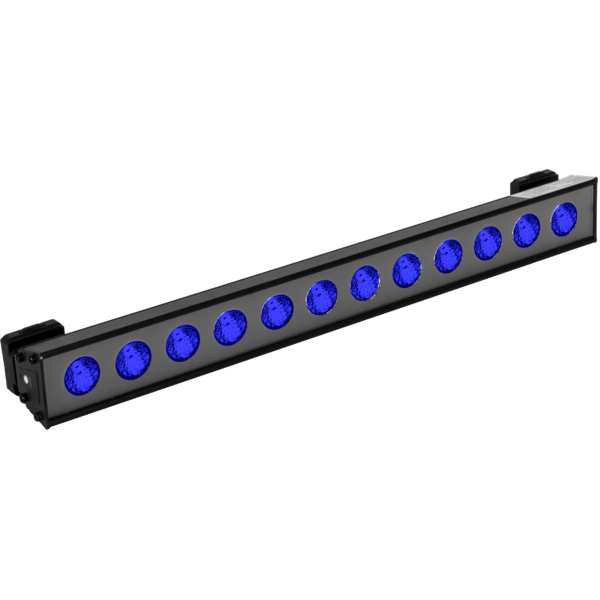

RGBW wash module for SMARTMODULA, 25W, 60°
MODULAWASHDY
MODULAWASHDY
(optional)

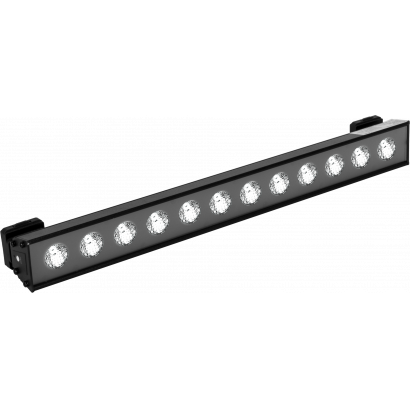

6400K white wash module for SMARTMODULA, 25W, 60°

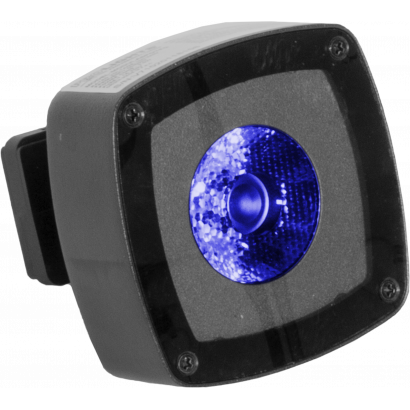

MODULASPOTFC
MODULASPOTFC
(optional)
2x RGBW spot modules for SMARTMODULA, 10W, 15°
MODULASPOTDY
MODULASPOTDY
(optional)

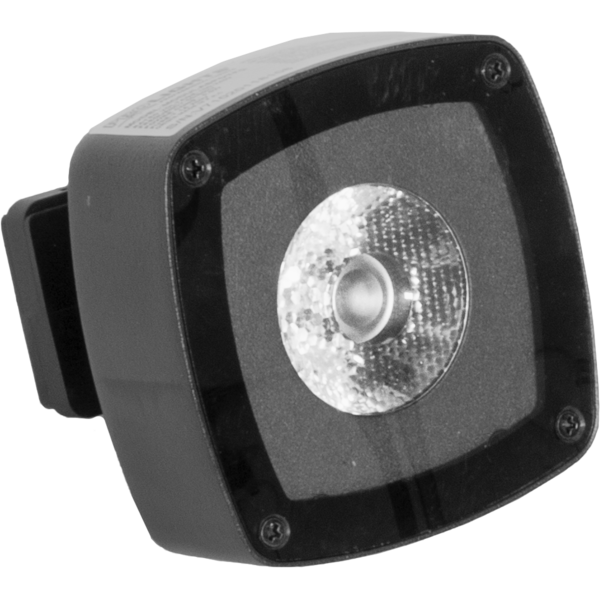

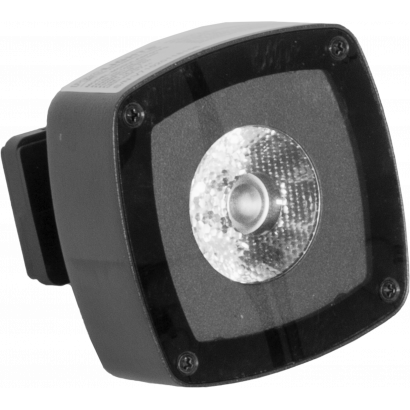

2x 5600K white spot modules for SMARTMODULA, 3W, 15°

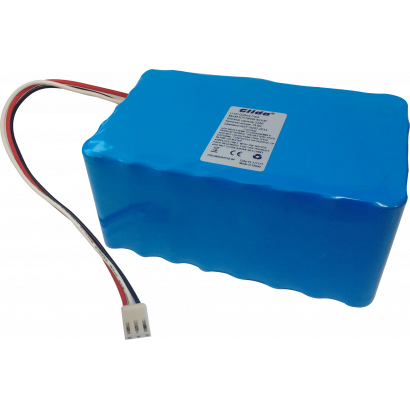

MODULABBAT
MODULABBAT
(optional)
Extra battery for SMARTMODULA

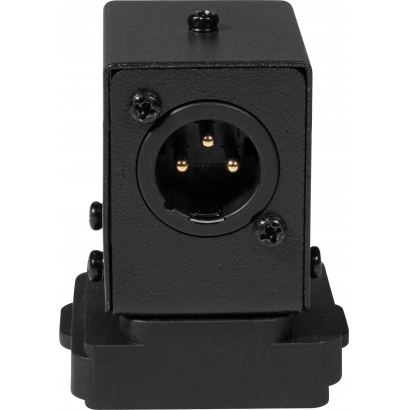

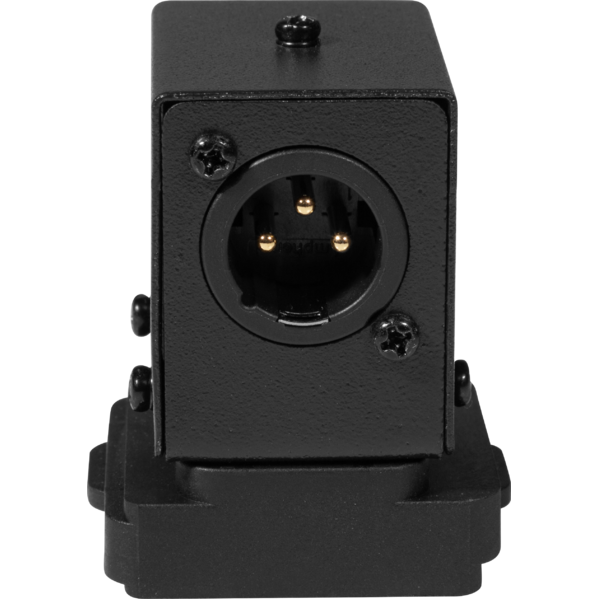

SMUPBOXI
SMUPBOXI
(optional)
Interface between UPBOX2 and SMARTMODULA for make firmware upgrade
UPBOX2P5
UPBOX2P5
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector
FCLSMARTMODULA
FCLSMARTMODULA
(optional)

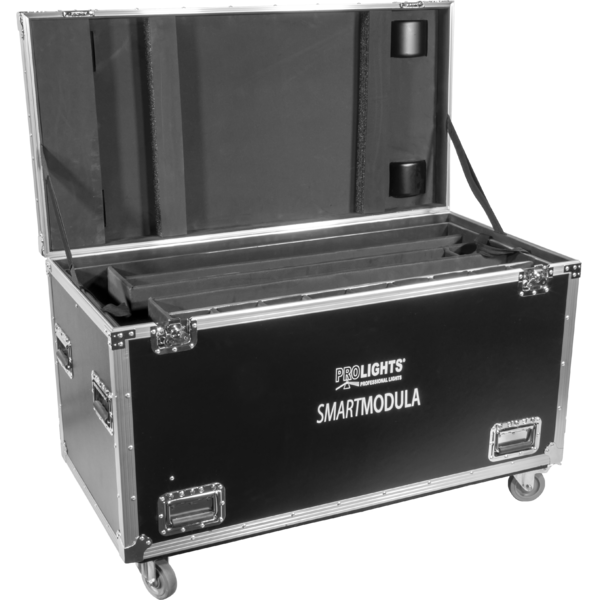

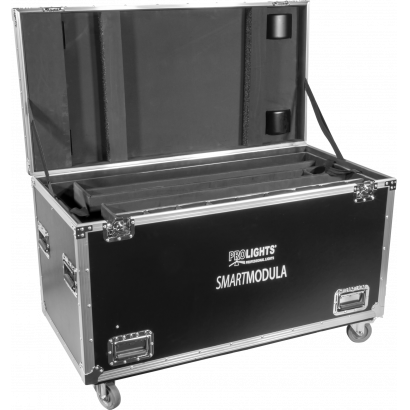

RoadCase to contain: 2xSMARTMODULA, 16xMODULASPOT, 2xMODULAWASH
PRL-IRC
PRL-IRC
(optional)
RGBWA IR controller, 29 buttons, manual/static colours, auto programs, fade

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheet Smartmodula_A4_DATASHEET_(IT).pdf 500KB

DMX chart & personalities

File name File size Download
DMX chart Smartmodula_DMX_CHARTS.pdf 49KB
SMARTMODULA Firmware rev. 1.2.00
manufacturer fixture library (Link) Link
prolights_smartmodula.d4Download
manufacturer fixture library (Link) Link
prolights_smartmodula_1ch.hedDownload
prolights_smartmodula_5ch.hedDownload
prolights_smartmodula_8ch.hedDownload
prolights_smartmodula_pixch.hedDownload
manufacturer fixture library (Link) Link

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download
3D Smartmodula_3D.dwg 13MB
2D Smartmodula_2D.dwg 2MB
Technical drawing Smartmodula_TECHNICAL_DRAWING.pdf 208KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware

Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed
Update Tool: UPBOX2P5 UPBOX2P5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.2.00 STABLE 23/02/2019 Added color mix and warm white. Now is possible to recall warm white from IR controller.
