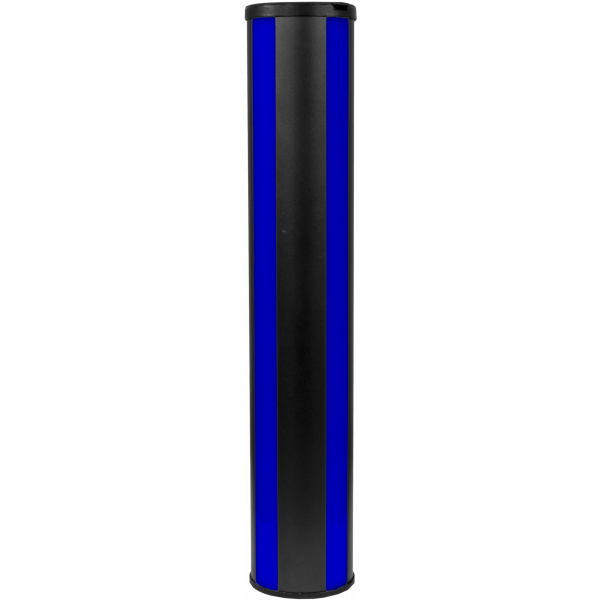

Smart Tower

ORDER CODE: SMARTOWER

Dynamic battery operated event luminaire projecting 360°

Smart Tower is a new concept of outdoor portable pixel and decor luminaire, featuring a full cable-free operation and delivering a multitude of visual effects projecting a full 360°. Smart Tower consists of a vertical tubular housing with pixel battens on 4 sides delivering both colourful accent lighting as well as eye-catching visual effects through the many built-in pixel macros which can be easily individually customised. The unit is waterproof and equipped with on-board Wireless DMX and can be used anywhere from corporate events and weddings right through to showrooms.


Main features:

  • Battery operated 360° pixel controlled LED fixtures
  • IP rated for outdoor events and with on-board wireless DMX
  • Built-in and customisable pixel effects and static looks

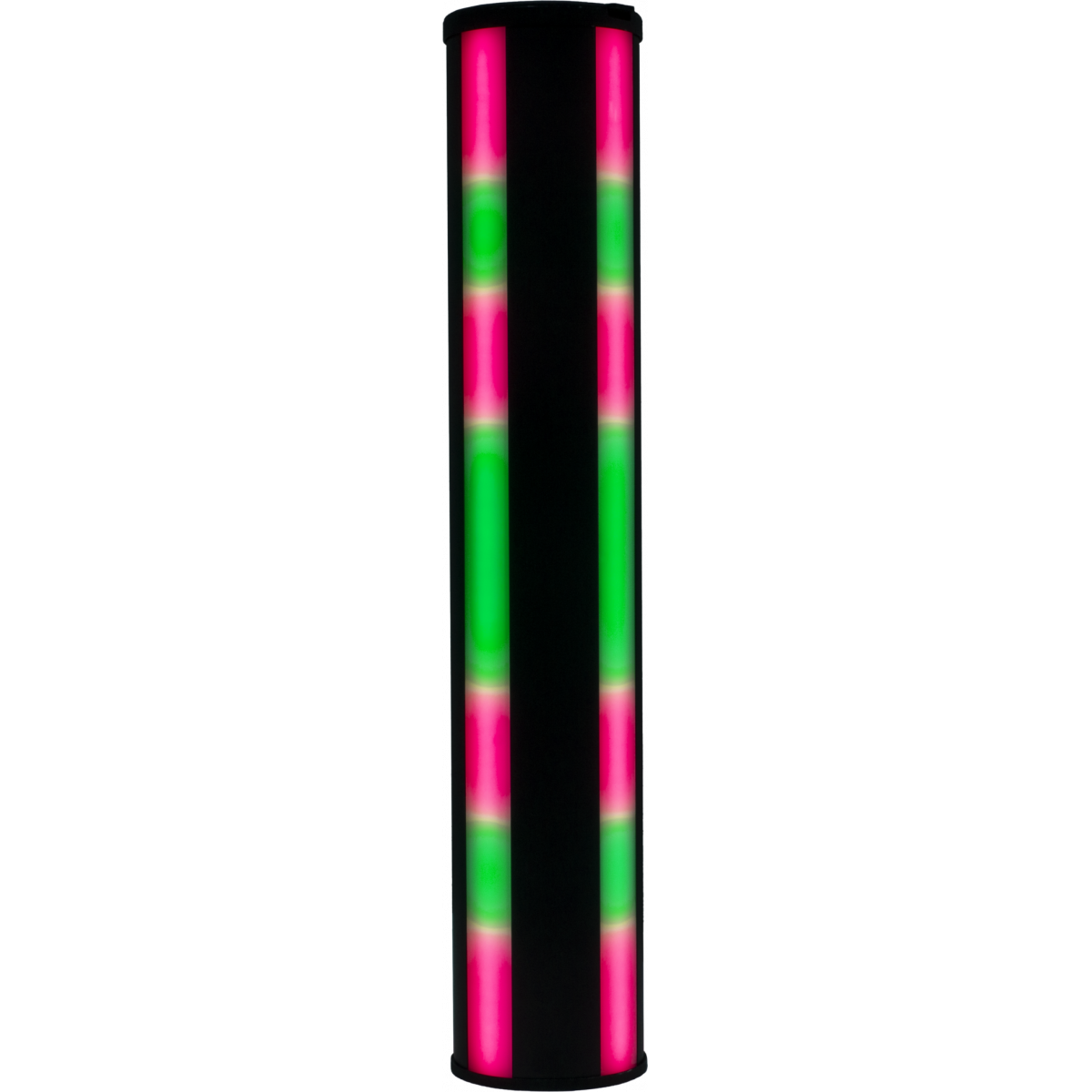

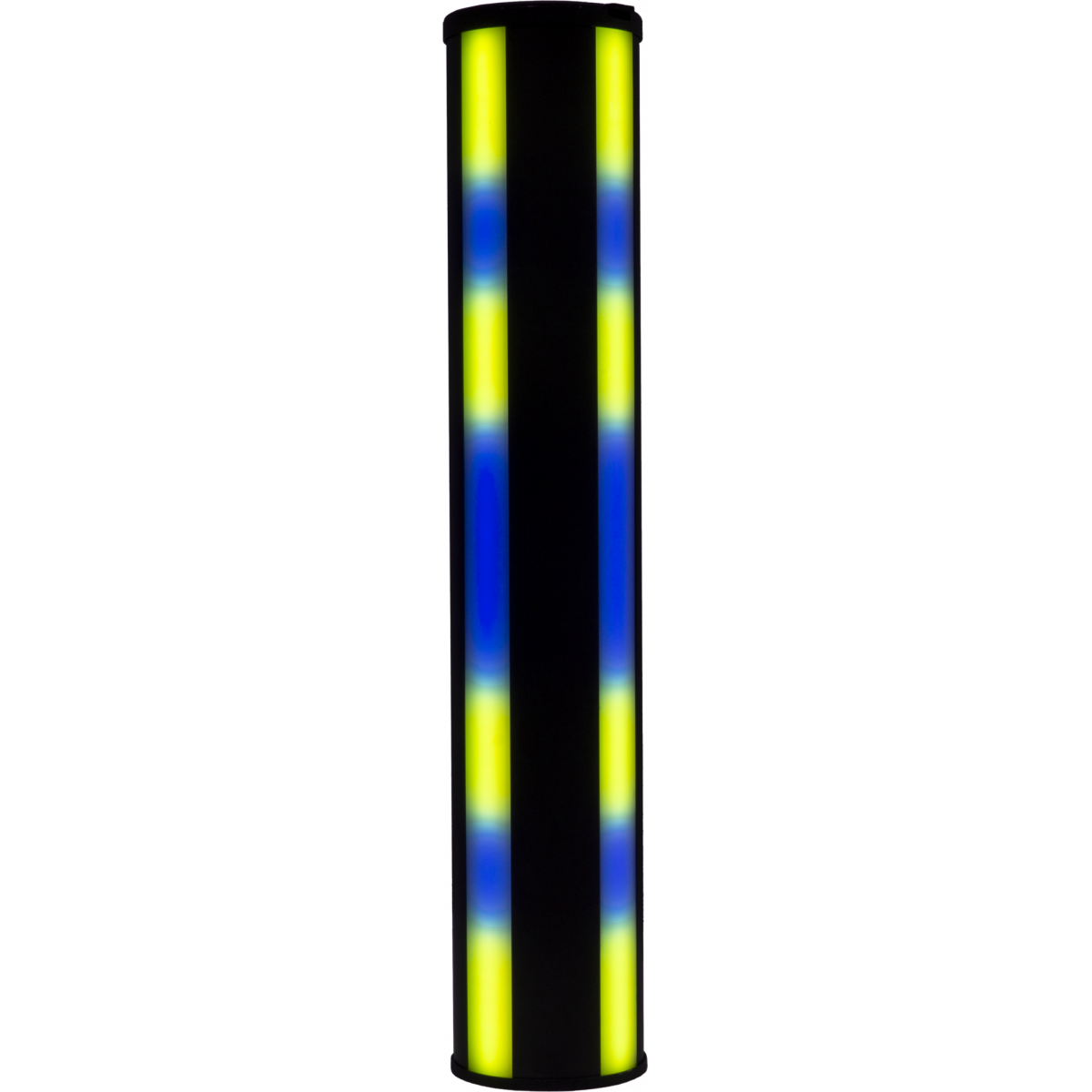

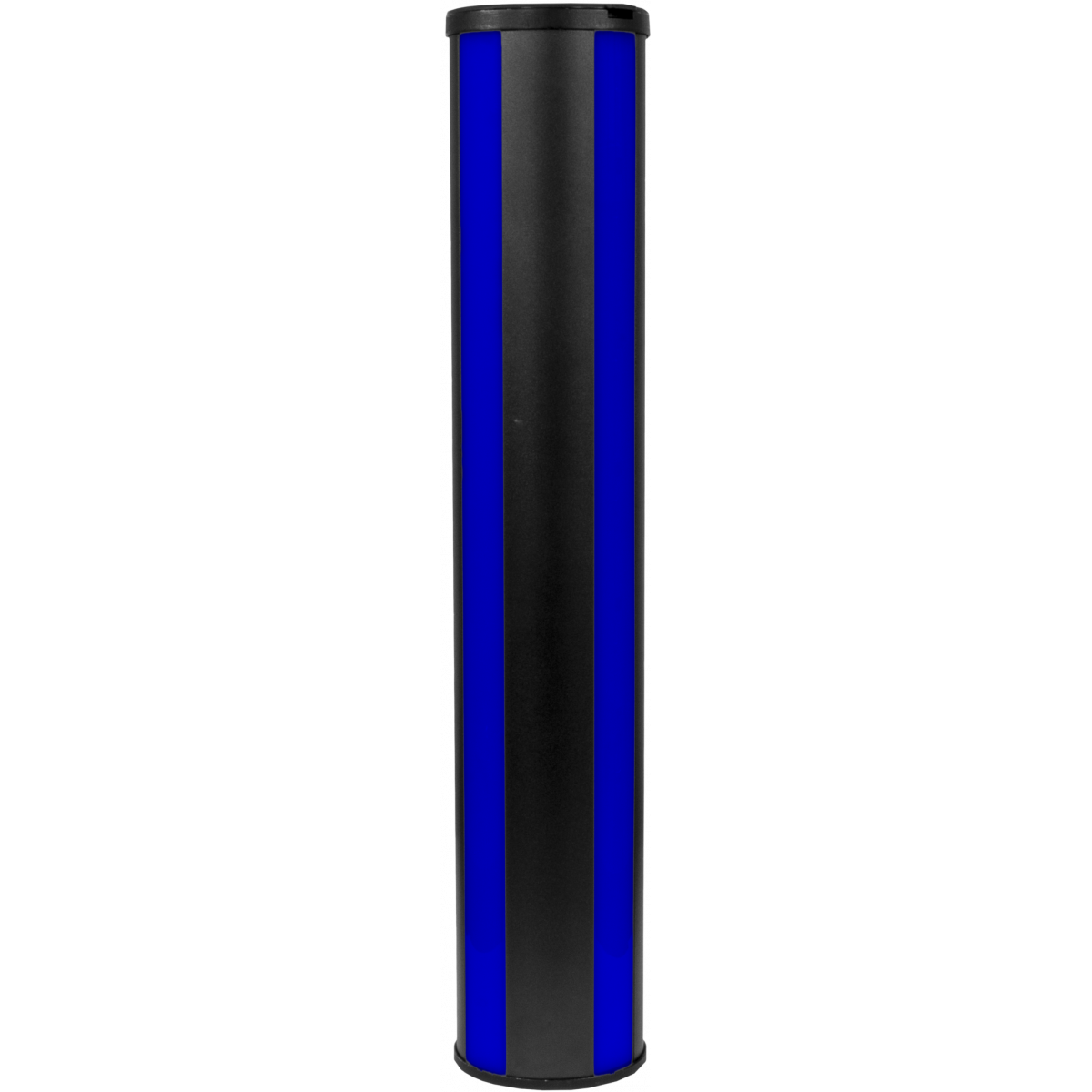

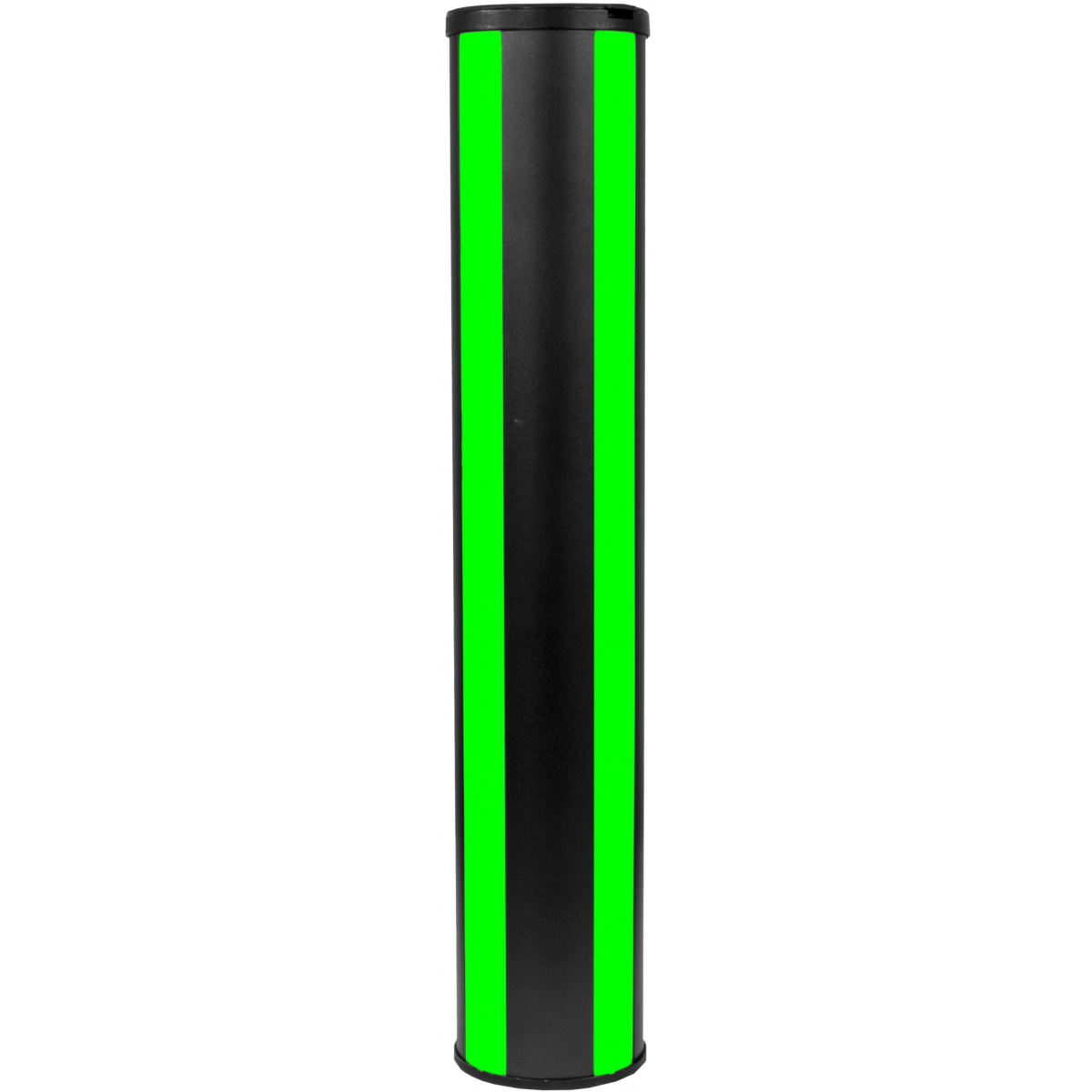

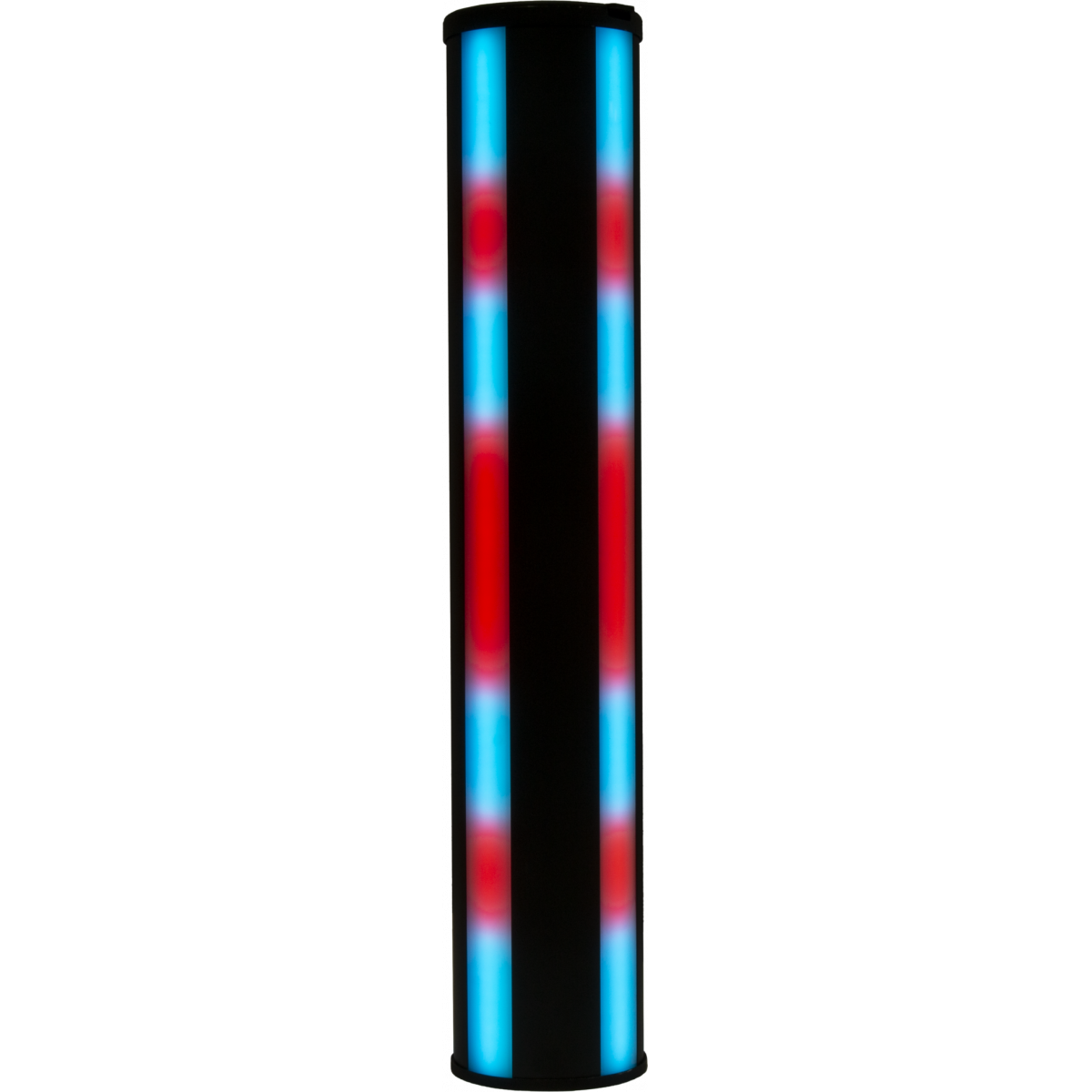

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Light source: 360° projection with 4 pcs strips of 60x0,2 W RGB / FC LEDs working together
  • Source: 4x60x0,2W RGB / FC LED
COLOUR SYSTEM
  • Colour mixing: RGB / FC
  • CCT: CCT control through dedicated DMX channel
  • White presets: linear change from 2.600 K to 10.000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: several pre-built pixel macros with adjustable speed
DYNAMIC EFFECTS
  • Pixel patterns: pre-programmed dynamic and static patterns
  • FX generator: adjustable foreground/background colour, index, speed, direction
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of dimmer and strobe
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Hardware on-board: fixture for independent use, adjustable height of the base
  • Body: sturdy die-cast aluminium body
  • Body colour: black with white wash strips
  • Other: stand-up usable as accessorie for increase height of installation
CONTROL
  • Control units: WDMX
  • Protocols: DMX512
  • DMX channels: 8 / 15 / 18channel
  • Pixel control: 4 pcs strips pixel2pixel controllable all together
  • Wireless Control: included, wireless solution receiver

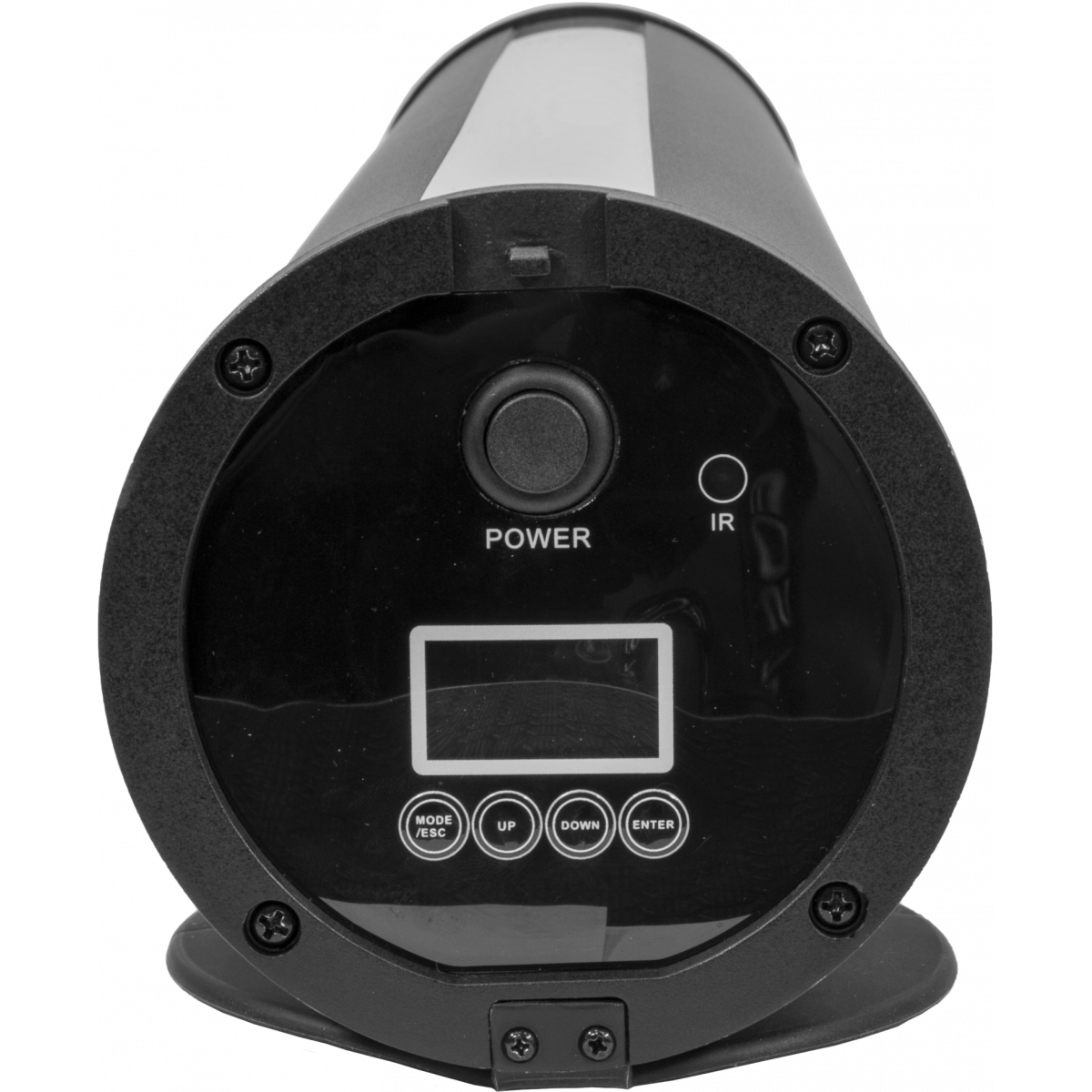

  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX2) not included
  • Hibernation: power safe mode when lost DMX
  • IR: infrared sensor controlled by remote (included in the pack, not included in single unit)
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Strobe / shutter: 1 - 25 Hz, electronic
  • Operating temperature: -20° ~ +40°
  • LED Control: flicker free operation
BATTERY
  • Battery: lithium battery 14,8V
  • Estimated battery life in colour change mode up to: 12h
  • Estimated battery life in single colour mode up to: 18h
  • Estimated battery life in full-mode up to: 6h
  • Re-charge time: 6h/max
  • Battery status: shown on display
PHYSICAL
  • IP rating: 65 for temporary outdoor application, not for fixed installations
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: M10 threaded insert for easy clamp installation
  • Signal connection: WDMX
  • Power connection: adaptor base with external charger (included)
  • Dimensions (WxHxD): 119x632x119mm / 4.69''x24.88''x4.69''
  • Weight: 6kg / 13.23lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Accessories & Related Products

LRLUNA
LRLUNA
(optional)
Single Universe DMX transceiver with Bluetooth
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
PRL-IRC
PRL-IRC
(optional)
RGBWA IR controller, 29 buttons, manual/static colours, auto programs, fade
UPBOX2P5
UPBOX2P5
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheet Smartower_A4_DATASHEET_(EN).pdf 271KB
Letter datasheet Smartower_A4_DATASHEET_(IT).pdf 273KB

User manual

File name File size Download
User manual Smartower_USER_MANUAL.pdf 2MB
General safety info GENERAL_SAFETY_INFORMATION.pdf 12MB
User manual GENERAL_BATTERY_SAFETY_INFO.pdf 3MB
User manual Smartower_GENERAL_SAFETY_INFO_SCEG.pdf 9MB
User manual Smartower_Wireless_Protocol_Compatibilit_EN.pdf 4MB

DMX chart & personalities

File name File size Download
DMX chart Smartower_DMX_CHARTS.pdf 51KB
VectorWorks VECTORWORKS_SYMBOLS.vwx 199KB
VectorWorks PROLIGHTS_VECTORWORKS_v23_LIBRARY.vwx 306MB
VectorWorks PROLIGHTS_VECTORWORKS_v18_LIBRARY.vwx 448MB
SMARTOWER Firmware rev. 1.0.00
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download
3D SKP Smartower_3D_SKETCHUP.skp 178KB
2D Smartower_2D.dwg 224KB
3D Smartower_3D.dwg 2MB
Technical drawing Smartower_TECHNICAL_DRAWING.pdf 65KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware

Only the latest firmware versions for each hardware revision are available for download.
To download previous firmware versions, log in to the customer care section.
Update Tool: UPBOX2P5 UPBOX2P5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.0.00 STABLE 22/06/2018 Definitive stable version.
