Stark 1000

ORDER CODE: STARK1000

19x40W high power LED wash/beam light with pixel mapping

Stark 1000 is a new generation, high output, LED wash light designed to bring the workhorse LED wash light up-to-date. Featuring 19 of Osrams new 40W RGBW Ostar LEDs it delivers massive output with a huge colour range and an extensive toolkit of effects.

Main features:

  • 19 LED RGBW/FC Osram 40W
  • Massive 4° to 38° linear zoom range from beam to wash
  • Individual control of calibrated pixels with on-board FX generator for fast and precise effects
  • Liquid cooling system for efficient cooling with virtually no noise

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 19x40W RGBW Osram Ostar LEDs
  • CCT: Tunable 2.000 K ~ 10.000K
  • Luminous flux: (4°) 6'420 lm - (38°) 6'893lm @full
  • Lux: (4°) 38'175lx @5 m full
  • Lux: (38°) 1'895lx @5 m full
  • Source life expectancy: > 50.000 h
OPTICS
  • Zoom: 4° - 38° motorised linear zoom
  • Lens diameter: 275mm / 10.83''
  • Lens type: high-quality glass lens optics
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • CCT: CCT control through dedicated DMX channel
  • White presets: 2.000 K ~ 10.000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: several pre-built pixel macros with adjustable speed
DYNAMIC EFFECTS
  • Pixel patterns: pre-programmed dynamic and static patterns
  • FX generator: adjustable foreground/background colour, index, speed, direction
BODY
  • Pan angle: 540° / 630°
  • Tilt angle: 233°
  • Pan/Tilt resolution: bit 16-bit
  • Feedback: automatic repositioning after accidental movement
  • Body: aluminium structure with high-resistance polycarbonate cover
  • Body colour: black
CONTROL
  • Protocols: DMX512, RDM, Art-Net, W-DMX
  • DMX channels: 16 / 26 / 27 / 36 / 98channel
  • Pixel control: pixel2pixel control
  • Wireless Control: included, wireless solution receiver
  • RDM: RDM for remote monitoring and settings
  • Display: LCD high resolution colour display with autoflip
  • Firmware upgrade: yes, via USB - DMX interface (UPBOX2) not included
  • Hibernation: power safe mode when lost DMX
  • Master/Slave: for synchronised operation of more units linked in a chain
  • Other: THEATRE mode for silent operation and fan control throught DMX
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 615W
  • Max power consumption (at 120V): 615W
  • Power factor: 0,96
PHYSICAL
  • IP rating: 20
  • Cooling: combination of heat pipe cooling system and low noise fan
  • Suspension and fixing: any position with quick-lock omega brackets
  • Pan / tilt lock: for transportation and maintenance
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Data connection: Art-Net RJ45 IN/OUT
  • Power connection: Neutrik powerCON TRUE1 IN connector
  • Dimensions (WxHxD): 431x564x248mm / 16.97''x22.2''x9.76''
  • Weight: 18kg / 39.68lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Accessories & Related Products

WSBBR512G6
WSBBR512G6
(optional)
BlackBox R-512 G6 receiver 512Ch, 2.45GHz,DMX&RDM,Bluetooth,G3,G4,G4S,G5,CRMX
WSBBR512G5
WSBBR512G5
(optional)
BlackBox R-512 G5 receiver 512Ch, 2.45GHz & 5.8GHz, DMX/RDM optional
WSBBF1G6
WSBBF1G6
(optional)
BlackBox F-1 G6 transrec, 512ch, 2.45GHz, DMX&RDM,Bluetooth,G3,G4,G4S, G5, CRMX
WSBBF1G5
WSBBF1G5
(optional)
BlackBox F-1 G5 transmitter, 2,45GHz & 5.2/5,8 GHz, DMX/RDM, 512Ch
TOUR53415L03
TOUR53415L03
(optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
958225L03
958225L03
(optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
9513FXWL03
9513FXWL03
(optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
9533FXWL03
9533FXWL03
(optional)
Ass. 3x2.5mm TH07 cable, SHUKO plug, MENAC3FXW socket, L.3m
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6016B
C6016B
(optional)
Quick-trigger slim clamp, 250Kg load, 48-51mm tubes, M10 bolt incl, Black
OS24
OS24
(included)
Quick-lock omega bracket.
UPBOX2
UPBOX2
(optional)
Firmware uploader kit, USB IN, 3-pin XLR DMX OUT
WSA40501
WSA40501
(included)
WDMX, antenna 2.4Ghz 2dBi omnidirectional, folding, SMA-male, indoor
FSHLW02
FSHLW02
(optional)

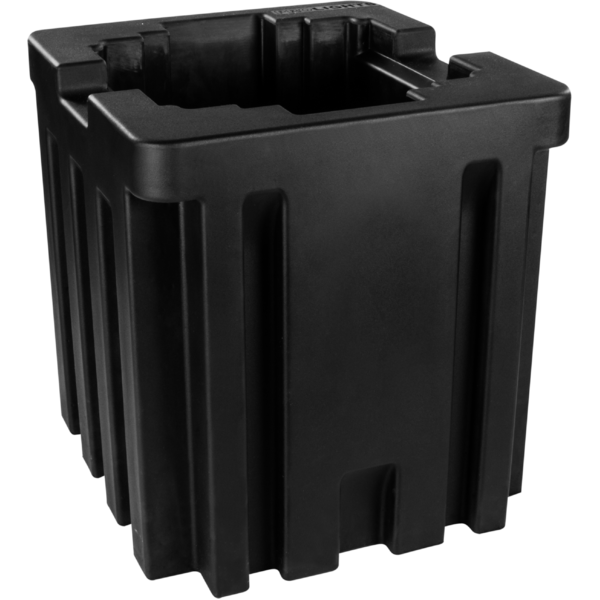

1U Foam shell compatible with DIAMOND37, STARK1000
