Stark 400CC

ORDER CODE: STARK400CC

LED wash light 7x40W LED RGBW/FC, 3-45° zoom, 11 kg

Stark 1000CC and Stark 400CC are pure wash light versions of the Stark automated luminaires. Made specifically for lighting designers who only need a wash light but do not want to give up the advanced optical system and brightness of the Stark series but only removing pixel control.

Main features:

  • 7x40 W RGBW full-colour luminus LEDs
  • Unique optical system, featuring 3° - 45° zoom range and even light spread
  • CT channel with white emulation: 2.800 K - 9.000 K
  • Liquid cooling system for minimal noise
See variants

PHOTO GALLERY

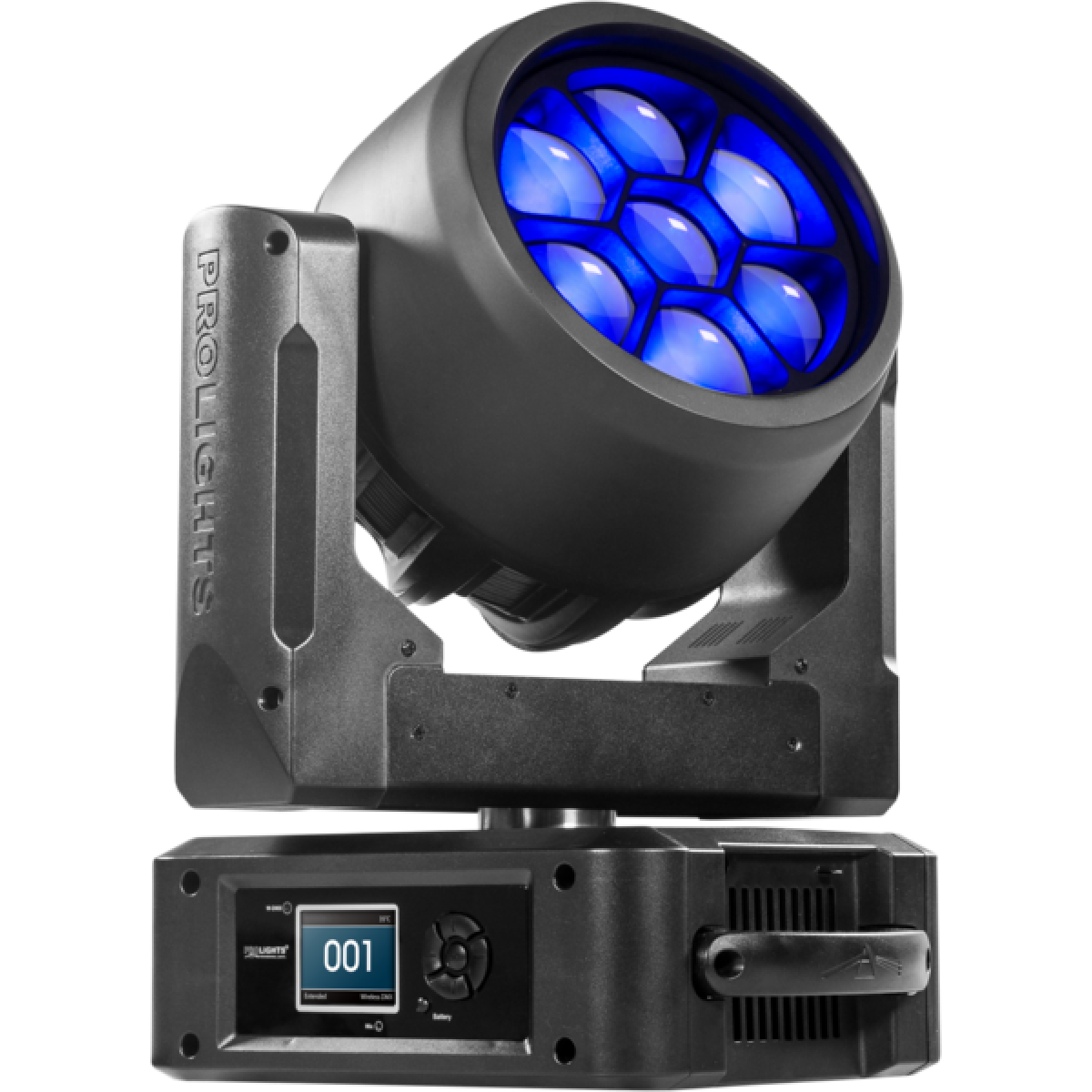

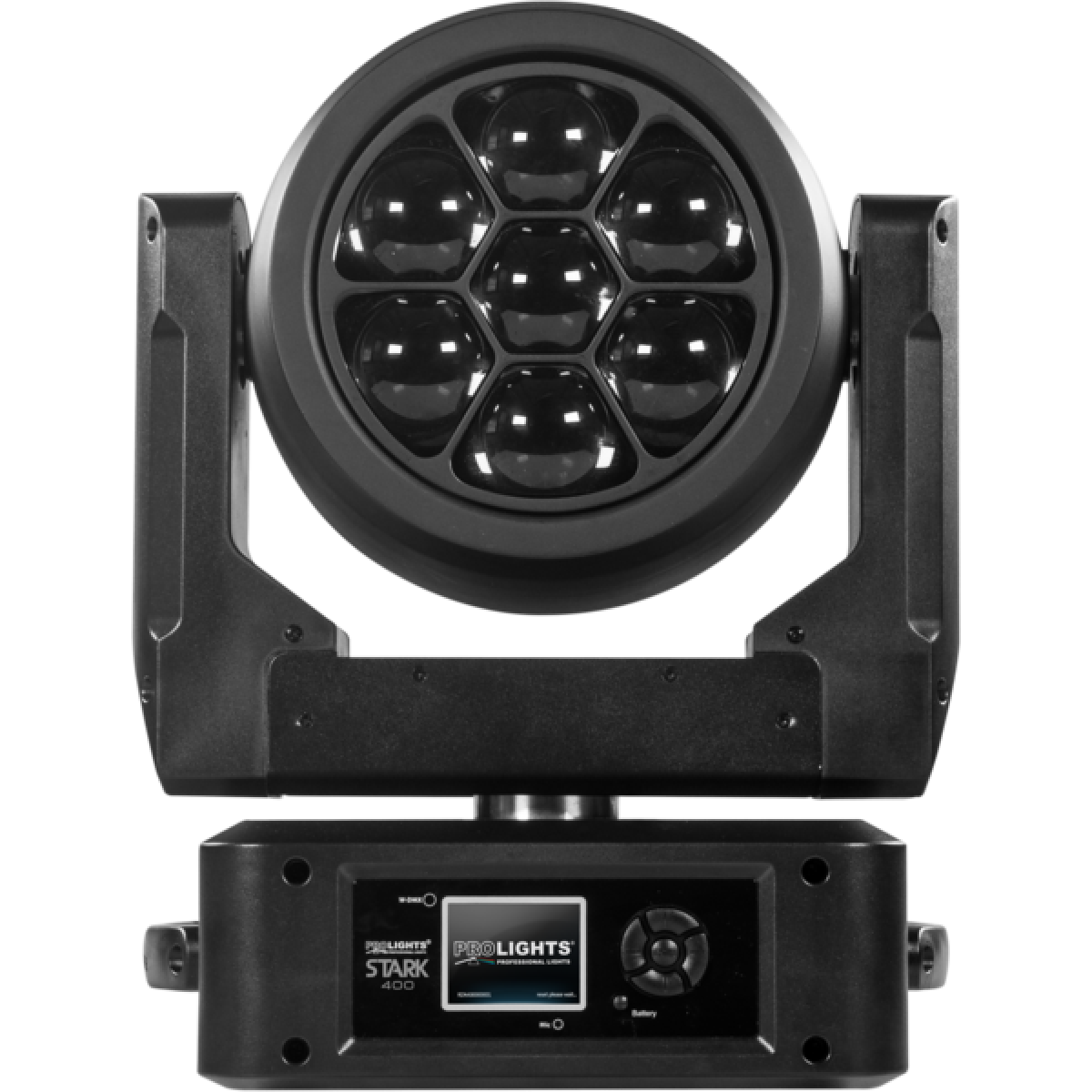

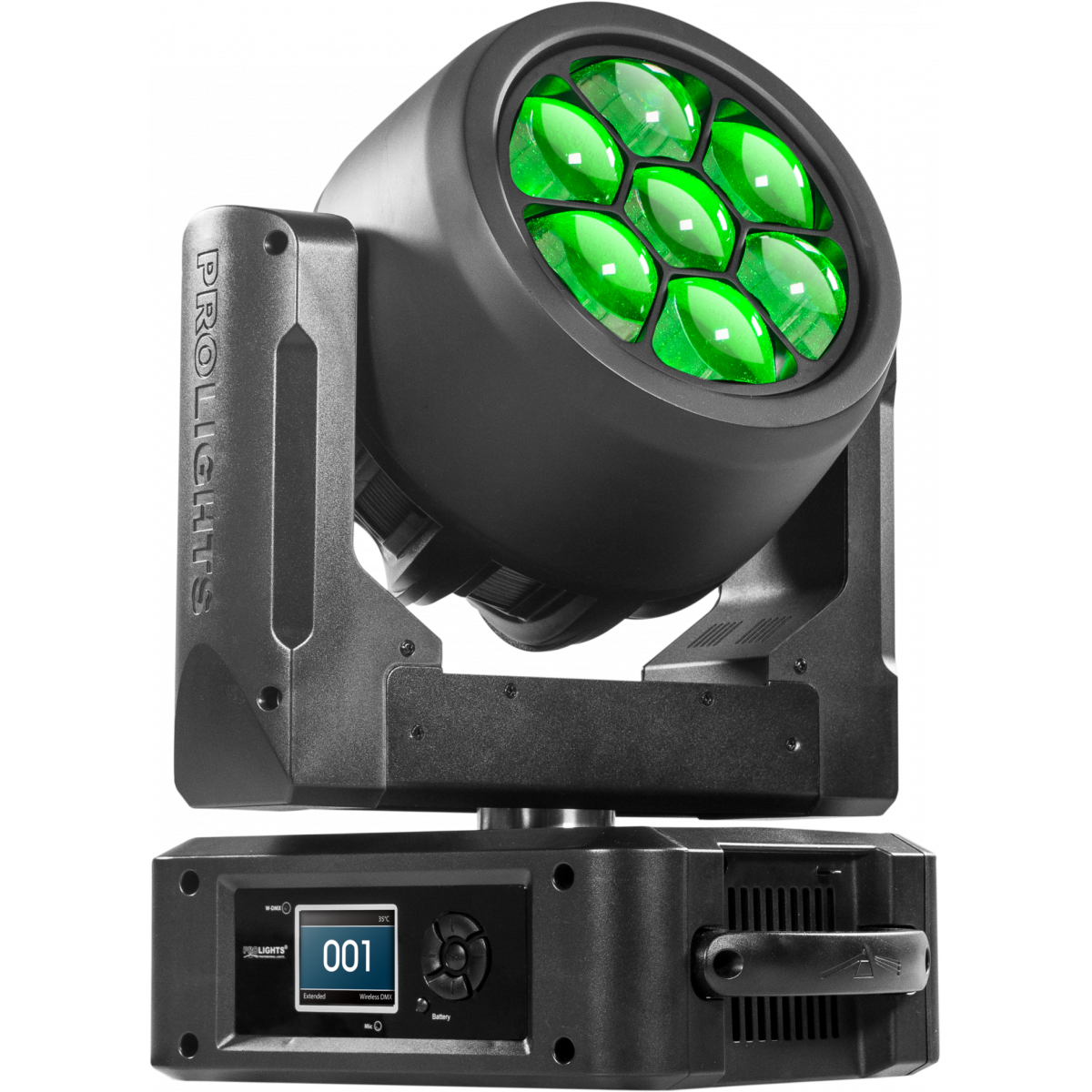

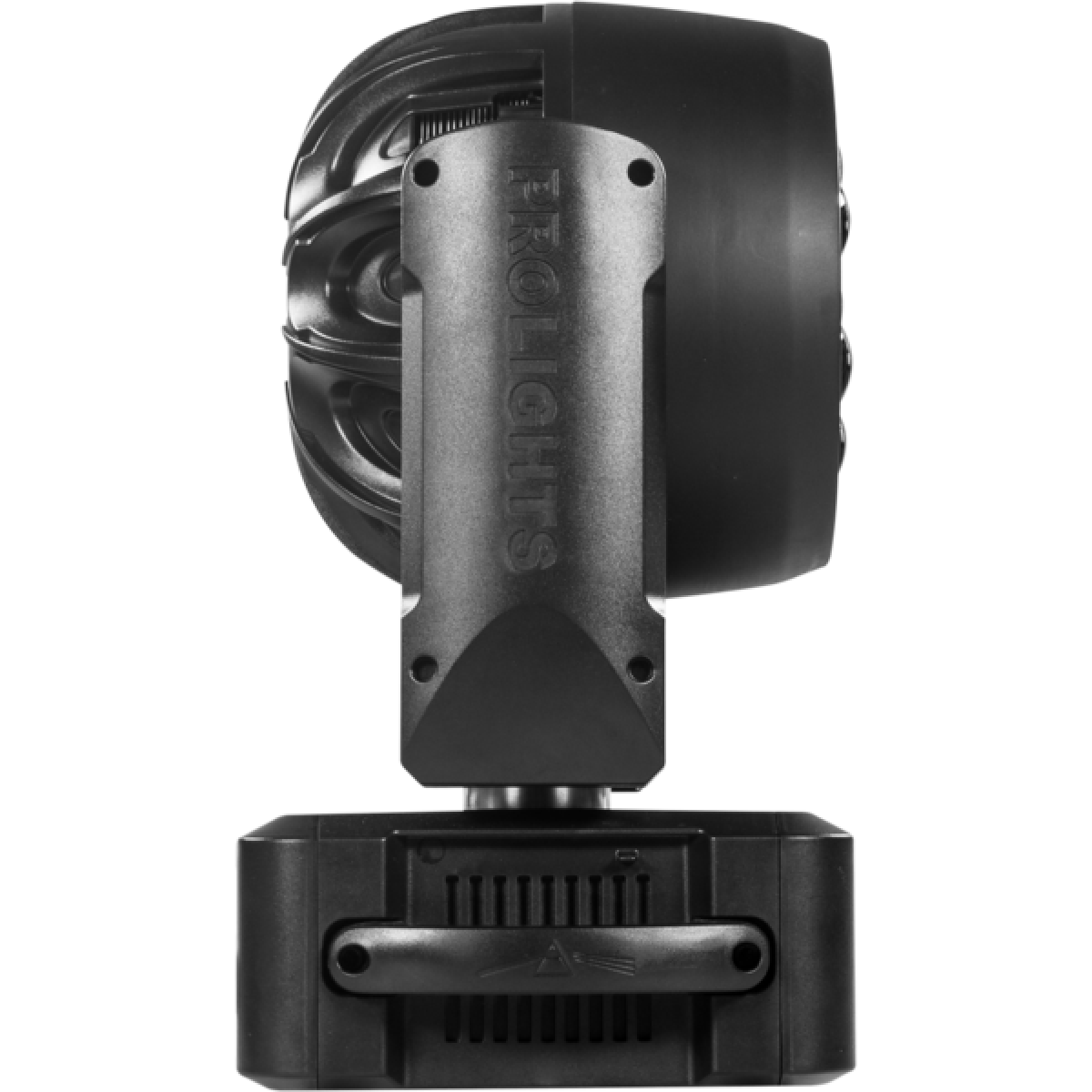

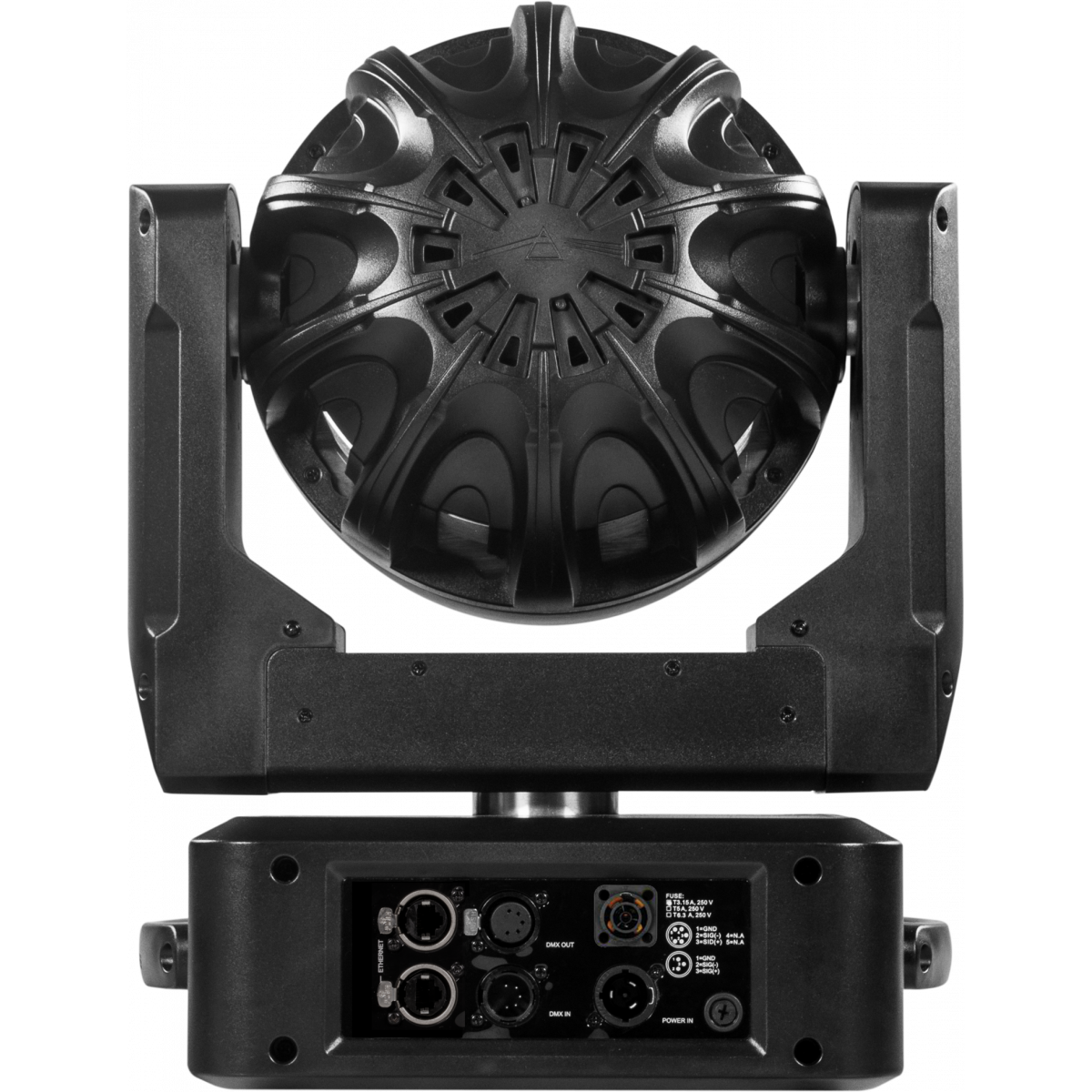

Stark 400CC
Stark 400CC
Stark 400CC
Stark 400CC
Stark 400CC

Technical specifications

LIGHT SOURCE
  • Source: 7x40W RGBW LED
  • Luminous flux: 11'660
  • Lux: (4°) 37'250lx @3 m full
  • Lux: (4°) 13'910lx @5 m full
  • Source life expectancy: > 50.000 h
OPTICS
  • Zoom: 3° - 45° motorised linear zoom
  • Lens type: high-quality glass lens optics
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • CCT: CCT control through dedicated DMX channel
  • White presets: 2.000 K ~ 10.000K
  • Colour wheel: virtual colour wheel with macros
BODY
  • Pan angle: 540° / 630°
  • Tilt angle: 265°
  • Pan/Tilt resolution: bit 16-bit
  • Feedback: automatic repositioning after accidental movement
  • Body: aluminium structure with high-resistance polycarbonate cover
  • Body colour: black
CONTROL
  • Protocols: DMX512, RDM

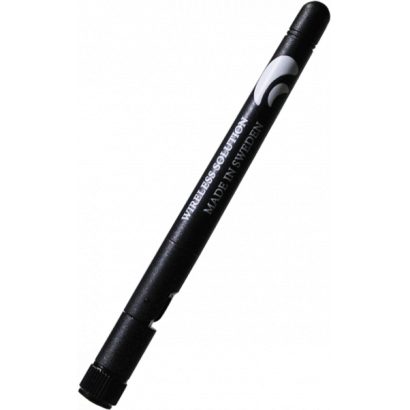

  • Wireless Control: optional, wireless solution receiver
  • RDM: RDM for remote monitoring and settings
  • Display: LCD high resolution colour display with autoflip
  • Firmware upgrade: via menu with internal memory or via USB - DMX interface (UPBOXPRO/UPBOX2) not included
  • Hibernation: power safe mode when lost DMX
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Strobe / shutter: 1 - 25 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 265W
  • Inrush current: ＜30A @115VAC /＜50A @230VAC
PHYSICAL
  • IP rating: 20
  • Cooling: combination of heat pipe cooling system and low noise fan
  • Suspension and fixing: any position with quick-lock omega brackets
  • Signal connection: Amphenol XLR 3p IN/OUT connectors
  • Power connection: Neutrik powerCON TRUE1 IN connector
  • Dimensions (WxHxD): 328x449x235mm / 12.91''x17.68''x9.25''
  • Weight: 11,3kg / 24.91lbs

Versions

Accessories & Related Products

OS24D13
OS24D13
(included)
Quick-lock omega bracket, M12 hole
FSHLW01
FSHLW01
(optional)

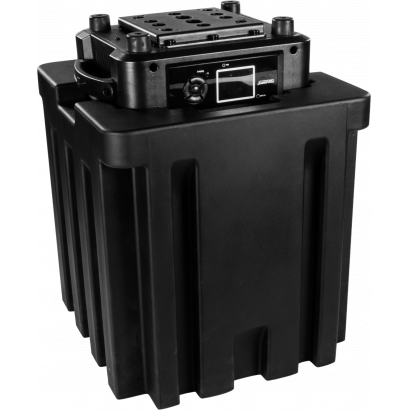

1U Foam shell compatible with DIAMOND19, STARK400

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download
User manual Stark400cc_USER_MANUAL_ITEN.pdf 3MB

DMX chart & personalities

File name File size Download
STARK400CC Firmware rev. 1.0.00
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights_stark400cc_std.hedDownload
prolights@stark_400_cc@00@ma_library_update_v14.5.xmlpDownload

Photometrics

CAD symbols & drawings

File name File size Download
3D SKP Stark400cc_3D.skp 2MB
3D Stark400cc_CAD_3D.dwg 533KB
Technical drawing Stark400cc_TECHNICAL_DRAWING.pdf 375KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: {Upbox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.0.00 STABLE 01/09/2017 Definitive stable version.
