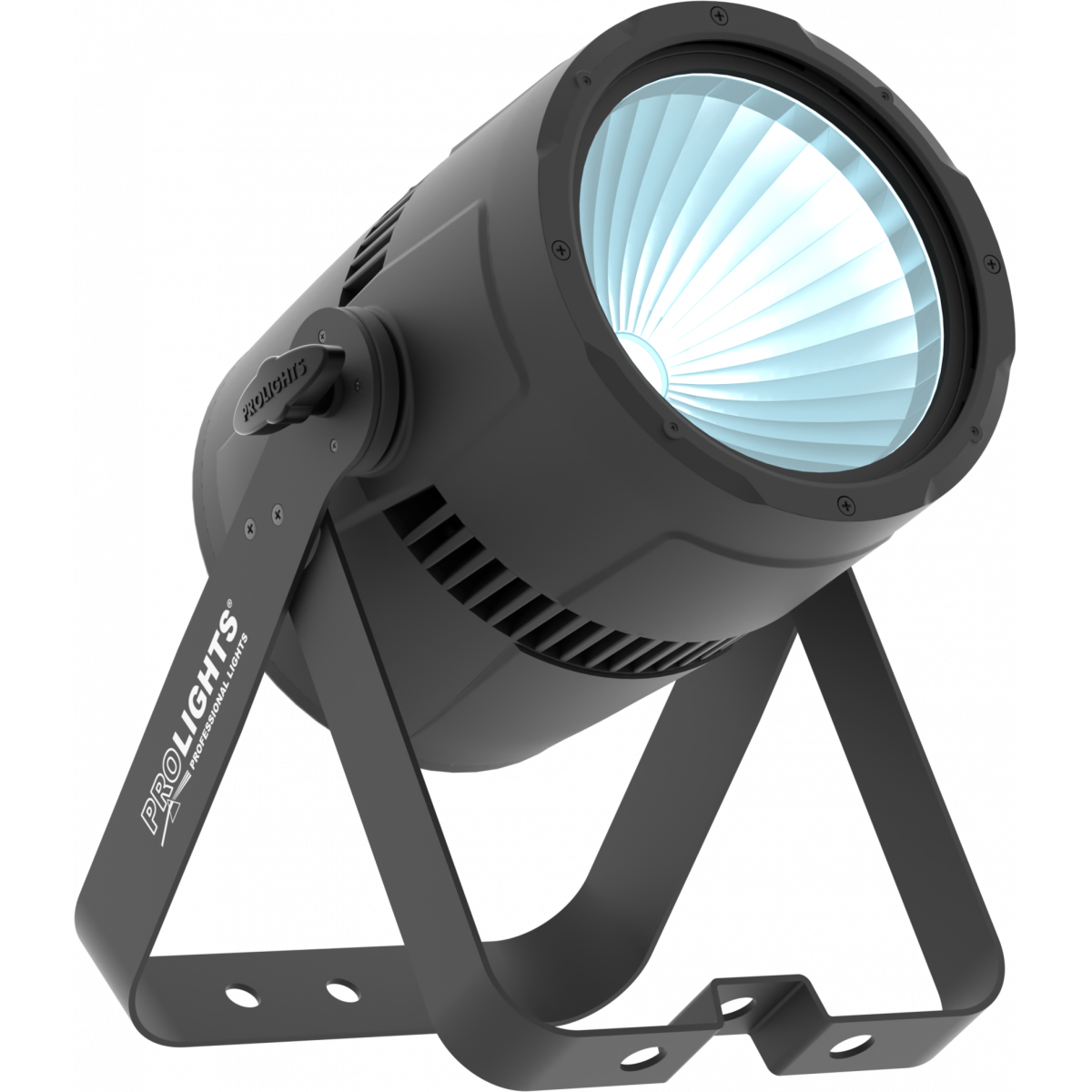

StudioCob DY

100W Daylight White COB PAR with a parabolic reflector

StudioCob DY is a powerful and incredibly versatile LED PAR. Fusing the old and the new, it pairs a 5.000 K COB LED source with a traditional parabolic reflector to deliver a proper PAR replacement with a homogenised output, single shadow and flexible lens options.

Main features:

  • 100W 5.000 K COB LED source with HD dimming and high CRI
  • Flexible lens options of 15° - 30° - 60°
  • Functional barn doors for beam control

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 100W high-power white LED
  • CCT: 5.000
  • Luminous flux: 8'139
  • Lux: (60°) 790lx @3 m
  • Lux: (30°) 1'698lx @3 m
  • CRI: 83
  • R9: 74
  • TLCI: 70
  • TM30 Rf: 82
  • TM30 Rg: 94
  • Source life expectancy: > 30.000 hrs (L80B10 @Ta 25° C / 77° F)
OPTICS
  • Beam angle: 66°
  • Field angle: 98°
  • Lens type: parabolic reflector in combination with HD fresnel lens
  • Additional optics: 30° (inc) - 15° (opt)
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of dimmer and strobe
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: black, mirror and white finishing available
CONTROL
  • Protocols: DMX512
  • DMX channels: 1 / 2 / 5channel
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 28 Hz, electronic
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 109W
  • Max power consumption (at 120V): 109W
  • Output (at 230V): 12 units on a single power line
  • Power factor: 0,94
PHYSICAL
  • IP rating: 20

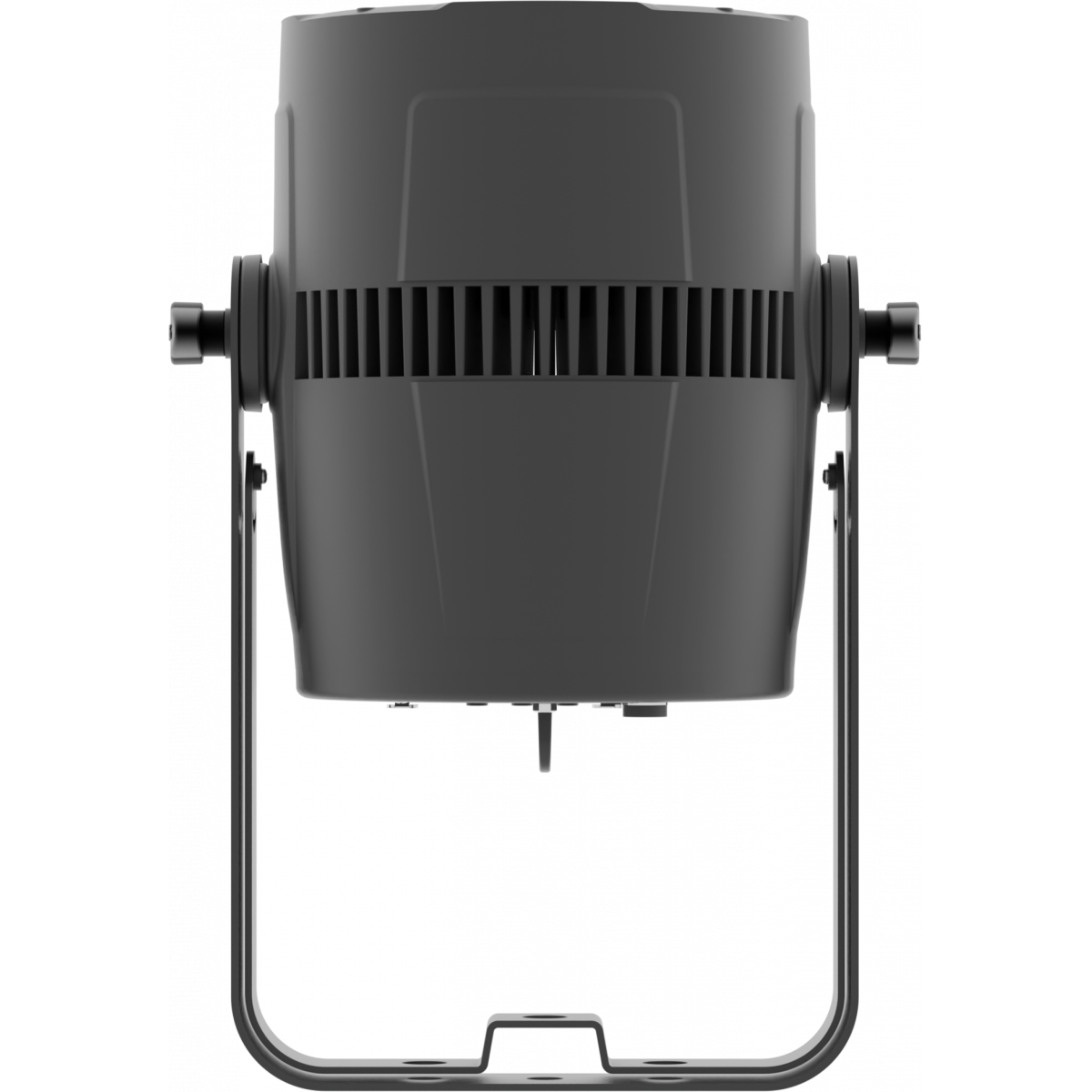

  • Cooling: active, silent operation

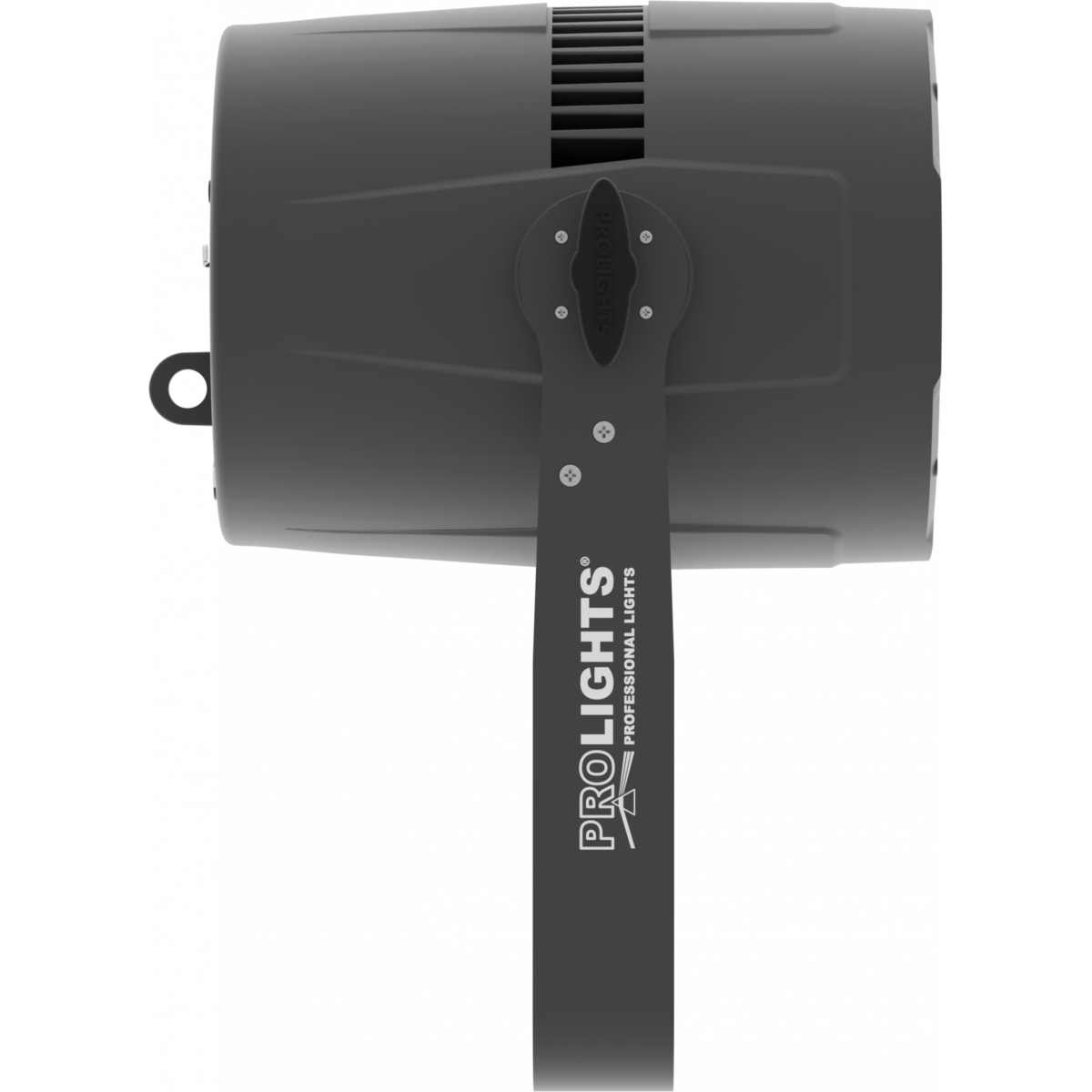

  • Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning

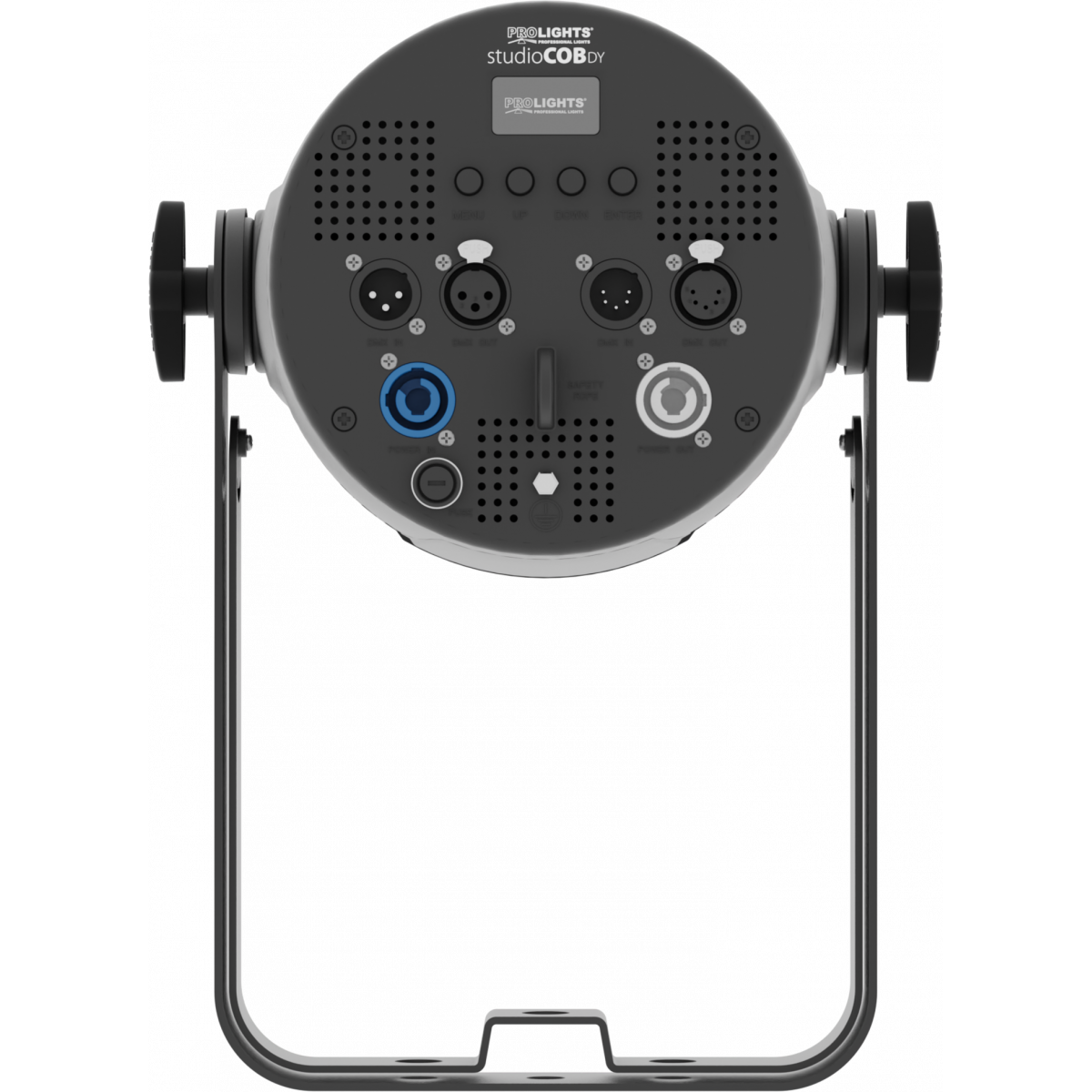

  • Signal connection: XLR 3p + 5p IN/OUT connectors
  • Power connection: Neutrik powerCON IN/OUT connectors
  • Dimensions (WxHxD): 262x190x371mm / 10.31''x7.48''x14.61''
  • Weight: 4,5kg / 9.92lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Code
Housing
STUDIOCOBDYBK
STUDIOCOBDYBK
Black

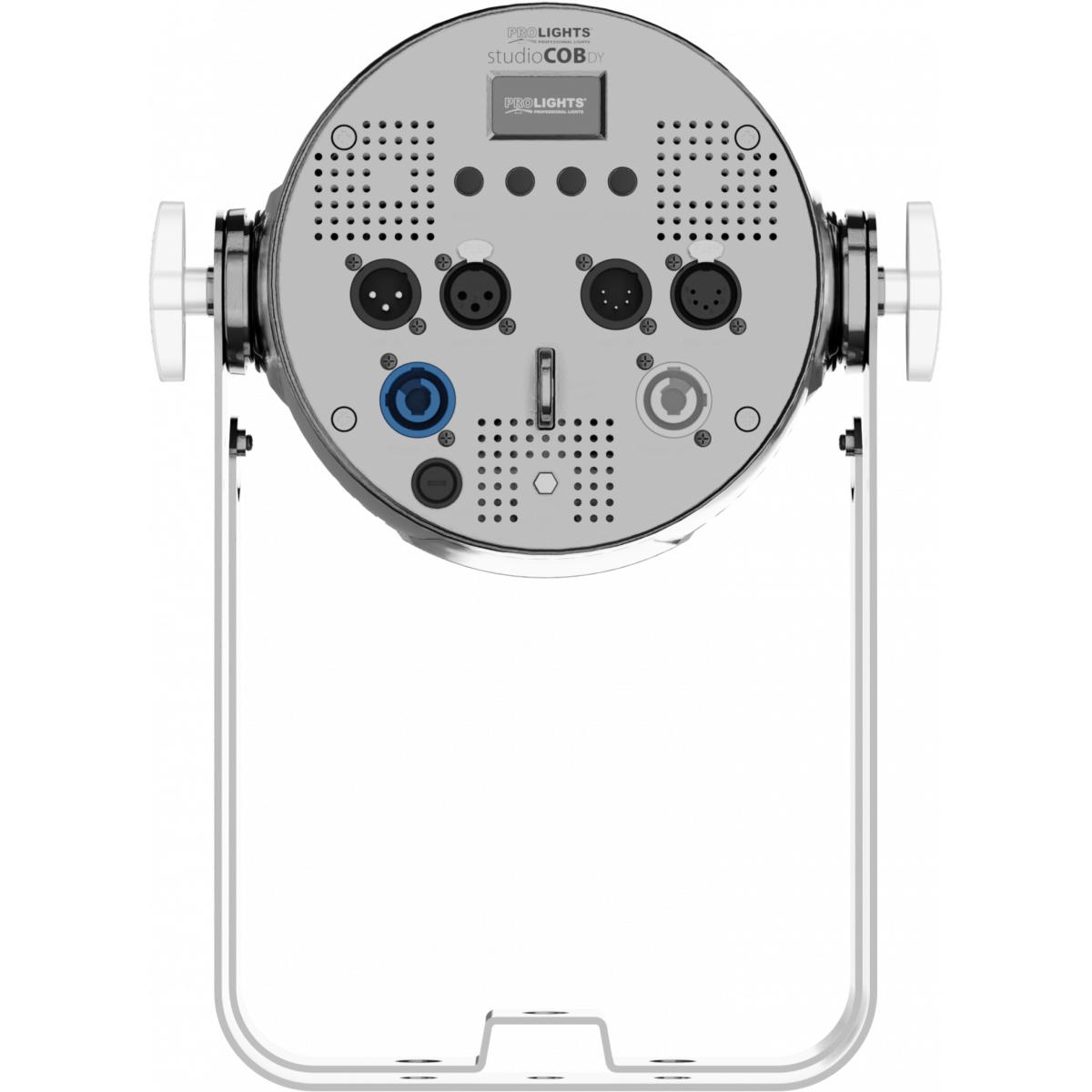

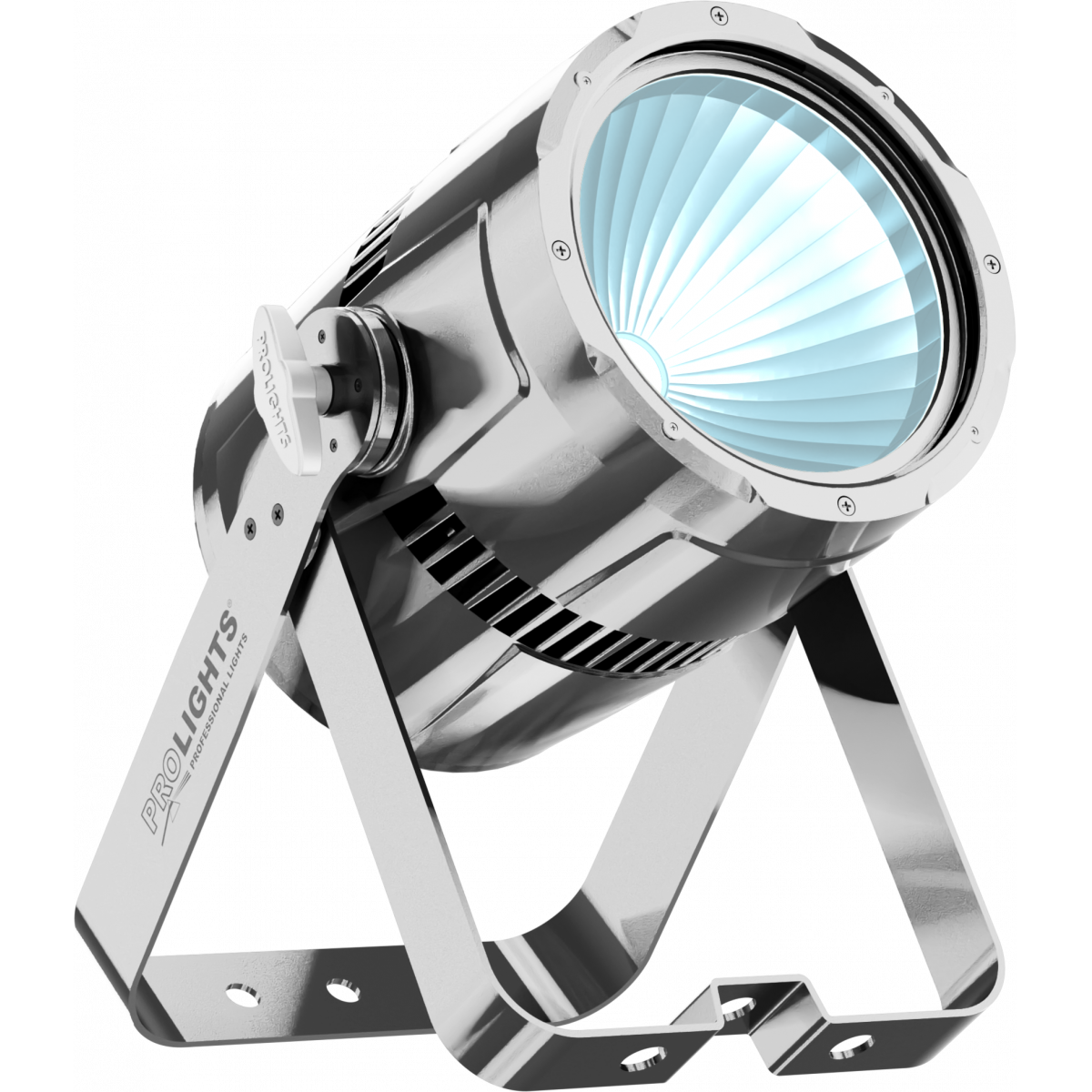

STUDIOCOBDYCR
STUDIOCOBDYCR
Chrome

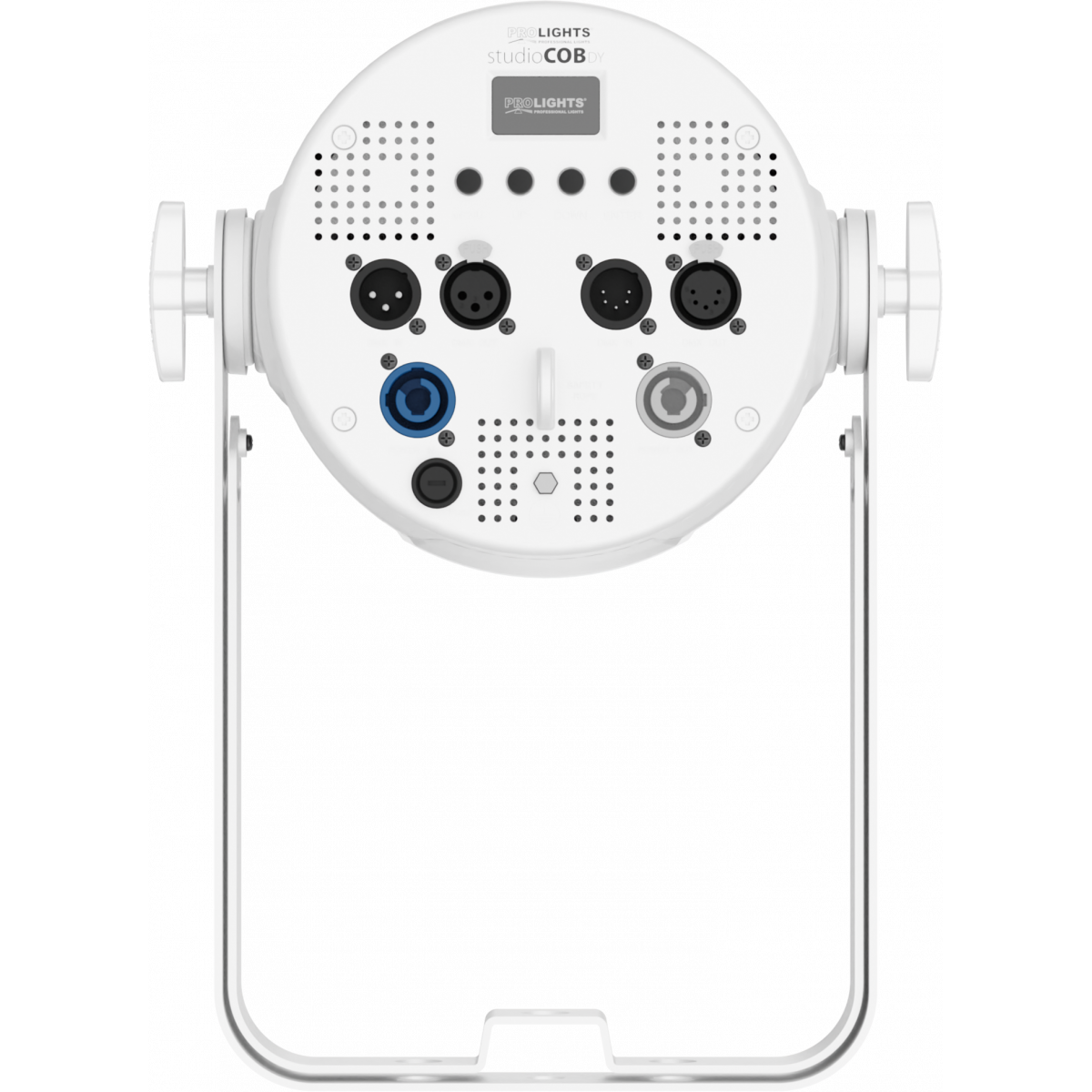

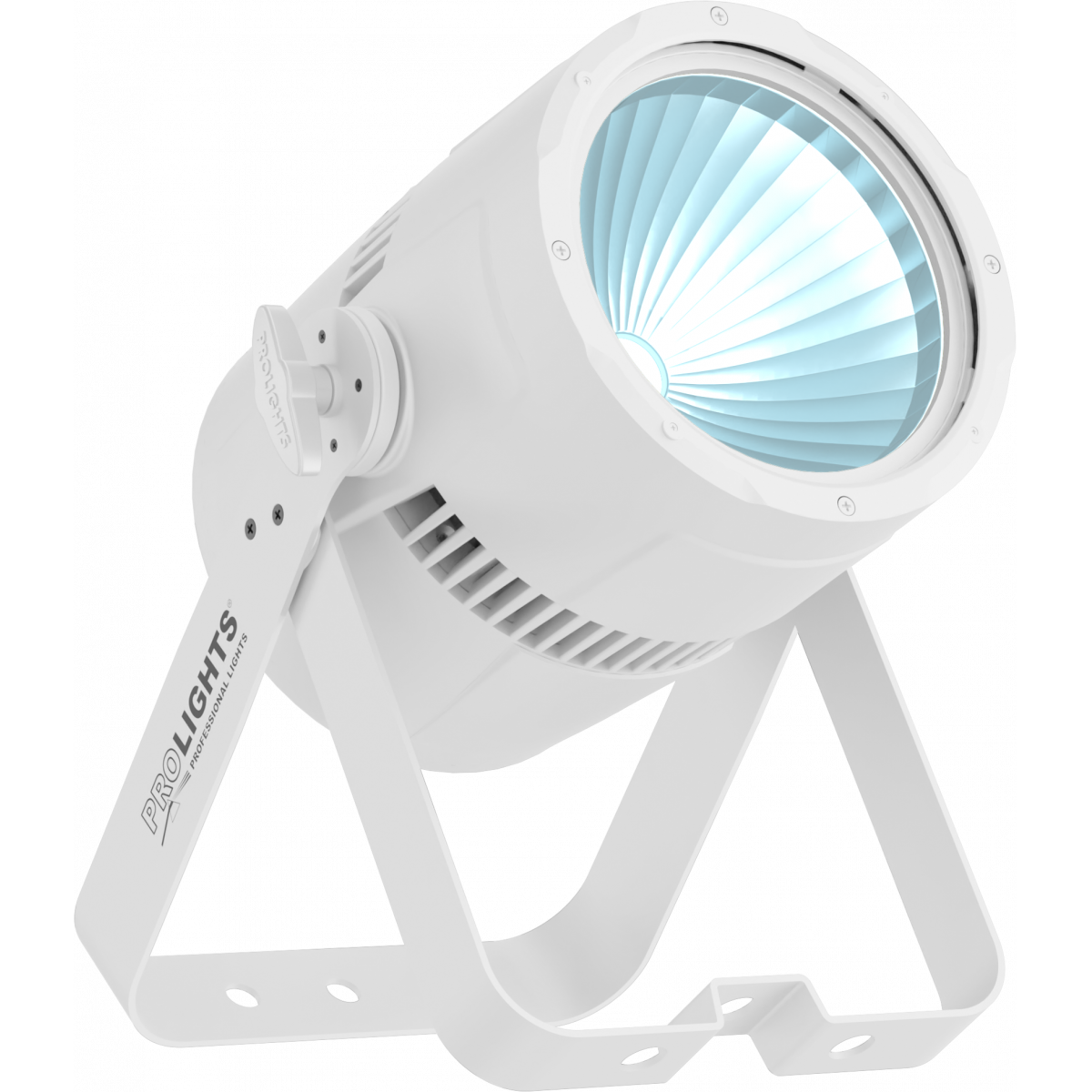

STUDIOCOBDYWH
STUDIOCOBDYWH (END OF LIFE)
White

Accessories & Related Products

C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
TOUR53415L03
TOUR53415L03
(optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
TOUR53413L03
TOUR53413L03
(optional)
Dmx cable HC5340. CANC3MXX XLR 3p->CANC3FXX XLR (f) 3p, L.3m
958025L03
958025L03
(optional)
3x2.5mm TH07 Cable, 20A 3p PwCon FCA, 20A 3p PwCon FCB, L. 3m
9513FCAL03
9513FCAL03
(optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FCA socket, L.3m
9533FCAL03
9533FCAL03
(optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FCA socket, L.3m
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
STUDIOCOBBD
STUDIOCOBBD
(optional)
Barn door 4 directional flaps to adjust the light beam, f. frame included
STUDIOCOBL15
STUDIOCOBL15
(optional)
Optics for STUDIOCOB projectors series, 15°
STUDIOCOBL30
STUDIOCOBL30
(included)
Optics for STUDIOCOB projectors series, 30°
FCLPAR4190
FCLPAR4190
(optional)
Flight case for 8 STUDIOCOB, VERSAPAR
STUDIOCOBTPG
STUDIOCOBTPG
(optional)
Filter frame for STUDIOCOB projectors
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheet Studiocobdy_A4_DATASHEET_(EN).pdf 421KB
Letter datasheet Studiocobdy_A4_DATASHEET_(IT).pdf 414KB

User manual

DMX chart & personalities

STUDIOCOBDY Firmware rev. 3.2
manufacturer fixture library (Link) Link
prolights_studiocobdy.d4Download
manufacturer fixture library (Link) Link
prolights_studiocobdy_1ch.hedDownload
prolights_studiocobdy_2ch.hedDownload
prolights_studiocobdy_5ch.hedDownload
STUDIOCOBDY Firmware rev. 2.2
manufacturer fixture library (Link) Link
prolights_studiocobdy.d4Download
manufacturer fixture library (Link) Link
prolights_studiocobdy_1ch.hedDownload
prolights_studiocobdy_2ch.hedDownload
prolights_studiocobdy_5ch.hedDownload

Tech docs

File name File size Download

Software

File name File size Download

Firmware

Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOX1UP5 UPBOX1UP5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
3.3 STABLE 16/11/2020 Firmware for RUNDA fan. Improved Stand Alone Functionality.
2.3 STABLE 16/11/2020 Firmware for SUNON fan. Improved Stand Alone Functionality.
3.2 STABLE 26/06/2019 Firmware for RUNDA fan. Improved Standalone mode operation (Auto/Static). Rev. 3
2.2 STABLE 26/06/2019 Firmware for SUNON fan. Improved Standalone mode operation (Auto/Static). Rev. 2
Update Tool: UPBOX1UP5 UPBOX1UP5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
3.3 STABLE 16/11/2020 Firmware for RUNDA fan. Improved Stand Alone Functionality.
2.3 STABLE 16/11/2020 Firmware for SUNON fan. Improved Stand Alone Functionality.
3.2 STABLE 26/06/2019 Firmware for RUNDA fan. Improved Standalone mode operation (Auto/Static). Rev. 3
2.2 STABLE 26/06/2019 Firmware for SUNON fan. Improved Standalone mode operation (Auto/Static). Rev. 2
Update Tool: UPBOX1UP5 UPBOX1UP5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
3.3 STABLE 16/11/2020 Firmware for RUNDA fan. Improved Stand Alone Functionality.
2.3 STABLE 16/11/2020 Firmware for SUNON fan. Improved Stand Alone Functionality.
3.2 STABLE 26/06/2019 Firmware for RUNDA fan. Improved Standalone mode operation (Auto/Static). Rev. 3
2.2 STABLE 26/06/2019 Firmware for SUNON fan. Improved Standalone mode operation (Auto/Static). Rev. 2
Update Tool: UPBOX1UP5 UPBOX1UP5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
3.3 STABLE 16/11/2020 Firmware for RUNDA fan. Improved Stand Alone Functionality.
2.3 STABLE 16/11/2020 Firmware for SUNON fan. Improved Stand Alone Functionality.
3.2 STABLE 26/06/2019 Firmware for RUNDA fan. Improved Standalone mode operation (Auto/Static). Rev. 3
2.2 STABLE 26/06/2019 Firmware for SUNON fan. Improved Standalone mode operation (Auto/Static). Rev. 2
