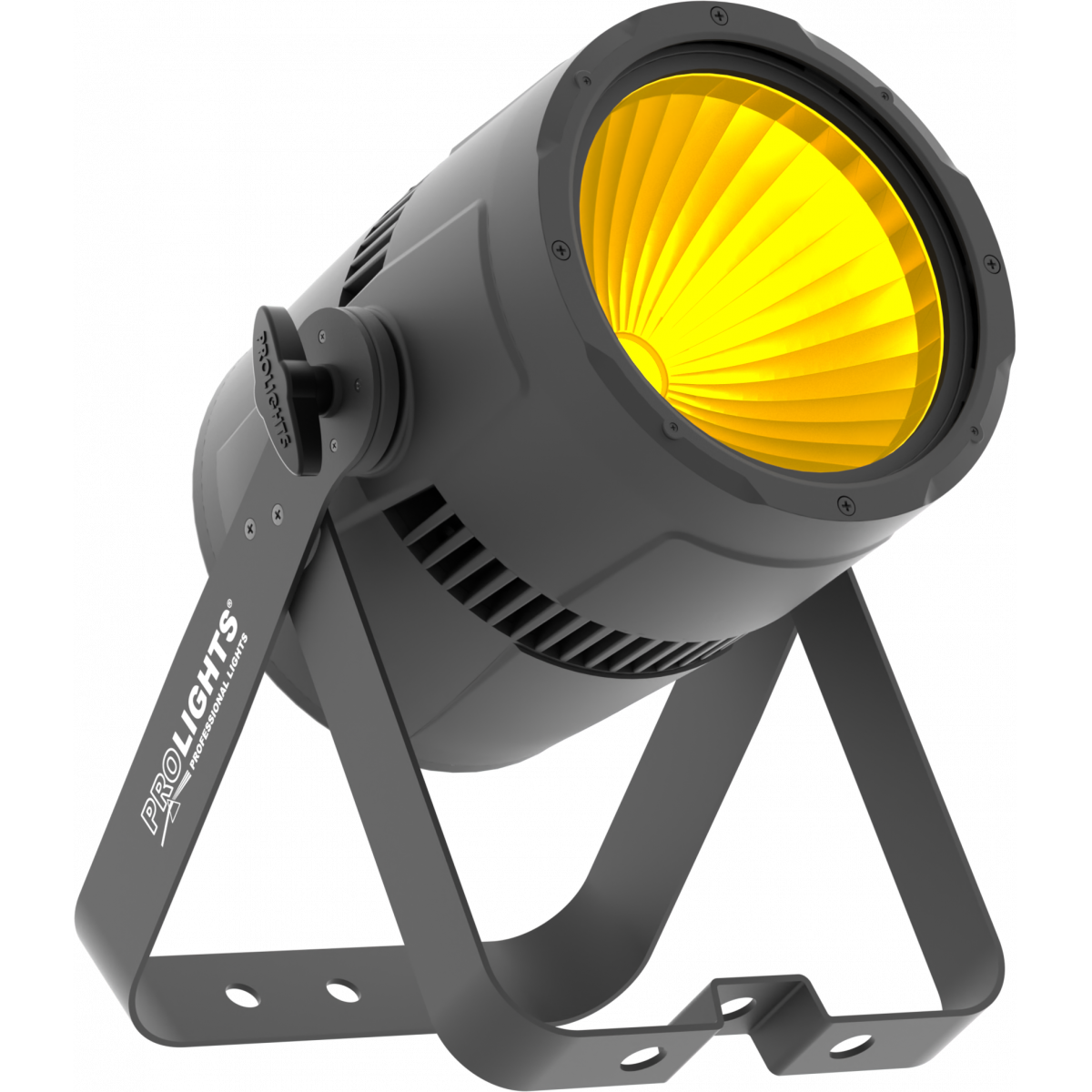

StudioCob FC

150W full colour COB PAR with parabolic reflector

StudioCob FC is a powerful, incredibly versatile and full colour LED PAR. Fusing the old and the new, it pairs a full colour COB LED source with a traditional parabolic reflector to deliver a proper Par replacement with a homogenised output, single shadow and flexible lens options.

Main features:

  • 150W full colour COB LED source with HD dimming and an extensive and even colour palette
  • Flexible lens options of 15° - 30° - 60°
  • Functional barn doors for beam control

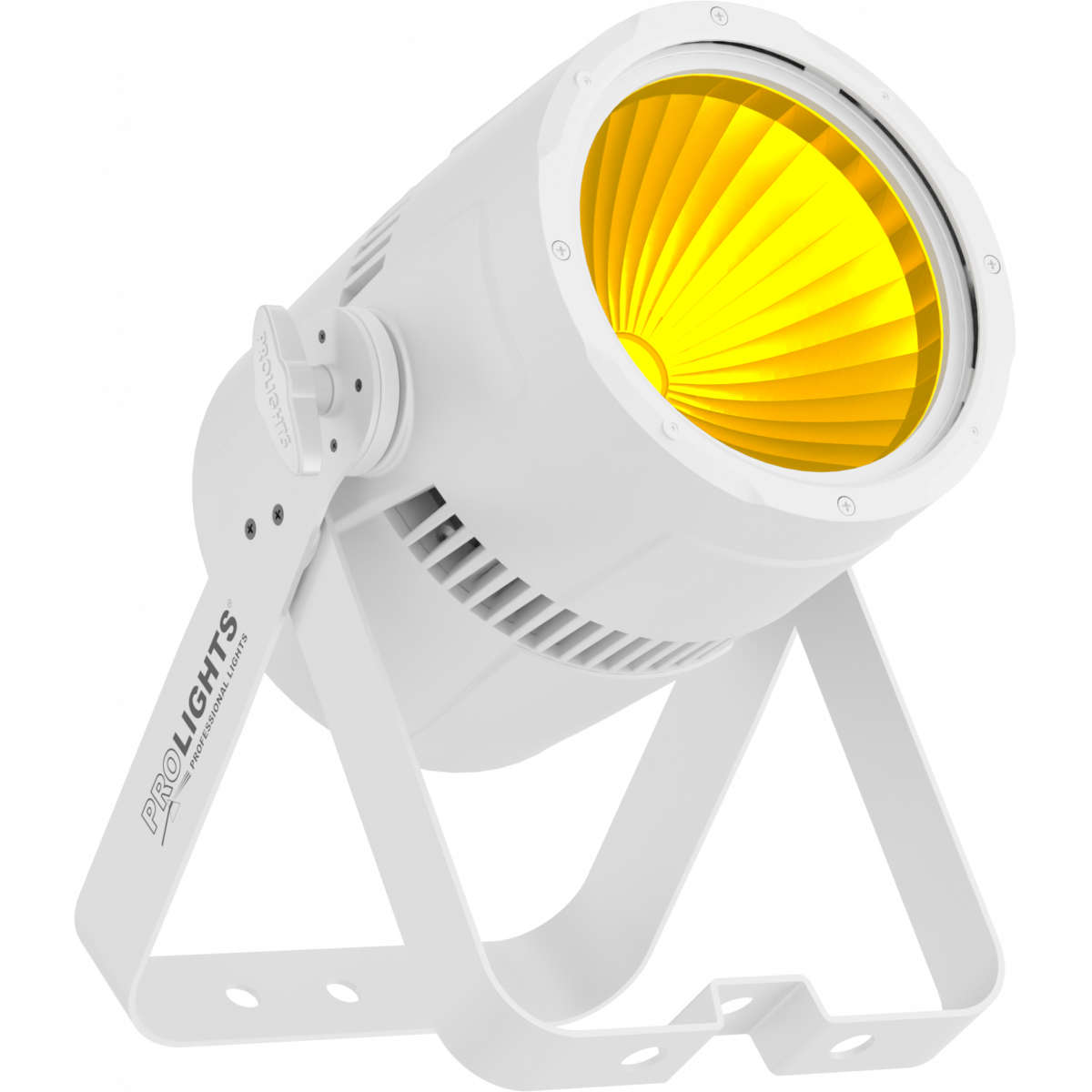

  • RAL9003 white housing

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 150W COB RGB / FC LED
  • Luminous flux: 3'682
  • Lux: (60°) 428lx @3 m full
  • Lux: (30°) 908lx @3 m full
  • Source life expectancy: > 30.000 hrs (L80B10 @Ta 25° C / 77° F)
OPTICS
  • Beam angle: 60°
  • Field angle: 80°
  • Lens type: parabolic reflector in combination with HD fresnel lens
  • Additional optics: 30° (inc) - 15° (opt)
COLOUR SYSTEM
  • Colour mixing: RGB / FC
  • Colour wheel: virtual colour wheel with macros
  • Macros: several pre-built macros with adjustable speed
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: black, mirror and white finishing available black
CONTROL
  • Protocols: DMX512
  • DMX channels: 3 / 5 / 8channel
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 28 Hz, electronic
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 145W
  • Max power consumption (at 120V): 145W
  • Output (at 230V): 12 units on a single power line
  • Power factor: 0,96
  • Inrush current: 110VAC/12.0A, 230VAC/19.4A
PHYSICAL
  • IP rating: 20
  • Cooling: active, silent operation
  • Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning

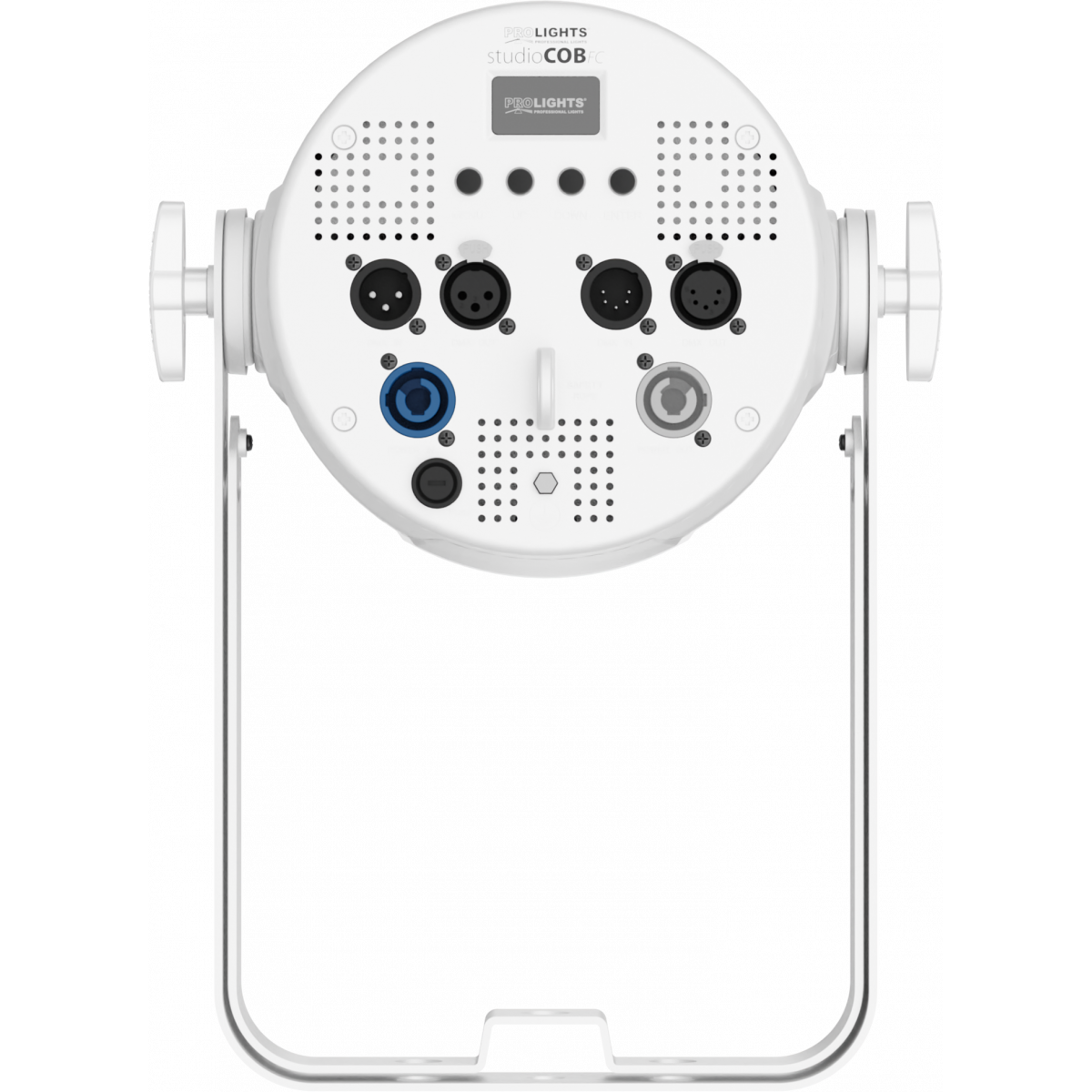

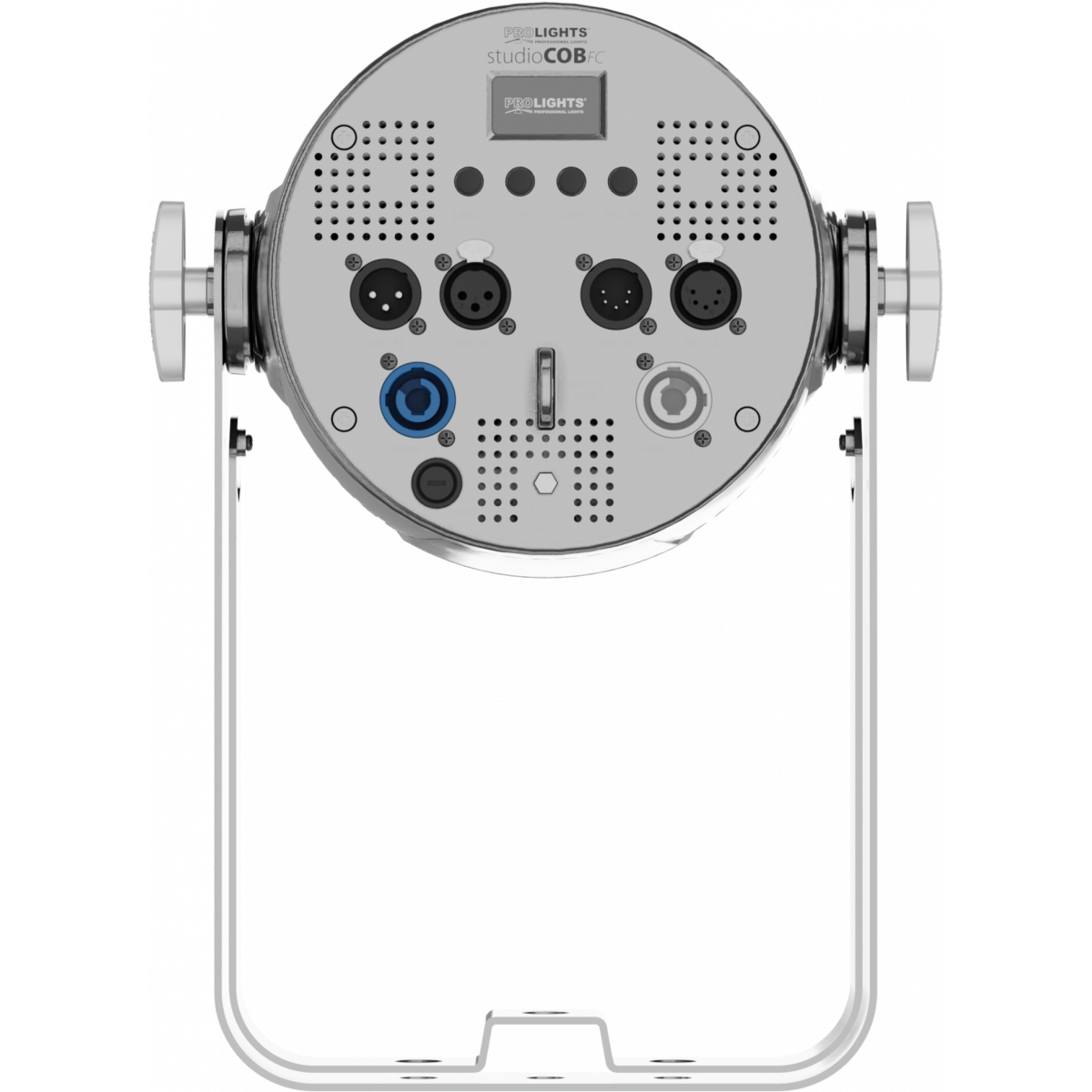

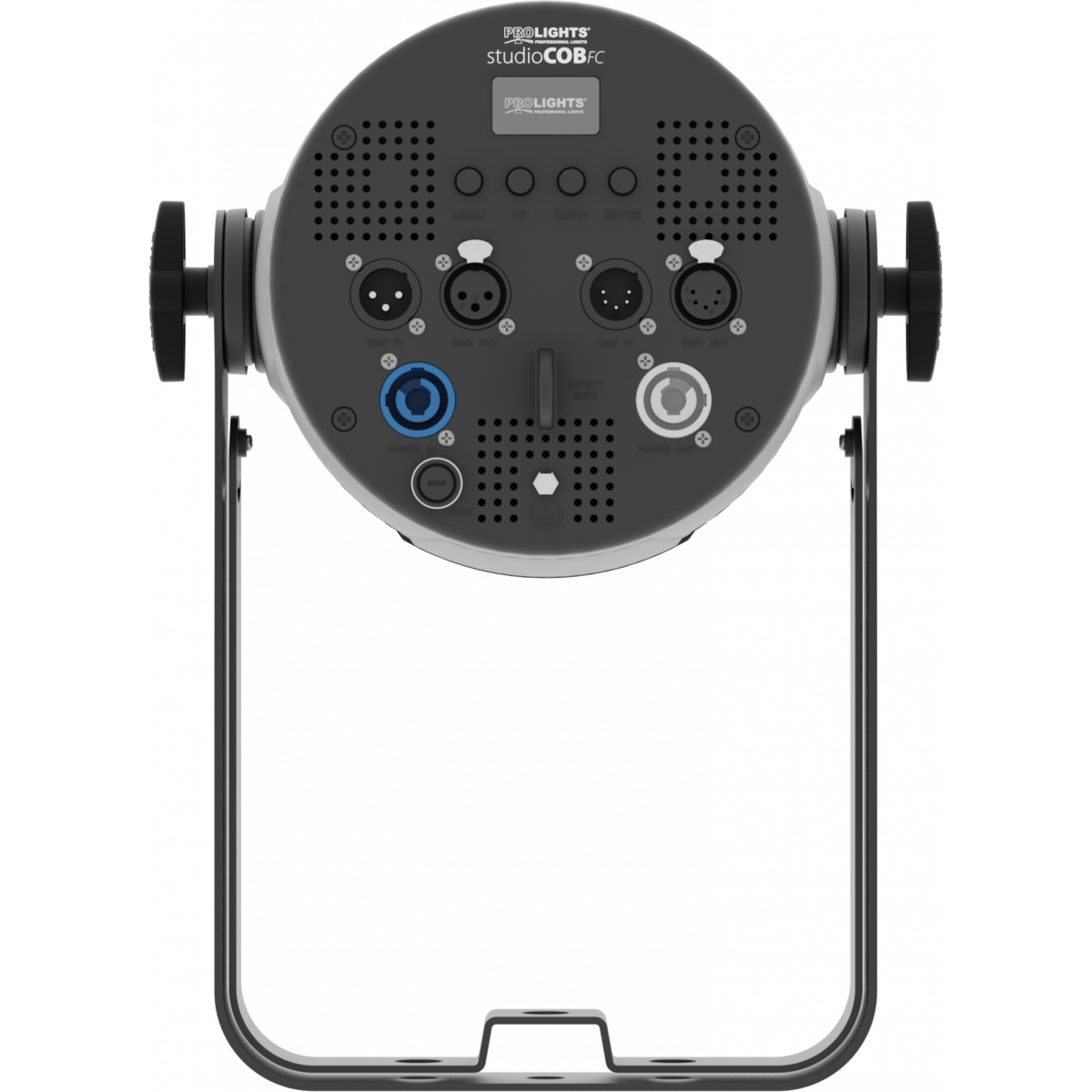

  • Signal connection: XLR 3p + 5p IN/OUT connectors
  • Power connection: Neutrik powerCON IN/OUT connectors
  • Dimensions (WxHxD): 262x190x371mm / 10.31''x7.48''x14.61''
  • Weight: 4,5kg / 9.92lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Code
Housing
STUDIOCOBFCBK
STUDIOCOBFCBK (END OF LIFE)
Black
STUDIOCOBFCCR
STUDIOCOBFCCR

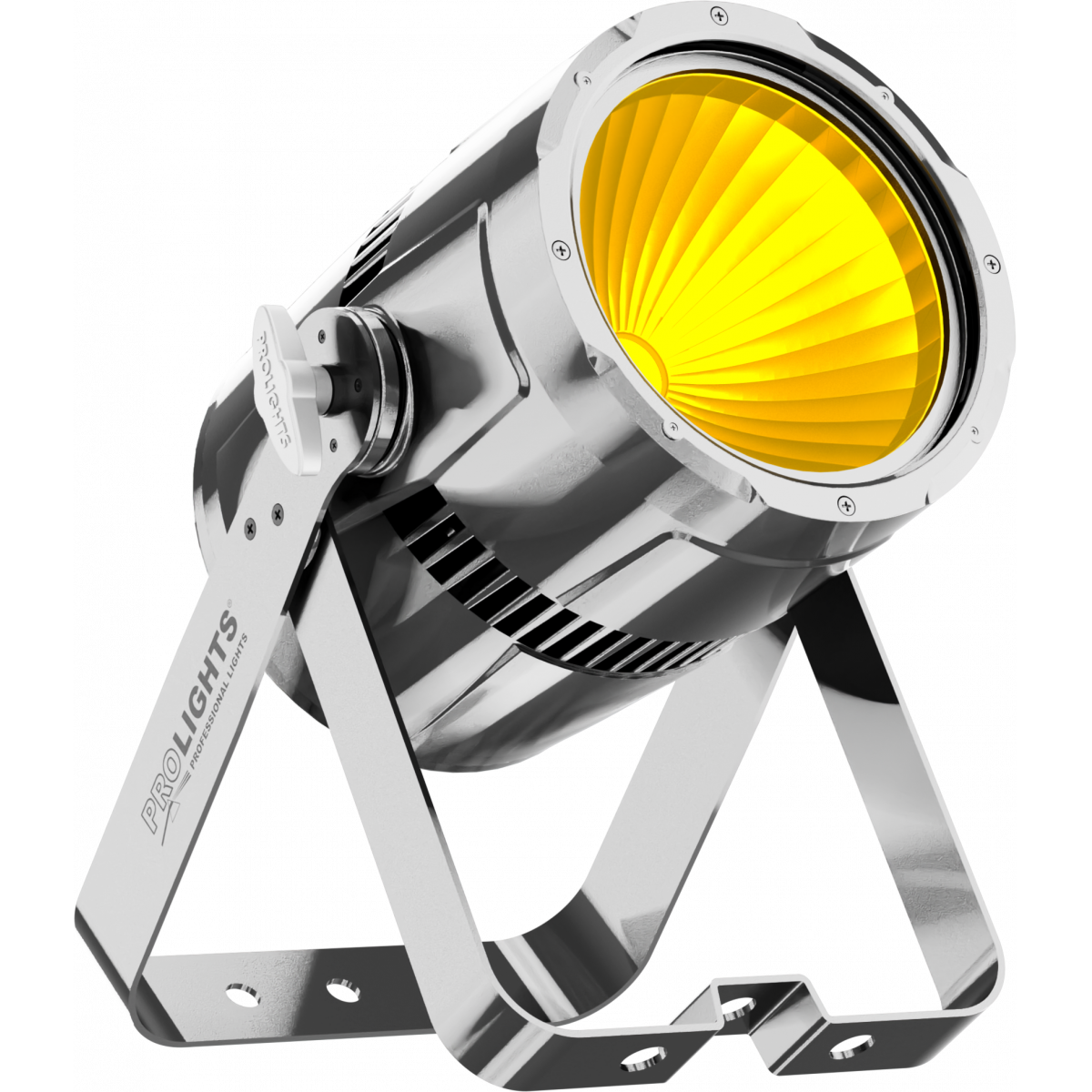

Chrome
STUDIOCOBFCWH
STUDIOCOBFCWH (DISCONTINUED)
White

Accessories & Related Products

C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
STUDIOCOBL30
STUDIOCOBL30
(included)
Optics for STUDIOCOB projectors series, 30°
TOUR53415L03
TOUR53415L03
(optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
TOUR53413L03
TOUR53413L03
(optional)
Dmx cable HC5340. CANC3MXX XLR 3p->CANC3FXX XLR (f) 3p, L.3m
958025L03
958025L03
(optional)
3x2.5mm TH07 Cable, 20A 3p PwCon FCA, 20A 3p PwCon FCB, L. 3m
9513FCAL03
9513FCAL03
(optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FCA socket, L.3m
9533FCAL03
9533FCAL03
(optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FCA socket, L.3m
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black

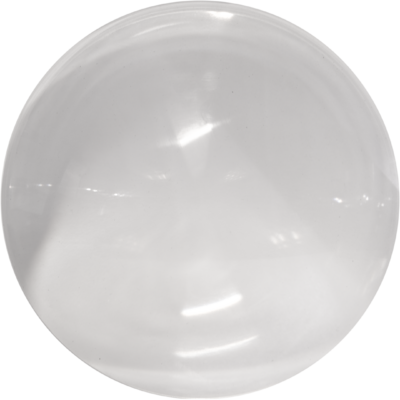

STUDIOCOBL15
STUDIOCOBL15
(optional)
Optics for STUDIOCOB projectors series, 15°

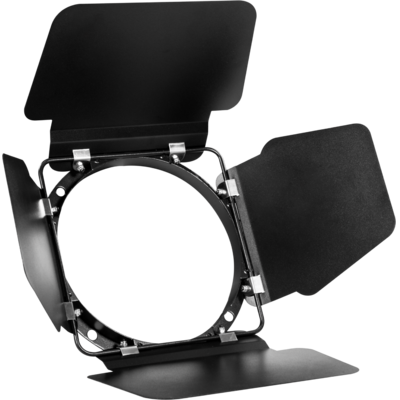

STUDIOCOBBD
STUDIOCOBBD
(optional)
Barn door 4 directional flaps to adjust the light beam, f. frame included

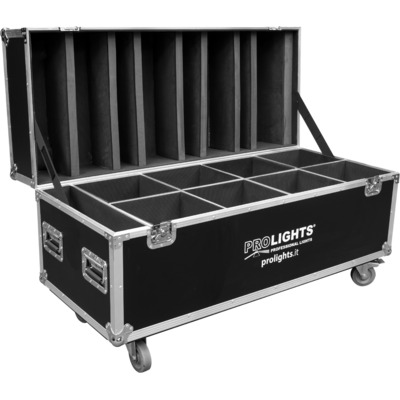

FCLPAR4190
FCLPAR4190
(optional)
Flight case for 8 STUDIOCOB, VERSAPAR

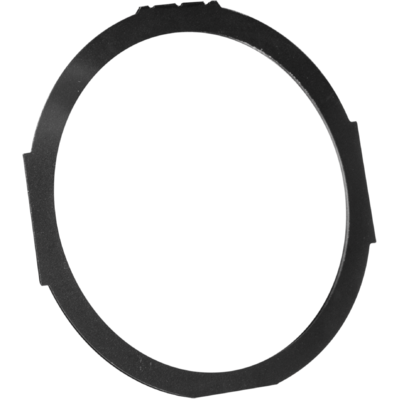

STUDIOCOBTPG
STUDIOCOBTPG
(optional)
Filter frame for STUDIOCOB projectors
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheet Studiocobfc_A4_DATASHEET_(EN).pdf 432KB
Letter datasheet Studiocobfc_A4_DATASHEET_(IT).pdf 416KB

User manual

File name File size Download
User manual Studiocobfc_USER_MANUAL_ITEN.pdf 4MB

DMX chart & personalities

STUDIOCOBFC Firmware rev. 3.1
manufacturer fixture library (Link) Link
prolights_studiocobfc.d4Download
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
studiocobfc_3ch.fdfDownload
studiocobfc_5ch.fdfDownload
studiocobfc_8ch.fdfDownload
studio cob fc_mode1.sslDownload
studio cob fc_mode2.sslDownload
studio cob fc.ssl2Download
manufacturer fixture library (Link) Link
prolights@studio_cob_fc@3_channel@initial.xmlpDownload
prolights@studio_cob_fc@5_channel@initial.xmlpDownload
prolights@studio_cob_fc@8_channel@initial.xmlpDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
studio cob fc 3 channel.fix2Download
studio cob fc 5 channel.fix2Download
studio cob fc 8 channel.fix2Download
manufacturer fixture library (Link) Link
STUDIOCOBFC Firmware rev. 2.1
manufacturer fixture library (Link) Link
prolights_studiocobfc.d4Download
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
studiocobfc_3ch.fdfDownload
studiocobfc_5ch.fdfDownload
studiocobfc_8ch.fdfDownload
studio cob fc_mode1.sslDownload
studio cob fc_mode2.sslDownload
studio cob fc.ssl2Download
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
studio cob fc 3 channel.fix2Download
studio cob fc 5 channel.fix2Download
studio cob fc 8 channel.fix2Download
manufacturer fixture library (Link) Link

Tech docs

File name File size Download

Software

File name File size Download

Firmware

Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOX1UP5 UPBOX1UP5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
3.3 STABLE 13/06/2022 Firmware for units with fan different from SUNON.
  • Improved fan management in HIGH fan mode
3.2 STABLE 11/09/2021 Firmware for units with fan different from SUNON.
  • Improved Standalone mode operation (Auto/Static). Until you will not set any Auto or Static on the unit, when DMX signal will be lost, the unit will hold the last
    DMX frame received. If you set an Auto or Staic on the unit, when DMX signal will be lost, the unit will return on selected Auto or Static.
2.2 STABLE 11/09/2021 Firmware for units with SUNON fan.
  • Improved Standalone mode operation (Auto/Static). Until you will not set any Auto or Static on the unit, when DMX signal will be lost, the unit will hold the last DMX frame received. If you set an Auto or Staic on the unit, when DMX signal will be lost, the unit will return on selected Auto or Static.
3.1 STABLE 01/07/2019 Firmware for units with fan different from SUNON.
  • Changed the name of the unit showed on the display to STUDIOCOBFC.
Rev. 1.0
2.1 STABLE 01/07/2019 Firmware for units with SUNON fan.
  • Changed the name of the unit showed on the display to STUDIOCOBFC.
Rev. 2
