StudioCob PlusTW

165W IP65 rated Tunable White COB LED PAR

StudioCob PlusTW is a powerful, incredibly versatile and IP65 rated LED PAR. Fusing the old and the new, it pairs a COB LED source with a traditional parabolic reflector to deliver a proper PAR replacement with a homogenised output, single shadow and flexible lens options.

Main features:

  • IP65 rated connectors for easy use both indoor and outdoor
  • 165W Tunable White COB LED source with HD dimming and high CRI
  • Flexible lens options of 18° - 38° - 60°
See variants

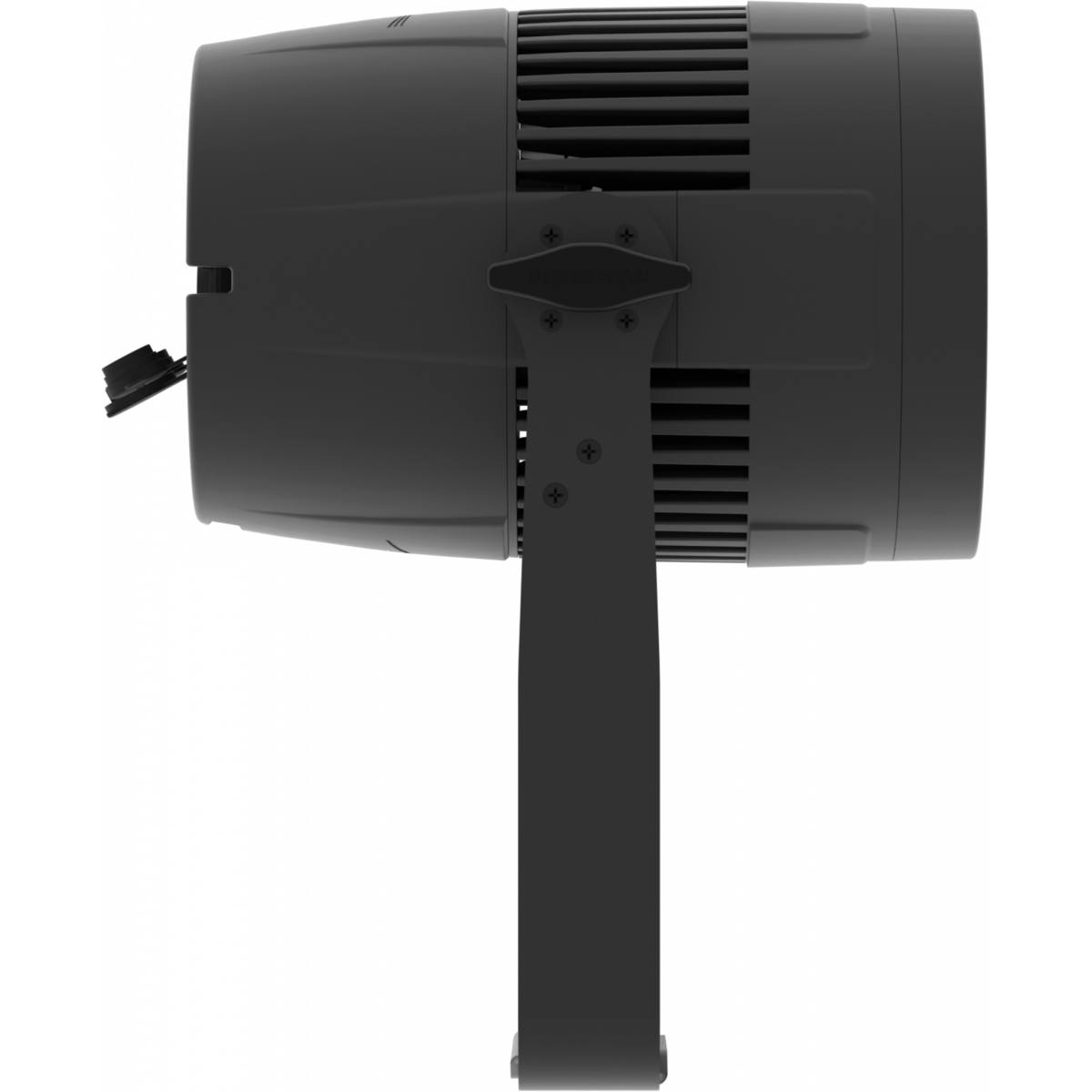

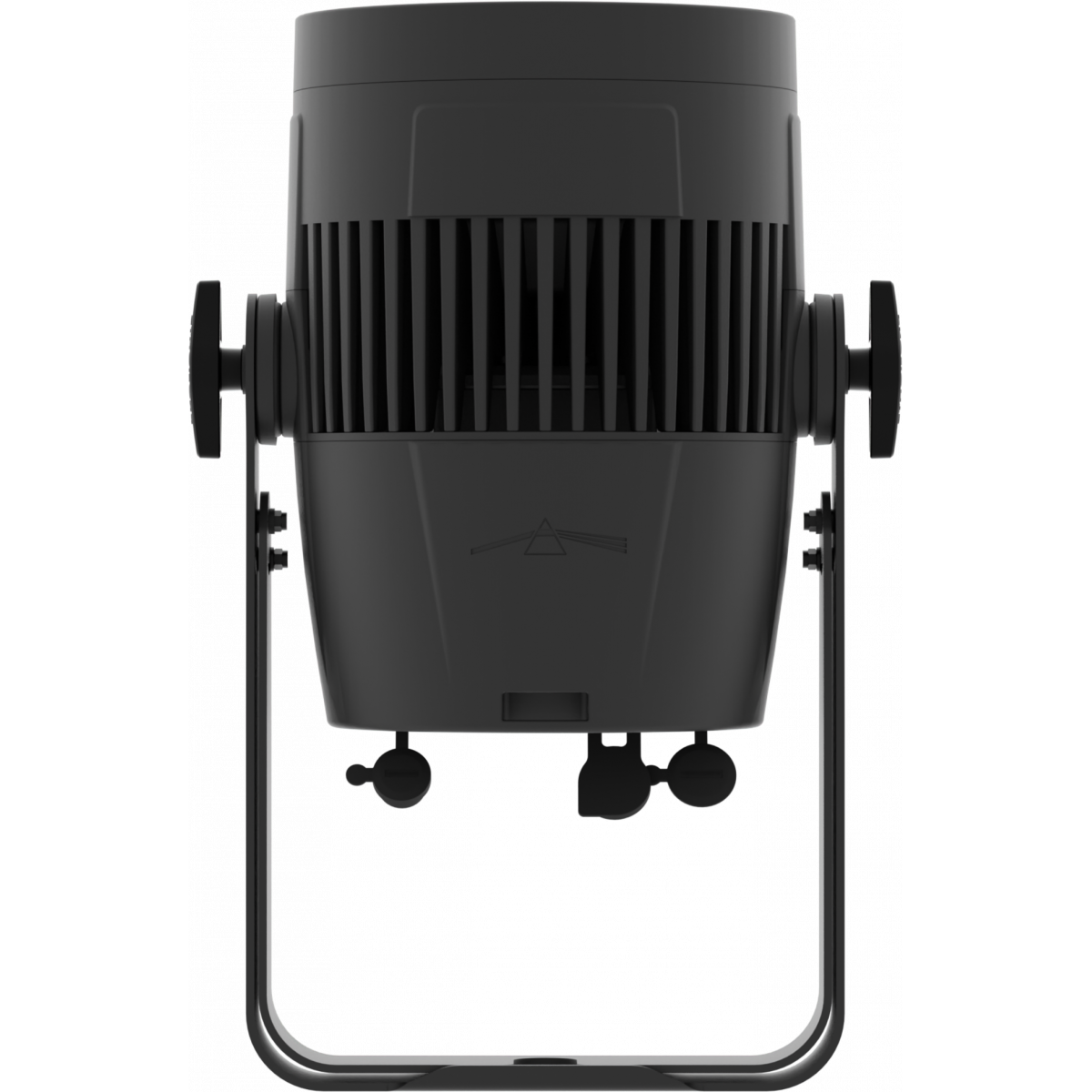

PHOTO GALLERY

StudioCob PlusTW
StudioCob PlusTW
StudioCob PlusTW
StudioCob PlusTW
StudioCob PlusTW

Technical specifications

LIGHT SOURCE
  • Source: 155W Tunable White LED
  • CCT: WW 3.200K - CW 7'500K - NW 5'000
  • Luminous flux: (20°) 3'809 - (36°) 3'510
  • Lux: (20°) WW 957 lx - CW 1'462 lx - NW 2'312lx @3 m
  • Lux: (34°) WW 331 lx - CW 434 lx - NW 732lx @3 m
  • CRI: WW / CW > 95
  • Source life expectancy: > 30.000 h
OPTICS
  • Beam angle: (on-board) 18° - (inc) 38° - (opt) 60°
  • Field angle: (on-board) 31° - (inc) 70°
  • Lens type: parabolic reflector in combination with HD fresnel lens
  • Additional optics: flood (without lens) - 38° (inc)
COLOUR SYSTEM
  • Colour mixing: tunable white
  • CCT: CCT control through dedicated DMX channel
  • White presets: 3.200 K ~ 7.500K
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of dimmer and strobe
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: black, white finishing available
CONTROL
  • Protocols: DMX512, RDM
  • DMX channels: 2 / 4 / 7channel
  • RDM: RDM for remote monitoring and settings
  • Display: black OLED touch display
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 28 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -20° ~ +45° Ta
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 157W
  • Output (at 230V): 25 units on a single power line
  • Power factor: > 0,97
PHYSICAL
  • IP rating: 65 for temporary outdoor application, not for fixed installations
  • Cooling: active, silent operation
  • Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning

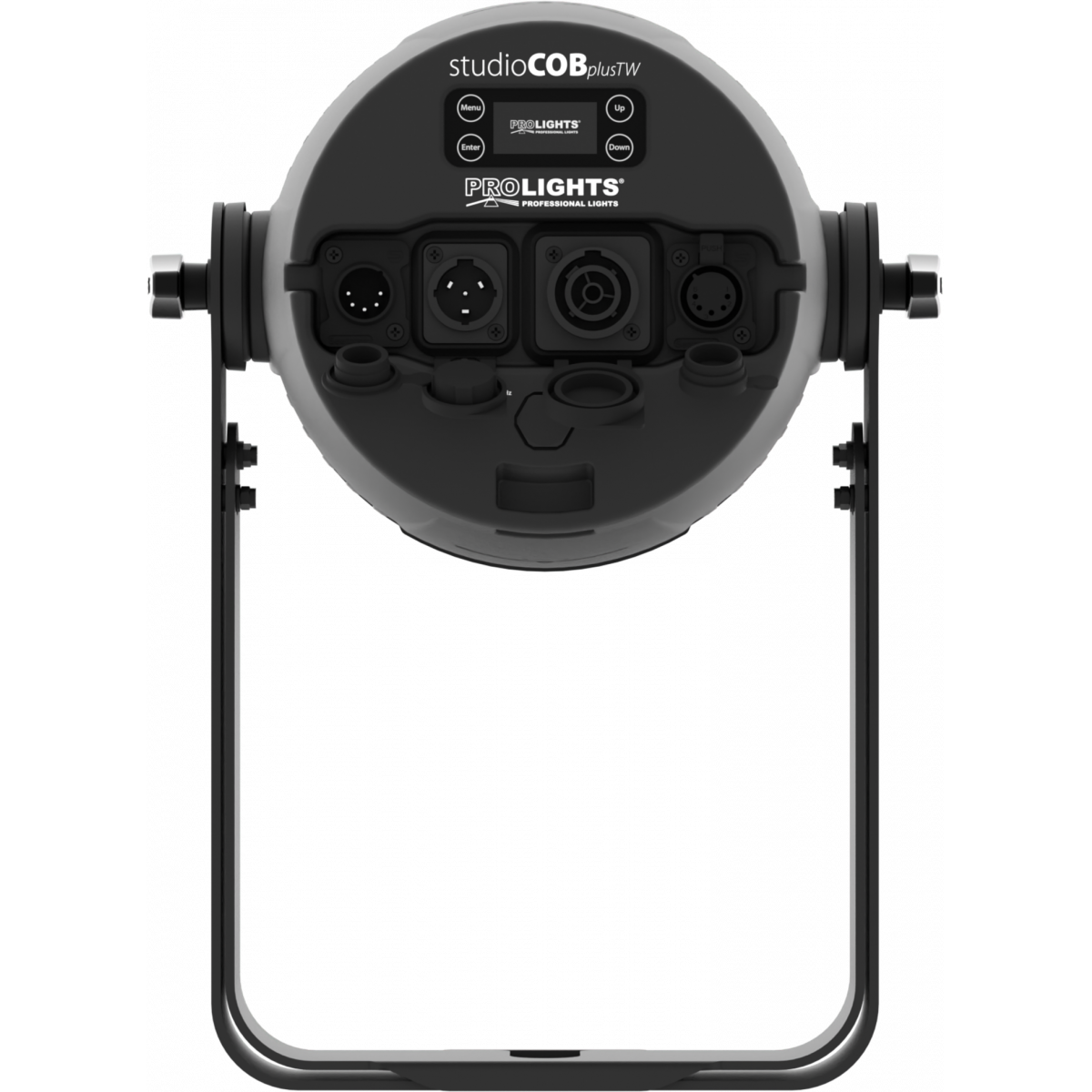

  • Signal connection: Seetronic XLR 5p IN/OUT connectors
  • Power connection: Seetronic powerCON waterproof IN/OUT connectors
  • Dimensions (WxHxD): 259x187x370mm / 10.2''x7.36''x14.57''
  • Weight: 4,9kg / 10.8lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Code
Housing

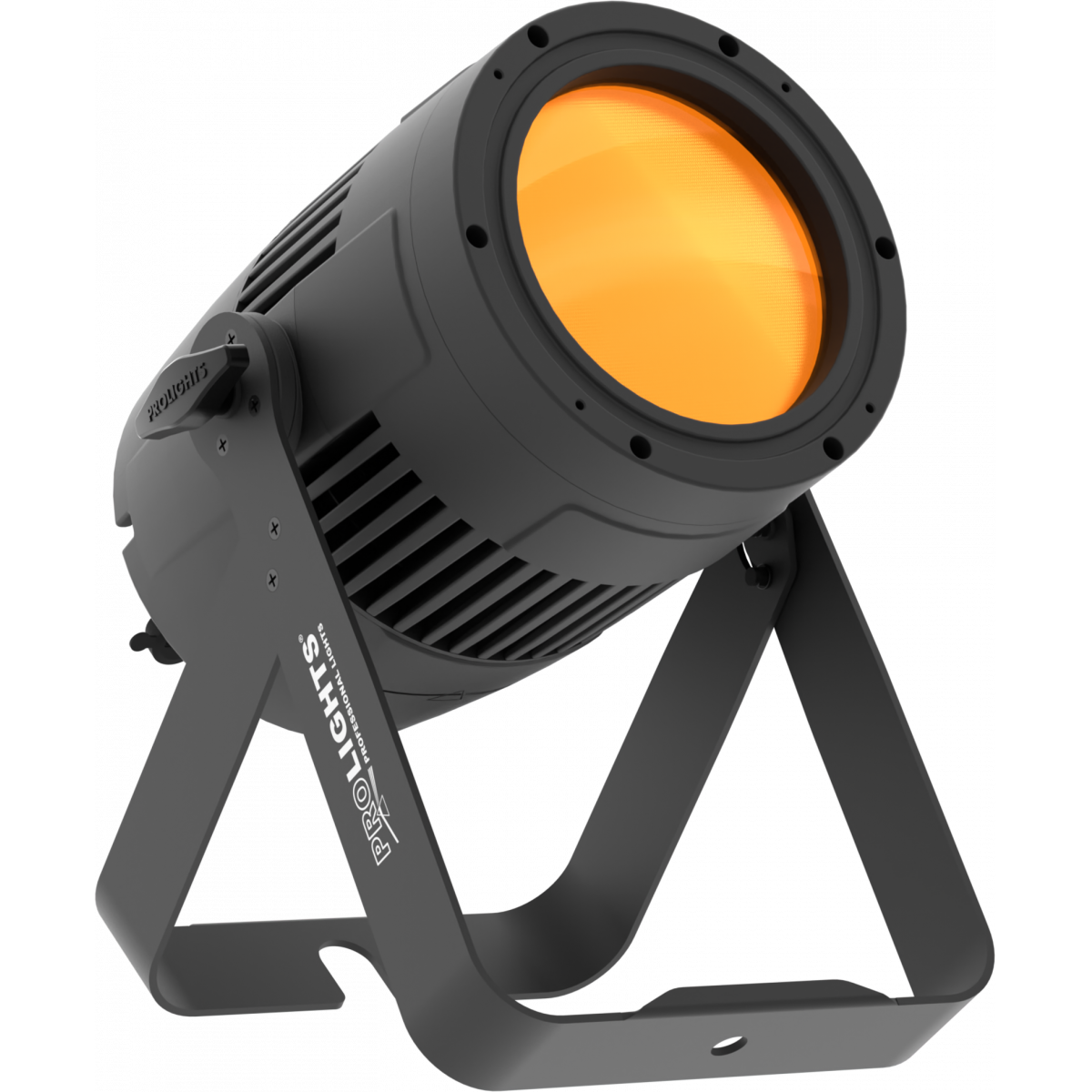

STUDIOCOBPLUSTWBK
STUDIOCOBPLUSTWBK
Black

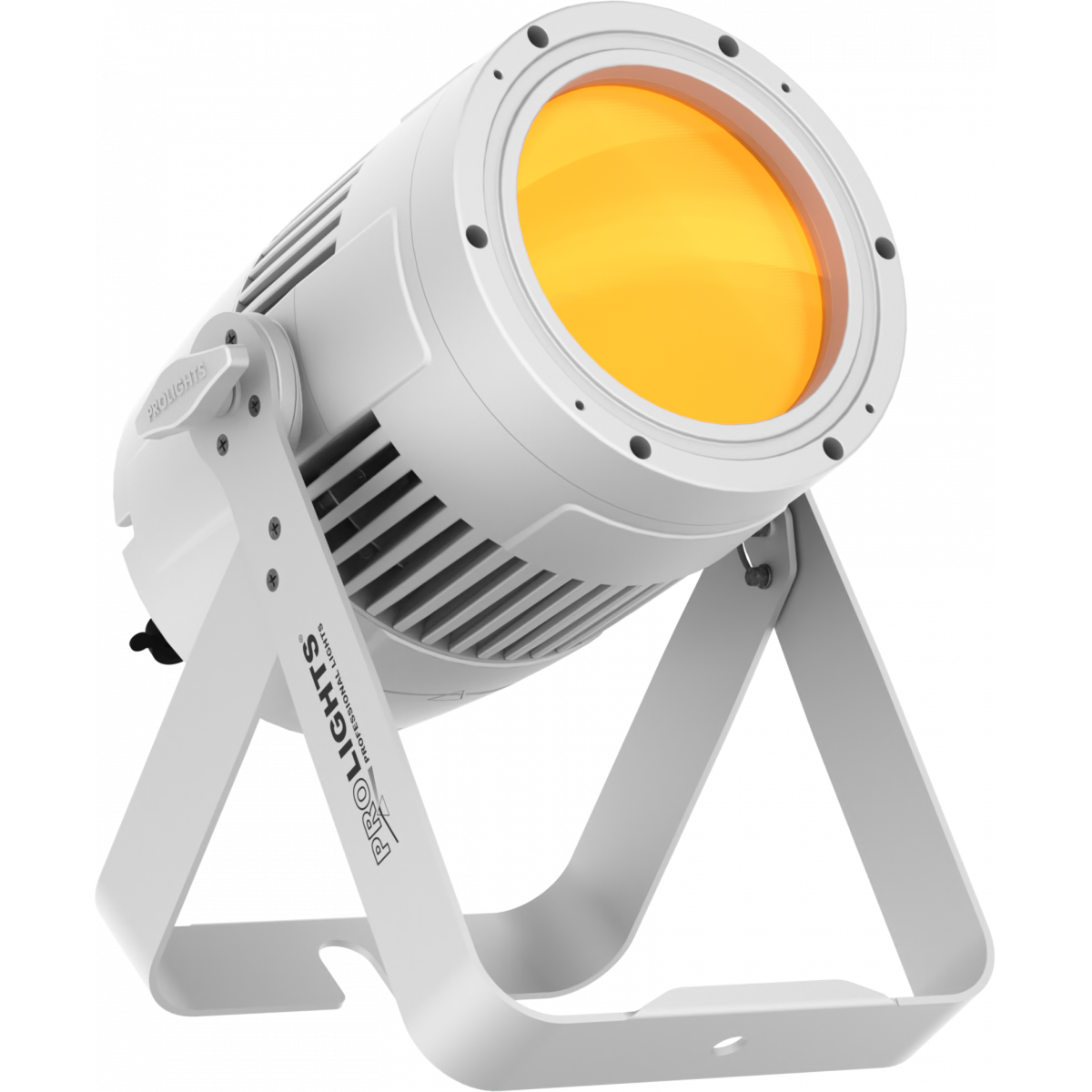

STUDIOCOBPLUSTWWH
STUDIOCOBPLUSTWWH (END OF LIFE)
White

Accessories & Related Products

C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
STUDIOCOBTPG
STUDIOCOBTPG
(Optional)
Filter frame for STUDIOCOB projectors
STUDIOCOBPLUSL60
STUDIOCOBPLUSL60
(Optional)
Optics for STUDIOCOBLUS projectors series, 60°
STUDIOCOBBD
STUDIOCOBBD
(Optional)
Barn door 4 directional flaps to adjust the light beam, f. frame included
FCLCOBPLUS
FCLCOBPLUS
(Optional)
Flight case for 8 STUDIOCOBPLUS
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetStudiocobplustw_LETTER_DATASHEET_(EN).pdf461KB
Letter datasheetStudiocobplustw_A4_DATASHEET_(EN).pdf450KB

User manual

File name File size Download
User manualStudiocobplustw_USER_MANUAL_ITEN.pdf2MB

DMX chart & personalities

File name File size Download
DMX chartStudiocobplustw_DMX_CHARTS.pdf47KB
STUDIOCOBPLUSTW Firmware rev. 2.9
manufacturer fixture library (Link) Link
prolights_studiocobplustw.d4Download
manufacturer fixture library (Link) Link
prolights_studiocobplustw_7_ch.fdfDownload
prolights_studiocobplustw_4_ch.fdfDownload
prolights_studiocobplustw_2_ch.fdfDownload
manufacturer fixture library (Link) Link
prolights_studiocobplustw_ma2.zipDownload
manufacturer fixture library (Link) Link
studio cob plus tw 2 channel.fix2Download
studio cob plus tw 4 channel.fix2Download
studio cob plus tw 7 channel.fix2Download
manufacturer fixture library (Link) Link
STUDIOCOBPLUSTW Firmware rev. 2.6
manufacturer fixture library (Link) Link
prolights_studiocobplustw.d4Download
manufacturer fixture library (Link) Link
prolights_studiocobplustw_7_ch.fdfDownload
prolights_studiocobplustw_4_ch.fdfDownload
prolights_studiocobplustw_2_ch.fdfDownload
manufacturer fixture library (Link) Link
prolights_studiocobplustw_ma2.zipDownload
manufacturer fixture library (Link) Link
studio cob plus tw 2 channel.fix2Download
studio cob plus tw 4 channel.fix2Download
studio cob plus tw 7 channel.fix2Download
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D RFAStudiocobplustwbk_3D.rfa1MB
3D SKPStudiocobplustw_3D.skp2MB
2DStudiocobplustw_CAD_2D.dwg5MB
2D cad symbolsStudiocobplustwbk_CAD_2DSYMBOLS.dwg66KB
3DSTUDIOCOBPLUSTW_3D.zip1MB
Technical drawingStudiocobplustw_TECHNICAL_DRAWING.pdf226KB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB
VectorWorksSTUDIOCOBPLUSTW_SYMBOLS.zip1MB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
2.9 STABLE 31/10/2023 Improvement:
  • Increased to 65535 the maximum working hours of the device.
 Rev. 1
Rev. 2
Rev. 1.0
Rev. 3
2.6 STABLE 19/01/2022 Improvements:
  • Changed KEY LOCK on OFF as default.
