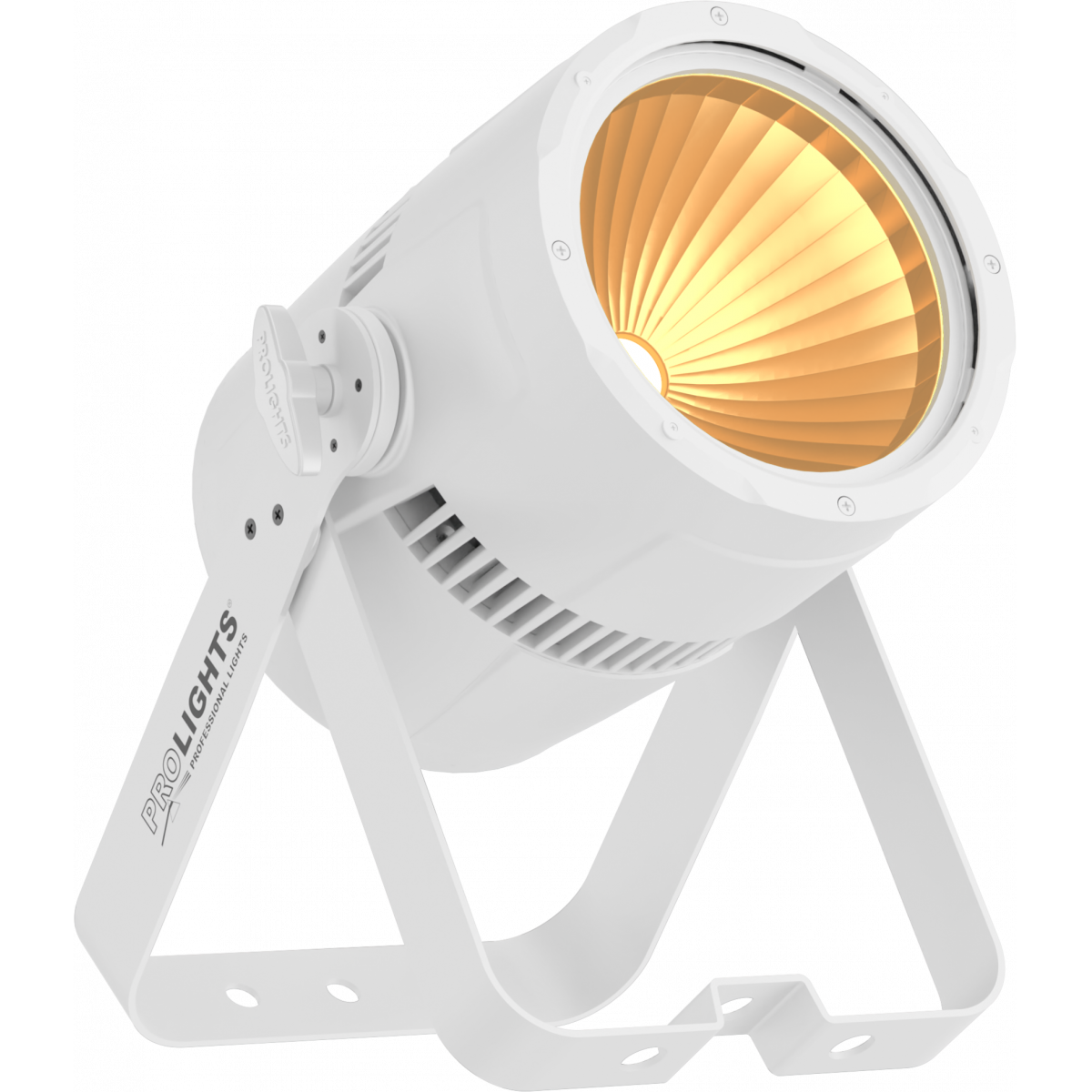

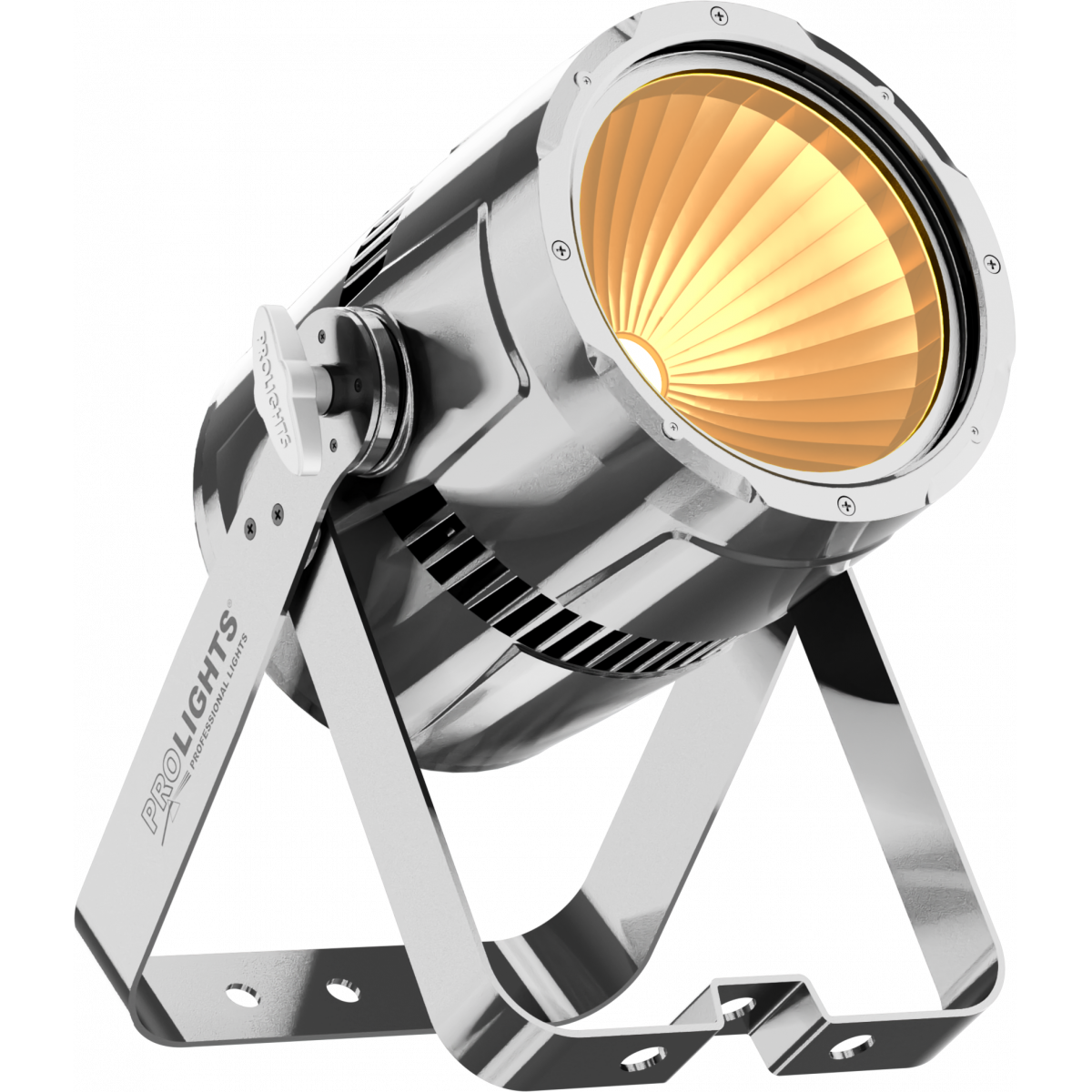

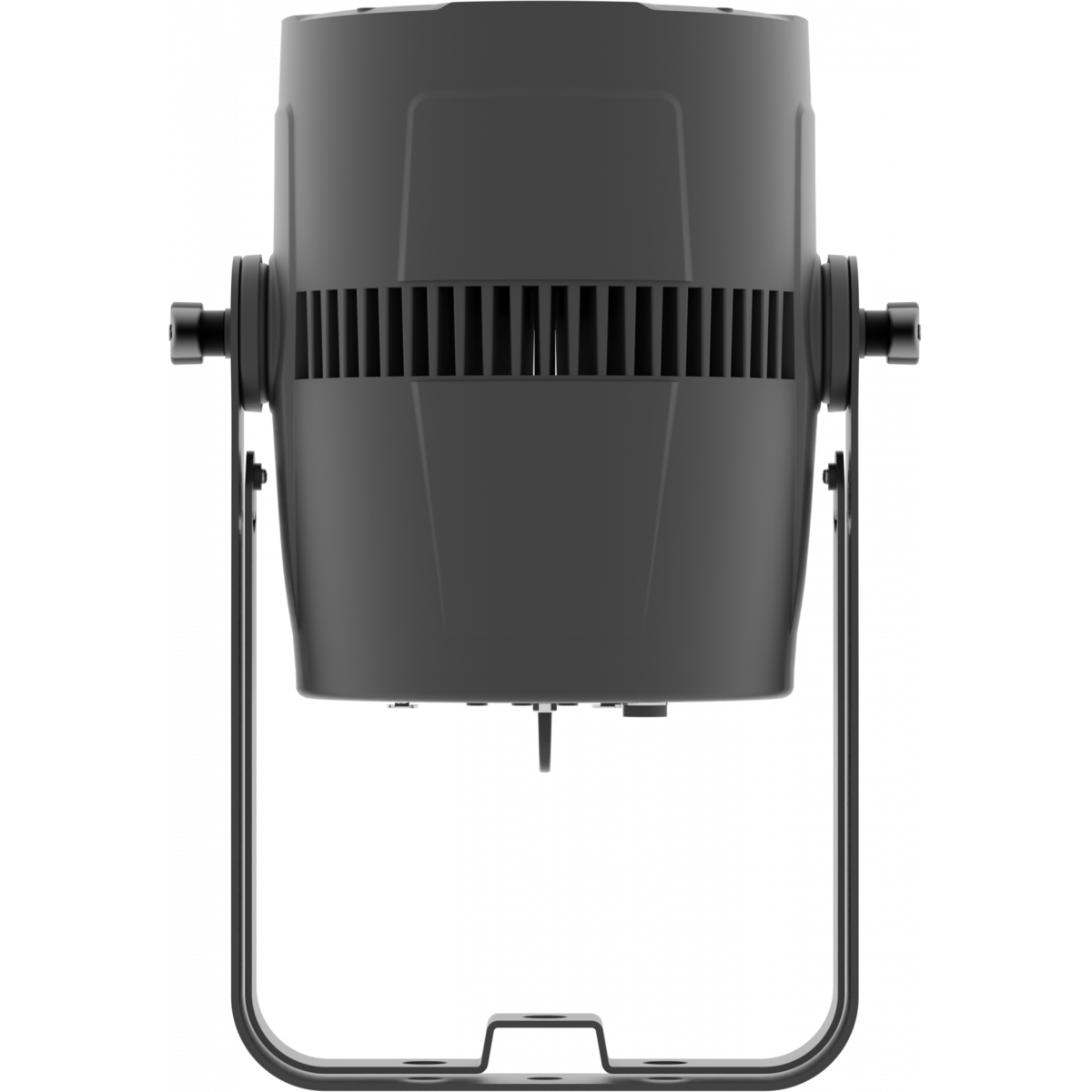

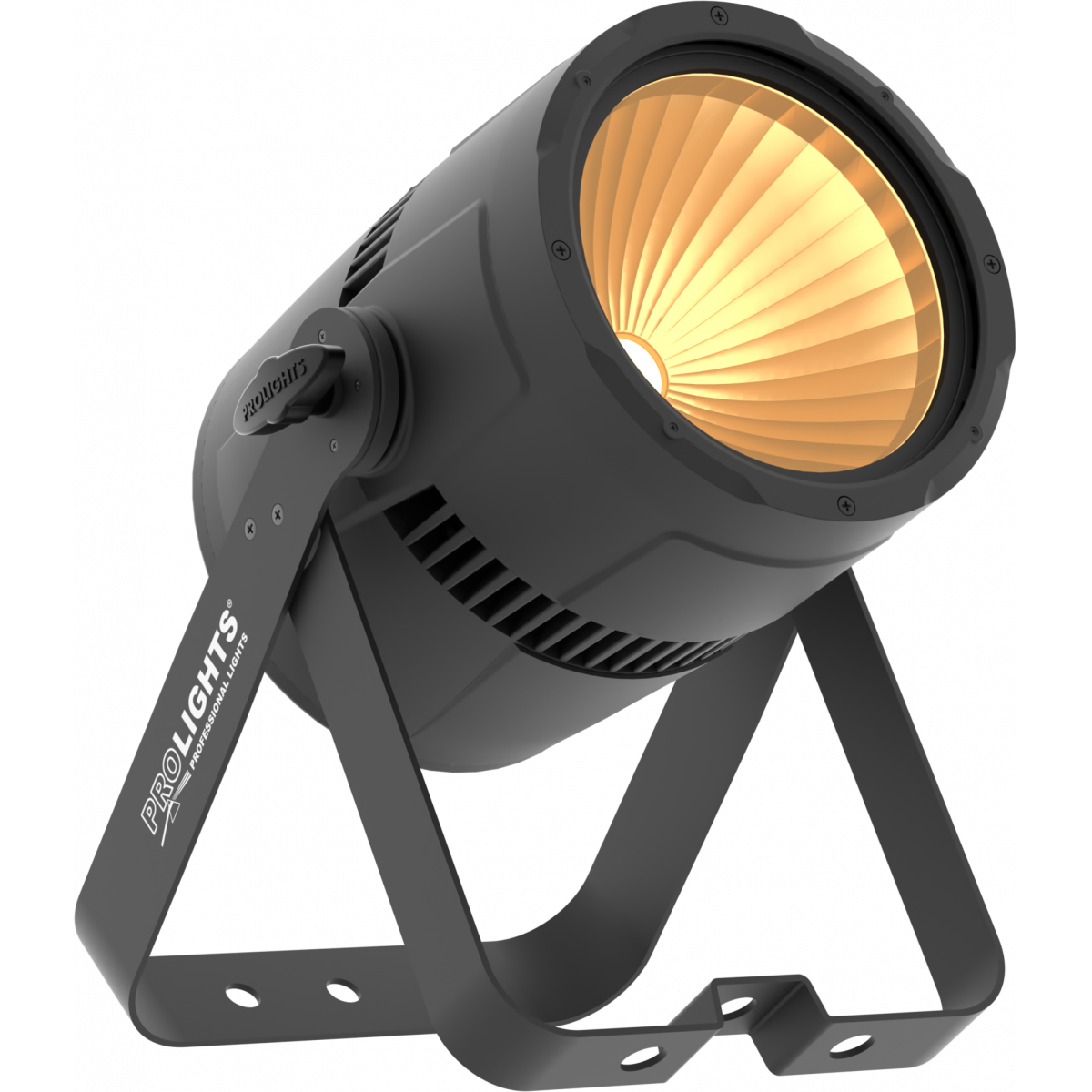

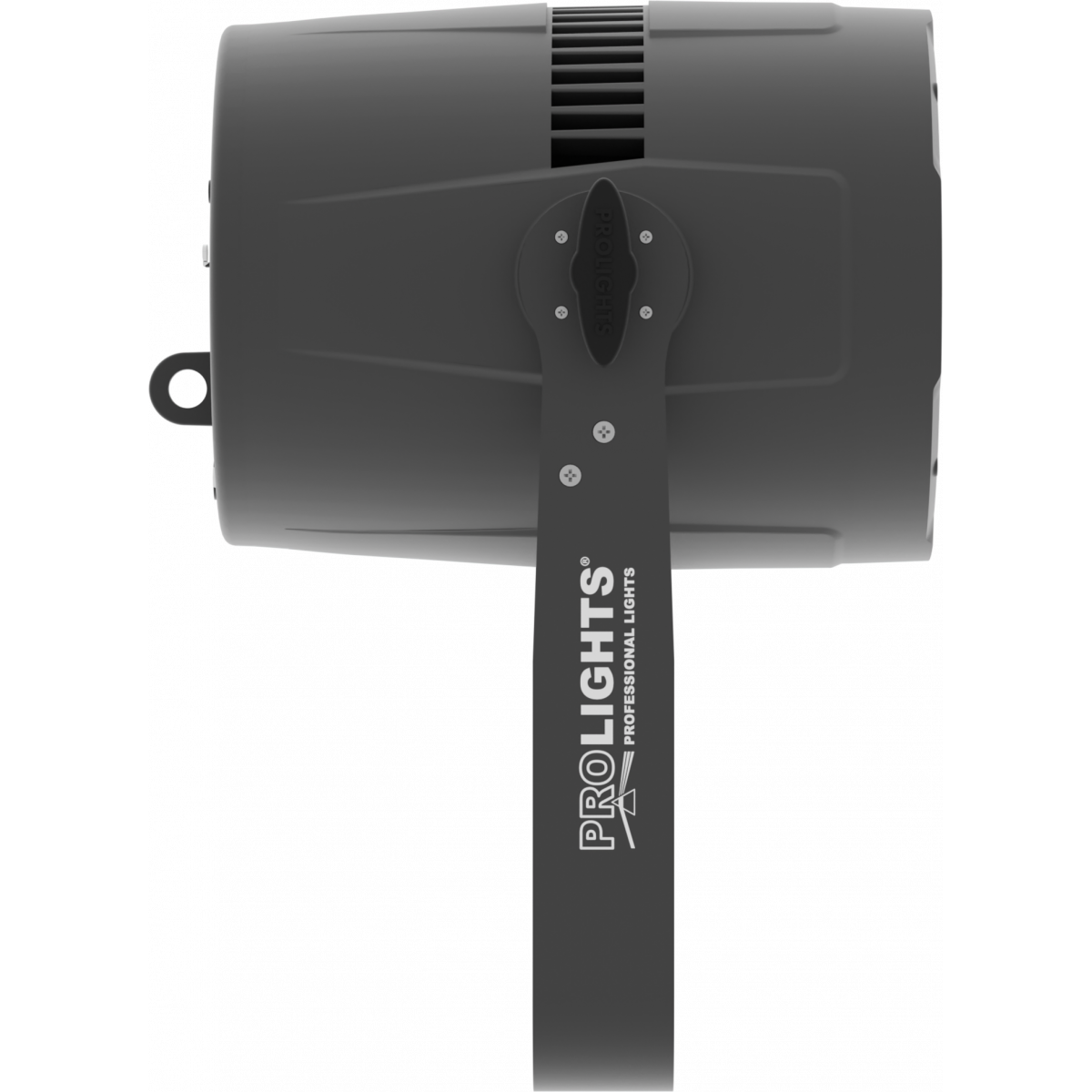

StudioCob TU

100W Tungsten White COB PAR with parabolic reflector

StudioCob TU is a powerful and incredibly versatile LED PAR. Fusing the old and the new, it pairs a 3.100 K COB LED source with a traditional parabolic reflector to deliver a proper PAR replacement with a homogenised output, single shadow and flexible lens options.

Main features:

  • 100W 3.100 K COB LED source with HD dimming and a high CRI
  • Flexible lens options of 15° - 30° - 60°
  • Functional barn doors for beam control
See variants

PHOTO GALLERY

StudioCob TU
StudioCob TU
StudioCob TU
StudioCob TU
StudioCob TU
StudioCob TU
StudioCob TU
StudioCob TU

Technical specifications

LIGHT SOURCE
  • Source: 100W high-power white LED
  • CCT: 3.100
  • Luminous flux: 6'697lm
  • Lux: (60°) 666lx @3 m
  • Lux: (30°) 1'540lx @3 m
  • CRI: 92
  • R9: 57
  • TLCI: 88
  • TM30 Rf: 90
  • TM30 Rg: 101
  • Other:
  • Source life expectancy: > 30.000 h
OPTICS
  • Beam angle: 65°
  • Field angle: 96°
  • Lens type: parabolic reflector in combination with HD fresnel lens
  • Additional optics: 30° (inc) - 15° (opt)
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of dimmer and strobe
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: black, mirror and white finishing available
CONTROL
  • Protocols: DMX512
  • DMX channels: 1 / 2 / 5channel
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 28 Hz, electronic
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 107W
  • Output (at 230V): 12 units on a single power line
  • Power factor: 0,94
PHYSICAL
  • IP rating: 20
  • Cooling: active, silent operation
  • Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning

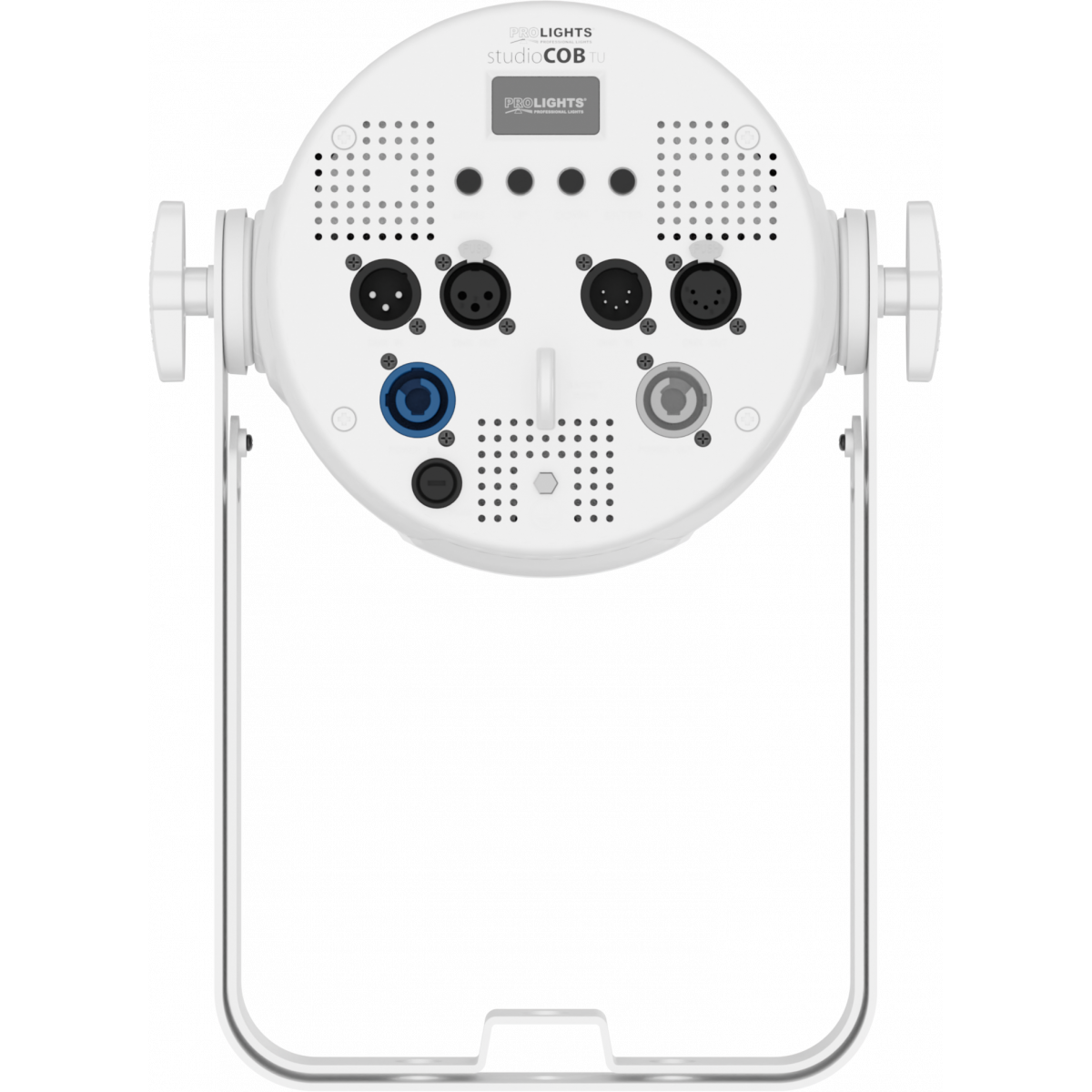

  • Signal connection: XLR 3p + 5p IN/OUT connectors
  • Power connection: Neutrik powerCON IN/OUT connectors
  • Dimensions (WxHxD): 262x190x371mm / 10.31''x7.48''x14.61''
  • Weight: 4,5kg / 9.92lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Code
Housing

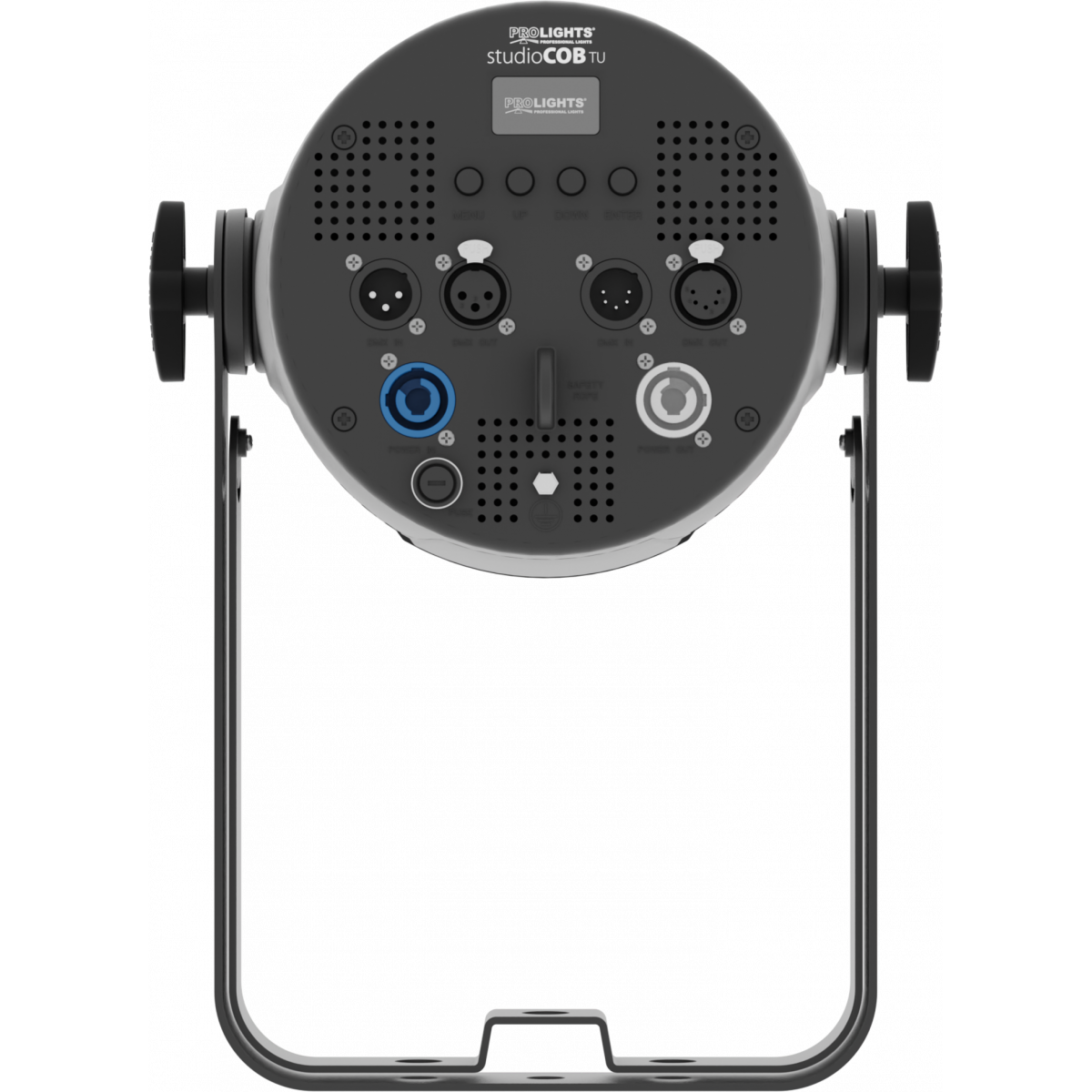

STUDIOCOBTUBK
STUDIOCOBTUBK
Black

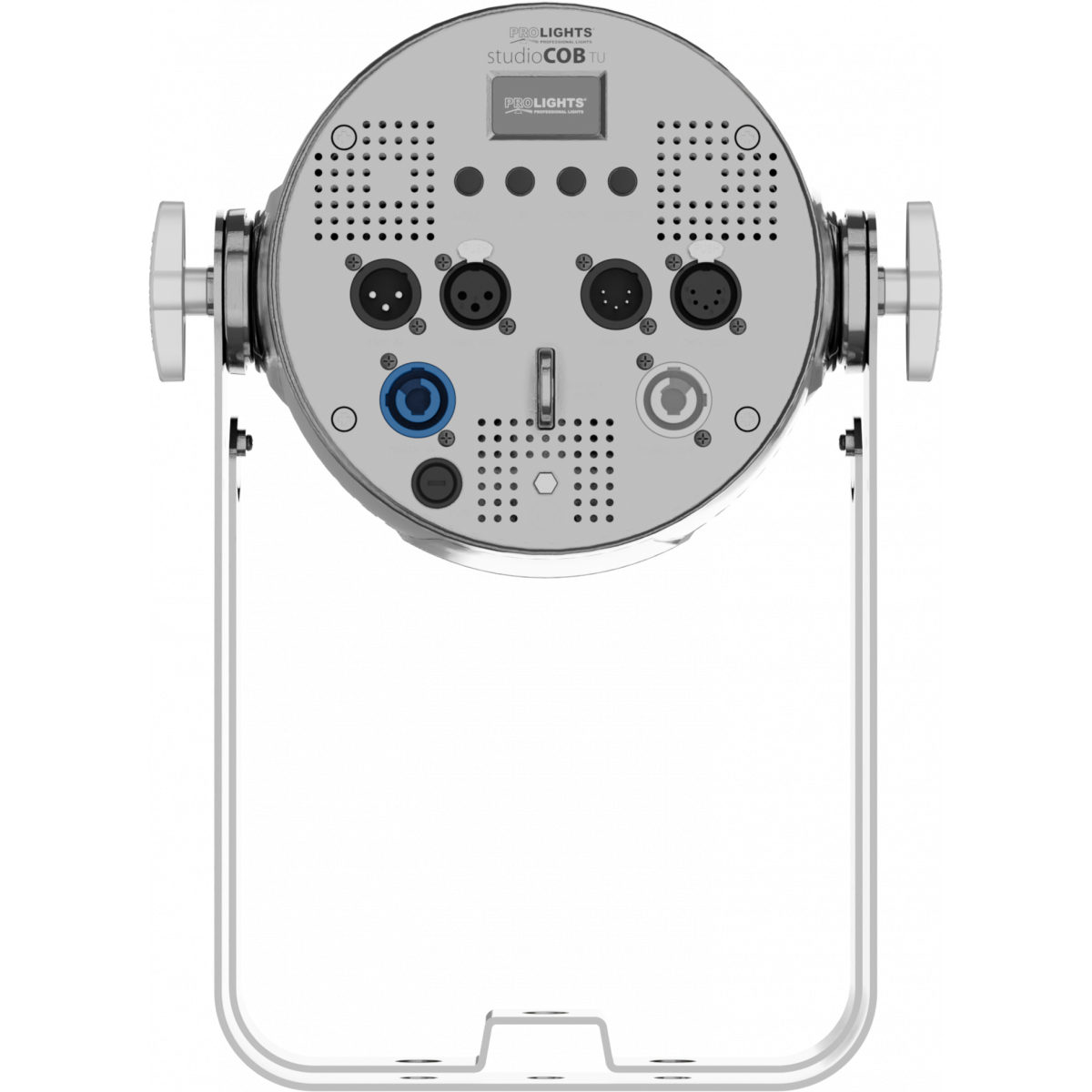

STUDIOCOBTUCR
STUDIOCOBTUCR (END OF LIFE)
Chrome
STUDIOCOBTUWH
STUDIOCOBTUWH (DISCONTINUED)
White

Accessories & Related Products

C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
TOUR53415L03
TOUR53415L03
(optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m

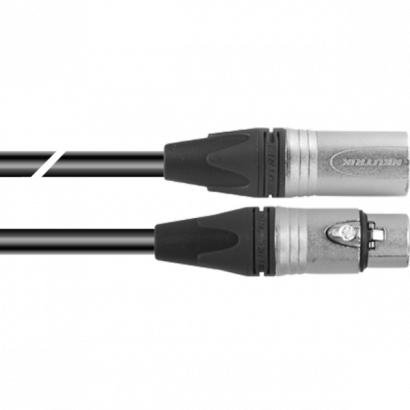

TOUR53413L03
TOUR53413L03
(optional)
Dmx cable HC5340. CANC3MXX XLR 3p->CANC3FXX XLR (f) 3p, L.3m
958025L03
958025L03
(optional)
3x2.5mm TH07 Cable, 20A 3p PwCon FCA, 20A 3p PwCon FCB, L. 3m
9513FCAL03
9513FCAL03
(optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FCA socket, L.3m
9533FCAL03
9533FCAL03
(optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FCA socket, L.3m
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black

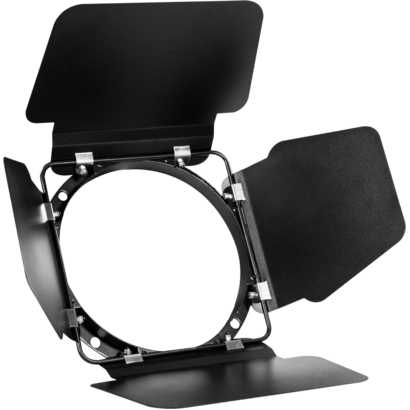

STUDIOCOBBD
STUDIOCOBBD
(optional)

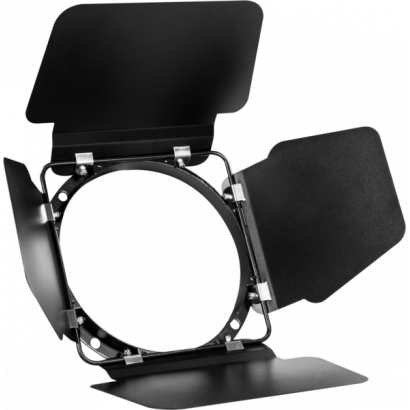

Barn door 4 directional flaps to adjust the light beam, f. frame included
STUDIOCOBL15
STUDIOCOBL15
(optional)

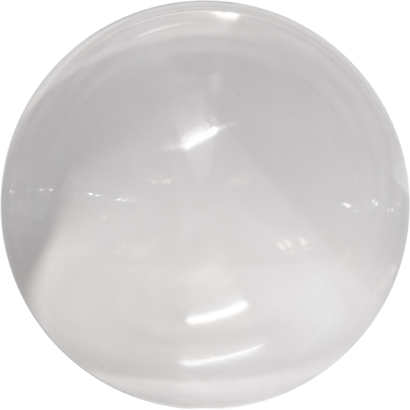

Optics for STUDIOCOB projectors series, 15°
STUDIOCOBL30
STUDIOCOBL30
(included)
Optics for STUDIOCOB projectors series, 30°

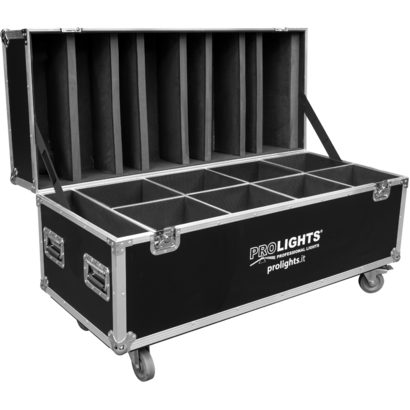

FCLPAR4190
FCLPAR4190
(optional)

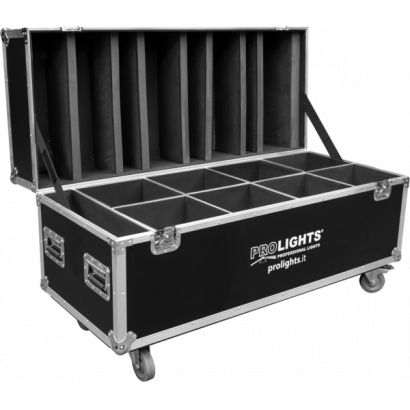

Flight case for 8 STUDIOCOB, VERSAPAR

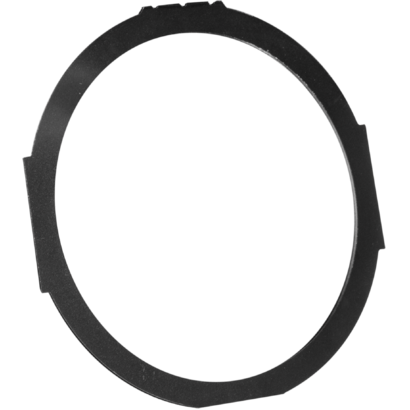

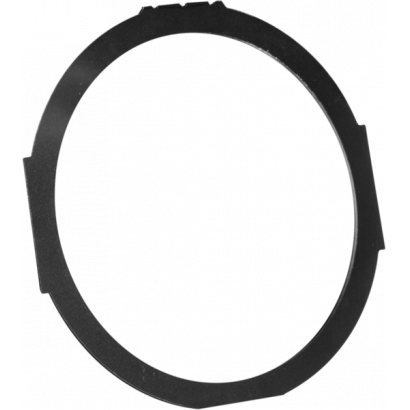

STUDIOCOBTPG
STUDIOCOBTPG
(optional)
Filter frame for STUDIOCOB projectors
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheet Studiocobtu_A4_DATASHEET_(EN).pdf 439KB
Letter datasheet Studiocobtu_A4_DATASHEET_(IT).pdf 414KB

User manual

File name File size Download
User manual Studiocobtubk_USER_MANUAL_ITEN.pdf 2MB
User manual Studiocobtucr_USER_MANUAL_ITEN.pdf 2MB

DMX chart & personalities

File name File size Download
DMX chart Studiocobtu_DMX_CHARTS.pdf 45KB
VectorWorks PROLIGHTS_VECTORWORKS_v23_LIBRARY.vwx 306MB
VectorWorks VECTORWORKS_SYMBOLS.vwx 892KB
VectorWorks VECTORWORKS_SYMBOLS.vwx 998KB
VectorWorks VECTORWORKS_SYMBOLS.vwx 995KB
VectorWorks PROLIGHTS_VECTORWORKS_v18_LIBRARY.vwx 448MB
STUDIOCOBTU Firmware rev. 3.2
manufacturer fixture library (Link) Link
prolights_studiocobtu.d4Download
manufacturer fixture library (Link) Link
prolights_studiocobtu_1ch.hedDownload
prolights_studiocobtu_2ch.hedDownload
prolights_studiocobtu_5ch.hedDownload
STUDIOCOBTU Firmware rev. 2.2
manufacturer fixture library (Link) Link
prolights_studiocobtu.d4Download
manufacturer fixture library (Link) Link
prolights_studiocobtu_1ch.hedDownload
prolights_studiocobtu_2ch.hedDownload
prolights_studiocobtu_5ch.hedDownload

Photometrics

File name File size Download
IES prolights_studiocobtu_ies files.zip 3KB
LDT prolights_studiocobtu_ldt files.zip 2KB
PDF Photometrics Studiocobtubk_PHOTOMETRICS_REPORT.pdf 2MB
PDF Photometrics Studiocobtuwh_PHOTOMETRICS_REPORT.pdf 2MB
Dialux Download DIALux product catalogue -

CAD symbols & drawings

File name File size Download
3D RFA Studiocobtu_3D_REVIT.rfa 1MB
3D SKP Studiocobtu_3D_SKETCHUP.skp 2MB
2D Studiocobtu_2D.dwg 3MB
3D Studiocobtu_3D.dwg 540KB
2D cad symbols Studiocobtu_2DSYMBOLS.dwg 80KB
Technical drawing STUDIOCOBTU_TECHNICAL DRAWINGS.zip 844KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware

Only the latest firmware versions for each hardware revision are available for download.
To download previous firmware versions, log in to the customer care section.
Update Tool: UPBOX1UP5 UPBOX1UP5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
3.3 STABLE 16/11/2020 Firmware for RUNDA fan. Improved Stand Alone Functionality.
2.3 STABLE 16/11/2020 Firmware for SUNON fan. Improved Stand Alone Functionality.
3.2 STABLE 26/06/2019 Firmware for RUNDA fan. Improved Standalone mode operation (Auto/Static). Rev. 1.0
2.2 STABLE 26/06/2019 Firmware for SUNON fan. Improved Standalone mode operation (Auto/Static). Rev. 2
