SUNBLASTFLX
PROLIGHTS

Sunblast FLX new

ORDER CODE: SUNBLASTFLX

IP65 modular and graphical LED Strobe with white beam + RGB+WW plate, 1200W peak power

The Sunblast FLX is a high-performance, IP65-rated LED fixture that combines both strobe and washlight  capabilities for versatile applications. Its hybrid design includes a central linear white LED beam that replicates the traditional xenon-bulb filament of classic strobes, alongside RGB+Warm White LED plate that provide intense washlight with superior color rendering, powered by Spektra OS.

With advanced pixel mapping, the Sunblast FLX offers precise control over 28 individual pixels - 12 for the white LED strip and 16 for the RGB+WW panel - enabling dynamic effects and creative flexibility. With a peak power output of 1200W when strobing and 400W for continuous floodlighting, it's engineered to deliver exceptional brightness.

Designed for easy, tool-free assembly, the Sunblast FLX features a modular rigging system that supports both vertical and horizontal configurations in clusters. Its rugged IP65 rating ensures dependable performance in outdoor environments, making it an ideal solution for festivals, events, and temporary architectural lighting. Equipped with both wired (sACN and Art-Net) and wireless (CRMX) control options, it integrates seamlessly into any lighting system.

SPEKTRA

Main features:

  • IP65-rated hybrid LED strobe featuring a white LED strip and RGB+Warm White plate, delivering 1200W peak power in strobe mode and 400W continuous output
  • Advanced pixel mapping with 28 pixels: 16 for RGB+WW and 12 for the white LED beam
  • Tool-free rigging system supporting both horizontal and vertical modular mounting, with multiple accessory options for versatile setups

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: (Plate 16 px) 1.024 x 1,2W RGB+WW LEDs + (Beam 12 px) 60 x 12W White LEDs
  • Luminous flux: Full Power Strobe - Combined: 108'526 lm @Full
  • Luminous flux: Full Power Wash - Plate: 32'771 lm @full
  • Luminous flux: Full Power Wash - Beam: 45'170 lm @full
  • Luminous flux: Full Power Wash - Combined: 40'507 lm @full
  • Lux: Full Power Strobe - Combined: 1'710lx @5 m full
  • Lux: Full Power Wash - Plate: 467lx @5 m full
  • Lux: Full Power Wash - Beam: 729lx @5 m full
  • Lux: Full Power Wash - Combined: 621lx @5 m full
  • Source life expectancy: > 20.000 h
OPTICS
  • Beam angle: (Plate) RGB+WW: 112° - (Beam) White LEDs: 49° x 130°
  • Field angle: (Plate) RGB+WW: 152° - (Beam) White LEDs: 79° x 155°
COLOUR SYSTEM
  • Colour control: CCT, RGBW, HSI, Colour Macros
  • Colour mixing: RGB+WW + White LEDs
  • CCT: CCT control range from 2.800K to 10.000K, + / - green correction, tungsten emulation
  • White presets: 2.800-10.000K
  • Macros: Gels library on-board
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer, colours
  • Pixel patterns: pre-programmed dynamic and static patterns
  • FX generator: adjustable foreground/background colour, index, speed, direction
  • Static mode: selection of static dimmer, colors and color temperature
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Bracket system: Several brackets available for simply array mounting - see available accessories
  • Hardware on-board: fast ancor points on the front for accessory mounting and on board mechanics for modular assembly of multiple fixtures
  • Body: weatherproof IP65 construction with die-cast magnesium alloy
  • Body colour: black
CONTROL
  • Protocols: DMX512, RDM, ArtNet, sACN, CRMX
  • DMX channels: 7 / 13 / 21 / 36 / 32 / 42 / 47 / 60channel
  • Pixel control: 16 px RGB+WW LEDs + 12 px White LEDs individually select and control sections
  • Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • EtherFlow: Ethernet pass-through switch that preserves network connectivity even when the fixture is unpowered.
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: strobe: 1.200 W (peak) - wash: 400W
  • Standby power: 7,6W
  • Output (at 230V): 2 units on a single power line
  • Power factor: > 0,94
PHYSICAL
  • IP rating: 65 for temporary outdoor application, not for fixed installations
  • Cooling: active, silent operation
  • Suspension and fixing: hanging bracket for floor positioning with "Quick-Lock" system
  • Signal connection: IP65 Seetronic XLR 5p IN/OUT connectors
  • Data connection: Seetronic Ethernet IP in/out connectors
  • Power connection: Seetronic powerCON waterproof IN/OUT connectors
  • Dimensions (WxHxD): 460 x 170 x 170mm / 18.11''x6.69''x6.69''
  • Weight: 11,6kg / 25.57lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, RCM, FCC, cTUVus
BOX CONTENT

Versions

Accessories & Related Products

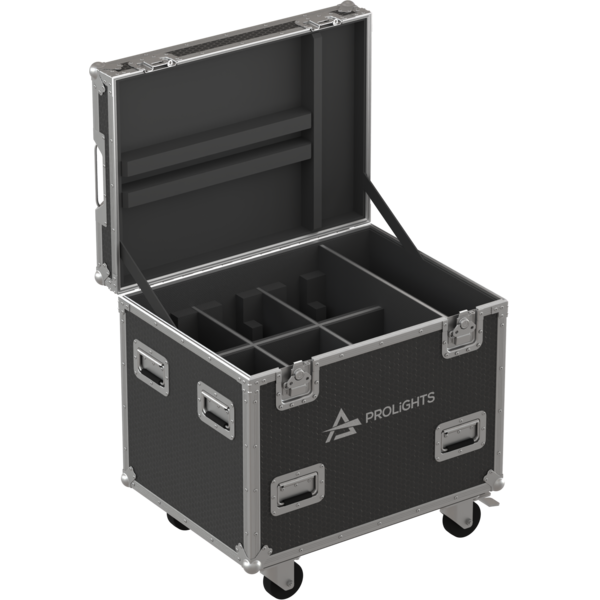

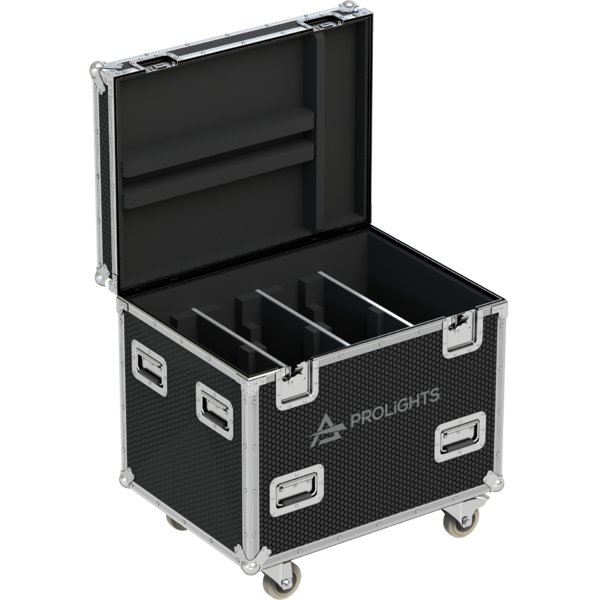

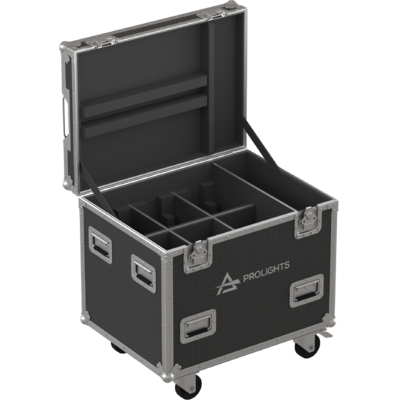

FCLSUNBLASTFLX
FCLSUNBLASTFLX
(Optional)
Flight case for 6x SUNBLASTFLX (with and without bracket)

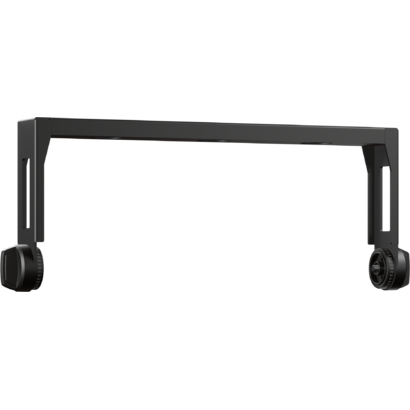

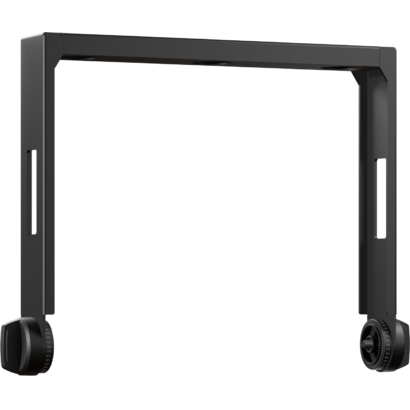

SBLFLXB01H
SBLFLXB01H
(Included)
Horizontal mounting bracket for 1 SUNBLASTFLX

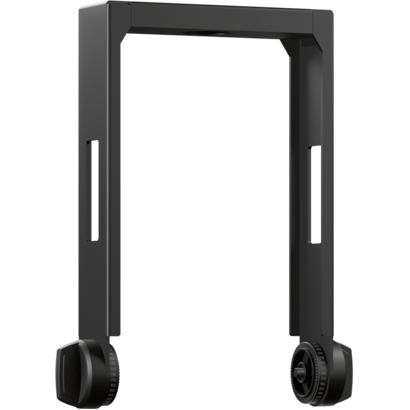

SBLFLXB01V
SBLFLXB01V
(Optional)
Vertical mounting bracket for 1 SUNBLASTFLX

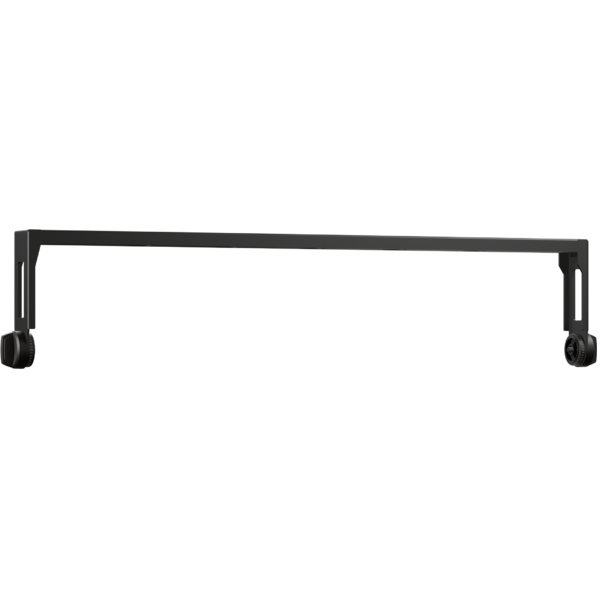

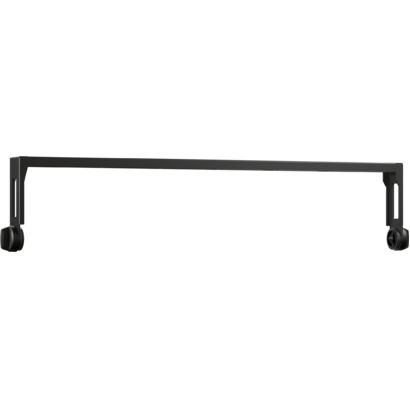

SBLFLXB02H
SBLFLXB02H
(Optional)
Horizontal mounting bracket for 2 SUNBLASTFLX
SBLFLXB02V
SBLFLXB02V
(Optional)
Vertical mounting bracket for 2 SUNBLASTFLX
OS25PLUS
OS25PLUS
(Included)
Quick-lock omega bracket, M12 hole
OS25H3PLUS
OS25H3PLUS
(Optional)
Quick-lock omega bracket, 6 cm height, M12 hole
ECLFRSPG
ECLFRSPG
(Optional)
Spigot for PROLIGHTS fixtures
SBLFLXFILTHD
SBLFLXFILTHD
(Optional)
High diffusion filter for SUNBLASTFLX
SBLFLXFILTMD
SBLFLXFILTMD
(Optional)
Medium diffusion filter for SUNBLASTFLX

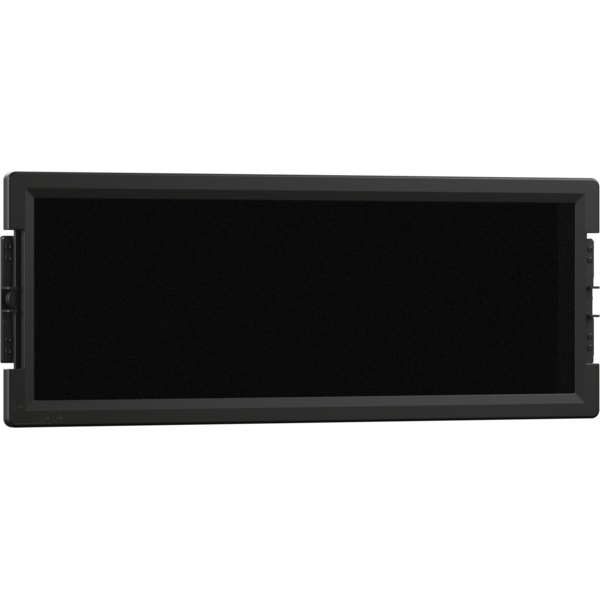

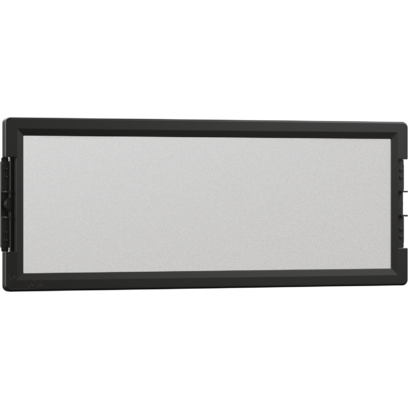

SBLFLXFILTBK
SBLFLXFILTBK
(Optional)
Smoked filter for SUNBLASTFLX

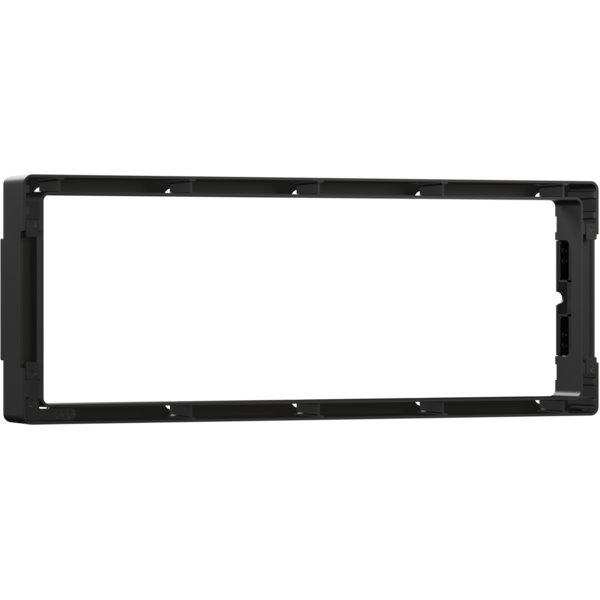

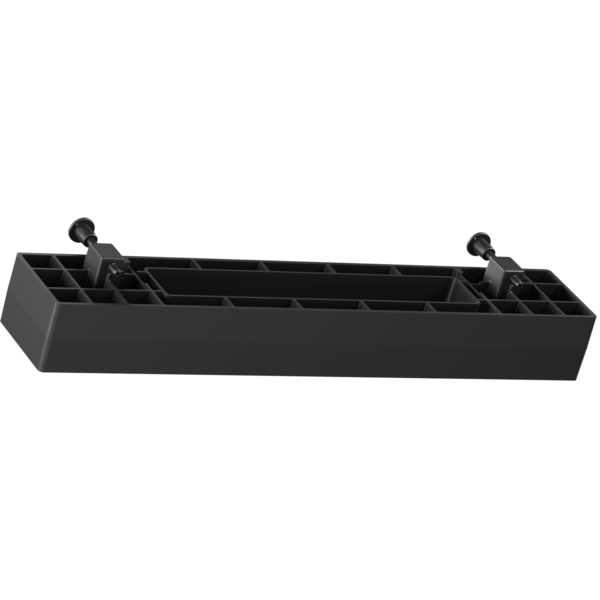

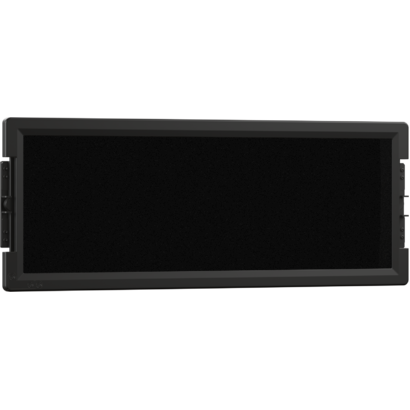

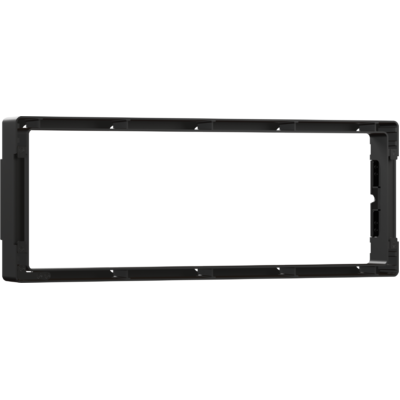

SBLFLXSPACER
SBLFLXSPACER
(Optional)
Filter spacer for SUNBLASTFLX
SBLFLXHB005V
SBLFLXHB005V
(Optional)
Vertical suspension bracket for SUNBLASTFLX
SBLFLXHB01H
SBLFLXHB01H
(Optional)
Horizontal suspension bracket for SUNBLASTFLX

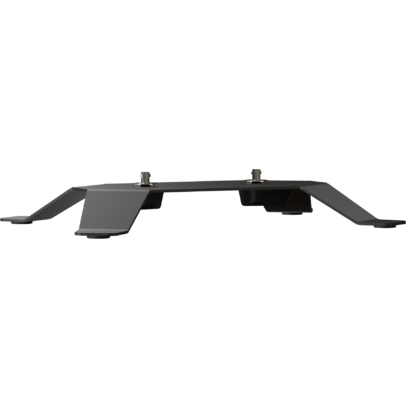

SBLFLXFLR
SBLFLXFLR
(Optional)
Floor bracket for SUNBLASTFLX

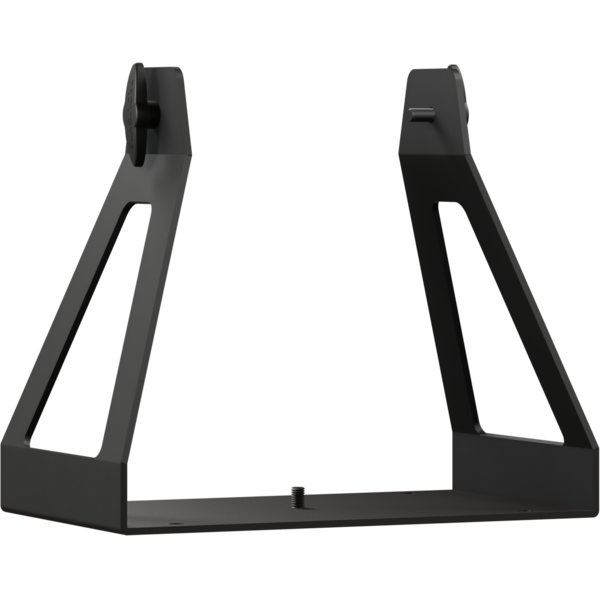

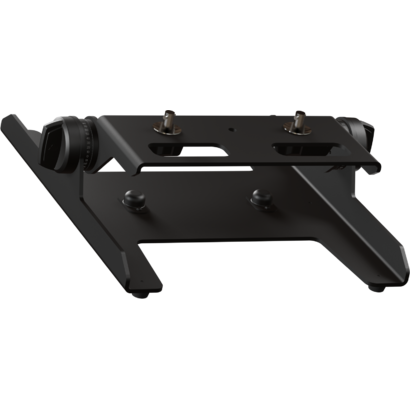

SBLFLXADPFLR
SBLFLXADPFLR
(Optional)
Adapter plate for stacked floor mounting for SUNBLASTFLX

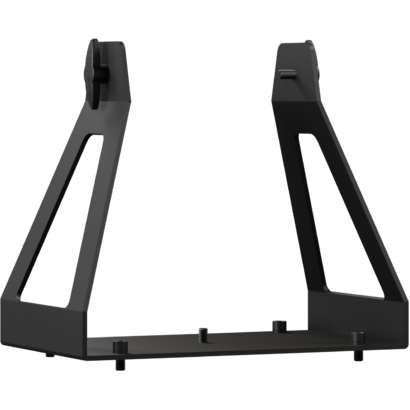

SBLFLXHHFLRB
SBLFLXHHFLRB
(Optional)
Adjustable bracket for hanging or floor mounting of SUNBLASTFLX
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

User manual

DMX chart & personalities

File name File size Download
DMX chartSunblastflx_DMX_CHARTS.pdf1MB
SUNBLASTFLX Firmware rev. 0.0.00.0012
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Tech docs

File name File size Download
Noise ReportSunblastflx_NOISE_REPORT.pdf575KB

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
0.0.00.0012 ALPHA 08/01/2025 New Functions:
  • Added "Test" function in Advanced menu to check the correct operation of the light source in the absence of DMX data signal.
  • Added the following errors in RDM (Manufacturer PID "Error" [0x82EA] ):
    • 0 : No Errors
    • 1 : CTR1 ERROR(BEAM: Light board communication error)
    • 2 : CTR2_1 ERROR (PLATE 1: Light board communication error)
    • 3 : CTR2_2 ERROR (PLATE 2: Light board communication error)
    • 4 : LED_1 TEMP ERROR (BEAM: Lamp board temperature error/temperature too high)
    • 5 : LED_2 TEMP ERROR (PLATE: Lamp board temperature error/temperature too high)
    • 6 : LED_3 TEMP ERROR (PLATE: Lamp board temperature error/temperature too high)
    • 7 : MAINTENANCE TIME (The maintenance time set in the menu has been exceeded)
  • Added new shortcut: DOWN (3 sec) In Home Screen = Quick access to enter the Factory Reload menu.
  • Split Dimmer Curve and Dimmer Speed ​​menu for Plate and Beam. Now you can make settings independently between Plate and Beam by setting Dimmer Curve Plate, Dimmer Speed ​​Plate, Dimmer Curve Beam and Dimmer Speed ​​Beam. Consequently, in RDM:
    • Standard PID "Curves" = will set the Dimmer Curve ​​PLATE
    • Manufacturer Specific PID "Dimmer Curve Beam" = will set the Dimmer Curve ​​BEAM
    • Standard PID "Output Response Time" = will set the Dimmer Speed ​​PLATE
    • Manufacturer Specific PID "Dimmer Speed Beam" = will set the Dimmer Speed ​​BEAM
Improvements:
  • In Connect/DMX Mode menu, renamed "White Beam" instead of "Beam Pixel" for the Beam mode setting.
  • In Connect/DMX Mode menu, renamed "RGBW Pixels" instead of "DMX Mode Pixel" for the Plate Pixel mode setting.
  • Set the following Led Frequency on the firmware (settable via Advanced/Leed Frequency menu or via Control Ch):
    • 1000Hz = Control Ch 64-65 dmx value
    • 2000HZ = Control Ch 66-67 dmx value
    • 4000HZ = Control Ch 68-69 dmx value
    • 6000HZ = Control Ch 70-71 dmx value
    • 10000Hz = Control Ch 72-73 dmx value
    • 25KHZ = Control Ch 74-75 dmx value
  • Changed the DMX "Strobe" mode. Now the order of the DMX channels is as follows:
    • 1 - DIMMER
    • 2 - STROBE
    • 3 - STROBE DURATION
    • 4 - STROBE RATE
    • 5 - PLATE DIMMER
    • 6 - BEAM DIMMER
    • 7 - COLOR MACRO
    • 8 - CONTROL CHANNEL
  • Renamed "CRMX ON/OFF" Manufacturer PID [0x8310] to "Wireless" (0:ON ; 1:OFF) to enable/disable the wireless module.
  • Improved Plate and Beam dimmer management.
  • Improved "DMX Fault" management.
  • Improve graphics settings.
  • Improved "Stand Alone" section.
  • Improved RDM compliance.
  • Improved CCT accuracy.
  • Improved Dimmer Speed (plate and beam).
  • Improved Dimmer, Color Mix and FX when using the device with ArtNet protocol.
Fixed Bugs:
  • After a Factory Reload, Led Frequency does not work correctly: it is necessary to set first 1000Hz and then 25kHz for the device to work correctly.
  • Eliminated green shift at low Dimmer dmx values ​​when setting CCT@5600K and Led Led Frequency@25kHz.
  • CCT channel follows Master Dimmer instead of Plate Dimmer.
  • Setting Crossfade to Pixel Engine@100%, Beam Pixels turn off. Now, they only obey the Beam Dimmer and do not turn off if you set Crossfade To Pixel Engine@100% (they are therefore unrelated to the Plate Pixel control).
  • Master strobe does not work if Xfade to PIxel Engine@255 dmx value, so if you are controlling pixels.
  • Some effects are not symmetrical.
  • Dimmer End "Fade OFF" and "Snap OFF" do not work: the fixture always switches off in snap.
NOTES:
  • To perform a correct firmware update, please download and use the "Upbox_Tool" V1.1.3 software here: https://prolights.it/it/product/UPBOXPRO
  • If you want to use the fixture via sACN/ArtNet, after changing the default IP address a reboot is necessary to store it correctly on the device.
  • DMX Address "Follow Fixture" does not work. Please set the Pixel Plate address manually considering that single Pixel Plate channels will have to start after Main+Beam Pixel channels.

Info Request

News

CPC Production Services relies on PROLIGHTS for professional lighting
March 14, 2025
CPC Production Services relies on PROLIGHTS for professional lighting
Ipswich, Queensland - With a legacy of excellence dating back to 1984, CPC Production Services is a leading live event and broadcast production company in Australia. It has recently chosen to invest in PROLIGHTS solutions, supplied by Show Technology
PROLIGHTS Lights Up the Stage at Vibe Budapest
March 12, 2025
PROLIGHTS Lights Up the Stage at Vibe Budapest
The newly opened Vibe Budapest , the latest gem of the Costes Group , has chosen PROLIGHTS solutions to create spectacular lighting effects and an engaging atmosphere. The lighting system design and installation were managed by LISYS-Project Kft ., which
PROLIGHTS presents ÆtherBox: the single-universe CRMX transceiver with IP65 rating and multi-protocol support
March 11, 2025
PROLIGHTS presents ÆtherBox: the single-universe CRMX transceiver with IP65 rating and multi-protocol support
PROLIGHTS is proud to announce the launch of ÆtherBox , a single-universe CRMX transceiver with an IP65 protection rating, designed to offer versatility and robustness in any environment, from indoor venues to outdoor stages. With a wide range of connectivity
PROLIGHTS Illuminates the 4th Global Ministerial Conference on Road Safety in Morocco
March 07, 2025
PROLIGHTS Illuminates the 4th Global Ministerial Conference on Road Safety in Morocco
The 4th Global Ministerial Conference on Road Safety , held in Morocco, was a landmark event in the global effort to improve road safety. The conference brought together ministers, experts, and stakeholders globally to discuss innovative strategies and
Baycourt Community & Arts Centre Upgrades Stage Lighting with PROLIGHTS Solutions
March 04, 2025
Baycourt Community & Arts Centre Upgrades Stage Lighting with PROLIGHTS Solutions
Baycourt Community & Arts Centre , situated in the heart of downtown Tauranga, is the Bay of Plenty's premier performing arts facility. Designed to serve both the local community and international touring productions, the venue provides cutting-edge spaces
The Valencia's Museu de les Ciències shines with PROLIGHTS
February 27, 2025
The Valencia's Museu de les Ciències shines with PROLIGHTS
In the stunning setting of the Museu de les Ciències de Valencia, an exhibition center that invites visitors to explore the evolution of life, science, and technology through interactive experiences and scientific animations, NOX AUDIOVISUALES chose
HaluPix Duo Wins rAVe [PUBS] Best of ISE 2025 Award!
February 26, 2025
HaluPix Duo Wins rAVe [PUBS] Best of ISE 2025 Award!
PROLIGHTS has been recognized at the rAVe [PUBS] Best of ISE 2025 awards , with HaluPix Duo winning the title of Best New Event Lighting Product in the Rental, Staging & Live Events category. This award highlights the product's innovation, performance,
PROLIGHTS Unveils the Smart BatPlus Neo: Redefining battery uplight, again!
February 13, 2025
PROLIGHTS Unveils the Smart BatPlus Neo: Redefining battery uplight, again!
PROLIGHTS is proud to announce the launch of the Smart BatPlusNeo , the latest innovation in battery uplighting product category . Building on the success of the legendary SmartBat Plus series, this next-generation fixture brings groundbreaking advancements
PROLIGHTS launches Jet Profile 300LT: Compact, Long-Throw Profile moving light
February 11, 2025
PROLIGHTS launches Jet Profile 300LT: Compact, Long-Throw Profile moving light
PROLIGHTS announces the release of the Jet Profile300LT , an all-new moving profile fixture that merges high-precision keylight with the power and reach of a long-throw fixture. Delivering superior aerial effects and long-distance projections, the Jet
PROLIGHTS Launches Astra Profile900: The New Flagship Moving Profile in the High-Power Class
February 07, 2025
PROLIGHTS Launches Astra Profile900: The New Flagship Moving Profile in the High-Power Class
PROLIGHTS announces the release of the Astra Profile900 , a moving head designed to address the needs of lighting professionals in live productions, studios, theatres, and events. Combining brightness, adaptability, and advanced motion technology, the
PROLIGHTS Launches Astra Hybrid260IP: All-Weather Phosphor Laser Hybrid Luminaire
February 05, 2025
PROLIGHTS Launches Astra Hybrid260IP: All-Weather Phosphor Laser Hybrid Luminaire
PROLIGHTS announces the release of the Astra Hybrid260IP , a next-generation hybrid moving head luminaire that delivers unmatched performance and versatility in both indoor and outdoor events. Equipped with a 260W White Phosphor Laser source, the Astra
PROLIGHTS Introduces HaluPix DUO: Blending Pixel Surfaces with Dynamic Beams
February 03, 2025
PROLIGHTS Introduces HaluPix DUO: Blending Pixel Surfaces with Dynamic Beams
PROLIGHTS is proud to announce the launch of the HaluPix Duo , a cutting-edge dual-layer LED matrix panel that introduces a new level of innovation in lighting design for stages and television. This 50x50 cm panel seamlessly combines powerful, long-throw

Subscribe to our Newsletter

Loading...
