SUNRISE2FLXFC

SunRise 2FLXFC

NEW
SPEKTRA

Order Code: SUNRISE2FLXFC

Source
2 x 300W RGBWW + Amber LED
IP rating
 IP65 for temporary outdoor application, not for fixed installations
Weight
9,9kg / 21.83lbs

Key Features

  • IP65 modular LED blinder with 2x300W RGBWW+Amber sources, delivering over 32,000 lumens
  • Full-colour output with authentic Tungsten dim-to-warm emulation
  • Individual pan adjustment for each pod
  • Tool-free modular rigging mechanics on horizontal and vertical axes, fully compatible with Sunblast FLX

The SunRise 2FLXFC re-imagines the classic two-light blinder as an IP65-rated all-rounder that can drench a stage, indoors or out, with vivid, fully-saturated RGBWW + Amber colour, yet glide seamlessly into the familiar amber-red glow of a DWE source as it dims.
Driven by 2x independent 300 W RGBWW + Amber LED pods, each offering ± 20° manual pan, the SunRise 2FLXFC unleashes more than 32,000 lumens of output, making it the brightest full-colour blinder in the industry while maintaining high-CRI, dim-to-warm fidelity.
Built on the proven SunBlast FLX chassis, its rugged die-cast magnesium housing inherits the same fast-lock, tool-free rigging system. Integrated locking connectors on every side let multiple fixtures snap together horizontally, vertically, or in mixed-axis arrays, so designers can build lines, matrices, or colour walls in minutes, whether standing on the floor or suspended from the included cam-lock yoke.
From arena-filling pixels to sweeping audience blinders and wide, even stage washes, the SunRise 2FLXFC couples exceptional brightness with true modular flexibility, empowering lighting professionals to paint stages with colour, intensity, and imagination like never before.

Read less
The SunRise 2FLXFC re-imagines the classic two-light blinder as an IP65-rated all-rounder that can drench a stage, indoors or out, with vivid, fully-saturated RGBWW + Amber colour, yet glide seamlessl...

Photo Gallery

Specifications

LIGHT SOURCE
  • Source: 2 x 300W RGBWW + Amber LED
  • Luminous flux: (60°) 32'920 lm @Full
  • Lux: (60°) 1'520lx @5 m full
  • CRI: 92,8@ 3200K; 93 @ 5600K
  • R9: 96,9 @ 3200K; 86 @ 5600K
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Beam angle: 53°
  • Field angle: 92°
COLOUR SYSTEM
  • Spektra OS: unmatched color precision and consistency
  • Colour mixing: RGBA + Warm White
  • CCT: CCT control, + / - green correction, tungsten emulation
  • White presets: 2.700 K ~ 10.000K
DYNAMIC EFFECTS
  • Static mode: selection of static dimmer, colors and color temperature
  • Manual mode: manual adjustment of colour
  • Special features: tungsten emulation activation
BODY
  • Bracket system: Several brackets available for simply array mounting - see available accessories
  • Hardware on-board: fast ancor points on the front for accessory mounting and on board mechanics for modular assembly of multiple fixtures
  • Pan range: +/- 20° with manual regulation
  • Body: weatherproof IP65 construction with die-cast magnesium alloy
  • Body colour: black
  • Other: pan directional adjustment for each pod
CONTROL
  • Protocols: DMX512, RDM, ArtNet, sACN, CRMX (optional)
  • DMX channels: several DMX modes from 1 ch to 35channel
  • Modular Control Architecture (MCA): Modular and user-customizable DMX architecture
  • Pixel control: pixel2pixel control
  • Wireless Control: optional, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: via DMX with UPBOXPRO (USB-DMX interface not included) or via Ethernet (Art-Net with DMX-Workshop)
  • EtherFlow: Ethernet pass-through switch that preserves network connectivity even when the fixture is unpowered.
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 6 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 1000 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 630W
  • Standby power: 4,3 W
  • Output (at 230V): 3 units on a single power line
  • Power factor: > 0,94
PHYSICAL
  • IP rating: IP65 for temporary outdoor application, not for fixed installations
  • Cooling: active, silent operation
  • Suspension and fixing: hanging bracket for floor stand. Also can fit the fast quick lock OMEGA bracket
  • Signal connection: IP65 Seetronic XLR 5p IN/OUT connectors
  • Data connection: IP65 Seetronic Art-Net RJ45 IN/OUT
  • Power connection: Seetronic powerCON TRUE IP65 IN/OUT
  • Dimensions (WxHxD): 542x173x192mm / 21.34''x6.81''x7.56''
  • Weight: 9,9kg / 21.83lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, RCM, FCC, cTUVus
BOX CONTENT
  • 1 x SUNRISE2FLXFC
  • 1 x SBLFLXB01H
  • 1 x OS25PLUS
  • 1 x 1,5 meters 3G1,5mmq power cable (BARE END - SEETRONIC POWERCON TRUE1 IP65 power connector)
  • User Manual

Accessories & Related Products

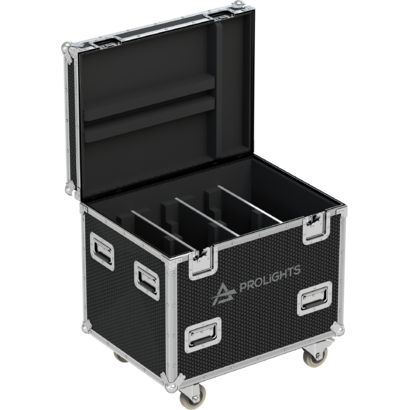

Optional FCLSUNFLX

Flight case per 6 pcs SUNRISE2FLX/SUNBLASTFLX (with and without bracket)

Order Code: FCLSUNFLX

Optional HDWK

Wireless kit, compatible with multiple Prolights products

Order Code: HDWK

Included OS25PLUS

Quick-lock omega bracket, M12 hole

Order Code: OS25PLUS

Optional OS25H3PLUS

Quick-lock omega bracket, 6 cm height, M12 hole

Order Code: OS25H3PLUS

Optional ECLFRSPG

Spigot for PROLIGHTS fixtures

Order Code: ECLFRSPG

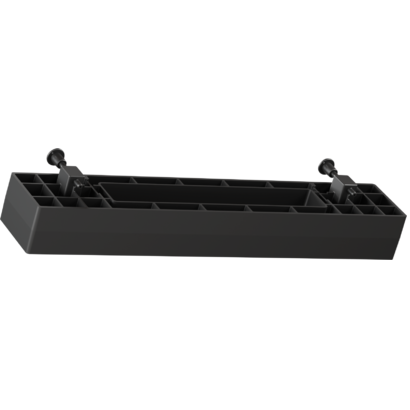

Optional SRFLXSPC

Spacer for SUN FLX series projectors

Order Code: SRFLXSPC

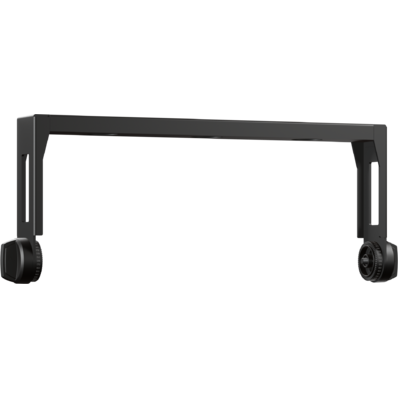

Included SBLFLXB01H

Horizontal mounting bracket for 1 SUNBLASTFLX

Order Code: SBLFLXB01H

Optional SBLFLXB01V

Vertical mounting bracket for 1 SUNBLASTFLX

Order Code: SBLFLXB01V

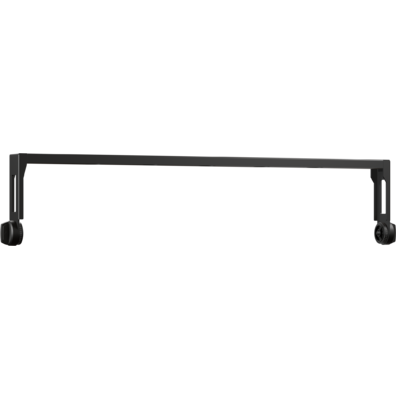

Optional SBLFLXB02H

Horizontal mounting bracket for 2 SUNBLASTFLX

Order Code: SBLFLXB02H

Optional SBLFLXB02V

Vertical mounting bracket for 2 SUNBLASTFLX

Order Code: SBLFLXB02V

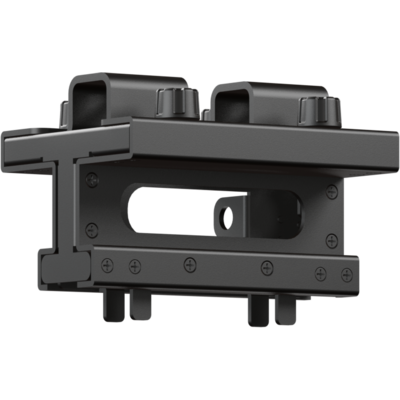

Optional SBLFLXHB005V

Vertical suspension bracket for SUNBLASTFLX

Order Code: SBLFLXHB005V

Optional SBLFLXHB01H

Horizontal suspension bracket for SUNBLASTFLX

Order Code: SBLFLXHB01H

Optional SBLFLXFLR

Floor bracket for SUNBLASTFLX

Order Code: SBLFLXFLR

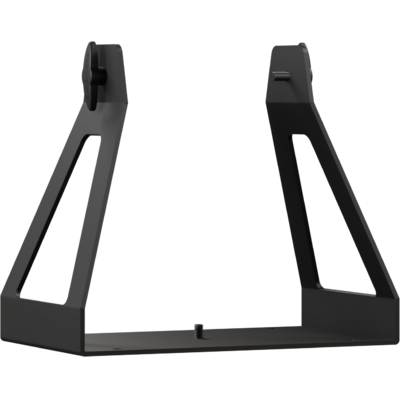

Optional SBLFLXADPFLR

Adapter plate for stacked floor mounting for SUNBLASTFLX

Order Code: SBLFLXADPFLR

Optional SBLFLXHHFLRB

Adjustable bracket for hanging or floor mounting of SUNBLASTFLX

Order Code: SBLFLXHHFLRB

Optional RSR0630B

Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black

Order Code: RSR0630B

Optional C6002B

Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White

Order Code: C6002B

Optional UPBOXPRO

Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

Order Code: UPBOXPRO

Downloads

Technical documentation and support files

Data sheet & specs Data sheet & specs

File name File size Download
Letter datasheetSunrise2flxfc_A4_DATASHEET_(ITA).pdf(02/09/2025)630KB
Letter datasheetSunrise2flxfc_A4_DATASHEET_(EN).pdf(27/08/2025)639KB
Tender SpecificationSunrise2flxfc_TENDER_SPECIFICATION.pdf(05/09/2025)280KB

User manual User manual

File name File size Download
User manualSunrise2flxfc_USER_MANUAL_EN.pdf(29/10/2025)18MB
User manualSunrise2flxfc_General_Safety_Information.pdf(29/09/2025)3MB

DMX chart & personalities DMX chart & personalities

File name File size Download
DMX chartSunrise2flxfc_DMX_CHARTS.pdf(29/08/2025)377KB

SUNRISE2FLXFC Firmware rev. 0.0.00.0011

manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

CAD symbols & drawings CAD symbols & drawings

File name File size Download
3D SKPSunrise2flxfc_3D.skp(17/07/2025)772KB
2DSUNRISE2FLXFC_2D.zip28MB
3DSunrise2flxfc_CAD_3D.dwg(17/07/2025)518KB
2D cad symbolsSunrise2flxfc_SUNRISE2FLXFC_2DSYMBOLS.dwg(01/09/2025)24KB
Technical drawingSunrise2flxfc_TECHNICAL_DRAWING.pdf(14/07/2025)560KB
VectorWorksSUNRISE2FLXFC_SYMBOLS.vwx(01/09/2025)872KB

Tech docs Tech docs

File name File size Download
Noise ReportSunrise2flxfc_NOISE_REPORT.pdf(15/09/2025)602KB

Firmware


Firmware update instructions

1 Download the firmware (complete download is available on Customer Care - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Additional info:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all interfaces (UPBOXPRO, UPBOX1 and UPBOX2)
  • It's possible to update NET boards (with .EHEX files) following this guide with software Professional Uploader
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
0.0.00.0011 ALPHA 31/10/2025 New Function:
  • Added Factory Reload "2 Lite". It works like a Factory Reload "Basic" but set by default:
    • Dimmer Curve@Incandescent
    • DImmer Speed@Incandescent
    • Tungsten Emulation@ON
Improvements:
  • Setting the DMX modes "DUAL 8 bit" and "DUAL 16 bit", Spektra Calibration@OFF will be set automatically because these DMX modes can only work with calibration off.
  • Improved Dimmer Speed ​​Incandescent.
Fixed Bug:
  • CCT Preset PID does not work
Rev. 1.0
